Rotem communicator User Manual

Communicator

User’s Manual

Page 1 of 82 Revision No.: 1.5

WARRANTY & LIMITATION OF LIABILITY

1. ROTEM warrants that the product shall be free of defects in materials or
workmanship and will conform to the technical specification for a period of 1 (one)
year from the date of initial installation on sight (the "warranty period").

2. Load cells are not covered by ROTEM’s warranty.

3. ROTEM warrants that during said warranty period, any item/items or part/parts of
equipment found defective with respect to materials or workmanship or which do not
conform to the technical specification shall be repaired or replaced (at ROTEM's sole
discretion) , free of charge.

4. During the warranty period, in the event of an alleged defect, authorized reseller in
relevant region should be reported as soon as possible from the date of noticing the
said defect, but no longer than thirty (30) days from such a discovery. The report shall
include (1) a short description of the defects noticed (2) type of card / component and
its' matching serial number.

5. ROTEM's sole liability under this warranty is the repair or replacement of the

defective item of product.

Conditions and Limitations

1. ROTEM will not be responsible for any labor costs or expenses associated with
replacement of defective items or other part of the product or repair.

2. This warranty shall not cover: (i) product or part therein which has been modified
(without prior written approval of ROTEM), or (ii) product or part therein which has not
handled or installed by ROTEM's authorized reseller or (iii) product or part therein
which has either handled or installed not in strict accordance with ROTEM's
instructions, (iv) products which where used for function other then agriculture
industry.

3. This warranty will not apply in the following cases: (i) if all components of the product
are not originally supplied by ROTEM (ii) the defect is the result of act of nature,
lighting strikes, electrical power surge or interruption of electricity (iii) the defect is the
result of accident, misuse, abuse, alteration, neglect, improper or unauthorized
maintenance or repair.

ROTEM worn and alert all users that the Product is inherently complex and may not be
completely free of errors. ROTEM's products are designed and manufactured to provide
reliable operation. Strict tests and quality control procedures are applied to every product.
However, the possibility that something may fail beyond our control exists. Since these
products are designed to operate climate control and other systems in confined livestock
environments, where failure may cause severe damage, the user should provide adequate
back up and alarm systems. These are to operate critical systems even in case of a
ROTEM system failure. Neglecting to provide such a backup will be regarded as the user’s
willingness to accept the risk of loss, injury and financial damage.
In no event will ROTEM be liable to user or any third party for any direct, indirect,
special, consequential or incidental damages, including but not limited to any damage
or injury to business earnings, lost profits or goodwill, personal injury, costs of delay,
any failure of delivery, costs of lost or damaged data or documentation, lost or
damaged products or goods, lost sales, lost orders, lost income.
Except of the above express warranty, ROTEM makes no other warranties, express
or implied, relating to the products. ROTEM disclaims and excludes the implied
warranties of merchantability and fitness for a particular purpose. No person is
authorized to make any other warranty or representation concerning the performance
of the products other than as provided by ROTEM.

Software Version: 2.14r1
Document Version: 1.5

ROTEM Computerized Controllers Ltd.  972-3-920-6200  FAX: [phone] ISRAEL

Web site: www.rotem.com, Email: [e-mail]

Page 2 of 82 Revision No.: 1.5

Table of Contents

TABLE OF FIGURES.................................................................................................4

1) USER'S PROFILE ..................................................................................................7

1.1 Description .............................................................................................7

1.2 Main Features ........................................................................................7

2) ABBREVIATIONS..................................................................................................7

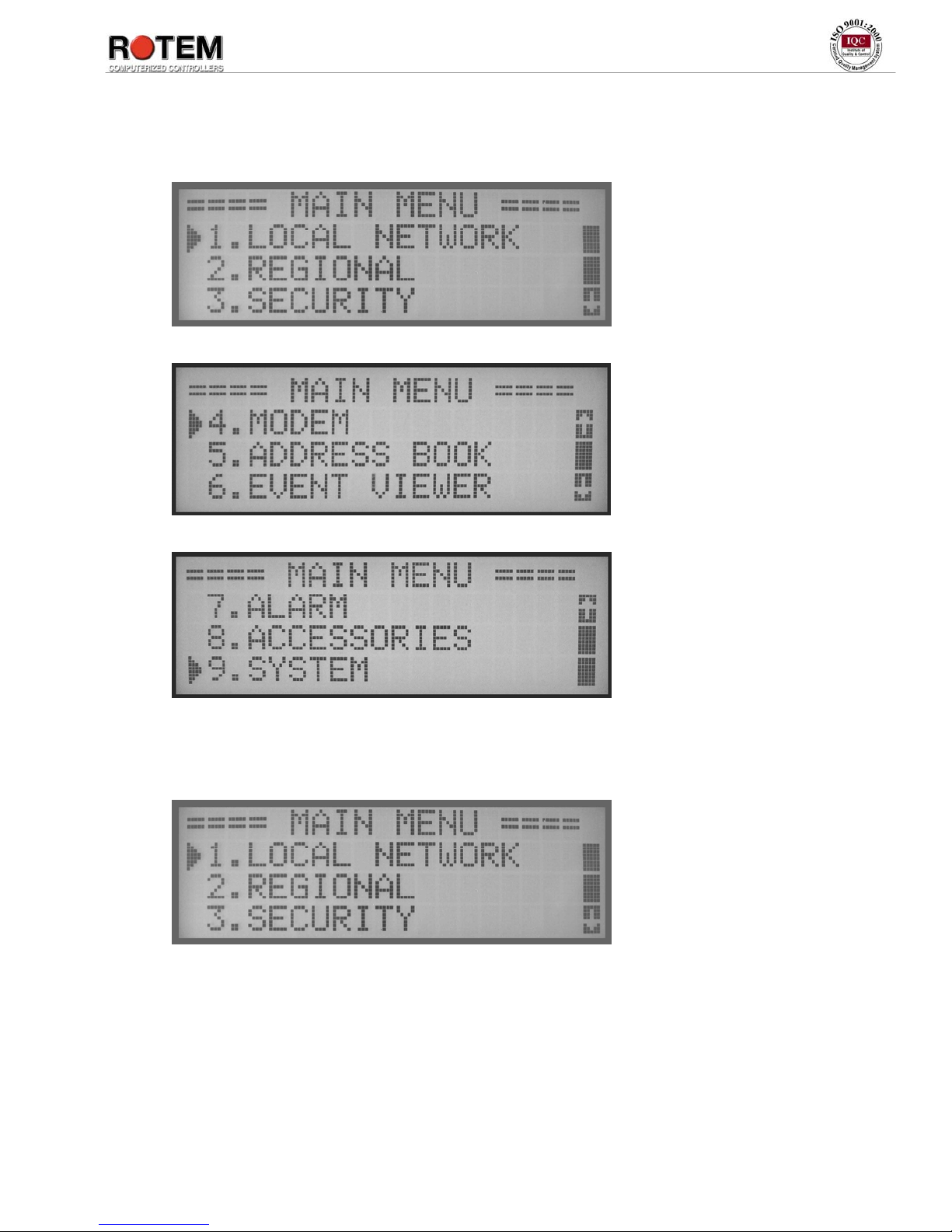

3) USER INTERFACE................................................................................................8

1. Front Panel........................................................................................8

2. Hot Keys ............................................................................................9

4) COMMUNICATION SETTING..........................................................................13

I) Initial Setup .............................................................................................13

1. Hardware Profile ................................................................................. 13

2. Local Network Setup........................................................................... 13

3. Regional Setting .................................................................................13

II) Advanced Settings .................................................................................14

1. Local Network.........................................................................................14

1.1 My Farm............................................................................................15

1.2 Controller Port................................................................................... 15

1.3 Serial Port .........................................................................................15

1.4 Test................................................................................................... 16

1.4.1 RS232/RS485 ............................................................................16

1.4.2 RF ..............................................................................................16

1.5 Network List ......................................................................................17

2. Regional Setting .....................................................................................17

3. Security ..................................................................................................17

4. Modem ...................................................................................................18

4.1 Line Modem ......................................................................................18

4.1.1 Setup..........................................................................................19

4.1.2 Pager (send page)......................................................................20

4.1.2.1 Pager Setup ............................................................................20

4.1.2.2 Test (send page) ..................................................................... 21

4.1.3 Dial Out ......................................................................................21

4.1.4 Phone Line ................................................................................. 22

4.2 GSM Modem..................................................................................... 22

4.2.1 Setup..........................................................................................22

4.2.2 Signal Strength........................................................................... 22

4.2.3 Send SMS .................................................................................. 23

5. Address Book .........................................................................................23

5.1 Contact Group ..................................................................................23

5.2 Options .............................................................................................24

6. Event Viewer ..........................................................................................24

6.1 Application ........................................................................................24

6.2 Security.............................................................................................24

6.3 System..............................................................................................25

7. Alarm...................................................................................................... 25

7.1 Network.............................................................................................25

7.1.1 Reset..........................................................................................25

7.2 Communicator ..................................................................................26

Page 3 of 82 Revision No.: 1.5

7.2.1 Reset..........................................................................................26

7.2.2 Options.......................................................................................27

7.2.3 View ...........................................................................................27

7.2.4 Disable Alarm............................................................................. 27

7.3 Test (relay)........................................................................................ 27

8. Accessories ............................................................................................28

8.1 Digital Input....................................................................................... 28

8.1.1 Setup..........................................................................................28

8.1.2 Test ............................................................................................ 29

8.2 Relay.................................................................................................29

8.2.1 Setup..........................................................................................29

8.2.2 Test ............................................................................................ 30

8.3 Save / Restore Settings .................................................................... 30

8.3.1 Restore....................................................................................... 30

8.3.2 Save ...........................................................................................30

9. System ...................................................................................................31

9.1 Hardware Profile ............................................................................... 31

9.2 Voice.................................................................................................31

9.3 Battery ..............................................................................................32

9.3.1 Battery Test................................................................................ 32

9.3.2 Options.......................................................................................33

9.4 Test................................................................................................... 34

9.4.1 RS232/RS485 ............................................................................34

9.4.2 RF ..............................................................................................34

9.4.3 Pager..........................................................................................35

9.4.4 Dial Out ......................................................................................35

9.4.5 Phone Line ................................................................................. 36

9.4.6 GSM Signal ................................................................................ 36

9.4.7 SMS ...........................................................................................36

9.4.8 Alarm Relay................................................................................ 37

9.4.10 Relays ......................................................................................37

9.4.11 EEPROM.................................................................................. 38

9.4.12 Voice ........................................................................................38

9.4.13 Battery......................................................................................38

9.4.14 Keyboard.................................................................................. 39

5) SENDING TEST MESSAGE COMMANDS AND STATUS REQUESTS

FROM / TO THE COMMUNICATOR...................................................................40

6) NETWORK SETUP..............................................................................................41

7) VOICE – DIALING TO THE COMMUNICATOR..........................................42

8) VOICE DIAL OUT TO CONTACT LIST..........................................................43

9) FLOW CHART OF VOICE DIAL OUT PROCESS.........................................44

10) SPECIFICATION ...............................................................................................46

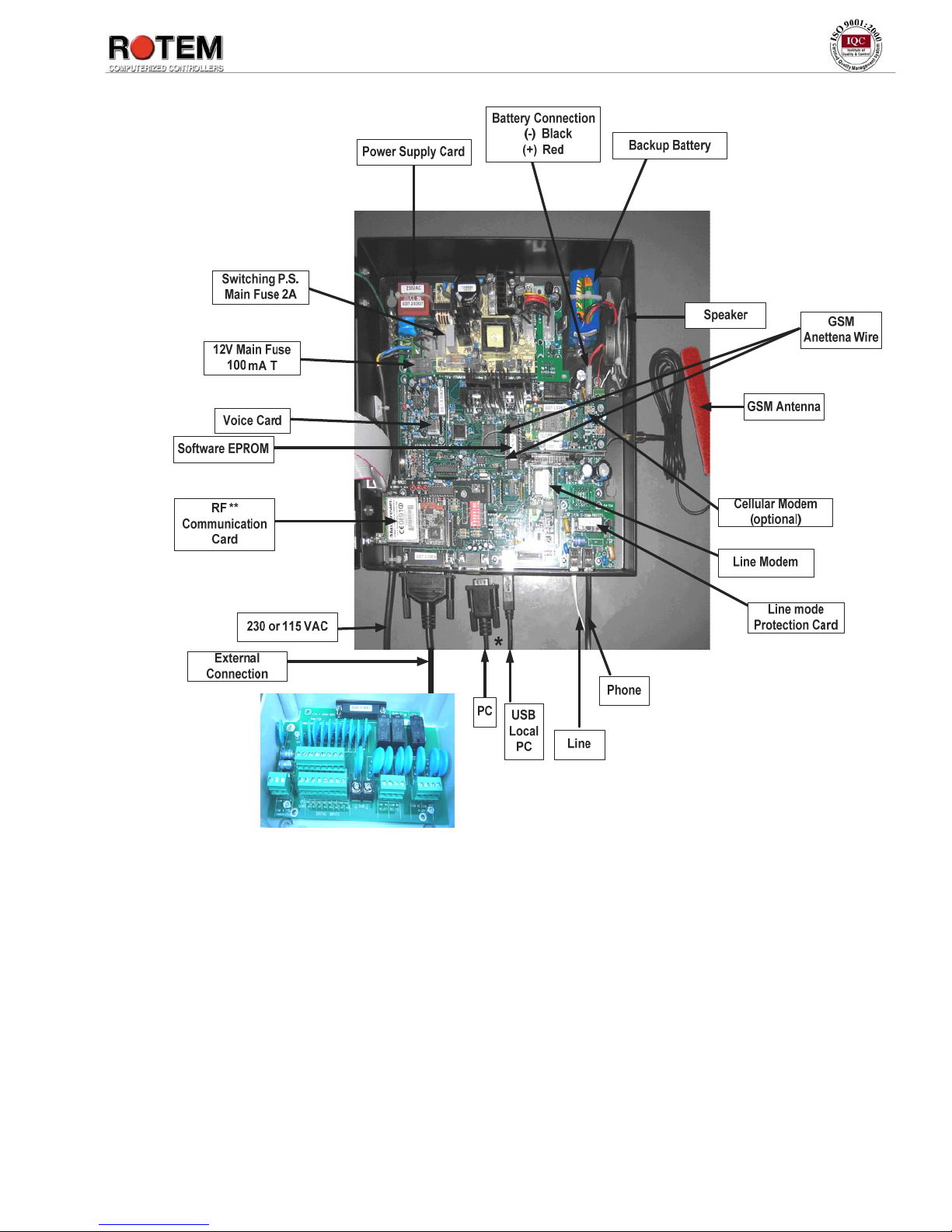

11) INSTALLATION.................................................................................................47

11.1 Network Connection ........................................................................... 53

Connecting the External Connection box to Rotem's controllers using RS-

232 Card ................................................................................................. 53

Approximate Distances & Baud rate ...................................................54

Page 4 of 82 Revision No.: 1.5

Connecting the External Connection box to Rotem's controllers using RS-

485 Card ................................................................................................. 55

Approximate Distances & Baud rate ...................................................56

11.2 RF Network Connection .....................................................................57

Option A with Platinum Plus RF (RCLP-RF) ...........................................57

Option B with Platinum Plus RF Remote ................................................58

11.3 Routing Considerations ...................................................................... 59

12) APPENDIX A: TROUBLESHOOTING...........................................................60

Hardware ................................................................................................ 60

Communication.......................................................................................60

Cellular Modem....................................................................................... 62

RF Communication ................................................................................. 62

Voice Card ..............................................................................................63

Alarm ......................................................................................................63

Line Modem ............................................................................................64

13) APPENDIX B: RF...............................................................................................65

14) APPENDIX C: ALARM CODE NUMBERS....................................................68

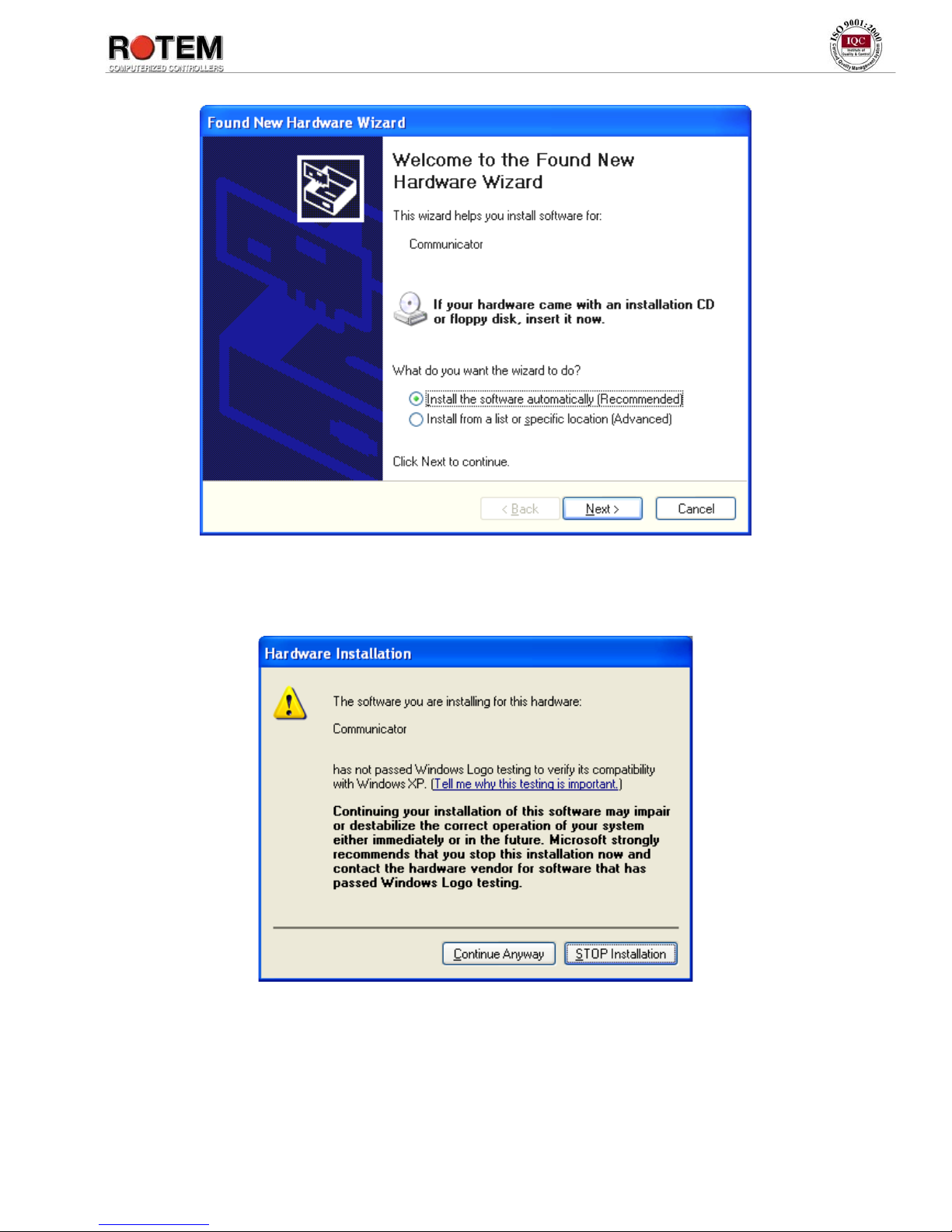

15) APPENDIX D: USB DRIVER INSTALLATION............................................72

1) Files attached.........................................................................................72

2) Driver Installation ...................................................................................72

2.1) Driver Installation using Windows XP .............................................. 72

2.2) Driver Installation using Windows 2000 ...........................................77

2.3) Virtual COM Port Driver Installation Windows 98 SE....................... 78

16) APPENDIX E: ORDERING INFORMATION................................................79

Table of Figures

Fig. 1: Front Panel................................................................................................................. 8

Fig. 2: Example of using Hot Key '0' .................................................................................. 11

Fig. 3: Main menu screenshot – part 1................................................................................ 14

Fig. 4: Main menu screenshot – part 2................................................................................ 14

Fig. 5: Main menu screenshot – part 3................................................................................ 14

Fig. 6: Main Menu screenshot............................................................................................. 14

Fig. 7: Farm/Site option screenshot..................................................................................... 15

Fig. 8: Local Network menu screenshot.............................................................................. 15

Fig. 9: Controllers Port option screenshot If yes RF there are jumpers > Appendix........... 15

Fig. 10: Serial Port option screenshot.................................................................................... 16

Fig. 11: Modem menu screenshot ......................................................................................... 16

Fig. 12: 'Communication' option screenshot ......................................................................... 16

Fig. 13: 'RF Test' option screenshot ...................................................................................... 16

Fig. 14: RF screenshot........................................................................................................... 17

Fig. 15: 'Network List' menu screenshot ............................................................................... 17

Fig. 16: 'Regional Setting' menu screenshot.......................................................................... 17

Fig. 17: 'Security' option screenshot...................................................................................... 18

Fig. 18: 'Modem' menu screenshot........................................................................................ 18

Fig. 19: Line Modem menu screenshot – part 1.................................................................... 18

Fig. 20: Line Modem menu screenshot – part 2.................................................................... 19

Fig. 21: 'Line Modem' menu screenshot – Part 1 .................................................................. 19

Fig. 22: 'Line Modem' menu screenshot – Part 2 .................................................................. 19

Page 5 of 82 Revision No.: 1.5

Fig. 23: Advanced screenshot................................................................................................ 20

Fig. 24: Pager screenshot....................................................................................................... 20

Fig. 25: Test screenshot – part 1............................................................................................ 21

Fig. 26: Test screenshot – part 2............................................................................................ 21

Fig. 27: 'Dial Out' option selection Screenshot ..................................................................... 21

Fig. 28: 'Phone Line' option selection screenshot.................................................................. 22

Fig. 29: 'GSM Modem' menu screenshot .............................................................................. 22

Fig. 30: 'Cellular Modem' option screenshot......................................................................... 22

Fig. 31: 'Signal Strength' option screenshot .......................................................................... 22

Fig. 32: 'Send SMS' option screenshot.................................................................................. 23

Fig. 33: 'Address Book' menu screenshot.............................................................................. 23

Fig. 34: 'Options' menu screenshot........................................................................................ 24

Fig. 35: 'Event Viewer' menu screenshot .............................................................................. 24

Fig. 36: 'Application Event' option screenshot...................................................................... 24

Fig. 37: 'System Event' option screenshot............................................................................. 25

Fig. 38: 'Alarm' menu screenshot.......................................................................................... 25

Fig. 39: 'Network' menu screenshot....................................................................................... 25

Fig. 40: Reset screenshot....................................................................................................... 26

Fig. 41: Reset screenshot after clicking on '?' key................................................................. 26

Fig. 42: 'Communicator' menu screenshot............................................................................. 26

Fig. 43: 'Reset Alarm' option screenshot............................................................................... 27

Fig. 44: 'Alarm Options' features screenshot......................................................................... 27

Fig. 45: 'Alarm Viewer' features screenshot.......................................................................... 27

Fig. 46: 'Accessories' menu screenshot ................................................................................. 28

Fig. 47: 'Digital Input' menu screenshot................................................................................ 28

Fig. 48: 'Setup' selection screenshot...................................................................................... 28

Fig. 49: 'Test' selection screenshot........................................................................................ 29

Fig. 50: Relay menu screenshot............................................................................................. 29

Fig. 51: Relays setting screenshot ......................................................................................... 29

Fig. 52: 'Relays Test' option screenshot ................................................................................ 30

Fig. 53: 'Save/Restore Setting' menu screenshot................................................................... 30

Fig. 54: 'Memory Restore Point' selection screenshot........................................................... 30

Fig. 55: 'Save' selection screenshot ....................................................................................... 31

Fig. 56: 'System' menu screenshot......................................................................................... 31

Fig. 57: Hardware Profile screenshot.................................................................................... 31

Fig. 58: 'Voice Setting' menu screenshot............................................................................... 32

Fig. 59: 'Battery' menu screenshot......................................................................................... 32

Fig. 60: Battery Test screenshot............................................................................................ 32

Fig. 61: Power Options screenshot........................................................................................ 33

Fig. 62: 'System Test' menu screenshot................................................................................. 34

Fig. 63: 'Communication' option screenshot ......................................................................... 34

Fig. 64: 'RF Test' option screenshot ...................................................................................... 34

Fig. 65: RF screenshot........................................................................................................... 35

Fig. 66: Test screenshot – part 1............................................................................................ 35

Fig. 67: Test screenshot – part 2............................................................................................ 35

Fig. 68: 'Dial Out' option selection Screenshot ..................................................................... 36

Fig. 69: 'Phone Line' option selection screenshot.................................................................. 36

Fig. 70: 'Signal Strength' option screenshot .......................................................................... 36

Fig. 71: 'Send SMS' option screenshot.................................................................................. 36

Fig. 72: Alarm Relay screenshot ........................................................................................... 37

Fig. 73: 'Test' selection screenshot........................................................................................ 37

Fig. 74: Relays Test screenshot............................................................................................. 37

Fig. 75: EEPRO Test screenshot........................................................................................... 38

Fig. 76: 'Voice Setting' menu screenshot............................................................................... 38

Fig. 77: Battery Test screenshot............................................................................................ 38

Fig. 78: Keyboard screenshot................................................................................................ 39

Page 6 of 82 Revision No.: 1.5

Fig. 79: Hot key '0' ................................................................................................................ 41

Fig. 80: 'Auto Answer' screenshot......................................................................................... 42

Fig. 81: 'Voice Dial In' parameter screenshot........................................................................ 42

Fig. 82: 'Hardware Profile' menu screenshot......................................................................... 47

Fig. 83: 'Battery Test' selection screenshot............................................................................ 47

Fig. 84: Functional block diagram......................................................................................... 48

Fig. 85: Wiring Diagram using RF communication card...................................................... 49

Fig. 86: Wiring Diagram using RF communication card – external view............................. 51

Fig. 87: External connection box wiring diagram................................................................. 52

Fig. 88: Connection with RS-232 card wiring diagram......................................................... 53

Fig. 89: Connection with RS-485 card wiring diagram......................................................... 55

Fig. 90: Adjusting the volume............................................................................................... 64

Fig. 91: Channel explanation................................................................................................. 66

Fig. 92: Install Driver screenshot .......................................................................................... 72

Fig. 93: Software Installation screenshot – part 1................................................................. 73

Fig. 94: Software Installation screenshot – part 2................................................................. 73

Fig. 95: Pre-installer screenshot............................................................................................ 74

Fig. 96: Hardware Wizard USB Communicator screenshot – part 1..................................... 74

Fig. 97: Hardware Installation screenshot............................................................................. 75

Fig. 98: Hardware Wizard USB Communicator screenshot – part 2..................................... 75

Fig. 99: Hardware Wizard Communicator screenshot – part 1............................................. 76

Fig. 100: Hardware Installation screenshot............................................................................. 76

Fig. 101: Hardware Wizard Communicator screenshot – part 2............................................. 77

Table of Tables

Table 1: Hot keys summary..................................................................................................... 10

Table 2: Baud rate states.......................................................................................................... 65

Table 3: Jumper modes summary............................................................................................ 65

Table 4: RF performance range............................................................................................... 66

Table 5: Potential Signal Strength Loss due to Antenna Cable Length .................................. 67

Page 7 of 82 Revision No.: 1.5

1) User's Profile

This manual is meant to be used by either any grower or its' authorized personnel
who own any kind of either a farm or a greenhouse.

1.1 Description

ROTEM Communicator is a device for alarm purposes and central communication
systems.
The Communicator has a user friendly interface with an alfa-numeric keypad, 20
character X 4 line LCD and indicative LED.

1.2 Main Features

1. Supports several communication sources and can link to any / all ROTEM
controllers simultaneously.

2. Plugs in voice solution, supports incoming and outgoing phone calls in
case of alarms and status reports. Voice messages can be edited according
to personal preference.

3. Plugs in analog modem can speed up to 56Kbit with V.92, USB, Data and
Voice Functions.

4. Plugs in cellular modem (GSM/GPRS) providing two-way wireless
capabilities via GSM services

5. Mobile originated and mobile terminated SMS messages.

6. 8 Digital Inputs

7. 3 Dry Contact, Output Relays 5 Amp

8. Battery Backup

2) Abbreviations

Abbreviation Meaning Description

RD Receive Data

TD Transmit Data
DTR Data Terminal Ready
DCD Data Carrier Detect
LED Light Emitting Diode – an electronic

device used to indicate the status of
various functions on the front panel.

Page 8 of 82 Revision No.: 1.5

3) User Interface

1. Front Panel

Fig. 1: Front Panel

Available Keys

Every item is explained according to its' number seen in Fig. 1.

1. Main menu screen.

2. Alarm LED – is activated when one or more alarm conditions are detected.
The LED is turned off after doing 'Reset' and by that is acknowledged. When
the LED is off the controller will show Normal state, and all alarms are in
reset mode in all houses.

3. P.C. LEDs – when their lights turn on indicates an existence of PC
communication.

▪ 'Com 1 TD': indicating communication in PC TD.

▪ 'Com 1 RD': indicating communication in PC RD.

4. Modem LEDs – when their lights turn on, indicates an existence of Modem
communication.

• 'Com 2 TD': indication communication in PC TD.

• 'Com 2 RD': indicating communication in PC RD.

• 'Com 2 DTR': indicating the modem communication operates well.

• 'Com 2 DCD': indicating communication in DCD.

5. Output LEDs – when their lights turn on, indicates the relay's status.

6. Cellular LEDs – when their lights turn on indicates an existence of Cellular
communication.

Page 9 of 82 Revision No.: 1.5

• 'Com 3 TD': indicating communication existence in Cellular TD.

• 'Com 3 RD': indicating communication existence in Cellular RD.

• 'Com 3 DTR': indicating communication existence in Cellular DTR.

• 'Com 3 DCD': indicating communication existence in Cellular DCD.

7. Controller LEDs – when their lights turn on indicates a Controller
communication existence.

• 'Transmit Data': indicating communication existence in the controller
concerning transmitting data.

• 'Receive Data': indicating communication existence in the controller
concerning receiving data.

8. Serves as a Help key. Press the help key at any time to receive a short helpful
explanation concerning the screen you are currently viewing.
In order to exit ‘?’ screen at any time, press the 'MENU' key.

9. Arrow keys: These keys move around the menus, and help make selections. In
some cases you can also use them to change values.

10. This key displays the main menu from the standard screen, and is used as an
"escape" key to exit menus you are currently in.

11. This key changes values between positive and negative numbers, and makes
check-mark choices when checking or selecting options are needed.

12. 'ENTER' key serves as a selective confirmation key.

13. Use these keys to insert numbers or text. For example, the option of Address
book enables to select both numeric and alphanumeric values. Note that
number '1' LED can serve as a comma key when needed.

14. This key lets you insert decimal point if necessary.

15. This key erases typing mistakes. It also enables the ‘Cold Start’ function when
held at power on (see Table 1 for further explanation).

2. Hot Keys

The Communicator incorporates keys enable quick access information of
different varieties (see Table 1).

Page 10 of 82 Revision No.: 1.5

Table 1: Hot keys summary

Action Keys to press Explanation

Local Network Press on '0' key This feature makes sure that

the controllers you connected
to the system are actually
recognized (see Fig. 2).

Lock the system based
on an initialized
password

Press on '9' key.
Otherwise, the system
will be automatically
locked after 5 minutes.

This is a security hot key and
it will instantly lock the
system based on the
initialized password (refer to

Security section in the
Initial Setup chapter).

Cold Start 1. Disconnect the

communicator by
switching the battery off.

2. Turn power on while
pressing and holding the
'#Del' key until Cold
Start pop-up screen
appears.

3. If 'NO' is selected, the
communicator continues
to its usual power up
procedure and the
settings will remain
untouched.

4. If 'YES' is chosen,
Cold Start procedure
begins; all control
settings including update
drivers for all devices.
The history will be
erased and restored back
to the factory default
settings, switch battery
on.

This procedure resets the
communicator to the original
factory settings. It should be
performed after replacing a
software version, either when
reinstalling or when
instructed by ROTEM's
technician.

Version Press on '?' key To check kinds of version

numbers such as software,
hardware.

Page 11 of 82 Revision No.: 1.5

Fig. 2: Example of using Hot Key 0

Note that the squares (see Fig. 2) describe the houses do not have to be
sequential. The squares can be one of the following:

• Empty squares represent non-identified controllers.

• Filled squares represent identified controllers.

• The letter 'F' indicates there is an alarm. This sign also appears after

reset operation.

Page 12 of 82 Revision No.: 1.5

Fig. 3: Communicator's menu structure

Page 13 of 82 Revision No.: 1.5

4) Communicator Setting

Cold Start procedure is committed with every software change. Restoring old setting
is always recommended.

I) Initial Setup

1. Hardware Profile

Go to Menu 9.1 (see Fig. 3) that defines the Hardware Profile and check whether the
Communicator recognizes the hardware. If the communicator did not recognize all of
the connected hardware, please refer to Appendix A.

2. Local Network Setup

After making sure the Communicator's hardware is ok adapt the Communicator to
Rotem controllers by either hard wired 485/RS232 or RF.

Go to menu 1.2 (see Fig. 3) and set the next parameters:

• Baud Rate: Set according to the controllers Baud rate. The recommended

rate is 9600.

• Primary Units: Insert the number of master controllers, for example -

Platinum Plus.

• Secondary Unit: Insert the number of slave controllers. Note that when

exiting this menu, the communicator will reset in order to save changes.

3. Regional Setting

Go to menu 2 (see Fig. 3) and fill in the correct clock time, date and region of the
communicator. The communicator will reset in order to build Network Objects.

Page 14 of 82 Revision No.: 1.5

II) Advanced Settings

Fig. 4 – 6 demonstrate the available options the main menu offers.

Fig. 4: Main menu screenshot – part 1

Fig. 5: Main menu screenshot – part 2

Fig. 6: Main menu screenshot – part 3

1. Local Network

Fig. 7: Main Menu screenshot

These menus function as network definition tools and help you determine the right
communication configuration suitable for your needs (Fig. 7 results pressing 'Menu'
key).

Page 15 of 82 Revision No.: 1.5

1.1 My Farm

Fig. 8: Farm/Site option screenshot

a) Select option 1 from previous section and press 'ENTER'.
b) Insert the farm / site name using numeric text box keys (see Fig. 8).

1.2 Controller Port

Fig. 9: Local Network menu screenshot

Menu 1.2 (see Fig. 3) defines the basic applications and communication settings for
the Communicator (see Fig. 9). Wrong defenition can result alarms for missing
controllers or prevent communication from unidentefied controllers.

Fig. 10: Controllers Port option screenshot If yes RF there are jumpers > Appendix

Baud Rate setting must match all controllers otherwise the communication will not
operate. The default setting is 9600bps (see Fig. 10). Make sure the same rate is set to
all controllers both primary and secondary units connected to the communicator.

1.3 Serial Port

The serial port (see Fig. 11) connects between the Communicator and the PC
software. The baud rate set must be identical to the one set on the PC communication
software in order to establish communication. The default is also 9600bps. Note that
this is also being used for USB.

Page 16 of 82 Revision No.: 1.5

Fig. 11: Serial Port option screenshot

1.4 Test

Fig. 12: Modem menu screenshot

This menu helps you test communication between Primery controllers and the
communicator. Each controller is named by number, allowing the Communicator to
identify and test the connection with it (see Fig. 12).

1.4.1 RS232/RS485

Fig. 13: Communication option screenshot

In order to test comminication, insert the controller’s number and press 'ENTER'
to start / stop the test procedure (see Fig. 13). 'Tx' means “Transmited data” and
'Rx' means “Received data”. In order to indicate good communication both
indicators must flash allternaitly.

1.4.2 RF

Fig. 14: RF Test option screenshot

Page 17 of 82 Revision No.: 1.5

The RF test menu (see Fig. 14) checks the signal strength received from a certain
controller.

Fig. 15: RF screenshot

Set the controller's number in your network and press 'ENTER'. A signal strength is
received. Can be one of the six following options: "No Connection", "Very Low",
"Low", "Good", "Very Good" (see Fig. 15) and "Excellent".



Decent communication can be achived by low signal as well.

1.5 Network List

Fig. 16: Network List menu screenshot

In the menu (see Fig. 16) number of controllers detected by the communicator is
displayed.
Use the '+/-' key to change from 'NO' to 'YES' and press 'ENTER' to scan the network
for changes. The system will restart and rescan the network automatically. Make sure
all controllers are found in the menu list.

2. Regional Setting

Fig. 17: Regional Setting menu screenshot

The main purpose of this option is to adjust the communicator to the local phone
system, time and date (see Fig. 17).

3. Security

Use the security feature to protect your Communicator.

Page 18 of 82 Revision No.: 1.5

Fig. 18: Security option screenshot

Type password;

• Retype for conformation and verify by selecting 'YES' (see Fig. 18). The

system locks down automatically after 5 minutes.

• In order to perform an instant lockdown press key number '9' (from the

main screen).

• In order to change or disable the security feature, type the password to

unlock the system.

• Go to the security menu and type a new password. Verification of the new

password is required.

• If you wish to disable the security feature leave the password '0000' and

press the 'ENTER' key twice.

4. Modem

Fig. 19: Modem menu screenshot

Fig. 19 demonstrates selection of option 4 in Main Menu.

4.1 Line Modem

This option offers a variety of choices regarding setting and viewing line modem (see
Fig. 20-21).

Fig. 20: Line Modem menu screenshot – part 1

Page 19 of 82 Revision No.: 1.5

Fig. 21: Line Modem menu screenshot – part 2

4.1.1 Setup

Fig. 22: Line Modem menu screenshot – Part 1

Fig. 23: Line Modem menu screenshot – Part 2

An explanation regarding the fields mentioned in Fig. 22-23 is provided below;
a) Auto Answer: Number of rings before auto answering. For example, if number '4'

is set, the communicator will answer a call after 4 rings.
b) Line Test: Select 'YES' to monitor the phone line and activate an alarm in case of a
disconnection.
c) Dial Delay: When dialing a pager service, some services require additional tone
menu browsing. Use this feature to set a delay between the phone number and the
tone browsing. Each “,” will represent the number of seconds in delay between the
phone number and the next browsing number.
d) Input Gain: For factory use only. If your communicator is unable to connect your
voice dial in phone line, consult your local dealer regarding this feature.
e) Advanced (see Fig. 24):

Page 20 of 82 Revision No.: 1.5

Fig. 24: Advanced screenshot

This screen is meant to be used in order to increase transfer rate between the
communicator and a remote modem. The communicator can compress data and send
it faster. Their value can be changed by using the '+/-' key. The following features are
available:

 Modulation: Auto or V34 transmitting the point during connect negotiation at

which the modem has determined which modulation and rate will be used, i.e.
before any error. Note that V34 option can solve the problem of working with
old equipment computers.

 Compression: Enables or disables data compression performed by the

modem, can be called hardware compression. It reduces the amount of time
required to transfer data. Make sure the modem you are connected to can read
and decompress the received data.

 Data Flow: In order to control the flow of data between the modem and the

communicator.

4.1.2 Pager (send page)

This selection enables to set a sending page mode (see Fig. 25).

Fig. 25: Pager screenshot

4.1.2.1 Pager Setup

ROTEM provides alarm codes using the pager system (see Appendix C) according to
the following; a code number is sent followed by its matching alarm. Note that in the
Description column in Appendix C every time the '#'' sign appears, it means an
attribute number.
This option can be one of the modes mentioned below. If , for example, two alarms
occour – the basic mode will send two different messages whereas the enhanced mode
will send both alarms in one message.

• Basic: sends a page in the following format: '_ _ _ # _ _ _ #'. The first 3

digits stand for house number and the last 3 digits stand for message
number. Maximum 8 characters are allowed. This option notifies in case of
more than 1 alarm.

• Enhanced: This option enables to send full messages including their

attributes as one. It sends a page with the following format: '_ _ _#_ _ _#_

Page 21 of 82 Revision No.: 1.5

_ _#_ _ _#', for example, 'House#Alarm#Attribute#Alarm#'. Moreover,
The enhance option will also send multiple alarms for the same house in
the same page. Maximum 256 characters are allowed. This option enables
all the alarms per house.

4.1.2.2 Test (send page)

Use this option to calibrate your pager connection. There is a delay between the
service provider answer and the time the message has been sent to the pager (see Fig.
26-27).

Fig. 26: Test screenshot – part 1

Fig. 27: Test screenshot – part 2

Test the connection and use Menu 4.1.1 (see Fig. 3), 'Dial Delay' option in order to
change the number of seconds before sending the massage.

4.1.3 Dial Out

Use this menu to verify the proper connection of the line to the communicator (see
Fig. 28).

• Dial your number and answer the phone. Test text over the phone is heard and
the screen will display the message 'OK'.

Fig. 28: Dial Out option selection Screenshot

Page 22 of 82 Revision No.: 1.5

4.1.4 Phone Line

View the phone line voltage (see Fig. 29).

Fig. 29: Phone Line option selection screenshot

4.2 GSM Modem

Fig. 30 demonstrates 'GSM Modem' menu which is selected by option 4.2 (see Fig.

3).

Fig. 30: GSM Modem menu screenshot

4.2.1 Setup

Fig. 31: Cellular Modem option screenshot

Set command updates the SMSC address, through which mobile originated SMS are
transmitted. The service center address must be present to complete delivery of SMS.
Most SIMs are delivered from the service provider with a service center already
programmed into the SIM. A “+” should be entered in front of the SMS address, but
is not required by all operator (see Fig. 31 for example).

4.2.2 Signal Strength

Fig. 32: Signal Strength option screenshot

Page 23 of 82 Revision No.: 1.5

Select this option in order to make sure the signal is strong enough (see Fig. 32).
Moreover, make sure both the cellular modem and the cellular provider are
recognized. Otherwise, refer to the Appendix B section.

4.2.3 Send SMS

Fig. 33: Send SMS option screenshot

Use this option to test the SMS service (see Fig. 33).

• Insert a cellular phone number and press 'ENTER'.

• The Communicator will send a following test SMS message: "The

communicator is ready to send you alerts using SMS".

5. Address Book

The Address Book is divided into 'Contact Group' and 'Options' (see Fig. 34).

Fig. 34: Address Book menu screenshot

5.1 Contact Group

This group consists of a list of 8 addresses to deliver messages to. 'Contact 1' is the
highest priority address and the 8

th

is the lowest. The communicator sends a message

to 'Contact 1'. If a reset was sent from any Contact the dial sequence would stop.
Otherwise, it will keep rotating between the contacts until reset.

• Type the name (note that the Number keys turn to alphanumeric ones) and

phone number (note that the Number keys turn to numeric ones).

• Use the '+/-' key to change communication method from the 'USE' list. The

'USE' list contains the following selections:

1. Idle – Contact neutralized for temporary service rest without changing the
address.

2. Voice – Voice alert.

3. SMS – SMS alert.

4. Voice + SMS

– Alert for both Voice and SMS.

5. Pager

- Pager alert.

• In order to set the changes press 'ENTER' and select 'YES' for “save settings”.

Page 24 of 82 Revision No.: 1.5

5.2 Options

Fig. 35: Options menu screenshot

Fig. 35 reveals to 'Options' menu. This menu contains the following selections:

1. 'Call Out Delay': The time between activation of an alarm and the beginning of the
dialout sequence.

2. 'In Between Call': The delay between each contact in the dialout sequence. This
gives the requiered time to reply and acknowldegde the alarm.

3. 'Contacts Recall': The time between one dialout sequence to the other, after the
alarm has been acknowledged but not reset.

6. Event Viewer

Fig. 36: Event Viewer menu screenshot

View events regarding the software, hardware and general system events (see Fig.

36).

6.1 Application

Fig. 37: Application Event option screenshot

The application (History) view shows the date, time and code of the events related as
application events (see Fig. 37).

6.2 Security

N/A

Page 25 of 82 Revision No.: 1.5

6.3 System

The system (History) view shows the date, time and code. This serves as an error
handling (see Fig. 38).

Fig. 38: System Event option screenshot

7. Alarm

Go to the 'Alarm' menu (menu 7, see Fig. 3) to configure alarm options, reset and test
the alarm system (see Fig. 39).

Fig. 39: Alarm menu screenshot

7.1 Network

Fig. 40: Network menu screenshot

Fig. 40 shows the 'Network' menu.

7.1.1 Reset

1. Insert the unit number according to the alarm's origination (see Fig. 41). For

assistance, press the '?' (Help) key and on the screen the unit the alarm is
originating from will appear (Fig. 42).

Page 26 of 82 Revision No.: 1.5

Fig. 41: Reset screenshot

Fig. 42: Reset screenshot after clicking on '?' key

2. Press 'ENTER' to reset all active alarms.

7.2 Communicator

Fig. 43 presents the 'Communicator' menu.

Fig. 43: Communicator's menu screenshot

7.2.1 Reset

This menu is available if there is an active alarm (see Fig. 44). Note that the Reset is
meant only to the communicator's alarm. Fig. 44 represents "low battery" mode.
Note the following; an alarm has occurred and reset has been chosen. The system
goes to a delay mode where the alarm won't be back till 12:00 AM of the next day,
unless 'enable' to the alarm has been set. There is a possibility to define variables as
house number and alarm number and not to reset the alarm till a requested time.
Warning: When an alarm occurred and reset had been chosen, the system goes to a
delay mode where the alarm won't be back till 12:00 AM on the next day

Page 27 of 82 Revision No.: 1.5

Fig. 44: Reset Alarm option screenshot

7.2.2 Options

Fig. 45: Alarm Options features screenshot

The option list includes the following features (see Fig. 45):

 Delay (sec): Delay in seconds before alerting.
 Reminder (min): The time in minutes before re-alerting an active problem,

after reset, if the problem has not been solved.

 Test: Frequency / At / Day: Set the alarm test parameters.

7.2.3 View

This section includes a history menu of all of the activated alarms (see Fig. 46). Note
that this history information relates to the communicator only. The history itself will
not appear on the net, for example, when suddenly there is no electricity. In this case
it will be seen on the communicator's history, not on the net itself.

Fig. 46: Alarm Viewer features screenshot

7.2.4 Disable Alarm

Go to Using the Device section.

7.3 Test (relay)

Press the 'ENTER' key to toggle relay, and see its functionality.

Page 28 of 82 Revision No.: 1.5

8. Accessories

Fig. 47 presents a screenshot of the 'Accessories' menu.

Fig. 47: Accessories menu screenshot

8.1 Digital Input

Fig. 48: Digital Input menu screenshot

Fig. 48 presents 'Digital Input' menu selection.

8.1.1 Setup

The communicator supports 8 dry contact digital input card that can be programmed
as a normally open / close dry contact input. These inputs can be connected to a wide
variety of sensors such as generator operation, magnetic door or window, thermostat
etc.

Fig. 49: Setup selection screenshot

The '[N]' column indicates two possibilities;

o '0' – presents the open contact (Normally Open). The moment there is a

change from the usual state (closed state), an alarm occurs.

o '1' – presents closed contact (Normally Closed). The moment there is a change

from the usual state (opened state), an alarm occurs.

Fig. 49 serves as an example of a digital input program. The programmed line No.1 is
set as normally closed for the house door. The message for this program is “door
opened”. If the door opens, the dry contact is disconnected and changes from 1 to 0.

Page 29 of 82 Revision No.: 1.5

This change triggers the alarm and the message “door opened” is sent to all addresses
programmed in Alarm/Options/Addresses.

8.1.2 Test

Fig. 50: Test selection screenshot

This screen enables testing of digital inputs plugged into the system (see Fig. 50).
Blank Squares represent open input and Full Squares represent a closed one. If you
connect a device to one of the inputs and it remains blank, it means a problem exists.

8.2 Relay

Fig. 51 presents the 'Relay' menu (menu 8.2, see Fig. 3).

Fig. 51: Relay menu screenshot

8.2.1 Setup

Fig. 52: Relays setting screenshot

This screen enables the user to set a code of a specific alarm that operates the relay
and its matching delay time in seconds (see Fig, 52).

Page 30 of 82 Revision No.: 1.5

8.2.2 Test

Fig. 53: Relays Test option screenshot

Press the 'ENTER' key to toggle relay, and see its functionality (see Fig. 53).

8.3 Save / Restore Settings

Fig. 54 shows 'Save / Restore Setting' menu.

Fig. 54: Save/Restore Setting menu screenshot

8.3.1 Restore

Fig. 55: Memory Restore Point selection screenshot

This feature can help you restore previous software settings according to a specific
restore point. If restore point was not created yet, the communicator will inform you
that there is no restore point.
Use the arrow keys to select 'YES' and press 'ENTER' (see Fig. 55).

8.3.2 Save

Use the arrow keys to select 'YES' and press 'ENTER' (see Fig. 56).

Page 31 of 82 Revision No.: 1.5

Fig. 56: Save selection screenshot

Note that by clicking 'YES', information in a different screen regarding a new
successful restore point is presented.

9. System

Fig. 57: System menu screenshot

Fig. 57 presents 'System' menu.

9.1 Hardware Profile

Fig. 58: Hardware Profile screenshot

See Preliminary Setup section.

9.2 Voice

Use this menu to adjust the Communicator voice settings (see Fig. 59).

Page 32 of 82 Revision No.: 1.5

Fig. 59: Voice Setting menu screenshot

The following explains the variables:

 Volume: Use the left/right arrow keys to lower/amplify the volume.
 Speed: Use the left/right arrow keys to adjust the voice message speed.
 Test: Press 'ENTER' to hear a test voice message.

Note that the speed and volume cannot be adjusted during the test.
Moreover, an additional voice control exists by tuning the volume through the voice
setting's cycle.

9.3 Power / Battery

Fig. 60: Battery menu screenshot

Fig. 60 demonstrates 'Battery' menu selection.

9.3.1 Battery Test

Fig. 61: Battery Test screenshot

View the battery status by clicking on 'ENTER' in the screen shown in Fig. 61. The
charger begins automatically, if the battery is insufficient.

Page 33 of 82 Revision No.: 1.5

9.3.2 Options

Fig. 62: Power Options screenshot

This option allows the user to set an alarm delay time in seconds (see Fig. 62) for
power failure alarm only. This alarm does not reset without acknowledgment.
Otherwise, it remains in the system forever.

Page 34 of 82 Revision No.: 1.5

9.4 Test

Fig. 63: System Test menu screenshot

9.4.1 RS232/RS485

Fig. 64: Communication option screenshot

In order to test comminication, insert the controller’s number and press 'ENTER' to
start / stop the test procedure (see Fig. 64). 'Tx' means “Transmited data” and 'Rx'
means “Received data”. In order to indicate good communication both indicators must
flash allternaitly.

9.4.2 RF

Fig. 65: RF Test option screenshot

The RF test menu (see Fig. 65) checks the signal strength received from a certain
controller.

Page 35 of 82 Revision No.: 1.5

Fig. 66: RF screenshot

Set the controller's number in your network and press 'ENTER'. A signal strength is
received. Can be one of the six following options: "No Connection", "Very Low",
"Low", "Good", "Very Good" (see Fig. 66) and "Excellent".
Decent communication can be achived by low signal as well

9.4.3 Pager

Use this option to calibrate your pager connection. There is a delay between the
service provider answer and the time the message has been sent to the pager (see Fig.
67-68).

Fig. 67: Test screenshot – part 1

Fig. 68: Test screenshot – part 2

Test the connection and use Menu 4.1.1 (see Fig. 3), 'Dial Delay' option in order to
change the number of seconds before sending the massage.

9.4.4 Dial Out

Use this menu to verify the proper connection of the line to the communicator (see
Fig. 69).

• Dial your number and answer the phone. Test text over the phone is heard and
the screen will display the message 'OK'.

Page 36 of 82 Revision No.: 1.5

Fig. 69: Dial Out option selection Screenshot

9.4.5 Phone Line

View the phone line voltage (see Fig. 70).

Fig. 70: Phone Line option selection screenshot

9.4.6 GSM Signal

Fig. 71: Signal Strength option screenshot

Select this option in order to make sure the signal is strong enough (see Fig. 71).
Moreover, make sure both the cellular modem and the cellular provider are
recognized. Otherwise, refer to the Appendix B section.

9.4.7 SMS

Fig. 72: Send SMS option screenshot

Page 37 of 82 Revision No.: 1.5

Use this option to test the SMS service (see Fig. 72).

• Insert a cellular phone number and press 'ENTER'.

The Communicator will send a following test SMS message: "The communicator is
ready to send you alerts using SMS".

9.4.8 Alarm Relay

Fig. 73: Alarm Relay screenshot

This screen tests the alarm relay which can be either a full square or an empty one
(Fig. 73).

9.4.9 Digital Input

Fig. 74: Test selection screenshot

This screen enables testing of digital inputs plugged into the system (see Fig. 74).
Blank Squares represent open input and Full Squares represent a closed one. If you
connect a device to one of the inputs and it remains blank, it means a problem exists

9.4.10 Relays

Fig. 75: Relays Test screenshot
This screen tests two alarm relays (Fig. 75).

Page 38 of 82 Revision No.: 1.5

9.4.11 EEPROM

Fig. 76: EEPRO Test screenshot
This screen tests that the EPROM operates in order (Fig. 76).

9.4.12 Voice

Fig. 77: Voice Setting menu screenshot

The following explains the variables:

 Volume: Use the left/right arrow keys to lower/amplify the volume.
 Speed: Use the left/right arrow keys to adjust the voice message speed.
 Test: Press 'ENTER' to hear a test voice message.

Note that the speed and volume cannot be adjusted during the test.
Moreover, an additional voice control exists by tuning the volume through the voice
setting's cycle.

9.4.13 Battery

Fig. 78: Battery Test screenshot

View the battery status by clicking on 'ENTER' in the screen shown in Fig. 78. The
charger begins automatically, if the battery is insufficient.

Page 39 of 82 Revision No.: 1.5

9.4.14 Keyboard

Fig. 79: Keyboard screenshot

This screen tests if clicking on a specific number matches the number displayed on
the screen (Fig. 79).

Page 40 of 82 Revision No.: 1.5

5) Sending Test Message Commands and Status Requests
from / to the Communicator

It is possible to send an SMS from a mobile phone to the Communicator device. It is
done by using the following SMS message formats:

• Siren Reset: If siren reset is requested, the following SMS message should be
sent:
'!RX' > 'Send' - were 'R' – stands for Reset,

'X' – stands for house number, can be any positive
number from 1 to 32.
'Send' – end the SMS message by clicking on 'Send' key.

If several house numbers have to be typed in the SMS, use the following
format:

'!RX#X#X' > 'Send' – '#' s ign separates between every
house number.
'Send' – end the SMS message by clicking on 'Send' key.

If all houses should be siren reset, use the following format:

'!RALL' > 'Send' – were 'ALL' – can be typed both in
Capital letters and small letters.
'Send' – end the SMS message by clicking on 'Send' key.

• Alarm Reset: If reset to all the alarms is desired, the following SMS message
should be sent:

'!C' > 'Send' – were 'C' – stands for the Communicator.
'Send' – end the SMS message by clicking on 'Send' key.

Note that this option does not consist of any parameters.

• Messages Acknowledgement: If SMS messages acknowledgement is
requested, the following SMS message should be sent (note that this selection
is optional):

- '!AON' > 'Send'– request to receive a respond message to every
sent SMS (after executing the SMS message request).
'A' – stands for Acknowledgement.
'Send' – end the SMS message by clicking on 'Send' key.

- '!AOFF' > 'Send' - request not to receive a respond message to
every sent SMS (after executing the SMS message request).
'A' – stands for Acknowledgement.
'Send' – end the SMS message by clicking on 'Send' key.

Page 41 of 82 Revision No.: 1.5

6) Network Setup

The purpose of this section is to support communication of up to 63 controllers,
whereas before it was possible to deal with maximum 32 controllers.
The parameter 'Primary' is set to be the number of controllers defined in the
communicator network. This parameter is divided to 2 branches;

o Lower branch – 1 to 32 controllers
o Upper branch – 33 to 63 controllers

Note that in order to be able to use the Upper branch, the Lower branch must be
defined entirely.
For example, if the controller number is 38, its lower controllers must be defined as 1
to 32.
Fig. 80 emphasis the controller numbers of both upper and lower branches.

Fig. 80: Hot key 0

Page 42 of 82 Revision No.: 1.5

7) Voice – Dialing to the communicator

It is possible to dial the communicator in order to receive information regarding the
alarms. In order to enable this option, the parameter 'Dial in' (see menu 4.1.1) needs to
be set to 'Yes' (see Fig. 82).
In order to receive the information in voice mode only, unlike data, follow the next
steps:

 Dial the controller. Wait 'X' rings ('X' presents the number of rings less than

the parameter 'Auto Answer' that has been set in menu 4.1.1) and hang up (see
Fig. 81).

 Wait 5 seconds.
 Dial once again and follow the instructions the controller offers.

Note that the user should not wait more than 1 minute between the two calls.

Fig. 81: Auto Answer screenshot

Fig. 82: Voice Dial In parameter screenshot

o If 'Auto Answer' parameter is zero (0) the Communicator answers in voice

mode.

o If 'Auto Answer' parameter is zero and in addition 'Voice Dial In' parameter is

'Yes', the controller answers always in voice mode.

Page 43 of 82 Revision No.: 1.5

8) Voice Dial Out to Contact List

• The Communicator dials to the contact list as defined.
If no contact list exists, the communicator does not dial.

• Once the controller alarm is triggered, a greeting voice message is
being read aloud: "Good <Morning/Afternoon/Evening> <poultry
farmer's name>, <farm name> farm. Please, press '1' to listen".

1. Press '1' to listen. If the user does not want to listen to the
message, the system repeats itself 3 times and only than will
automatically hang up.

2. After '1' is pressed the system proceeds to the following menu:

Press '*' to reset.
Press '1' to replay message.
Press '9' to go to the next message. If no further messages exist, the

system won't offer this option.

3. If '*' has been selected, the user must insert a password and in the
end to click '*'. If no password exists, the user must press '*' once
again.

4. After the password is inserted, the system repeats the alarms one
after the other and proceeds to the following menu:

Press '1' to disable the alarm.
Press '2' to enable the alarm.
Press '9' to go to the next alarm. Note that if no further messages exist, the

system won't offer this option.
Press '0' to exit this menu and go to the previous one.



At any time; if either an incorrect key is pressed or if nothing is
pressed, the system repeats itself 3 times and only than will
automatically hang up.

Page 44 of 82 Revision No.: 1.5

9) Flow chart of Voice Dial out Process

Page 45 of 82 Revision No.: 1.5

Page 46 of 82 Revision No.: 1.5

10) Specification

Power supply

Mains Voltage Single Phase 230 VAC (Outside the US & CANADA)

115 VAC 0.5A (US & CANADA)

Mains Frequency 50/60HZ
Maximum Power Consumption 40W

Main Fuse

Main Fuse (12V) 125/250V 100mA T

Main Fuse (Switching P.S)) 125/250V 2A T

Connection Box peripheral

Digital inputs

8 Digital Inputs Dry Contact 5V/2mAmp

Relays outputs

N.C/N.O. (OMI) Blue Small Low Power Relay 5Amps 250VAC

Alarm output

N.O and N.C (Double) (OMI) Pilot Duty 5Amps 250VAC

Housing

Metal Box Dimensions (LxWxH) 262x262x80mm

Ambient climate

Operating Temperature Range 0 to +50 C° (32 to 125 F°)

Operating Humidity Range 0% to 95%

Storage Temperature Range -10 to +70 C° (14 to 158 F°)

Page 47 of 82 Revision No.: 1.5

11) Installation

1. Plug in the Communicator to a power source.

2. Go to 'Hardware Profile' selection, by choosing menu 9.1 in the main
menu (see Fig. 3). Fig. 83 results this choice. Make sure all the
components are recognized by the Communicator

.

Fig. 83: Hardware Profile menu screenshot

3. Go to 'Battery Test' option, by selecting menu 9.3 (see Fig. 3). Fig. 84
results this selection. Check the battery recognition and charging; as
long as the communicator unit is plugged in, the charger inactive note
will be displayed.

Fig. 84: Battery Test selection screenshot

4. Fig. 85 presents the functional block diagram of the controller.

5. Connect controllers according to the photos below; If RF
communication is used connect the controllers according to Fig. 86-87.

6. Install the communication software from the attached CD (for
installation instructions, please refer to Appendix D).

7. In order to install the external connection box, refer to Fig. 88.

Attention!

• Do not keep the battery connected without electricity.

• Use an exclusive phone line for the Communicator. (Do not share a

line for the Communicator with another phone)



Note: Sometimes using a phone line via private switchboard might
cause problems, therefore it is recommended to use a different line to
the communicator.

Page 48 of 82 Revision No.: 1.5

Fig. 85: Functional block diagram

Page 49 of 82 Revision No.: 1.5

Fig. 86: Wiring Diagram using RF communication card

Page 50 of 82 Revision No.: 1.5



*

: Connect the Local PC either by using COM Port cable or by using

the USB cable



**:

Page 51 of 82 Revision No.: 1.5

RF Antenna

Communicator

device

RF Antenna

Extension

COAX Cable

Fig. 87: Wiring Diagram using RF communication card – external view

Page 52 of 82 Revision No.: 1.5

COM

Must be

connected to

Safety Ground

for lightning

protection

Refer to

Network

Connection

section

COM

In 1 In 8

……..

……..

General Purpose

Dry Contact Relays

COM

NO

Relay 2Relay 1

COM NC

-+

12V

Butter

y

Siren

External Connection Box

Digital Inputs

COM

NO

Fig. 88: External connection box wiring diagram

Page 53 of 82 Revision No.: 1.5

11.1 Network Connection

Connecting the External Connection box to Rotem's controllers using

RS-232 Card

Fig. 89: Connection with RS-232 card wiring diagram

The cable between the external connection box and the controllers should be a 3 Wire
Shielded Cable (at leasr 22AWG).
This cable is daisy-chained to all controllers and to the communication line of the
external connection box in the following manner:

 The Black wire (COMMON) is connected to the COMMON in the

communication terminal of the controller.

 The Red wire, TX in the connection box is connected to RX in the Controller.
 The Green wire, RX in the connection box is connected to TX in the

Controller.

Page 54 of 82 Revision No.: 1.5

 The shield should be connected to the earth (Safety Ground).



The shield (safety ground) should be connected only on one side!

Approximate Distances & Baud rate

For one controller:

 ~2000 meters (~6500 feet) - 9600 Baud
 ~2500 meters (~8200 feet) - 4800 Baud
 ~3000 meters (~9800 feet) - 2400 Baud

For 10 controllers:

 ~1200 meter (~4000 feet) - 9600 Baud
 ~1800 meter (~6000 feet) - 4800 Baud
 ~2400 meter (~7870 feet) - 2400 Baud



Baud rate depends on cable length and on the number of controllers.

Page 55 of 82 Revision No.: 1.5

Connecting the External Connection box to Rotem's controllers using

RS-485 Card

Fig. 90: Connection with RS-485 card wiring diagram

The cable between the external connection box and the controllers should be a 2-wire
shielded cable.
This cable is daisy-chained to all controllers and to exrternal connection box as
follows:

 Connect the shield to the COM terminal of the controller on one side and leave

unconnected on the other side.

 Red wire to terminal A of the controller and terminal A of the external

connection box.

 Green wire to terminal B of the controller and terminal B of the external

connection box.

Page 56 of 82 Revision No.: 1.5

Approximate Distances & Baud rate

For one controller:

 ~2000 meters (~6500 feet) - 9600 Baud
 ~2500 meters (~8200 feet) - 4800 Baud
 ~3000 meters (~9800 feet) - 2400 Baud

For 10 controllers:

 ~1200 meter (~4000 feet) - 9600 Baud
 ~1800 meter (~6000 feet) - 4800 Baud
 ~2400 meter (~7870 feet) - 2400 Baud



Baud rate is dependent on cable length and number of controllers.

Page 57 of 82 Revision No.: 1.5

11.2 RF Network Connection

Option A with Platinum Plus RF (RCLP-RF)

Page 58 of 82 Revision No.: 1.5

Option B with Platinum Plus RF Remote

OFFICE

Local PC

Local (Non
Priority
channel)

Away

SITE

RCLP-232/485 RCLP-232/485

………...

Page 59 of 82 Revision No.: 1.5

11.3 Routing Considerations

There are two common routing methods for running the communications
connections: Daisy Chain (recommended) and Star connection (not
recommended). The following are two recommended alternatives

Daisy & Star

Combination

Connection

Daisy-Chain

Connection

STAR

NO!

Page 60 of 82 Revision No.: 1.5

12) Appendix A: Troubleshooting

Note that a list of part numbers and their description are described in Ordering
Information section.

Hardware

 Problem Description

Connected hardware was not recognized in the hardware profile list
under system Menu (voice, cell modem, Line modem).

 Troubleshooting

The Communicator List –O.K- for device installed and –N/A- for not available
Perform hardware reset by turning OFF the battery switch and unplugging the
power source. Reconnect the power and switch the battery ON so that the unit will
rescan the hardware. If this does not help, open the Communicator and check that
the device is installed properly. If still not operating, replace the device.

o Problem Description

Battery Failure alarm is received

o

Troubleshooting

4.

If the wiring connections are ok, replace the battery pack. (Part number: SP­COMM-BAT).

Communication

• Problem Description

Not all units found due to updating primary units. In other words, the
number of controllers is not identical to the number of controllers after
primary setting

• Troubleshooting

1. Make sure the Communicator is connected to an electric power supply.

2. Press hot key 0 and check if either some of the controllers are missing (blank
squares), or all of them.

3. Go to menu 1.4 (see Fig. 3, according to the communication card) and test
with missing unit.

4. If 232/485 communication card is being used, check the baud rate in both
sides.

5. If RF communication card is being used, check Additional Channel Setting.

1. Make sure the Communicator is connected to an electric power supply.

2. Check in menu 9.3.1 ‘Battery Test’ (see Fig. 3) the battery and charger status.

3. Open the Communicator's box and check the battery's wiring

Page 61 of 82 Revision No.: 1.5

6. Go over the number of controllers and make sure there is no conflict between
the units (make sure 2 units do not receive the same configuration number).

7. If everything is ok;

a) For 232/485 card – make sure the wiring is ok
b) For RF card – check the signal strength

o Problem Description

'Lost unit number' alarm

o Troubleshooting

1. Make sure the Communicator is connected to an electric power supply.

2. Press hot key 0 and check if either some of the controllers are missing (blank
squares), or all of them.

3. Go to menu 1.4 (see Fig. 3 according to the communication card) and test
communication with the unit.

4. If 232/485 communication card is being used, check the baud rate in both
sides.

5. If RF communication card is being used, check Additional Channel Setting.

6. Go over the number of controllers and make sure there is no conflict between
the units (make sure 2 units receive the same configuration number).

7. If everything is ok;

a) For 232/485 card – make sure the wiring is ok
b) For RF card – check the signal strength



Problem Description

No Local Communication with PC



Troubleshooting



If the LED does not flash, it is not the right computer port.

3. In case of USB, reinstall the driver attached on the CD (see Appendix D).

1. Check that the serial port baud rate matches the PC baud rate.

2. Go to Computer Port list. 'Com 1 RD' LED should flash on the front panel.
Test the communicator through RotemNet software.

Page 62 of 82 Revision No.: 1.5

Cellular Modem



Problem Description

Problem in signal strength



Troubleshooting

3. Check the wiring. If there is a problem, contact the dealer

o Problem Description

SMS Test failure in menu 4.2.3

o

Troubleshooting

Check the signal according to the following; The modem has to be placed in a
way that ensures sufficient signal strength. To improve signal strength, the
antenna can be moved to another position. Signal strength may depend on how
close the modem is to a radio base station. You must ensure that the location, at
which you intend to use the modem, is within the network coverage area

RF Communication

 Problem Description

No RF connection

 Troubleshooting

If the strength does not exist,

1. Check the baud rate and the channel address and config. the address.

2. Improve the antenna's location.

The modem has to be placed in a way that ensures sufficient signal strength. To
improve signal strength, the antenna can be moved to another position. Signal strength
may depend on how close the modem is to a radio base station. You must ensure that
the location, at which you intend to use the modem, is within the network coverage
area.
Do reboot by unplugging the power
If the signal does not improve, insert the SIM to the phone and check the signal.
If the signal is weak, go to the provider.
If the signal is ok, change the module.
If no signal exists:

1. Check antenna connection

2. Check the connection to the module (GSM).

Check the strength.
If it is weak, improve the antenna location.

Make sure that the baud rate attached to the unit matches the one connected to the
RF.

3. Check RF card configuration according to the following; baud rate and channel
(refer to Appendix B). Try to change baud rate and channels in both sides
respectively.

Page 63 of 82 Revision No.: 1.5

4. Replace P-COMM-RF10-9-S COMMUNICATOR RF.

Voice Card

• Problem Description

Voice does not function

• Troubleshooting

4. If nothing of the above helps, contact your dealer.

Alarm



Problem Description

Receiving no messages from the communicator



Troubleshooting

3. Make sure the devices that function to report are functioning properly



Problem Description

Alarm LED is ON but the siren does not operate



Troubleshooting

3. Perform alarm relay test using menu 9.4.8 (see Fig. 3)

1. Go to menu 9.2 (see Fig. 3) and perform voice test, set the ‘volume’ and

‘speed’ parameters as requested. Don’t forget to confirm the selection by
moving the cursor to the ‘Test’ parameter and clicking the ENTER key.

2. Speaker cable is disconnected.

3. Volume trimmer is in Min. position, turn until desired volume is reached (see

Fig. 91).

1. Check if the active alarms are not defined in disable state.

2. Go over the contact group and make sure the users are not set to 'idle' and that
the group is written correctly.

2. Check the siren's connection to the relay (with battery – see Fig. 88).

Page 64 of 82 Revision No.: 1.5

Line Modem



Problem Description

'No dial tone' alarm



Troubleshooting

Fig. 91: Adjusting the volume

1. Check that there is a line by using a phone connected to the phone jack.

2. Check test phone line voltage, in menu 9.4.5 (see Fig. 3) that should be above
40V (normally it is 48V or more). If it is above 40V, connect regular phone
for testing. If the line does not operate, the line is wrong. If the line is ok, do
power cycle (by turning the device off and than on) to the communicator.
Wait a while until the communicator recovers.

Page 65 of 82 Revision No.: 1.5

13) Appendix B: RF

In order to configure RF communication you need to set the baud rate and channel on
both sides of the RF.

1. Configuration (DIP 1): In order to configure new parameters: move DIP switch

to 'on' state, arrange all parameters according to the following section, press reset,
wait until LED RX is off. Move Config to OFF.

2. Baud rate (DIP 2, 3): Baud rate is the communication bit rate beetween

PC/controller and the RFC/RFR – the UART default baud rate is 9600bps. All
states are summarized in Table 4.

Table 2: Baud rate states

If RFR is being used and the connection is to several controllers in different
distances, you should reduce baud rate until you establish connection with no
errors. The 19200 bps is not recommended for use.

3. Address (DIP 4, 5): for future use. Note that it must be at OFF position.

4. Channel (DIP 6, 7, 8): Set the module’s hopping channel number (see Fig. 76). A

channel is one of three layers of addressing available to the XStream radio
modem. In order to module to communicate with each other, the modules must
have the same channel number since each network uses a different hopping
sequence. Different channels can be used to prevent modules in one network from
listening to transmissions of another. Table 4 summarizes all possible Jumper

modes.
Note that it is very important to verify no communication disturbance occurs in
neighboring farms.

Table 3: Jumper modes summary

DIP 2 DIP 3 Baud's state Baud's rate

OFF OFF 0 9600 bps
OFF ON 1 2400 bps

ON OFF 2 4800 bps
ON ON 3 19200 bps

Jumper 6 Jumper 7 Jumper 8 Channel
0 0 0 CHAN-0
1 0 0 CHAN-1
0 1 0 CHAN-2
1 1 0 CHAN-3
0 0 1 CHAN-4
1 0 1 CHAN-5
0 1 1 CHAN-6
1 1 1 CHAN-0

Page 66 of 82 Revision No.: 1.5

Dip Switch configuration procedure:

Rearrange DIP switches 2-8 according to following procedure:

a) Move DIP switch 1 (config) to 'on' position.
b) Make any necessary changes in the DIP switch position.
c) Press Reset.
d) RX LED should be lit for 4-12 seconds.

e) Return DIP switch 1 to off position.
The following will explain each DIP switch function:
For every switch, upright mode is ON and down mode is OFF.

Fig. 92: Channel explanation

5. After setting the Dip switch, perform the configuration task.
RF range: RF performance (ranges) depends on the environmental conditions.

That is the reason for listing different ranges, although radio waves can pass through
objects, allowing non line-of-sight communication, obstacles will absorb a portion of
the signal greatly reducing the effective communication range (see Table 4).

Table 4: RF performance range

In order to let radio waves to travel in greatest distances, the waves need to travel
through as few obstacles as possible. Dense obstacles such as concrete, brick or any

2 3 4 5 6 7 8 Config

Baud Rate Address Channel

Specification 9XStream (900MHz

Module)

24XStream (24GHz
Module)

Performance
Indoor/Urban Range Up to 1500' (450m) Up to 600' (180m)

Up to 7 miles (11 km)
w/dipole antenna

Up to 3 miles (5 km)
w/dipole antenna

Outdoor LOS Range

Up to 20 miles (32 km)
w/high-gain antenna

Up to 10 miles (16 km)
w/high-gain antenna

Page 67 of 82 Revision No.: 1.5

other heavy construction will inhibit signals more than light obstacles such as a few
trees or a simple post. When trying to increase the range, several factors including
antenna height, frequency, antenna type and power output when all should be
considered.
Antenna height allows the signal to travel above obstacles and also reduce any
interference from the ground. Lower frequencies travel further than higher
frequencies, and directional antennas can focus energy, thereby increasing range in
fixed installations.

6. Long cable: In general, it is best to keep the RF cable as short as possible. All

cables have losses which are usually measured in dB loss per 100 ft. Some
common cables and dB losses are included in Table 5.

Table 5: Potential Signal Strength Loss due to Antenna Cable Length

As a summary, note the following:

Factors that determine RF link range:

• Ambient RF noise (interference)

• Line-of-sight obstructions

• Transmit power

• Receive sensitivity

• Antenna configuration

Factors that affect antenna performance:

• RF cable length

• Height of antennas off the ground

• Obstructions

• Radiation pattern

• Antenna Gain

Cable Type Loss at 900

MHz per 100'

(loss per

100m)

Loss at 904

GHz per 100'

(loss per

100m)

Diameter

Inches (mm)

RG-58 14.5 (47.4)dB 25.3 (83.2)dB 0.195 (4.95)dB
RG-174 25.9 (85.0)dB 44.4

(145.84)dB

0.100 (2.54)dB

RG-316 24.7 (81.0)dB 42.4 (139.0)dB 0.102 (2.59)dB
LMR-195 11.1 (36.5)dB 19.0 (62.4)dB 0.195 (4.95)dB
LMR-240 7.6 (24.8)dB 12.9 (42.4)dB 0.240 (6.10)dB
LMR-600 2.5 (8.2)dB 4.4 (14.5)dB 0.590

(14.99)dB

Page 68 of 82 Revision No.: 1.5

14) Appendix C: Alarm Code Numbers

CODE No. DISCRIPTION

SENSORS (1 – 80)

1 Low Temperature
2 High Temperature
3 Sensor # Low Temperature
4 Sensor # High Temperature

5 Emergency # Low Temperature
6 Emergency # High Temperature
7 Circuit Breaker High Temperature
8 Egg Room Low Temperature
9 Egg Room High Temperature

10 Temperature Sensor # Out of Range

HUMIDITY (21 – 30)

21 Low Humidity
22 High Humidity
23 Egg Room Low Humidity
24 Egg Room High Humidity

PRESSURE (31 – 39)

31 Low Pressure
32 High Pressure
33 Emergency Pressure
34 System Low Pressure

EC / pH / TDR (40 – 50)

40 EC Low Valve #
41 EC High Valve #
42 pH Low Valve #
43 pH High Valve #
44 EC Pre-Control Low Valve #
45 EC Pre-Control High Valve #
46 EC Sensor # Fail
47 pH Sensor # Fail
48 EC Pre-Control Sensor Fail
49 EC Sensors Difference
50 pH Sensors Difference

SPARE SENSORS (51 – 80)

51 Emergency Wind Speed
52 High Ammonia

53 Weather Station Lost

54 Low Oxygen
55 Oxygen Sensor Fail
56 Radiation Factor is 0

FEED (81 – 100)

82 Feeder # Overtime
83 Auger Overtime Female

84 Auger Overtime Male
85 Auger # Overtime
89 Low Feed At Feed Bin Female
90 Low Feed At Feed Bin Male

Page 69 of 82 Revision No.: 1.5

CODE No. DISCRIPTION

91 Low Feed At Feed Bin #
92 Feed Container Overflow
93 Feed Shortage

WATER (101 – 110)

101 Water Overflow
102 Water Shortage
103 Water # Leak
104 High Flow Valve #
105 Low Flow Valve #
106 No Flow Valve #
107 Stop System Flow Alarm
108 Negative Flow

HARDWARE (111 – 160)

111 Temperature Sensor # Shorted
112 Temperature Sensor # Opened
113 Temperature Failure Zone #
114 Outside Temperature Fail
115 Temperature Sensor # Fail

116 Humidity Sensor # Fail
117 Pressure Sensor Fail
118 Emergency Sensor # Shorted

119 Emergency Sensor # Opened
120 Circuit Breaker Temperature Fail
121 Emergency # Temp Fail
122 Average Sensors Fail
123 Pressure In Sensor Fail

124 Pressure Out Sensor Fail
125 Out Temperature Sensor Shorted
126 Out Temperature Sensor Opened
127 Short Circuit
128 Humidity in Fail
129 Humidity out Fail

DEVICES (131 – 150)

131 Feed Bin # Failure
132 Feed Container Fail
133 Scale # Failure

134 Incompatible Card
135 Bird Scale # Failure

136 Clock Failure
137 Damper # Fail

138 Memory Failure
139 Potentiometer # Fail

140 Fertilizer # Fail

CARDS FAIL (141 – 150)

141 Switch Card # Fail
142 Relay Card # Fail
143 Analog Input # Fail
144 Digital Input # Fail
145 Analog Output # Fail

Page 70 of 82 Revision No.: 1.5

CODE No. DISCRIPTION

146 Scale Card # Fail
147 Alarm Card Fail

148 Remote output key fail

ADDITIONAL HARDWARE (151 – 160)

151 Error In Remote Unit #
152 Scale Card Plug fail
153 Vent # fail
154 Curtain # Fail

155 Error in Extension box #
156 Generator

POWER / BATTERY (161 – 170)

161 emergency # battery fail

162 emergency # low battery
163 low battery
164 battery failure
165 power failure

COMMUNICATION / OR (171 – 180)

171 Bus Failure
172 Lost Communication Port
173 Lost Com To Controller #
174 No Dial Tone
175 Remote Unit # Communication Fail
176 Free
177 Free
178 Extension Box # Communication Fail

IRRIGATION (181 – 190)

181 Dosing Channel # Leak
182 Dosing Channel # Fault
183 Dosing Booster Protection
184 Irrigation Without Drain
185 Empty Tank Fresh
186 Empty Tank Drain
187 Emergency EC High
188 Emergency EC Low

EXTERNAL ALARMS (191 – 200)

191 Delta Pressure
192 Auxiliary Alarm #
193 Emergency # Active

194 External Pause
195 External Alarm #
196 Fail Safe Active

USER ERRORS (201 – 210)

201 Emergency Temperature Settings
202 Not Enough Tunnel Fans
203 No Ventilation Mode Defined

204 Sensor # Defined Error
205 Temperature Sensor Not Defined

206 Switches Changed

Page 71 of 82 Revision No.: 1.5

CODE No. DISCRIPTION

207 Check All Settings
208 Egg Sensor Conflict
209 Out Sensor Conflict

OTHER ALARMS (231 – 240)

231 Alarm Test

USER DEFINED SECTION (240 – 254)

240 Auxiliary Alarm (Dig Input)
255 MULTIPLE ALARM INDICATOR

Page 72 of 82 Revision No.: 1.5

15) Appendix D: USB Driver Installation

CP210x (Communicator USB) Windows Driver v4.20

1) Files attached

• unin98.ini

• uninstall.ini

• slabbus.cat

• slabser.cat

• slabbus.inf

• slabvxd.inf

• slabw2k.inf

• slabwdm.inf

• slabbus.sys

• slabcm95.sys

• slabcmnt.sys

• slabcr.sys

• slabser.sys

• slabwh95.sys

• slabwhnt.sys

• slabcomm.vxd

• slabvcd.vxd

• slabvcr.vxd

• Installation manual.pdf

2) Driver Installation

2.1) Driver Installation using Windows XP

Follow the steps to install Windows XP VCOM driver:

1. Preinstall the USB drivers delivered with communicator from CDROM.

- execute 'Preinstall.exe' file and follow screen instructions (Fig. 93-96);

1.1 Fig. 93 is displayed. Click the 'Install' button.

Fig. 93: Install Driver screenshot

Page 73 of 82 Revision No.: 1.5

1.2 Fig. 94 is seen. Click the 'Continue Anyway' button.

Fig. 94: Software Installation screenshot – part 1

1.3 Fig. 95 is shown. Click the 'Continue Anyway' button.

Fig. 95: Software Installation screenshot – part 2

1.4 Fig. 96 is displayed. Click the 'OK' button.

Page 74 of 82 Revision No.: 1.5

Fig. 96: Pre-installer screenshot

2. Connect the USB cable between the host computer and the communicator. Connect
the communicator to its plug and finally connect the USB cable to the communicator.

3. Windows opens a “Found New Hardware Wizard” balloon message in the right
bottom of the screen.

4. Fig. 97 appears. Choose 'Install the software automatically (Recommended)'
option and click on 'Next' button.

Fig. 97: Hardware Wizard USB Communicator screenshot – part 1

5. Fig. 98 is seen. Click the 'Continue Anyway' button. If Windows asks about a
driver that is not signed as Windows XP driver, click 'Install Anyway' button.

Page 75 of 82 Revision No.: 1.5

Fig. 98: Hardware Installation screenshot

6. Fig. 99 is shown. Press Finish to finish installing the "USB Device".

Fig. 99: Hardware Wizard USB Communicator screenshot – part 2

7. Windows opens a “Found New Hardware Wizard” balloon message in the right
bottom of the screen.

8. Fig. 100 is displayed. Select 'Install software automatically (Recommended)' and
press Next.

Page 76 of 82 Revision No.: 1.5

Fig. 100: Hardware Wizard Communicator screenshot – part 1

9. Fig. 101 is seen. Click the 'Continue Anyway' key. If Windows asks about a driver
that is not signed as Windows XP driver, select 'Install Anyway'.

Fig. 101: Hardware Installation screenshot

10. Fig. 102 is shown. Click the 'Finish' button to complete "USB Communication
Port" installation.

Page 77 of 82 Revision No.: 1.5

Fig. 102: Hardware Wizard Communicator screenshot – part 2

2.2) Driver Installation using Windows 2000

Follow these steps to install the Windows 2000 VCOM driver:

1. Connect the USB cable between the host computer and the communicator.

2. Windows will open a “Found New Hardware Wizard” window. Press the 'Next'
button to continue.

3. Select "Search for a suitable driver for my device (recommended)" and press the
'Next'.

4. Check "Specify a location" and press the 'Next' button.

5. Press Browse to locate the “slabbus.inf” driver installation file.
The default location is the "CD DRIVE(D,E..)\usb driver" directory. Once this file
is selected press the 'OK' button.

6. Verify that the correct path and filename are shown and press the 'Next' button.

7. Press Finish to finish installing the "USB Device".

8. Windows will open a second “Found New Hardware Wizard” window. Press Next
to continue.

9. Select "Search for a suitable driver for my device (recommended)" and press Next.

10. Check "Specify a location" and press Next.

11. Press Browse to locate the “slabw2k.inf” driver installation file ("CD
DRIVE(D,E..)\usb driver"). When this file is selected press the 'OK' button.

12. Verify that the correct path and filename are shown and press the 'Next' button.

13. Press Finish to finish installing the "Communication Port".

Page 78 of 82 Revision No.: 1.5

2.3) Virtual COM Port Driver Installation Windows 98 SE

Follow these steps to install the Windows 98 VCOM driver:

1. Connect the USB cable between the host computer and the communicator.

2. Windows will open a “Found New Hardware Wizard” window. Press the 'Next'
button to continue.

3. Select "Search for the best driver for your device (Recommended)" and press the
'Next' button.

4. Select "Specify a location".

5. Press Browse to locate the "CD DRIVE(D,E..)\usb driver" directory. Once this
directory is selected, press the 'Next' button.

6. Verify that the correct path and filename are shown and press the 'Next' button.

7. Press Finish to finish installing the "USB Composite Device".

8. Windows will open a second “Found New Hardware Wizard” window. Press the
'Next' button to continue.

9. Select "Search for the best driver for your device (Recommended)" and press the
'Next' button.

10. Select "Specify a location".

11. Press Browse to locate the "CD DRIVE(D,E..)\ usb driver" directory. Once this
directory is selected, press the 'Next' button.

12. Verify that the correct path and filename are shown and press the 'Next' button.

13. Press Finish to finish installing the "USB to UART Bridge Controller".

Page 79 of 82 Revision No.: 1.5

16) Appendix E: Ordering Information

The basic unit included the attached parts list

Basic unit Part #: P-COMM-V1

# Part # Description

1 C-COMM-BOX COMMUNICATOR

CONNECTION BOX CARD

2 C-COMM-CPU COMMUNICATOR CPU

CARD

3 C-COMM-KBD COMMUNICATOR

KEYBOARD CARD W/O
DISPLAY

4 C-COMM-PS-V1 COMMUNICATOR POWER

SUPPLY CARD 115Volt

5 C-COMM-VOICE COMMUNICATOR VOICE

CARD

6 SP-COMM-BAT COMMUNICATOR

BATTERY PACK
7 SP-COMM-LCD COMMUNICATOR DISPLAY
8 SP-COMM-SPEAKER COMMUNICATOR VOICE

SPEAKER
9 C-COMM-RJM10 COMMUNICATOR POWER

TO CPU JUMPER CARD
10 C-COMM-LM-RJM10 COMMUNICATOR

PROTECT TO CPU

JUMPER CARD
11 SP-COMM-F COMMUNICATOR FLAT

CABLE

Page 80 of 82 Revision No.: 1.5

There are three part numbers for kits that include the following parts:

# Part # Description

1 P-COMM-232-S-V1 COMMUNICATOR SET

115Volt(LM,RPLP,RS232)

Communicator basic unit +

Line Modem, RPLP-1, and

RS-232 Card.
2 P-COMM-RF-S-V1 COMMUNICATOR SET

115Volt(LM,RPLP,RF,C15)

Communicator basic unit +

Line Modem, RPLP-1, and

RF Card with 15 meter (50

feed) cable and Antenna.
3 P-COMM-485-S-V1 COMMUNICATOR SET

115Volt(LM,RPLP,RS485)

Communicator basic unit +

Line Modem, RPLP-1, and

RS-485 Card.

Page 81 of 82 Revision No.: 1.5

# Part # Description

5 C-COMM-LM-M COMMUNICATOR LINE MODEM MODULE ONLY
6 C-COMM-LM-PRO COMMUNICATOR LINE MODEM PROTECT CARD
7 C-COMM-LM- RJM14 COMMUNICATOR PROTECT TO CPU JUMPER

CARD

8 P-COMM-LM-S Assembled COMMUNICATOR LINE MODEM SET
8 C-COMM-LM-S Spare COMMUNICATOR LINE MODEM SET

9 C-COMM-RF-AD COMMUNICATOR RF ADAPTER CARD W/O

MODULE

10 C-COMM-RF10-9-M COMMUNICATOR RF 100mW 900MHz MODULE

ONLY

11 P-COMM-RF10-9-S Assembled COMMUNICATOR RF 100mW 900MHz

SET

11 C-COMM-RF10-9-S Spare COMMUNICATOR RF 100mW 900MHz SET

12 A-RF-AN-2-C6-58 RF 6M RG58 CABLE &CLIP FOR 2dBi ANTENNA
12 A-RF-AN-2-C15-58 RF 15M RG58 CABLE &CLIP FOR 2dBi ANTENNA
12 A-RF-AN-2-C23-58 RF 23M RG58 CABLE &CLIP FOR 2dBi ANTENNA
15 A-RF10-9-AN-2 RF 900MHz 2dBi ANTENNA

# Part # Description

13 C-COMM-RS232 COMMUNICATOR RS232 CARD

14 C-COMM-RS485 COMMUNICATOR RS485 CARD

1 C-COMM-GSM-AD COMMUNICATOR GSM ADAPTOR CARD W/O

MODULE

2 C-COMM-GSM-M COMMUNICATOR GSM MODULE ONLY

3 P-COMM-GSM-S Assembled COMMUNICATOR GSM MODEM SET
3 C-COMM-GSM-S Spare COMMUNICATOR GSM MODEM SET

4 A-COMM-GSM-AN

CALL ANTENNA

Page 82 of 82 Revision No.: 1.5

# Part # Description

1 A-COMM-BOX

Communicator Connection box

2 A-COMM-C-CB

Cable for connection box

3 A-COMM-C-PC

Serial DB9 cable for PC

4 A-COMM-C-USB

USB cable for PC

5 A-COMM-LM-C COMMUNICATOR LINE MODEM TELEPHONE

CABLE

ROTEM Computerized Controllers Ltd.  972-3-920-6200  FAX: [phone] ISRAEL
