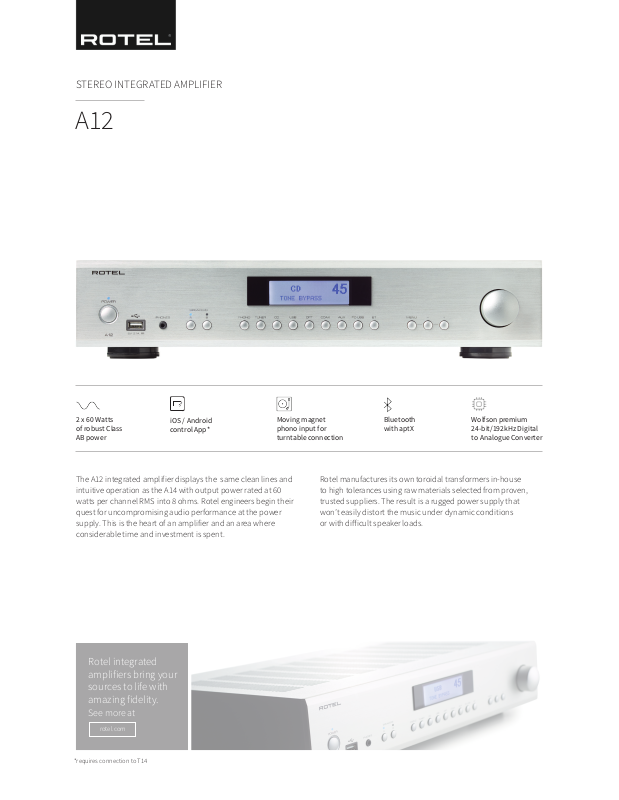

STEREO INTEGRATED AMPLIFIER
A12
2 x 60 Watts
of robust Class
AB power
The A12 integrated amplifier displays the same clean lines and
intuitive operation as the A14 with output power rated at 60
watts per channel RMS into 8 ohms. Rotel engineers begin their
quest for uncompromising audio performance at the power
supply. This is the heart of an amplifier and an area where
considerable time and investment is spent.
iOS / Android
control App*
Moving magnet
phono input for
turntable connection
Rotel integrated
amplifiers bring your
sources to life with
amazing fidelity.
See more at
rotel.com
Bluetooth
with aptX
Rotel manufactures its own toroidal transformers in-house
to high tolerances using raw materials selected from proven,
trusted suppliers. The result is a rugged power supply that
won’t easily distort the music under dynamic conditions
or with diicult speaker loads.
Wolfson premium
24-bit/192kHz Digital
to Analogue Converter
*requires connection to T14
STEREO INTEGRATED AMPLIFIER
A12
SPECIFICATIONS
Continuous Power Output
(20 - 20kHz, < 0.03%, 8 ohms)
Total Harmonic Distortion
(20 Hz - 20 kHz at rated power)
Intermodulation Distortion
(60 Hz : 7kHz, 4:1)
Frequency Response
Phono Input
Line Level Inputs
Damping Factor
(20 - 20,000 Hz, 8 ohms)
Input Sensitivity / Impedance
Phono Input
Line Level Inputs
Input Overload
Phono Input
Line Level Inputs
Preamp Output / Impedance
Tone Controls - Bass / Treble
Signal to Noise Ratio
(“A” weighting)
Phono Input
Line Level Inputs
60 watts/ch
< 0.03%
< 0.03%
20Hz - 15kHz, ± 0.5dB
10Hz - 100kHz, ± 0.5dB
220
3 mV / 47k Ohms
200 mV / 24k Ohms
50 mV
4 V
1 V / 470 Ohms
± 10 dB at 100Hz / 10kHz
90 dB
100 dB
Digital Section
Frequency Response
Signal to Noise Ratio
(IHF ”A” weighted)
Input Sensitivity/Impedance
Preamplifier Output Level
Digital Inputs
PC-USB
General
Power Requirements
Europe
USA
Power Consumption
Standby Power Consumption
Finishes
Dimensions (W x H x D)
Front Panel Height
Weight (net)
10Hz - 80kHz (± 3.0dB, MAX)
103 dB
0 dBfs/75 Ohms
1.3 V (at - 20dB)
SPDIF LPCM
(up to 192kHz / 24 bit)
USB Audio Class 1.0
(up to 96kHz 24bit)
USB Audio Class 2.0
(up to 192kHz 24bit)*
*Driver installation required
230V, 50Hz
120V, 60Hz
230 watts
< 0.5 watts
Silver and Black
430 x 93 x 345mm
17" x 3 5/8" x 13 1/2"
80mm, 3 1/8"
8kg, 17.6 lb
