Rosslare HLX-40, HLX-40A, HLX-40B Installation And Programming Manual

2013
May

HLX-40/40A/40B

Advanced Wireless Security Panel

Hardware Installation and Programming Manual

Copyright © 2013 by Rosslare. All rights reserved.

This manual and the information contained herein are proprietary to REL, RSP Inc. and/or
their related companies and/or subsidiaries’ (hereafter:”ROSSLARE”). Only ROSSLARE
and its customers have the right to use the information.

No part of this manual may be re-produced or transmitted in any form or by any means,
electronic or mechanical, for any purpose, without the express written permission of
ROSSLARE.

ROSSLARE owns patents and patent applications, trademarks, copyrights, or other
intellectual property rights covering the subject matter in this manual.

TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN THIS
DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS AND OTHER
LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND TRANSMITTAL TO THIRD
PARTIES WITHOUT EXPRESS WRITTEN PERMISSION MAY RESULT IN LEGAL
PROCEEDINGS.

The furnishing of this manual to any party does not give that party or any third party any
license to these patents, trademarks, copyrights or other intellectual property rights,
except as expressly provided in any written agreement of ROSSLARE.

ROSSLARE reserves the right to revise and change this document at any time, without
being obliged to announce such revisions or changes beforehand or after the fact.

Table of Contents

Table of Contents

1. Introduction ..................................................................... 10

1.1 General ............................................................................................ 10

1.2 Special Features ................................................................................ 11

2. HLX-40 Quick Reference .................................................. 12

2.1 The Panel .......................................................................................... 12

2.2 The Keypad ...................................................................................... 13

2.2.1 Keypad Operated Functions ....................................................................... 14

2.3 Sound Indicators ............................................................................... 15

2.4 LED Indicators ................................................................................... 15

3. Specifications .................................................................. 16

3.1 RF Data............................................................................................. 16

3.2 Environmental Data .......................................................................... 16

3.3 Electrical Data ................................................................................... 17

3.4 Communication ................................................................................ 18

4. Installation ...................................................................... 19

4.1 Unpacking the Equipment................................................................. 19

4.1.1 HLX-40 Package Content ........................................................................... 19

4.2 Supply Power to the Unit .................................................................. 19

4.3 Planning & Programming .................................................................. 19

4.4 Wiring the System ............................................................................ 19

4.4.1 Wiring the HLX-40 ..................................................................................... 20

4.4.2 Resistors .................................................................................................... 21

4.4.3 Siren Relay Output – Wiring to External Siren .............................................. 22

4.4.4 Wiring Auxiliary Outputs 1 and 2 ............................................................... 22

4.4.5 Wiring the Zone 40 Wired Input ................................................................. 23

4.4.6 Wiring the Wired Tamper Input .................................................................. 23

4.4.7 Wiring the HLX-40 Telephone Connectors .................................................. 23

4.5 Connecting the MD-CC101 GSM Stick.............................................. 23

HLX-40 Hardware Installation and Programming Manual iii

Table of Contents

4.6 Connect the AC Transformer ............................................................ 24

4.7 Connecting to a PC .......................................................................... 25

4.8 Mounting the Back Plate ................................................................... 25

4.8.1 General ..................................................................................................... 25

4.8.2 Required Space ......................................................................................... 26

4.9 Dismounting the Control Panel ......................................................... 26

4.10 Replacing the Backup Battery ............................................................ 26

5. Programming the HLX-40 ............................................... 28

5.1 Overview .......................................................................................... 28

5.2 Enrolling Wireless Devices and Remote Controls ................................ 28

6. Installer Menu ................................................................. 29

6.1 Change Code ................................................................................... 30

6.2 Zones ............................................................................................... 30

6.3 Enrolling ........................................................................................... 32

6.3.1 Detectors .................................................................................................. 33

6.3.2 Remote Controls (KE-30 RFID Function) ...................................................... 33

6.3.3 RF Siren ..................................................................................................... 34

6.3.4 Keypads .................................................................................................... 35

6.3.5 Repeaters .................................................................................................. 35

6.4 Security ............................................................................................ 35

6.4.1 Exit Delay .................................................................................................. 36

6.4.2 Exit Restart ................................................................................................ 37

6.4.3 Entry Delay ................................................................................................ 37

6.4.4 Auto Arming ............................................................................................. 38

6.4.5 Siren Time ................................................................................................. 38

6.4.6 Siren Mode ............................................................................................... 38

6.4.7 Relay Polarity ............................................................................................. 38

6.4.8 Local Siren ................................................................................................ 39

6.4.9 Wired Siren ............................................................................................... 39

6.4.10 Supervision Time ....................................................................................... 39

6.4.11 Jamming ................................................................................................... 39

6.4.12 No Activity Time ........................................................................................ 39

6.4.13 Trouble Beeps ........................................................................................... 40

iv HLX-40 Hardware Installation and Programming Manual

Table of Contents

6.4.14 Bypass Option ........................................................................................... 40

6.4.15 Quick Arm ................................................................................................ 41

6.4.16 Arm Instant ............................................................................................... 41

6.4.17 Panic Button .............................................................................................. 41

6.4.18 Duress Code .............................................................................................. 42

6.4.19 Alarm Cancel ............................................................................................ 42

6.4.20 Alarm Abort Time ...................................................................................... 42

6.4.21 Backlight Time ........................................................................................... 43

6.4.22 Hide Display .............................................................................................. 43

6.4.23 Key Beeps ................................................................................................. 43

6.4.24 Select Language ........................................................................................ 43

6.4.25 EN-CENELEC ............................................................................................. 44

6.4.26 CP-01 ....................................................................................................... 45

6.5 Communications .............................................................................. 47

6.5.1 System Telephone ..................................................................................... 47

6.5.2 GPRS Setup ............................................................................................... 47

6.5.3 Private Report ............................................................................................ 48

6.5.4 CS Report Setup ........................................................................................ 49

6.5.5 Line Test ................................................................................................... 51

6.5.6 AC Fail Report ........................................................................................... 51

6.5.7 Fax Defeat ................................................................................................. 52

6.5.8 2-Way Voice Behavior ................................................................................ 52

6.5.9 Number of Rings ....................................................................................... 52

6.5.10 Select Region/Country ............................................................................... 53

6.6 Automation ...................................................................................... 53

6.6.1 Keypad Manual ......................................................................................... 53

6.6.2 Set Triggers ............................................................................................... 53

6.7 Messages .......................................................................................... 54

6.7.1 Keypad Mute ............................................................................................ 55

6.7.2 Voice Mute ............................................................................................... 55

6.7.3 House Name ............................................................................................. 55

6.7.4 Custom Zones ........................................................................................... 55

6.8 Maintenance .................................................................................... 56

6.8.1 Factory Defaults......................................................................................... 56

6.8.2 RF Test ...................................................................................................... 57

HLX-40 Hardware Installation and Programming Manual v

Table of Contents

6.8.3 Test Indicators ........................................................................................... 57

6.8.4 Sirens Test ................................................................................................. 58

6.8.5 Test Devices .............................................................................................. 58

7. User Menu Structure ....................................................... 59

8. Reading the Event Log ................................................... 61

A. Quick Reference to Installer Menu ................................ 62

B. Quick Reference to User Menu ...................................... 64

C. Sensor Placement and Helpful Reference Tables ........ 65

C.1 Default Zone Descriptions ................................................................. 65

C.2 Custom Zone Descriptions ................................................................ 66

C.3 Detector Deployment Plan ................................................................ 66

C.4 Remote Control ................................................................................ 68

D. Reporting Codes .............................................................. 69

E. GSM Stick Errors .............................................................. 71

F. Settings Requirements for CENELEC ............................. 72

G. Default Parameter Values .............................................. 73

H. Labeling Instructions ...................................................... 78

I. Declaration of Conformity ............................................. 79

J. Limited Warranty ............................................................ 80

vi HLX-40 Hardware Installation and Programming Manual

List of Figures

List of Figures

Figure 1: HLX-40 .......................................................................................... 10

Figure 2: HLX-40A ........................................................................................ 11

Figure 3: HLX-40B ........................................................................................ 11

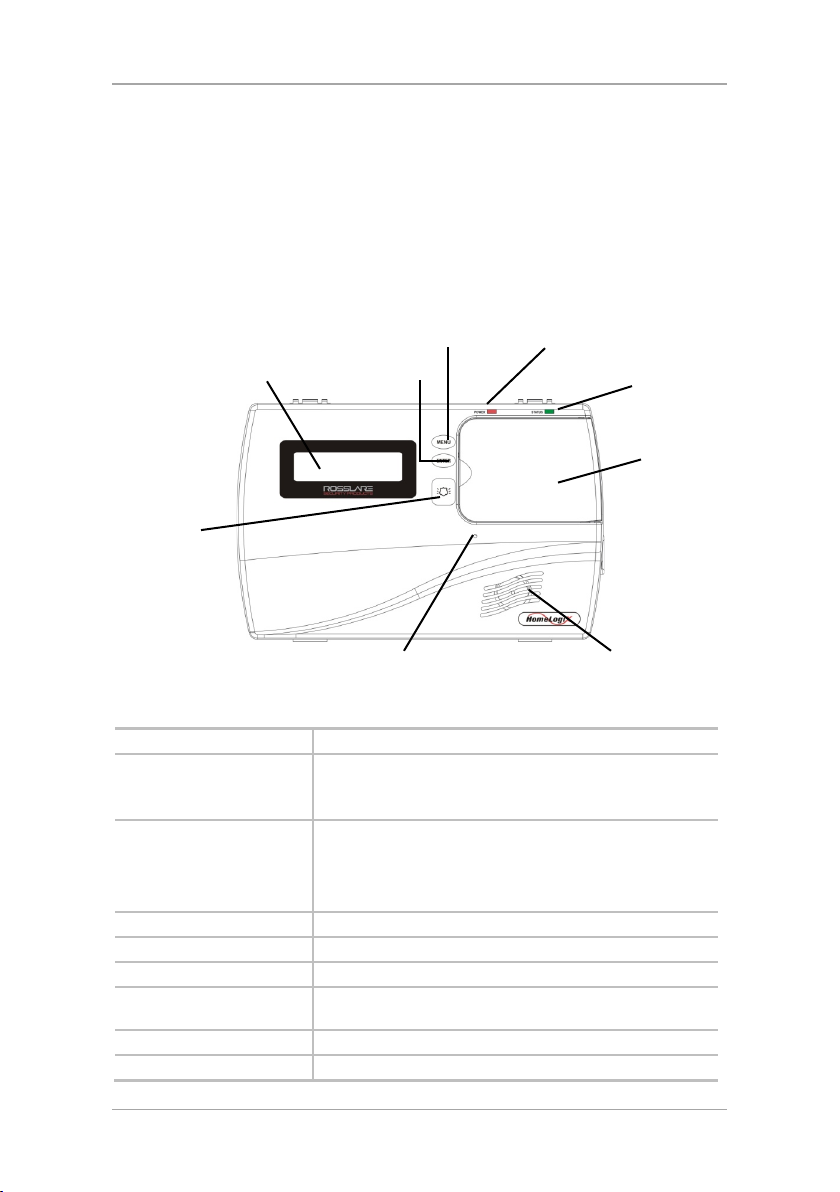

Figure 4: HLX-40 Panel ................................................................................. 12

Figure 5: HLX-40 Keypad .............................................................................. 13

Figure 6: Panel Wiring .................................................................................. 20

Figure 7: Resistors ........................................................................................ 21

Figure 8: Wiring to External Siren ................................................................. 22

Figure 9: Wiring to Aux Outputs ................................................................... 22

Figure 10: Wiring to Zone 40 Input ............................................................... 23

Figure 11: Wiring to Tamper Input ................................................................ 23

Figure 12: Wiring to Telephone .................................................................... 23

Figure 13: GSM Assembly ............................................................................. 24

Figure 14: Back Plate Wiring ......................................................................... 25

Figure 15: Back Plate Mounting Holes........................................................... 25

Figure 16: Mounting .................................................................................... 26

Figure 17: Backup Battery ............................................................................. 27

HLX-40 Hardware Installation and Programming Manual vii

List of Tables

List of Tables

Table 1: Control Panel Functions .................................................................. 12

Table 2: Keypad Functions ............................................................................ 13

Table 3: Keypad Operated Functions............................................................. 14

Table 4: Sound Indicators ............................................................................. 15

Table 5: LED Indicators ................................................................................. 15

Table 6: Resistor Color Scheme ..................................................................... 21

Table 7: Resistors Provided ........................................................................... 21

Table 8: CP01 Menu..................................................................................... 45

Table 9: Trigger Type and Parameters ........................................................... 54

Table 10: User Menu Structure ..................................................................... 59

Table 11: Installer Menu ............................................................................... 62

Table 12: User Menu .................................................................................... 64

Table 13: List of CID Codes .......................................................................... 69

Table 14: GSM Stick Errors ........................................................................... 71

viii HLX-40 Hardware Installation and Programming Manual

Notice and Disclaimer

Notice and Disclaimer

This manual’s sole purpose is to assist installers and/or users in the safe and
efficient installation and usage of the system and/or product, and/or software
described herein.

B

EFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM, THE INSTALLER AND

THE USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY

REQUIREMENTS AND OPERATING PROCEDURES

 The system must not be used for purposes other than those for which it

was designed.

 The use of the software associated with the system and/or product, if

applicable, is subject to the terms of the license provided as part of the
purchase documents.

 ROSSLARE exclusive warranty and liability is limited to the warranty and

liability statement provided in an appendix at the end of this document.

 This manual describes the maximum configuration of the system with the

maximum number of functions, including future options. Therefore, not
all functions described in this manual may be available in the specific
system and/or product configuration you purchased.

 Incorrect operation or installation, or failure of the user to effectively

maintain the system, relieves the manufacturer (and seller) from all or any
responsibility for consequent noncompliance, damage, or injury.

 The text, images and graphics contained in the manual are for the

purpose of illustration and reference only.

 All data contained herein is subject to change without prior notice.
 In no event shall manufacturer be liable for any special, direct, indirect,

incidental, consequential, exemplary or punitive damages (including,
without limitation, any and all damages from business interruption, loss of
profits or revenue, cost of capital or loss of use of any property or capital
or injury).

 All graphics in this manual are for reference only, some deviation between

the image(s) and the actual product may occur.

 All wiring diagrams are intended for reference only, the photograph or

graphic of the PCB(s) are intended for clearer illustration and
understanding of the product and may differ from the actual PCB(s).

.

HLX-40 Hardware Installation and Programming Manual ix

Introduction

1. Introduction

1.1 General

The HLX-40 panel by Rosslare is the perfect wireless security system for
intrusion protection of the home, or small office providing security monitoring
and VIP Voice messaging.

Users receive the latest RF technology in a wide selection of advanced wireless
sensors and remotes, and benefit from smooth and easy operation of a large
number of security and communication options.

The HLX-40 panel is easy to install and set up via local programming and via
direct or modem connection to a PC running the HLX-40 PC Software.

The panel has two full split reporting features for communicating to central
station for Contact ID and 2-way voice enabled event reporting and vocal
communications.

VIP features include Voice Assist, where the panel uses voice to prompt the
user, Private Messaging to three destinations, with an optional 2-way voice
session for every message.

The HLX-40 comes in three attractive designs:

 HLX-40
 HLX-40A
 HLX-40B

Figure 1: HLX-40

10 HLX-40 Hardware Installation and Programming Manual

Introduction

Figure 2: HLX-40A

Figure 3: HLX-40B

1.2 Special Features

 40 zones – 39 wireless zones, 1 wired zone – and tamper
 Supports 8 remote controls, 4 wireless sirens, 4 wireless keypads, and 4

repeaters

 Programmable remote control buttons
 Interactive telephone voice menu (voice interactive)
 Flexible PGM automation features
 Five custom textual and recordable zone descriptions
 Advanced testing and diagnostics options
 Remote (telephone) two-way voice and listen-in
 Lockout feature upon wrong code entry
 Programmable No Activity timer (Version 2.0 and up)

HLX-40 Hardware Installation and Programming Manual 11

HLX-40 Quick Reference

Microphone

Keypad Door

2. HLX-40 Quick Reference

This chapter describes the control panel and the keypad, as well as the chimes
emitted when the buttons on the keypad are pressed.

2.1 The Panel

Figure 4 presents the components of the wireless panel.

Figure 4: HLX-40 Panel

Local Emergency

Button

Menu

Power Indicator

Status Indicator

Keypad Door

Local Sounder

Microphone

Local Emergency Button

Display

Enter

Display

Menu

Enter

Table 1: Control Panel Functions

Use to navigate between menus

Power LED: green
FLASHING when there is an AC power failure and during

Walk Test

Status LED: green On: system armed
Off: system disarmed
Flash: entry and exit delay (according to beep rate)
FLASHING without beeps during Walk Test

Open to access the keypad buttons

System speaker

Enables the recording of voice messages

Keep pressed for 3 seconds to sound a standard panic
alarm

LCD display

Accept an entry or selection

Power Indicator

Status Indicator

Local Sounder

(HLX-40 and

HLX-40A)

12 HLX-40 Hardware Installation and Programming Manual

HLX-40 Quick Reference

2.2 The Keypad

Figure 5: HLX-40 Keypad

Table 2 describes the keypad functions:

Table 2: Keypad Functions

Key Icon Press to

Menu

Enter

Navigate between User and Installer
menus, and Normal mode

Navigate to the next menu or the next
option within a menu

Accept an entry or selection

Local Emergency

Keys 0 – 9

Away

Home

Disarm

Esc

When pressed for 3 seconds a standard
panic alarm sounds

Enter alphanumeric entries
Press 0 to enter a space

Arm all sensors and detectors for use
when there is no one at home/office

Arm all perimeter sensors and detectors as
defined by the installer (for use when
home/office is occupied)

Disarm all armed sensors and detectors

Ignore an entry or move one level up in a
menu

HLX-40 Hardware Installation and Programming Manual 13

HLX-40 Quick Reference

system event is displayed), event date and time. The display toggles between

2.2.1 Keypad Operated Functions

When the system is idle, the alphanumeric keys initiate the commands shown
in Table 3.

Table 3: Keypad Operated Functions

Press To

0 Memory Display

Press once to display the alarms caused during the last arming period per
zone. The first line of the displays shows the alarm memory, and the second
line shows the zone description, event and time. The display toggles between
zone description and the date by pressing Enter.

Press Menu to display the next alarmed zone.
Press Esc to exit.

Note: When EN-CENELEC standard is enabled, only the master user

can access the memory display.

1 PGM ON

Press once to enter PGM activation mode, the PGM status is indicated on the
right. Press 1 to activate PGM 1 and/or 2 to activate PGM 2.

2 PGM OFF

Press once to enter PGM deactivation mode, the PGM status is indicated on
the right. Press 1 to deactivate PGM 1 and/or 2 to deactivate PGM 2.

3 Chime ON/OFF

Manually toggle the chime on and off

4 Volume

Manually toggle the beep volume level

5 Sound ON/OFF

Manually toggle voice messages, keypad tone, and other sounds on and off

6 Bypass

Enter the User menu Bypass option

7 Record User Message

Record a voice message of up to 15 seconds. Press and hold key 7 for 3
seconds to erase a message.

8 Event Log Display

Press once to display the event log. The first line of the display shows the
event log and the second line shows the zone description (or system, if a

zone description and the date by pressing Enter.
Press again or press Menu to display the next event.
Press Esc to exit the menu.
Note that a master code is required to access this function.

9 Play User Message

Listen to voice messages

14 HLX-40 Hardware Installation and Programming Manual

HLX-40 Quick Reference

2.3 Sound Indicators

Table 4 presents the sounds emitted by the system and push buttons if
enabled during programming.

Table 4: Sound Indicators

Sound Sounded when

Single beep

Long Beep

Three short beeps

Four short beeps a
minute

Short beep every
second

Chime 1 & 2

Chime 3

Aside from the indication sounds, the system also has a voice confirmation of
various events.

This table does not include actual alarm sounds.
Note that the audible indication of a fire zone differs from that of a normal

intrusion zone.

2.4 LED Indicators

Table 5 describes the LED indicators of the power and status indicators

A key is pressed

There is an illegal key entry

An entry is successfully accepted.

If enabled, on trouble condition.

An exit/entry delay is activated (beep sounded every 0.5
seconds during last 10 seconds of delay)

Two (2) various chime sounds, when feature is activated

Vocal announcement of “Zone Name” + Open

Table 5: LED Indicators

Power LED
(Red)

ON OFF Panel disarm
ON ON Panel Arm
ON FLASHES every 1 second Exit/Entry mode when AC is ON

ON FLASHES every 0.5

FLASHES every 1 second FLASHES every 1 second Walk Test mode

FLASHES every 0.5
seconds

Status LED

Behavior

(Green)

seconds

OFF AC Failure

Last 10 seconds of Exit/Entry
mode

Exit/Entry mode when AC is ON

HLX-40 Hardware Installation and Programming Manual 15

Specifications

3. Specifications

This chapter provides the various specifications in regard to all three HLX-40
control panels.

3.1 RF Data

RF Unit Type

Antenna Type

Operating
Frequencies

Receiver
Sensitivity

Transmitter
Power

Range
(open field)

RF Device ID
Coding

Integrated RF transceiver (two-way) shielded super heterodyne,
fixed frequency

Printed PCB type antenna

G series – 433.92 MHz
H series – 868.35 MHz
Up to -68 dBm (without GSM Stick)

Up to +10 dBm, less based on country requirements

Up to 250 m in open space for detectors, and 110 m for hand­held remote controls (without GSM Stick)

Three-bytes non-replicated per sensor type, or multiples of 16
million possible codes, make it almost impossible to have two like
coded transmitters

The HLX-40 system has optimum range if installed according to the
manufacturer’s recommendations, though this range may be affected by radio
noise from high-power nearby sources, or interference with the signal
(blocking) by large metal surfaces, or multiple concrete walls.

3.2 Environmental Data

HLX-40 HLX-40A HLX-40B

Operation
Temperature
Range

Storage
Temperature
Range

Relative
Humidity

Dimensions
(L x W x D)

Weight

217 x 144 x 48 mm

(8.5 x 5.7 x 1.9 in.)

520 g

(1.1 lb)

0ºC to 60ºC (32ºF to 140ºF)

-25ºC to 70ºC (-13ºF to 158ºF)

85% at 30ºC (non-condensing)

217 x 144 x 50 mm

(8.5 x 5.7 x 2.0 in.)

548 g

(1.2 lb)

217 x 144 x 48 mm

(8.5 x 5.7 x 1.9 in.)

530 g

(1.2 lb)

16 HLX-40 Hardware Installation and Programming Manual

Specifications

3.3 Electrical Data

 Two lines of 16 characters, backlit LCD display
 Two fully programmable PGM open collector outputs, 200 mA, PTC

protected

 External hardwired siren output
 Case tamper protection
 On-board, supervised wired zone and wired tamper inputs
 Local, 80 dBA siren
 220 VAC/50 Hz, 110 VAC/60 Hz (15 VDC, 800 mA) external power supply
 Complies with the following standards:

 CE, FCC, EN 50131-3, EN 50131-6, EN 50130-5, EN 50130-4, EN

60950-1, EN 50131-5-3, Security Grade 2, Environmental II

 Current consumption:

 without GSM: 90 mA (standby) 500 mA (max)
 with GSM: 120 mA (standby) 1000 mA (max)

 Auxiliary power output: 13.8 VDC, 500 mA max

 Output voltage range max. 13.8 VDC, minimum 9 VDC
 Maximum output pick-to-pick ripple 0.6 Vptp
 Maximum auxiliary current output 200 mA – EN50131-6 standard

 Battery

 Internal backup battery: 800 mAh for 6 hours standby – not

EN50131-6 standard

 Internal backup battery: 2000 mAh for 14 hours standby
 Low battery detection under 10 V
 Maximum battery (2000 mAh) recharge time 72 hours

 Zone Input Specifications

 Maximum loop current (shorted loop): 0.33 mA
 Maximum loop voltage (open loop): 3.3 VDC
 Loop shorted: 0 V – 0.5 V (0 to 1000K total loop resistance)
 Loop normal: 1 V – 2.2 V (4340 to 16150K)
 Loop open: 2.8 V – 3.3 V (31250K to infinite)

HLX-40 Hardware Installation and Programming Manual 17

Specifications

3.4 Communication

 Frequencies: 433.92 MHz (G) and 868.35 MHz (H)
 RF jamming detection (UL/EN selectable)
 Proprietary anti-collision RF protocol
 Programmable no-activity timer 1–30 minutes, per zone
 Two central station numbers and accounts, backup and secondary modes
 Reporting protocols: Contact ID
 Three private telephone numbers for voice reporting, and two way voice

communications

 Local connection (with MD-62) port for local upload/download, and

remote programming by PC software

 Built-in telephone dialer and 2400 Baud rate modem

18 HLX-40 Hardware Installation and Programming Manual

Installation

4. Installation

4.1 Unpacking the Equipment

The contents of your package are listed below. First, make sure that all the
items in the kit have been included. If you find that any item is missing, contact
your dealer immediately.

4.1.1 HLX-40 Package Content

 HLX-40/40A/40B unit
 Wall Adaptor
 Telephone cable
 Installation screw set

4.2 Supply Power to the Unit

It is easier to enroll the ID codes of the transmitting devices to the system
before installation. Power the HLX-40 system using the external power
transformer or from the backup battery.

Please note that in order to initiate battery power, connect the battery, connect
external power (transformer), and then disconnect the power to initiate battery
power operation.

4.3 Planning & Programming

Register the location of each detector in the tables provided in Appendix C and
D. Mark the transmitters and detectors accordingly.

To program the system, refer to Chapter 5.
To mount the HLX-40 unit, refer to Section 4.8.

4.4 Wiring the System

The HLX-40 wiring plan is shown in Figure 6.
Release the screw on each terminal block and connect accordingly.

HLX-40 Hardware Installation and Programming Manual 19

Installation

4.4.1 Wiring the HLX-40

Figure 6: Panel Wiring

Input Description

Siren

AUX 1

AUX 2

GND

ZONE

GND

TAMPER

+15VDC VIN

GND

+13.8VDC
(-) AUX (OUT)

LINE IN

HOME TEL

MD-62 Connection Socket

+BAT-

Wall Tamper Switch

Relay output for external siren or strobe. Normally open
or normally closed for external siren contacts.

Programmable AUX outputs 1 and 2, 200 mA Sink
Current 12VDC open collector outputs Active Low.

Ground

Wired Zone (zone 40) Alarm input.

Ground

Wired Zone (zone 40) Tamper input.

Input voltage from AC/DC adaptor VIN = 13.8–15

Auxiliary Power output (to power external devices) +13.8
VDC 500 mA load current max. current limited.

Telephone line in (from the wall to the system).

Telephone line out (from system to telephone device).

Connection socket for 10-pin plug connecting panel to
PC with MD-62.

Battery connector

The tamper switch is pressed when the panel is mounted
on the wall.

20 HLX-40 Hardware Installation and Programming Manual

Installation

3

6

7

  

 

4.4.2 Resistors

The HLX-40 family is provided with two 10.0K resistors for the hardwired zone
and Tamper connections.

Figure 7, Table 6, and Table 7 help in the understanding of the resistor color
scheme:

Figure 7: Resistors





Stripes 1 and 2 represent numbers that together with stripe 3, which
represents the number of zeros represents the resistor’s value in Ohm. Stripe 4
represents the tolerance. All resistors provided by Rosslare have a 5% tolerance
represented by the color Gold. To read the Resistor number, hold the unit with
the gold stripe on the right.

The color scheme is as follows:

Table 6: Resistor Color Scheme

Black 0

Brown 1

Red 2

Orange

Yellow 4

Green 5

Blue

Violet

Grey 8

White 9

Based on the above color scheme the resistor provided is as follows:

Table 7: Resistors Provided

Color
Resistor

10.0K

Brown Black Orange

HLX-40 Hardware Installation and Programming Manual 21

Installation

4.4.3 Siren Relay Output – Wiring to External Siren

The relay output for an external siren can be programmed as normally open or
normally closed (failsafe) operation.

Figure 8: Wiring to External Siren

Inside HLX-40

This output can be programmed by the installer to provide normally closed or
normally open dry contact output. This relay output toggles the normal
position in case of an alarm and operates in the same method as the local
siren.

4.4.4 Wiring Auxiliary Outputs 1 and 2

Auxiliary outputs 1 and 2: This pair of outputs is an open collector with sink
current limited at 200 mA. The outputs work by connecting an external device
to power supply through an internal transistor in order to turn it on.

Figure 9: Wiring to Aux Outputs

Both Aux 1 and Aux 2 have the same selection of programming. When
programming the Aux 1 and Aux 2 open collector outputs, it is possible to
select from several operational modes from the programming menu as
described in Section 6.6.2.

22 HLX-40 Hardware Installation and Programming Manual

Installation

4.4.5 Wiring the Zone 40 Wired Input

Wire input Zone 40 for wired door detector.

The wired zone is disabled by default to work with a wired zone. The option
needs to be enabled by the installer.

Figure 10: Wiring to Zone 40 Input

This wired input acts as a regular sensor and functions likewise in armed and
disarmed mode.

4.4.6 Wiring the Wired Tamper Input

Wire tamper input: 24-hour active on Zone 40.

Figure 11: Wiring to Tamper Input

4.4.7 Wiring the HLX-40 Telephone Connectors

Terminal Blocks for Line-In and Tel Line-Out

Figure 12: Wiring to Telephone

4.5 Connecting the MD-CC101 GSM Stick

The HLX-40 has an optional GSM stick, which enhances the system’s
performance by allowing GSM communication used as a backup line
communication when a problem occur with the PSTN line.

HLX-40 Hardware Installation and Programming Manual 23

Installation

To connect the MD-CC101 GSM stick:

To connect the AC transformer:

When using the GSM module, the system also allows a private phone to
receive both voice and SMS messages (alerts, troubles, bypass, arm/disarm).
The user can also send commands to the system via SMS messages, allowing
arming (home/away), disarming, and PGM activation/deactivation.

The system automatically detects the availability of the GSM stick upon initial
power up; it also tests the reception levels and displays them on the screen.
The reception must be above 21.00 to be ready for use.

Some menu options are only available if the GSM stick is detected.
The GSM stick enhancement only works with a battery pack connected.

1. Insert the GSM stick into the connector slots located on the back of the
HLX-40 (Figure 13).

2. Tighten the placement screws on both sides of the GSM stick to secure
onto the panel.

3. Open the SIM holder by sliding it sideways.

4. Insert the SIM card into the holder and close the holder.

Figure 13: GSM Assembly

4.6 Connect the AC Transformer

Complete all the wiring before plugging the transformer in to the AC outlet.

1. Attach the transformer and power up the system.
The display shows the HLX-40 logo and the current version.

2. Plug in the transformer.
The power LED on the control panel should light up.

24 HLX-40 Hardware Installation and Programming Manual

Installation

plate first before connecting any of the wiring

4.7 Connecting to a PC

The control panel can be equipped with an optional MD-62 adaptor for serial
data interchange with a computer.

4.8 Mounting the Back Plate

4.8.1 General

To complete the installation without exposed wires, all the wiring should be
done through the wall. The wiring to the back plate can be done without
having exposed wires, by installing the panel on a standard electrical box, or
making a hole in the wall for the wiring (Figure 14).

Figure 14: Back Plate Wiring

It is important to mount the back
to the unit.

When drilling the hole for the wires, it is recommended to drill the hole in the
marked out area (Figure 15).

Figure 15: Back Plate Mounting Holes

HLX-40 Hardware Installation and Programming Manual 25

Installation

To dismount the control panel:

To replace the backup battery:

4.8.2 Required Space

The required space on the wall for the panel is (L) x (H). The hole size for the
wires is 2 x 5 cm. This is to be drilled according to the openings on the back
plate.

The optimum viewing angle of the LCD is achieved when the panel is mounted

above the eye level of the user (Figure 16).

Figure 16: Mounting

4.9 Dismounting the Control Panel

1. Release HLX-40 from the mounted back plate by unscrewing the bottom
screws and unlocking the locking hooks on the top of the back plate by
lifting them up and out of the recesses on top of the panel.

2. Pull the top of the panel away from the wall to disconnect the connector
to the back plate and then remove the panel from the lower posts of the
back plate.

4.10 Replacing the Backup Battery

1. Dismount the panel.

2. Remove the battery cover (Figure 17).

3. Replace the battery.

4. Replace the cover.

26 HLX-40 Hardware Installation and Programming Manual

Installation

Figure 17: Backup Battery

HLX-40 Hardware Installation and Programming Manual 27

Programming the HLX-40

5. Programming the HLX-40

5.1 Overview

We recommend that you program HLX-40 before installing it. The system must
be connected to the AC power supply for programming; you may also connect
the backup battery at this time.

HLX-40 is provided with two default codes:

 Default installer code: 8888 – Enables you to program HLX-40
 Default Master code: 1234 – Enables you to change the master code and

modify the User and Master options

We recommend that you change the master and installer codes after first time
use.

5.2 Enrolling Wireless Devices and Remote Controls

You can enroll detectors, remote controls, keypads, sirens, and repeaters.

Enrolling is not available for Wired Zone #40. It can only be enabled or disabled
(default: disabled). Zone 40 uses the wired zone and tamper inputs.

Before enrolling wireless devices and remote controls, make sure they all
contain the appropriate batteries.

28 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To access the Installer menu:

6. Installer Menu

The Installer menu enables access to the following group of options:

 Change Code
 Zones
 Enrolling
 Security
 Communications
 Automation
 Messages
 Maintenance

Appendix A presents some the features available in the Installer menu and how
to access them.

1. Press Menu twice to reach the

The default Installer menu code is 8888.

If a wrong code is entered, the system indicates that an illegal code was
entered and waits once again for the correct code to be entered. After 30
seconds of no entry, the system returns to Normal mode automatically.

The system locks out for 90 seconds after entering 5 wrong codes.

INSTALLER MENU

option and press Enter.

No activity within the menu for 4 minutes causes the system to return to
Normal mode. To return to Normal mode before 4 minutes pass, press
ESC.

2. Once in the

3. Press Enter to access the desired submenu as detailed below.

Some menus can be accessed directly by typing the option number instead of
scrolling the various options.

HLX-40 Hardware Installation and Programming Manual 29

INSTALLER MENU

, use Menu to browse the submenus.

Installer Menu

Enrolling
Security

Communications

Automation
Messages

To change the installer code:

Security

Messages

6.1 Change Code

Maintenance

Zones

CHANGE CODE

This option enables you to change the code with which you enter the system.
The default code is 8888.

1. Press Enter to access the submenu. The first submenu is

CHANGE CODE

2. Enter a new four-digit installer code.

3. Press Enter to save your new code.

6.2 Zones

Communications

Change Code

Automation

Enrolling

Maintenance

.

ZONES

Zone #01–40
Zone Type
Description
Chime
No Activity
Swinger
Zone Cross
Cross Time
Abort Window

This menu allows you to define each of the 40 available zones. You can define
the zone type, description, activity type and its audible chime indication.

30 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To specify zones:

1. Press Enter to access the submenu. The second submenu is

2. Select the required zone by either browsing all 40 using Menu or by
entering the zone number using the numeric keypad.

3. Once in the desired zone, use Menu to browse the options.

4. Press Enter to access the desired submenu to define several characteristics
as follows:

 Zone Type: Select one of the following:

 Delay – An opening in this zone is alarmed only after the exit or

entry time has passed

 Fire – An opening in this zone causes a fire alarm and is armed

24 hours a day

 24H Silent – An opening in this zone causes a silent alarm (no

audible local siren) and is armed 24 hours a day

 24H Audible – An opening in this zone causes an audible alarm

and is armed 24 hours a day

 No Secure – non-alarm zone – zone can be used for any non-

secured propose

 Interior – Zone is bypassed when system is in Arm Home (Stay)

mode

 Interior Follow – A non-entry/exit zone, typically an interior zone

located on an entry/exit path, which is treated as an entry/exit
zone during an Entry Delay or Exit Time. An opening in this zone
is alarmed only after the exit or entry time has passed.

 Perimeter – Zone is armed both in Arm Home and Arm Away

modes

 Description: Select one of 38 fixed descriptions or one of five

editable custom descriptions. HLX-40 enables you to specify five
custom zones (see Section 6.7.4).

For your convenience and better control of the installation, use the
tables provided in Appendix C.

 Chime: Select one of two audible chimes, one voice announcement

chime (Chime 3), or no chime at all. By default all zones are set to no
chime –

 No Activity: Select to enable or disable the no activity time for each

zone. When there is no activity in the specified zone and the system
is disarmed, a silent alarm is sent to the monitoring station. When the
system is armed and there is no activity in the specified zone, an
audible alarm and a report are sent to the monitoring station. By
default the option is disabled.

Chime Off

.

ZONES

.

HLX-40 Hardware Installation and Programming Manual 31

Installer Menu

Security

Messages

 Swinger: Select the number of repeated opening events from the

zone after which the system ignores the zone. The default setting is 2
zone openings. The zone is restored after a manual system reset or
automatically after a defined number of hours. The default value is 8
hours.

 Zone cross: The zone cross option requires an opening of two zones

within a given time period to initiate an Alarm event sequence. This
setting links between the two zones.

• Crossing zones can be of zones with the same type.

• One cross zone gets the mutual zone automatically. Ex zone 1 cross zone 2

then zone 2 automatically cross zone is 1.

 Cross Time: Select the time period between two zones defined in

cross mode for alarm event. If one linked zone is opened and the
other linked zone is not opened, a zone cross error is sent to the
monitoring station. The default is 30 seconds.

 Abort Window: A period of time after a sensor initiates an alarm

condition that allows the user additional time to disarm the system
before an alarm is transmitted. Select Enabled to allow the zone to
abort an alarm event during the Alarm Abort Window defined in the
system. The default setting is Enabled.

6.3 Enrolling

Communications

Change Code

Automation

Maintenance

Zones

ENROLLING

Detectors
Remote Controls

R. Sirens
Keypads
Repeaters

The third submenu is

ENROLLING.

Browse the desired devices listed below to be enrolled using Menu and access
it by pressing Enter:

 Detectors
 Remote controls
 RF Sirens

32 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To enroll/delete a detector:

To enroll a remote control or a proximity card to be used with the KE­30 key pad and to specify a function:

 Keypads
 Repeaters

6.3.1 Detectors

You can enroll up to 39 detectors, one detector per zone, numbered 01
through 39. Zone no. 40, which is dedicated to a hardwired detector, can only
be enabled or disabled under this submenu. By default, this zone is disabled.

1. Select the desired zone by either browsing all 39 zones using Menu or by
entering the zone number using the numeric keypad.

2. Select enrollment method, either Normal or Tamper.

 If no detector is associated to the selected zone, the screen shows a

message saying “waiting for detector signal” for 30 seconds.

 When browsing the zones, each zone already enrolled indicates "RF

ID code".

3. Press Enter to delete the detector (or ESC to go back).

4. Initiate a transmission from the detector.

 In Normal enrollment any transmission is accepted (Alarm, Tamper,

or any other transmission available, see the detector’s manual for
reference).

 In Tamper enrollment, only Tamper activation is accepted all other

signals are ignored.

Tamper enrollment is suitable for areas with multiple sensors thus preventing
false enrollment.

5. When the transmission is detected, you are asked to press Enter to store
the detector into the zone.

When enrolling smoke and heat detectors, make sure to select the zone type
“fire”.

If no signal is received with the allocated 30 seconds, the unit returns to
Normal mode.

6.3.2 Remote Controls (KE-30 RFID Function)

You can enroll up to eight remote controls and specify functions for each
button on the remote control. You can also delete enrolled remote controls.
Each proximity card used with the KE-30 keypad is considered a remote control
during enrollment.

1. Select the desired remote control number 01 to 08 by either browsing the
remotes using Menu or by entering the remote number using the
numeric keypad.

HLX-40 Hardware Installation and Programming Manual 33

Installer Menu

To delete a remote control or proximity card:

To enroll/remove an RF siren:

2. Enroll the remote control when the
displayed, by pressing a button on the remote you wish to enroll or by
passing the proximity card through the KE-30 keypad.

3. When the signal is detected you are asked to press Enter to store and
save your selection.

4. Once the selection is stored, you can then choose to configure each of the
remote control buttons (except the * button that serves as a status
announcement) to behave in one of the following options:

 Restore Default (sets the button to its original functionality)
 Operate PGM 1
 Operate PGM 2
 Status Request

5. At any time press ESC to exit the menu.

Once you exit the menu (after saving the enrollment) you cannot change the
button’s behavior, unless you delete the remote and re-enroll it.

WAITING FOR SIGNAL

message is

1. Select the pre-enrolled remote control number 01 to 08 by either
browsing the list of remotes using Menu or by entering the remote
number using the numeric keypad.

You are asked to confirm deletion.

2. Press Enter to delete or ESC to go back.

6.3.3 RF Siren

You can enroll up to four RF sirens. You can choose to remove enrolled sirens.

1. Select the required Siren location, #01–04 by either browsing the keys
using Menu or by entering the siren’s number using the numeric keypad.

2. Enroll the RF Siren when the
activating the siren’s tamper.

3. When the signal is detected, you are asked to press Enter to store and
save your selection

If the selected location has a siren enrolled, you are asked whether you
wish to delete it.

4. Press Enter to delete or ESC to go back.

WAITING FOR SIGNAL

option is displayed by

34 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To enroll/remove a keypad:

To enroll/remove a repeater:

Messages

6.3.4 Keypads

You can enroll up to four keypads. You can choose to remove enrolled
keypads.

1. Select the required keypad location, #01–04 by either browsing the keys
using Menu or by entering the keypad’s number using the numeric
keypad.

2. Enroll the keypad when the

WAITING FOR SIGNAL

option is displayed.

3. When a signal is detected, you are asked to press Enter to store and save
your selection

If the selected location has a keypad enrolled, you are asked whether you
wish to delete it.

4. Press Enter to delete or ESC to go back

6.3.5 Repeaters

You can enroll up to four repeaters. You can choose to remove enrolled
repeaters.

1. Select the required repeater location, #01–04 by either browsing the keys
using Menu or by entering the repeater’s number using the numeric
keypad.

2. Enroll the repeater when the

WAIT FOR SIGNAL

option is displayed, by

activating the tamper.

3. When the signal is detected, you are asked to press Enter to store and
save your selection

If the selected location has a repeater enrolled, you are asked whether you
wish to delete it.

4. Press Enter to delete or ESC to go back

6.4 Security

The following is a list of the system’s security features.

Communications

Change Code

Enrolling

Zones

SECURITY

Exit Delay

Exit Restart
Entry Delay

HLX-40 Hardware Installation and Programming Manual 35

Automation

Maintenance

Installer Menu

Change Code

Enrolling

Communications

Automation
Messages

Maintenance

Zones

SECURITY

Auto Arming
Siren Time

Siren Mode
Relay Polarity
Local Siren

Wired Siren
Supervision Time

Jamming
No Activity Time
Trouble Beeps

Bypass Option
Quick Arm

Arm Instant
Panic Button
Duress Code

Alarm Cancel
Alarm Abort Time

Backlight Time
Hide Display
Key Beeps

Select Language
EN-CENELEC

CP01

The fourth submenu is
as described in the following subsections using Menu. Press Enter to access
the desired submenu.

6.4.1 Exit Delay

An exit delay enables the user to arm the system and exit the site through a
specified door (determined as a delay zone) using a predetermined path after
arming the system, without setting off an alarm.

A progress annunciation of slow-rate warning beeps sound when the system is
armed. The system counts down the last 10 seconds of the delay if the voice

36 HLX-40 Hardware Installation and Programming Manual

SECURITY.

Browse the desired security related settings

Installer Menu

To specify the exit delay:

To modify the entry delay:

capability is configured; otherwise, the warning beeps are faster. The exit delay
is set at 60 seconds by default.

An Exit Error sequence is initiated if an entry/exit zone is in an opened state at
the instant of exit time expiration or if no delay zone is opened during the exit
time.

An Exit Error process for a delay zone is as follows:

 The local alarm immediately sounds.
 The annunciator sounds an Entry Delay or an alarm condition.
 An Entry Delay is initiated.
 If the alarm system is not Disarmed at the end of the Entry Delay, the

Alarm Transmission Sequence is initiated.

 The Alarm Transmission includes the alarm and an Exit Error message to

the central station.

The user can use the Silent Exit feature to silence the audible progress
annunciation of the exit delay.

If Silent Exit is active, the Exit Time is doubled for that exit period only but does
not exceed 255 seconds.

1. Using the numeric keypad, specify the length of time for the exit delay
between 45 and 255 seconds.

2. Press Enter to save your selection.

6.4.2 Exit Restart

When this feature is enabled, an Exit Restart delay occurs on the second zone
opening within the same zone and the Exit Delay time is doubled. If it is
disabled, the same zone may be opened several times while in the Exit Delay
countdown. The default setting is Enabled.

6.4.3 Entry Delay

An entry delay enables the user to enter the site through a specified door
(determined as a delay zone) using a predetermined path, without setting off
an alarm. The entry delay is set at 30 seconds by default.

After entry, the user must disarm the system before the entry delay expires. A
progress annunciation of slow-rate warning beeps sound upon detection of
the specified zone. The system counts down the last 10 seconds of the delay
indication if enabled or the warning beeps become faster.

1. Using the numeric keypad, specify the length of the entry delay between
30 and 240 seconds.

2. Press Enter to save your selection.

HLX-40 Hardware Installation and Programming Manual 37

Installer Menu

To activate auto arm:

To specify the siren time:

To specify the siren mode:

6.4.4 Auto Arming

Auto Arming allows scheduled arming and disarming of the system for all
weekdays at different hours.

1. Using Menu, select the day of the week.

2. Press Enter to confirm.

3. Using Menu, select one of the following options:

 Disabled
 Arm Home
 Arm Away

4. Press Enter to confirm.

5. Using the numeric keys, enter the system arming time (24 hours).

6. Press Enter to confirm the time.

7. Set the Alarm Duration between 1 to 9999 minutes, or enter 0 (zero), to
disable Auto Arm Duration. The panel remains armed until disarmed by an
authorized user.

6.4.5 Siren Time

This specifies the amount of time the siren sounds when an alarm has been set
off. The siren time is set to three minutes by default. This relates to all siren
types, wired, wireless and local.

1. Using the numeric keypad, specify the length of the siren time between
01 and 15 minutes

2. Press Enter to save your selection.

6.4.6 Siren Mode

You can specify whether you want the siren to be activated when armed in
Away mode only or when armed both in away and home arming modes. The
siren mode is set to Away + Home by default. This relates to all siren types,
wired, wireless and local.

1. Using Menu, select one of the following options: Away or Away +
Home.

2. Press Enter to confirm.

6.4.7 Relay Polarity

Depending on the input trigger of the hardwired siren you are using specify
the relay polarity to either Normally Open or Normally Closed. The siren relay
polarity is set to N.O. (normally open) by default.

38 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set the relay polarity:

To set up a local siren:

To set up a w ired siren:

To specify the supervision time:

To specify jamming detection:

1. Using Menu, select N.O. or N.C.

2. Press Enter to confirm.

6.4.8 Local Siren

Specifies whether an activated alarm causes an internal siren (emitted from the
system’s speaker) to sound or remain silent. The local siren is enabled by
default.

1. Using Menu, select either Enable or Disable.

2. Press Enter to confirm.

6.4.9 Wired Siren

Enables or disables the wired siren. Wired siren is enabled by default.

1. Using Menu, select either Enable or Disable.

2. Press Enter to confirm.

6.4.10 Supervision Time

The supervision time submenu specifies the time limit during which the system
receives supervision reports from specified wireless devices. If a device does not
report in at least once within the specified time limit, the system initiates an
inactivity alert. The default supervision time is set to one hour.

1. Using Menu, select one of the time limit options, 20 minutes, 1, 2, 4, 6,
8, 16, 24 or 48 hours.

2. Press Enter to confirm.

6.4.11 Jamming

Specifies whether the system detects and reports jamming – interferences of
the radio channel used by the system.

The jamming detection is disabled by default.

1. Using Menu, select one of the following options:

 Disabled: to disable jamming detection
 EN enabled: to enable European standard jamming detection
 UL enabled: to enable US standard jamming detection

2. Press Enter to confirm.

6.4.12 No Activity Time

Specifies the time limit in which the system should receive a signal from a
sensor used to monitor the activity of sick, elderly or disabled people. If no
device detects and reports movement at least once within the specified time

HLX-40 Hardware Installation and Programming Manual 39

Installer Menu

To set the no activity time:

this security

To specify trouble beeps:

To set bypass:

limit, a “not active alert” sounds and a report is sent to the CMS (if reporting is
enabled). This option is disabled by default.

The behavior of the no activity zone feature varies when in Arm or Disarm
modes:

• When Disarmed – Alert is sent to CMS

• When Armed – An alarm is heard and an alert is sent to CMS

1. Using Menu, select one of the following options:

 1, 2, 5, 10, 15, or 30 minutes
 Disable the timer

2. Press Enter to confirm.

Required zones’ “No Activity” option should be set to ‘Enabled’ for
feature to work.

6.4.13 Trouble Beeps

This parameter determines whether the system emits a “trouble beep”
indicated by a series of four short beeps once a minute for the following
“Trouble” events:

 Low battery (detectors and system)
 Supervision loss (detectors)
 Power (AC) failure (system)
 Communication failure (system)
 Tamper (system and zones)
 RF jamming
 Short circuit in wired zone

The default is set to Disabled.
The HLX-40 allows you to enable the beeps for daytime only 8:00 AM to 8:00

PM.

1. Using Menu, choose Disable, Day & Night (enable), or Day Only for
the trouble beeps.

2. Press Enter to confirm.

6.4.14 Bypass Option

Specifies either manual bypassing of individual zones, or enables the system to
forcedly arm open zones when armed. Bypass is turned off by default.

1. Using Menu, select one of the following options:

 Off to set the bypass off

40 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To enable/disable quick arm without a code:

To utilize quick arm:

To enable/disable the Arm Instant option:

To utilize Arm Instant:

To set a panic button:

 Off/Force allows forced arming (automatic bypass) only
 Manual allows manual bypass only
 Manual/Force allows both forced arming (automatic bypass) and

manual bypass

2. Press Enter to confirm.

6.4.15 Quick Arm

Enables the user to arm the system without entering a code; Quick Arm is set
to disable by default.

1. Using Menu, select either Enable or Disable.

2. Press Enter to confirm.

Press continuously on the AWAY or HOME keys to arm AWAY or HOME.

6.4.16 Arm Instant

Enables the user to instantly arm the system by bypassing the Exit Delay; Arm
Instant is set to disable by default.

1. Using Menu, select either Enable or Disable.

2. Press Enter to confirm.

1. Arm the system using one of the arming options.

2. Once the exit delay countdown initiates, press either the AWAY or
HOME keys once again.

6.4.17 Panic Button

The user can generate an alarm (audible or silent) by pressing continuously on
the emergency button on the control panel. The remote control panic button
must be pressed twice to activate the panic alarm when the CP-01 standard is
enabled (see Section 6.4.26). When CP-01 is disabled, the panic button must
be pressed once. The local emergency button is disabled by default.

1. Using Menu, select one of the following options:

 Audible: to set an audible panic alarm that transmits a message to

the CMS or private telephone set.

 Silent: to set a silent panic alarm that transmits a message to the

CMS or private telephone set, but without a siren

 Disabled: to disable the panic alarm button all together

2. Press Enter to confirm.

HLX-40 Hardware Installation and Programming Manual 41

Installer Menu

To change the duress code:

To set the Alarm Cancel:

To set the alarm abort time:

6.4.18 Duress Code

The system allows you to define a unique duress code, which a user can enter
when forced to disarm the system under duress. The duress code is disabled
when there is no duress code defined in the system. By default, the duress
code option is disabled.

The duress code should NOT be identical to any other existing code.

1. Type a new four-digit duress code using the numeric keypad.

2. Press Enter to save your new code.

6.4.19 Alarm Cancel

An Alarm Cancel window is a period of time starting at the end of the alarm
abort window (Section 6.4.20
minimum duration of the window is 5 minutes and the maximum window is
10 minutes. Setting “0” disables the alarm cancel transmission to central
station. The Alarm Cancel window applies to all alarms that have been
subjected to the Abort window.

If an alarm had previously been transmitted, an Alarm Cancel event signal is
transmitted if the control panel is disarmed during the Alarm Cancel window.
By default, the Alarm Cancel time is 5 minutes.

For a signal to be sent to the CMS, the Alerts reporting group must be enabled
in Report Options (Section 6.5.4).

), during which a user can cancel the alarm. The

1. Using the numeric keypad, set the alarm cancel time between 01 to 60
minutes or 00 to disable the option.

2. Press Enter to confirm.

6.4.20 Alarm Abort Time

The system sounds a warning, but the central station does not receive
notification of the alarm if the user disarms the system within the specified
alarm abort time. This function applies to interior, perimeter, and 24-hour
zones. The default

Alarm Abort Time

is 30 seconds.

1. Using the numeric keypad, set the alarm abort time between 01 to 45
seconds or 00 to disable the option.

2. Press Enter to confirm.

42 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set the backlight:

To display the system status:

To set the key beeps:

To set the system language:

6.4.21 Backlight Time

Specifies the backlight options; by default, the backlight time is set to 15
seconds.

1. Using Menu, select one of the following options:

 Always: to specify that the keypad and buttons are backlit at all

times.

 15 secs: to specify that the keypad and buttons are backlit for up to

15 seconds after last key press.

2. Press Enter to confirm.

6.4.22 Hide Display

Enables you to specify that when armed, the system does not display the
system statuses or other system prompts; by default,

Hide Display

is off.

1. Using Menu, select one of the following options:

 Off to display status and prompts.
 On to hide status and prompts.

2. Press Enter to confirm.

6.4.23 Key Beeps

Choose to turn key beeps on to hear a beep on each key press; key beeps is on
by default.

1. Using Menu, select one of the following options:

 On to turn the key beeps on
 Off to turn the key beeps off

2. Press Enter to confirm.

6.4.24 Select Language

The HLX-40 supports multiple languages for both the textual messages and
audio feedback. Choose the system language of your choice; by default the
language is set to English.

Please note that for Greek, the display shows the Greek language in Latin
characters; however, the audio feedback is in Greek.

1. Using Menu, select one of the following languages:

 English, Spanish, Italian, Portuguese, Greek, German

2. Press Enter to confirm.

HLX-40 Hardware Installation and Programming Manual 43

Installer Menu

To set the standard status:

To set the ready option:

To set the access level:

6.4.25 EN-CENELEC

The HLX-40 supports CENELEC standard settings. By default, all CENELEC
standard settings are enabled. During the installation process, the installer may
enable or disable each setting according to the local requirements.

The menu includes the following:

 Status
 Ready Options
 Access Level
 Event Filter

1. Using Menu, select either Enable or Disable.

2. Press Enter to confirm.

Enabling the standard sets all the standard features to default.

Enable state and the event filter is set to 10.
Disabling the standard sets all the standard features to disable state and the

event filter is set to 0.

1. Using Menu, select either Tamper, Low Battery, AC Fail, Comm Fail,
Line Fail, Panic, or Supervision.

2. Press Enter to choose the submenu.

3. Using Menu, select either Enable or Disable.

4. Press Enter to confirm.
The ready option restricts the relevant parameters so that the system

cannot be armed during the violation of that parameter.
Example: Setting the AC Fail parameter to enable restricts the system

from being armed until the power supply returns.

1. Using Menu, select either Memory Alarm, System Status, or Arm
Instant.

2. Press Enter to choose the submenu.

3. Using Menu, select either Enable or Disable.

4. Press Enter to confirm.
The access level options, restricts the information actions to be accessible

to the user by pressing PIN number.
Usually system’s status information is valid to the user by pressing the

Enter key. Setting each parameter to enable, the enter key should be
followed by a PIN code.

44 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set the event filter:

which every additional fire alarm signal is

1. Using the numeric keypad, specify the value for the event filter between 0
and 10 cycles.

2. Press Enter to save your selection.
An event filter enables the user to specify the maximum repetition of a

specific event in a session. A session is a period between each of the
arming and disarming operations.

Setting the event filter to 0 enables specific events to be recorded with no
filtering to the event log.

Setting 0, 1, 2 value in the event filter is not compatible with CENELEC
standard.

6.4.26 CP-01

The HLX-40 supports CP-01 standard settings. During the installation process,
the installer may change each setting according to the local requirements.

The menu includes the following:

Table 8: CP01 Menu

Menu Item Description Default Setting

Abort Announce

Cancel Announce

Fire Verify

When at least 1 zone is aborted, “ABT”
(abort) is displayed on the LCD once the
system enters Disarm mode.

When Alarm Cancel is transmitted to the
central station, “CNL” (cancel) is
displayed on the LCD once the system
enters Disarm mode.

Double checks the state of the fire
detectors.

When there is a fire sensor alarm signal,
a siren is heard immediately. A 60­second retard-reset period starts during

Enabled

Enabled

Disabled

Recent Close Time

HLX-40 Hardware Installation and Programming Manual 45

ignored. After this period, an additional
timeout of 60 seconds starts, which is
the confirmation period, during which a
fire sensor alarm signal causes an event
transmission to the monitoring station.

When the confirmation period expires,
the fire zone is automatically restored
and ready for a new fire alarm session.

A Recent Closing transmission is sent if
an alarm occurs within the
programmable time after the Exit Time
passes.

2 minutes

Installer Menu

automatically if the system was armed in

To set the Abort Annunciation:

To set the Cancel Annunciation:

To set the Fire Verification:

To set the Recent Clos e Time:

To set the Swinger Time:

To set the Unvacated Premises mode:

To set the Squawk mode:

Menu Item Description Default Setting

Swinger Time

Unvacated Premises

Squawk Buzzer

Siren

Duration for automatic resetting of
detectors after being ignored by swinger
trips

Triggers Arm Home (Stay) mode

Arm Away mode but there was no
exiting from the premises during exit
delay

Determines whether the buzzer sounds
when arming or disarming the panel for
remote operation.

Determines whether the siren sounds
when arming or disarming the panel for
remote operation.

8 hours

Enabled

Enabled

Enabled

1. Using Menu, select either Enabled or Disabled.

2. Press Enter to confirm.

1. Using Menu, select either Enabled or Disabled.

2. Press Enter to confirm.

1. Using Menu, select either Enabled or Disabled.

2. Press Enter to confirm.

1. Using the numeric keypad, specify the value between 0 and 9.

2. Press Enter to save your selection.

1. Using the numeric keypad, specify the value between 0 and 9.

2. Press Enter to save your selection.

1. Using Menu, select either Enabled or Disabled.

2. Press Enter to confirm.

1. Using Menu, select either Buzzer or Siren.

2. Select either Enabled or Disabled.

3. Press Enter to confirm.

46 HLX-40 Hardware Installation and Programming Manual

Installer Menu

Security

Messages

To set up the system telephone:

6.5 Communications

Change Code

Enrolling

Zones

COMMUNICATIONS

System Telephone

GPRS Setup
Private Report

CS Report Setup
Line Test
AC Fail Report

Fax Defeat
2WV Setup

Number of Rings
Select Region

The fifth submenu is

Communication,

which involves the setup of system

communications parameters and settings with the outside world

Automation

.

Browse the

Maintenance

desired communication related setting, as described in detail below, using
Menu. Press Enter to access it.

6.5.1 System Telephone

This menu allows you to specify the telephone number used for the ring back
option when calling the system telephone.

1. Press Enter to access the

Telephone Number

submenu.

2. Using the numeric keypad, enter the system telephone number. Use * to
enter a comma. Use # to delete the last digit.

3. Press Enter to confirm.

When setting up the system telephone, use a comma (,) to indicate a delay
when dialing a number.

6.5.2 GPRS Setup

The unit can connect to the HR-P02 application using GPRS communication.
The settings that allow GPRS communication need to be defined in the HLX-40
unit itself, using the HR-P02 software application and the PC on which it is
installed.

This menu allows you to define and setup the GPRS settings of the HLX-40 unit
according to the network provider specifications. Contact your service provider
for the list of parameters as defined by the cellular network provider.

HLX-40 Hardware Installation and Programming Manual 47

Installer Menu

To set up the GPRS communication:

To set up private report:

For detailed instructions of the PC and application setup, please refer to the
HR-P02 software manual.

1. Press Enter to access the

2. Using Menu, select each of the following submenus and press Enter to
confirm.

 APN – Enter the GPRS access point.
 User Name – Enter the GSM provider name.
 Password – Enter the GSM provider’s password.
 Server IP – Enter the network’s server IP.
 Server Port – Enter the network’s server port.
 Listen Port – Enter the Listen Port number with which the software

connects to the unit.

Use the numeric keypad to enter alphanumeric values for each parameter.
Use * to enter a comma. Use # to delete the last digit.

3. Press Enter to exit to the

6.5.3 Private Report

This menu enables you to set the private telephone report options as detailed
below.

GPRS Setup

GPRS Setup

submenu.

submenu.

1. Using Menu, select each of the following submenus and press Enter to
confirm:

a. Set Numbers – Specify the telephone numbers of the subscribers to

which the system reports. You can enter up to three numbers.
i. Using Menu, choose between number 1, 2 or 3 and press

Enter.

ii. Using the numeric keypad, enter the telephone number and

press Enter to confirm. Use * to enter a comma. Use # to delete
the last digit.

a. Link Type – Choose between PSTN and GSM communication types.

If the GSM stick is not installed, the Link Type is set to PSTN, and cannot be
changed.

b. Report Options – Specify the event groups that are included in a

report.

2. Using Menu, choose the reporting options for each group as desired. The
options are Disable, Enable, Voice Alert, Text Alert, or Both voice
and text.

3. Press Enter to confirm. The available reporting groups are:

48 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set up CS report:

 Alarms (Voice by default)
 Troubles (Voice by default)
 Alerts
 Bypass
 Arm/disarm
 Restore

4. Press ESC to exit the submenu.

5. Dialing Attempts – Specify the number of cycles the panel goes through
while attempting to connect to a remote private phone, where a cycle
consists of up to 3 different remote private phones. The default is 3
attempts.

a. Using the numeric keypad, enter the dialing attempts value between

1 and 15.

b. Press Enter to save.

6.5.4 CS Report Setup

This menu allows you to set the Central Station (CS) report options.

1. Using Menu, select each of the following submenus and press Enter to
confirm:

a. CS Report Method – Specify the reporting method.

i. Using Menu, select one of the following:

o Disable (default)
o Primary Only
o Alternate
o Secondary Only
o Both

ii. Press Enter to confirm.

b. CS Primary – Specify the first telephone number of the first central

station to which the system reports in case of an event as well as the
primary account code and report options. Under this menu, you must
set the following parameters:

 Phone Number – The primary CS telephone number

i. Using the numeric keypad, enter the primary CS telephone

number.

ii. Press Enter to confirm. Use * to enter a comma. Use # to

delete the last digit.

HLX-40 Hardware Installation and Programming Manual 49

Installer Menu

For PABX, use the digit followed by * and then the full number.

 Account Code – The number that identifies your system to the

central station. The account code range is 0–9, B, C, D, E, and F.
i. Using the alphanumeric keypad, enter a code of four

ii. Press Enter to confirm.

 Report Options – Specify the event groups that are included in

a report.
i. Using Menu, choose the reporting options for each group

ii. Press Enter to confirm.
iii. Press ESC to exit the submenu.

 Ack Timeout – Specify the time that the system has to send a

report event before the report alert is discontinued.
i. Using the alphanumeric keypad, set the value of the Ack

ii. Press Enter to confirm.

 Signal Gain – Specify the strength of the DTMF.

i. Using the alphanumeric keypad, set the value of the signal

ii. Press Enter to confirm.

 Call Wait Cancel – Specify whether call waiting interferes in the

event transmission to the central station by dialing *70 and
entering the central station phone number. The default setting is
Disabled.

 Link Setup – Specify the communication type used.

i. Using Menu, select either PSTN or GSM communication

ii. Press Enter to confirm.

digits/letters.

as desired. The options are Disable and Enable. The available
reporting groups are:

 Alarms
 Troubles
 Alerts
 Bypass
 Arm/disarm
 Restore

timeout to a value of 10 to 60.

gain to a value of between 300 and 1200.

types.

50 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set up line test:

To set up AC fail report:

If the GSM Stick is not installed, the Link Type is set to PSTN, and cannot be
changed.

c. CS Secondary – Specify the secondary Central Station (see CS

Primary above for detailed options and instructions).

d. CS Protocol – Specify the reporting protocol used by the system to

report events to the central stations. Currently only Contact ID is
available.

e. Dialing Attempts – Specify the number of times the system

attempts to dial the primary stations number before attempting to
dial the secondary number. The default is 3 attempts.

i. Using the numeric keypad, enter the dialing attempts value

between 1 and 15.

ii. Press Enter to save.

6.5.5 Line Test

Enables you to specify the time when the phone line and CS reporting are
tested and reported to the central station, as well as the time interval between
each test (periodic reporting).

1. Using Menu, select one of the two options to define, and press Enter to
confirm:

 Repeats – Specify the number of days between tests. The default is

7.
i. Using the numeric keypad, choose 1 to 30 days.
ii. Press Enter to save.

 Test_Time – Specify the hour of the day to perform the line test. The

test time is set at 12:00 by default.
i. Using the numeric keypad, type the four digits of the desired

hour (24H convention).

ii. Press Enter to save.

6.5.6 AC Fail Report

This option allows you to specify a delay time, before reporting the power
failure to the CS, in which time power may be restored. The time is set to 0
(disabled) by default.

Power (AC) failure is indicated by the Power LED, which flashes green.

1. Using the numeric keypad, set the time between 1 and 240 minutes, or
set it to 0 to disable the option.

HLX-40 Hardware Installation and Programming Manual 51

Installer Menu

To set up Fax Defeat:

To set up 2-way voice behavior:

To specify the number of rings:

2. Press Enter to confirm and save your selection.

6.5.7 Fax Defeat

When calling the system, fax and answering machines may need to be
overridden. This menu specifies whether to enable or disable this override. By
default, this option is disabled.

1. Using Menu, Enable or Disable the option.

2. Press Enter to confirm.

6.5.8 2-Way Voice Behavior

The HLX-40 panel enables the CMS operator to open a 2-way voice session
with the panel. The only events used in 2-way voice are: TAMPER,
EMERGENCY, and ALARM/RESTORE.

In general, the 2-Way Voice Behavior option is achieved via simple telephone
communication. The CMS operator can listen, talk, or close communication by
selecting #1 (Listen), #3 (Talk), or #9 (Close communication) in the event the
system calls when an alarm is sounded.

The installer can set the following options:

 CMS 2-way voice Enable/Disable
 CMS 2-way voice Timeout

However, if the TROUBLE, BYPASS, and MISC events are reported, and the
CMS is in LISTEN-IN mode, the CMS receptionist can hear the alarm/emergency
voice message events, assuming they belong to the same CMS. On the other
hand, if those events belong to another CMS, they are reported after the
current CMS session report has finished.

1. In the

2. Select ENABLE.

3. Select CS 2WV TIMEOUT.

4. Enter a timeout value that does not exceed 240 seconds.

2WV SETUP

It is recommended to use 180 seconds for a timeout value.

menu, select CS 2WV ENABLE.

5. Press Exit to return to Normal mode.

6.5.9 Number of Rings

Specify the number of rings before the system answers the line. By default, this
option is set to 4 rings.

1. Using the numeric keypad, set the number of rings to between 1 and 15.

2. Press Enter to confirm.

52 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To select the region:

Security

Messages

To set up the keypad:

To set up triggers:

6.5.10 Select Region/Country

Select the region/country for the telephone line DAA, matching the time set
for the system. By default, this option is set to Other.

1. Use Menu to select one of the available regions.

2. Press Enter to confirm.

6.6 Automation

Communications

Change Code

Enrolling

Zones

AUTOMATION

Keypad Manual

Set Triggers

Maintenance

The sixth submenu is
automation options.

Automation,

Browse the desired automation related setting, as

which deals with the setup of various home

described in detail below, using Menu. Press Enter to access it.

6.6.1 Keypad Manual

Enable or disable this option to determine whether the PGM output can be
controlled by numeric keys 1 and 2 of the keypad as described in Section

2.2.1. This option is Enabled by default.

1. Using Menu, Enable or Disable the option.

2. Press Enter to confirm your selection.

6.6.2 Set Triggers

This option enables you to activate the PGMs using various events in an
automated fashion. By default, no triggers are set.

1. Using Menu, select PGM1 or PGM2, and press Enter to confirm.

HLX-40 Hardware Installation and Programming Manual 53

Installer Menu

Security

2. For each of the PGMs, you can select the pulse time and triggers as
described below:

a. Pulse time – Set the length of time for the device to stay on when a

pulse type activation is selected. Using the numeric keypad, set the
time from 1 to 99 seconds and press Enter to save.

b. Select the trigger type and parameters according to Table 9. Use only

one trigger for each PGM simultaneously.

Table 9: Trigger Type and Parameters

Trigger PGM Activation

Remarks

Options

Arm Away

Arm Home

Disarm

Alarm

Panic

Trouble

AC Loss

Exit/Entry

Remote Control

Zone

On, Off, Pulse, Ignore

On, Off, Pulse, Ignore

On, Off, Pulse, Ignore

Enabled, Disabled Go OFF when alarm stops

Pulse, Ignore

Pulse, Ignore

Enabled, Disabled ON when AC fails, OFF when AC

returns

Enabled, Disabled Annunciation of exit/entry beeps

of remote sounder

On, Off, Pulse, Trouble, Ignore Relates to remote’s panic button

On, Off, Pulse, Trouble, Ignore Relates to zone open or detection

6.7 Messages

Communications

Change Code

Enrolling

Zones

Keypad Mute

Automation

MESSAGES

Maintenance

Voice Mute

House Name

Custom Zones

The seventh submenu is

Messages,

which deals with custom text and voice

zone descriptions, personal messages between users, and message mute

54 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To set up keypad mute:

To enable/disable voice announcements in the panel:

To set up and rev iew the house name:

To record a custom zone message:

options. Browse the desired setting, as described in detail below, using Menu,
press Enter to access it.

6.7.1 Keypad Mute

This option allows you to enable or disable the option to mute all the voice
messages and beeps (except for trouble beeps, forced arming, enrollment and
RF test of wireless devices) by numeric key 5 of the keypad as described in

Section

2.2.1. By default, this option is Disabled.

1. Using Menu, Enable or Disable the option.

2. Press Enter to confirm your selection.

6.7.2 Voice Mute

This option enables/disables voice announcements in the panel.
By default, this option is Disabled.

1. Using Menu, Enable or Disable the option.

2. Press Enter to confirm your selection.

6.7.3 House Name

This option enables you to type, record, and listen to the House Name as
defined in the system.

1. In the

2. In the

3. Press Enter to start and stop recording.

4. In the

5. Press Enter to start and stop the message recorded.

6.7.4 Custom Zones

Enables you to record and listen to five voice and text custom zones
descriptions and to toggle between them. On each zone, the user can simply
edit the text by typing the keypad buttons. The text is limited to 16 characters.

HOUSE NAME

submenu.
a. Press Enter to access the submenu.

Use the alphanumeric keypad to type the desired house name. Use #
to delete the last entered value.

b. Press Enter to confirm.

HOUSE NAME

submenu.

HOUSE NAME

submenu after a recording has been entered.

menu, use Menu to locate the ENTER HOUSE NAME

menu, use Menu to locate the ENTER TO RECORD

menu use Menu to locate the

ENTER TO LISTEN

1. Using Menu, select a Custom Zone and press Enter to confirm selection.

HLX-40 Hardware Installation and Programming Manual 55

Installer Menu

Security

Messages

To restore factory default:

2. Using Menu, locate the ENTER ZONE NAME submenu.

 Press Enter to access the submenu.

Use the alphanumeric keypad to type the desired house name. Use #
to delete the last entered value.

 Press Enter to confirm.

3. Use Menu to locate the ENTER TO RECORD submenu.

4. Press Enter to start and stop recording.

5. Repeat steps 1 through 3 for each of the 5 (five) custom zones.

6. Press ENTER TO LISTEN.
This appears after all the string of recordings have been entered.

7. Press Enter to stop the listening to one zone and move to the next zone.
This option is circular.

Reset to factory settings does not delete these recordings.

6.8 Maintenance

Communications

Change Code

Enrolling

Zones

Automation

MAINTENANCE

Factory Default

RF Test
Test Indicators
Test Sirens

Test Devices

The eighth submenu is

Maintenance,

which describes the various system
maintenance options. Browse the desired security related setting, as described
in detail below, using Menu. Press Enter to access it.

6.8.1 Factory Defaults

This option allows you to restore the default factory settings for the system.

1. Press Enter to enter the submenu. Factory Defaults is the first submenu.

2. Press Enter and choose from the following four options using Menu to

browse:

56 HLX-40 Hardware Installation and Programming Manual

Installer Menu

To perform the test:

To view the results:

To test the indicators:

 Regular – CENELEC status disabled: Returns the factory default

settings without CENELEC settings

 Cenelec – CENELEC status enabled: Returns the factory default

settings with CENELEC settings

 Regular and Delete RF devices – Returns the factory default settings

without CENELEC settings and erases all RF devices previous
identified by the unit

 CENELEC and Delete RF devices – Returns the factory default settings

with CENELEC settings and erases all RF devices previous identified by
the unit

3. Press Enter to confirm.

6.8.2 RF Test

RF testing checks the signal strength of all the wireless devices enrolled to the
system. If a weak signal is detected, a repeater may be used to improve the
link quality.

The system saves the most recent set of RF test results for uploading. The
system clears the tests when running another RF test.

1. Using Menu select the test you wish to perform, and press Enter to

access the test.

2. Activate the RF unit to send a signal to the unit. The results can be

Normal

or

Low

. The available tests are:

 Test Detectors (Walk Test) (refer to Table 10)
 Test R. Controls
 Test R. Siren
 Test Keypads
 Test Repeaters

Strong

1. For each of the tests, you can review the results by pressing Enter and

then either Menu or the alphanumeric keys review all the units.

2. To exit the RF test mode you must press ESC.

6.8.3 Test Indicators

The indicators test checks the two indicator LEDs, power and status, located on
the Panel.

After entering this menu, press Enter. The LEDs blink three times.

,

HLX-40 Hardware Installation and Programming Manual 57

Installer Menu

To test the sirens:

To test the PGM devices:

6.8.4 Sirens Test

This test checks the different available sirens by activating them.

1. Select the siren you wish to test:

 Local Siren
 External siren
 RF siren

 Siren 1
 Siren 2
 Siren 3
 Siren 4

2. Press Enter to activate the sounder.

3. Press ESC to stop the siren.

6.8.5 Test Devices

This test checks the PGMs connected to the system.

1. Select the PGM you wish to test:

 PGM 1
 PGM 2

2. Press Enter to activate the PGM for three seconds.

58 HLX-40 Hardware Installation and Programming Manual

User Menu Structure

7. User Menu Structure

The user menu enables basic user settings such as Time & Date update and
user codes edit (Table 10).

Table 10: User Menu Structure

Select To

Edit Master Code

User Codes

Authorize Code

Silent Exit/Entr

Set Date & Time Set the time and date, as specified in Date & Time Format.

Date & Time
Format

Zone Bypass

Remote controls Enroll remote controls (see Section 6.3.2)

Private Numbers

PC Mode

Change the master code

Specify user codes 1 through 20. If the user code exists, you can
edit the code or delete the code.

Specify the code used to configure the system’s settings with the
remote programming software HR-P02.

The default code is 1234.

Choose between disabling and enabling the progress annunciation
during entry or exit delay.

The default is Disabled.

Specify the format in which the date is specified: 24 hour format
or AM/PM.

Specify the format in which the date is specified: DD-MM-YY or
MM-DD-YY

Enable if manual bypass has not been set to Off by the Installer. It
enables you to bypass and un-bypass selected zones.

Specify up to three private telephone numbers

Enable or disable PC connection and activity when GSM expansion
is installed; otherwise PC mode is enabled automatically.

HLX-40 Hardware Installation and Programming Manual 59

User Menu Structure

To enter the user menu:

Select To

Walk Test

When entering the detector’s Test mode, the red and green LEDs
on the panel flash every second simultaneously, and the display
shows “receiving…”.

If the alert monitoring station reporting options is enabled, an
E607 event is transmitted.

The Walk Test sequence timeout is for 15 minutes. In the last 5
minutes, a squawk is heard every two seconds in addition the
green and red LEDs flash simultaneously to indicate that the
testing period will be terminated in another five minutes.

If the system walk detector test is terminated, an R607 restore
event is transmitted (if enabled).

During the Walk Test, each successful detector violation causes a
squawk and the signal strength is displayed.

In the conclusion of the Walk Test, the installer may browse
through the recorded results by using Menu. Each browsing of a
record is followed by the E613 event transmission with the
relevant zone indication.

For 24-H and fire zones, reporting trouble event E380 is sent to
the monitoring station.

Although the system supports up to twenty users, only one master user has
access to all the settings.

1. Press Menu until the screen displays User.

2. Press Enter.

3. Enter the master user code; the default code is 1234.

The system lockouts for 90 seconds after entering 5 wrong codes.

60 HLX-40 Hardware Installation and Programming Manual

Reading the Event Log

To access the Event Log:

, the event filter may be changed (default=10) so

8. Reading the Event Log

The HLX-40 event log stores up to 250 events. When the log is full, the new
incoming event replaces the oldest event.

Events are displayed in a chronological order, and include the date and time of
their occurrence.

1. Access the event log by pressing 8 on the keypad when the system is in

normal mode.

2. To read an event, enter the master code and press Enter.

3. Browse the even log using Menu or go directly to an event by entering

the event number using the numeric keypad.

4. Press Enter to view the date and time of the occurrence.

In EN-CENELEC standard menu
if an event reoccurs, the system only shows the event the defined number of
times in the event log.

The event registration into log reoccurs after system disarming by the user.

HLX-40 Hardware Installation and Programming Manual 61

Quick Reference to Installer Menu

A. Quick Reference to Installer Menu

To enter the Installer menu, press Menu twice and press Enter. The default
Installer menu code is 8888.

The available menus are as follows:

Menu Name Menu Number

Change Code 1
Zones 2

Enrolling 3
Security 4

Communications 5
Automation 6
Messages 7

Maintenance 8

Table 11 presents some the features available in the Installer menu and how to
access them.

Table 11: Installer Menu

Feature Menu Programming Location

Exit Time

Exit Restart

Unvacat Premises

Recent Close Time

Entry Delay

Remote Arming

Remote Disarming

Abort Window

Alarm Abort Time

Cancel Window

Use of Duress
Feature

Duress Code

Security

Security

Security

Security/CP01

Security

Enrolling

Enrolling

Zones

Security

Security

Security

Security

Press 4 and Enter. Then press Enter.

Press 4 and Enter. Then press 2 and Enter.

Press 4 and Enter. Press 26 and Enter. Press
Menu until reaching “Unvacat premises” and
press Enter.

Press 4 and Enter. Press Menu until reaching
“Recent Close Time”. Enter the desired value
(0–15 minutes).

Press 4 and Enter. Then press 3 and Enter.

Press 3 and Enter. Press on Menu until
reaching to “Remote controls” and Enter.

Press 3 and Enter. Press on Menu until
reaching to “Remote controls” and Enter.

Press 2 and Enter. Select Zone by scrolling
with Menu and Enter. Press Menu until
reaching “Abort Window” and press Enter.

Press 4 and Enter. Then press 20 and Enter.

Press 4 and Enter. Then press 19 and Enter.

Press 4 and Enter. Press 18 and Enter. Enter 4
digits that will be used for the user’s under
duress situation.

Press 4 and Enter. Then press 18 and Enter.

62 HLX-40 Hardware Installation and Programming Manual

Quick Reference to Installer Menu

Time”

Feature Menu Programming Location

Cross Zoning

Swinger

Fire Verify

Call Waiting

System Test

Communications

Recent Close Time

Zones

Zones

Security/CP01

Communications

Maintenance

Communications

Security

Press 2 and Enter. Select a zone by scrolling
with Menu and Enter. Press Menu until
reaching “Zone Cross” and press Enter.

Press 2 and Enter. Select zone by scrolling with
Menu and Enter. Press Menu until reaching
“Swinger” and press Enter.

Press 4 and Enter. Press Menu until reaching
“Fire Verify”. Press Menu to toggle between
Enabled and Disabled. Press Enter to select.

Press 5 and Enter. Press 4 and Enter. Press
Menu until reaching “CS primary” or “CS
secondary” and press Enter. Press on Menu
until reaching “Call Wait Cancel” and press
Enter.

Press 8 and Enter.

Press 5 and Enter.

Press 4 and Enter. Then press 26 and Enter.
Press Menu until reaching “Recent Close
and press Enter.

HLX-40 Hardware Installation and Programming Manual 63

Quick Reference to User Menu

B. Quick Reference to User Menu

To enter the User menu, press Menu once and press Enter. The default user
menu code is 1234.

The available menus are as follows:

Menu Name Menu Number

Edit Master Code 1
User Codes 2

Authorize Code 3
Silent Exit/Entr 4

Set Date & Time 5
Date&Time Format 6
Zone Bypass 7

Remote Controls 8
Private Numbers 9

PC Serial Mode 10
Walk Test 11

Table 12 presents some the features available in the User menu and how to
access them.

Table 12: User Menu

Feature Menu Programming Location

Exit Progress
Annunciation

Entry Progress
Annunciation

Silent Exit/Entr

Silent Exit/Entr

Press 4 and Enter. Press Menu to toggle
between Enabled and Disabled. Press Enter to
select.

Press 4 and Enter. Press Menu to toggle
between Enabled and Disabled. Press Enter to
select.

64 HLX-40 Hardware Installation and Programming Manual

Sensor Placement and Helpful Reference Tables

C. Sensor Placement and Helpful Reference Tables

C.1 Default Zone Descriptions

1

2

3

4

5

6

7

8

9

10

11

12

13

Attic

Back Door

Back Yard

Basement

Bathroom

Bedroom

Child’s Room

Closet

Den

Dining Room

Downstairs

Elevator

Emergency

14

15

16

17

18

19

20

21

22

23

24

25

26

Fire

Front Yard

Garage

Garage Door

Gate

Guest Bathroom

Guest Room

Hall

Kitchen

Laundry Room

Library

Living Room

Lower Bathroom

27

28

29

30

31

32

33

34

35

36

37

38

Main Entrance

Master Bathroom

Master Bedroom

Office

Storage Room

Store

Upper Bathroom

Upstairs

Vehicle Door

Walkway

Warehouse

Yard Door

HLX-40 Hardware Installation and Programming Manual 65

Sensor Placement and Helpful Reference Tables

C.2 Custom Zone Descriptions

Custom Zone Description

Custom #1
Custom #2

Custom #3
Custom #4

Custom #5

C.3 Detector Deployment Plan

Zone
No.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

Zone Type Description Chime

Yes/No

No Activity
Zone

PGM 1 PGM 2 Remarks

66 HLX-40 Hardware Installation and Programming Manual

Sensor Placement and Helpful Reference Tables

Zone
No.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

Zone Type Description Chime

Yes/No

No Activity
Zone

PGM 1 PGM 2 Remarks

HLX-40 Hardware Installation and Programming Manual 67

Sensor Placement and Helpful Reference Tables

Zone
No.

38.

39.

40.

Zone Type Description Chime

Yes/No

No Activity
Zone

PGM 1 PGM 2 Remarks

C.4 Remote Control

No. Holder Name Normal Operation PGM 1 PGM 2 Status Request

1.

2.

3.

4.

5.

6.

7.

8.

68 HLX-40 Hardware Installation and Programming Manual

Reporting Codes

D. Reporting Codes

Table 13 provides a listing of the codes used to communicate with the CMS.

Table 13: List of CID Codes

Programmable Feature Description CID Code

Burglary Event (Alarm for a zone) E130
Burglary Restore (for a zone) R130

Fire Event (Fire Alarm for a zone) E110
Fire Restore (Fire Alarm for a zone) R110

24 Hour zone Audible Alarm Event E133
24 Hour zone Audible Alarm Restore R133
Wire Sensor Tamper Event (Zone Tamper Alarm) E144

Wire Sensor Tamper Restore (Zone Tamper Alarm) R144
RF Low Battery Event (for RF zone) E384

RF Low Battery Restore (for RF zone) R384
Loss of supervision – RF Alarm Event (for a zone) E381
Loss of supervision – RF Restore (for a zone) R381

Wireless Panic Alarm Event From Remote Control E120
Wireless Panic Alarm Restore From Remote Control R120

Sensor Trouble Event E380
Sensor Trouble Restore R380
Duress Report Event E121

Open Report Event (Disarm) E401
Close Report Event (Arm Away) R401

Partial Close Report Event (Arm Home) R441
Cancel Event (Alarm Cancel Report) E406
Silent Panic From Panel E120

Audible Panic From Panel E120
Illegal Code Alarm E461

Quick Arm R408
Forced Arm R423
Auto Arm R403

Auto Disarm E403
Remote arm/disarm (Disarm) R407

Remote arm/disarm (Arm) E407
RF receiver Jam Detect Event E344
RF receiver Jam Detect Restore R344

Low system battery Event (Panel Low Battery) E302

HLX-40 Hardware Installation and Programming Manual 69

Reporting Codes

Programmable Feature Description CID Code

Low system battery Restore (Panel Low Battery) R302
AC Loss Event (Panel AC Failure) E301

AC Loss Restore (Panel AC Failure) R301
Line Failure E351
Line Restore R351

Zone swinger shutdown E575
Zone swinger restore R575

Inaccurate Time Restore R626
Battery Missing E311
Tamper Event (Panel Tamper) E137

Tamper Restore (Panel Tamper) R137
Fire Zone Trouble Event E373

Fire Zone Trouble Restore R373
Fire Zone Bypass Event E571
Fire Zone Bypass Restore R571

24 H Zone Bypass Event E572
24 H Zone Bypass Restore R572

Burglar Zone Bypass Event E573
Burglar Zone Bypass Restore R573
Grouped Zone Bypass Event E574

Enter Test Mode E607
Exit Test Mode R607

Walk Zone Tested Report Event E613
Periodic Test Report Event E602
Listen in Follow E606

Programming Mode Enter E627
Programming Mode Exit R628

Delete User or Device E306
Panel No Activity Alarm E382
Zone Exit Error E374

Zone Cross Trouble E378
Recent To Close E459

Auto Test E613

*This event is not sent by the panel to the dialer. Listen in Follow code is
produced by the dialer according to current configuration:

 2-way voice enable/disable
 2-way voice period – therefore there is no index

70 HLX-40 Hardware Installation and Programming Manual

GSM Stick Errors

E. GSM Stick Errors

Table 14 shows a list of possible errors that may appear on the HomeLogiX™
alarm panel related to the GSM stick.

Table 14: GSM Stick Errors

LCD Error Display

Communicator Error
No SIM

SIM request Fail
SIM Not Ready

No Signal (99)
RSSI Length Err

GSM Type Error
SIM Not Register

HLX-40 Hardware Installation and Programming Manual 71

Settings Requirements for CENELEC

F. Settings Requirements for

CENELEC

Quick Arm

Jamming

Tamper

Low Battery

AC Fail

Comm Fail

Line Fail

Panic

Supervision

Memory Alarm

System Status

Arm Instant

Event Filter

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

Enabled

3..10

72 HLX-40 Hardware Installation and Programming Manual

Default Parameter Values

G. Default Parameter Values

Description Default Value Range

Zones

Zone 1 Settings

Zone Type Delay
Zone description ATTIC

Chime type No chime
No activity check Disabled

Swinger trips 2 0..6
Cross zone 0 0..40
Cross time (seconds) 30 0..90

Abort time Enabled

Zone 2 Settings

Zone Type Delay

Zone description ATTIC
Chime type No chime
No activity check Disabled

Swinger trips 2 0..6
Cross zone None 0..40

Cross time (seconds) 30 0..90
Abort time Enabled

Zone 3 Settings

Zone Type Perimeter

Zone description ATTIC
Chime type No chime

No activity check Disabled
Swinger trips 2 0..6
Cross zone None 0..40

Cross time (seconds) 30 0..90
Abort time Enabled

Zones 4–40 Settings

Zone type Interior
Zone description ATTIC
Chime type No chime

No activity check Disabled
Swinger trips 2 0..6

Cross zone None 0..40

HLX-40 Hardware Installation and Programming Manual 73

Default Parameter Values

Description Default Value Range

Cross time (seconds) 30 0..90
Abort time Enabled

Security

Exit delay (seconds) 60 45..255
Entry delay (seconds) 30 30..240
Silent exit and entry Disabled

Restart exit Enabled

Auto Arming Sunday–Saturday

Arm mode Disabled

Arm time 00:00
Arming duration (minutes) 0 0..9999

Sirens

Siren time (minutes) 3 01..15

Siren mode Away + Home
Wired siren relay polarity N.O

Internal siren Enabled
Wired siren Enabled

General Security Settings

Supervision time (hours) 24 1..48

Jamming detection Disabled
No activity timer Disabled

Trouble beeps Disabled
Bypass option Off
Quick arm Disabled

Panic button Audible
Duress code

Alarm cancel time (minutes) 5 0 (disable), 5..10
Alarm abort time (seconds) 30 0..45
Backlight time 15 15, Always

Hide display Off
Key beeps On

Instant arm On
Language English

CP-01 Settings

Recent to close time (minutes) 2 0..15

Swinger shutdown time (hours) 8 0..8
Abort annunciation Enabled

Cancel annunciation Enabled

74 HLX-40 Hardware Installation and Programming Manual

Default Parameter Values

Description Default Value Range

Fire verification Disabled
Unvacated premises Enabled

Squawk buzzer Enabled
Squawk siren Enabled

EN CENELEC Setting

Status Disabled

Event filter counter 0 0..10
Access memory Disabled

Access system status Disabled
Access arm instant Disabled
Low battery Disabled

Power fail Disabled
Tamper Disabled

Supervision Disabled
Dialer fail Disabled
Panic Disabled

Communication

Panel phone

GPRS Settings

APN Uinternet

User name
Password
Server IO address 192.168.10.10

Server port number 1545 00000..65535
Listen port number 200 00000..65535

Private Reporting

Private phone 1 number
Private phone 2 number
Private phone 3 number

Alarm reporting Voice alerts
Trouble reporting Voice alerts

Alerts reporting Disabled
Arm/disarm reporting Disabled
Restore reporting Disabled

Bypass reporting Disabled
Dialing attempts 3 1..15

Link type – private phone Call via PSTN

HLX-40 Hardware Installation and Programming Manual 75

Default Parameter Values

Description Default Value Range

Central Station (CS) Settings

Primary CS connection method
Primary Phone number

Primary Account code FFFF
Primary Reporting option Alarms, troubles
Primary Link type PSTN

Primary Acknowledge timeout
(seconds)

Primary Signal gain 1000 300..1200
Primary Call wait cancel Disable
Secondary Account code FFFF

Secondary Reporting option Alarms, troubles
Secondary Link type PSTN

Secondary Acknowledge timeout
(seconds)

Secondary Signal gain 1000 300..1200

Secondary Call wait cancel Disable
Reporting protocol CID

Dialing attempts 3 1..16
Days between tests (days) 7 1..8
Line test time 12:00

AC fail reporting delay (minutes) 0 0..240

Two Way Voice

CS 2WV Disabled

CS 2WV timeout 30 seconds 30 sec,1,2,3,4 min

Miscellaneous

CS/Private 2WV mode Full duplex
Fax defeat Mode Disabled

Number of rings 6 1..9
Country region setting Other

Automation

Panel keypad PGM function Disabled

PGM1

Pulse time (seconds) 5 1..99
Arm away Ignore

Arm home Ignore
Disarm Ignore

Alarm Disabled
Panic Ignore

30 10..60

30 10..60

76 HLX-40 Hardware Installation and Programming Manual

Default Parameter Values

Description Default Value Range

Trouble Ignore
AC loss Disabled

Exit / Enter Enabled
RC 1–8 panic Ignore
Zone 1–40 opened or detected Ignore

PGM2

Pulse time (seconds) 5 1..99
Arm away Ignore

Arm home Ignore
Disarm Ignore
Alarm Disabled

Panic Ignore
Trouble Ignore

AC loss Disabled
Exit/Enter Enabled
RC 1–8 panic Ignore

Zone 1–40 opened or detected Ignore

Options

Panel keypad Mute function Disabled

Custom Zone Description

House name HOMELOGIX
Custom Description 1 CUSTOM #1
Custom Description 2 CUSTOM #2

Custom Description 3 CUSTOM #3
Custom Description 4 CUSTOM #4

Custom Description 5 CUSTOM #5

HLX-40 Hardware Installation and Programming Manual 77

Labeling Instructions

H. Labeling Instructions

 See the installation diagram in Section 4.4.1.
 Do not connect to a receptacle controlled by a switch.
 This equipment should be installed in accordance with Chapter 2 of the

National Fire Alarm Code, ANSI/NFPA 72, (National Fire Protection
Association, Batterymarch Park, Quincy, MA 02269). Printed information
describing proper installation, operation, testing, maintenance, evacuation
planning, and repair service is to be provided with this equipment.
Warning: Owner’s instruction notice: ’Not to be removed by anyone
except occupant’.

 See Section 3.3 for wired zone inputs specifications.

78 HLX-40 Hardware Installation and Programming Manual

Declaration of Conformity

I. Declaration of Conformity

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

HLX-40 Hardware Installation and Programming Manual 79

Limited Warranty

J. Limited Warranty

The full ROSSLARE Limited Warranty Statement is available in the Quick Links
section on the ROSSLARE website at www.rosslaresecurity.com.

Rosslare considers any use of this product as agreement to the Warranty Terms
even if you do not review them.

80 HLX-40 Hardware Installation and Programming Manual
