Rosslare AYH6X55BT User Manual
AY-H6355BT
CSN SMART™ Smart Card
Readers (Rev. A)
Installation and User Manual
BLE 4.1
Copyright © 2017 by Rosslare. All rights reserved.
This manual and the information contained herein are proprietary to ROSSLARE
ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’
(hereafter: "ROSSLARE"). Only ROSSLARE and its customers have the right to
use the information.
No part of this manual may be re-produced or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without the express written
permission of ROSSLARE.
ROSSLARE owns patents and patent applications, trademarks, copyrights, or
other intellectual property rights covering the subject matter in this manual.
TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN
THIS DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS
AND OTHER LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND
TRANSMITTAL TO THIRD PARTIES WITHOUT EXPRESS WRITTEN PERMISSION
MAY RESULT IN LEGAL PROCEEDINGS.
The furnishing of this manual to any party does not give that party or any third
party any license to these patents, trademarks, copyrights or other intellectual
property rights, except as expressly provided in any written agreement of
ROSSLARE.
ROSSLARE reserves the right to revise and change this document at any time,
without being obliged to announce such revisions or changes beforehand or
after the fact.
Table of Contents
Table of Contents
1. Introduction ................................................................ 7
1.1 Installation Kit ......................................................................... 8
2. Technical Specifications .............................................. 9
3. Mounting ................................................................... 10
4. Wiring Instructions ................................................... 12
5. OSDP Operation ......................................................... 14
6. Reader Functionality ................................................. 17
6.1 Standby Mode ...................................................................... 17
6.2 Programming ........................................................................ 17
6.2.1
6.2.2
6.2.3
6.2.4
6.2.5
6.2.6
6.2.7
6.2.8
6.2.9
6.2.10 Replacing a Lost Programming Code ............................................ 32
A. Declaration of Conformity........................................ 33
B. Limited Warranty ...................................................... 34
Entering Programming Mode ........................................................ 19
Exiting Programming Mode .......................................................... 19
Selecting Keypad Transmission Format ......................................... 20
Selecting Proximity Card Transmission Format .............................. 25
Changing the Programming Code ................................................ 29
Changing the Facility Code ........................................................... 30
Selecting Credential Technology ................................................... 30
Setting the Backlight Behavior ...................................................... 31
Return to Factory Default Settings ................................................ 32
AY-H6355BT Installation and User Manual iii
List of Figures
List of Figures
Figure 1: Removing the Top Cover .................................................................. 10
Figure 2: DIP Switch Compartment .................................................................. 15

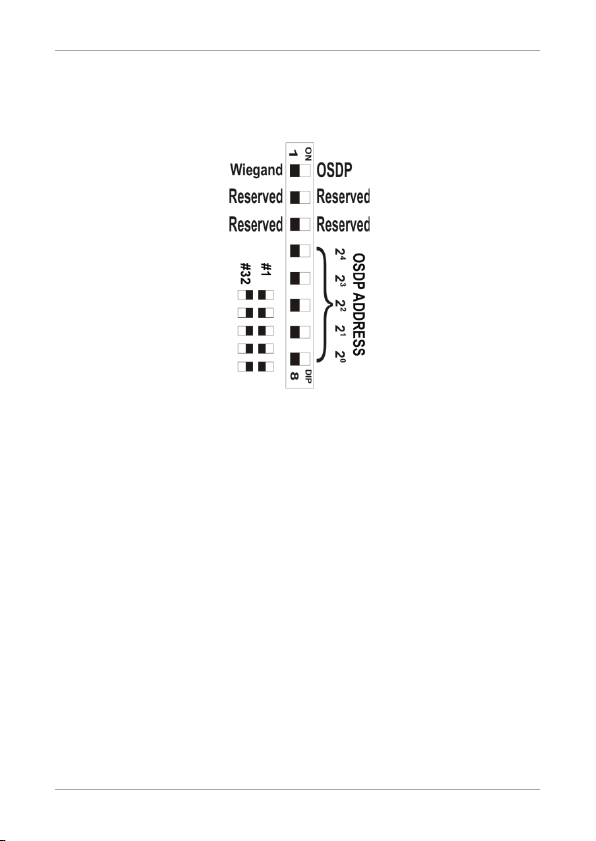

Figure 3: DIP Switch Settings ........................................................................... 16
iv AY-H6355BT Installation and User Manual
List of Tables
List of Tables
Table 1: Wiring the Unit as a Reader to a Control Panel .................................. 12
Table 2: Reader Programming Menus .............................................................. 18
Table 3: Keypad Transmission Format Option Number .................................... 21
Table 4: Proximity Card Transmission Format Option Number ......................... 26
AY-H6355BT Installation and User Manual v
Introduction
Notice and Disclaimer
This manual’s sole purpose is to assist installers and/or users in the safe and
efficient installation and usage of the system and/or product, and/or software
described herein.
B
EFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM, THE INSTALLER AND THE
USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY
REQUIREMENTS AND OPERATING PROCEDURES
The system must not be used for purposes other than those for which it
was designed.
The use of the software associated with the system and/or product, if
applicable, is subject to the terms of the license provided as part of the
purchase documents.
ROSSLARE exclusive warranty and liability is limited to the warranty and
liability statement provided in an appendix at the end of this document.
This manual describes the maximum configuration of the system with the
maximum number of functions, including future options. Therefore, not all
functions described in this manual may be available in the specific system
and/or product configuration you purchased.
Incorrect operation or installation, or failure of the user to effectively
maintain the system, relieves the manufacturer (and seller) from all or any
responsibility for consequent noncompliance, damage, or injury.
The text, images and graphics contained in the manual are for the purpose
of illustration and reference only.
All data contained herein subject to change without prior notice.
In no event shall manufacturer be liable for any special, direct, indirect,
incidental, consequential, exemplary or punitive damages (including,
without limitation, any and all damages from business interruption, loss of
profits or revenue, cost of capital or loss of use of any property or capital or
injury).
All graphics in this manual are for reference only, some deviation between
the image(s) and the actual product may occur.
All wiring diagrams are intended for reference only, the photograph or
graphic of the PCB(s) are intended for clearer illustration and
understanding of the product and may differ from the actual PCB(s).
.
vi AY-H6355BT Installation and User Manual
Introduction
1. Introduction
The CSN SMART™ AY-H6355BT is an innovative reader from Rosslare
geared for quad-play operation: backlit PIN keypad, smart card CSN
(13.56 MHz) card reader, NFC-ID read, and BLE-ID smartphone ID
read capabilities. Designed with premium components and IP65
mechanicals, it works well indoors and outdoors. The reader also
features OSDP support and configuration card operation
programming.
The following list shows the credential technologies for which we
have confirmed compatibility:
ISO14443A – MIFARE® Ultralight® Nano / EV1/ C, MIFARE
Classic® / Classic EV1, MIFARE Plus® S / SE / X / EV1, MIFARE
DESFire® EV1 / EV2, N-TAG NFC / Card Emulation
ISO14443B - China National ID
ISO15693 – HID® iClass®, PicoPass, iCode, LEGIC
ISO18092 – SONY® FeliCa® (Hong Kong Octopus)
Rosslare’s CS-ECA NFC app (HCE) for Android smartphones
Scan the QR code to download Rosslare’s NFC app.
Android app and BLE-ID for Android and iPhone
This list is continuously updated, for the latest compatibility list
contact your sales representative.
The standard reader outputs the Wiegand CSN data in Wiegand
26-Bit format. Other Wiegand formats are selectable using the
CS-CCT Configuration Card Tool for the DR-6255
application.
AY-H6355BT Installation and User Manual 7
Introduction
1.1 Installation Kit
The installation kit consists of the following items to be used during
the installation procedure:
1 self-adhesive mounting label template
2 mounting screws and 2 screw anchors
1 Torx key tool
1 Torx security screw
8 AY-H6355BT Installation and User Manual
Technical Specifications
2. Technical Specifications
Electrical Characteristics
Power Supply Type
Operating Voltage Range
Current @ 12 V
Read Range*
Green LED Control
Red LED Control
Buzzer Control
Tamper Output
Maximum Cable Distance
to Controller
Environmental Characteristics
Operating Temp. Range
Operating Humidity
Range
Outdoor Usage
* Measured using a Rosslare MIFARE Classic EV1 (ISO card). Read range with
other credential technologies may vary. Range also depends on electrical
environment and proximity to metal.
Physical Characteristics
Dimensions (H x W x D)
Weight
Regulated
8 to 16 VDC
Standby: 120 mA, max: 220 mA
Contactless 13.56 MHz and NFC: Up to 7 cm
(2.8 in.)
Bluetooth BLE 4.1: Up to 10 m ( 32 ft) open air
Dry Contact, N.O.
Dry Contact, N.O.
Dry Contact, N.O.
Open collector, active low, max. sink current
16 mA
Wiegand: 150 m (500 ft) with 18-AWG cable
OSDP (RS-485): 1,200 m (4,000 ft) with 2x2 18-
AWG twisted shielded cable
-35°C to 66°C (-31°F to 150°F)
0 to 95% (non-condensing)
Weather-resistant, UV-resistant, epoxy-potted,
suitable for indoor and outdoor use
110.7 × 75.0 × 18.2 mm (4.4 x 3.0 x 0.7 in.)
190 g (6.7 oz)
AY-H6355BT Installation and User Manual 9
Mounting
3. Mounting
Before mounting, you should determine the best location for the
reader.
To mount the units:
1. Peel off the back of the self-adhesive mounting label template
and place it at the required mounting location.
2. Using the template as a guide, drill two holes (sizes indicated on
the template) used for mounting the back plate onto the surface.
3. Insert a suitable wall plug into each screw hole.
4. Drill a 10-mm (7/16”) hole for the cable. If mounting on metal,
place a grommet or electrical tape around the edge of the hole.
5. Wire the reader as described in Chapter 4. A linear type power
supply is recommended.
6. Remove the reader's snap-off front cover to reveal the two screw
holes (see Figure 1).
Figure 1: Removing the Top Cover
The location of the screws varies depending on the model
number of the reader.
10 AY-H6355BT Installation and User Manual
Mounting
7. Align the two holes of the reader with those drilled in the wall
and firmly attach the reader to the wall with two screws, whose
size is indicated on the template.
8. Relocate the front cover onto the reader.
The reader can also be mounted using strong epoxy glue. After
application, the reader should be firmly held in place until the
glue dries
AY-H6355BT Installation and User Manual 11
