Rosslare AYCEX5 User Manual

Download

AYC-Ex5/T65 Series

AYC-Ex5

AYC-T65

Convertible Backlit Proximity & PIN Readers/Controllers

Installation and Programming Manual

Ex5 Models:

AYC-E55 AYC-E65BB AYC-E65BG AYC-E65BW

T65 Models:

AYC-T65B AYC-T65N

This manual and the information contained herein are proprietary to ROSSLARE ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’ (hereafter: "ROSSLARE"). Only ROSSLARE and its customers have the right to use the information.

No part of this manual may be re-produced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of ROSSLARE.

ROSSLARE owns patents and patent applications, trademarks, copyrights, or other intellectual property rights covering the subject matter in this manual.

TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN THIS DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS AND OTHER LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND TRANSMITTAL TO THIRD PARTIES WITHOUT EXPRESS WRITTEN PERMISSION MAY RESULT IN LEGAL PROCEEDINGS.

The furnishing of this manual to any party does not give that party or any third party any license to these patents, trademarks, copyrights or other intellectual property rights, except as expressly provided in any written agreement of ROSSLARE.

ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

Table of Contents

1. Introduction ........................................................................... 9

1.1 Reader/Controller Types............................................................ 9

1.2 Box Content ............................................................................. 10

1.3 Ancillary Equipment ................................................................. 10

2. Installation .......................................................................... 11

2.1 Mounting .................................................................................. 11

2.2 Wiring ....................................................................................... 12

2.2.1 Wiring the Unit as a Reader .............................................................12

2.2.2 Wiring the Unit as a Controller.........................................................13

3. Reader Operation ................................................................ 16

3.1 General ..................................................................................... 16

3.2 Programming as a Reader ....................................................... 17

3.2.1 Entering Programming Mode ..........................................................18

3.2.2 Exiting Programming Mode ............................................................18

3.2.3 Selecting Keypad Transmission Format ........................................19

3.2.4 Selecting Proximity Card Transmission Format ...........................24

3.2.5 Changing the Programming Code ..................................................26

3.2.6 Changing the Facility Code..............................................................27

3.2.7 Setting the Backlight Behavior ........................................................27

3.2.8 Return to Factory Default Settings .................................................28

3.2.9 Replacing a Lost Programming Code ............................................29

4. Controller Operation ............................................................ 30

4.1 Normal, Secure, and Master Users .......................................... 30

4.2 Modes of Operation ................................................................. 31

AYC-Ex5/T65 Series Installation and Programming Manual iii

Table of Contents

4.2.1 Normal Mode ....................................................................................31

4.2.2 Bypass Mode ....................................................................................31

4.2.3 Secure Mode .....................................................................................32

4.2.4 Changing the Modes of Operation .................................................32

4.3 Auxiliary Input and Output ....................................................... 34

4.4 Door Alarms ............................................................................. 34

4.5 Internal Case and Back Tamper .............................................. 34

4.6 Lockout Feature (Keypad Tamper) .......................................... 34

4.7 REX Function ........................................................................... 35

4.8 Secured Intelligent Power Supply ............................................ 35

4.9 Programming as a Controller .................................................. 36

4.9.1 Entering Programming Mode ..........................................................37

4.9.2 Exiting Programming Mode ............................................................37

4.9.3 Changing Lock Strike Code .............................................................38

4.9.4 Changing Auxiliary Code..................................................................38

4.9.5 Changing the Programming Code ..................................................39

4.9.6 Changing the Normal/Secure Code ...............................................40

4.9.7 Changing the Normal/Bypass Code and Door Chime Settings ...40

4.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike

Release Time ....................................................................................41

4.9.9 Defining the Auxiliary Input and Output .........................................43

4.9.10 Setting the Lockout Feature ............................................................48

4.9.11 Setting the Backlight Behavior ........................................................49

4.9.12 Enrolling Primary and Secondary Codes........................................50

4.9.13 Deleting Primary and Secondary Codes ........................................54

4.9.14 Relay Codes Assignment.................................................................56

4.9.15 PIN Code Length/Factory Default Settings ...................................59

4.9.16 Replacing a Lost Programming Code ............................................59

iv AYC-Ex5/T65 Series Installation and Programming Manual

Table of Contents

4.9.17 Exiting Secure Mode if Normal/Secure Code was Lost ...............60

5. Technical Specifications ..................................................... 61

A. Declaration of Conformity ................................................... 63

B. Limited Warranty ................................................................. 64

AYC-Ex5/T65 Series Installation and Programming Manual v

List of Figures

Figure 1: Drilling and Mounting Template..........................................................11

Figure 2: Controller Application Wiring Diagram ...............................................14

Figure 3: Controller Wiring – Using the Internal Power ....................................15

Figure 4: Controller Wiring – Using the External Power ...................................15

vi AYC-Ex5/T65 Series Installation and Programming Manual

List of Tables

Table 1: Wiring the Reader to the Controller......................................................12

Table 2: Wiring the Unit as a Controller..............................................................13

Table 3: Reader Programming Menus ...............................................................17

Table 4: Controller Programming Menu.............................................................36

Table 5: Quick Reference Guide for Auxiliary Mode Setting ............................43

AYC-Ex5/T65 Series Installation and Programming Manual vii

Notice and Disclaimer

This manual’s sole purpose is to assist installers and/or users in the safe and efficient installation and usage of the system and/or product, and/or software described herein.

EFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM, THE INSTALLER AND THE

USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY

REQUIREMENTS AND OPERATING PROCEDURES

 The system must not be used for purposes other than those for which it

was designed.

 The use of the software associated with the system and/or product, if

applicable, is subject to the terms of the license provided as part of the purchase documents.

 ROSSLARE exclusive warranty and liability is limited to the warranty and

liability statement provided in an appendix at the end of this document.

 This manual describes the maximum configuration of the system with

the maximum number of functions, including future options. Therefore, not all functions described in this manual may be available in the specific system and/or product configuration you purchased.

 Incorrect operation or installation, or failure of the user to effectively

maintain the system, relieves the manufacturer (and seller) from all or any responsibility for consequent noncompliance, damage, or injury.

 The text, images and graphics contained in the manual are for the

purpose of illustration and reference only.

 All data contained herein subject to change without prior notice.

 In no event shall manufacturer be liable for any special, direct, indirect,

incidental, consequential, exemplary or punitive damages (including, without limitation, any and all damages from business interruption, loss of profits or revenue, cost of capital or loss of use of any property or capital or injury).

 All graphics in this manual are for reference only, some deviation

between the image(s) and the actual product may occur.

 All wiring diagrams are intended for reference only, the photograph or

graphic of the PCB(s) are intended for clearer illustration and understanding of the product and may differ from the actual PCB(s).

8 AYC-Ex5/T65 Series Installation and Programming Manual

Introduction

Backlight

Keypad Type

Proximity

1. Introduction

The AYC-Ex5/T65 series are integrated convertible readers and controllers with a piezoelectric keypad. The units are vandal resistant and water resistant, suitable for indoor or outdoor mounting.

These units automatically determine whether to function as a reader or as a controller. If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply, it functions as a secured controller.

As a controller, the units accept up to 500 users, and allow entry via a personal identification number (PIN) and/or by presenting a proximity card. The PIN code length for the controller has several options. The PIN code length can be a set number of 4, 5, or 6 digits or it can be a 4- to 8-digit code.

For information on how the unit functions as a reader, see Chapter 3.

For information on how the unit functions as a controller, see Chapter 4.

1.1 Reader/Controller Types

The different types of units described in this manual are:

 Type E55 has PIN only  Types E65 and T65 have PIN and proximity card

AYC-E55

AYC-E65B

AYC-E65BB

AYC-T65





Piezoelectric





AYC-Ex5/T65 Series Installation and Programming Manual 9

Introduction

1.2 Box Content

Before beginning verify that all of the following is in the box. If anything is missing, please report the discrepancy to your nearest Rosslare office.

 One AYC-Ex5/T65 unit  Installation kit  Installation and operating instructions

1.3 Ancillary Equipment

The following equipment is required to complete your installation:

 When functioning as a reader:

Compatible host controller (not supplied) – UL listed access control unit, such as model AC-215U

 When functioning as a controller:

Secured intelligent power supply – such as the PC-25T, PS-A25T, PS-C25T, or PS-C25TU secure controllers

The controller connects to the following: Electric lock strike mechanism or a magnetic lock device,

which implements fail safe (power to lock) or fail secure (power to open) functions.

Request-to-Exit (REX) button – normally open type

Switch is closed when pressed.

Door monitor switch

Rosslare accessories can be found on www.rosslaresecurity.com

10 AYC-Ex5/T65 Series Installation and Programming Manual

Installation

2. Installation

Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader.

2.1 Mounting

Before starting, select the location to mount the unit. This location should be at shoulder height.

To mount the unit:

1. Peel off the back of the self-adhesive mounting label template and place it on the required mounting location.

2. Using the template as a guide, drill two holes (of the size indicated on the template) on the surface to mount the unit (Figure 1).

Figure 1: Drilling and Mounting Template

AYC-Ex5 AYC-T65

AYC-Ex5/T65 Series Installation and Programming Manual 11

Installation

3. Insert the wall plugs into both mounting holes.

4. Drill a 10-mm (7/16”) hole for the cable. If the surface is metal, place a grommet or electrical tape around the edge of the hole.

5. Insert the unit’s cable wire into the cable hole and wire the unit as described in Section 2.2.

6. Using the two mounting screws, screw the unit to the wall through the two wall plugs.

The unit can also be mounted using strong epoxy glue. After application, firmly hold the unit in place until the glue dries.

2.2 Wiring

The unit is supplied with a 6-conductor 150-cm (60-in.) pigtail with exposed wires coated with solder.

2.2.1 Wiring the Unit as a Reader

If you connect the unit to a standard access control unit, it automatically functions as a reader.

To connect the unit as a reader (to a controller):

1. Select the appropriate connections according to Table 1.

Table 1: Wiring the Reader to the Controller

Wire Color Function

Black/Shield Ground (+)

Red Vin (-)

Green Data 0/Data (D0)

White Data 1/Clock (D1)

Brown LED control

Purple Tamper

2. Prepare the controller cable by cutting the cable jacket back 3.2 cm (1¼”) and strip the wire 1.3 cm (½”).

12 AYC-Ex5/T65 Series Installation and Programming Manual

Installation

cable from external interference.

3. Splice the reader’s pigtail wires to the corresponding controller wires and cover each joint with insulating tape.

4. If the tamper output is being utilized, connect the purple wire to the correct input on the controller.

5. Trim and cover all conductors that are not used.

• The individual wires extending from the reader are color-coded according to the required Wiegand standard.

• When using a separate power supply for the reader, this supply and the controller’s power supply must have a common ground. A linear power supply is recommended.

• Attach the cable shield wire on the reader to an earth ground (best), or to a signal ground connection at the panel or power supply end of the cable. This configuration is best for shielding the reader

2.2.2 Wiring the Unit as a Controller

If you connect the unit to a Rosslare secured power supply, it automatically functions as a controller.

To connect the unit as a controller:

1. Select the appropriate connections according to Table 2.

Table 2: Wiring the Unit as a Controller

Controller Wire Color Func tion Note

- Red +DC Input Wired to the PS-x25x

+ Black Ground Wired to the PS-x25x

C 1 White Communication Wired to the PS-x25x

C 2 Green Communication Wired to the PS-x25x

AUX. IN Brown Auxiliary Input Wired to input

N/A

Purple Not in use N/A

AYC-Ex5/T65 Series Installation and Programming Manual 13

Installation

Attach the cable shield wire on the unit to an earth ground (bes t). You can also attach it to a signal gro und connection at the panel or power supply end of the cable. This configuration is best for shielding the controller cable from external interference.

2. Prepare the secured power supply’s cable by cutting the cable jacket back 3.2 cm (1¼”) and strip the wire 1.3 cm (½”).

3. Splice the controller pigtail wires to the corresponding secured power supply’s wires and cover each joint with insulating tape.

4. Trim and cover all conductors not used.

5. To connect the unit to the desired power supply option, refer to the relevant wiring diagrams that follow.

Figure 2 shows the wiring for the controller application using a dual relay secured intelligent power supply.

Figure 2: Controller Application Wiring Diagram

14 AYC-Ex5/T65 Series Installation and Programming Manual

Installation

Figure 3 shows the auxiliary output connection using the internal power.

Figure 3: Controller Wiring – Using the Internal Power

Figure 4 shows the auxiliary output connection using the external power.

Figure 4: Controller Wiring – Using the External Power

AYC-Ex5/T65 Series Installation and Programming Manual 15

Reader Operation

Red

Green

3. Reader Operation

The AYC-Ex5/T65 series can function both as a reader and as a controller. If the unit is connected to standard access controller, it functions as a reader, indicated by one beep immediately after power-on reset.

The use of a proximity card is not relevant for the AYC-E55 model.

3.1 General

The default mode of the reader is Standby mode. In Standby mode, the unit is ready to receive data from a presented proximity card or an entered PIN code.

Programming the reader programming menu system (Section 3.2).

Keypad data can be sent via one of eight keypad transmission formats. For more information, see Section 3.2.3.

Rosslare proximity cards presented to the reader can output card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. See Section 3.2.4 for more information.

When the reader is in Standby mode, the left LED is red and the right LED is off.

When the reader is in Programming mode, the left LED is off and the right LED is green.

When a proximity card is presented or a keypad entry is being transmitted, the left LED flashes green.

is done via the unit's keypad driven

16 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

3.2 Programming as a Reader

Programming is done solely via the unit's keypad driven Programming Menu System. During the manufacturing process, certain codes and settings are pre-programmed. These settings are called the default factory settings.

Table 3 shows the names of all the reader programming menus. Default factory settings are marked by a "*" sign.

Table 3: Reader Programming Menus

Menu Description Default

1 Selecting Keypad Transmission Format

Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit 1 to 5 Keys + Facility Code, Wiegand 26-Bit 6 Keys BCD and Parity Bits, Wiegand 26-Bit 1 to 8 Keys BCD, Clock & Data

2 Selecting Card Transmission Format

Wiegand 26-Bit Clock & Data Wiegand Card + PIN

3 Changing the Programming Code 1234

4 Changing the Facility Code 0

6 Backlight Options

Off On (default) Off until key press when on for 10 seconds Dimmed until key press when on for 10 seconds

0 Return to Factory Default Settings

AYC-Ex5/T65 Series Installation and Programming Manual 17

Reader Operation

Red

Green

Red

3.2.1 Entering Programming Mode

To reach the Programming Menu System, the unit must first be placed into Programming mode.

• The factory 4-digit Programming code is 1234.

• If a Programming code is not entered within 30 seconds, the unit

returns to Standby mode.

To enter Programming mode:

1. Press # four times.

The left LED turns off and the right LED turns red.

2. Enter your 4-digit Programming code.

If the Programming code is valid, the right LED turns green.

If the Programming code is invalid, you hear a long beep and the reader returns to Standby mode.

If no key is pressed for 30 seconds while in Programming mode, the unit returns to Standby mode

3.2.2 Exiting Programming Mode

To exit Programming mode:

1. Press # to exit Programming mode at any time.

You hear a beep. The left LED turns red and the right LED turns

off.

This indicates that the unit has returned to Standby mode.

18 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

Green

Red

Green

Red

3.2.3 Selecting Keypad Transmission Format

There are seven keypad transmission formats. More information on each of the keypad transmission formats is

presented in Section 3.2.3.1.

Only one keypad transmission format can be active at any one time.

To select the keypad transmission format:

1. Enter Programming mode.

2. Press 1 to enter Menu 1.

The left LED turns red.

3. Enter one of the following options:

1 – Single Key, Wiegand 6-Bit (Rosslare Format) (default) 2 – Single Key, Wiegand 6-Bit with Nibble + Parity Bits 3 – Single Key, Wiegand 8-Bit, Nibbles Complemented 4 – 4 Keys Binary + Facility Code, Wiegand 26-Bit 5 – 1 to 5 Keys + Facility Code, Wiegand 26-Bit 6 – 6 Keys BCD and Parity Bits, Wiegand 26-Bit 8 – 1 to 8 Keys BCD, Clock & Data Single Key

When selecting Option 8, the right LED turns orange and an additional input is required to specify the number of keys in the PIN code.

You hear three beeps. The system returns to Standby mode.

AYC-Ex5/T65 Series Installation and Programming Manual 19

Reader Operation

If an incorrect option number is entered, the reader returns to Standby mode and the keypad transmission format remains unchanged.

3.2.3.1 Keypad Transmission Formats

Option 1: Single Key, Wiegand 6-Bit (Rosslare Format)

Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits.

0 = 1 1010 0 = "A" in Hexadecimal 6 = 1 0110 0 1 = 0 0001 0 7 = 1 0111 1 2 = 0 0010 0 8 = 1 1000 1 3 = 0 0011 1 9 = 1 1001 0 4 = 1 0100 1  = 1 1011 1 = "B" in Hexadecimal 5 = 1 0101 0 # = 0 1100 1 = "C" in Hexadecimal

Option 2: Single Key, Wiegand 6-Bit Nibble and Parities

Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits.

0 = 0 0000 1 6 = 1 0110 0 1 = 0 0001 0 7 = 1 0111 1 2 = 0 0010 0 8 = 1 1000 1 3 = 0 0011 1 9 = 1 1001 0

4 = 1 0100 1  = 1 1010 0 = "A" in Hexadecimal 5 = 1 0101 0 # = 1 1011 1 = "B" in Hexadecimal

20 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

Option 3: Single Key, Wiegand 8-Bit Nibbles Complemented

This option inverts the most significant bits in the message leaving the least 4 significant bits as a Binary Coded Decimal (BCD) representation of the key. The host system receives an 8-bit message.

0 = 11110000 6 = 10010110 1 = 11100001 7 = 10000111 2 = 11010010 8 = 01111000 3 = 11000011 9 = 01101001

4 = 10110100  = 01011010 = "A" in Hexadecimal 5 = 10100101 # = 01001011 = "B" in Hexadecimal

Option 4: 4 Keys Binary + Facility Code, Wiegand 26-Bit

This option buffers 4 keys and outputs keypad data with a 3-digit Facility code like a standard 26-bit card output.

The Facility code is set in Programming Menu number four and can be in the range 000 to 255. The factory default setting for the Facility code is 000 (see Section 3.2.6).

The keypad PIN code is 4-digit long and can range between 0000 and 9999. On the fourth key press of the 4-digit PIN code, the data is sent across the Wiegand Data lines as binary data in the same format as a 26-bit card.

If  or # are pressed during PIN code entry, the keypad clears the PIN code entry buffer, generate a beep and is ready to receive a new 4-digit keypad PIN code.

If the entry of the 4-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 4-digit keypad PIN code.

(EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP)

AYC-Ex5/T65 Series Installation and Programming Manual 21

Reader Operation

Where:

EP = Even parity for first 12 bits

OP = Odd parity for last 12 bits

F = 8-bit Facility code

A = 16-bit code generated from keypad

Option 5: 1 to 5 Keys + Facility Code, Wiegand 26-Bit

Option 5 buffers up to 5 keys and outputs keypad data with a Facility code like a 26-Bit card output.

The Facility code is set in Programming Menu number four and can be in the range 000 to 255. The factory default setting for the Facility code is 000 (see Section 3.2.6).

The keypad PIN code can be one to five digits in length and can range between 1 and 65,535. When entering a keypad PIN code that is less than 5 digits in length, # key must be pressed to signify the end of PIN code entry. For keypad PIN codes that are 5 digits in length, on the fifth key press of the 5-digit PIN code, the data is sent across the Wiegand Data lines as binary data in the same format as a 26-Bit Card.

If  is pressed during PIN code entry or a PIN code greater than 65,535 is entered, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 5-digit keypad PIN code.

If the entry of the 1- to 5-digit keypad PIN code is disrupted and a number key or # is not pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a medium length beep and is ready to receive a new 1- to 5-digit keypad PIN code.

(EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) Where:

EP = Even parity for first 12 bits

OP = Odd parity for last 12 bits

F = 8-bit Facility code

A = 16-bit code generated from keypad

22 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit

Option 6 sends buffer of 6 keys, adds parity and sends a 26-Bit BCD message. Each key is a four bit equivalent of the decimal number.

The keypad PIN code must be 6 key presses long. On the sixth key press of the 6-digit PIN code, the data is sent across the Wiegand Data lines as a BCD message.

If the entry of the 6-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a medium length beep and is ready to receive a new 6-digit keypad PIN code.

(EP) AAAA BBBB CCCC DDDD EEEE FFFF (OP) Where:

EP = Even parity for first 12 bits

OP = Odd parity for last 12 bits

A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered F = Sixth key entered

Option 8: 1 to 8 Keys BCD, Clock & Data

Buffers up to 8 keys and outputs keypad data without a Facility code like standard Clock and Data card output.

The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8. The reader transmits the data when it receives the last key press of the PIN code. The data is sent across the two data output lines as binary data in Clock & Data format.

If  or # is pressed during PIN code entry, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new keypad PIN code.

If the entry of the digit keypad PIN code is disrupted and a number key or # is not pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a medium length beep, and is ready to receive a new keypad PIN code.

AYC-Ex5/T65 Series Installation and Programming Manual 23

Reader Operation

Green

Red

Green

Red

3.2.4 Selecting Proximity Card Transmission Format

There are three proximity card transmission formats. More information on each of the proximity card transmission

formats is presented in Section 3.2.4.1.

To select the proximity card transmission format:

1. Enter Programming mode.

2. Press 2 to enter Menu 2.

The left LED turns red.

3. Enter one of the following options:

1 – Wiegand 26-Bit 2 – Clock & Data 3 – Wiegand Card + PIN

You hear three beeps. The system returns to Standby mode.

3.2.4.1 Proximity Card Transmission Formats

Option 1: Wiegand 26-Bit

In this mode, 3 LSB bytes from the card serial number (UID) are transmitted in Wiegand 26-Bit format. Two parity bits are added. An even parity bit is sent first, followed by three bytes of card data, and by an odd parity bit.

(EP) AAAA AAAA AAAA AAAA AAAA AAAA (OP)

Where:

EP = Even parity for first 12 bits

OP = Odd parity for last 12 bits

A = 3 bytes code generated from card data

24 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

Option 2: Clock and Data

In this mode, up to 6 bytes of the card serial number are transmitted in Clock & Data format.

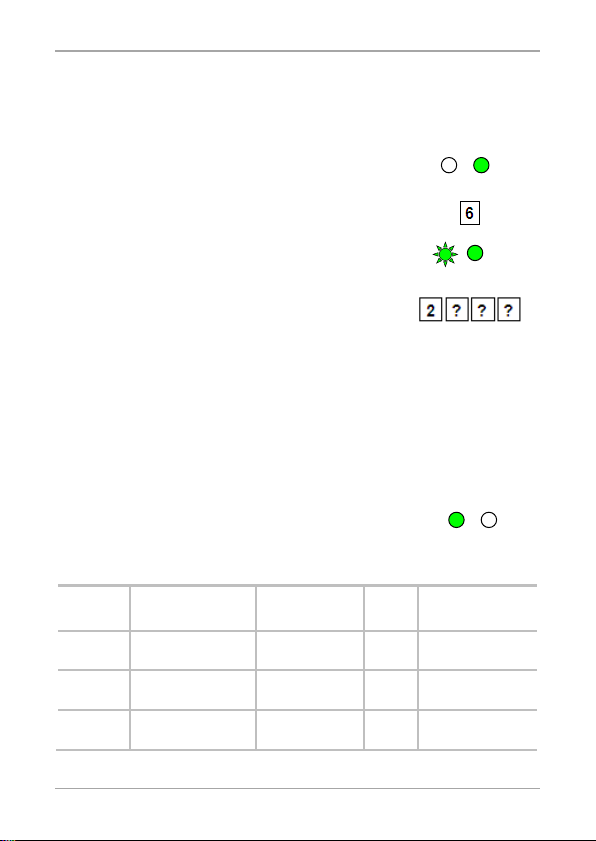

Option 3: Wiegand Card + PIN

This unique mode is intended to let host controllers get card and keypad data simultaneously. This option overrules the selected Keypad Transmission Format and sends the keypad data as described below.

After a card is presented to the unit, the program LED starts to flash in green and indicates that the unit is waiting for the PIN code. If the entry of 1- to 5-digit keypad PIN code is disturbed and a number key or # is not pressed within 5 seconds, the keypad clears the card buffer and the PIN code entry buffer, generates a medium length beep, and be ready to receive a new card.

The keypad PIN code can be one to five digits in length in the range of 0 to 99,999. When entering a keypad PIN code, # must be pressed to signify the end of the PIN entry. When pressing #, the data is sent by the Wiegand data lines. If the * key is pressed, the keypad clears the card buffer and the PIN code entry buffer, generates a medium length beep, and is ready to receive a new card.

The AYC-Ex5/AYC-T65 output card data comes in Wiegand 26-Bit with the following keypad data in Wiegand 26-Bit format:

 Card Data: (EP) AAAA AAAA AAAA BBBB BBBB BBBB (OP)

Where: EP = Even parity for first 12 A bits OP = Odd parity for last 12 B bits

 PIN Data: (EP) 0000 AAAA BBBB CCCC DDDD EEEE (OP)

AYC-Ex5/T65 Series Installation and Programming Manual 25

Reader Operation

Green

Red

Green

Red

Where:

A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered EP = Even parity for first 12 bits OP = Odd parity for last 12 bits

If the PIN code is less than 5 digits, all the most significant nibbles are filled with 0.

Example: (EP) 0000 0000 0000 0000 AAAA BBBB (OP) Where:

A = The first key entered B = Second key entered EP = Even parity for first 12 bits OP = Odd parity for last 12 bits

3.2.5 Changing the Programming Code

• The Programming code cannot be erased, meaning the code 0000 is invalid and does not erase the Programming code.

• The factory default 4-digit Programming code is 1234.

To change the Programming code:

1. Enter Programming mode.

2. Press 3 to enter Menu 3.

The left LED turns red.

3. Enter the new 4-digit Programming code.

You hear three beeps. The system returns to Standby mode.

26 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

Green

Red

Green

Red

Green

Red

Green

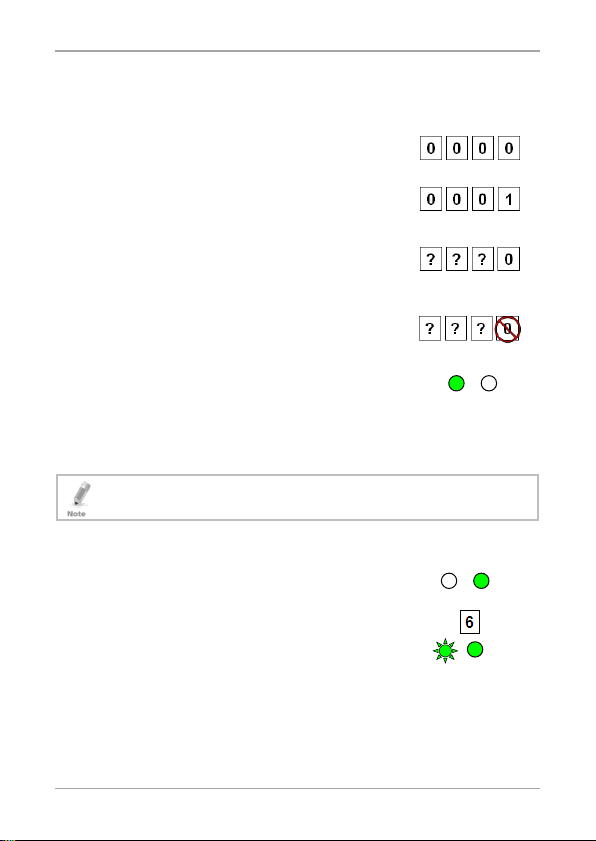

3.2.6 Changing the Facility Code

To change the Facility code:

• The Facility code can be in the range of 000 to 255.

• The default Facility code is 0.

1. Enter Programming mode.

2. Press 4 to enter Menu 4.

The left LED turns red.

3. Enter the new 3-digit Facility code.

You hear three beeps. The system returns to Standby mode.

3.2.7 Setting the Backlight Behavior

To set the backlight behavior:

1. Enter Programming mode.

2. Press 6 to enter Menu 6.

The left LED turns red.

3. Enter one of the following codes:

0 for always off 1 for always on 2 for 10 sec. backlight after a key is pressed otherwise off

(Transmit LED also off)

3 for 10 sec. backlight after a key is pressed otherwise dimmed

AYC-Ex5/T65 Series Installation and Programming Manual 27

Reader Operation

Red

Green

Red

You hear three beeps. The system returns to Standby mode.

3.2.8 Return to Factory Default Settings

You must be very careful before using this command! This erases the entire memory and return all codes to their factory default setting.

To return to factory default settings:

1. Enter Programming mode.

2. Press 0 to enter Menu 0.

Both LEDs flash red.

3. Enter your 4-digit Programming code.

If the Programming code is valid, all memory is erased. You hear three beeps and the reader returns to Standby mode.

If the Programming code is invalid, you hear a long beep and the reader returns to Standby mode without erasing the memory of the reader.

28 AYC-Ex5/T65 Series Installation and Programming Manual

Reader Operation

3.2.9 Replacing a Lost Programming Code

In the event that the Programming code is forgotten, the unit can be reprogrammed in the field.

To replace a lost Programming code:

1. Remove power from the reader.

2. Activate tamper by removing the reader from the wall or removing the reader's case.

3. Apply power to the reader.

4. You now have 10 seconds to enter Programming mode using the factory default Programming code 1234.

AYC-Ex5/T65 Series Installation and Programming Manual 29

Controller Operation

4. Controller Operation

The AYC-Ex5/T65 can function both as a reader and as a controller. If the unit is connected to Rosslare’s secured intelligent power supply, it functions as a controller indicated by two beeps immediately after power-on reset.

The Lock Strike and Auxiliary outputs, as well as the REX input, are not located on the unit, eliminating the possibility of unauthorized entry to the restricted area.

The use of a proximity card is not relevant for the AYC-E55 model.

4.1 Normal, Secure, and Master Users

The units accept up to 500 users and provide entry via the use of PIN codes and/or proximity cards. Each user is provided with two code memory slots, Memory Slot 1 (Primary code) and Memory Slot 2 (Secondary code).

The PIN code length has several options. The PIN code length can be a set number of 4, 5 or 6 digits or it can be a 4–8 digits option. When choosing the 4- to 8-digit option, please note that you should either enter zeros before the code, or press pound at the end (for example, if your code is 12345, enter either 00012345 or 12345#).

Entering a code refers to either PIN or proximity card depending on the model you have.

The way in which the two memory slots are programmed determines a user’s access level and also determines the way in which the unit grants access in its three modes of operation. There are three user levels:

 Normal

A Normal user only has a Primary code and is only granted access when the unit is in Normal or Bypass mode.

30 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

Orange

 Secure

A Secure user must have a Primary and Secondary code programmed; the two codes cannot be the same. The Secure user can gain access when the unit is in any of its three modes of operation. In Normal mode, the Secure user must use the Primary code to gain entry. In Secure mode, the Secure user must present both the Primary and Secondary codes to gain entry.

 Master

A Master user must have both Primary and Secondary codes programmed with the same PIN code. The Master User can gain access during any mode of operation by presenting the PIN code and/or proximity card one time to the controller. (The Master user is convenient but is less secure than a Secure user.)

4.2 Modes of Operation

There are three modes of operation:

4.2.1 Normal Mode

The left LED is green.

Normal mode is the default mode. In Normal mode the door is locked until a Primary code is presented to the controller. Special codes such as Lock Strike code and Auxiliary code are active in Normal mode. See Sections 4.9.3 and 4.9.4 for more information on the Lock Strike and Auxiliary codes.

4.2.2 Bypass Mode

The left LED is orange.

In Bypass mode, access to the premises is dependent on whether the controller's Lock Strike Relay is programmed for Fail Safe Operation or Fail Secure Operation. When the Lock Strike is

AYC-Ex5/T65 Series Installation and Programming Manual 31

Controller Operation

Red

Green

Red

programmed for Fail Secure Operation, the door is locked until  is pressed. When the Lock Strike is programmed for Fail Safe Operation, the door is constantly unlocked.

4.2.3 Secure Mode

The left LED is red.

Only Secure and Master users can access the premises in Secured mode.

A Secure user must enter the Primary and Secondary codes to gain entry. After entering the Primary code, the right LED flashes green for 10 seconds, during which the Secondary code must be entered. A Master user only needs to present the code once to gain entry.

4.2.4 Changing the Modes of Operation

4.2.4.1 Changing from Normal Mode to Secure Mode

The default factory setting for the Normal/Secure code is 3838.

To change from Normal to Secure mode:

1. Enter the Normal/Secure code.

The left LED flashes red.

2. Press # to confirm the mode change.

The left LED stops flashing.

4.2.4.2 Changing from Secure Mode to Normal Mode

The default factory setting for the Normal/Secure code is 3838.

To change from Secure to Normal mode:

1. Enter the Normal/Secure code.

32 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

Orange

Green

The left LED flashes green.

2. Press # to confirm the mode change.

The left LED stops flashing.

4.2.4.3 Changing from Normal Mode to Bypass Mode

See Section 4.9.7 to create/modify the Normal/Bypass code.

To change from Normal to Bypass mode:

1. Enter the Normal/Secure code.

The left LED flashes orange.

2. Press # to confirm the mode change.

The left LED stops flashing.

Orange

4.2.4.4 Changing from Bypass Mode to Normal Mode

See Section 4.9.7 to create/modify the Normal/Bypass code.

To change from Bypass to Normal mode:

1. Enter the Normal/Secure code.

The left LED flashes green.

2. Press # to confirm the mode change.

The left LED stops flashing.

AYC-Ex5/T65 Series Installation and Programming Manual 33

Controller Operation

4.3 Auxiliary Input and Output

For optimum usability in different applications, the controller’s auxiliary input and output can be configured in ten different modes of operation (see Section 4.9.9).

4.4 Door Alarms

Door alarms can be generated by connecting the Auxiliary Input to a Door Position Switch. Either Door-Forced or Door-Ajar conditions are supported, as well as, a configurable delay timer for each alarm type. Only one door alarm is enabled at any one time. Door alarms may activate auxiliary output and siren depending on the auxiliary settings.

4.5 Internal Case and Back Tamper

If the unit is forcibly opened or it is removed from the wall, a tamper event is triggered. A tamper output opens sending a signal to the connected alarm system (purple wire). The event closes when the tamper is closed (case is re-closed or re-attached to the wall).

The tamper event can also activate the auxiliary output if the controller is in Auxiliary Mode 3 (see Table 5).

4.6 Lockout Feature (Keypad Tamper)

If the controller is presented with wrong codes (PIN or card) consecutively several times, the unit goes into Lockout mode.

When a lockout occurs, the controller’s reader and keypad are deactivated so no codes can be entered until the set lockout period expires.

During Lockout mode, the left LED is Off, the right LED flashes red, and the controller beeps every two seconds.

34 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

4.7 REX Function

The REX button is connected to Rosslare’s secured intelligent power supply. The REX button must be located inside the premises to be secured and is used to open the door without the use of a PIN code. It is usually located in a convenient location, such as inside the door or at a receptionist's desk. The function of the REX button depends on whether the Lock Strike Relay is programmed for Fail Safe Operation or Fail Secure Operation.

 Fail Secure Operation – From the moment the REX button is

pressed, the door is unlocked until the Lock Strike Release Time passes. After this time, the door is locked even if the REX button is not released.

 Fail Safe Operation – From the moment the REX button is

pressed, the door is unlocked until the REX button is released, plus the Lock Strike Release Time. In this case, the Lock Strike Relay only begins its count down once the REX button is released.

4.8 Secured Intelligent Power Supply

Rosslare’s secured intelligent power supplies are designed for use with Rosslare's secured standalone access control units, including the AYC-Ex5/T65 series. The units are designed to operate indoors and are installed within the secured premises. The units must be used with one of Rosslare’s secured intelligent power supplies, which provides Lock Strike output and REX input. The AYC-Ex5/T65 and the power supply communicate through a proprietary Rosslare protocol, which provides a secure link between them. This in turn activates the door lock.

Each power supply unit contains a speaker connection for all sounder abilities.

For more information, see the PS-x25x Installation Manual.

AYC-Ex5/T65 Series Installation and Programming Manual 35

Controller Operation

4.9 Programming as a Controller

Programming is done solely via the unit's keypad driven Programming Menu System. To reach the Programming Menu System, the unit must first be put into Programming mode (see Section 4.9.1).

During the manufacturing process, certain codes and settings are pre-programmed. These settings are the called the default factory settings.

Table 4 shows the names of all the controller programming menus, as well as all the default factory codes and settings for the units.

Table 4: Controller Programming Menu

Menu Description Default

No.

1 Changing Lock Strike Code 2580 25802 258025 25802580

2 Change Auxiliary Code 0852 08520 085208 08520852

3 Changing Program Code 1234 12341 123412 12341234

4 Changing Normal/Secure

Code

5 Changing Normal/Bypass

Code

6 Changing Door Release Time 0004

Define auxiliary inputs/outputs

Set Lockout 4000

Backlight Behavior 5100

7 Enrolling PIN Code N/A

8 Deleting PIN Code N/A

9 Code assignment with

strike/auxiliary

0 Return to factory defaults or

change PIN code Length

4 digits 5

4-8 digits

digits 6 digits

3838 38383 383838 38383838

N/A

2004

N/A

36 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Red

Green

4.9.1 Entering Programming Mode

• The unit must be in Normal mode to enter the Programming mode.

• The factory 4-digit Programming code is 1234.

• If a Programming code is not entered within five seconds, the unit

returns to Normal mode.

To enter Programming mode:

1. Press # twice.

The left LED turns off and the right LED turns red.

2. Enter your 4-digit Programming code.

The right LED turns green.

4.9.2 Exiting Programming Mode

To exit Programming mode:

1. Press # twice to exit Programming mode at any time.

You hear 3 beeps. The left LED turns green and the right LED

turns off.

Wrong entries reset the controller back to Normal mode.

While in Programming mode, if no key is pressed for one minute, the unit returns to Normal mode.

AYC-Ex5/T65 Series Installation and Programming Manual 37

Controller Operation

Green

Red

Green

4.9.3 Changing Lock Strike Code

The Lock Strike code is mainly used as a method to quickly test the Lock Strike Relay during installation.

When the first user is added to the controller, the default Lock Strike code is automatically deleted. Once the code is programmed again, it is not deleted with the entry of additional user codes.

• Lock Strike Code 1 does not work in the Secure mode.

• Wrong entries returns the controller to Normal mode.

• Code 0000 erases the Lock Strike Code 1.

• The factory default 4-digit Lock Strike code is 2580.

To change the Lock Strike code:

1. Enter Programming mode.

2. Press 1 to enter Menu 1.

The left LED turns red.

3. Enter the new Strike Code 1 code.

You hear three beeps. The system returns to Normal mode.

4.9.4 Changing Auxiliary Code

The Auxiliary code is mainly used as a method to quickly test the Auxiliary Relay during installation.

When the first user is added to the controller, the default Auxiliary code is automatically deleted. Once the code is programmed again, it is not deleted with the entry of additional user codes.

38 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

Orange

Green

• Auxiliary code does not work in the Secure mode.

• Wrong entries return the controller to Normal mode.

• Code 0000 erases the Auxiliary code.

• The factory default 4-digit Auxiliary code is 0852.

To change the Auxiliary code:

1. Enter Programming mode.

2. Press 2 to enter Menu 2.

The left LED turns orange.

3. Enter the new Auxiliary code.

You hear three beeps. The system returns to Normal mode.

4.9.5 Changing the Programming Code

• Programming code cannot be erased, meaning the code 0000 is not valid and does not erase the Programming code.

• The factory 4-digit Programming code is 1234.

To change the Programming code:

1. Enter Programming mode.

2. Press 3 to enter Menu 3.

The left LED turns green.

3. Enter the new 4-digit Programming code.

AYC-Ex5/T65 Series Installation and Programming Manual 39

Controller Operation

Green

Red

Green

Orange

Green

You hear three beeps. The system returns to Normal mode.

4.9.6 Changing the Normal/Secure Code

• Code 0000 erases the Normal/Secure code.

• This code is disabled if the Auxiliary Input is set to toggle between

Normal and Secure access modes.

• Default Normal/Secure code is 3838.

To change the Normal/Secure code:

1. Enter Programming mode.

2. Press 4 to enter Menu 4.

The left LED flashes red.

3. Enter the new Normal/Secure code.

You hear three beeps. The system returns to Normal mode.

4.9.7 Changing the Normal/Bypass Code and Door Chime Settings

To change the Normal/Bypass code and door chime settings:

1. Enter Programming mode.

2. Press 5 to enter Menu 5.

The left LED flashes orange.

3. Enter the new Normal/Secure code.

40 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

the

Green

There are four different ways to program the Normal/Bypass code and door chime.

Enter the code 0000 to disable both Bypass

code and the door chime.

Enter the code 0001 to disable the Bypass

code and enable the door chime.

Enter any code ending with 0 to enable the

Bypass code and disable the door chime.

Enter a code not ending with 0 to enable

Bypass code and enable the door chime.

You hear three beeps. The system returns to Normal mode.

4.9.8 Setting Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time

The default value is 0004, which corresponds to Fail Secure operation, no siren, and a 4 -second Lock Strike release time.

To set the Fail Safe/Secure Operation, Tamper Siren and Lock Strike Release Time:

1. Enter Programming mode.

2. Press 6 to enter Menu 6.

The left LED flashes green.

AYC-Ex5/T65 Series Installation and Programming Manual 41

Controller Operation

means a Fail Secure Operation consisting of

Green

3. Construct a code using the following

instructions:

First digit

For Fail Secure Operation, the first digit should be 0. For Fail Safe Operation the first digit should be 1.

Second digit

Siren Time in minutes (1–9, 0 – disabled)

Third and fourth digits

Enter the number of seconds (from 1 to 99) that you want the Lock Strike to be released.

For example, 0312 a 3-minute siren and a 12-second Lock Strike release time.

You hear three beeps. The system returns to Normal mode.

42 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

In addition to the Lock Strike Relay and Lock Strike REX, the

AUX REX

relay release time

Green

4.9.9 Defining the Auxiliary Input and Output

The default auxiliary setting is 2004.

To define the auxiliary input and output:

1. Enter Programming mode.

2. Press 6 to enter Menu 6.

The left LED flashes green.

3. Construct a code using the following

instructions:

Second digit (Auxiliary Mode)

unit features an Auxiliary Input. The Auxiliary mode defines the function of the Auxiliary Input.

Third and fourth digits (Auxiliary Setting)

Each of the Auxiliary modes has a 2-digit setting that affects how the Auxiliary mode functions (Table 5).

You hear three beeps. The system returns to Normal mode.

Table 5: Quick Reference Guide for Auxiliary Mode Setting

Aux. Mode

0 AUX REX Valid code or

Aux. Input Function

Aux. Output Activated by

Aux.

Aux. Settings

Relay

(in seconds)

N.O. 01 to 99 Aux.

1 Normal/Secure

2 Normal/Secure

switch

Valid code N.O. 01 to 99 Aux.

Star button (*) N.O. 01 to 99 Aux.

AYC-Ex5/T65 Series Installation and Programming Manual 43

relay release time

Controller Operation

Green

relay release time

3 Normal/Secure

switch

4 Normal/Secure

switch

5 Door Monitor Shunt N.C. 01 to 99

6 Door Monitor Forced door N.C. 01 to 99 Forced

7 Door Monitor Door ajar N.C. 01 to 99 Ajar

8 LED control –

9 LED control – Red Valid code N.O. 01 to 99 Aux.

Tamper event N.C. 01 to 99 Aux.

relay release time

Direct shunt N.O. 01 to 99 Shunt

time

Maximum shunt time

delay

Valid code N.O. 01 to 99 Aux.

relay release time

The following subsections describe each Auxiliary mode.

4.9.9.1 Auxiliary Mode 0

Auxiliary input function: Activates the auxiliary output Auxiliary output activated by: Valid user code, Auxiliary code, and

Auxiliary input For example, in Auxiliary Mode 0, the controller can function as a

two-door controller. The auxiliary relay is to be attached to the lock on the second door. The auxiliary setting defines the door open time for the second door. The auxiliary input is to be attached to the REX pushbutton for the second door. The Door Monitor input feature for the second door is not enabled when using this mode.

4.9.9.2 Auxiliary Mode 1

Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Valid user code, Auxiliary code

For example, in Auxiliary Mode 1, the controller can function as a two-door controller. The auxiliary relay is to be attached to the lock

44 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation



on the second door. The REX feature for the second door is not enabled when using this mode.

The auxiliary setting defines the door open time for the second door. The auxiliary input can switch the mode of operation of the controller between Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).

4.9.9.3 Auxiliary Mode 2

Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Bell Button ()

For example, in Auxiliary Mode 2, the auxiliary relay can function as a general purpose time switch that can be activated when pressed. The auxiliary setting establishes for how long the auxiliary relay is to be activated. The auxiliary input can switch the mode of operation of the controller between Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).

4.9.9.4 Auxiliary Mode 3

Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: Alarms

For example, in Auxiliary Mode 3, the auxiliary output is activated if the controller is tampered; that is, if the case is forcibly opened or removed from the wall. The auxiliary input can switch the mode of operation of the controller between Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).

4.9.9.5 Auxiliary Mode 4

Auxiliary input function: Toggles Normal/Secure modes Auxiliary output activated by: direct shunt (explanation below)

AYC-Ex5/T65 Series Installation and Programming Manual 45

Controller Operation

For example, in Auxiliary Mode 4, the controller is capable of bypassing an alarm zone by shunting an alarm system’s door sensor. The auxiliary output is to be wired in parallel to the door sensor output. When in use, the auxiliary output is normally open and the door sensor functions normally. When a valid code is entered, the auxiliary relay shunts the door sensor for the duration of the shunt time, as defined by the auxiliary setting. If the door is left open longer than the shunt time, an alarm is triggered.

4.9.9.6 Auxiliary Mode 5

Auxiliary input function: Door Monitor Auxiliary output activated by: Shunt (explanation below)

For example, in Auxiliary Mode 5, the controller is capable of shunting an alarm system. In this mode, the auxiliary input is to be wired to the magnetic contact switch on the door. The auxiliary relay is wired to the alarm system. Without a valid code entered, the auxiliary relay matches the condition of the magnetic contact switch; if the door opens, the auxiliary relay opens; if the door closes, the auxiliary relay closes. When a valid code is entered, a countdown for maximum shunt time, as defined by the auxiliary setting, begins; if the door is not closed before the maximum shunt time, the alarm is triggered.

4.9.9.7 Auxiliary Mode 6

Auxiliary input function: Door Monitor Auxiliary output activated by: Forced entry

For example, in Auxiliary Mode 6, the controller can trigger the auxiliary relay if the door has been forced. If the siren settings are enabled, the siren is activated.

In this mode, the auxiliary input functions as a door monitor switch and is wired to the magnetic contact switch on the door. The auxiliary relay is to be wired to the alarm system. If the door is forced open, the controller waits for the period of the forced door delay time to elapse and then it activates the auxiliary relay. The auxiliary setting sets the forced door delay period.

46 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

4.9.9.8 Auxiliary Mode 7

Auxiliary input function: Door Monitor Auxiliary output activated by: Door Ajar (door held open)

For example, in Auxiliary Mode 7, the controller can trigger the auxiliary relay, if it detects that the door has been held open (ajar) too long. In this mode the auxiliary input functions as a door monitor switch and is wired to the magnetic contact switch on the door. The auxiliary relay is to be wired to the alarm system. If the door is opened, the controller waits for the door ajar delay time to elapse and if the door does not close prior to the end of this period, the controller activates the auxiliary relay. The auxiliary setting defines the door-ajar time.

4.9.9.9 Auxiliary Mode 8

This mode controls the door indicator (right LED). The right LED is not lit when:

• A valid code is entered

• While in Secure mode when waiting for Secondary code.

Auxiliary input function: Green LED control Auxiliary output activated by: Valid user code, Auxiliary code

For example, in Auxiliary Mode 8, the controller can function as a 2-door controller and also provide LED indicator functionality control. The auxiliary relay is connected to the lock on the second door. The auxiliary setting defines the Door Open time for the second door. The auxiliary input is used to control the door indicator (right LED). If the auxiliary input is open, the right LED flashes green; if the auxiliary input is closed, the right LED flashes red.

4.9.9.10 Auxiliary Mode 9

This mode controls the door indicator (right LED). The right LED is not lit when:

• A valid code is entered

AYC-Ex5/T65 Series Installation and Programming Manual 47

Controller Operation

Green

• While in Secure mode when waiting for Secondary code.

Auxiliary input function: Red LED control Auxiliary output activated by: Valid user code, Auxiliary code

For example, in Auxiliary Mode 9, the controller can function as a 2-door controller and also provide LED indicator functionality control. The auxiliary relay is connected to the lock on the second door. The auxiliary setting defines the Door Open time for the second door. The auxiliary input is used to control the door indicator (right LED). If the auxiliary input is open, the right LED flashes red; if the auxiliary input is closed the right LED flashes green.

4.9.10 Setting the Lockout Feature

If the controller is presented with wrong codes (PIN or card) consecutively several times, the unit goes into Lockout mode.

When a lockout occurs, the controller keypad and reader are locked so no codes can be entered until the set lockout period expires. During Lockout, the left LED is Off, the right LED flashes red, and the controller beeps every two seconds.

The default setting for the Lockout Feature is 4000 (Lockout Disabled).

Using the lockout feature is highly recommended, especially when selecting to use short PIN code length (4 or 5 digits).

To set the lockout feature:

1. Enter Programming mode.

2. Press 6 to enter Menu 6.

The left LED flashes green.

48 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

3. Construct a code using the following

instructions:

Second digit

Set the number of wrong code attempts, which causes a Lockout between 0 and 9 attempts.

Third and fourth digits

Sets the Duration of the lockout, between 00 and 99; the value is multiplied by ten, resulting in 0 to 990 seconds.

4.9.11 Setting the Backlight Behavior

The controller allows you to define the way the unit’s backlight works.

To set the backlight behavior:

1. Enter Programming mode.

2. Press 6 to enter Menu 6.

The left LED flashes green.

3. Enter one of the following codes:

5000 – Backlight off 5100 – Backlight on (default) 5200 – Backlight is off, activates for 10 seconds when a key is

pressed, after which it dims until off

5300 – Backlight is dimmed, activates for 10 seconds when a

key is pressed, after which it returns to a dimmed level

AYC-Ex5/T65 Series Installation and Programming Manual 49

Controller Operation

4.9.12 Enrolling Primary and Secondary Codes

4.9.12.1 Primary Codes

 Primary codes can only be enrolled to an empty user slot,

meaning a slot where there is no existing Primary code.

 Primary codes must be unique, meaning one user’s Primary

code may not be the same as other user’s Primary code.

 Primary codes cannot be the same as any system codes, such

as the Normal/Secure code or Lock Strike code.

 Users who hold a Primary code can gain entry only during

Normal mode.

4.9.12.2 Secondary Codes

 Secondary codes can only be enrolled to a user slot that

already has a Primary code enrolled but has no Secondary code.

 Secondary codes do not have to be unique, meaning multiple

users can all hold the same Secondary code.

 Secondary codes cannot be the same as any system codes,

such as the Normal/Secure or Lock Strike codes.

 Users who hold Secondary codes can gain entry in any mode of

operation.

4.9.12.3 Enrolling Methods

There are two methods to enroll Primary and Secondary codes:

 Standard Method

The Standard Method is mainly used when the user slot number for the user you wish to program is known. You can program both Primary and Secondary codes using the Standard method (see Section 4.9.12.4).

 Code Search Method

The Code Search Method is mainly used when enrolling a user’s Secondary code and the User Slot code is unknown.

50 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

For example, User Slot 003 represents User

, the

Green

Orange

Green

Orange

Red

Green

The Code Search method only works if a user’s Primary code is already enrolled but the Secondary code is not (see Section 4.9.12.5).

4.9.12.4 Enrolling Primary and Secondary Codes using Standard Method

To enroll Primary and Secondary codes using the Standard method:

1. Enter Programming mode.

2. Press 7 to enter Menu 7.

The right LED turns orange.

3. Enter the 3-digit user slot number between

001 and 500 that you wish to enroll a Primary or Secondary code to.

#3.

If the selected slot has no Primary code left LED flashes green, indicating that the controller is ready to accept a Primary code.

If the selected slot already has a Primary code but no Secondary code, the left LED flashes red, indicating that the controller is

Orange

ready to accept a Secondary code.

If the selected slot already has a Primary and Secondary code, you hear a long beep and the controller returns to Normal mode.

AYC-Ex5/T65 Series Installation and Programming Manual 51

Controller Operation

Green

Orange

4. Perform one of the following:

Enter the 4- to 8-digit PIN code that you

want to assign as the Primary or Secondary code for this slot number.

Present your user card that you want to assign as the Primary

or Secondary code for this slot number.

If the PIN or user card presented is valid, the left LED stops flashing and the controller is ready for you to enter the next 3-digit slot number (refer to Step 3) for the slot to which you want to assign a code.

5. Do one of the following:

Press # to move to the next available user slot number. Enter another 3-digit user slot number. If you do not wish to continue enrolling codes, press # twice

and the controller returns to Normal mode.

4.9.12.5 Enrolling Secondary Codes using Search Method

The Code Search feature enables you to quickly enroll a Secondary code to a user who already has a Primary code.

To enroll secondary codes using the Code Search method:

1. Enter Programming mode.

2. Press 7 to enter Menu 7.

The right LED turns orange.

3. Enter 000 as the 3-digit user slot number.

The right LED flashes orange.

52 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

to be used as the

Red Orange

4. Perform one of the following:

Enter the 4- to 8-digit PIN code belonging to

the user for whom you wish to add a Secondary code.

Present the user card belonging to the user for whom you wish

to add a Secondary code.

The left LED flashes red.

If the Primary code entered is not valid, you hear a long beep and the unit continues to wait for a valid Primary code.

5. Perform one of the following:

Enter the 4- to 8-digit code

Secondary code.

Present the user card to be used as the Secondary code.

If the Secondary code is valid, the controller beeps three times and returns to Normal mode.

If the Secondary code is invalid, the controller sounds a long beep, and the unit continues to wait for a valid Secondary code to be entered.

AYC-Ex5/T65 Series Installation and Programming Manual 53

Controller Operation

It is recommended that a record be kept of added and deleted

Green

Red

4.9.13 Deleting Primary and Secondary Codes

There are two methods to delete Primary and Secondary codes: the Standard Method and the Code Search Method.

When deleting a user slot, both the Primary code and the Secondary code are erased.

users so that it is easier to keep track of which user slots are empty and which user slots are not.

4.9.13.1 Deleting Primary and Secondary Codes using Standard

To delete the Primary and Secondary codes using the Standard Method:

1. Enter Programming mode.

2. Press 8 to enter Menu 8.

3. Enter the 3-digit User Slot code you wish to

4. Enter your 4-digit Programming code to

Method

The left LED turns red and the right LED turns orange.

delete.

The left LED flashes red indicating the controller is waiting for the Programming code to confirm the deletion.

If the user slot is empty, you hear a long beep and the unit returns to Normal mode.

confirm the deletion.

Orange

54 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

heard and the

belonging to the user

Green

Red

Orange Red Orange

If the Programming code is valid, three beeps are heard and the controller returns to Normal mode.

If the Programming code is invalid, a long beep is controller returns to Normal mode.

4.9.13.2 Deleting Primary and Secondary Codes using Search Method

To delete the Primary and Secondary codes using the Code Search Method:

1. Enter Programming mode.

2. Press 8 to enter Menu 8.

The left LED turns red and the right LED turns orange.

3. Enter 000 as the 3-digit user slot number.

The right LED flashes orange.

4. Perform one of the following:

Enter the 4- to 8-digit PIN code of the

Primary code belonging to the user you want to delete.

Present the user card of the Primary code

you want to delete.

The left LED flashes red.

AYC-Ex5/T65 Series Installation and Programming Manual 55

Orange

Controller Operation

Green

Orange

Green

Orange

5. Enter your 4-digit Programming code to

confirm the deletion.

If the Programming code is valid, you hear three beeps and the unit returns to Normal mode.

If the Programming code is invalid, you hear a long beep and the unit returns to Normal mode.

4.9.14 Relay Codes Assignment

When a primary code is enrolled for any user, the user is authorized to activate the Lock Strike relay. However, different user codes may be set to operate the auxiliary relay instead or operate both the Lock strike and auxiliary relay. Assignment of such codes is achievable for any valid user code entered in the controller.

There are two methods to assign relay codes to users: a standard method and a search method.

4.9.14.1 Relay Code Assignment using Standard Method

To assign relay code using the Standard method:

1. Enter Programming mode.

2. Press 9 to enter Menu 9.

The left LED turns green and the right LED turns orange.

3. Enter the 3-digit user slot for code

assignment.

The left LED flashes green.

56 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

Orange

4. Enter the assignment digit for the current user slot:

1 activates the Lock Strike relay only default 2 activates the Auxiliary relay only 3 activates the Lock Strike and Auxiliary relays

If the assignment code is valid, the mode indicator stops flashing.

The controller is now waiting for another slot number.

5. Do one of the following:

Press # to move to the next available user slot number. Enter another 3-digit user slot number. If you do not wish to continue enrolling codes, press # twice

and the controller returns to Normal mode.

4.9.14.2 Relay Code Assignment using Search Method

To assign relay code using the Search method:

1. Enter Programming mode.

2. Press 9 to enter Menu 9.

The left LED turns green and the right LED turns orange.

3. Enter 000 for user slot access.

The right LED flashes orange.

AYC-Ex5/T65 Series Installation and Programming Manual 57

Orange

Controller Operation

of the Primary code belonging to the user

Green Orange

4. Perform one of the following:

Enter the 4- to 8-digit PIN code of the

Primary code belonging to the user you want to delete.

Present the user card

you want to delete.

The left LED flashes green.

5. Enter the assignment digit for the current user slot:

1 activates the Lock Strike relay only default 2 activates the Auxiliary relay only 3 activates the Lock Strike and Auxiliary relays

If the assignment digit is valid, three beeps are heard and the controller returns to Normal mode.

If the assignment digit is invalid, a long beep sounds and the controller waits for another assignment digit to be entered.

58 AYC-Ex5/T65 Series Installation and Programming Manual

Controller Operation

Green

Red Red

4.9.15 PIN Code Length/Factory Default Settings

You must be very careful before using this command! Changing the PIN code length also erases the entire memory contents, including all user and special codes, and return all codes to their factory default settings.

To change the PIN code length:

1. Enter Programming mode.

2. Select the desired PIN code length as follows:

00 – Returns to factory defaults and sets a 4-digit code. 05 – Returns to factory defaults and sets a 5-digit code. 06 – Returns to factory defaults and sets a 6-digit code. 08 – Returns to factory defaults and sets a 4- to 8-digit code

Both LEDs flash red.

3. Enter your 4-digit Programming code

If the Programming code is valid, all memory is erased. You hear three beeps and the controller returns to Normal mode.

If the Programming code is invalid, you hear a long beep and the controller returns to Normal mode without erasing the memory contents.

4.9.16 Replacing a Lost Programming Code

The unit must be in Normal mode; otherwise, this does not work. Make sure that the left LED is green before proceeding.

To replace a lost Programming code:

1. Remove power from the power supply unit.

2. Press the REX button on the power supply unit.

3. Apply power to the unit with REX button pressed.

AYC-Ex5/T65 Series Installation and Programming Manual 59

Controller Operation

4. Release the REX button.

5. You now have 10 seconds to program a new Programming

code into the access control unit using the initial default code 1234, before the controller reverts to the existing code.

4.9.17 Exiting Secure Mode if Normal/Secure Code was Lost

The unit must be in Secure mode; otherwise, this does not work. Make sure that the left LED is red before proceeding.

To exit Secure mode if Normal/Secure Code was lost:

1. Remove power from the power supply unit.

2. Press the REX button on the power supply unit.

3. Apply power to the unit with the REX button pressed.

4. Release the REX button.

5. You now have 10 seconds to exit Secure mode using the initial

efault Normal/Secure code 3838.

6. Program a new Normal/Secure code as described in

Section 4.9.6.

60 AYC-Ex5/T65 Series Installation and Programming Manual

Technical Specifications

Modulation

5. Technical Specifications

Specification AYC-E55 AYC-E65B,

AYC-T65

AYC-E65BB

Electrical Characteristics

Power Supply Type Linear type (recommended)

Operating Voltage Range

Input Current Standby

Max Input Current 40 mA @16 VDC 105 mA @16 VDC

LED Control Input Dry contact N.O.

Tamper Output Open collector, active low, 30 mA max sink current

Cable Distance to Host Controller

Max. Proximity Card Read Range*

Proximity Card

Proximity Card Compatibility

Card Transmit Format (Reader)

Keypad Transmit Format (Reader)

LED Indicators Two tri-colored LEDs

Communication Data1/C1, Data0/C2 — open collector, 5 V

* Measured using a Rosslare proximity card or equivalent. Range also

depends on electrical environment and proximity to metal.

5–16 VDC (when used as a controller, provided by the

secured intelligent power supply)

15 m A@12 VDC 92 mA @12 VDC

Up to 500 ft. (150 meters) using an 18 AWG cable

N/A 40 mm (1.6 in.)

N/A ASK at 125 kHz

N/A EM cards

N/A Wiegand 26-Bit, or Clock & Data

Programmable PIN code formats

termination

AYC-Ex5/T65 Series Installation and Programming Manual 61

Technical Specifications

AYC-E65BB

for outdoor use

Specification AYC-E55 AYC-E65B,

AYC-T65

Environmental Characteristics

Operating Temp. Range

Operating Humidity Range

Outdoor Usage Weather-resistant, meets IP68, epoxy-potted, suitable

-30°C to 65°C (-22°F to 150°F)

0 to 95% (non-condensing)

Physical Characteristics

Size (Height x Width x

Depth)

Weight

155 x 44 x 6.5

(6.1 x 1.7 x 0.3

in.)

120 g (4.2 oz) 143 g (5.0 oz) 121 g (4.3 oz)

155 x 44 x 9 mm

(6.1 x 1.7 x 0.4

in.)

121 x 70 x 8

(4.8 x 2.8 x 0.3

in.)

62 AYC-Ex5/T65 Series Installation and Programming Manual

Declaration of Conformity

A. Declaration of Conformity

Exposure to radio frequency radiation This equipment should be installed and operated with a

minimum distance of 20 cm between the radiator and your body.

FCC ID = GCD-AYCEX5

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

 This device may not cause harmful interference.

 This device must accept any interference received, including

interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

AYC-Ex5/T65 Series Installation and Programming Manual 63

Limited Warranty

B. Limited Warranty

The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at

www.rosslaresecurity.com

Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them.

64 AYC-Ex5/T65 Series Installation and Programming Manual

AYC-Ex5/T65 Series

CERT

ISO 9001 ISO 14001

Asia Pacific, Middle East, Africa

Rosslare Enterprises Ltd. Kowloon Bay, Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 support.apac@rosslaresecurity.com

United States and Canada

Rosslare Security Products, Inc. Southlake, TX, USA Toll Free: +1-866-632-1101 Local: +1-817-305-0006 Fax: +1-817-305-0069 support.na@rosslaresecurity.com

Europe

Rosslare Israel Ltd. Rosh HaAyin, Israel Tel: +972 3 938-6838 Fax: +972 3 938-6830 support.eu@rosslaresecurity.com

Latin America

Rosslare Latin America Buenos Aires, Argentina support.la@rosslaresecurity.com

China

Rosslare Electronics (Shenzhen) Ltd. Shenzhen, China Tel: +86 755 8610 6842 Fax: +86 755 8610 6101 support.cn@rosslaresecurity.com

India

Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Mobile: +91 9975768824 sales.in@rosslaresecurity.com

0706-0960179+09

Rosslare AYCEX5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

3.2.3.1 Keypad Transmission Formats

3.2.4.1 Proximity Card Transmission Formats

4.2.4.1 Changing from Normal Mode to Secure Mode

4.2.4.2 Changing from Secure Mode to Normal Mode

4.2.4.3 Changing from Normal Mode to Bypass Mode

4.2.4.4 Changing from Bypass Mode to Normal Mode

4.9.9.1 Auxiliary Mode 0

4.9.9.2 Auxiliary Mode 1

4.9.9.3 Auxiliary Mode 2

4.9.9.4 Auxiliary Mode 3

4.9.9.5 Auxiliary Mode 4

4.9.9.6 Auxiliary Mode 5

4.9.9.7 Auxiliary Mode 6

4.9.9.8 Auxiliary Mode 7

4.9.9.9 Auxiliary Mode 8

4.9.9.10 Auxiliary Mode 9

4.9.12.1 Primary Codes

4.9.12.2 Secondary Codes

4.9.12.3 Enrolling Methods

4.9.12.4 Enrolling Primary and Secondary Codes using Standard Method

4.9.12.5 Enrolling Secondary Codes using Search Method

4.9.13.2 Deleting Primary and Secondary Codes using Search Method

4.9.14.1 Relay Code Assignment using Standard Method

4.9.14.2 Relay Code Assignment using Search Method
