Introduction

The AC-020 is an advanced two door controller,
which allows you to add or delete employees
from the system, change system mode status
and change system authorization codes.

The AC-020 provides a higher level of security as
the programmer is normally placed in a secure
location while the reader sensors are remotely
located outside the controlled premises. Should a
remote sensor be attacked, entry cannot be
gained as the remote sensor only provides data
to the programmer, not authorization to release
the controlled door.

The AC-020 accepts up to 500 employees for
each door via the use of proximity cards
(provided separately) or PIN. Each employee is
issued a unique proximity card or PIN code.

Employees designated 01 to 10 are Master users
and can operate the system in both the Normal
and Secure modes of operation. Employees 11 to
500, when entered from the external reader
sensor may only operate the Controller in the
Normal and Bypass modes of operation.

It is very important to keep an accurate record of
the slot number and its assignment to each
employee. This is to enable you to add additional
employees at a later time or to delete a Prox. or
PIN code if one is lost or stolen. A record form is

AC-020 Page 12 03/02

enclosed for your reference to assist you with
your record keeping.

The AC-020 is capable of learning both PIN
codes (keyboard based codes - 4 digits code)
and Prox. Codes (codes received from proximity
card reader). The Controller has two reader
inputs, one for Door 1 and one for Door 2. These
readers are to be located outside the restricted
area. Readers need to be Wiegand 26 bits
interface type, and may be a Proximity card
reader (for Prox. Codes), Keyboard (for PIN type
codes) or combined PIN/PROX reader. Please
refer to Accessories – page 60.

The PIN reader can be used for programming the
system, in addition to its regular duty of codes
entry. During normal use, PIN codes that are
employee codes can be entered only from reader
sensor, while Special Codes may be entered
either from AC-020 or from the reader.

Topics in this section:

• Key Features

• Technical Specifications

AC-020 Page 13 03/02

Key Features

Here are some of the AC-020 system key
features:

• Supports two 26-Bit Wiegand compatible
Readers

• Three Modes of Operation

 Normal Mode

 Bypass Mode

 Secure Mode

• Lock Strike Relay Output

• Request to Exit (REX) button

• Internal Siren

• Comes with security screw and security tool

• Two Status / Programming Interface LED’s

• Built-in Programming Keypad

• Battery Charger

• Bell, Chime, & Strobe annunciator

• Programmable Lock Strike release time.

• Built-in Lock Strike suppressor diode.

• Comes with mounting template for easier

installation.

• Built-in Reader Power Supply

• Built-in Lock Strike Power Supply

AC-020 Page 14 03/02

Technical Specifications

Electrical Characteristics

Main Unit

Operating Voltage:

16V AC (1.5A, 25VA)
From a transformer

Maximum Input
Current:

(Not including attached
devices)
Standby: 65mA
Maximum: 120mA

Battery Charger:

12V DC Lead Acid
Battery
Up to 7AH
recommended

Outputs

Lock Strike Relay
Output:

5A Relay

Lock Strike Power
Supply:

12V DC constant
voltage

1.2 A current limit

Reader Power
Supply:

Voltage: 12V DC
Max Current: 300mA

AC-020 Page 15 03/02

Inputs

Request to Exit
(REX):

N.O. Dry Contact

Reader Input:

26-Bit Wiegand
Compatible

Indicators & Annunciators

Visual:

Two Tri-Colored LEDs

Audio:

Built in Sounder (Bell,
Chime & Siren)
Piezoelectric Buzzer

Environmental Characteristics

Operating
Temperature:

-25°F to 145°F (-31°C
to 63°C)

Operating Humidity:

0 to 95% (Non­Condensing)

Mechanical Characteristics

Dimensions:

5.3” (134mm) L x 3.4”
(85mm)
W x 1.2” (30mm) D
(Fits US Gang Box)

Weight:

0.5 lbs (220g)

AC-020 Page 16 03/02

Installation

The AC-020 has been designed for easy
installation. Only a few steps are required to
install the controller.

In this section you will learn how to mount the
controller in your desired location.

You will learn how to wire the controller to its
power source, which includes attaching the
controller to a rechargeable Lead Acid battery.

Wiring diagrams are also provided for attaching
the controller to the REX button and External 26­Bit Wiegand Compatible readers.

Topics in this section:

• Mounting the Controller

• Power Wiring

• Typical Lock and Option Wiring

• Reader Wiring

AC-020 Page 17 03/02

Mounting the Controller

1) Before starting, select the location for
mounting the AC-020 controller. The
controller should be installed indoors and
within the premises to be secured. It is
recommended that the controller be installed
where it cannot be seen for increased
security, but still close enough to the doors
so that the controller’s annunciator (Door
Bell, Chime & Siren) can be heard.

2) Find the mounting template label that is
provided in your AC-020 packaging, and
place it at the location that you wish to install
the controller. The template is designed to
assist you through the mounting procedure,
showing you where you drill holes in the wall
to pass the wiring through and where the
wall must be drilled to insert the controllers
mounting screws.

3) (Skip this step when attaching the AC-020 to
a US Gang Box)

Drill a hole for cables as indicated on the
wiring template. Two hole sizes are shown to
allow for the amount of cables needed,
depending on installation requirements or
adding a backup battery. Drill two screw
holes for mounting the AC-020 to the wall.

4) Remove the case screw from the controller
(see diagram below to locate the case
screw) and remove the front case from the
controller.

5) Mount the controller to the wall using the two
screws provided in the Installation Kit or use
the screws provided with your US Gang Box
when mounting to a US Gang Box.

6) Wire the controller according to the diagrams
on the next few pages.

7) Return and secure the front case using the
security screw and security tool provided in
the Installation Kit.

You now have mechanically installed the
controller.

AC-020 Page 18 03/02

0

8

52146

3

97

#

DOOR 1 DOOR 2

Case Screw

3 x 4 Matrix Keypad

Door 2 LED

Door 1 LED

Power Wiring

0

8

5

21

46

3

97

#

DOOR 1

DOOR 2

POWER SUPPLY

FROM

TRANSFORMER

16V AC (1.5A, 25VA)

(+)
(-)

12V DC L EAD ACID

BATTERY

UP TO 7 AH

RECOMMENDED

(+)
(-)

Typical Lock and Option Wiring

AC-020 Page 19 03/02

0

8

5

21

46

3

97

#

DOOR 1

DOOR 2

REX 2

(-)

N.O.

REX 1

N.O.

(-)

DOOR 1

DOOR 2

Reader Wiring

0

8

5

21

46

3

9

7

#

DOOR 1 DOOR 2

READER

READER

+12V

(-)

DO
D1

+12V

(-)

DO
D1

(-)

DO
D1

12V DC, Max. 300mA

12V DC, Max. 300mA

DOOR 1

DOOR 2

(-)

+12V

DO

D1

+12V

AC-020 Page 20 03/02

AC-020 Page 21 03/02

Features and Concepts

Now that you have installed your AC-020
controller, it is time to become familiar with its
features and concepts.

In this section you will learn about all the features
that are programmable. They are the basic
features of the AC-020 and can be programmed
directly from the controller’s programming
keypad.

You will learn about the controller’s various
modes of operation, how to switch between the
Modes of Operation, Special Codes, Events and
Event Actions.

Topics in this section:

• Modes of Operation

• Changing the Modes of Operation

• Events and Event Actions

Modes of Operation

IMPORTANT NOTE:

• In all of the following operations, in order to
select DOOR 1 press the * key. In order to
select DOOR 2 press the # key.

• In the following operations, if the operation
is done from an external reader, always
press the # key on the external keyboard.

• The following examples show the LED
status of Door 1 but are applicable to Door
2 as well.

The AC-020 has three modes of operation
Normal, Bypass, and Secure Mode. The three
modes provide different levels of security.

1) Normal Mode

• The DOOR 1 /
DOOR 2 LED is
green

DOOR 2

GREEN

• In this mode the Controller is in the
normal level of security. Only those
codes that the Controller recognizes will
activate the Lock Strike.

AC-020 Page 22 03/02

• The controller’s keypad is used for
programming, changing modes of
operation, and activating the Lock Strike
using the employee codes.

• The Lock Strike will remain active
according to the programmed Release
Time.

• In addition, it is possible to activate the
Lock Strike in the following ways:
a. Pressing the REX button
b. Valid Code (from an outside reader

only using Prox. Code or Pin. Code)

2) Bypass Mode

• The DOOR 1 /
DOOR 2 LED is
orange

DOOR 1

DOOR 2

ORANGE

• In this mode the Controller is in the
lowest level of security.

• The Controller’s keypad is used for
changing modes of operation and
activating the Lock Strike by the
employee codes or by pressing the “*/#”
key accordingly.

• The Lock Strike will remain active
according to the programmed Release
Time.

• If the Lock Strike is defined as Normally
Closed it will always be active. If the
Lock Strike is defined as Normally Open
it can be activated in the following ways:
a. Pressing the REX button

AC-020 Page 23 03/02

b. Valid Code (from an outside reader

only using Prox. Code or Pin. Code)

3) Secure Mode

• The DOOR 1 /
DOOR 2 LED is red

DOOR 1 DOOR 2

RED

• In this mode the Controller is in the
highest level of security.

• The Controller’s keypad is used for
changing modes of operation and
activating the Lock Strike by the
employee codes.

• The Lock Strike will remain active
according to the programmed Release
Time.

• In addition, it is possible to activate the
Lock Strike in the following ways:
a. Pressing the REX button

AC-020 Page 24 03/02

b. Master Codes (from an outside

reader only using Prox. Code or
Pin. Code)

Changing the Modes of Operation

NOTE: Changing the modes of operation can be

done by entering the correct code into the
Controller’s Programming keypad or the
external reader’s keypad.

Changing from Normal Mode to
Secure Mode

1) The controller is in Normal Mode

• DOOR 1 / DOOR 2
LED is green

DOOR 2

GREEN

DOOR 1

2) Enter your Normal / Secure PIN Code

• DOOR 1 / DOOR 2
LED will flash red

DOOR 2

RED

3) Press the “*/#” key, respectively.

• DOOR 1 / DOOR 2
LED will turn red

DOOR 1 DOOR 2

RED

AC-020 Page 25 03/02

• You are now in Secure Mode

Changing from Secure Mode to
Normal Mode

1) The controller is in Secure Mode

• DOOR 1 / DOOR 2
LED is red

DOOR 1 DOOR 2

RED

2) Enter your Normal / Secure PIN Code

• DOOR 1 / DOOR 2
LED will flash green

DOOR 1

DOOR 2

GREEN

3) Press the “*/#” key, respectively.

• DOOR 1 / DOOR 2
LED will turn green

DOOR 1 DOOR 2

GREEN

• You are now in Normal Mode

Changing from Normal Mode to
Bypass Mode

1) The controller is in Normal Mode

• DOOR 1 / DOOR 2
LED is green

DOOR 1 DOOR 2

GREEN

2) Enter your Normal / Bypass PIN Code

AC-020 Page 26 03/02

• DOOR 1 / DOOR 2
LED will flash
orange

DOOR 1

DOOR 2

ORANGE

3) Press the “*/#” key, respectively.

• DOOR 1 / DOOR 2
LED will turn
orange

DOOR 1

DOOR 2

ORANGE

• You are now in Bypass Mode

Changing from Bypass Mode to
Normal Mode

1) The controller is in Bypass Mode

• DOOR 1 / DOOR 2
LED is orange

DOOR 1

DOOR 2

ORANGE

DOOR 1

2) Enter your Normal / Bypass PIN Code

• DOOR 1 / DOOR 2
LED will flash green

DOOR 2

GREEN

3) Press the “*/#” key, respectively.

• DOOR 1 / DOOR 2
LED will turn green

DOOR 1 DOOR 2

GREEN

AC-020 Page 27 03/02

• You are now in Normal Mode

AC-020 Page 28 03/02

Events and Event Actions

Tamper Event

A Tamper Event is triggered if the controller
detects that a reader has been disconnected or
loses power, and can also be triggered if the case
of the reader is removed.

Possible Tamper Event Actions

Reader sensor wire is disconnected from the AC­020 DOOR 1 / DOOR 2 reader input terminal

Tamper data signal is received from DOOR 1 /
DOOR 2 reader sensor

To clear a Tamper Event enter a valid code or
Lock Strike code which will open the door locker
output of the Door that caused the tamper event.
For example, tamper condition at Door 2 during
Secure status, entering Door 2 Lock Strike Code
1 (default 0852) from external reader will not
clear tamper because it is not permitted to open
the door during this operation mode. However,
applying the same code from the AC-020
keyboard will clear tamper output as well as
opening Door 2 Lock Strike and stopping the
siren (assuming no Door 1 tamper).

AC-020 Page 29 03/02

Request to Exit (REX) Button

The REX button must be located inside the
premises to be secured and is used to open the
door without the use of a proximity card or PIN
code, it is usually located in a convenient
location, e.g. Inside the door or at a receptionist’s
desk. The function of the REX button depends on
whether the Lock Strike Relay is programmed for
Fail Safe Operation or Fail Secure Operation.
The door chime in the BLD40 does not sound
when the REX button is used to open the door.

1) Fail Secure Operation: From the moment

the REX button is pressed, the door will be
unlocked until the ”Lock Strike Release
Time” has passed. After this time, the door
will be locked even if the REX button has not
been released.

2) Fail Safe Operation: From the moment the

REX button is pressed, the door will be
unlocked until the REX button is released,
plus the ”Lock Strike Release Time.” In this
case the ”Lock Strike Relay” only begins its
count down once the REX button has been
released.

AC-020 Page 30 03/02

Siren Sound

Siren sound triggered by Door 1 or Door 2 tamper
is generally stopped by clearing the tamper of
that door. However, if the tamper condition at the
other door exists, one is required to clear that
tamper event as well, in order to stop the siren.
Either way, the siren may stop on its own if the
pre-programmed siren time has elapsed.

AC-020 Page 31 03/02

Programming Instructions

After reading Features and Concepts – page 21,
you should already have an understanding of the
AC-020’s features.

Most of these features can be programmed via
the AC-020’s programming keypad. The following
pages describe how to program the AC-020 using
the programming keypad.

Topics in this section:

• Programming Menu Quick Reference
Guide

• Programming the AC-020

AC-020 Page 32 03/02

Programming Menu Quick

Reference Guide

Menu

Number

Menu
Description

Page

Number

1 Changing Lock Strike

Code 1

38

2 Changing Lock Strike

Code 2

40

3 Changing Program Code 42
4 Changing Normal/Secure

Code

44

5 Changing Normal/Bypass

Code

46

6 Changing Door Release

Time

49

Choosing Fail

Secure/Fail Safe
Operation

50

7 Enrolling Proximity Cards

or Keyboard Codes

51

8 Deleting Proximity Cards

or Keyboard Codes

54

0 Returning to Default

Factory Setting

56

AC-020 Page 33 03/02

Programming the AC-020

FOR DOOR 1 PROGRAM:

Menu

Number

Function Initial

Setting

1 Changing Lock Strike

Code 1

2580

2 Changing Lock Strike

Code 2

0000*

3 Changing Program Code 1234
4 Changing

Normal/Secure Code

3838

5 Changing

Normal/Bypass Code

0000*

6 Changing Door Release

Time

0004

Choosing Fail

Secure/Fail Safe
Operation

(4

seconds)

Fail

Secure

7 Enrolling Proximity

Cards or Keyboard
Codes

8 Deleting Proximity Cards

or Keyboard Codes

0 Returning to Default

Factory Setting

AC-020 Page 34 03/02

FOR DOOR 2 PROGRAM:

Menu

Number

Function Initial

Setting

1 Changing Lock Strike

Code 1

0852

2 Changing Lock Strike

Code 2

0000*

3 Changing Program Code 4321
4 Changing

Normal/Secure Code

8383

5 Changing

Normal/Bypass Code

0000*

6 Changing Door Release

Time

0004

Choosing Fail

Secure/Fail Safe
Operation

(4

seconds)

Fail

Secure

7 Enrolling Proximity

Cards or Keyboard
Codes

8 Deleting Proximity Cards

or Keyboard Codes

0 Returning to Default

Factory Setting

*0000 deletes a function

AC-020 Page 35 03/02

NOTE: You must be in NORMAL mode to

program the AC-020. DOOR 1 / DOOR 2
LED will be green.

Wrong or timed out entries will reset the
controller to the NORMAL mode
condition.

To exit programming, press the “*/#” key
for two seconds. Three beeps are
generated and the system will return to
NORMAL mode. A short press on the
“*/#” key will also return the system to
NORMAL mode, and a long beep will be
heard. This aborts the programming, but
in some cases, such as Program
Function #7, data may have already
been programmed.

Wrong entries during programming may
also abort programming, along with long
beep generation.

All programming operations are done
either from the on-board keyboard or
from the reader. Programming the
PROX. employee codes requires using
proximity reader and proximity cards.

Entering Programming Mode

To begin programming the controller’s settings,
the AC-020 must first place into Programming
Mode. You may only enter Programming mode
from Normal mode, the controller does not permit
entry to Programming Mode if the controller is in
Bypass and Secure Mode.

1) Press the “*/#” key for 2 seconds

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming Code. The factory
default Programming Code is 1234 for Door
1 and 4321 for Door 2.

If the Programming Code is valid the
controller will be in Programming Mode.

• The DOOR 1 LED

will turn green

DOOR 1 DOOR 2

GREEN

AC-020 Page 36 03/02

If the Programming Code is NOT valid the
controller will emit a loud beep and will NOT
enter Programming Mode.

AC-020 Page 37 03/02

Exiting Programming Mode

1) To exit Programming Mode at any time:
Press the “*” or “#” key for 2 seconds. You
will hear 3 beeps and the controller will
return to Normal Operating Mode.

2) Wrong entries may reset the controller back
to Normal Operating Mode.

3) While in Programming Mode if no key is
pressed for 30 seconds the AC-020 will emit
a long beep and return to Normal Operating
Mode.

4) A short press on the “*” or “#” key may also
return the controller to Normal Operating
Mode, accompanied by a long beep.

Changing Lock Strike Code 1

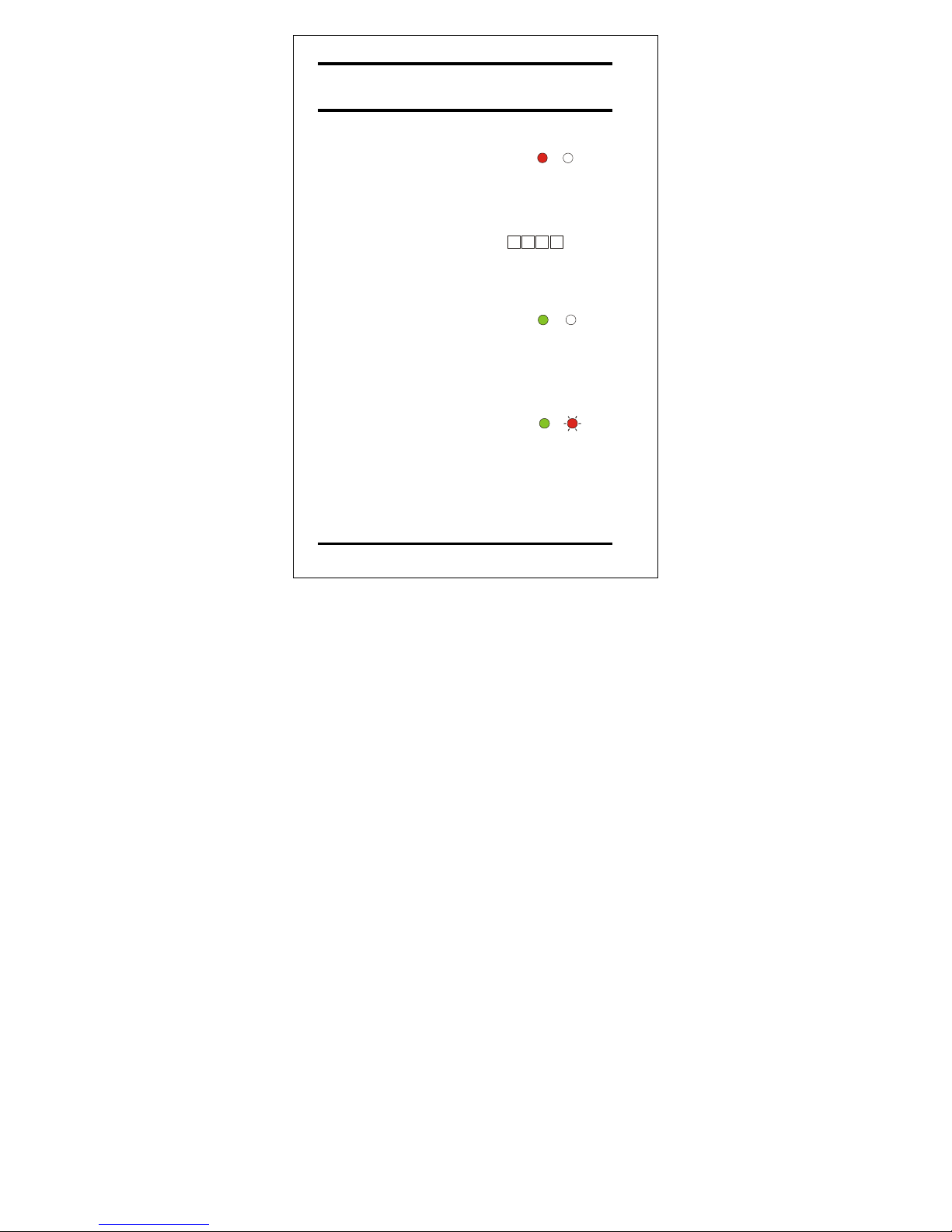

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will be off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 1

AC-020 Page 38 03/02

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will turn red

DOOR 1

DOOR 2

GREEN

RED

4) Enter the new 4-digit
code you wish to set as
Lock Strike Code 1.

?

?

?

?

• You will hear 3 beeps

• The system will return to NORMAL

mode

AC-020 Page 39 03/02

• The default Lock Strike Code 1 is 2580

for Door 1 and 0852 for Door 2

Changing Lock Strike Code 2

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will be off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 2

AC-020 Page 40 03/02

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will turn orange

DOOR 1

DOOR 2

GREEN

4) Enter the new 4-digit
code you wish to set as
the new Programming
Code.

?

?

?

?

• You will hear 3 beeps

• The system will return to Normal mode

AC-020 Page 41 03/02

NOTE: There is no default code for Lock Strike

Code 2.

Changing the Programming Code

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 3

AC-020 Page 42 03/02

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will turn green

DOOR 1

DOOR 2

GREEN GREEN

4) Enter the new 4-digit
code you wish to set as
the new Programming
Code

?

?

?

?

AC-020 Page 43 03/02

NOTE: Programming Code cannot be erased.

When trying to program code 0000, you
will hear a long beep and the system will
return to Normal operating mode.

Changing the Normal / Secure

Code

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 4

AC-020 Page 44 03/02

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will flash red

DOOR 1 DOOR 2

GREEN

RED

4) Enter the new 4-digit
code you wish to set as
the new Normal/Secure
change code.

?

?

?

?

• You will hear 3 beeps

AC-020 Page 45 03/02

• The system will return to Normal mode

(Default Secure code is 3838 for Door 1
and 8383 for Door 2.)

Changing the Normal / Bypass

Code

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 5

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will flash orange

DOOR 1

DOOR 2

GREEN ORANGE

AC-020 Page 46 03/02

NOTE: The Normal / Bypass Code also controls

the Chime function for the AC-020. You
may set the code to 4 available options.

AC-020 Page 47 03/02

Option 1: Disabling Bypass Mode - Disabling
the Chime

• Enter 0000. The Bypass Mode and the
Chime function are disabled.

• You will hear 3 beeps

• The system will return to Normal mode

Option 2: Disabling Bypass Mode - Enabling
the Chime

• Enter 0001. The Bypass Mode is disabled
and the Chime function is enabled for
Normal mode.

• You will hear 3 beeps

• The system will return to Normal mode

Option 3: Enabling Bypass Mode - Disabling
the Chime

• Enter a 4-digit code ending with the digit 0.
The Bypass mode is enabled and the
Chime function is disabled.

• You will hear 3 beeps

• The system will return to Normal mode

AC-020 Page 48 03/02

Option 4: Enabling Bypass Mode - Enabling
the Chime

• Enter a 4-digit code ending with any digit
except 0. The Bypass mode and the Chime
function are enabled for both Normal mode
and Bypass mode.

• You will hear 3 beeps

• The system will return to Normal mode

NOTE: No default Bypass code exists.

Changing the Door Release Time

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 2

GREEN

?

?

?

DOOR 1

3) Press 6

AC-020 Page 49 03/02

• The DOOR 1 LED

will remain green

• The DOOR 2 LED

will flash green

GREEN GREEN

DOOR 2DOOR 1

AC-020 Page 50 03/02

NOTE: This is a 4-digit code. The first digit

signifies whether the unit is being used
for fail secure (factory default setting) or
fail safe operation. The second digit
signifies the length of time in minutes the
tamper alarm will sound. The last 2 digits
signify the time the door release will be
activated (from 01 to 99 seconds).

For Fail Secure Operation:

• Enter 0 for the first digit

For Fail Safe Operation:

• Enter 1 for the first digit

For Tamper Alarm:

• If the Tamper Alarm is required, enter 1-9
as the second digit to set the alarm sound
time from a minute to 9 minutes.

• If the Tamper Alarm is not required, enter 0
as the second digit.

For Door Release Time:

• Enter the number of seconds you wish the
door release to remain activated. (For
example, 0512 means fail secure with a 5­minute tamper alarm sound time and a 12
second door release.)

• You will hear 3 beeps.

• The system will return to Normal mode.

• Default door open time is 4 seconds.

Enrolling Proximity Cards/Pin

Codes into the System

NOTE: Each proximity card is unique and can

only be assigned to one slot at a time. If
an unassigned proximity card is enrolled
at an occupied slot, the AC-020 will
generate a long beep and wait for
another slot number to be entered. The
card at the current slot location must be
erased first, before a new code is
programmed on that slot number. The
same rules apply for PIN based
employee codes.

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

AC-020 Page 51 03/02

• The DOOR 2 LED
will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 2

GREEN

?

?

?

DOOR 1

3) Press 7

• The DOOR 2 LED
will turn green

• The DOOR 1 LED
will turn orange

GREEN

1

DOOR 2

ORANGE

DOOR

4) Enter the 3-digit slot
code you wish to assign
to the employee (for
example, 003
represents slot “3”).

?

?

• The DOOR 1 LED

will remain orange

• The DOOR 2 LED

will flash green

GREEN

1

DOOR 2

ORANGE

DOOR

?

?

5) Enroll the proximity card designated for this
slot number to the reader.

• The DOOR 2 LED will stop flashing

OR,

• Enter the 4-digit PIN code designated

for this slot number

• The DOOR 2 LED will stop flashing

6) To enroll another card, enter the 3-digit slot
code you wish to assign to the next
employee.

AC-020 Page 52 03/02

• The DOOR 2 LED will start flashing

AC-020 Page 53 03/02

7) Present the proximity card designated for
this slot number to the reader.

• The DOOR 2 LED will stop flashing

OR,

• Enter the 4-digit keyboard based

employee code designated for this slot
number to the reader

• The DOOR 2 LED will stop flashing
Continue enrolling cards or entering
keyboard employee codes in this manner
until all employee codes are entered.
NOTE: The AC-020 programmer will not

accept employee codes that are
already allocated to a slot. The AC­020 will signal this with a long beep
and the DOOR 2 LED will continue
to flash green.

8) When finished enrolling the employee codes,
press the “*” or “#” key.

• You will hear a long beep

• The AC-020 will return to Normal mode

NOTE: If the programming period times out

before you press the “*” or “#” key,
the controller will emit a long beep
and return to Normal mode.
However, any enrolled employee
codes in this period will remain valid.

Deleting Proximity Cards/Pin

Codes from the System

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 8

AC-020 Page 54 03/02

• The DOOR 1 LED

will turn orange

• The DOOR 2 LED

will turn red

DOOR 1

DOOR 2

RED

ORANGE

4) Enter the 3-digit slot
code you wish to delete
from the system

• The DOOR 2 LED

will flash red

DOOR 1

ORANG

DOOR 2

E RED

5) Enter the 4-digit
Programming Code (this
last step confirms that
you intentionally want to
delete an employee
from the system).

?

???

?

?

?

• You will hear 3 beeps

• The system will return to Normal mode

• If additional employee codes need to be

deleted, then repeat steps 1-5.

AC-020 Page 55 03/02

IMPORTANT: Ensure that your record of

employees and their assigned
slot numbers are stored in a
secure location. Then, if you
wish to delete a lost or stolen
employee code from the system,
you can identify the card number
from your record.

Return to Factory Default Settings

1) Press the “*/#” key for 2 seconds

• You will hear a short beep

• The DOOR 2 LED

will turn off

• The DOOR 1 LED
will turn red

DOOR 1 DOOR 2

RED

2) Enter the Programming
Code for confirmation.
(Default code is 1234 for
Door 1 and 4321 for
Door 2.)

?

?

• The DOOR 1 LED

will turn green

• The DOOR 2 LED

will turn off

DOOR 1 DOOR 2

GREEN

?

?

3) Press 0

AC-020 Page 56 03/02

• The DOOR 1 LED

will flash red

• The DOOR 2 LED

will flash red

DOOR 2

1

RED RED

DOOR

4) Enter the 4-digit
Programming Code.
(This last step confirms
that you intentionally
want to delete all your
initial settings and
employees from the
system!)

?

?

?

?

• You will hear 3 beeps

• The system will return to Normal mode

AC-020 Page 57 03/02

IMPORTANT: You must be very careful

before using this command.
Doing so will erase all of the
employee codes from the
memory and all of the
special codes will return to
their default values. All
preprogrammed cards, PIN
codes and special codes will
have to be preprogrammed
from the beginning.

AC-020 Page 58 03/02

Replacing a Lost Programming

Code

In the event that your Programming Code is lost,
complete the following procedure to enter
Programming Mode so that you may create a
new Programming Code.

The AC-020 must be in Normal Mode otherwise
this will not work.

Make sure that the DOOR 1 / DOOR 2 LED is
green before proceeding.

1) Disconnect power from the AC-020

2) Press the appropriate REX button

3) Reconnect power to the unit with the REX
button pressed

4) Release the REX button

You now have 20 seconds to program a new
Programming Code into the controller using the
initial default code, 1234 for Door 1 or 4321 for
Door 2, before the controller reverts to the
existing code.

AC-020 Page 59 03/02

Replacing a Lost Normal / Secure

Code

In the event that your Normal / Secure Code is
lost and you are locked in Secure Mode,
complete the following procedure to re-enter
Normal Mode so that you may program a new
Normal / Secure Code.

The AC-020 must be in Secure Mode otherwise
this will not work.

Make sure that the DOOR 1 / DOOR 2 LED is red
before proceeding.

1) Disconnect power from the AC-020

2) Press the appropriate REX button

3) Reconnect power to the unit with the REX
button pressed

4) Release the REX button

You now have 20 seconds to enter the default
Secure Code, 3838 for Door 1 or 8383 for Door 2,
to re-enter into Normal Mode.

Accessories

Wiegand 26 Integrated Door
Controllers

AC-020 Page 60 03/02

AY-X09 Series
PIN Readers

AY-C09 / AY-D09

• For indoor use

• Slim Stylish Design (Mullion)

• Includes LED Indicator

• Audible Buzzer Indicator

• Built in Tamper (w/ Rosslare Controllers)

• Includes Bell Button (w/ Rosslare

Controllers)

AY-X11 Series
Prox Readers
w/ Bell

AY-C11 / AY-D11

• Reading Distance: 8 to 10cm

• RF Modulation: ASK at 125 kHz

• For indoor use

• Slim Stylish Design (USA Gang Box)

• Bi-Color Light Indicator

• Audible Buzzer Indicator

• Built in Tamper (w/ Rosslare Controllers)

• Includes Bell Button (w/ Rosslare

Controllers)

AC-020 Page 61 03/02

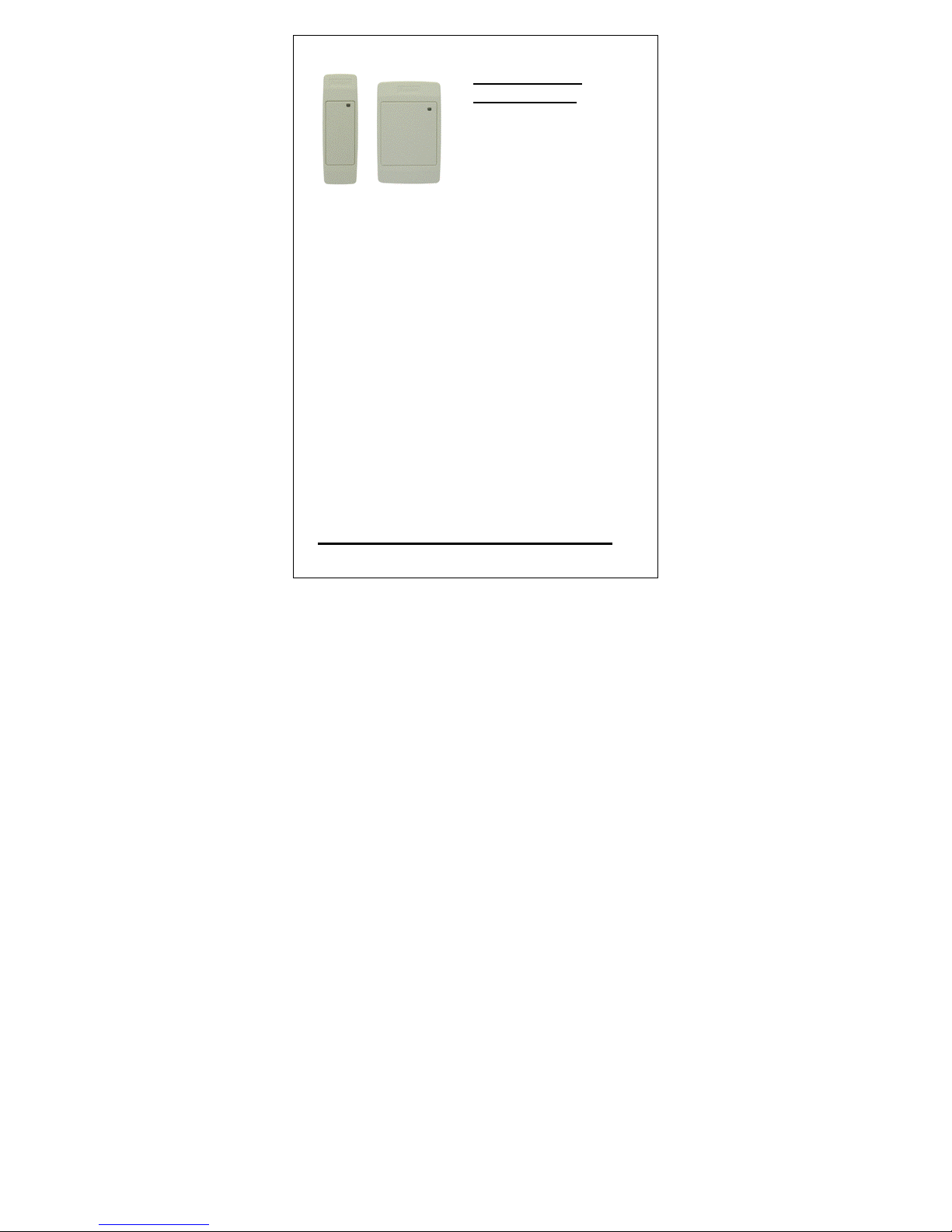

AY-X12 Series
Prox Readers

AY-C11 / AY-D11

• Reading Distance: 8 to 10cm

• RF Modulation: ASK at 125 kHz

• For indoor use

• Slim Stylish Design (USA Gang Box)

• Bi-Color Light Indicator

• Audible Buzzer Indicator (w/ Rosslare

Controllers)

• Built in Tamper (w/ Rosslare Controllers)

AC-020 Page 62 03/02

AY-X12
Series
Prox
Readers

AY-H12 / AY-J12 / AY-K12 / AY-L12 / AY-M12

• Reading Distance: 7 to 12cm

• RF Modulation: ASK at 125 kHz

• For outdoor use

• Slim Stylish Design (UK or USA Gang Box,

Mullion)

• Bi-Color Light Indicator

• Includes LED Control Input

• Audible Buzzer Indicator

• Built in Tamper Output

AC-020 Page 63 03/02

AY-X19 Series
Pin & Prox
Readers

AY-C19 / AY-D19

• Reading Distance: 8 to 10cm

• RF Modulation: ASK at 125 kHz

• For indoor use

• Slim Stylish Design (USA Gang Box)

• Bi-Color Light Indicator

• Audible Buzzer Indicator

• Built in Tamper (w/ Rosslare Controllers)

• Includes Bell Button (w/ Rossalare

Controllers)

AC-020 Page 64 03/02

AC-020 Page 65 03/02

AY-L23 RF
Reader

AY-L23

• Read Range: 70 meters (200 feet)

• For Outdoor Use (Water Proof)

• Frequency: 433MHz

• Slim Stylish Design (Mullion)

• Bi-Color LED Indicator

• LED Control

• Audible Buzzer Indicator

• Size: 145mm x 43mm x 20mm

• Used with SA-26 Wireless Remote

AC-020 Page 66 03/02

AC-020 Page 67 03/02

Technical Support

International Web Site:

http:///www.rosslare.com.hk/support/

Asia, Australia, & South America

:

Rosslare Enterprises Ltd.
905-912 Wing Fat Industrial Bldg.,
12 Wang Tai Road, Kowloon Bay
Hong Kong
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

Europe, Russia, Middle East, Africa

:

Rosslare Security Products S.r.l
Via F.lli Gabba 5, 20121 Milano, Italy
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

[e-mail]

United States and Canada

:

Rosslare NAPDC
200 East Howard Street, Suite 238,
Des Plaines, IL 60018
USA
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]

9

J

-

I

D

R

-

0

2

9

/

0

7

0

6

-

0

8

2

0

0

2

9

-

0

0

www.rosslare.com.hk

9

J

-

I

D

R

-

0

2

9

/

0

7

0

6

-

0

8

2

0

0

2

9

-

0

0

www.rosslare.com.hkwww.rosslare.com.hk
