Page 1
SERVING SOLUTIONS

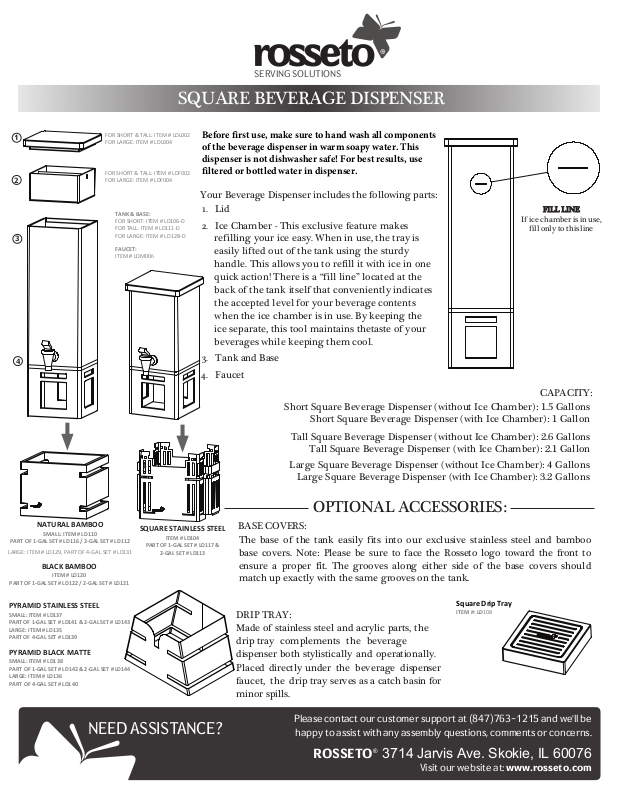

SQUARE BEVERAGE DISPENSER
1
FOR SHORT & TALL: ITEM # LDL002
FOR LARGE: ITEM # LDL004
Before first use, make sure to hand wash all components
of the beverage dispenser in warm soapy water. This
dispenser is not dishwasher safe! For best results, use
FOR SHORT & TALL: ITEM # LDF002
2
3
FOR LARGE: ITEM # LDF004
TANK & BASE:
FOR SHORT: ITEM # LD106-D
FOR TALL: ITEM # LD111-D
FOR LARGE: ITEM # LD128-D
FAUCET:
ITEM # LDM006
filtered or bottled water in dispenser.

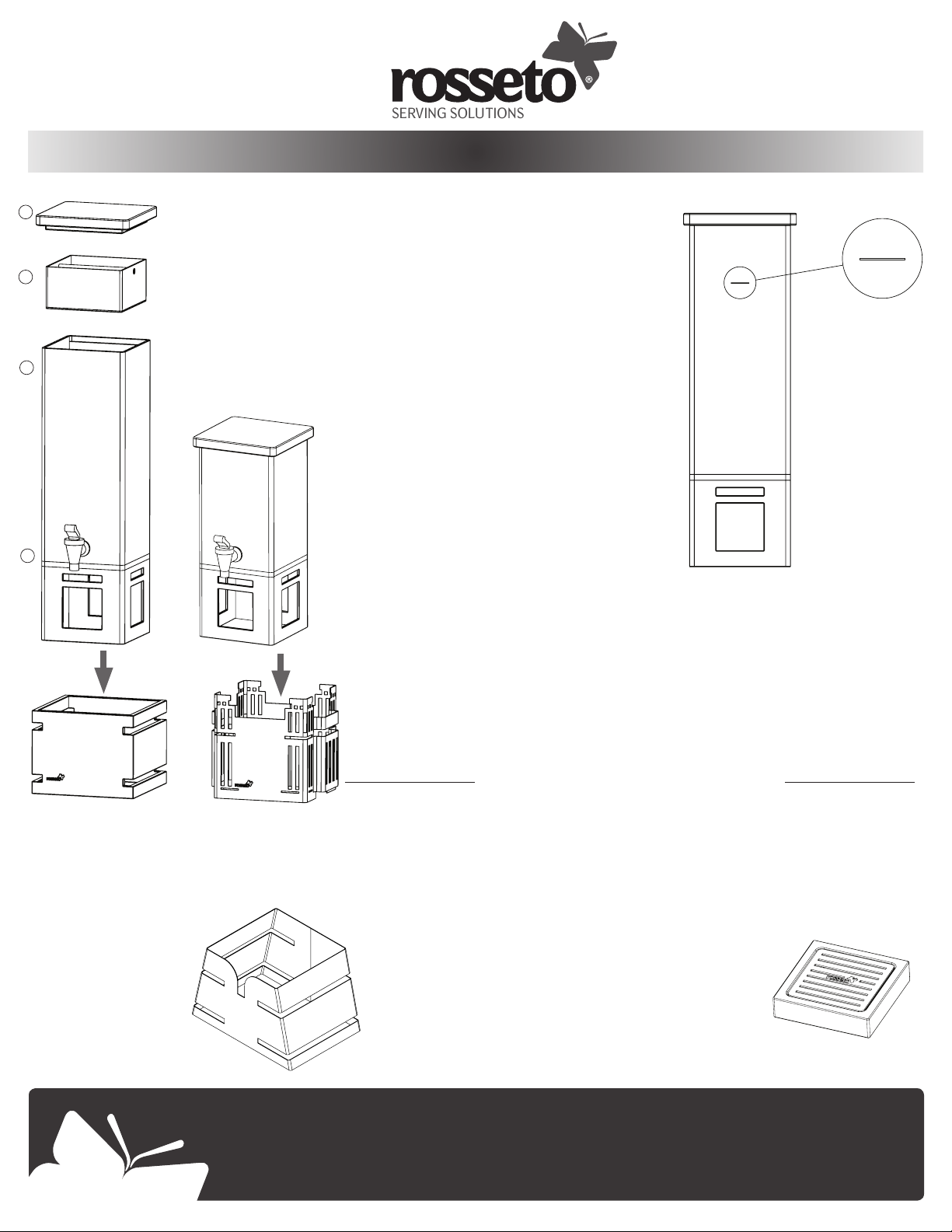

Your Beverage
Dispenser includes the following parts:
1. Lid
. Ice Chamber - This exclusive feature makes
2
refilling your ice easy. When in use, the tray is
easily lifted out of the tank using the sturdy
FILL LINE
If ice chamber is in use,
fill only to this line
handle. This allows you to refill it with ice in one
quick action! There is a “fill line” located at the
back of the tank itself that conveniently indicates
the accepted level for your beverage contents
when the ice chamber is in use. By keeping the
ice separate, this tool maintains thetaste of your
beverages while keeping them cool.
4
3. Tank and Base
4. Faucet
CAPACITY:
Short Square Beverage Dispenser (without Ice Chamber): 1.5 Gallons
Short Square Beverage Dispenser (with Ice Chamber): 1 Gallon
NATURAL BAMBOO
PART OF 1-GAL SET # LD116 / 2-GAL SET # LD112
LARGE: ITEM # LD129, PART OF 4-GAL SET # LD131
PART OF 1-GAL SET # LD122 / 2-GAL SET # LD121
PYRAMID STAINLESS STEEL
SMALL: ITEM # LD137
PART OF 1-GAL SET # LD141 & 2-GAL SET # LD143
LARGE: ITEM # LD135
PART OF 4-GAL SET # LD139
PYRAMID BLACK MATTE
SMALL: ITEM # LD138
PART OF 1-GAL SET # LD142 & 2-GAL SET # LD144
LARGE: ITEM # LD136
PART OF 4-GAL SET #
SMALL: ITEM # LD110
BLACK BAMBOO
ITEM # LD120
LD140
NEED ASSISTANCE?
SQUARE STAINLESS STEEL
ITEM # LD104
PART OF 1-GAL SET # LD117 &
2-GAL SET # LD113
Tall Square Beverage Dispenser (without Ice Chamber): 2.6 Gallons
Tall Square Beverage Dispenser (with Ice Chamber): 2.1 Gallon
Large Square Beverage Dispenser (without Ice Chamber): 4 Gallons
Large Square Beverage Dispenser (with Ice Chamber): 3.2 Gallons
OPTIONAL ACCESSORIES:
BASE COVERS:
The base of the tank easily fits into our exclusive stainless steel and bamboo
base covers. Note: Please be sure to fac
ensure a proper fit. The grooves along either side of the base covers should
match up exactly with the same grooves on the tank.
DRIP TRAY:
Made of stainless steel and acrylic parts, the
drip tray complements the beverage
dispenser both stylistically and operationally.
Placed directly under the beverage dispenser
faucet, the drip tray serves as a catch basin for
minor spills.
Please contact our customer support at (847)763-1215 and we’ll be
happy to assist with any assembly questions, comments or concerns.
e the Rosseto logo toward the front to
Square Drip Tray
ITEM #: LD108
ROSSETO® 3714 Jarvis Ave. Skokie, IL 60076
Visit our website at: www.rosseto.com
Page 2
CARE INSTRUCTIONS:
HOW TO CARE FOR YOUR ROSSETO BEVERAGE DISPENSER
• Do not place any part of your beverage dispenser in the freezer or dishwasher
• Hand wash all acrylic parts with warm soapy water. Rinse and dry with soft cloth for best results
• Do not use alcohol, ammonia, or any chemical based cleaners
• Do not use abrasive materials such as scrapers or metal based brushes on dispenser
• ONLY use this product for cold liquids
BAMBOO:
Stow your Bamboo Base Cover
in a dry and
ve
ntilated place.
Keep your Bamboo Base Cover
away from heat and direct
sunlight.
STAINLESS STEEL:
Handwash your Stainless Steel
Drip Tray Top with a damp
washcloth. Use any glass surface
or stainless steel cleaning product
to remove surface stains.
DO NOT USE HOT LIQUIDS WITH THIS BEVERAGE DISPENSER
SIDE VIEW OF
FRONT DISPENSER PANEL
INSIDE WALL
HEX
NUT
OUTSIDE WALL
THREADING
SILICONE WASHER
FIGURE A-1
ANGLED VIEW OF
FRONT DISPENSER PANEL
INSIDE WALL
HEX NUT
OUTSIDE WALL
SILICONE
WASHER
FIGURE A-2
UPPER
ASSEMBLY
BONNET
SEAT CUP
to clean dispenser
FIGURE C
To keep it protected, stow your
Stainless Steel Base Cover in
the box it came in.
UPPER ASSEMBLY
SEAT CUP
FAUCET BODY
FIGURE D
SAMPLE SETUP
HANDLE
BONNET
SPRING

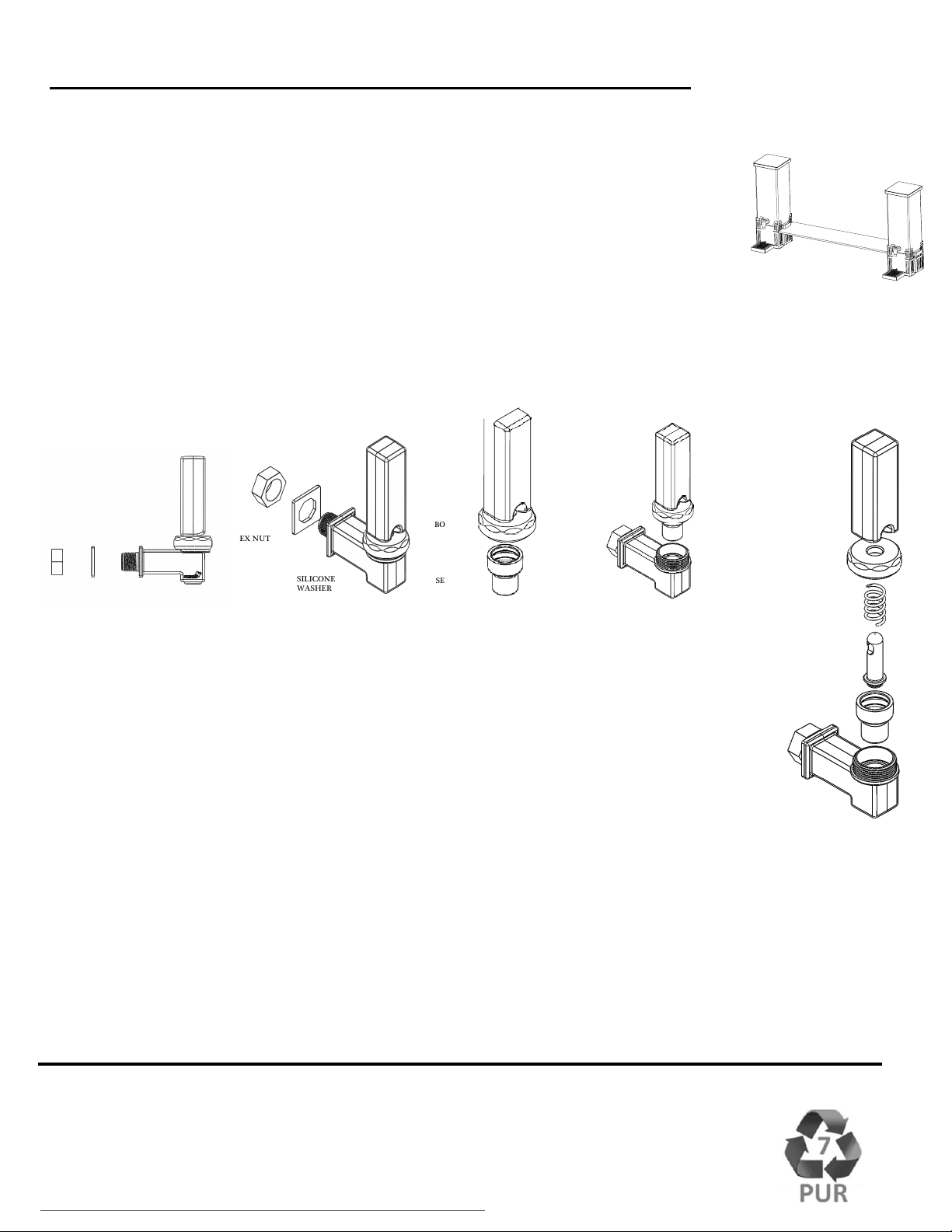

DISASSEMBLY
1. Detach faucet from dispenser by unscrewing hex nut from inside tank (Figures
A-1 & A-2)
2.3.Pull out faucet body and silicone washer from front, retrieve hex nut from inside tank
Detach upper assembly from faucet body by unscrewing bonnet.
Once the upper assembly is
separated from the faucet body, pull seat cup away from handle/bonnet (Figure D) . NOTE: If seat cup
remains in faucet body after it was detached from the upper assembly, remove seat cup from faucet
body
4. Clean all parts in warm soapy water.
ASSEMBLY
1. Place seat cup over stem/spring on upper assembly. Securely lock the stem into the base of the seat
cup. You will know when the seat cup is securely locked in place when it will not detach from stem
easily.
2. Hand tighten upper assembly/bonnet onto faucet body. You will know that the bonnet is properly
installed if no threading is seen on the faucet body.
3. Install the faucet body onto body of dispenser. Place silicone washer over threading of faucet body
MAKING SURE SILICONE WASHER IS FLUSH WITH BACK OF FAUCET BODY (F igures A-1 & A-2)
4. With one hand, place threading of faucet body through hole in front of the dispenser. With the other
hand, screw the hex nut onto the faucet from the inside of dispenser to secure. Hand tighten only
5. Fill container at location of dispensing. Drain dispenser at the end of the day before moving. If full, 2
people are required to move dispenser
Rosseto cares about keeping your product protected and keeping the environment clean! That’s why we
use recyclable premium molded foam packaging made from polyisocyanate and combination
polyether (PU). If you are not using it to stow your Beverage Dispenser, please make sure to recycle.
STEM
SEAT CUP
FAUCET BODY
For a list of Polyurethane Recycling Companies near you, please visit:
http://www.recyclingplasticwaste.com/recyclers/usa/polyurethane/
