FLOW CHARTS

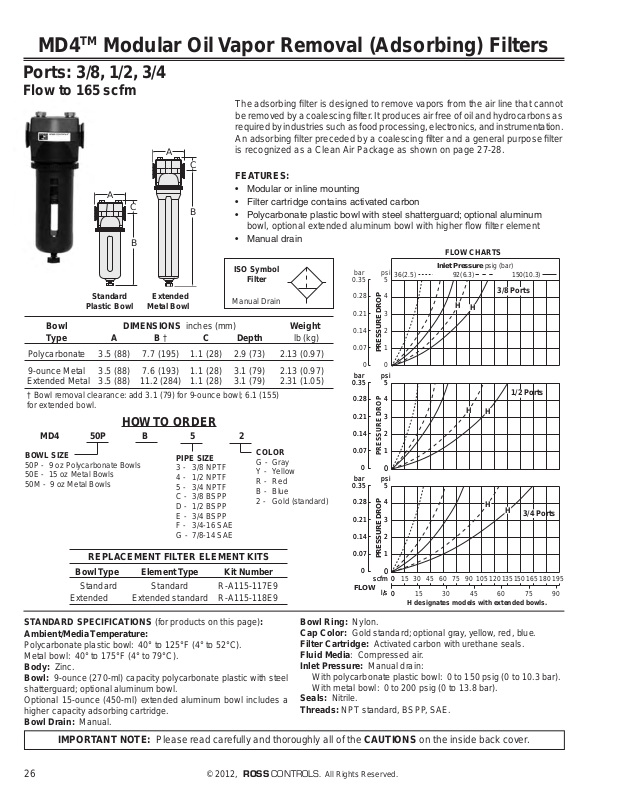

MD4TM Modular Oil Vapor Removal (Adsorbing) Filters
Ports: 3/8, 1/2, 3/4
Flow to 165 scfm
The adsorbing filter is designed to remove vapors from the air line that cannot
be removed by a coalescing filter . It produces air free of oil and hydrocarbons as
required by industries such as food processing, electronics, and instrumentation.
An adsorbing filter preceded by a coalescing filter and a general purpose filter
A
C
A
C
B
B
is recognized as a Clean Air Package as shown on page 27-28.
FEATURES:
• Modular or inline mounting
• Filter cartridge contains activated carbon
• Polycarbonate plastic bowl with steel shatterguard; optional aluminum
bowl, optional extended aluminum bowl with higher flow filter element
• Manual drain
ISO Symbol
Filter
Standard
Plastic Bowl
Bowl DIMENSIONS inches (mm) Weight
Type A B † C Depth lb (kg)
Extended
Metal Bowl
Manual Drain
Polycarbonate 3.5 (88) 7.7 (195) 1.1 (28) 2.9 (73) 2.13 (0.97)
9-ounce Metal 3.5 (88) 7.6 (193) 1.1 (28) 3.1 (79) 2.13 (0.97)
Extended Metal 3.5 (88) 11.2 (284) 1.1 (28) 3.1 (79) 2.31 (1.05)
† Bowl removal clearance: add 3.1 (79) for 9-ounce bowl; 6.1 (155)
for extended bowl.
HOW T O ORDER
MD4 50P B 5 2
BOWL SIZE
50P - 9 oz Polycarbonate Bowls
50E - 15 oz Metal Bowls
50M - 9 oz Metal Bowls
PIPE SIZE
3 - 3/8 NPTF
4 - 1/2 NPTF
5 - 3/4 NPTF
C - 3/8 BSPP
D - 1/2 BSPP
COLOR
G - Gray
Y - Yellow
R - Red
B - Blue
2 - Gold (standard)
E - 3/4 BSPP
F - 3/4-16 SAE
G - 7/8-14 SAE
REPLACEMENT FILTER ELEMENT KITS
Bowl T ype Element Type Kit Number
Standard Standard R-A115-117E9
Extended Extended standard R-A115-118E9
bar
0.35
0.28
0.21
0.14
0.07
bar
bar
0.35
0.35
0.28
0.28
0.21
0.21
0.14
0.14
0.07
0.07
0
0
bar
bar
0.35
0.35
0.28
0.28
0.21
0.21
0.14
0.14
0.07
0.07
0
0
FLOW
scfm
scfm
psi
5
4
3
2
1
PRESSURE DROP
00
psi
psi
5
5
4
4
3
3
2
2
1
1
PRESSURE DROP
0
0
psi
psi
5
5
4
4
3
3
2
2
1
1
PRESSURE DROP
0
0
015
0
l/s
l/s
0
0
Inlet Pressure psig (bar)
H
H
H
H
H
30
45 60 75 90 105120135150 165 180195
15 30 45 60 75
H designates models with extended bowls.
150(10.3)92(6.3)36(2.5)
3/8 Ports
1/2 Ports
H
3/4 Ports
90
STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:
Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowl: 40° to 175°F (4° to 79°C).
Body: Zinc.
Bowl: 9-ounce (270-ml) capacity polycarbonate plastic with steel
shatterguard; optional aluminum bowl.
Optional 15-ounce (450-ml) extended aluminum bowl includes a
higher capacity adsorbing cartridge.
Bowl Ring: Nylon.
Cap Color: Gold standard; optional gray, yellow, red, blue.
Filter Cartridge: Activated carbon with urethane seals.
Fluid Media: Compressed air.
Inlet Pressure: Manual drain:
With polycarbonate plastic bowl: 0 to 150 psig (0 to 10.3 bar).
With metal bowl: 0 to 200 psig (0 to 13.8 bar).
Seals: Nitrile.
Threads: NPT standard, BSPP, SAE.
Bowl Drain: Manual.
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
26 © 2012, ROSS CONTROLS.
