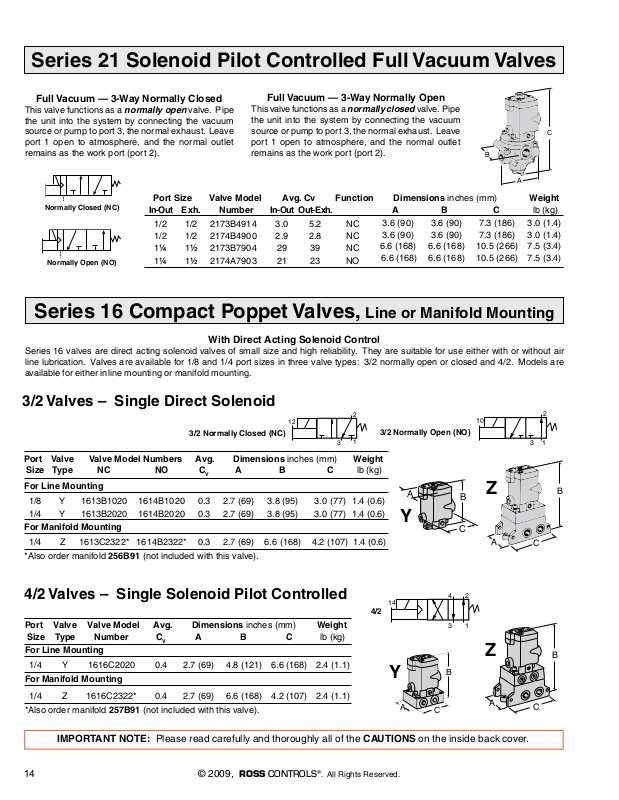

Series 21 Solenoid Pilot Controlled Full Vacuum Valves
Full Vacuum — 3-Way Normally Closed
This valve functions as a normally open valve. Pipe
the unit into the system by connecting the vacuum
source or pump to port 3, the normal exhaust. Leave
port 1 open to atmosphere, and the normal outlet
remains as the work port (port 2).
Normally Closed (NC)
Normally Open (NO)
Port Size Valve Model Avg. Cv Function Dimensions inches (mm) Weight
In-Out Exh. Number In-Out Out-Exh. A B C lb (kg)
1/2 1/2 2173B4914 3.0 5.2 NC
1/2 1/2 2174B4900 2.9 2.8 NC
1¼ 1½ 2173B7904 29 39 NC
1¼ 1½ 2174A7903 21 23 NO
Full Vacuum — 3-Way Normally Open
This valve functions as a normally closed valve. Pipe
the unit into the system by connecting the vacuum
source or pump to port 3, the normal exhaust. Leave
port 1 open to atmosphere, and the normal outlet
remains as the work port (port 2).
3.6 (90) 3.6 (90) 7.3 (186) 3.0 (1.4)
3.6 (90) 3.6 (90) 7.3 (186) 3.0 (1.4)
6.6 (168) 6.6 (168) 10.5 (266) 7.5 (3.4)
6.6 (168) 6.6 (168) 10.5 (266) 7.5 (3.4)
Series 16 Compact Poppet Valves, Line or Manifold Mounting
With Direct Acting Solenoid Control
Series 16 valves are direct acting solenoid valves of small size and high reliability. They are suitable for use either with or without air
line lubrication. Valves are available for 1/8 and 1/4 port sizes in three valve types: 3/2 normally open or closed and 4/2. Models are
available for either inline mounting or manifold mounting.
3/2 Valves – Single Direct Solenoid
3/2 Normally Closed (NC)
Port Valve Valve Model Numbers Avg. Dimensions inches (mm) Weight
Size Type NC NO C
For Line Mounting
1/8 Y 1613B1020 1614B1020 0.3 2.7 (69) 3.8 (95) 3.0 (77) 1.4 (0.6)
1/4 Y 1613B2020 1614B2020 0.3 2.7 (69) 3.8 (95) 3.0 (77) 1.4 (0.6)
For Manifold Mounting
1/4 Z 1613C2322* 1614B2322* 0.3 2.7 (69) 6.6 (168) 4.2 (107) 1.4 (0.6)
*Also order manifold 256B91 (not included with this valve).
A B C lb (kg)
V
4/2 Valves – Single Solenoid Pilot Controlled
Port Valve Valve Model Avg. Dimensions inches (mm) Weight
Size Type Number C
For Line Mounting
1/4 Y 1616C2020 0.4 2.7 (69) 4.8 (121) 6.6 (168) 2.4 (1.1)
For Manifold Mounting
A B C lb (kg)
V
4/2
3/2 Normally Open (NO)
Z
Y
Z
Y
1/4 Z 1616C2322* 0.4 2.7 (69) 6.6 (168) 4.2 (107) 2.4 (1.1)
*Also order manifold 257B91 (not included with this valve).
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
14 © 2009, ROSS CONTROLS®.
All Rights Reserved.
Series 16 Compact Poppet Valves, Line or Manifold Mounting
STANDARD SPECIFICATIONS: For valves on this page.
Solenoids: AC or DC power.
Standard Voltages: Consult ROSS.
Power Consumption: 87 VA inrush, 30 VA holding on 50 or 60 Hz;
14 watts on DC.
Ambient Temperature: 40° to 120°F (4° to 50°F).
Media Temperature: 40° to 175°F (4° to 80°C).
Inlet Pressure: 3/2 Valves: 5 to 150 psig (0.3 to 10 bar).
4/2 Valves: 30 to 150 psig (2 to 10 bar).
Cautions
PRE-INSTALLATION or SERVICE
1. Before servicing a valve or other pneumatic component, be sure
that all sources of energy are turned off, the entire pneumatic system
is shut off and exhausted, and all power sources are locked-out (ref:
OSHA 1910.147, EN 1037).
2. All ROSS products, including service kits and parts, should be
installed and/or serviced only by persons having training and experience
with pneumatic equipment. Because any installation can be tampered
with or need servicing after installation, persons responsible for the
safety of others or the care of equipment must check every installation
on a regular basis and perform all necessary maintenance.
3. All applicable instructions should be read and complied with before
using any fluid power system in order to prevent harm to persons
or equipment. In addition, overhauled or serviced valves must be
functionally tested prior to installation and use.
4. Each ROSS product should be used within its specification limits.
In addition, use only ROSS parts to repair ROSS products. Failure to
follow these directions can adversely affect the performance of the
product or result in the potential for human injury.
FILTRATION and LUBRICATION
5. Dirt, scale, moisture, etc. are present in virtually every air system.
Although some valves are more tolerant of these contaminants than
others, best performance will be realized if a filter is installed to clean
the air supply, thus preventing contaminants from interfering with the
proper performance of the equipment. ROSS recommends a filter with
a 5-micron rating for normal applications.
6. All standard ROSS filters and lubricators with polycarbonate plastic
bowls are designed for compressed air applications only. Do not fail to
use the metal bowl guard, where provided, to minimize danger from high
pressure fragmentation in the event of bowl failure. Do not expose these
products to certain fluids, such as alcohol or liquefied petroleum gas,
as they can cause bowls to rupture, creating a combustible condition,
hazardous leakage, and the potential for human injury. Immediately
replace a crazed, cracked, or deteriorated bowl. When bowl gets dirty,
replace it or wipe it with a clean dry cloth.
Flow Media: Filtered air; 5 micron recommended.
Manual Override: Flush flexible manual override (non-locking),
standard.
Port Treads: NPT standard. For BSPP threads, add a “D” prefix to the
model number; for J threads, add a “J” prefix to the model number.
Options:
Indicator Light: Order kit number 862K87 and specify the voltage
of the solenoid.
Manual Override: Metal button; see Manual Override Kits
7. Only use lubricants which are compatible with materials used in the
valves and other components in the system. Normally, compatible lubricants
are petroleum base oils with oxidation inhibitors, an aniline point between
180°F (82°C) and 220°F (104°C), and an ISO 32, or lighter, viscosity.
Avoid oils with phosphate type additives which can harm polyurethane
components, potentially leading to valve failure and/or human injury. If
you have questions regarding whether a lubricant used on your system is
compatible with ROSS products, please contact ROSS.
AVOID INTAKE/EXHAUST RESTRICTION
8. Do not restrict the air flow in the supply line. To do so could reduce
the pressure of the supply air below the minimum requirements for the
valve and thereby cause erratic action.
9. Do not restrict a valve’s exhaust port as this can adversely affect its
operation. Exhaust silencers must be resistant to clogging and have
flow capacities at least as great as the exhaust capacities of the valves.
Contamination of the silencer can result in reduced flow and increased
back pressure.
