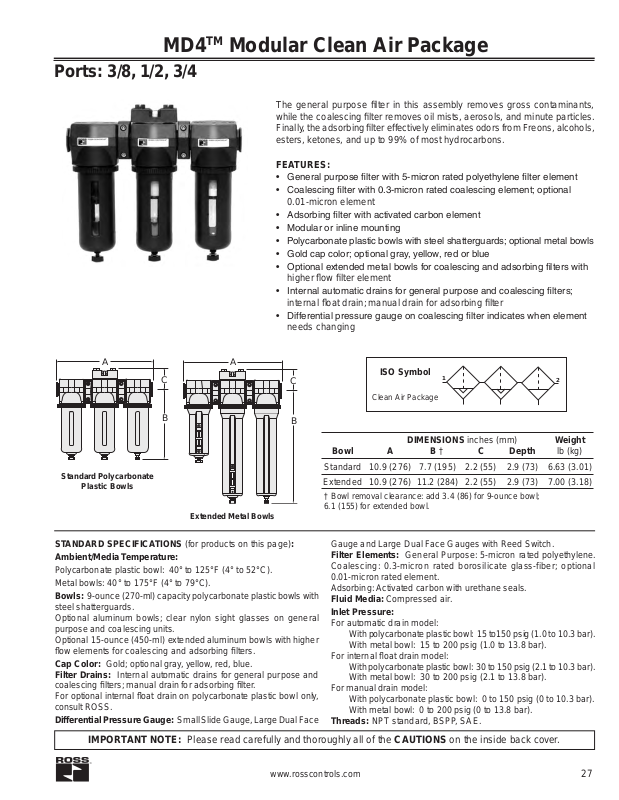

MD4TM Modular Clean Air Package
Ports: 3/8, 1/2, 3/4
The general purpose filter in this assembly removes gross contaminants,
while the coalescing filter removes oil mists, aerosols, and minute particles.
Finally , the adsorbing filter effectiv ely eliminates odors from Freons , alcohols,
esters, ketones, and up to 99% of most hydrocarbons.
FEATURES:
• General purpose lter with 5-micron rated polyethylene lter element
• Coalescing lter with 0.3-micron rated coalescing element; optional
0.01-micron element
• Adsorbing lter with activated carbon element
• Modular or inline mounting
• Polycarbonate plastic bowls with steel shatterguards; optional metal bowls
• Gold cap color; optional gray, yellow, red or blue
• Optional extended metal bowls for coalescing and adsorbing lters with
higher flow filter element
• Internal automatic drains for general purpose and coalescing lters;
internal float drain; manual drain for adsorbing filter
• Differential pressure gauge on coalescing lter indicates when element
needs changing
A
C
B
Standard Polycarbonate
Plastic Bowls
Extended Metal Bowls
STANDARD SPECIFICATIONS (for products on this page):
Ambient/Media Temperature:
Polycarbonate plastic bowl: 40° to 125°F (4° to 52°C).
Metal bowls: 40° to 175°F (4° to 79°C).
Bowls: 9-ounce (270-ml) capacity polycarbonate plastic bowls with
steel shatterguards.
Optional aluminum bowls; clear nylon sight glasses on general
purpose and coalescing units.
Optional 15-ounce (450-ml) extended aluminum bowls with higher
flow elements for coalescing and adsorbing filters.
Cap Color: Gold; optional gray, yellow, red, blue.
Filter Drains: Internal automatic drains for general purpose and
coalescing filters; manual drain for adsorbing filter.
For optional internal float drain on polycarbonate plastic bowl only,
consult ROSS.
Differential Pressure Gauge: Small Slide Gauge, Large Dual Face
A
C
B
ISO Symbol
Clean Air Package
Bowl A B
Standard 10.9 (276) 7.7 (195) 2.2 (55) 2.9 (73) 6.63 (3.01)
Extended 10.9 (276) 11.2 (284) 2.2 (55) 2.9 (73) 7.00 (3.18)
† Bowl removal clearance: add 3.4 (86) for 9-ounce bowl;
6.1 (155) for extended bowl.
Gauge and Large Dual Face Gauges with Reed Switch.
Filter Elements: General Purpose: 5-micron rated polyethylene.
Coalescing: 0.3-micron rated borosilicate glass-fiber; optional
0.01-micron rated element.
Adsorbing: Activated carbon with urethane seals.
Fluid Media: Compressed air.
Inlet Pressure:
For automatic drain model:
With polycarbonate plastic bowl: 15 to150 psig (1.0 to 10.3 bar).
With metal bowl: 15 to 200 psig (1.0 to 13.8 bar).
For internal float drain model:
With polycarbonate plastic bowl: 30 to 150 psig (2.1 to 10.3 bar).
With metal bowl: 30 to 200 psig (2.1 to 13.8 bar).
For manual drain model:
With polycarbonate plastic bowl: 0 to 150 psig (0 to 10.3 bar).
With metal bowl: 0 to 200 psig (0 to 13.8 bar).
Threads: NPT standard, BSPP, SAE.
DIMENSIONS inches (mm)
1
C Depth lb (kg)
†
2
Weight
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
www.rosscontrols.com 27
MD4TM Modular Clean Air Package
Ports: 3/8, 1/2, 3/4
HOW T O ORDER
MD4 CAP 1 A B 1 5 2 L -
BOWL SIZE
1 - Three 9 oz Polycarbonate Bowls
2 - Three 9 oz Metal Bowls
3 - One 9 oz and Two 15 oz Metal Bowls
COALESCING FILTER ELEMENT TYPE
µm - Standard
A - 0.3B - 0.01-µm - Optional
DRAIN TYPES
1 - Manual
2 - Internal Automatic (not available on adsorber)
F - Internal Foat drain
PIPE SIZE
3 - 3/8 NPTF
4 - 1/2 NPTF
5 - 3/4 NPTF
C - 3/8 BSPP
®
- optional
GAUGE
A- No Gauge
L- Large Gauge
Add on L-O-X
1 - Y ellow
2 - Gold
Blank - No L-O-X®
S- Small Gauge
E- Large Gauge with Normally Open Reed Switch
C- Large Gauge with Normally Closed Reed Switch
COLOR
G - Gray
D - 1/2 BSPP
E - 3/4 BSPP
F - 3/4-16 SAE
G - 7/8-14 SAE
Y - Yellow
R - Red
B - Blue
2 - Gold (standard)
DIFFERENTIAL PRESSURE GAUGES
Small
Slide Gauge
R-K103-151
Filter T ype Bo wl Type Element Rating/Type Kit Number
General Purpose Standard 5-µm - Standard R-A115-106PE5
Coalescing Standard 0.3-µm - Standard R-A115-117
Coalescing Extended 0.3-µm - Standard R-A115-118
Coalescing Standard 0.01-µm - Optional R-A115-117E8
Coalescing Extended 0.01-µm - Optional R-A115-118E8
Absorbing Standard Standard cartridge R-A115-117E9
Coalescing Extended Extended standard cartridge R-A115-118E9
FLOW CHARTS for INDIVIDUAL ASSEMBLY COMPONENTS
STANDARD 5-µm ELEMENT
bar
0.35
0.28
0.21
0.14
0.07
0
bar
0.35
0.28
0.21
0.14
0.07
0
bar
0.35
0.28
0.21
0.14
0.07
0
0
FLOW
scfm
psi
5
4
3
2
1
PRESSURE DROP
0
psi
5
4
3
2
1
PRESSURE DROP
0
psi
5
4
3
2
1
PRESSURE DROP
0
0
0
l/s
l/s
0 10
0
Inlet Pressure psig (bar)
40 60 80 100 120 140 160 180 200 220
20
20 30 40 50 60 70 80 90 100
150(10.3)92(6.3)36(2.5)
Large Dual
Face Gauge
R-106-35
REPLACEMENT FILTER ELEMENT KITS
TM
Coalescing FilterMD4TM General Purpose Filter
MD4
STANDARD 3-µm ELEMENT
Inlet Pressure psig (bar)
H
H
H
H H
H
45 60 75 90 105120135150165H180195
H H
3/8 Ports
1/2 Ports
3/4 Ports
bar
0.35
0.28
0.21
0.14
0.07
PRESSURE DROP
0
bar
bar
0.35
0.35
0.28
0.28
0.21
0.21
0.14
0.14
0.07
0.07
PRESSURE DROP
0
bar
bar
0.35
0.35
0.28
0.28
0.21
0.21
0.14
0.14
0.07
0.07
PRESSURE DROP
0
scfm
scfm
FLOW
l/s
l/s
psi
5
4
3
2
1
0
psi
psi
5
5
4
4
3
3
2
2
1
1
0
0
psi
psi
5
5
4
4
3
3
2
2
1
1
0
0
015
0
03015 30 45 60 75
H designates models with extended bowls.
Large Dual Face Gauge
with Reed Switch
R-106-35E (Normally Open)
R-106-35EC (Normally Closed)
psi
150(10.3)92(6.3)36(2.5)
3/8 Ports
1/2 Ports
3/4 Ports
bar
5
0.35
4
0.28
3
0.21
2
0.14
1
0.07
PRESSURE DROP
00
psi
psi
bar
bar
0.35
0.35
5
5
4
4
0.28
0.28
3
3
0.21
0.21
2
2
0.14
0.14
1
1
0.07
0.07
PRESSURE DROP
0
0
0
0
psi
psi
bar
5
5
0.35
0.28
0.28
4
4
0.21
0.21
3
3
0.14
0.14
2
2
0.07
0.07
1
1
PRESSURE DROP
0
0
0
0
scfm
scfm
015
FLOW
90
0
l/s
l/s
0
0
TM
Adsorbing Filter
MD4
Inlet Pressure psig (bar)
H
H
H
30
45 60 75 90 105120135150165180195
15 30 45 60 75
H designates models with extended bowls.
H
H
150(10.3)92(6.3)36(2.5)
3/8 Ports
1/2 Ports
H
3/4 Ports
90
