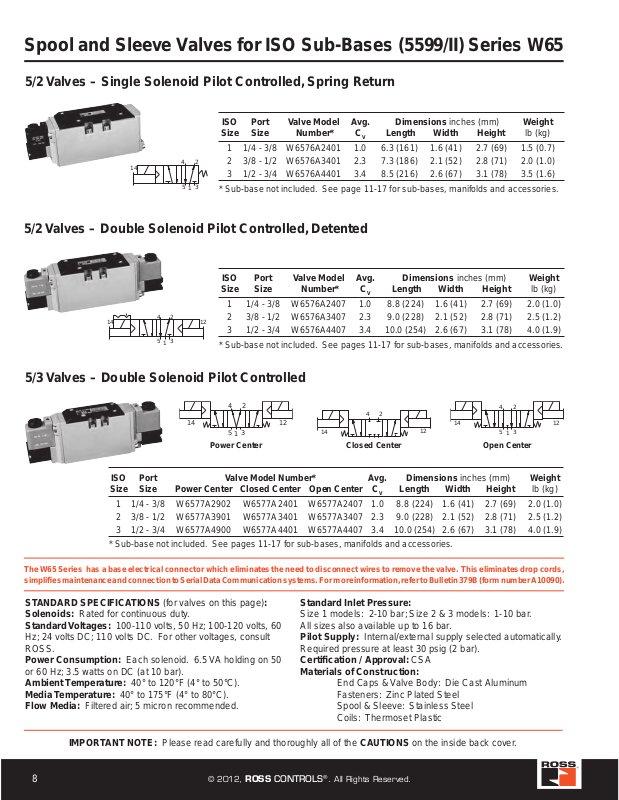

Spool and Sleeve Valves for ISO Sub-Bases (5599/II) Series W65

5/2 Valves – Single Solenoid Pilot Controlled, Spring Return

ISO Port Valve Model Avg. Dimensions inches (mm) Weight

Size Size Number* C

1 1/4 - 3/8 W6576A2401 1.0 6.3 (161) 1.6 (41) 2.7 (69) 1.5 (0.7)

14

5

2 3/8 - 1/2 W6576A3401 2.3 7.3 (186) 2.1 (52) 2.8 (71) 2.0 (1.0)
3 1/2 - 3/4 W6576A4401 3.4 8.5 (216) 2.6 (67) 3.1 (78) 3.5 (1.6)

1

* Sub-base not included. See page 11-17 for sub-bases, manifolds and accessories.

5/2 Valves – Double Solenoid Pilot Controlled, Detented

ISO Port Valve Model Avg. Dimensions inches (mm) Weight

Size Size Number* C

1 1/4 - 3/8 W6576A2407 1.0 8.8 (224) 1.6 (41) 2.7 (69) 2.0 (1.0)

14

2

345

1

2 3/8 - 1/2 W6576A3407 2.3 9.0 (228) 2.1 (52) 2.8 (71) 2.5 (1.2)

12

3 1/2 - 3/4 W6576A4407 3.4 10.0 (254) 2.6 (67) 3.1 (78) 4.0 (1.9)
* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

Length Width Height lb (kg)

V

Length Width Height lb (kg)

V

5/3 Valves – Double Solenoid Pilot Controlled

2

14

4

5

3

1

Power Center

12

14

Closed Center

2

4

12

14

ISO Port Valve Model Number* Avg.

Size Size Power Center Closed Center Open Center CV

1

1/4 - 3/8 W6577A2902 W6577A2401 W6577A2407 1.0 8.8 (224) 1.6 (41) 2.7 (69) 2.0 (1.0)

Dimensions inches (mm) Weight

Length Width Height lb (kg)

2 3/8 - 1/2 W6577A3901 W6577A3401 W6577A3407 2.3 9.0 (228) 2.1 (52) 2.8 (71) 2.5 (1.2)
3 1/2 - 3/4 W6577A4900 W6577A4401 W6577A4407 3.4 10.0 (254) 2.6 (67) 3.1 (78) 4.0 (1.9)

* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

The W65 Series has a base electrical connector whic h eliminates the need to disconnect wires to remove the valve. This eliminates dr op cords,
simplifies maintenance and connection to Serial Data Communication systems. For more information, refer to Bulletin 379B (form number A10090).

STANDARD SPECIFICATIONS (for valves on this page):
Solenoids: Rated for continuous duty.
Standard V oltages: 100-110 volts, 50 Hz; 100-120 volts, 60

Hz; 24 volts DC; 110 volts DC. For other voltages, consult
ROSS.
Power Consumption: Each solenoid. 6.5 VA holding on 50
or 60 Hz; 3.5 watts on DC (at 10 bar).

Ambient Temperature: 40° to 120°F (4° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air; 5 micron recommended.

Standard Inlet Pressure:

Size 1 models: 2-10 bar; Size 2 & 3 models: 1-10 bar.
All sizes also available up to 16 bar.
Pilot Supply: Internal/external supply selected automatically.
Required pressure at least 30 psig (2 bar).

Certification / Approval: CSA
Materials of Construction:

End Caps & Valve Body: Die Cast Aluminum
Fasteners: Zinc Plated Steel
Spool & Sleeve: Stainless Steel
Coils: Thermoset Plastic

234

5

1

Open Center

12

IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.

8 © 2012, ROSS CONTROLS

®

. All Rights Reserved.

Spool and Sleeve Valves for ISO Sub-Bases (5599/II) Series W65



2



5/2 Valves – Single Pressure Controlled, Spring Return

ISO Port Valve Model Avg. Dimensions inches (mm) Weight

Size Size Number* C

1 1/4 - 3/8 W6556A2411 1.0 4.8 (121) 1.6 (41) 2.7 (69) 0.8 (0.4)













2 3/8 - 1/2 W6556A3411 2.3 5.8 (148) 2.1 (52) 2.8 (71) 1.5 (0.7)
3 1/2 - 3/4 W6556A4411 3.4 7.0 (178) 2.6 (67) 3.1 (78) 3.0 (1.4)



* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

5/2 Valves – Double Pressure Controlled, Detented

ISO Port Valve Model Avg. Dimensions inches (mm) Weight

Size Size Number* C

1 1/4 - 3/8 W6556A2417 1.0 4.8 (121) 1.6 (41) 2.7 (69) 0.8 (0.4)



2 3/8 - 1/2 W6556A3417 2.3 5.8 (148) 2.1 (52) 2.8 (71) 1.5 (0.7)









3 1/2 - 3/4 W6556A4417 3.4 7.0 (178) 2.6 (67) 3.1 (78) 3.0 (1.4)



* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

V

V

A B C lb (kg)

A B C lb (kg)

5/3 Valves – Double Pressure Controlled





Power Center

ISO Port Valve Model Number* Avg.
Size Size Power Center Closed Center Open Center CV

1
2 3/8 - 1/2 W6557A3901 W6557A3411 W6557A3417 2.3 5.8 (148) 2.1 (52) 2.8 (71) 1.5 (0.7)
3 1/2 - 3/4 W6557A4900 W6557A4411 W6557A4417 3.4 7.0 (178) 2.6 (67) 3.1 (78) 3.0 (1.4)

* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

STANDARD SPECIFICATIONS (for valves on this page):
Ambient/Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air; 5 micron recommended.
Standard Inlet Pressure:

Size 1 models: 2-10 bar;
Size 2 & 3 models: 1-10 bar.

All sizes also available up to 16 bar.

1/4 - 3/8 – W6557A2411 W6557A2417 1.0 4.8 (121) 1.6 (41) 2.7 (69) 0.8 (0.4)



14

12

345

1

234

5

1

Closed Center Open Center

Dimensions inches (mm) Weight

A B C lb (kg)

Pilot Supply: Internal/external supply selected automatically.
Required pressure at least 30 psig (2 bar).

Materials of Construction:

End Caps & Valve Body: Die Cast Aluminum
Fasteners: Zinc Plated Steel
Spool & Sleeve: Stainless Steel

1214
