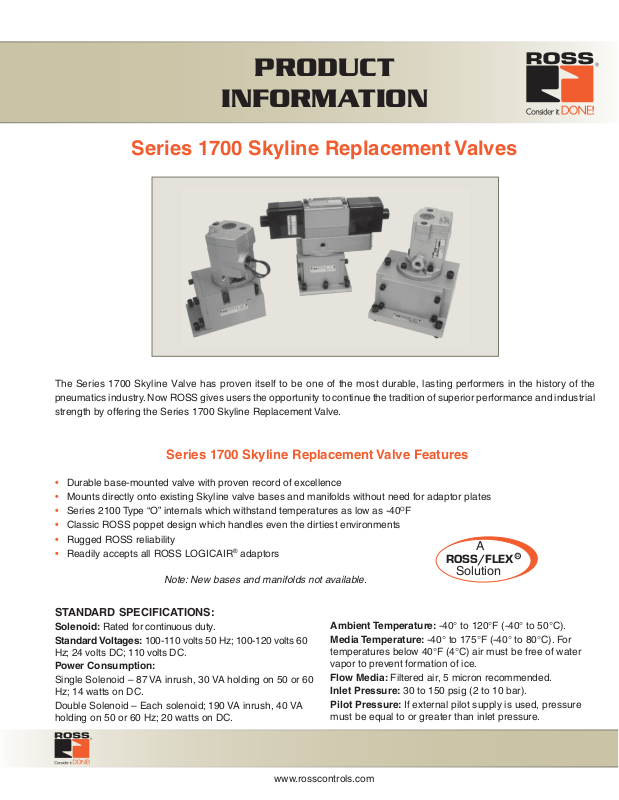

PRODUCT

INFORMATION

Series 1700 Skyline Replacement Valves

The Series 1700 Skyline Valve has proven itself to be one of the most durable, lasting performers in the history of the
pneumatics industry. Now ROSS gives users the opportunity to continue the tradition of superior performance and industrial
strength by offering the Series 1700 Skyline Replacement Valve.

Series 1700 Skyline Replacement Valve Features

• Durable base-mounted valve with proven record of excellence

• Mounts directly onto existing Skyline valve bases and manifolds without need for adaptor plates

• Series 2100 Type “O” internals which withstand temperatures as low as -40OF

• Classic ROSS poppet design which handles even the dirtiest environments

• Rugged ROSS reliability

• Readily accepts all ROSS LOGICAIR® adaptors

Note: New bases and manifolds not available.

STANDARD SPECIFICATIONS:

Solenoid: Rated for continuous duty.
Standard Voltages: 100-110 volts 50 Hz; 100-120 volts 60

Hz; 24 volts DC; 110 volts DC.

Power Consumption:

Single Solenoid – 87 VA inrush, 30 VA holding on 50 or 60
Hz; 14 watts on DC.

Double Solenoid – Each solenoid; 190 VA inrush, 40 VA
holding on 50 or 60 Hz; 20 watts on DC.

Ambient Temperature: -40° to 120°F (-40° to 50°C).
Media Temperature: -40° to 175°F (-40° to 80°C). For

temperatures below 40°F (4°C) air must be free of water
vapor to prevent formation of ice.

Flow Media: Filtered air, 5 micron recommended.
Inlet Pressure: 30 to 150 psig (2 to 10 bar).
Pilot Pressure: If external pilot supply is used, pressure

must be equal to or greater than inlet pressure.

ROSS/FLEX

A

Solution

R

www.rosscontrols.com

Series 1700 Skyline Replacement Valves

3/2 Valves - Small, Normally Closed

2

12

13

14 12

12

3

2

1

Air Signal Actuator

2

13

Double Solenoid Pilot Actuator

Single Solenoid Pilot Actuator

3/2 Valves - Midsize, Normally Open

2

10

Air Signal Actuator

Air Signal Actuator

1753F3304

Dimensions inches (mm)

Double Solenoid

Pilot Actuator

1773F3311

Single Solenoid

Pilot Actuator

1773F3307

13

2

1

14

10

3

3

12

Double Solenoid Pilot Actuator

2

Single Solenoid Pilot Actuator

1

3/2 Valves - Midsize, Normally Closed

2

12

13

14 12

Air Signal Actuator

2

13

Double Solenoid Pilot Actuator

Air Signal Actuator

1754F5304

Double Solenoid

Pilot Actuator

1774F5311

Single Solenoid

Pilot Actuator

1774F5307

12

2

Single Solenoid Pilot Actuator

1

3

2

ROSS CONTROLS

Air Signal

Actuator

1753F5304

®

Double Solenoid

Pilot Actuator

1773F5311

Single Solenoid

Pilot Actuator

1773F5307

Series 1700 Skyline Replacement Valves

4/2 Valves - Small

2

4

14

1

3

1214

2

14

4

1

3

4/2 Valves - Midsize

2

4

14

1

3

Air Signal Actuator

2

4

1

3

Double Solenoid Pilot Actuator

Single Solenoid Pilot Actuator

Air Signal Actuator

2

4

Air Signal

Actuator

1756F3304

Dimensions inches (mm)

Double Solenoid

Pilot Actuator

1776F3311

Single Solenoid

Pilot Actuator

1776F3307

2

14

4

1

3

4/2 Valves - Large

2

4

14

1

3

1

3

1214

Double Solenoid Pilot Actuator

Single Solenoid Pilot Actuator

Air Signal Actuator

2

4

1

3

1214

Double Solenoid Pilot Actuator

Air Signal

Actuator

1756F5304

Double Solenoid

Pilot Actuator

1776F5311

Single Solenoid

Pilot Actuator

1776F5307

2

14

4

Single Solenoid Pilot Actuator

1

3

Air Signal

Actuator

1756F7305

Double Solenoid

Pilot Actuator

1776F7305

Single Solenoid

Pilot Actuator

1776F7309

3www.rosscontrols.com

Skyline Replacement Models for Discontinued Valves

DISCONTINUED REPLACEMENT DISCONTINUED REPLACEMENT DISCONTINUED REPLACEMENT

1756*2004----------------1756F3304
1756*3004----------------1756F3304
1756*4004----------------1756F5304
1756*4005----------------1756F5304
1756*4006----------------1756F5304
1756*5004----------------1756F5304
1756*5005----------------1756F5304
1756*5006----------------1756F5304
1756*5304----------------1756F5304
1756*6005----------------1756F7305
1756*7005----------------1756F7305
1756*7305----------------1756F7305
1773*4007----------------1773F5307
1773*4307----------------1773F5307
1773*4027----------------1773F5307
1776*2001----------------1776F3307
1776*2002----------------1776F3307
1776*2003----------------1776F3307
1776*2007----------------1776F3307
1776*2008----------------1776F3307
1776*2009----------------1776F3307
1776*2010----------------1776F3307
1776*2011----------------1776F3311
1776*2012----------------1776F3311
1776*2027----------------1776F3307
1776*2028----------------1776F3307
1776*2044----------------1776F3307
1776*2045----------------1776F3307
1776*2048----------------1776F3311
1776*2049----------------1776F3311
1776*3001----------------1776F3307
1776*3003----------------1776F3307
1776*3004----------------1776F3307
1776*3007----------------1776F3307
1776*3008----------------1776F3307
1776*3009----------------1776F3307

1776*3010----------------1776F3307
1776*3011----------------1776F3311
1776*3012----------------1776F3311
1776*3027----------------1776F3307
1776*3028----------------1776F3307
1776*3044----------------1776F3307
1776*3045----------------1776F3307
1776*3048----------------1776F3311
1776*3049----------------1776F3311
1776*3311----------------1776F3311
1776*3327----------------1776F3307
1776*4001----------------1776F5307
1776*4005----------------1776F5307
1776*4006----------------1776F5307
1776*4007----------------1776F5307
1776*4008----------------1776F5307
1776*4009----------------1776F5307
1776*4010----------------1776F5307
1776*4011----------------1776F5311
1776*4012----------------1776F5311
1776*4027----------------1776F5307
1776*4028----------------1776F5307
1776*4044----------------1776F5307
1776*4045----------------1776F5307
1776*4048----------------1776F5311
1776*4049----------------1776F5311
1776*4103----------------1776F3311
1776*4108----------------1776F3311
1776*4533----------------1776F3307
1776*4535----------------1776F3311
1776*4566----------------1776F3307
1776*4567----------------1776F3311
1776*5002----------------1776F5307
1776*5003----------------1776F5307
1776*5006----------------1776F5307
1776*5007----------------1776F5307

* denotes ALL modifi cation letters

1776*5008----------------1776F5307
1776*5009----------------1776F5307
1776*5010----------------1776F5307
1776*5011----------------1776F5311
1776*5012----------------1776F5311
1776*5027----------------1776F5307
1776*5028----------------1776F5307
1776*5044----------------1776F5307
1776*5045----------------1776F5307
1776*5048----------------1776F5311
1776*5049----------------1776F5311
1776*5311----------------1776F5311
1776*5327----------------1776F5307
1776*6001----------------1776F7309
1776*6003----------------1776F7309
1776*6004----------------1776F7309
1776*6005----------------1776F7305
1776*6009----------------1776F7309
1776*6044----------------1776F7309
1776*6048----------------1776F7305
1776*6103----------------1776F5311
1776*6108----------------1776F5311
1776*6566----------------1776F5307
1776*6567----------------1776F5311
1776*7001----------------1776F7309
1776*7002----------------1776F7309
1776*7003----------------1776F7309
1776*7004----------------1776F7309
1776*7005----------------1776F7305
1776*7009----------------1776F7309
1776*7044----------------1776F7309
1776*7048----------------1776F7305
1776*7305----------------1776F7305
1776*7309----------------1776F7309

NOTE: Series 1700 Skyline Replacement Valves are available in “D” models (i.e. D1776F7309) with metric mounting bolts. Skyline
Replacement Valves are made-to-order valves, and will take longer than made-to-stock items to ship. Additional information
available upon request. SKYLINE BASES AND MANIFOLDS ARE NOT AVAILABLE.
