Ross Controls 15407-1 User Manual
ISO Size 00 & 0 Valves Series W66

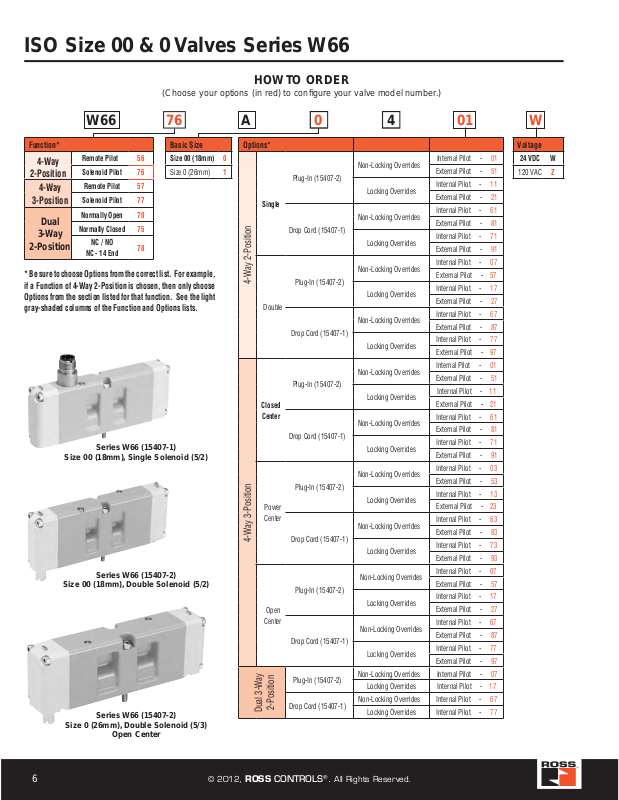

HOW T O ORDER
(Choose your options (in red) to configure your valve model number.)
W66 76 A 0 4 01 W
Function*
4-Way
2-Position
4-Way
3-Position
Dual
3-Way
2-Position
Remote Pilot 56
Solenoid Pilot 76
Remote Pilot 57
Solenoid Pilot 77
Normally Open 70
Normally Closed 75
NC / NO
NC - 14 End
78
Basic Size
Size 00 (18mm) 0
Size 0 (26mm) 1
* Be sure to choose Options from the correct list. For example,
if a Function of 4-Way 2-Position is chosen, then only choose
Options from the section listed for that function. See the light
gray-shaded columns of the Function and Options lists.
Size 00 (18mm), Single Solenoid (5/2)
Size 00 (18mm), Double Solenoid (5/2)
Size 0 (26mm), Double Solenoid (5/3)
Series W66 (15407-1)
Series W66 (15407-2)
Series W66 (15407-2)
Open Center
Options*
Single
4-Way 2-Position
Double
Closed
Center
Power
Center
4-Way 3-Position
Open
Center
2-Position
Dual 3-Way
Plug-In (15407-2)
Drop Cord (15407-1)
Plug-In (15407-2)
Drop Cord (15407-1)
Plug-In (15407-2)
Drop Cord (15407-1)
Plug-In (15407-2)
Drop Cord (15407-1)
Plug-In (15407-2)
Drop Cord (15407-1)
Plug-In (15407-2)
Drop Cord (15407-1)
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides
Locking Overrides
Non-Locking Overrides Internal Pilot - 07
Locking Overrides Internal Pilot - 17
Non-Locking Overrides Internal Pilot - 67
Locking Overrides Internal Pilot - 77
Internal Pilot - 01
External Pilot - 51
Internal Pilot - 11
External Pilot - 21
Internal Pilot - 61
External Pilot - 81
Internal Pilot - 71
External Pilot - 91
Internal Pilot - 07
External Pilot - 57
Internal Pilot - 17
External Pilot - 27
Internal Pilot - 67
External Pilot - 87
Internal Pilot - 77
External Pilot - 97
Internal Pilot - 01
External Pilot - 51
Internal Pilot - 11
External Pilot - 21
Internal Pilot - 61
External Pilot - 81
Internal Pilot - 71
External Pilot - 91
Internal Pilot - 03
External Pilot - 53
Internal Pilot - 13
External Pilot - 23
Internal Pilot - 63
External Pilot - 83
Internal Pilot - 73
External Pilot - 93
Internal Pilot - 07
External Pilot - 57
Internal Pilot - 17
External Pilot - 27
Internal Pilot - 67
External Pilot - 87
Internal Pilot - 77
External Pilot - 97
Voltage
24 VDC W
120 VAC Z
6 © 2012, ROSS CONTROLS
®
. All Rights Reserved.
Size 00 (18 mm) & Size 0 (2 6mm)
Open Center
Closed Center
Plug-in, Series W66 (15407-2)
5/2 Valves – Single Solenoid Pilot
ISO Port Valve Model Avg. Dimensions inches (mm) Weight
Size Size Number* C
Series W66, Size 00
Sol. 14
42
1
53
00 1/8 W6676A0401 0.55 4.43 (113) 0.72 (18) 1.98 (50)
0 1/4 W6676A1401 1.1 5.10 (130) 1.02 (26) 1.98 (50)
* Sub-base not included. See page 10-17 for sub-bases, manifolds and
accessories.
5/2 Valves – Double Solenoid Pilot
ISO Port Valve Model Avg. Dimensions inches (mm) Weight
Size Size Number* C
00 1/8 W6676A0407 0.55 4.43 (113) 0.72 (18) 1.98 (50)
0 1/4 W6676A1407 1.1 5.10 (130) 1.02 (26) 1.98 (50)
* Sub-base not included. See page 10-17 for sub-bases, manifolds and
Series W66, Size 00
42
Sol. 14 Sol. 12
1
53
accessories.
5/3 Valves – Double Solenoid Pilot
42
#12#14
53
1
Series W66, Size 00
Series W66, Size 0
ISO Port Valve Model Avg. Dimensions inches (mm) Weight
Size Size Number* C
Closed Center
00 1/8 W6677A0401 0.50 4.43 (113) 0.72 (18) 1.98 (50)
0 1/4 W6677A1401 1.0 5.10 (130) 1.02 (26) 1.98 (50)
00 1/8 W6677A0407 0.50 4.43 (113) 0.72 (18) 1.98 (50)
0 1/4 W6677A1407 1.0 5.10 (130) 1.02 (26) 1.98 (50)
Power Center
00 1/8 W6677A0403 0.50 4.43 (113) 0.72 (18) 1.98 (50)
0 1/4 W6677A1403 1.0 5.10 (130) 1.02 (26) 1.98 (50)
* Sub-base not included. See page 10-17 for sub-bases, manifolds and
accessories.
Length Width Height lb (kg)
V
Length Width Height lb (kg)
V
Power Center
42
#12#14
53
1
Length Width Height lb (kg)
V
Open Center
42
53
1
#12#14
Remote Pressure Control Models Available (2 & 3-Position) – Consult ROSS
STANDARD SPECIFICATIONS (for valves on this page):
Solenoids: Bi-polar, surge suppression (standard), indicator
lights.
Standard V oltages: 1.0, 24 volts DC; 2.0 VA, 120 volts AC.
Flow Media: Filtered air; 5 micron recommended.
Operating Pressure:
Vacuum to 145 psig (9.9 bar).
Minimum Operating Pressure:
2-position : 20 psig (1.37 bar).
3-position: 30 psig (2.07 bar).
Manifolds: Terminal Block Wiring (HA Only).
Collective Wiring: 25-Pin' D-Sub; 19-Pin Round; 16 Point
Terminal Strip; M23, 12-Pin; Isysnet Field Bus.
Construction:
Valve Body: Die Cast Aluminum.
Ens Caps: Polybutylene Terephthalate (PBT).
Fasteners: Zinc Plated Steel.
Coils: Thermoset Plastic.
Port Threads: NPT , BSPP. F or BSPP threads add a “D” prefix to
the model number, e.g., DW6677A0401.
Manifolds: Terminal Block Wiring (HA Only).
7www.rosscontrols.com
