Introduction
In This Chapter
This chapter contains the following information sections:
• A Word of Thanks
• Overview
• Functional Block Diagram
• Features
• Documentation Terms
A Word of Thanks
Congratulations on choosing the Ross Video SEA-8008 Serial Equalizing Amplifier. The SEA-8008
is part of a full line of Digital Products within the RossGear Terminal Equipment family of products,
backed by Ross Video’s experience in engineering and design expertise since 1974.
You will be pleased at how easily your new SEA-8008 fits into your overall working environment.
Equally pleasing is the product quality, reliability and functionality. Thank you for joining the group
of worldwide satisfied Ross Video customers!
Should you have a question pertaining to the installation or operation of your SEA-8008, please
contact us at the numbers listed on the back cover of this manual. Our technical support staff is always
available for consultation, training, or service.
SEA-8008 User Manual (Iss. 05A) Introduction • 1-1
Page 10
Overview
The SEA-8008 Serial Equalizing Amplifier is designed for general SDI equalizing and distribution use
where the outputs must all be non-inverted. It suits applications where multiple outputs are required,
but where reclocking is not required. Although the amplifier automatically equalizes up to 305m
(1000 ft.) of Belden 8281 input cable at 270Mb/s, 200m (656 ft.) is the recommended limit due to jitter
considerations. Special measures have been taken to ensure excellent return loss on both input and
outputs. This design guarantees error-free performance, even with short cable runs.
A very useful feature of the SEA-8008 is the card-edge LED status indicators, which confirm the
presence of an input signal capable of equalization.
The SEA-8008 operates on all serial digital standards, from 143Mb/s up to and including 360Mb/s. All
eight outputs are non-inverting, and so they can be used for the distribution of DVB/ASI signals, as
well as SMPTE 259M signals.
The SEA-8008 is designed to operate within the RossGear 8000-series digital products frame. Ten
amplifiers can be installed in a Ross 2-rack unit frame, and four amplifiers in a Ross 1-rack unit frame.
This amplifier also fits Leitch
*
6800-series frames.
Functional Block Diagram
Figure 1. Simplified Block Diagram of SEA-8008 Functions
*
Leitch is a trademark of Leitch Technology Corporation
1-2 • Introduction SEA-8008 User Manual (Iss. 05A)
Page 11
Features
The following features make the SEA-8008 the best solution for general SDI equalizing and
distribution:
• Accommodates SMPTE 259M and DVB/ASI signals from 143 Mb/s to 360Mb/s
• Automatic cable equalization to 305m (1000 ft.)
• Input signal present indicator
• Output waveform reshaping
• 8 Non-inverted Serial Digital Outputs
• Low cost
• Fault Reporting (SMPTE 269M)
• 5-year transferable warranty
Documentation Terms
The following terms are used throughout this guide:
• “Frame” refers to the DFR-8104A and DFR-8110A frames that house the SEA-
8008 card.
• All references to the DFR-8104A and DFR-8110A also include the
DFR-8104A-C and DFR-8110A-C versions with the cooling fan option. See the
respective User Manuals for details.
• “Operator” and “User” both refer to the person who uses the SEA-8008.
• “Board”, “Card”, and “Module” all refer to the SEA-8008 module itself, including
all components and switches.
• “System” and “Video system” refers to the mix of interconnected production and
terminal equipment in which the SEA-8008 operates.
SEA-8008 User Manual (Iss. 05A) Introduction • 1-3
Page 12
1-4 • Introduction SEA-8008 User Manual (Iss. 05A)
Page 13
Installation and Setup
In This Chapter
This chapter contains the following information sections:
• Static Discharge
• Unpacking
• Fault Reporting Setup
• Board Installation
• BNC Labels
• Cable Connections
• LEDs
ESD
Susceptibility
Static Discharge
Whenever handling the SEA-8008 and other related equipment, please observe all static discharge
precautions as described in the following note:
Static discharge can cause serious damage to sensitive
semiconductor devices. Avoid handling circuit boards in high
static environments such as carpeted areas, and when wearing
synthetic fiber clothing. Always exercise proper grounding
precautions when working on circuit boards and related
equipment.
Unpacking
Unpack each SEA-8008 you received from the shipping container, and check the contents against the
packing list to ensure that all items are included. If any items are missing or damaged, contact your
sales representative or Ross Video directly.
Fault Reporting Setup
See Chapter 3, “SMPTE 269M Fault Reporting” for complete details.
SEA-8008 User Manual (Iss. 05A) Installation and Setup • 2-1
Page 14
Board Installation
Use the following steps to install the SEA-8008 in a RossGear 8000 series digital distribution frame:
1. Refer to the User Manual of the RossGear 8000 series frame, to ensure that the
frame is properly installed according to instructions. If this module is to be installed
in any compatible frame other than a Ross Video product, refer to the frame
manufacturer’s manual for specific instructions.
2. Please note that heat and power distribution requirements within a frame may dictate
specific slot placement of cards. Cards with many heat-producing components
should be arranged to avoid areas of excess heat build-up, particularly in frames
using convectional cooling.
3. After selecting the desired frame installation slot, hold the SEA-8008 card by the
edges and carefully align the card edges with the slots in the frame. Then fully insert
the card into the frame until the rear connection plug is properly seated.
BNC Labels
Affix the supplied BNC label, as per the included instructions, to the BNC area on the rear of the rack
frame.
Cable Connections
This section provides instructions for connecting cables to the SEA-8008 when mounted in RossGear
8000 series Digital Products Frames. The cable connectors on the rear of the frame are marked for
distribution amplifiers having one input and eight outputs. The SEA-8008 cable connections match
the frame designations.
Connect the input and output cables according to the frame rear panel connections diagram in the
following figures. The inputs are internally terminated in 75 ohms. It is not necessary to terminate
unused outputs.

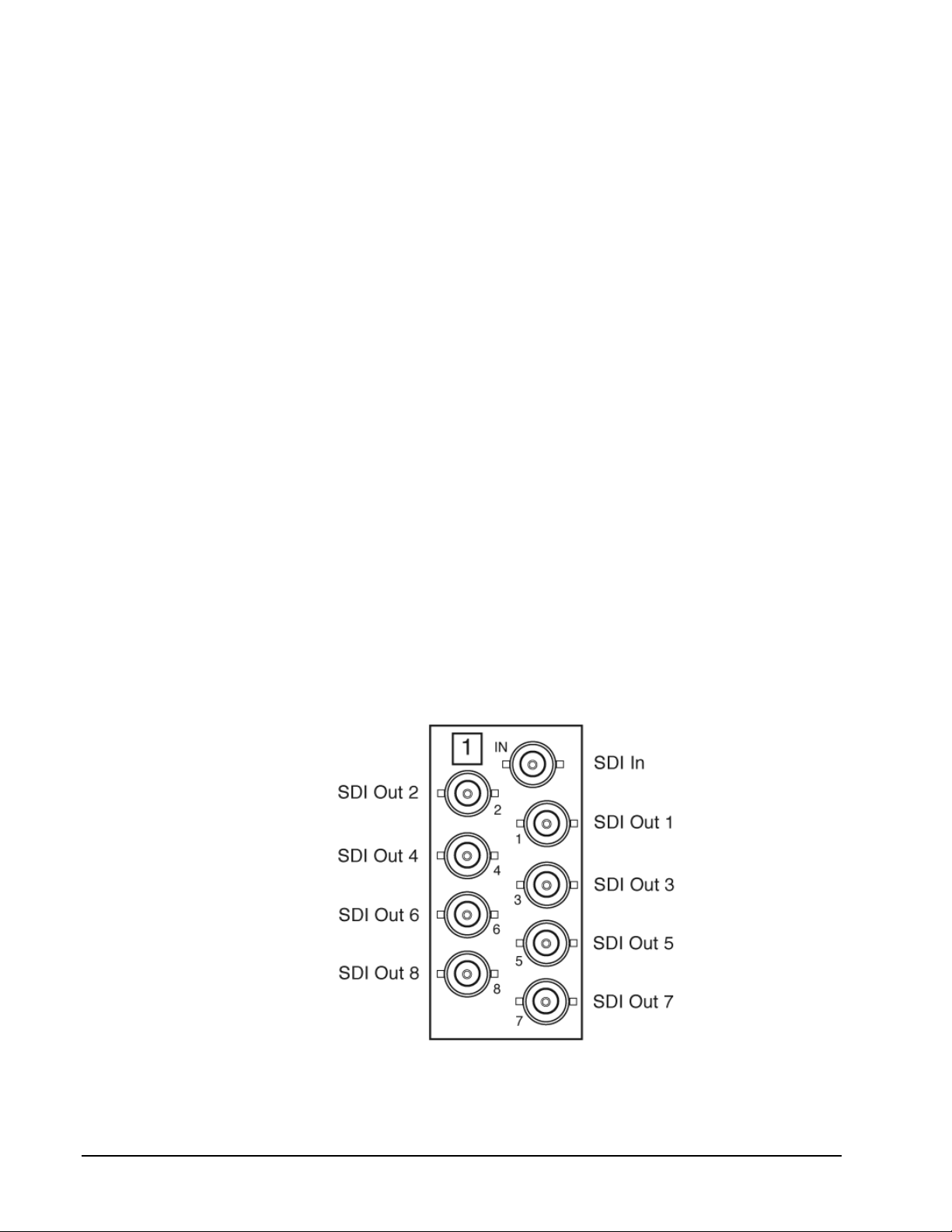

Figure 2. BNC designations for RossGear DFR-8110A (2RU frame)
2-2 • Installation and Setup SEA-8008 User Manual (Iss. 05A)
Page 15
LEDs
The front edge of the module has two LED indicators, which show the status of the amplifier. They are
described in the following figure and table.
INPUT OK LED
ERROR LED

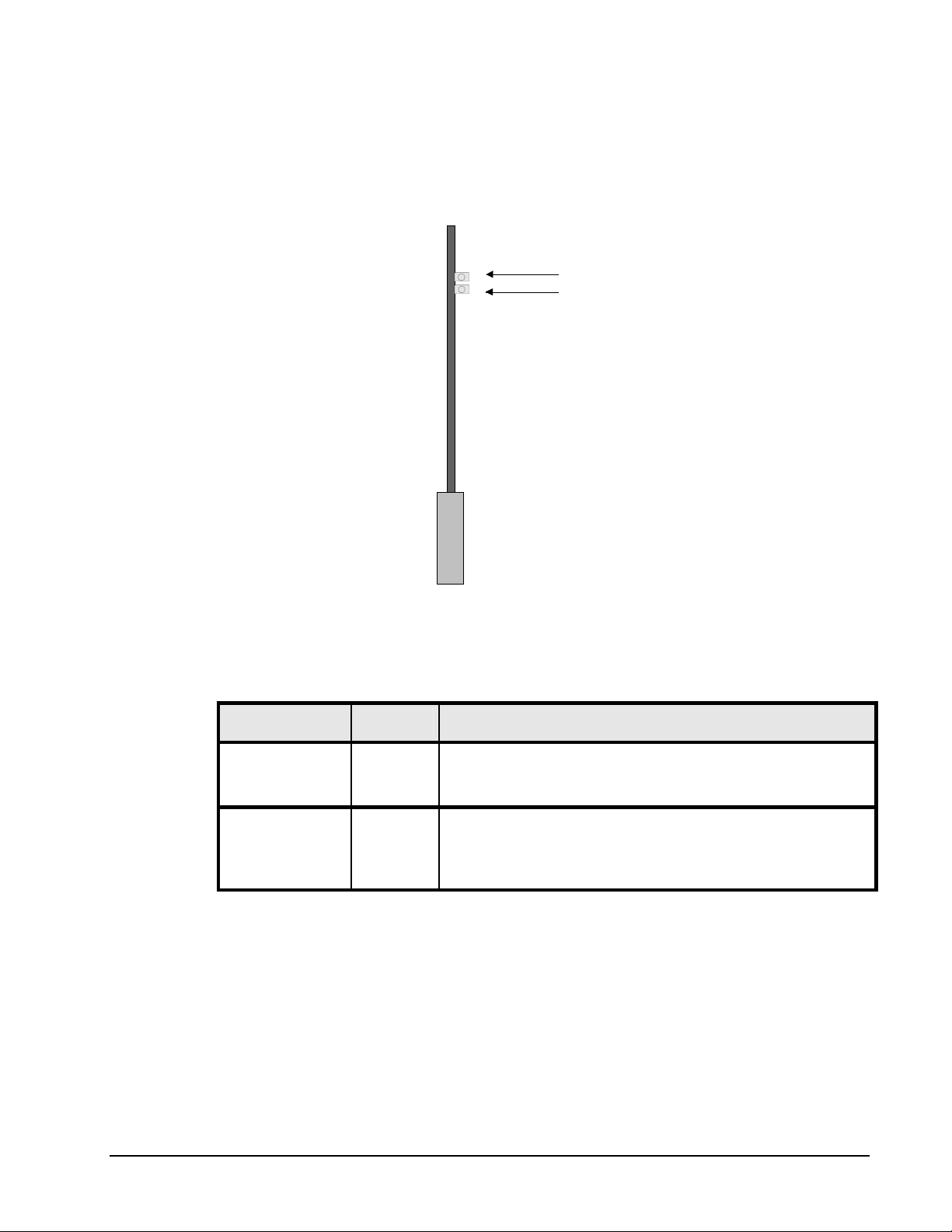

Figure 3. LEDs
Table 1. LED Status Indicator Descriptions
LED Color Status Description
When lit, the module is operating correctly. This indicates that the
INPUT OK Green
ERROR Red
input signal is suitable for achieving error-free performance, and is
within the capability of the cable equalizer to restore the signal.
When lit, the input signal is too low or absent. In some
circumstances, the signal may still be restored correctly but the
circuits will be working close to the limit of their capability, and
reliability cannot be assured.
SEA-8008 User Manual (Iss. 05A) Installation and Setup • 2-3
Page 16
2-4 • Installation and Setup SEA-8008 User Manual (Iss. 05A)
Page 17
SMPTE 269M Fault Reporting
In This Chapter
This chapter contains the following sections:
• Overview
• Jumper Setup
• Frame Connections
• Details
Overview
The SMPTE 269M Fault Reporting system, also known as a SMPTE “alarm”, provides indication if
one or more frame modules encounter a fault or an abnormal condition. The SEA-8008 module
provides a jumper to enable SMPTE-269M fault reporting. The card connects by means of an internal
interface circuit to an auxiliary telco connector on RossGear 8000 series frames. When the frame
connection is interfaced with a customer-designed system of LEDs or audible alarms, faults can be
traced to a specific frame when a card fault occurs within that frame.
The following diagram illustrates a general arrangement for SMPTE 269M alarm reporting:

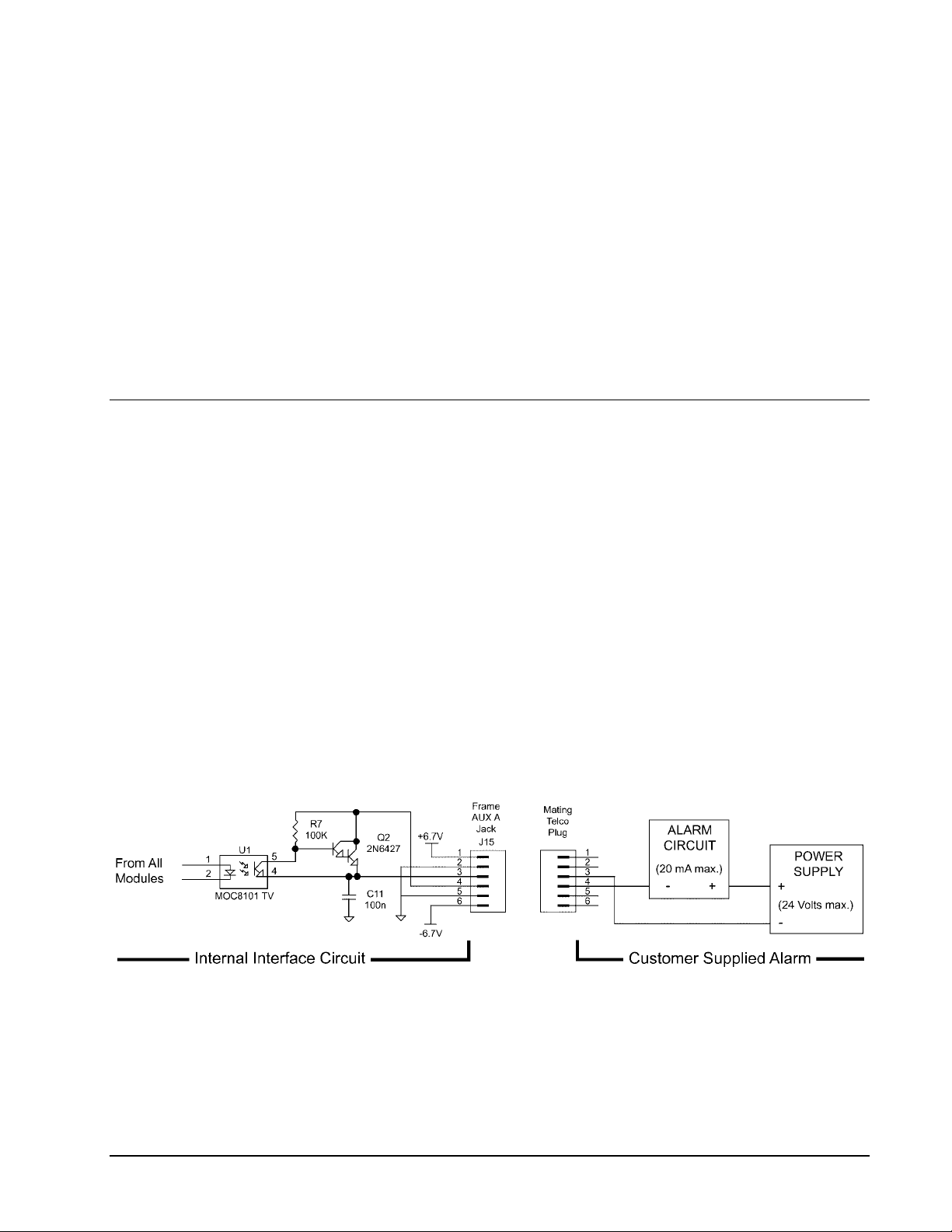

Figure 4. SMPTE 269M Alarm Reporting: Internal interface and typical connections
SEA-8008 User Manual (Iss. 05A) SMPTE 269M Fault Reporting • 3-1
Page 18
Jumper Setup
If fault reporting for the SEA-8008 is desired, use jumper JP2 - FAULT REPORT (269M) to set up
the card.
1. To access the jumper, remove the card from the frame by pressing down the white
card ejector tab and pulling the card from the frame slot.
2. Observing all static discharge and handling precautions, place the card with the
component side facing up on a clean flat surface.
3. To enable SMPTE fault reporting, set jumper JP2 to ENABLE position.
4. To disable SMPTE fault reporting, set jumper JP2 to DISABLE position.
Figure 5. SMPTE 269M Alarm Reporting Jumper Location
JP2
Frame Connections
The SMPTE 269M Fault Reporting connection on RossGear 8000 series frames is provided by the
auxiliary telco connector, AUX A, for interfacing with a customer-designed alarm system.
AUX A Connector for SMPTE 269M
Fault Reporting
Figure 6. SMPTE 269M Alarm Reporting Frame Connections
Details
The fault report contacts are closed when the card detects an internal failure or a power loss condition.
The fault report will pulse off for 1 to 2 ms about every 16ms if the input signal is low or missing.
Some internal failures are:
• Failure of the card to initialize
• Failure in the fault reporting circuitry
• Failure to detect a valid input signal to the card
For additional information on alarm system design, refer to the SMPTE document ANSI/SMPTE
269M - 1999.
3-2 • SMPTE 269M Fault Reporting SEA-8008 User Manual (Iss. 05A)
Page 19
Specifications
In This Chapter
This chapter contains the Technical Specifications table.
Technical Specifications
Category Parameter Specification
Number Of Inputs 1
Standards SMPTE 259M, DVB/ASI formats, NRZ or NRZI
Input Impedance 75Ω Terminating
SDI Input
Return Loss >30dB @ 19MHz >20dB 143 - 360MHz
Equalization
Common Mode Rejection >10Vp-p @ 50/60Hz
Table 2. Technical Specifications
Automatic up to 31dB (305m of Belden 8281 @
270Mb/s)*
Number Of Outputs 8
Output Impedance 75Ω
Return Loss >30dB @ 19MHz >19dB 143 - 360MHz
SDI Outputs
Power
* We recommend 200m or less of input cable due to jitter considerations
SEA-8008 User Manual (Iss. 05A) Specifications • 4-1
Signal Level 800mV +/- 10%
DC Offset 0 Volts +/- 50 mV
Rise and Fall Time (20 - 80%) 800ps Typical
Overshoot >8%
Delay (SDI Input to SDI Output) >6ns
Total Power Consumption <1.7W
Specifications are subject to change without notification.
Page 20
4-2 • Specifications SEA-8008 User Manual (Iss. 05A)
Page 21
Service Information
In This Chapter
This chapter contains the following sections:
• Troubleshooting Checklist
• Warranty and Repair Policy
Troubleshooting Checklist
Routine maintenance to this RossGear product is not required. In the event of problems with your
SEA-8008, the following basic troubleshooting checklist may help identify the source of the problem.
If the module still does not appear to be working properly after checking all possible causes, please
contact your Ross Video products distributor, or the Ross Video Technical Support department at the
numbers listed under the “Contact Us” section at the end of this manual.
1. Visual Review – Performing a quick visual check may reveal many problems, such
as connectors not properly seated or loose cables. Check the module, the frame, and
any associated peripheral equipment for signs of trouble.
2. Power Check – Check the power indicator LED on the distribution frame front
panel for the presence of power. If the power LED is not illuminated, verify that the
power cable is connected to a power source and that power is available at the power
main. Confirm that the power supplies are fully seated in their slots. If the power
LED is still not illuminated, replace the power supply with one that is verified to
work.
3. Reseat the Card in the Frame – Eject the card and reinsert it in the frame.
4. Check Control Settings – Refer to the Installation and Operation sections of the
manual and verify all user-adjustable component settings.
5. Input Signal Status – Verify that source equipment is operating correctly and that a
valid signal is being supplied.
6. Output Signal Path – Verify that destination equipment is operating correctly and
receiving a valid signal.
7. Module Exchange – Exchanging a suspect module with a module that is known to
be working correctly is an efficient method for localizing problems to individual
modules.
SEA-8008 User Manual (Iss. 05A) Service Information • 5-1
Page 22
Warranty and Repair Policy
The RossGear SEA-8008 is warranted to be free of any defect with respect to performance, quality,
reliability, and workmanship for a period of FIVE (5) years from the date of shipment from our
factory. In the event that your RossGear SEA-8008 proves to be defective in any way during this
warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment
with a unit of equal or superior performance characteristics.
Should you find that this RossGear SEA-8008 has failed after your warranty period has expired, we
will repair your defective product should suitable replacement components be available. You, the
owner, will bear any labor and/or part costs incurred in the repair or refurbishment of said equipment
beyond the FIVE (5) year warranty period.
In no event shall Ross Video Limited be liable for direct, indirect, special, incidental, or consequential
damages (including loss of profits) incurred by the use of this product. Implied warranties are
expressly limited to the duration of this warranty.
This RossGear SEA-8008 User Manual provides all pertinent information for the safe installation and
operation of your RossGear Product. Ross Video policy dictates that all repairs to the RossGear
SEA-8008 are to be conducted only by an authorized Ross Video Limited factory representative.
Therefore, any unauthorized attempt to repair this product, by anyone other than an authorized Ross
Video Limited factory representative, will automatically void the warranty. Please contact Ross Video
Technical Support for more information.
In Case of Problems
Should any problem arise with your RossGear SEA-8008, please contact the Ross Video Technical
Support Department. (Contact information is supplied at the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping
instructions, should you wish our factory to repair your RossGear SEA-8008. If required, a temporary
replacement module will be made available at a nominal charge. Any shipping costs incurred will be
the responsibility of you, the customer. All products shipped to you from Ross Video Limited will be
shipped collect.
The Ross Video Technical Support Department will continue to provide advice on any product
manufactured by Ross Video Limited, beyond the warranty period without charge, for the life of the
equipment.
5-2 • Service Information SEA-8008 User Manual (Iss. 05A)
Page 23
Ordering Information
In This Chapter
This chapter contains ordering information for the SEA-8008 and related products.
SEA-8008 and Related Products
Standard Equipment
• SEA-8008 Serial Equalizing Amplifier
• 8008DR-004 Serial Equalizing Amplifier User Manual
Optional Equipment
• 8008DR-004 Serial Equalizing Amplifier User Manual
(additional User Manual)
• DFR-8104A Digital Products Frame and Power Supply (PS-8102)
(1RU, holds 4 modules, includes 1 power supply)
• DFR-8104A-C Digital Products Frame with Cooling Fan Module
and Power Supply (PS-8102)
(1RU, holds 4 modules, includes 1 power supply)
• DFR-8110A Digital Products Frame and Power Supply (PS-8102)
(2RU, holds 10 modules, includes 1 power supply)
• DFR-8110A-C Digital Products Frame with Cooling Fan Module
and Power Supply (PS-8102)
(2RU, holds 10 modules, includes 1 power supply)
Your SEA-8008 Serial Equalizing Amplifier is a part of the RossGear family of products. Ross Video
offers a full line of RossGEAR terminal equipment including distribution, conversion, monitoring,
synchronizers, encoders, decoders, keyers, switches, as well as analog audio and video products.
SEA-8008 User Manual (Iss. 05A) Ordering Information • 6-1
Page 24
Contact Us
Contact our friendly and professional support representatives for the following:
• Name and address of your local dealer
• Product information and pricing
• Technical support
• Upcoming trade show information
General Business Office
and Technical Support
PHONE
After-hours Emergency
Fax
General Information
E-MAIL
Technical Support
Ross Video Limited
POSTAL
SERVICE
Ross Video Incorporated
Visit Us
Please visit us at our website for:
• Company information
• Related products and full product lines
• On-line catalog
• Trade show information
• News
• Testimonials
613 • 652 • 4886
613 • 652 • 4886 ext. 333
613 • 652 • 4425
solutions@rossvideo.com
techsupport@rossvideo.com
8 John Street,
Iroquois, Ontario, Canada
K0E 1K0
P.O. Box 880,
Ogdensburg, New York, USA
13669-0880
Loading...
