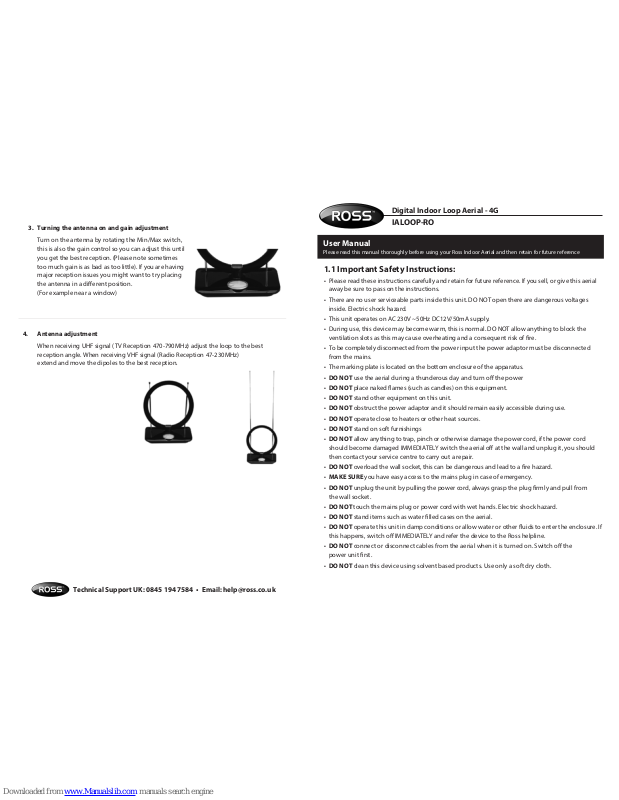

Ross IALOOP-RO User Manual
Digital Indoor Loop Aerial - 4G
IALOOP-RO
User Manual
Please read this manual thoroughly before using your Ross Indoor Aerial and then retain for future reference
1.1 Important Safety Instructions:
• Please read these instructions carefully and retain for future reference. If you sell, or give this aerial
away be sure to pass on the instructions.
• There are no user serviceable parts inside this unit. DO NOT open there are dangerous voltages
inside. Electric shock hazard.
• This unit operates on AC 230V ~50Hz DC12V/50mA supply.
• During use, this device may become warm, this is normal. DO NOT allow anything to block the
ventilation slots as this may cause overheating and a consequent risk of re.
• To be completely disconnected from the power input the power adaptor must be disconnected
from the mains.
• The marking plate is located on the bottom enclosure of the apparatus.
• DO NOT use the aerial during a thunderous day and turn o the power
• DO NOT place naked ames (such as candles) on this equipment.
• DO NOT stand other equipment on this unit.
• DO NOT obstruct the power adaptor and it should remain easily accessible during use.
• DO NOT operate close to heaters or other heat sources.
• DO NOT stand on soft furnishings
• DO NOT allow anything to trap, pinch or otherwise damage the power cord, if the power cord
should become damaged IMMEDIATELY switch the aerial o at the wall and unplug it, you should
then contact your service centre to carry out a repair.
• DO NOT overload the wall socket, this can be dangerous and lead to a re hazard.
• MAKE SURE you have easy access to the mains plug in case of emergency.
• DO NOT unplug the unit by pulling the power cord, always grasp the plug rmly and pull from
the wall socket.
• DO NOT touch the mains plug or power cord with wet hands. Electric shock hazard.
• DO NOT stand items such as water lled cases on the aerial.
• DO NOT operate this unit in damp conditions or allow water or other uids to enter the enclosure. If
this happens, switch o IMMEDIATELY and refer the device to the Ross helpline.
• DO NOT connect or disconnect cables from the aerial when it is turned on. Switch o the
power unit rst.
• DO NOT clean this device using solvent based products. Use only a soft dry cloth.
3. Turning the antenna on and gain adjustment
Turn on the antenna by rotating the Min/Max switch,
this is also the gain control so you can adjust this until
you get the best reception. (Please note sometimes
too much gain is as bad as too little). If you are having
major reception issues you might want to try placing
the antenna in a dierent position.
(For example near a window)
4. Antenna adjustment
When receiving UHF signal (TV Reception 470-790MHz) adjust the loop to the best
reception angle. When receiving VHF signal (Radio Reception 47-230MHz)
extend and move the dipoles to the best reception.
Technical Support UK: 0845 194 7584 • Email: help@ross.co.uk
4.0 Product Features
Please nd details of the Ross Digital Indoor Loop Aerial features below:
• Built-in LTE/4G lters to avoid interference from 4G mobile phone signals
• Receives full HD television, digital signals and DAB radio programs: for reception of local and
regional UHF and VHF signals as well as FM radio signals
• Adjustable wide band amplier for the best picture and sound reception
• Signal clear technology with extremely low noise and high gain circuitry
• Adjustable loop aerial for the best UHF reception
• Telescopic dipoles for best VHF and FM reception
• On/O switch for energy saving
• Ultra slim design
• Attractive “piano” Black nish
5.0 Installation
The Ross Digital Indoor Loop Aerial is quick and easy to install please follow the below instructions
1. Power Connection
Connect the coaxial cable to the TV’s RF input socket
2. Connect the aerial to the TV
Connect the AC adaptor to the DC12V/50mA jack
at the back of the aerial and plug the AC adaptor
into a standard AV outlet
1.2 General Information
• Thank you for choosing the Ross Digital Indoor Loop Aerial – 4G. Treated with care and used
in accordance with the contents of this manual it will provide many years of reliable service
• This symbol indicates that, at the end of its useful life, this product must not be
disposed of with normal domestic waste. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please recycle it responsibly.
• This product conforms to all applicable EU legislation for this type of product. Further
information can be obtained from Ross if required.
• Please note in order to receive digital TV signals you will require a digital box of some
description.
2.0 In the Box:
Please open your box carefully and check the contents which should be as the list below: If
anything is missing please contact the Ross helpline or return the product to the point of
purchase.
• Aerial
• Power supply
3.0 Product Specications
Please nd the detailed specications for Ross Digital Indoor Loop Aerial below:
• Reception Channels: 2-12, 21-60
• Frequency: VHF: 47-230MHz UHF: 470-790MHz
• Max Noise Figure: 1.5/1.8dB (VHF/UHF)
• VSWR (Voltage Standing Wave Ratio) <2.5
• Max Output Level: 90dBµV
• 3dB Beam Width: ±24˚/ ±26˚ (VHF/UHF)
• Input Voltage: AC 230V ~ 50Hz
• Working Voltage: DC12V/50mA
• Impedance (Ω): 75
• Connector: IEC-Connector
