Ross HDT2-5101 User Manual
DVB-T2 HD Terrestrial Receiver
User Manual
MODEL NUMBER
HDT2-5101
Please read this Manual thoroughly before using your
Receiver and then retain for future reference.
Contents
1. Important Instructions p1
1.1 Safety Instructions p1
1.2 General Information p2
2. In the Box p2
3. Controls and Functions p3
3.1 Front Panel p3
3.2 Rear Panel p3
3.3 Remote Control p4
3.4 Remote Control Functions p5
4. Getting Started p7
4.1 Installing Batteries in your Remote Control p7
4.2 Using your Remote Control p7
4.3 Connecting your Receiver p7
4.4 Operating your Receiver p9
4.5 EPG p9

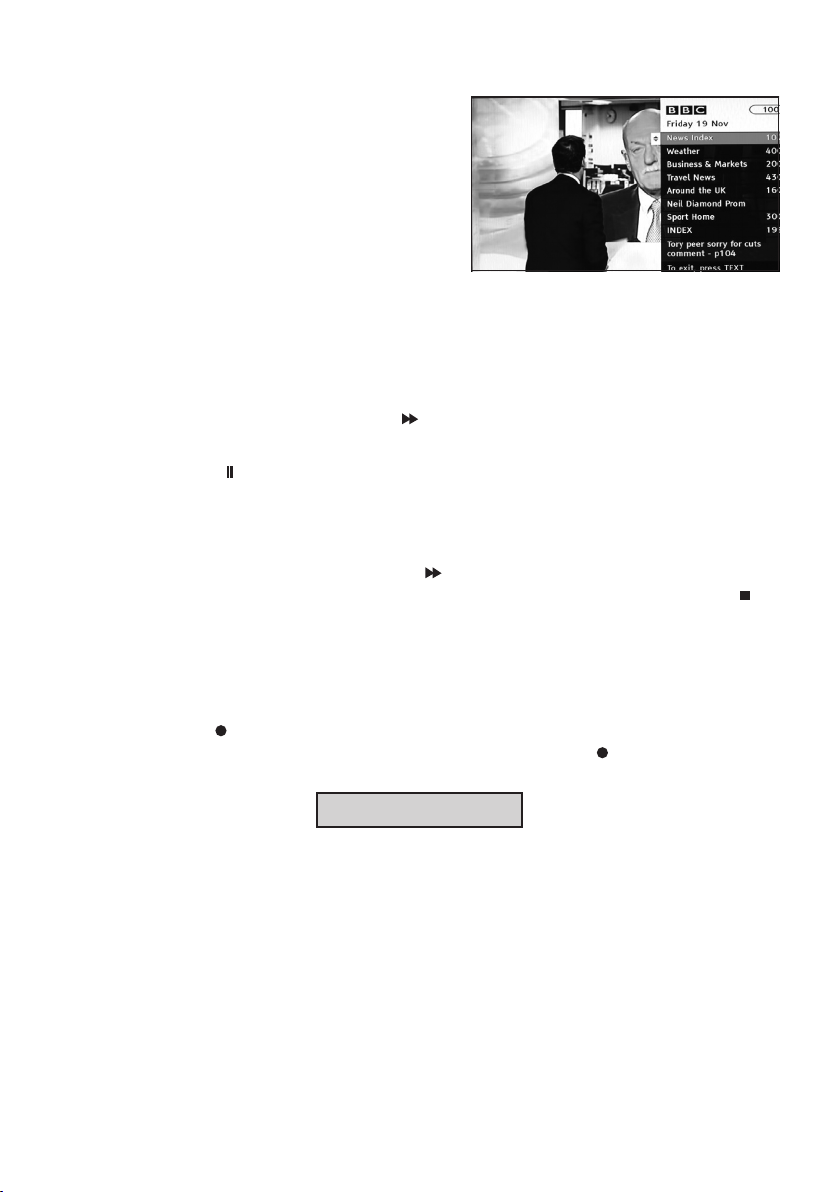

4.6 Digital Interactive Text p10
4.7 Live Pausing your Programme p10
4.8 OTR Recording p10
4.9 Channel List and Favourite List p10
5. The Main Menu p11
5.1 Installation Menu p11
5.2 Channel Menu p13
5.3 Preference Menu p14

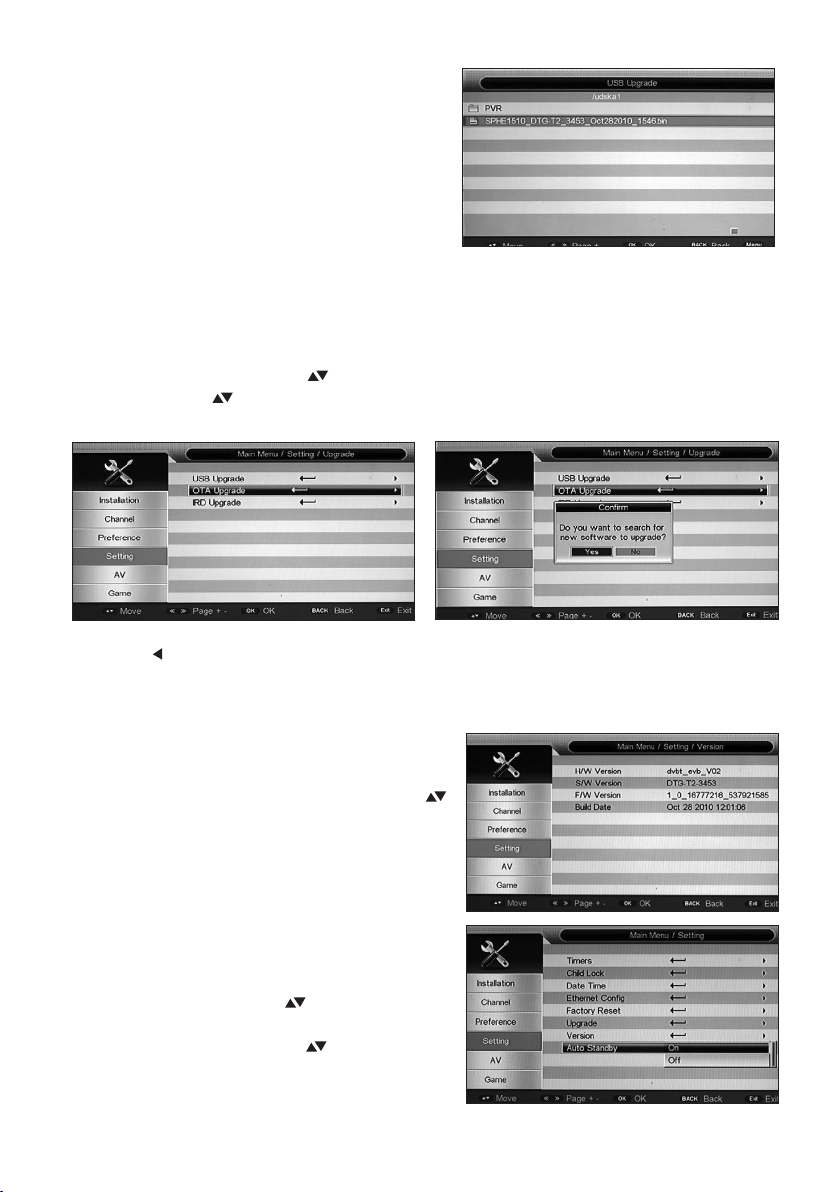

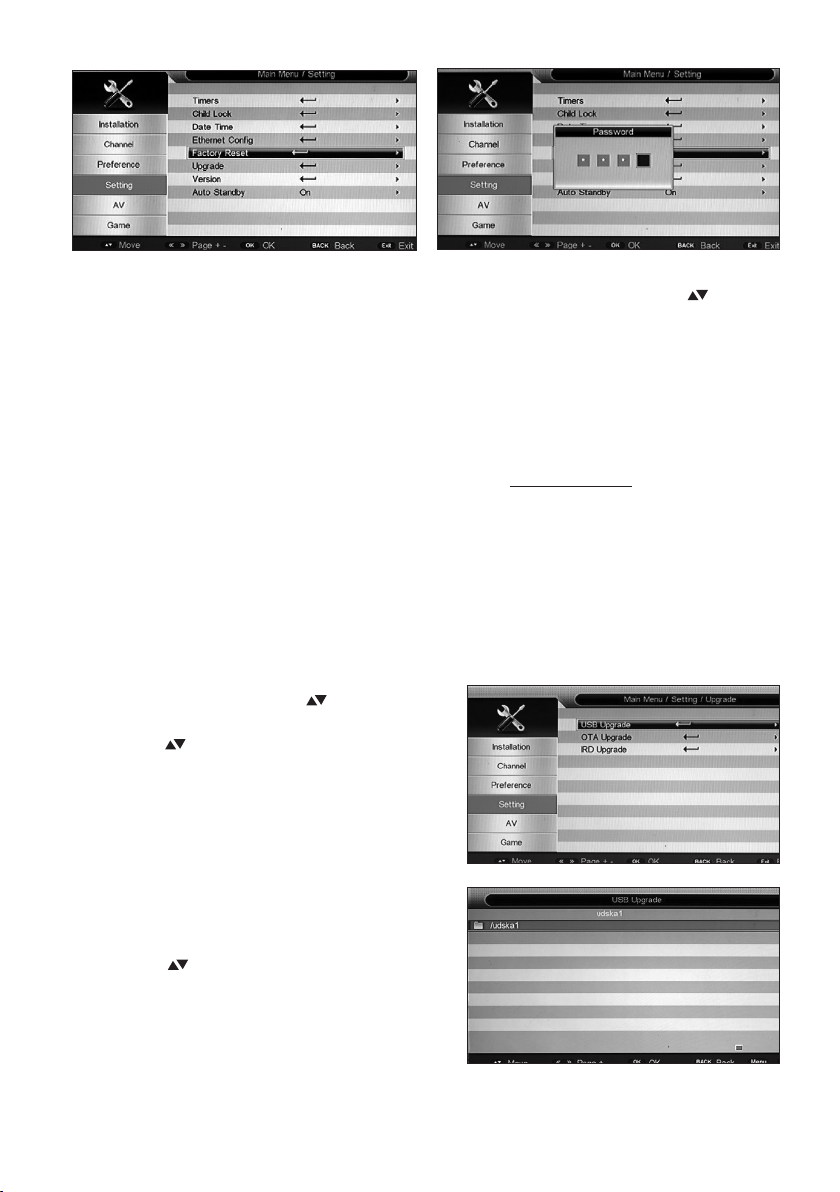

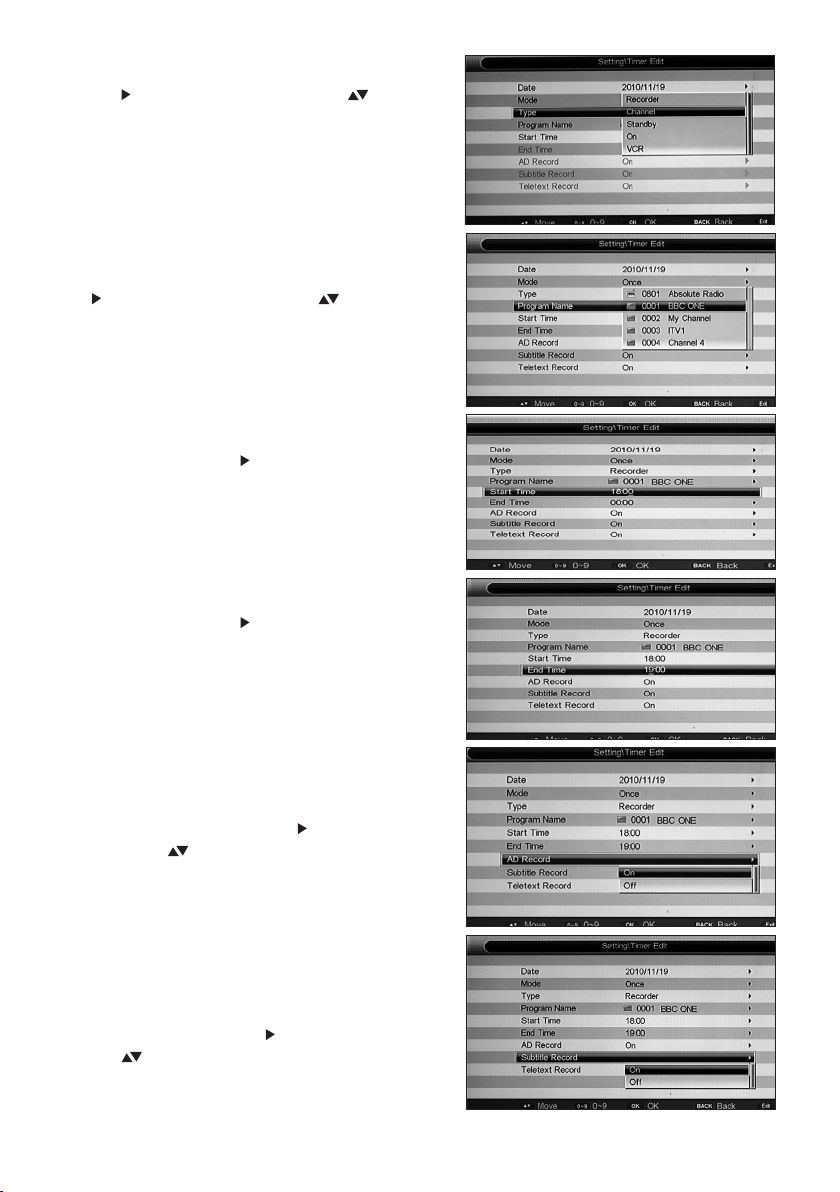

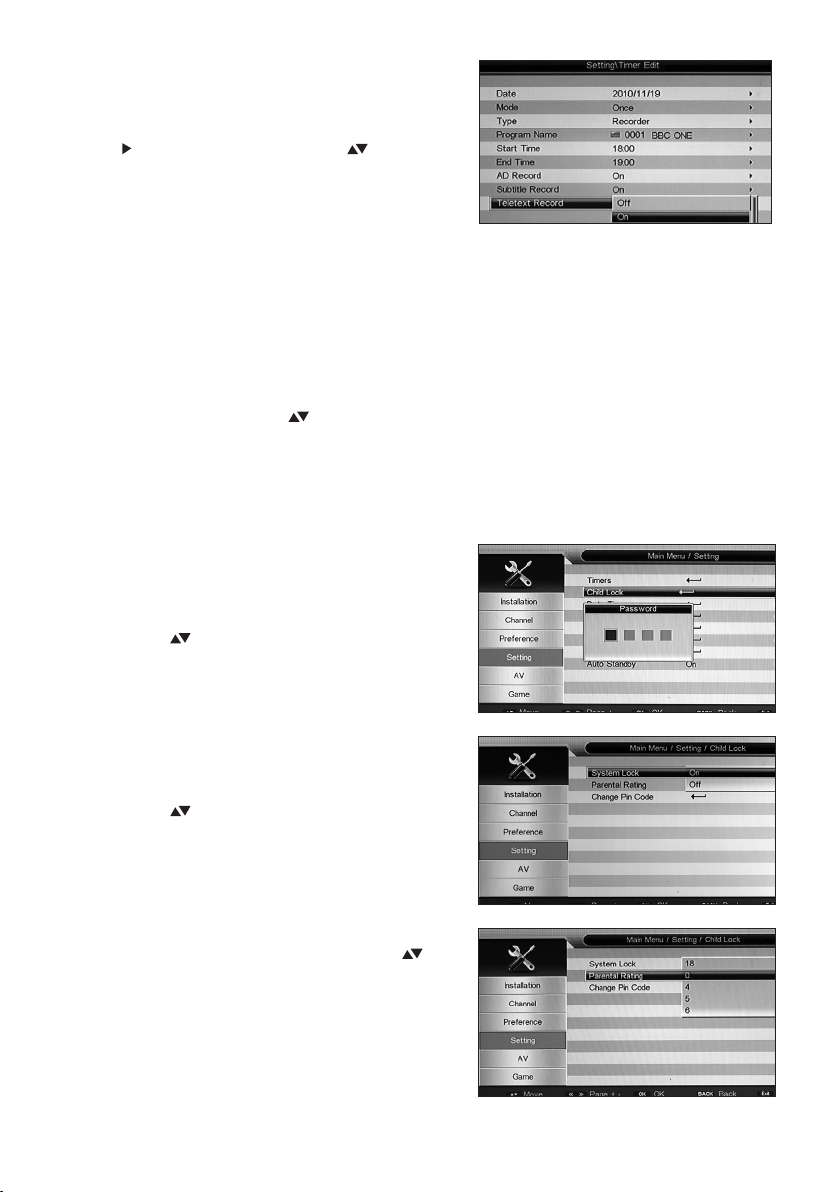

5.4 Setting Menu p16

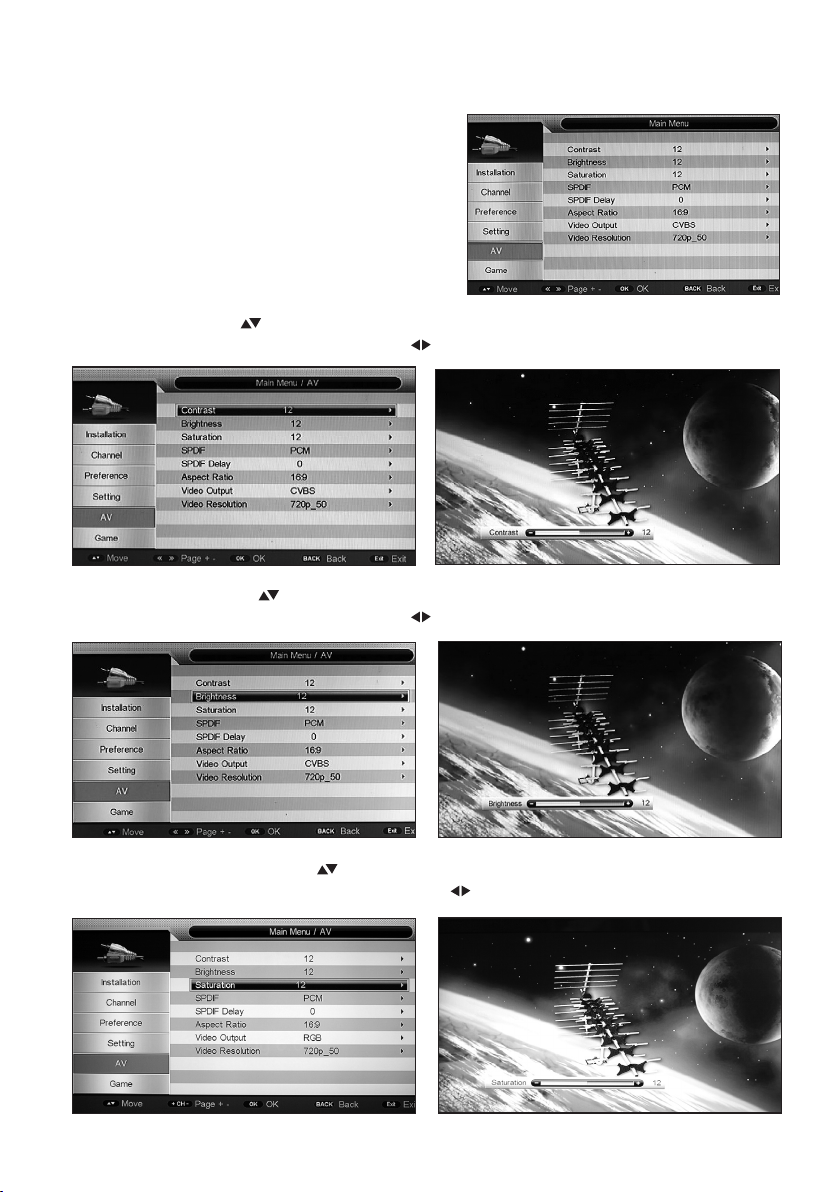

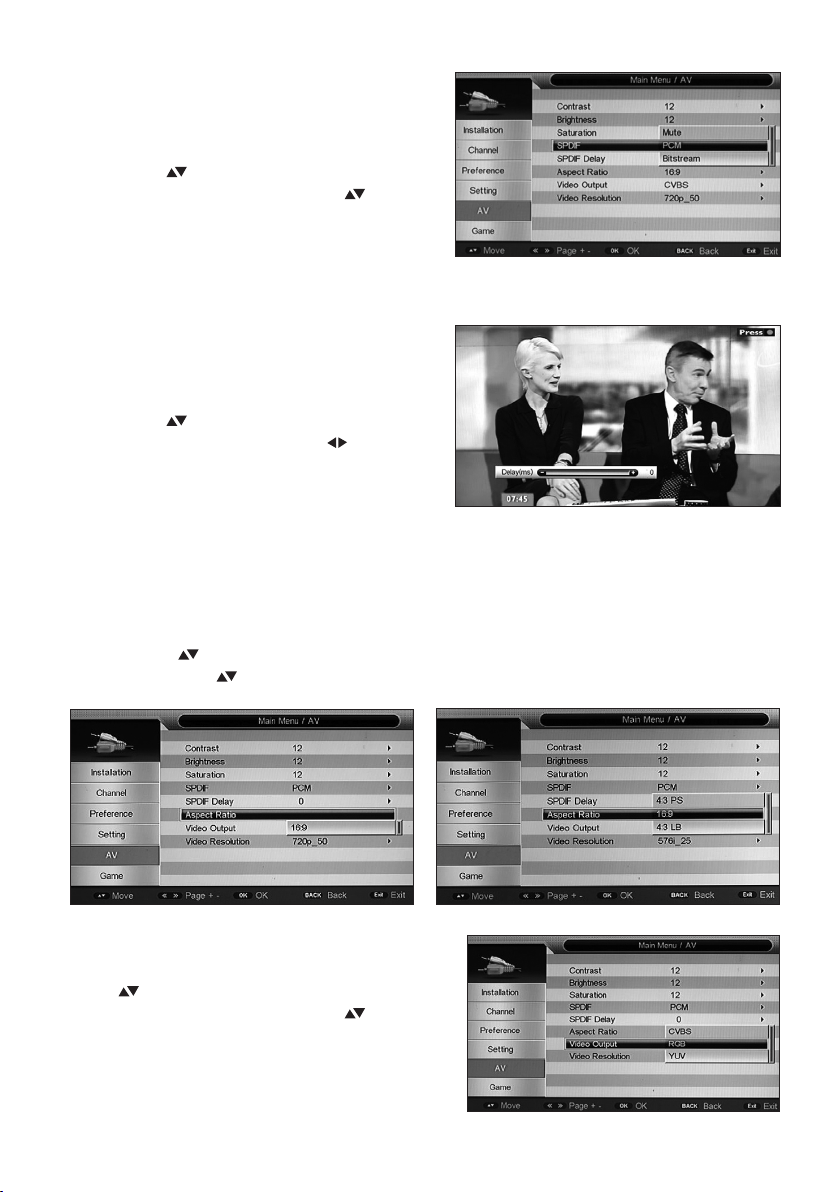

5.5 AV (Audio/Video) p22

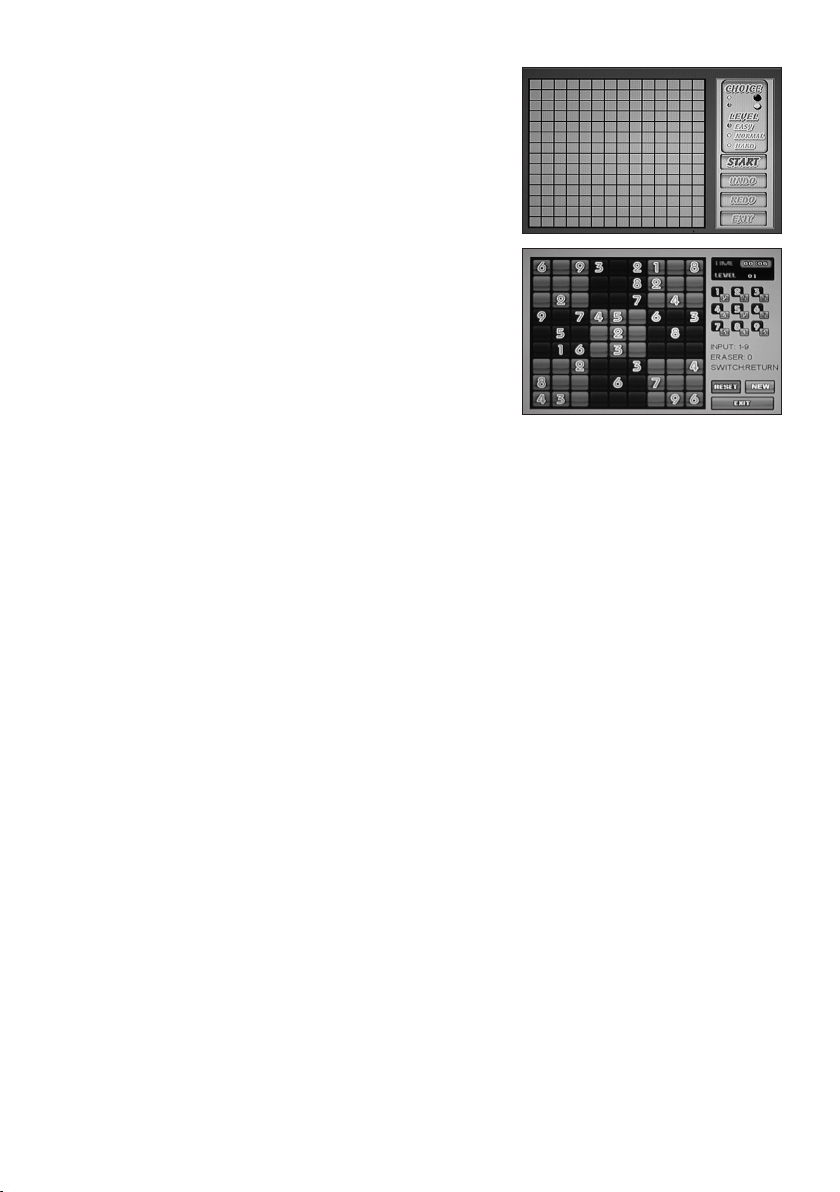

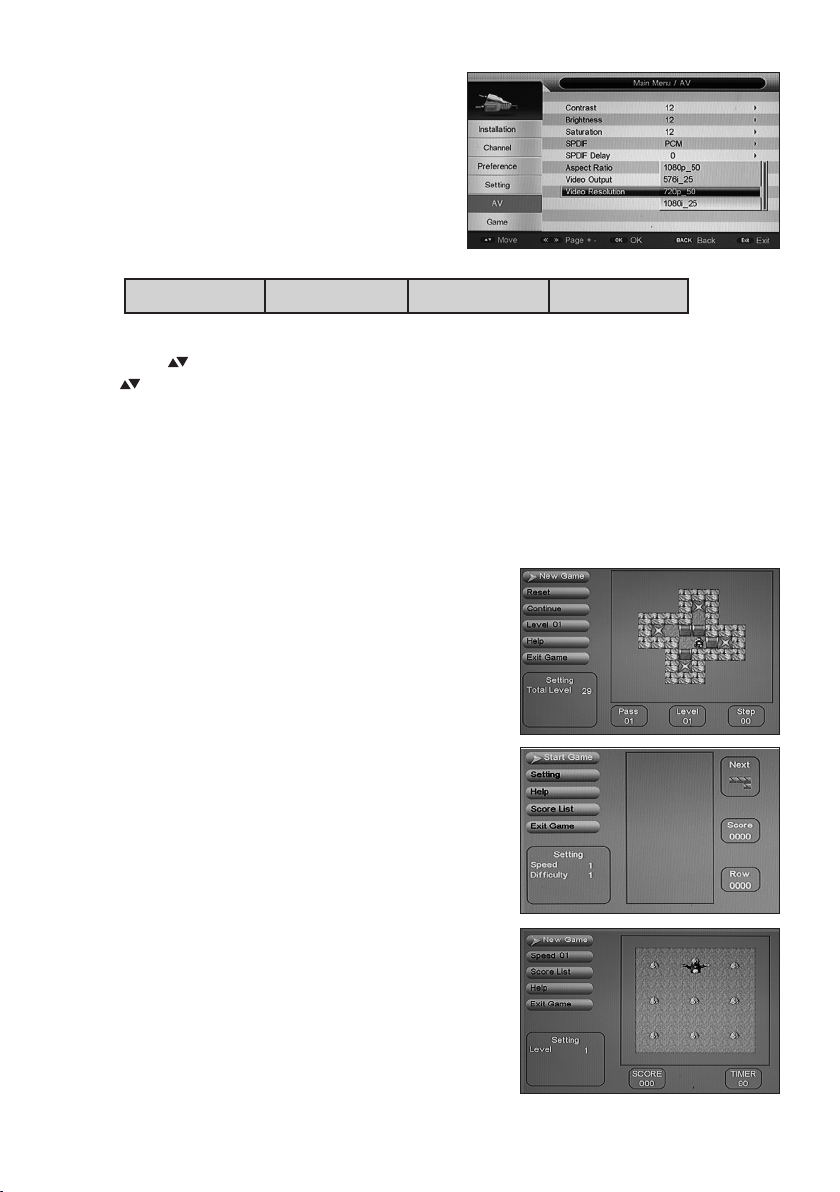

5.6 AV Games p24
6. Recording, Playback and Media Functions p25
6.1 Compatible Recording Media p25
6.2 Disk Space Requirements for Recording p25
6.3 Recording p26
6.4 Playback p26

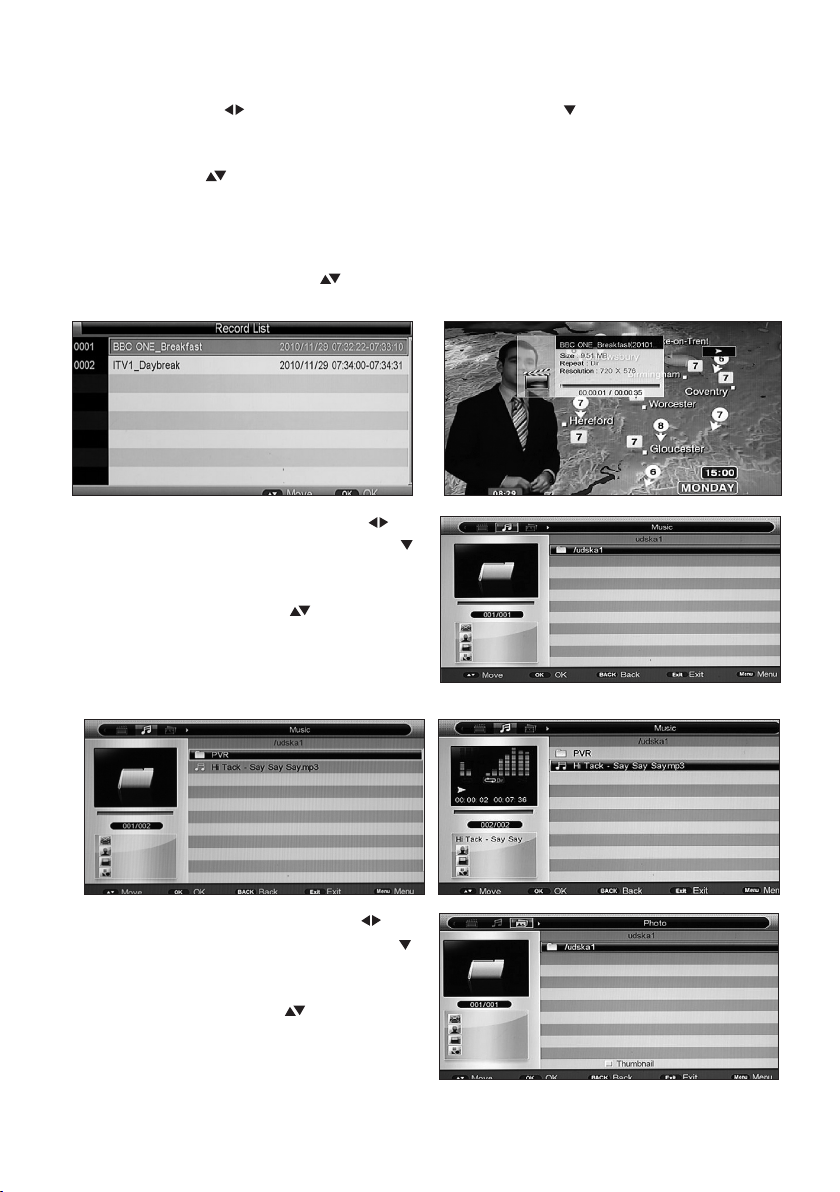

6.5 Playback of Movie Files or Recording p26
6.6 Playback of Music Files p27

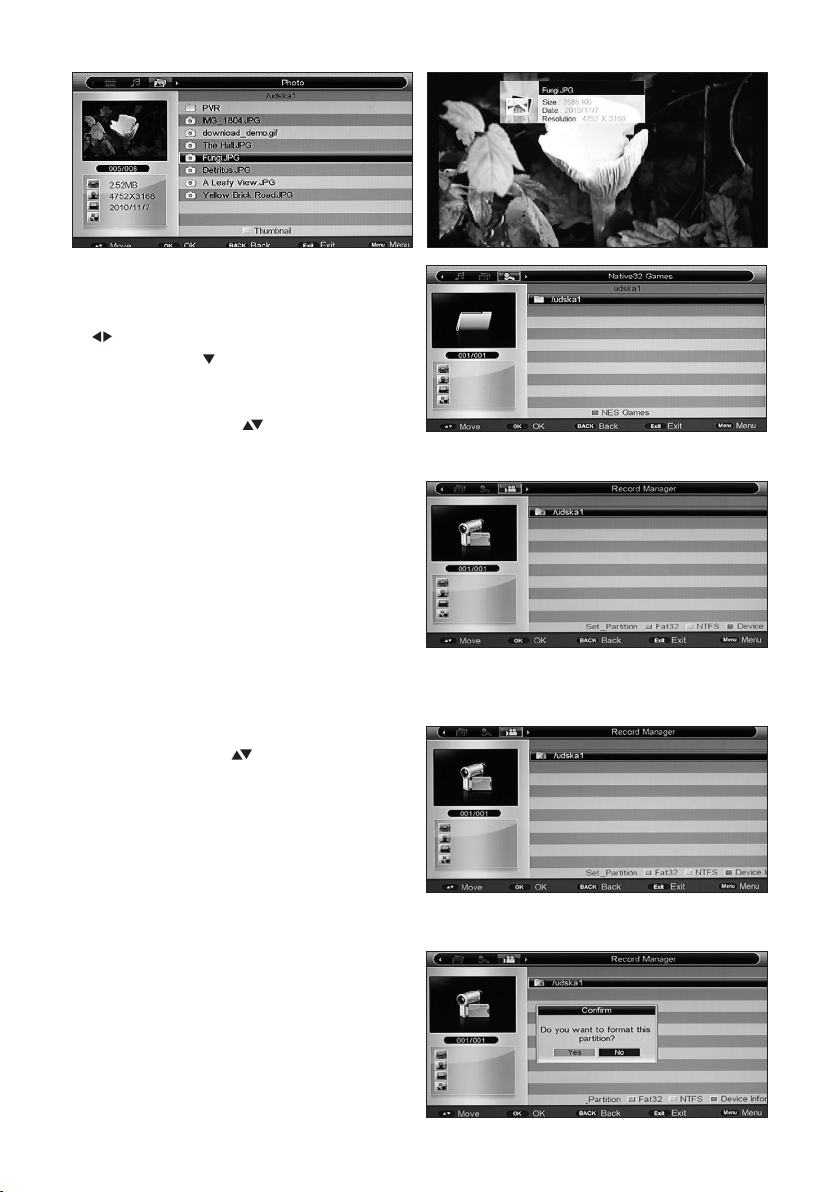

6.7 Playback of Photo Files p27
6.8 Native 32 Games p28

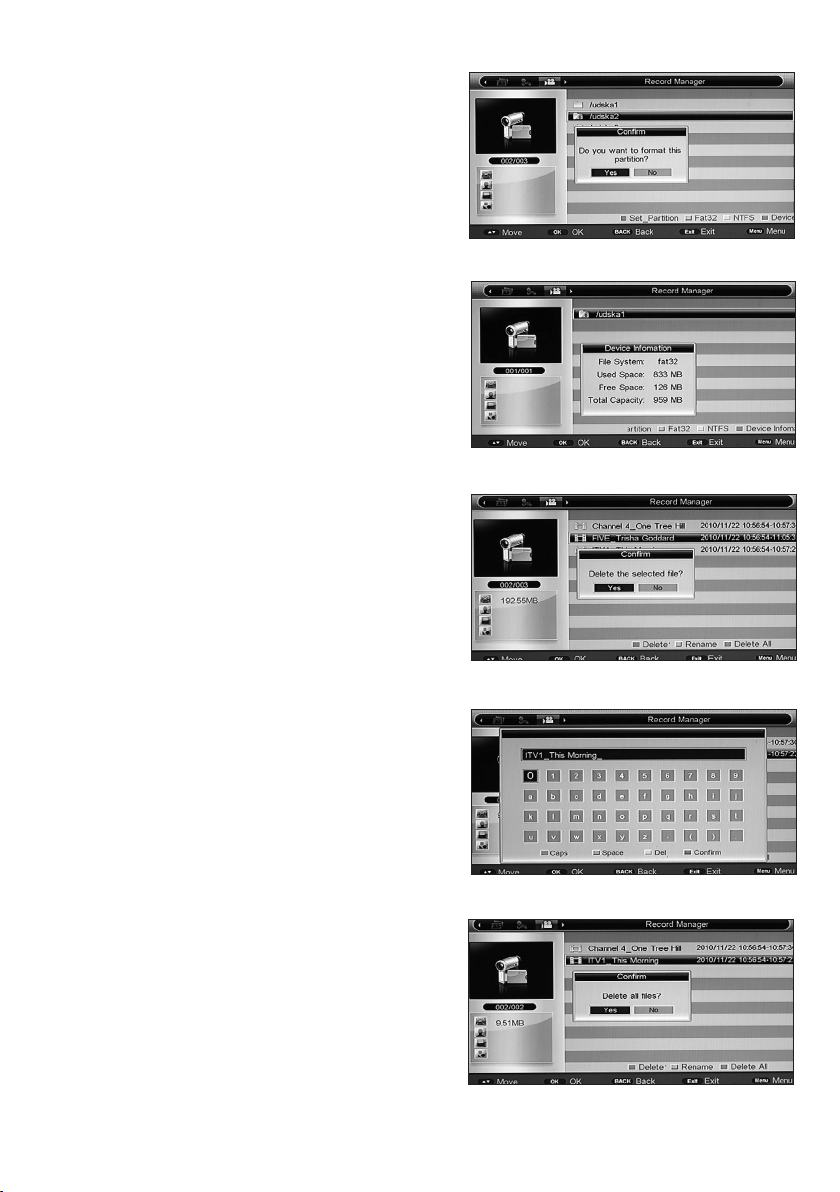

6.9 Record Manager p28
6.10 Disk Manager p30
6.11 E-Book Option p30
7. Trouble Shooting p31
8. Specication p32
1.0 Important Instructions
1.1 Safety Instructions
• Please read these Instructions carefully and retain for future reference. If you sell, or give
this receiver away be sure to pass on these Instructions.
• There are NO user serviceable parts inside this unit. DO NOT remove the cover, there
are dangerous voltages inside. Electric shock hazard.
• Refer all repairs to your authorised Service Centre.
• This unit operates from a 220~240V 50Hz Supply. Consumption is 20W.
• During use, this device may become warm, this is normal, it is not a fault. DO NOT
allow anything to block the ventilation slots as this may cause overheating. Risk of fire.
• DO NOT place naked flames (such as candles) on this equipment.
• DO NOT stand other equipment on this unit.
• DO NOT stand containers (such as vases) filled with water or other liquids on this unit.
• DO NOT stand on soft furnishings.
• DO NOT operate close to heaters or other heat sources.
• DO NOT allow anything to trap, pinch or otherwise damage the Power Cord. If the
Power Cord should become damaged IMMEDIATELY switch if off at the wall socket and
then unplug it. Contact your Service centre to carry out a repair.
• DO NOT unplug this unit by pulling the Power Cord. Grasp the plug firmly and pull from
the wall socket. Electric shock hazard.
• DO NOT operate this unit in damp conditions or allow water or other fluids to enter the
enclosure. Electric shock hazard.
• DO NOT touch the Mains Plug or Power Cord with wet hands. Electric shock hazard.
• DO NOT use this Receiver outside. It is for indoor use only. Electric shock hazard.
• DO NOT clean your receiver using solvent based products. Use only a soft dry cloth
• MAKE SURE you have easy access to the Mains Plug in case of emergency.
1
1.2 General Information
• Thank you for purchasing a Ross DVB-T2 HD Terrestrial Receiver. Treated with care and
used in accordance with the contents of this manual it will provide you with many years of
reliable service.
• This Digital DVBT2 HD Receiver offers many useful and exciting features to enhance your
enjoyment including an 8 Day EPG, full MHEG5 Interactive Text and the ability (with an
externally connected USB Memory device) to both Record and Live Pause programmes.
It is also able to playback Multimedia files.
• Please note that the Digital DVB-T service is not yet available in all parts of the country.
When you purchased your Receiver your retailer should have already checked that you live
in an area where Digital Broadcasts are available. However if you are experiencing
difficulties then go to http://www.freeview.co.uk/availability where you can check to see if
broadcasts are available in your area. This site will also indicate when HD Broadcasts
can be received.
• If you are in an existing Digital area but cannot receive some or all of the available
Programmes then ask your local Aerial Installers to check your Antenna as this may
require upgrading.
• This symbol indicates that, at the end of its useful life, this product must
not be disposed of with normal domestic waste. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
please recycle it responsibly. You can return your used device using the
return and collection service or contact the retailer where the product was
purchased.Batteries used in operating this product may contain toxic
agents that are hazardous to the environment. Therefore, as with the unit
itself, dispose of the batteries according to the prevailing statutory regulations. Never
put the batteries in normal household waste.
• This environmentally friendly Product complies with the RoHS Directive
(2002/95/EC) for the control of restricted substances (Pb, Hg, Cd, Cr6+,
PBB and PBDE).
• This receiver conforms to all applicable EU Legislation for this type of product.
Further information can be obtained from Ross if required.
2.0 In the Box:
• Ross HDT2-5101 DVB-T2 HD Receiver
• Remote Control (NOTE: 2 x AAA Batteries not included)
• User Manual
2
3.0 Controls & Functions:
3.1 Front Panel
A
D
- Volume Down Button - OK
A
- Channel Up Button - On LED Indicator
B
- Volume Up Button - Standby LED Indicator
C
D
- Standby Button - 7 Segment Display
E
- Menu
F
- Channel Down Button
E F G I J
C
B H
G
H
I
J
3.2 Rear Panel
A
B
C
D
E
A
- TV Antenna In - Loop Out - HDMI
- S/PDIF Optical - TV Scart - Ethernet
B
- Component Video - Audio Right
C
D
- USB - Audio Left
F
H I JG
E
F
G
H
I
J
3
3.3 Remote Control
MUTE
1
POWER (STANDBY)
22
NUMERIC KEYS (0-9)
TV/RADIO
TEXT
AUDIO
VOL +
A.RATIO
VOL -
RED Button
GREEN Button
CURSOR UP
CURSOR LEFT
MENU
V-FORMAT
BACK
PLAY /PAUSE
STOP
FAST REVERSE
FAST FORWARD
GOTO
AUDIO DESCRIPTOR/A-B
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
OK
FAV
23
24
EPG
SUB
25
CH/PAGE+
26
INFO
27
CH/PAGE-
28
BLUE Button
29
YELLOW Button
30
CURSOR RIGHT
31
32
OK
33
CURSOR DOWN
34
EXIT
SOURCE
35
REC LIST
36
DEV (Device)
37
38
RECORD
39
NEXT
40
PREVIOUS
41
PAUSE
42
PLAY
4
3.4 Remote Control Functions
Button Function
MUTE: Press to MUTE the sound, press again to cancel. You can also press the VOL +
1
or VOL – to cancel the MUTE function.
NUMERIC KEYS: For direct entry of CHANNEL NUMBERS as well as TIME and
2
DATE information.
3
TV/RADIO: Switch between TV and Radio Programmes
TEXT: Accesses digital and interactive text services, Not all providers transmit text.
4
AUDIO: Press to access Audio information on the current programme . Here you can
5
select LEFT, RIGHT, STEREO or change language (content dependent)
6
VOL +: Press to increase the Volume.
7
A.RATIO: Adjusts the Aspect ratio of the Receiver to match your TV.
VOL -: Press to decrease the Volume.
8
RED Button: Content dependent when in TEXT or EPG etc.
9
GREEN BUTTON: Content dependent when in TEXT or EPG etc.
10
CURSOR UP: Moves the Cursor up when in MENU, EPG, CHANNEL LIST or
11
CURSOR LEFT: Moves the Cursor left when in MENU, EPG, CHANNEL LIST or
12
FAVOURITE modes.
13
MENU: Accesses the MENU options
V.FORMAT: Select the resolution you require from 480p through to 1080p at a variety
14
of frame rates.
BACK: Returns you to the previously viewed Programme or goes back one step
15
when in MENU mode.
16
PLAY /PAUSE: Used in MHEG5 only for video content etc.
17
STOP: Stops Playback
18
FAST REVERSE: Choose from X2, X4, X8 and X16 when playing back recordings etc.
19
FAST FORWARD: Choose from X2, X4, X8 and X16 when playing back recordings etc.
20
GOTO: Enables you to move to a particular time within a recording
AUDIO DESCRIPTOR: Engages audio description function.
21
A-B: Allows a loop of video to be continuously played.
POWER: Switches on the Power or switches the Receiver to STANDBY mode.
22
FAV: Brings up the FAVOURITE screen allowing FAVOURITE PROGRAMMES to be
23
stored in one of four available lists.
EPG: Accesses the Electronic Programme Guide. Here you can choose a Programme to
24
watch or set a Reminder or a future Record event (Memory device required to
record).
5
Button Function
25
SUB: Enables SUBTITLES to be turned on or off.
26
CH / PAGE +: Press to increment the Channel or Page
27
INFO: Provides Information on the Programme being currently viewed.
Press a second time to view a brief resume of the Programme. Press again to exit.
28
CH / PGE - : Press to decrement the Channel or Page.
29
BLUE BUTTON: Content dependent when in TEXT or EPG etc.
YELLOW BUTTON: Content dependent when in TEXT or EPG etc.
30
CURSOR RIGHT: Moves the Cursor right when in MENU, EPG, CHANNEL LIST or
31
FAVOURITE modes.
OK: Conrmaselection
32
CURSOR DOWN: Moves the Cursor down when in MENU, EPG, CHANNEL LIST or
33
FAVOURITE modes.
34
EXIT: Exit from a MENU or from the EPG
35
SOURCE: Takes you to the MULTIMEDIA functions. A MEMORY DEVICE must be
installed for the functions in this MENU to be active.
REC LIST: Accesses a list of all the current Programme recordings on your external
36
USB Device
DEV: Provides access to the attached USB Memory device
37
RECORD: Press to RECORD the programme being currently viewed. Press record a
38
second time to set the duration of the recording in the on screen pop up box.
39
NEXT: Selects next recording or track
40
PREVIOUS: Selects previous recording or track.
41
PAUSE: ToPAUSEaprogrammeyouhaverecordedoramultimedialethatyouare
playing. When in viewing mode press to LIVE PAUSE the current programme.
42
PLAY: ToPLAYaprogrammeyouhaverecordedoramultimediale.Presstocontinue
watching a programme that you have LIVE PAUSED.
6
4.0 Getting Started:
4.1 Installing Batteries in your Remote Control
• Remove the Battery Compartment cover by sliding it downwards
• Install two AAA batteries (not supplied) taking care to observe the correct polarity.
• Replace the Battery Compartment cover by sliding it upwards.
NOTE: If you will not be using your Remote control for sometime then remove the
batteries to prevent risk of leakage and subsequent damage.
• If your remote starts to operate erratically then the batteries are probably drained. Replace
both batteries with new, do not mix new and old.
• Dispose of used batteries in an environmentally responsible way. They must not be
disposed of in normal household waste. Many stores now have a recycling point for
batteries.
4.2 Using your Remote Control
• Always point the Remote Control at the Receiver. It will operate successfully over
a range of around 6m and at an angle of +/- 30o.
• Remember, strong light or objects in the path of the Infra red beam will affect the
performance of the Remote Control adversely.
4.3 Connecting your Receiver
• Your QUICK START GUIDE shows the simplest and most effective way to connect your
Receiver and get watching! The following information describes in more detail the use
of your new Digital receiver.
• Connecting the TV Aerial: Your TV aerial needs to be connected to the “TV Antenna
In” at the rear of your Receiver. Digital TV requires a good quality signal, for optimum
reception use a loft or roof mounted High Gain Aerial. If in doubt contact your local
Aerial Installer.
• Connecting to your Television: There are four methods to connect your Receiver to
your Television. These will be described in descending order of Picture Quality with the
best first, please also refer to the CONNECTION DIAGRAM at the end of this section
for further guidance:
• HDMI: If your TV is equipped with an HDMI Input then this is both the easiest and
the best method of connection. An HDMI connection delivers both picture and sound
at high quality. Using the supplied HDMI cable connect the HDMI socket on the rear of
your Receiver to an available HDMI Socket on your TV.
• Component (Y, Pb, Pr): Whilst this connection can deliver similar picture quality to
HDMI the sound has to be separately connected. Using a 3 Way Cinch (RCA) type
cable (not supplied) connect the Component Outputs on the rear of your receiver to the
corresponding inputs on your TV, carefully observing the colour coding. You will
then need to connect the Audio Left and Audio Right outputs to the corresponding
inputs on your Television. These again use RCA type connectors.
7
• SCART: A fully compliant SCART connector is available if your TV has neither of the
previous methods of connection available. SCART (as with HDMI) connects both Picture
and Sound, however picture quality will be somewhat inferior to both HDMI and
Component. Using a SCART cable (not supplied) connect “TV SCART” on the rear of
the Receiver to the SCART socket on your TV.
• CVBS: This is the least effective method of connection, as with Component, it also
needs separate audio feeds to the TV. Using a 3 way Cinch (RCA) cable connect the
VIDEO and AUDIO LEFT / AUDIO RIGHT of your receiver to the TV
• SPDIF Audio Connection (Optical): This receiver is equipped with an Optical Audio
Out. This is very useful if you have an external Audio Amplifier or Home Theatre
System. You will need an Optical Cable (not supplied) to connect the two units together.
Connecting your Box:
8
4.4 Operating your Receiver
Now you have connected your Receiver you are ready to tune it in and complete the
installation.
• Connect the Mains Plug of the Receiver to a
convenient Wall Socket and switch on. The INITIAL
INSTALL screen opposite will be displayed.
• Check the following, using the CURSOR KEYS and
OK button as required:
• OSD Language - English
• Country - UK
• Time Zone - Auto
• LCN (Logical Channel Numbering) On
• Using the CURSOR KEYS move down to START
SEARCH and press OK. The receiver will automatically
search and store all Digital Programmes available in your
area, including where present any HD Channels being
Broadcast.
• Your receiver is now ready to use. Use the NUMERIC or CH+- keys to change
Programme and the VOL+- to control the volume. There are many more features and
functions that you can explore and use (these will be covered in the remainder of
this manual) but you will now be able to watch and enjoy your Digital Television
programmes.
4.5 EPG
The EPG is an extremely useful tool that
enables you to see for up to 7 days ahead
(8 days including the current day) the
Programmes that are available for you
to view.
In this screen you can:
• Select a Programme to view
• Set a Programme Reminder
• Set a Record Request
• Set a Series Link recording
• Check what Programmes are on in the next week.
Press EPG and follow the ON SCREEN “COLOURED BUTTON” prompts to select the
feature you require.
9
Loading...
