Ross HDR-8130USB User Manual
HD Digital Receiver
User Manual
MODEL NUMBER
HDR-8130USB
Please read this Manual thoroughly before using your
Receiver and then retain for future reference.
MENU
SIGNA L
STAND B Y
HD Digital Satellite Receiver
TM
1. Important Safety Instructions p1
1.1 Safety Information p1
1.2 General Information p2
2. In the Box p2
3. Controls and Functions p3
3.1 Front Panel p3
3.2 Rear Panel p3
3.3 Remote Control p4
3.4 Remote Control Functions p5
4. Installation p7
4.1 Satellite Dish Installation (REFER TO SEPARATE INSTRUCTIONS) p7
4.2 Receiver Installation p7
4.2.1 Connecting your Receiver p7
4.2.2 Preparing your Remote Control p7
4.2.3 TV Format Set-Up p7
4.2.4 Check Satellite Signal Reception p8
4.2.5 Fast Channel Set-Up Astra 2/A/B/D/Eurobird 1 p8
4.2.6 Chosen Satellite Scan p8
5. Menu System p9
5.1 Installation Menu p9
5.1.1 Selecting your Satellite p9
5.1.2 Selecting your SCAN Mode p9
5.1.3 Scanning p10
5.2 Channel Manager Menu p10
5.2.1 TV Channel Edit p10

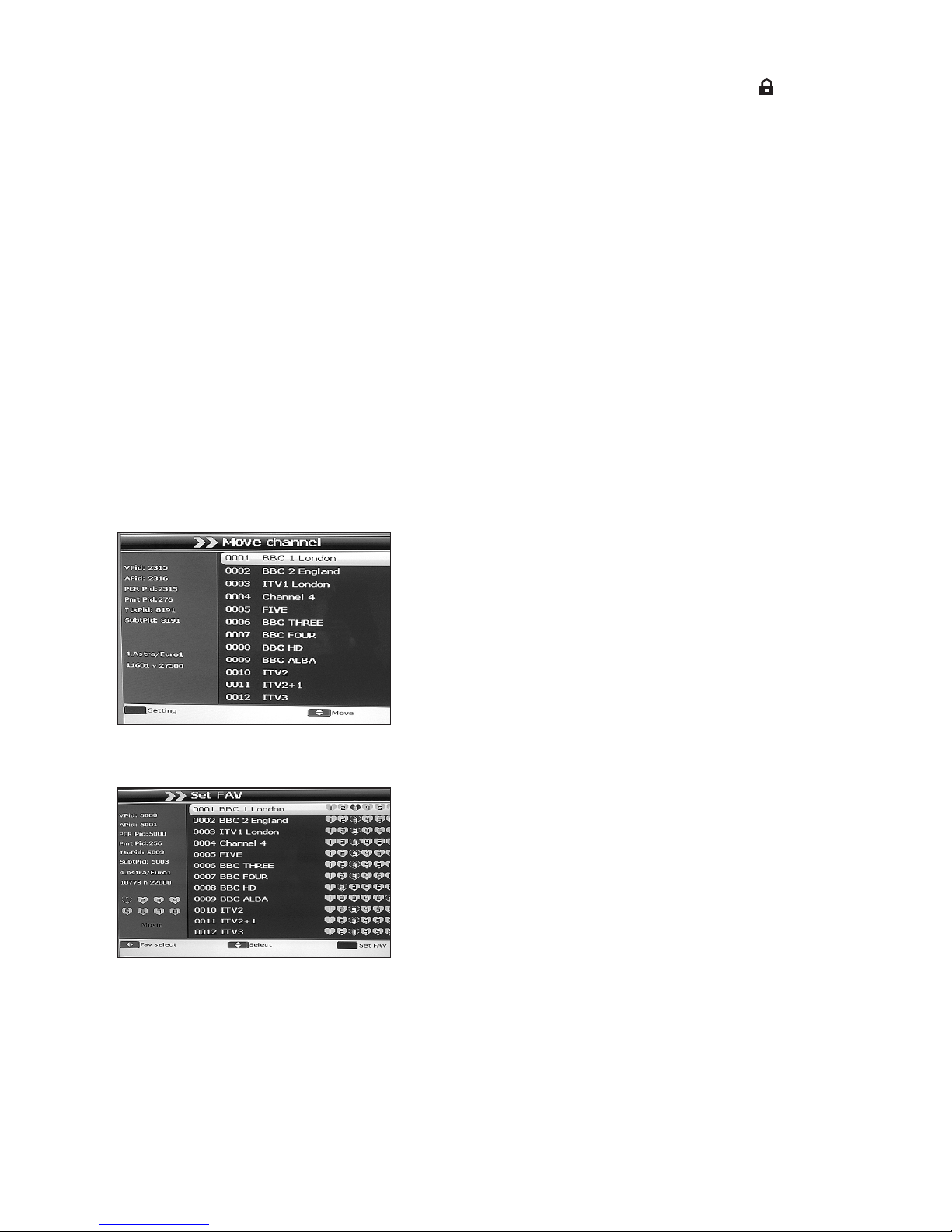

5.2.2 Move Channel p11
5.2.3 Set TV Favourites p11
5.3 System Menu p12
5.3.1 AV Setting p12
5.3.2 Private Setting p13
5.3.3 Local TIme Setting p13
5.3.4 Timer p14
5.3.5 System Information p15
5.4 User Settings p15
5.4.1 OSD Setting p15
5.4.2 Parental Control p16
5.4.3 Factory Default p17
5.5 USB Module p17
5.5.1 Multimedia p18
5.5.2 Software Upgrade p19
5.5.3 Database Backup p19
5.5.4 Database Update p20
5.5.5 PVR Partition Select p20
5.5.6 PVR Review p20
5.6 Games p20
6. Advanced Installation p21
6.1 Antenna Setting p21
6.2 Satellite List p22
6.3 Transponder List p23
6.4 Motor Setup (DiSEqC1.2) p24
6.5 USALS (DiSEqC) Set-Up p24
7. Software Update p25
8. Trouble Shooting p26
9. Specication p27
Contents
1
1.0 Important Safety Instructions
1.1 Safety Information
• Read these Instructions carefully and retain for future reference. If you sell, or give
this Receiver away be sure to pass on the Instructions.
• There are no user serviceable parts inside this unit. DO NOT remove the cover there
are dangerous voltages inside. Electric shock hazard.
• This unit operates from a 170~240V 50Hz Supply. Consumption is ~25W.
• During use, this device may become warm, this is normal. DO NOT allow anything
to block the ventilation slots as this may cause overheating and a consequent risk
of re.
• DO NOT place naked ames (such as candles) on this equipment.
• DO NOT stand other equipment on this unit.
• DO NOT operate close to heaters or other heat sources.
• DO NOT stand on soft furnishings.
• MAKE SURE there is a minimum clearance of 5cm on all sides of the unit.
• DO NOT allow anything to trap, pinch or otherwise damage the Power Cord. If the
power cord should become damaged IMMEDIATELY switch the Receiver off at
the wall and unplug it. You should then contact your Service Centre to carry out a
repair.
• DO NOT overload the wall socket, this can be dangerous and lead to a re hazard.
• MAKE SURE you have easy access to the mains plug in case of emergency
• DO NOT unplug the unit by pulling the Power Cord, always grasp the plug rmly
and pull from the wall socket.
• DO NOT stand items such as water lled vases on this Receiver.
• DO NOT operate this unit in damp conditions or allow water or other uids to enter
the enclosure. If this happens, switch off IMMEDIATELY and refer the device to the
Ross Helpline.
• DO NOT touch the mains plug or power cord with wet hands. Electric shock Hazard.
• DO NOT connect or disconnect cables from this receiver when it is turned on.
Switch off the power rst or this unit or other equipment may be damaged. This is
most important for the cable from the Dish (LNB).
• MAKE SURE the LNB cable outer is earthed.
• DO NOT clean this device using solvent based products. Use only a soft dry cloth.
2
1.2 General Information
• Thank you for choosing a Ross Digital Satellite TV Receiver. Treated with care and used in
accordance with the contents of this manual it will provide many years of reliable service.
• This symbol indicates that, at the end of its useful life, this product must
not be disposed of with normal domestic waste. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
please recycle it responsibly. You can return your used device using the
return and collection service or contact the retailer where the product was
purchased. Batteries used in operating this product may contain toxic
agents that are hazardous to the environment. Therefore, as with the unit
itself, dispose of the batteries according to the prevailing statutory regulations. Never put
the batteries in normal household waste.
• This receiver conforms to all applicable EU Legislation for this type of
product. Further information can be obtained from Ross if required.
2.0 In the Box
Please open your box carefully and check the contents which should be as per the list
below. If anything is missing please contact the Ross Helpline.
• HD Satellite Receiver (Set Top Box)
• Remote Control (NOTE: 2 x AAA Batteries not included)
• User Manual
3
A E
B F
C
D
G
A
B
C
E
D
F
G
MENU
SIGNA L
STAND B Y
HD Digita l Satelli te Receiv er
A
B C
B
A
D E F G
C
- Channel Up Button
- Channel Down Button
- Volume Up Button
F
E
D G
3.0 Controls & Functions:
3.1 Front Panel
- Standby Button
- Menu Button
- USB Port
- Volume Down Button
3.2 Rear Panel
- LNB IN: To connect the input cable from the satellite dish.
- LNB OUT: To connect to another satellite receiver if required.
- S/PDIF Socket: Audio output if required to an Audio Amplier or AV System
- HDMI Socket: To connect to an HDTV with an HDMI cable for HD (High denition) viewing.
- USB Socket: : To connect an external USB memory device for recording
TV and uploading software
- TV SCART Socket: To connect to the video/audio (SCART) input of the TV for SD
(Standard denition) viewing only.
- Power cable.
4
1
POWER
TIMER
NUMERIC BUTTONS
16:9
LANG
CH+/-
VOL+/-
OK
MENU
INFO
SAT
ZOOM
FR
FF
PREVIOUS
NEXT
MEDIA
GAME
2
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
19
3.3 Remote Control
MUTE
AUDIO
SUBTL
RECALL
PAGE UP/DOWN
TIMESHIFT
V-FORMAT
EXIT
TXT
TV/RADIO
PAUSE
STOP
PLAY/PAUSE
RECORD
SLOW
HDD
PVR
21
22
23
24
27
26
28
29
30
31
32
33
34
35
36
37
38
TIMER
20
FAVOURITE
25
EPG
3
Button Function
POWER: Turns on the power or switches the unit to standby mode
TIMER: To select up to 8 timer sequences of your choice.
EPI: Shows Now and Next EPG for the programme being viewed.
NUMERIC BUTTONS: Enter a number to select a channel directly or to select the
menu options.
16:9: Adjusts screen format between 16:9 and 4:3 or AUTO.
LANG: Press to select OSD language preference.
CH +/-: Up and down select for channels. Also used in menu operations.
VOL +/-: Volume up/down. Or change pages on the channel list. Also used in
menu operations.
OK: Displays the channel list and selects the item on the menu. When in the menu
press OK to save setting and exit.
MENU: Open the main menu during TV viewing.
INFO: Displays ‘now and next’ and satellite and transponder information for the current
programme.
S AT: To display the satellite list or channel list in the viewing mode. In the Antenna
Setting or the Transponder menu press SAT to initiate a scan. (Red button to add
satellite)
ZOOM: Press to enter or exit the Zoom mode for close up viewing.
FR: Press to rewind. (select FR*2, FR*4, FR*8, FR*16, FR32 for different speeds)
FF: Press to fast forward. (select FF*2, FF*4, FF*8, FF*16, FR32 for different speeds )
PREVIOUS: Press to choose the previous media le.
NEXT: Press to choose the next media le.
MEDIA: Press the button to directly enter USB memory device.
GAME: Press the button to directly enter game menu
TIMER (Sleep): Press to enter the power off time menu. Use the CH +/- and VOL +/- keys
to set the time duration you want before the receiver goes into standby.
MUTE: Turns the sound off and then back on with a second press.
AUDIO: Changes audio modes and between; left, right and stereo.
3.4 Remote Control Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
5
22
Button Function
SUBTL: Sets broadcast dependent subtitles for the current TV programme. Choose
between TTX and DVB formats.
RECALL: Press to switch to previously watched channel.
FAV: Select favourite channel list or current channel list in the view mode.
TIMESHIFT: Press RECORD rst then when you want to watch the elapsed portion of
your programme press TIMESHIFT and then rewind to the start using the FR function.
PAGE UP/DOWN: Press to jump one page up or down.
V-FORMAT: Press to select the video output mode between; 1080I, 720 P and 576P and
480p. When changing video format, there will be a icker for a few seconds as the format
adjusts.
EXIT: Press to exit and save from current menu.
TXT: (NOT AVAILABLE ON THIS MODEL).
TV/RADIO: Switches between TV and Radio channels. (Blue button to delete Satellites).
PAUSE: Freeze the screen. (Yellow button to edit Satellite).
STOP: Press to STOP playback when watching a recording, playing back a media le or
to stop a recording.
PLAY/PAUSE: Press to start watching a recording or media le or to pause.
RECORD: Press to start recording to an external USB Memory Device
SLOW: (NOT AVAILABLE ON THIS MODEL).
HDD: (NOT AVAILABLE ON THIS MODEL).
PVR: To directly enter the folder information of the attached USB memory device.
Please observe the following when using your Remote Control –
• Change the batteries when operation becomes poor or erratic.
• Always use two new batteries, DO NOT mix old and new.
• Dispose of old batteries in an environmentally responsible way.
• DO NOT place spent batteries in a re or attempt to recharge them.
• If you are not going to use the Remote Control for an extended period then remove the
batteries to avoid the risk of leakage.
Satellite Receivers are delicate pieces of digital equipment that performs quite
complex functions. Occassionally they can lock up for no apparent reason. If this
happens to your receiver, simply unplug the receiver. Then plug receiver back on and
re-boot. If problem persists please contact Ross helpline.
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
6
7
4.0 Installation:
Introduction
This manual will help you learn the basic features and operation of your receiver such as
installation, channel selection and many other functions of the set top box.
4.1 Satellite Dish Installation
Please refer to the separate documentation “Satellite Dish Installation Guide” to install
your dish. You will need to assemble, erect and roughly align your dish to your chosen satellite before
connecting up and turning on your Receiver.
NOTE: It is recommended that you seek the assistance of a second person when aligning
the dish.
4.2 Receiver Installation
4.2.1 Connecting your Receiver
Having completed the assembly and erection of your dish, connect the satellite cable from your dish
to the LNB IN terminal of your receiver and your HDMI lead from the rear of your receiver to an
available socket on your TV or AV Amplier. If you are not using an HD compatible TV then you will
need to connect to your TV using a SCART lead and optionally the Audio Out to an AV Amplier. If
you are using the HDMI socket then you only need to connect this, as it feeds both high quality
audio and video to your TV.
4.2.2 Preparing your Remote Control
Your Remote Control requires 2 x AAA (LR03) batteries to operate (not supplied). Open the cover
on the rear of the Remote Control by sliding it downwards and insert two batteries taking care to
observe the polarity markings inside the compartment.
4.2.3 TV Format Set-Up
You are now ready to switch on and adjust your dish to complete alignment (for this refer to the separate instructions). Switch on your TV and plug in your Satellite Receiver then proceed as follows:–
• Press the POWER button on your Remote Control or the STANDBY Button on the Front
Panel of the Receiver to turn the unit on.
• If a ‘Mode not supported’ message appears on your TV - You need to alter the Receiver
resolution to match the resolution of your TV – The factory default is 720p.
The Resolution is changed by pressing the ‘V Format’ button on your remote control. Select
between 480p, 576p, 720p and 1080i TV Resolutions as required. 1080i is the highest
available resolution for Satellite HD channel reception.
NOTE: The TV may icker or the picture disappear briey when changing resolution
• Make sure your TV source is set to receive the signal from your Receiver.
NOTE: If you are using this Receiver in conjunction with a pre-installed dish which is
already aligned to ASTRA/EURO1 then after the unit has powered up you will see “NO
CHANNEL” being displayed. At this point press the “OK” button and your Channel list
should be displayed showing all the programmes that were loaded onto the receiver
during manufacture. Your Receiver is now ready to use.
Loading...
