TFT-LCD COLOR MONITOR
USER’s MANUAL
R800N
1
Menu:
English
1.Indroduction
Product Description .................... .Page.2
Package Contents......................... Page.2
Product Features.......................... Page.2
Cleaning...................................... Page.3
Precautions.................................. Page.3
2.Control Function
OSD Button ................................. Page.6
OSD Control.................................Page.7
HOT Control................................ Page.8
3.Inputs Diagram
Inputs.......................................... Page.9
4.Display Angle....................................Page.10
5.Product Specification.........................Page.11
6.Display Modes...................................Page.12
7.Ser vice Information...........................Page.13
Introduction
Product Description
Congratulations on your purchasing this new generation of monitor.
Your LCD monitor incorporates high quality display into a small light
weighted module. It has power-saving capabilities and emits no X-ray
radiation. You will certainly benefit from this monitor in lots of way to
name some of them, comfort safety and environmental protection.
This LCD monitor incorporates 18 color active matrix thin-film-
transistor (TFT) liquid crystal display to provide superior display per-
formance. A maximum resolution of XGA 1024X768 is ideal for
designs that enhance this LCD monitor s performance are Plug & play
compatibility, audio system and OSD (On Screen Display) controls.
Package Contents
Included with your LCD monitor are following items:
18 TFT LCD monitor
15pin D-sub signal cable
AC power cable
User,s manual
Sound Card Cable (Option)
Product Features
High contrast color TFT LCD display support resolution up to XGA
1024X768
Compatible with IBM VGA, VESA, and Macintosh standards.
Imbedded audio system provides sound performance. (Option)
AV-IN and S-video use.(option)
AUDIO-1, and PC line in sound application. (Option)
2
English
Cleaning
Gently wipe screen with a clean camel hair lens brush, or a soft, clean,
lint-free cloth.
This removes dust and other articles that can scratch the screen,
Do not apply pressure to the screen surface when wiping it clean.
Do not pour or spray and liquid directly onto the screen or case of the
LCD monitor.
Chemical cleaners have been reported to damage the screen or the LCD
monitor.
Read all these instruction and save them for later use.
Follow all warning and instructions on the product.
Product
Do not block the vent holes in the case.
Do not insert sharp objects or spill liquid into the LCD monitor through
cabinet slots.
They may cause accident fire, electric shock or failure.
Disconnect the power plug from the AC outlet if you will not use it
for an indefinite period of time.
Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks.
Do not touch the screen directly with your fingers. You may damage
the screen, and oil from your skin is difficult to be removed.
Do not apply pressure to screen. The LCD is very delicate.
Power
Use the type of power indicated on the marking label.
Plugs
Do not remove any of the prongs of the monitor,s three-pronged power
plug.
Disconnect the power plug from the AC outlet under following
conditions:
If you will not use it for an indefinite period time.
When the power cord or plug is damaged or frayed.
If the product does not operate normally when the operating instructions
aye followed.
Precautions
3
English
Adjust only those controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal
operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance, indicating a
need for service.
Power and extension cords
Do not allow anything to rest on the power cord.
Do not locate this product where persons will walk on the cord.
Use the proper power cord with correct attachment plug type. If the
power source is 120V AC, use a power cord that has UL and C-UL
approvals. If the power source is a 240V AC supply, use the tandem
(T blade) type attachment plug with ground conductor power cord that
meets the respective European country,s safety regulations, such as
VDE for Germany.
.
Do not overload wall outlets or power cords. Ensure that the total of all
units plugged into the wall outlet does not exceed 10 amperes.
Ensure that the total ampere ratings on all units plugged into the
extension cord is not above the cord,s rating.
If the power supply cord, which came with your monitor, is to be
connected to the PC instead of the wall outlet, this equipment is to be
used with UL/TUV approved computers with receptacle rated
100~240V AC,50/60Hz,1.0A(minimum).
Environment
Place the monitor on a flat and leveled surface.
Place the monitor in a will-ventilated place.
Keep the monitor away from:
Overly hot, cold or humid places, places directly under sunlight, dusty
surroundings, equipment that generate strong magnetic fields.
4
English
Control Function
Control Button Front View
1. Infred receiver: Remote control to select the OSD
of LCD Monitor and TV function.
2. Power LED: This power LED indicates different status
when this unit operates in different modes.
3. Power switch: pressing this button turns the display
system power on or off.
4. Increase: This button is used to adjust the increasing
Value of selected OSD control option and Volume
select quickly when have Audio in function.
5
English
AUTO
965432178
*
5. Decrease:This button is used to adjust the decreasing Value of
selected OSD control option and VOLUME adjust function quickly
when have Audio function.
6. OSD Menu/select: Pressing this button pops up the OSD menus on
the screen and used to select the OSD control options on the screen.
7. Auto tuning: Automatically sixes, centers and fine tunes the Video
signal to eliminate noise a nd distortion.
*8. Light sensor: Compensate light output to optimize.
*9. Earphone: This input would offer users another better choice in using
a monitor with disturbing other.
*Option Item
6
English
OSD CONTROL
MAIN MEUN
VGA IN : 1024x768
H.SYNC: -48.3KHz
V.SYNC: -60.8Hz
BRIGHTNESS
CONTRAST
DISPLAY ADJUST
COLOR TEMPERATURE
LANGUAGE
OSD ADJUST
AUDIO CONTROL
RECALL
EXIT
DISPLAY ADJUST
V-POSITION
H-POSITION
PITCH
PHASE
SHARPNESS
AUTO BRIGHTNESS
AUTO TUNING
RECALL
RETURN
VIDEO ADJUST
CONTRAST
BRIGHTNESS
COLOR
SHARPNESS
HUE
INPUT TYPE
INPUT SELECT
RECALL
EXIT
053
050
050
000
050
4:3
050
080
050
058
000
OFF
ENG
SPA
GER
ITA
FRE
CHI
MUTE
VOLUME
RECALL
RETURN
OFF
ON
7
English
BRIGHTNESS: Adjusts background black level of the screen image.
CONTRAST: Adjusts fore ground white level of the screen image.
H.POSITION: Moves the screen image left or right.
V.POSITION: Moves the screen up and down.
PITCH: Adjusts image distortion appearing as vertical bars or
on the screen.
PHASE: Adjusts image distortion appearing as horizontal on
the screen.
SHARPNESS: Adjusts clarity and focus of the screen images.
COLOR TEMPERATURE: Adjusts color temperatures for users.
LANGUAGE: Allows you to choose among five languages as
English, Spanish, German, French, Italian
AUDIO CONTROL: Switch muting ON/OFF and Volume control.
RECALL: Returns all controls back to factory setting.
noise
noise
HOT KEY CONTROL
1. VGA HOT KEY
UP KEY BEIGHTNESS
DOWN KEY CONTRAST
2. VGA+A HOT KEY
UP KEY VOLUME INCREASE
DOWN KEY VOLUME DECREASE
8
English

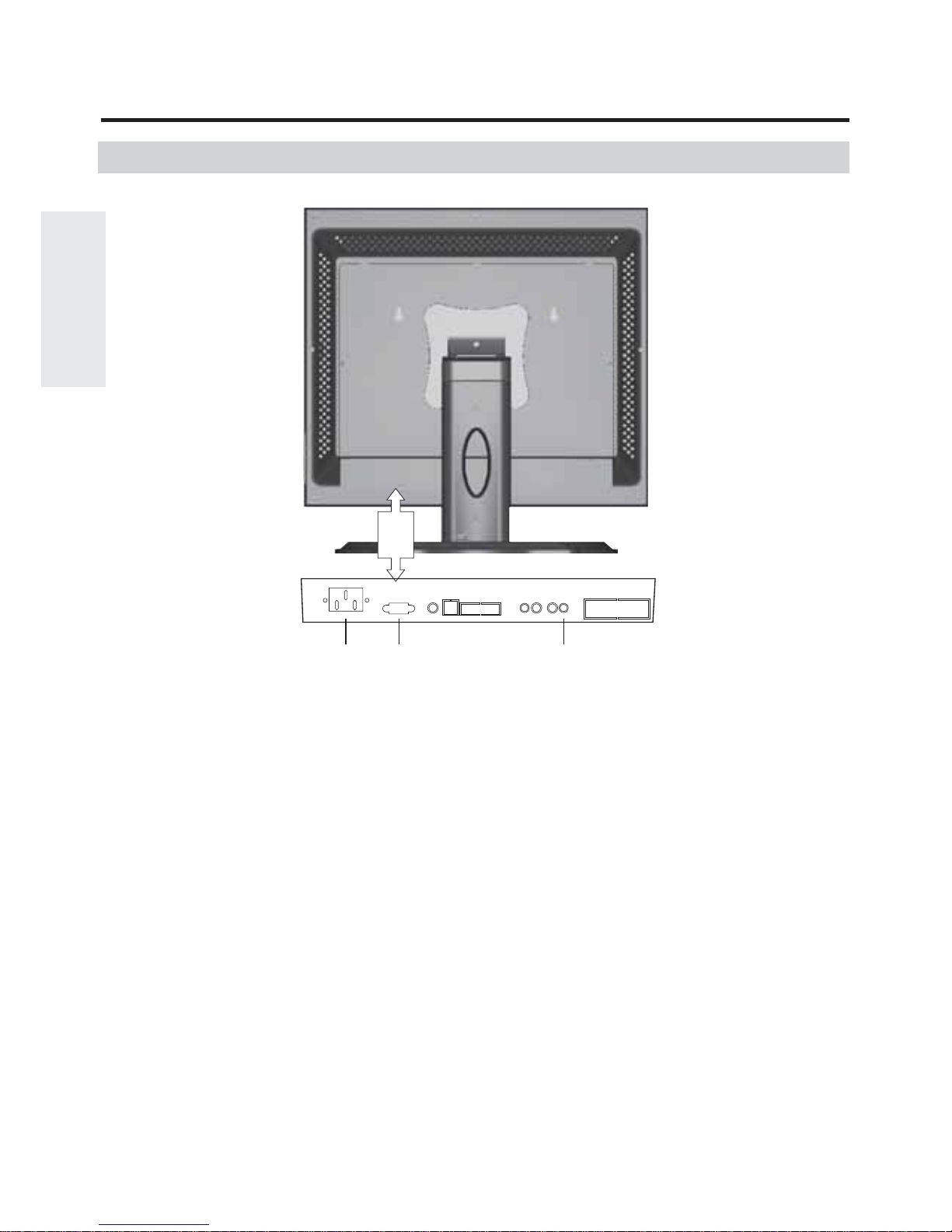

Inputs Diagram
Inputs
9
1. AC POWER INPUT : AC inlet for 110/220V power system
2. PC IN: This can be connected with the D-Sub15 pin signal connector
3. LINE IN: This can be connected to the stereo audio out of any sound
resou
1 2
English
3
Down:5
Right:40
Up:15
Left:40

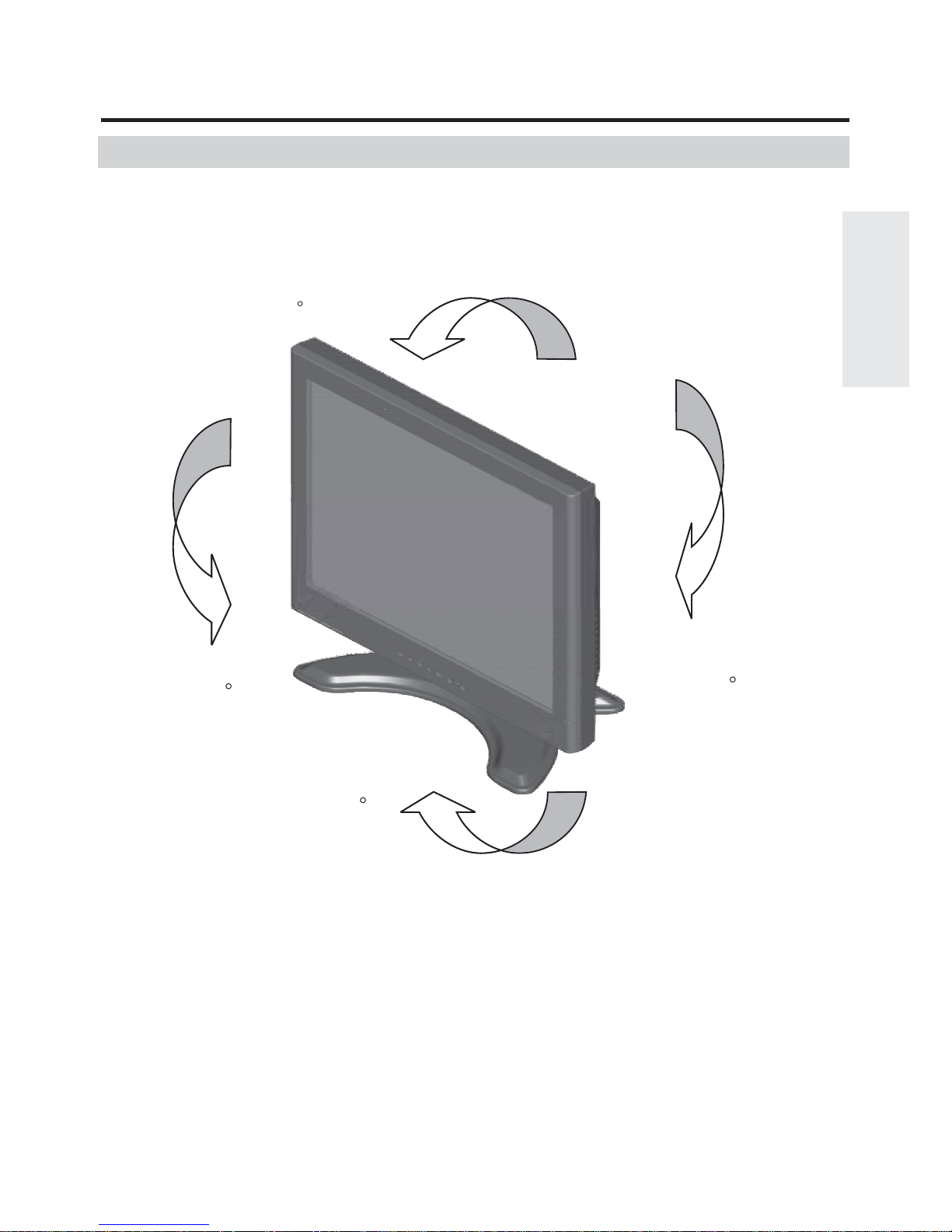

Display Angle
Tilting
For viewing clarity can tile the LCD forward (up to5 degrees) or
backward (up to5 degrees).
10
English
Product Specification
11
Model
Spec
LCD Display
18 active matrix TFT LCD panel
Pixel pitch
0.2805(H)x0.2805(V) mm
Max Resolution 1024(H)x768(V)XGA
Dimensions
140(V)x500(H)x450(L) mm
Packing Dimensions
220(V)x550(H)x520(L) mm
Contrast Ratio
400:1
Brightness
250cd/m
2
Response Time
15/10ms
Display Color
16,777M
Viewing Angle L/R
160
160
U/D
PC Interface Video
Sync
RGB analog 0.7Vp p
Display Mode
VGA/SVGA/XGA
PC connector
15 min D-sub
Front Control
Power on/off with LED, Menu select,
Up/Down Adjustment, Auto tuning, Light sensor
OSD Adjustment
Contrast, Brightness, Auto tuning, Phase, H-Position,
V-Position, Input selection
Power input
AC Input:100~240V/1.8A,50-60Hz
Operating
Consumption
35W
Operating
Conditions
Temperature:0
-50
Humidity: 20%-80%
Storage
Conditions
Temperature:-20 60
Humidity: 20%-80%
-
Certification
FSS(DOC), CE-B, VCC-I, UL, CSA, TUV/GS
Weight
N/W:7.2Kgs G/W:9.8Kgs
PC
English
350:1 500:1
200cd/m
2
170
170
140
120
Display Modes
Model
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Resolution
720*350
640*480
640*480
640*480
640*480
720*400
800*600
800*600
800*600
800*600
832*624
1024*768
1024*768
1024*768
1024*768
H Freq(kHz)
31.469
31.469
35.000
37.861
37.500
31.469
35.156
37.879
48.077
46.875
49.750
48.363
56.476
58.038
60.023
V Freq(Hz)
70.087
59.940
66.667
72.809
75.000
70.087
56.250
60.317
72.188
75.000
74.500
60.004
70.069
71.918
75.029
12
English
Service Information
Service
When you buy this excellent LCD Monitor, you are entitle to the
warranty provide by us, please contact us you need for any information
or helps of our product.
Thank you for buying our products .again
13
