1 WELCOME
RSV-S8 enhances your data storage by combining advanced RAID1 features typically seen on high-end data systems with low cost/high capacity Serial ATA drives. By using industry standard SATA drives and Silicon Image Host Bus Adapters, you can achieve extraordinarily low costs while remaining assured that your data is protected against hardware failure.
1.1 PRECAUTION
Please read the safe precautions carefully before you using RSV-S8 storage appliance. Ensure that you use the product correctly according to the procedure described in this guide. The following safety precautions are intended to remind you to operate the product safely and correctly. Please read and ensure that you understand them before you proceed to the other sections of this guide.
Do not attempt to disassemble or alter any part of the product that is not describe in this guide.
Do not allow the product to come into contact with water or other liquids.
In the event that water or other liquids enter the interior, immediately unplug the product from the computer. Continued use of the product may result in fire or electrical shock. Please consult your product distributor or the closest support center.
Do not handle the product near a heat source or expose them to direct flame or heat.
Never place the product in close to equipment generating storage electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt data.
Can’t operate properly under Windows 3.x/ 95 / 98SE/ ME/ NT.
Hard disk drive is not including.
1.2 FEATURES
1.2.1 DATA SECURITY
The RSV-S8 software driver includes support for monitoring to predict suspect drives. RSV-S8 provides our highest commitment to data security through the use of RAID architecture to back up and protect data. RAID levels 1, 10, and 5 provide data security. RSV-S8 supports sophisticated sparing support so that hardware failure risk can be minimized by automatically regenerating the failed disk’s data on a backup disk. The RSV-S8 software driver includes support for Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.
1.2.2 DATA PERFORMANCE
The RSV-S8 can also increase storage throughput by combining the throughput of multiple drives into a single volume. RAID levels 1, 10, and 5 support this ability. Furthermore, each volume can be tailored to provide the best performance for the data contained on that disk.
2) to predict disk failures. Drives can be moved between controllers without losing data.
1.2.3 DATA VERSATILITY
The RSV-S8 software driver also supports Contiguous and Concatenated drives for applications which do not require increased security or performance.
3
Server RSV-S8 User Manual
1
Redundant Array of Independent Devices, a method of combining drives to provide better protection
and/or performance.
2
Self Monitoring, Analysis and Reporting Testing.
*
For 3132, this requires the use of a Port Multiplier device to access more than one disk per SATA channel.
1.3 EASE OF USE
The RSV-S8 utility offers an easy to use utility for creating and managing your storage. It also supports the latest SATA enhancements including SATA-II Port Multiplier support, and up to 3Gbit/sec transfer rates on controllers that support that speed. Creating and deleting volumes is also possible without requiring a restart of the operating system and rebuilds never require the data to be taken off-line.
Drives can also be moved between controllers without losing the data.
1.4 SPECIFICATIONS
z Two eSATA host ports to 8 SATA 3.5-inch hard disks, with hard disk trays & door cover. z Power and host status LED, and devices status and activity LED. z Metal chassis (SECC) and plastic panel frame (ABS) design. z 150 (W) x 340 (H) x 340 (D) mm, NW: 5.5 Kgs, GW: 7.6Kgs. z Design based on the Silicon Image SiI3726 Port-Multiplier with SiI3132R5 PCI-Express 1X HBA. z Support Striped (RAID 0), Mirrored (RAID 1), Mirrored Striped (RAID 10), Parity RAID (RAID 5) modes,
and hot spare on Mirrored (RAID 1), Mirrored Striped (RAID 10) and Parity RAID (RAID 5) modes.
z Support Contiguous (Single Drive) & Concatenation (Combined Drives) modes. z 300 watts, 90 to 264Vac / 47~63Hz with VCCI/ FCC/ UL-1950/ C-UL/TUV/ CB/ CCC requirement. z Single packing (color box) and 2 in 1 outer box.
1.5 SUPPORTED OPERATING SYSTEMS
The following operating systems are supported by the RSV-S8 software driver.
z Windows 2000 z Windows XP, 32/64-bit z Windows Server 2003, 32/64-bit z Windows Vista, 32/64-bit
1.6 PRODUCT CONTENTS
The following parts are content.
z SiI3726 Port-Multiplier Box z SiI3132R5 PCI-Express 1X HBA z eSATA Cable z AC Cable z HDD Screw x 32 z Setup and Installation Driver Repository CD
4
Server RSV-S8 User Manual
2 AN INTRODUCTION TO RAID
2.1 RAID VOLUMES
RAID technology allows one or more disks to be combined into a logical volume which provides greater performance and/or protection than standard disk drives. These volumes, also known as RAID Groups, appear like regular disk drives to the operating system and can be partitioned, formatted and used just like any other normal disk. The complexity of the RAID is hidden within the driver.
There are several different methods of combining disks, each with its own advantages and disadvantages. Each method is referred to as a RAID “level” such as RAID 1, or RAID 5. The details of each level are summarized below and detailed in the following sections.
RAID LEVEL CONFIGURED AS ADVANTAGES DISADVANTAGES
0 Striped Excellent performance,
low cost
1 Mirrored Excellent data protection High cost
10 Mirrored Striped High performance,
excellent data protection.
5 Parity RAID Good data protection,
good value
Combination Concatenated Good performance, low
cost, large Volume size
Single Drive / Segment Contiguous Same as single disk Same as single disk
No data protection
High cost.
Some performance degradation for writes.
No data protection
2.2 SEGMENTING DISKS
For increased versatility, the SATARAID5 software allows individual disks to be divided into smaller segments which can then be combined into different volumes. As an example, if a user has one set of data that must be protected at all costs, another set of data which should be protected at reasonable cost and another set that doesn’t need any protection at all; the user can divide three disks into sections as shown in Figure 1. The yellow regions define the high security volume, the greem section is the middle security volume and the light blue shows the unprotected area.
Figure 1: Dividing Disks into Members
5
Server RSV-S8 User Manual
2.3 RAID LEVELS
2.3.1 DISK STRIPING (RAID 0)
Striping is a performance-oriented, non-redundant data mapping technique. While Striping is discussed as a RAID Group type, it is does not provide any fault tolerance. With modern SATA and ATA bus mastering technology, multiple I/O operations can be performed in parallel, enhancing data throughput. Striping arrays use multiple disks to form a larger virtual disk. The figure below illustrates a three-disk stripe set. Stripe one is written to disk one, stripe two to disk two, and so forth. RAID 0 sets can be comprised of two, three, or four drives. If the sizes of the disk segments are different, the smallest disk segment will limit the overall size of the RAID Group.
2.3.2 DISK MIRRORING (RAID 1)
Disk mirroring creates an identical twin for a selected disk by having the data simultaneously written to two disks. This redundancy provides instantaneous protection from a single disk failure. If a read failure occurs on one drive, the system reads the data from the other drive. RAID 1 sets are comprised of two drives, and a third drive can be allocated as a spare in case one of the drives in the set fails. If the sizes of the disk segments are different, the smallest disk segment will limit the overall size of the RAID Group.
2.3.3 DISK MIRRORING AND STRIPING (RAID 10)
RAID 10 combines the features of both RAID 0 and RAID 1. Performance is provided through the use of Striping (RAID 0), while adding the fault tolerance of Mirroring (RAID 1). The implementation of RAID 10 requires four drives. The drives are assigned as two sets of striped pairs.
The data is written to RAID Group A, which is mirrored (RAID 1) and provides data redundancy. Alternating blocks of data are then striped across another RAID 1 mirrored set, shown as Set B in the figure above. This provides improved speed. Under certain circumstances, a RAID 10 set can sustain multiple simultaneous drive failures.
2.3.4 PARITY RAID (RAID 5)
Parity or RAID 5 adds fault tolerance to Disk Striping by including parity information with the data. Parity RAID dedicates the equivalent of one disk for storing parity stripes. The data and parity information is arranged on the disk array so that parity is written to different disks. There are at least 3 members to a Parity RAID set. The following example illustrates how the parity is rotated from disk to disk. The following example illustrates how the parity is rotated from disk to disk.
6
Server RSV-S8 User Manual
Parity RAID uses less capacity for protection and is the preferred method to reduce the cost per megabyte for larger installations. Mirroring requires 100% increase in capacity to protect the data whereas the above example using three hard drives only requires a 50% increase. The additional required capacity decreases as the number of disks in the group increases (i.e., 33% for four drives or 25% for five drives).
In exchange for low overhead necessary to implement protection, Parity RAID degrades performance for all write operations. The parity calculations for Parity RAID may result in write performance that is somewhat slower than the write performance to a single disk.
2.3.5 CONCATENATION
The Concatenated mode combines multiple disks or segments of disks into a single large volume. It does not provide any data protection or performance improvement but can be useful for utilizing leftover space on disks. Concatenation allows the segments that make up the volume to be of different sizes.
2.3.6 SINGLE DRIVE / SEGMENT
The single drive is a virtual disk that can either be an entire disk drive or a segment of a single disk drive. Single drive is the “Contiguous” configuration option when creating RAID Groups (or sets) in the SATARAID5 software.
2.4 RAID VOLUME STATUS
A RAID volume can be in any one of the following statuses.
STATUS MEANING
Good All disks are currently functioning as normal.
Reduced For RAID levels that provide data protection, one or more disks have failed but
the data is still available via the RAID algorithms. The failed disk should be replaced as soon as possible to avoid loss of data.
Rebuilding A failed disk drive has been replaced and the data is being regenerated on the
replacement disk. When complete, the RAID Group will return to Good status.
Resynchronizing An error has occurred and RAID algorithms be regenerated on this RAID Group.
When complete, the RAID Group will return to Good status.
Failed One or more disks have failed and RAID algorithms can no longer regenerate the
data. The minimum number of failures required to reach this state depends on the RAID level:
RAID 0, Concatenated, Contiguous: Single disk failure. RAID 1, 10, and 5: Two disk failure.
7
Server RSV-S8 User Manual
3 INSTALLATION
3.1 COMPONENTS
There are three separate steps that must be install or setup for RSV-S8 to function. These components are the HARDWARE, SATA RAID5 HBA DRIVER, and SATARAID5 Utility. The steps on how to setup these packages is described in the following sections.
3.2 INSTALLING HARDWARE
Follow the descriptions below, and step by step to complete the installation.
Turn off your host computer.
Install the SiI3132 PCI-Express 1X SATA RAID5 HBA into a PCI-Express slot (1X ~ 16X), than connect one end of the eSATA cable to the eSATA connector on the Sil3132 PCI-Express 1X SATA RAID5 HBA.
Connect the other end to the eSATA connecter on CFI-B8083ER.
If hard disk drives are not installed in CFI-B8083ER, mount the HDD into the tray and twist the drive screw properly fix, than insert the drive tray most of the way into bay 1 to 8 in order (from the bottom to top); gently insert the drive until the drive is fully inserted, and shut the tray handle to seat the drive securely.
Attach one end of the AC power cord to RSV-S8 and the other end to the proper AC receptacle.
Turn on CFI-B8083ER, than turn on the host computer.
3.3 INSTALLING ON WINDOWS 2000
3.3.1 INSTALLING SATA RAID HOST BUS ADAPTER
Follow the descriptions below, and step by step to complete the setup.
Insert the Setup and Installation Repository CD in the CD-ROM drive. When start the Windows O/S, new hardware will be found, click Next>.
8
Server RSV-S8 User Manual
Select Search for a suitable driver for my device (recommended), than click Next>.
Select Specify a location, than click Next>.
Click Browse… to select to driver path, than click OK.
9
Server RSV-S8 User Manual
Click Next> to install the Silicon Image Sil3132 SoftRaid 5 Controller driver.
Click Ye s to pass the Microsoft digital signature and continue the installation.
When the Silicon Image Sil3132 SoftRaid 5 Controller installation has completed, click Finish, and begin
to the Silicon Image’s Pseudo Processor Device driver installation.
10
Server RSV-S8 User Manual
Windows will find the Silicon Image’s Pseudo Processor Device hardware, click Next>.
Select Search for a suitable driver for my device (recommended), than click Next>.
Select Specify a location, than click Next>.
11
Server RSV-S8 User Manual
Click Browse… to select to driver path, than click OK.
Click Next> to install the Silicon Image’s Pseudo Processor Device driver.
When the Silicon Image’s Pseudo Processor Device installation has completed, click Finish.
12
Server RSV-S8 User Manual
3.3.2 INSTALLING SATARAID5 UTILITY
Follow the descriptions below, and step by step to complete the installation. Open the Setup and Installation Repository CD and select the SATARAID5 Array Manager software from the Utility folder. Double-click the 3132-W-I32-R.exe file.
Click
Next> to begin setup.
Select I
Agree, than click Next>.
13
Server RSV-S8 User Manual

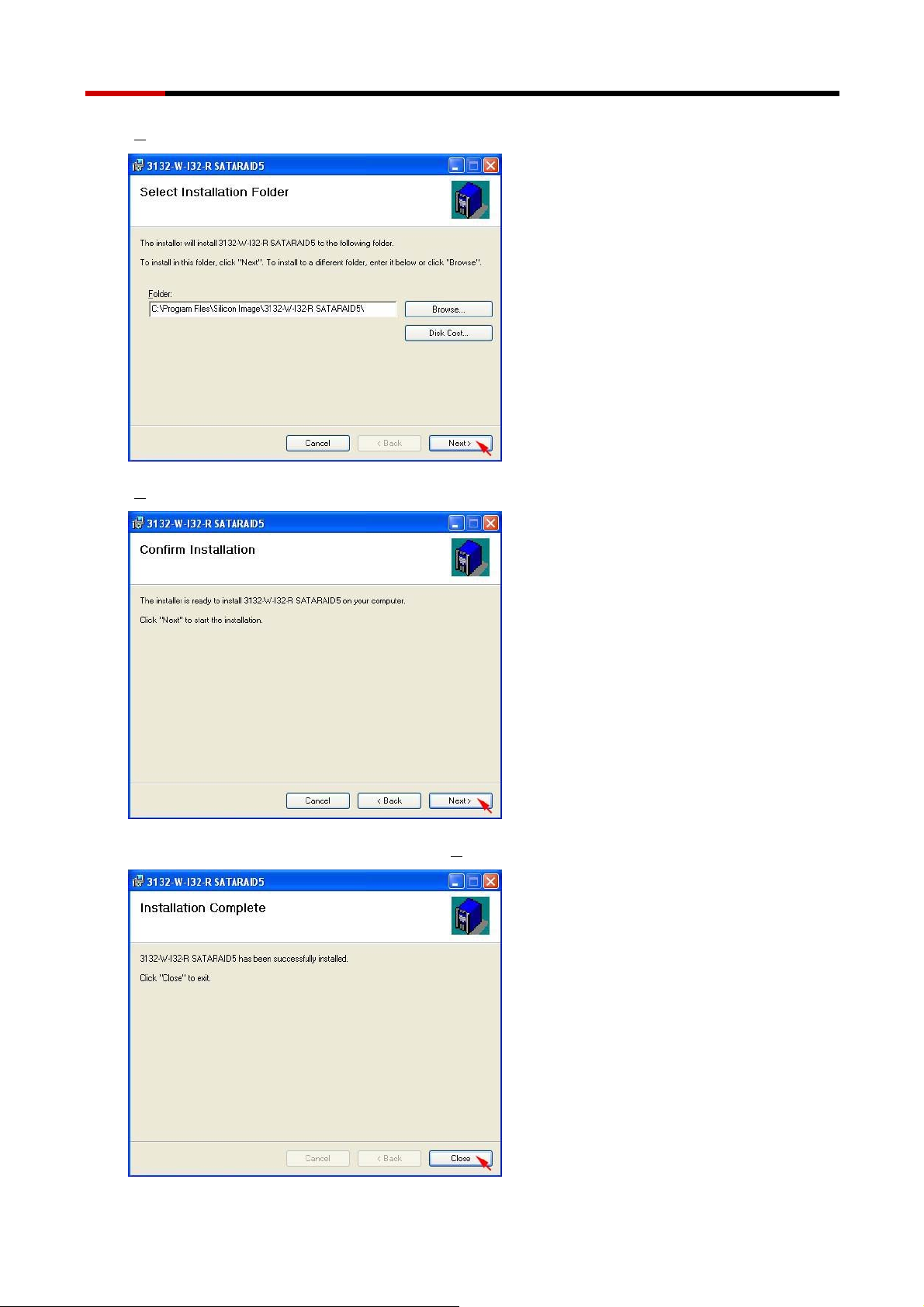

Select Place shortcut on Desktop, than click Next> to create a shortcut on the desktop.
Click
Click
Next> to use the default installation folder.
Next> to begin the installation.
14
Server RSV-S8 User Manual
When SATARAID5 installation has completed, click Close to exit.

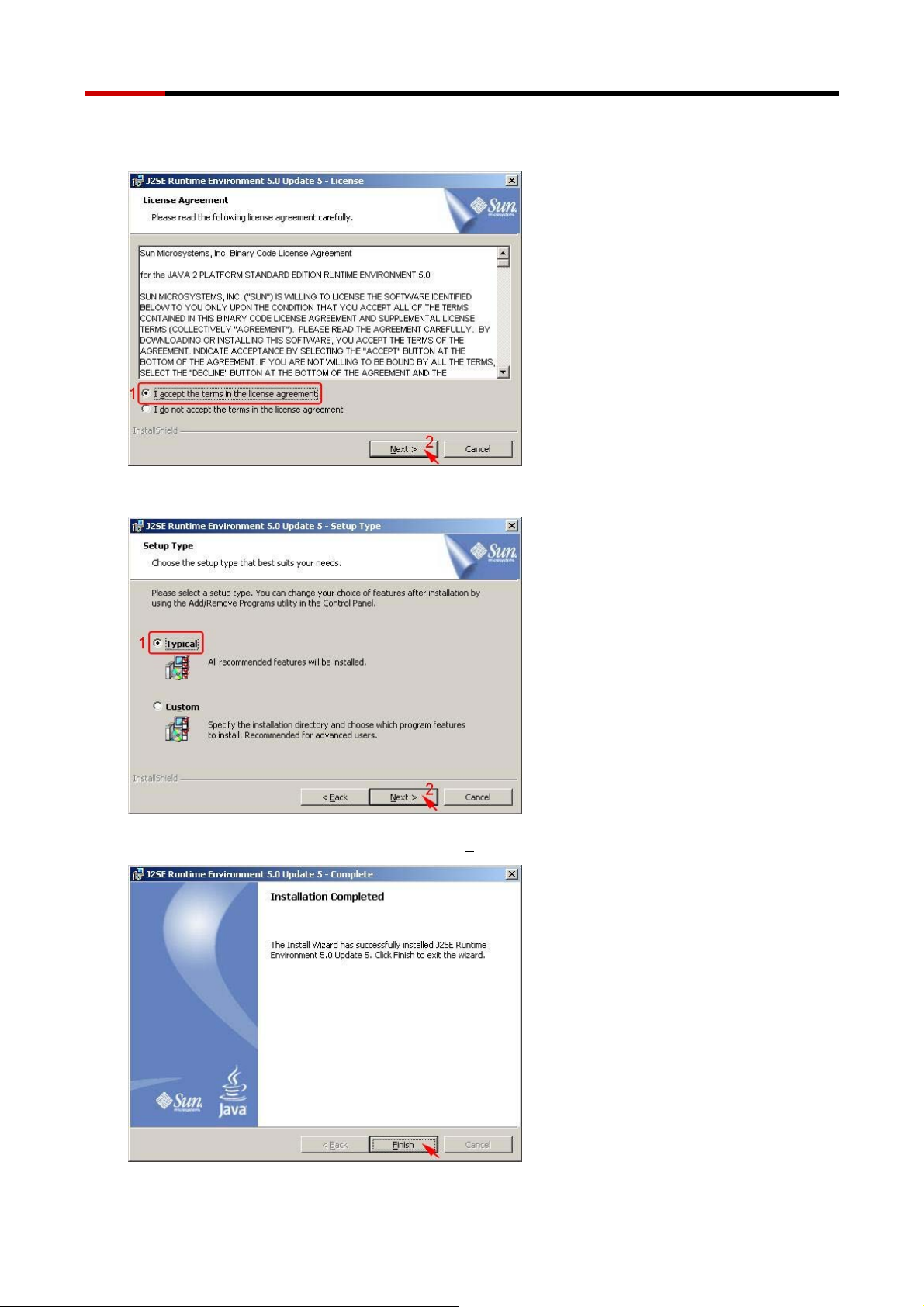

Select I
agree the terms in the license agreement, than click Next> to begin the Java platform
installation.
Select
Typical, than click Next>.
15
Server RSV-S8 User Manual
When Java platform installation has completed, click Finish to exit.
Select Start > Programs > Silicon Image > SATARaid5Manager to start the Array Manager software.
3.3.3 DISK DRIVE MODE SETUP
Please refer to the chapter 4.
3.3.4 ALLOCATING PARTITION
Before creating any partitions, RAID groups must first be created using the SATARaid5Manager utility. Once the sets have been created, allow the system to load Windows.
Right-click on My Computer icon and select Manage from the pop-up menu.
16
Server RSV-S8 User Manual
Select Disk Management under Storage to view the disk drives.
When Write Signature and Upgrade Disk Wizard appears, click
Select the new disk to write a signature, than click
Next>.
Next>.
17
Server RSV-S8 User Manual
Do not click any disk to upgrade to dynamic disk, than click Next>.
When the Write Signature and Upgrade Disk Wizard has completed, click Finish.
Right-click on the Unallocated partition and select Create Partition… from the pop-up menu.
18
Server RSV-S8 User Manual
Click Next> to create a partition on a basic disk.
Select the partition type you want to create, than click Next>.
Specify the partition size you want to create, than click Next>.
19
Server RSV-S8 User Manual
Assign the drive letter or path you want to create, than click Next>.
Click Format this partition with the following settings and Perform a Quick Format, setup the File
system to use, Allocation unit size, Volume label, than click Next>.
When the Create Partition Wizard has completed, click Finish.
20
Server RSV-S8 User Manual
The status of the newly created partition in the Disk Management window should change to Formatting and the percentage complete will be displayed. Depending upon the size of the partition, the format process may take several minutes. When complete, the status will change to “Healthy and the name and
drive letter will be updated. Once the disk reports Healthy, it appears in the listing in System Listing section with all of its pertinent information as well.
Repeat the above procedure as needed for any other partitions. Close the Data Management window by clicking on the small boxed “X” in the top right corner of the window. Click on the “My Computer” icon on the Desktop. The new drives will be visible and properly named. The new disks are available for use.
21
Server RSV-S8 User Manual
3.4 INSTALLING ON WINDOWS XP (32/64-BIT)
3.4.1 INSTALLING SATA RAID HOST BUS ADAPTER
Follow the descriptions below, and step by step to complete the setup.
Insert the Setup and Installation Repository CD in the CD-ROM drive. When start the Windows O/S, new hardware will be found; Select No, not this time, than click Next>.
Select Install from a list or specific location (Advanced), than click Next>.
22
Server RSV-S8 User Manual
Select Search for the best driver in there location, Include this location in the search, and click Browse to select the driver path, than click Next>.
When the installation has completed, click Finish.
23
Server RSV-S8 User Manual
3.4.2 INSTALLING SATARAID5 UTILITY
Follow the descriptions below, and step by step to complete the installation.
Open the Setup and Installation Repository CD and select the SATARAID5 Array Manager software from the Utility folder.
Double-click the utility file.
24
Loading...
+ 57 hidden pages
