SERVER RSV-L4500
User Manual
SERVER RSV-L4500 User Manual
Contents
Product Overview ...............................................................................................................................................2
Introduction ................................................................................................................................................. 3
Feature .......................................................................................................................................................... 3
Specification ............................................................................................................................................... 3
Installation Guide ................................................................................................................................................4
Top Cover Disassembly ........................................................................................................................... 4
3.5” Device Installation ............................................................................................................................ 5
Hard Drive Rail Installation ..................................................................................................................... 6
Server Rail Installation ............................................................................................................................. 7
1
SERVER RSV-L4500 User Manual

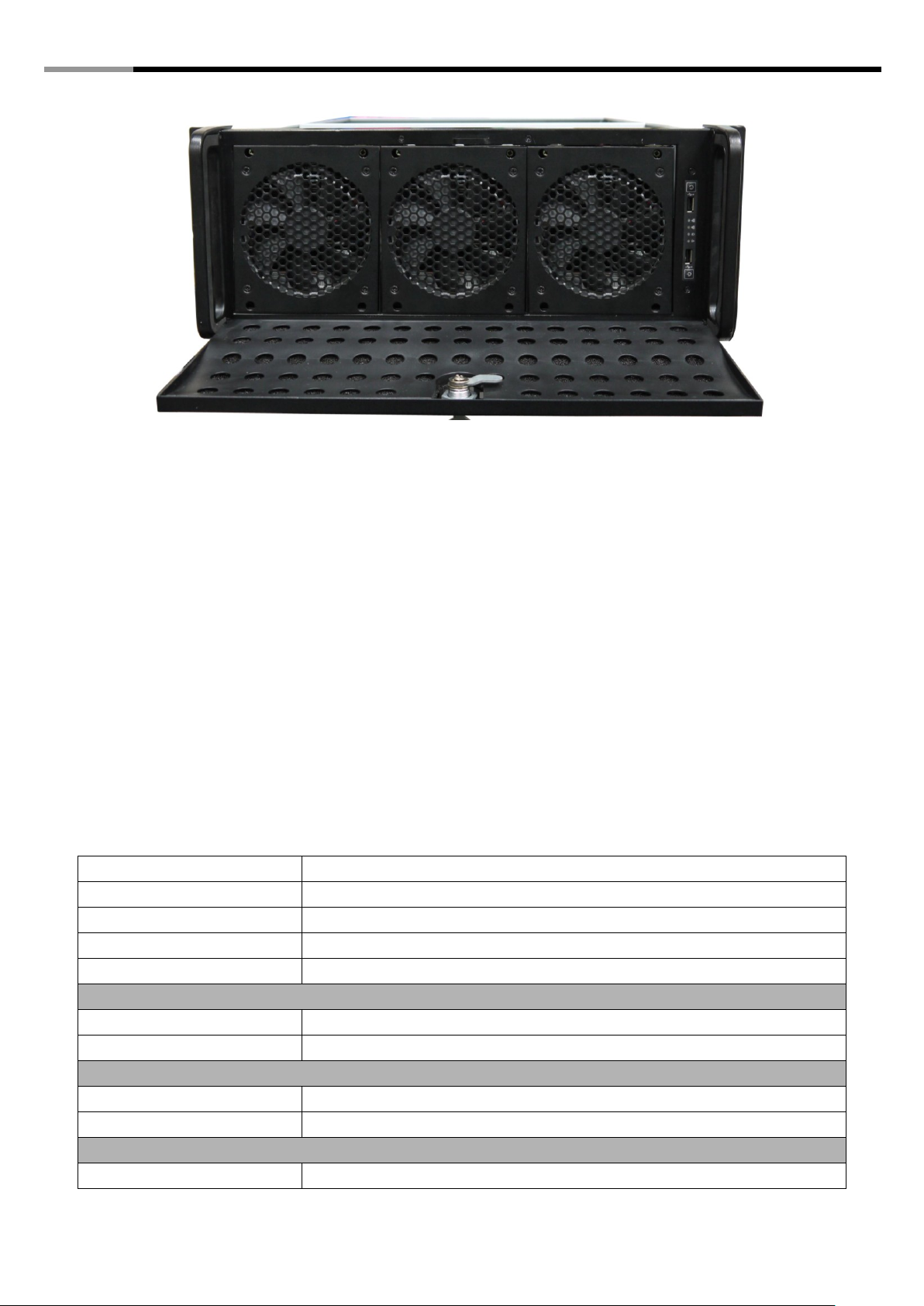

Product Overview
2
SERVER RSV-L4500 User Manual
Chassis Type
Rackmount
Color
Black
Case Material
Metal/ Steel, 1.0 mm thickness
Motherboard Compatibility
12" x 13" E-ATX and below
Form Factor
4U
Cooling System
80mm Fans
2 max (All 2 80mm Fans included)
120mm Fans
6 max (All 5 120 mm Fans included)
Expansion
Internal 3.5" Drive Bays
15
Expansion Slots
7
Physical Spec
Control & Indicator
1x Power switch +1x Reset switch
Introduction
RSV-L4500 is a 4U rackmount industrial chassis for various kinds of server computer which supports any
E-ATX (12” x 13”) and below form factor motherboard design and PS2 power supply. In addition, RSV-L4500
has a large-scale fan filter and easy-to-use knob key for great serviceability of the system.
Feature
Carries a total of 15x internal 3.5" HDDs.
Best cooling design carry up to front 120 mm front cooling fan x6 and 80 mm back cooling fan x2 max (all
are included in RSV- L4500).
Front door with key lock for better security.
Special design for add-on cards in the system (7 pieces max).
2x USB 2.0 connector in front panel.
Specification
3
SERVER RSV-L4500 User Manual
1x LED (power) +1 x LED (HDD), 2 x LED (LAN)
2x 2.0 USB
Dimensions(L x W x H)
25" x 16.8" x 7.0" inches (635 x 427 x 178 mm)
Weight
Net Weight : 31.9 lbs. (14.5kg)
Gross Weight : 39.8 lbs (18.0kg)
Package Contents
RSV-L4500 Server Case; Keys; Screws; Other Accessories
PIC
ITEM
PURPOSE
PIC
ITEM
PURPOSE
MOTHERBOARD
STANDOFF x 12
MOTHERBOARD
RAIL x 6
HDD MODULE
ODD RAIL
SCREWS x 6
POWER
SUPPLY
Buzzer x 1
(PC Speaker)
MOTHERBOARD
SCREWS x 20
MOTHERBOARD
PIC
ITEM
PURPOSE
HDD RAIL
x32
HDD Mounting
RAIL
1. Remove the screws from each side of
the Chassis. (two on each side)
2. Once the screws removed, push the
top cover to remove from the chassis.
Top Cover Disassembly
Installation Guide
4
SERVER RSV-L4500 User Manual

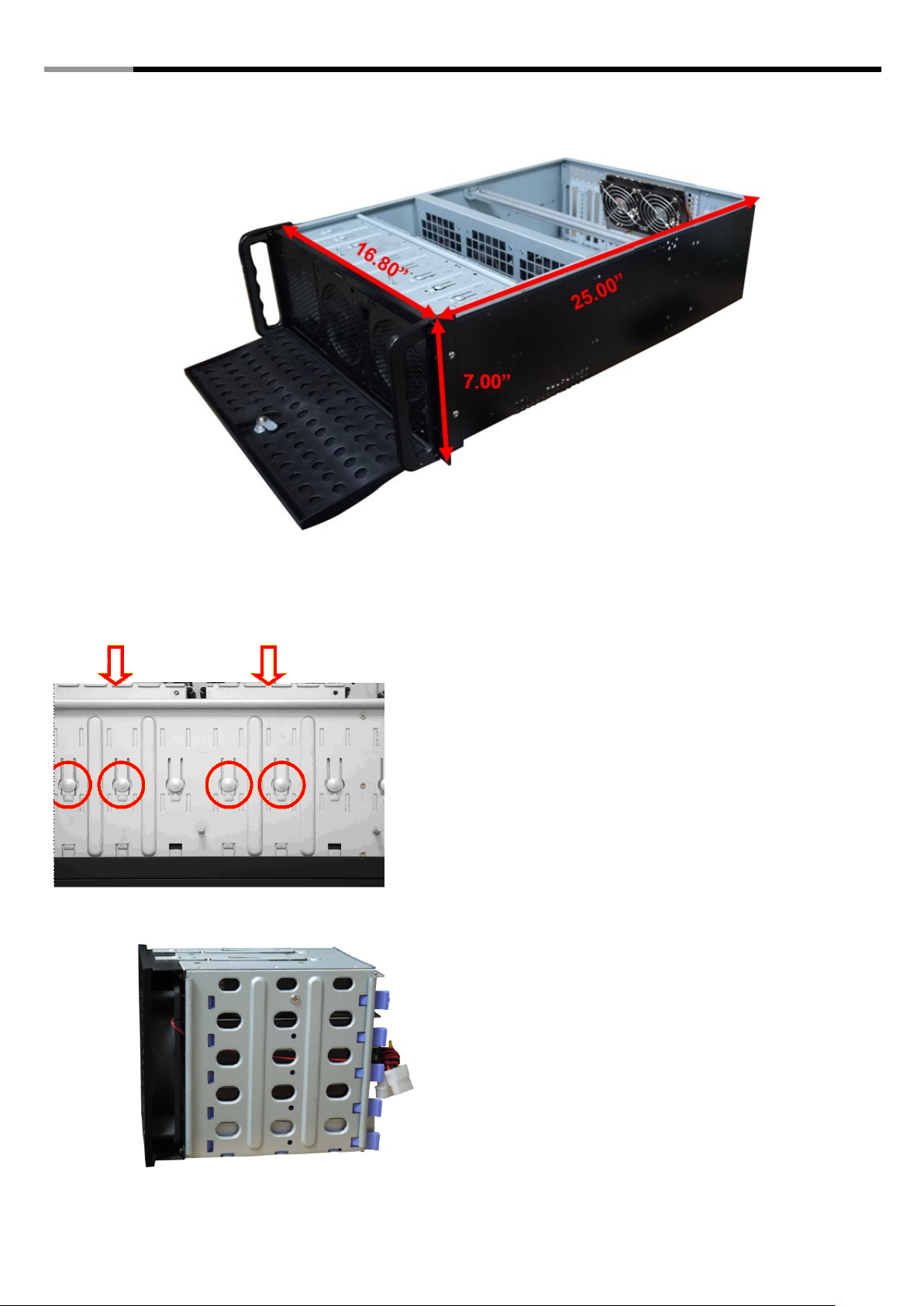

1. First press the two round shape button using
your thumbs, then use your index finger to
push the 3.5” module to remove it.
2. The 5x HDDs module should look like this.
Each Hard drive is mounted in the module
using the HDD rail side by side.
3. You can see the Hard Drive installation guide in
following section.
3.5” Device Installation
5
SERVER RSV-L4500 User Manual
Hard Drive Rail Installation
1. Each Hard drive requires using 2x HDD rail on
each side.
2. When alighting the HDD rail with Hard drive,
please make sure that both pin on each rail will
be insert into the hard drive’s screw holes.
3. The HDD rail should look like this when place
correctly with Hard Drive.
(Note: Please do not fasten screw on HDD Rail and
Hard Drive at this stage, otherwise you will not be
able to slide the HDD rail into the module)
4. When sliding into the HDD module, please
make sure that the connector of the hard drive
is facing outside and the rails are pushed all
the way until click into the module.
5. You can then lock the hard drive with the screw
after the HDD rail is pushed all the way into the
module and locked.
6
SERVER RSV-L4500 User Manual
1. In order to install the rail, you must first
remove the cover on the side. Three
screws locate on each side.
2. Unscrew all three screws on each side.
3. Upon removing the side bar, you will find
several screw holes for you to install the
server rail.
Server Rail Installation
Thank you for purchasing a quality Rosewill Product.
Please register your product at: www.rosewill.com for complete warranty information and future support for
your product.
