Rosewill RNX-N150PCX User Manual

Wireless N Adapter RNX-N150PCx
User Manual
Wireless N Adapter RNX-N150PCx User Manual
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
- 2 -
Wireless N Adapter RNX-N150PCx User Manual
National Restrictions
2400.0-2483.5 MHz Country Restriction Reason/remark
Bulgaria France Outdoor use limited to 10 mW
Italy
Luxembourg
Norway Implemented
Russian Federation
Note: Please don’t use the product outdoors in France.
e.i.r.p. within the band 2454-2483.5 MHz
Only for indoor applications
General authorization required for outdoor use and public service Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 If used outside of own premises, general authorization is required General authorization required for network and service supply(not for spectrum) This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
- 3 -
Wireless N Adapter RNX-N150PCx User Manual
Before We Begin
Thank you for purchasing this product, we would like to use this manual to help you know more about your RNX-N150PCx.
COPYRIGHT & TRADEMARKS Specifications are subject to change without notice.
is a registered trademark of ROSEWILL INC. Other brands and product names are trademarks or registered trademarks of their respective
holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from ROSEWILL INC.
Copyright © 2009 ROSEWILL INC. All rights reserved.
http://www.rosewill.com
Special Icons that needs your attention:
NOTE: This mark indicates that there is a note of interest or something you need to pay special attention to.
WARNING: This mark indicates warning or caution that there might be something can damage your device or property.
- 4 -
Wireless N Adapter RNX-N150PCx User Manual
Table of Contents
Chapter 1 Product Overview...........................................................................................................................................................................- 8 -
1.1 Package Content............................................................................................................................................................................- 8 -
1.2 Overview of the Product............................................................................................................................................................... - 8 -
1.3 Product Features............................................................................................................................................................................ - 9 -
1.4 Product Specification..................................................................................................................................................................- 10 -
1.5 System Requirement................................................................................................................................................................... - 10 -
1.6 PCI Adapter LED Status.............................................................................................................................................................. - 11 -
Chapter 2 Security Check List before Installation.................................................................................................................................. - 12 -
Chapter 3 Installation Guide..........................................................................................................................................................................- 13 -
3.1 Hardware Installation..................................................................................................................................................................- 13 -
3.2 Software Installation....................................................................................................................................................................- 14 -
Chapter 4 Connection Guide......................................................................................................................................................................... - 17 -
4.1 Configures a Basic Network Connection .............................................................................................................................. - 17 -
4.1.1 Selecting configuration tool.......................................................................................................................................... - 17 -

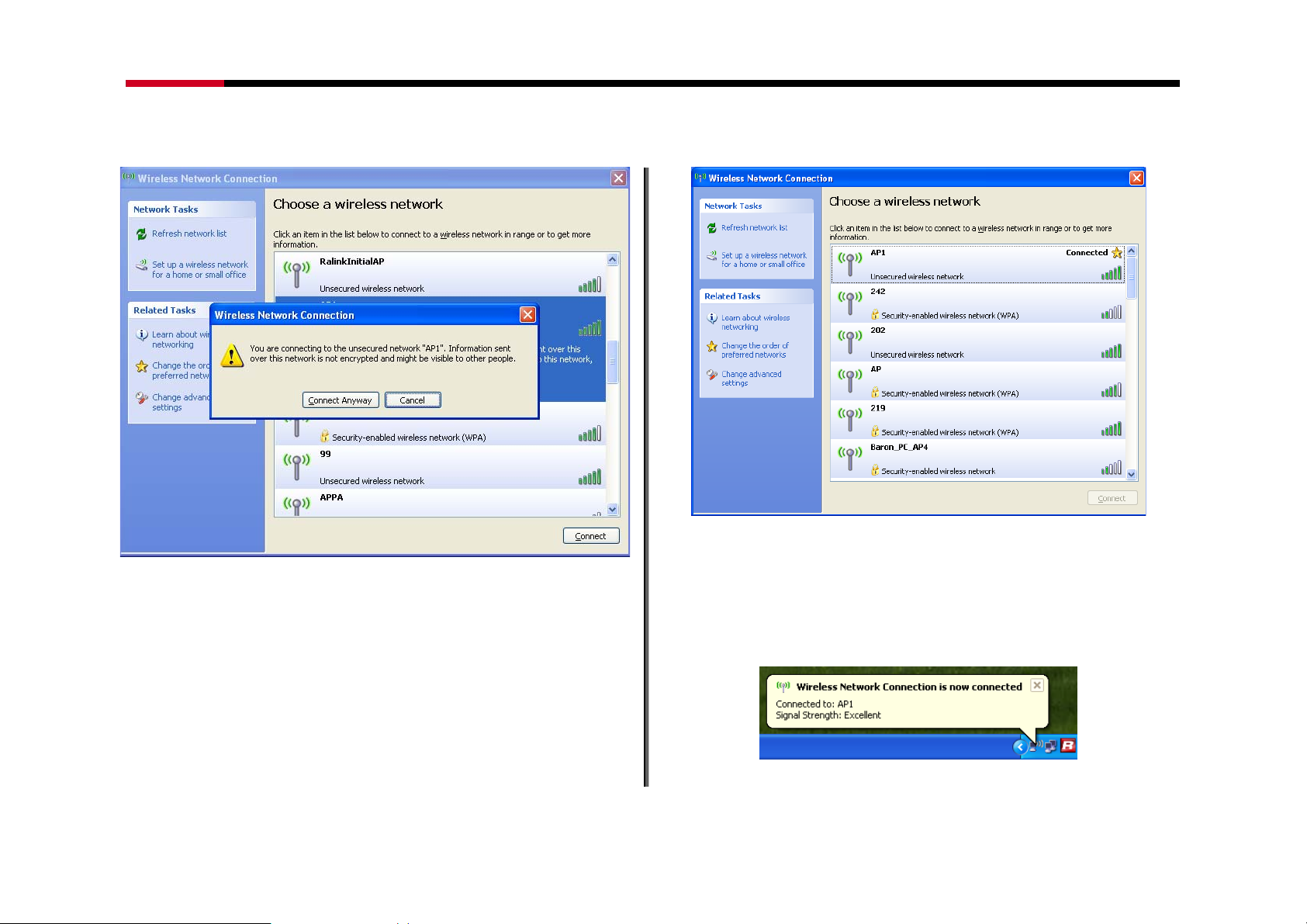

4.2 Connecting with Microsoft Zero Configuration................................................................................................................... - 17 -
4.3 Connecting through Rosewill Utility ....................................................................................................................................... - 20 -
4.3.1 Steps to add wireless signal with Rosewill Utility for one time use ..................................................................- 21 -
4.3.2 Steps to add wireless signal into Profile and keep for future record................................................................- 22 -
Chapter 5 Utility Detailed Definition Guide...............................................................................................................................................- 25 -
5.1 Tab Section Details:..................................................................................................................................................................... - 25 -

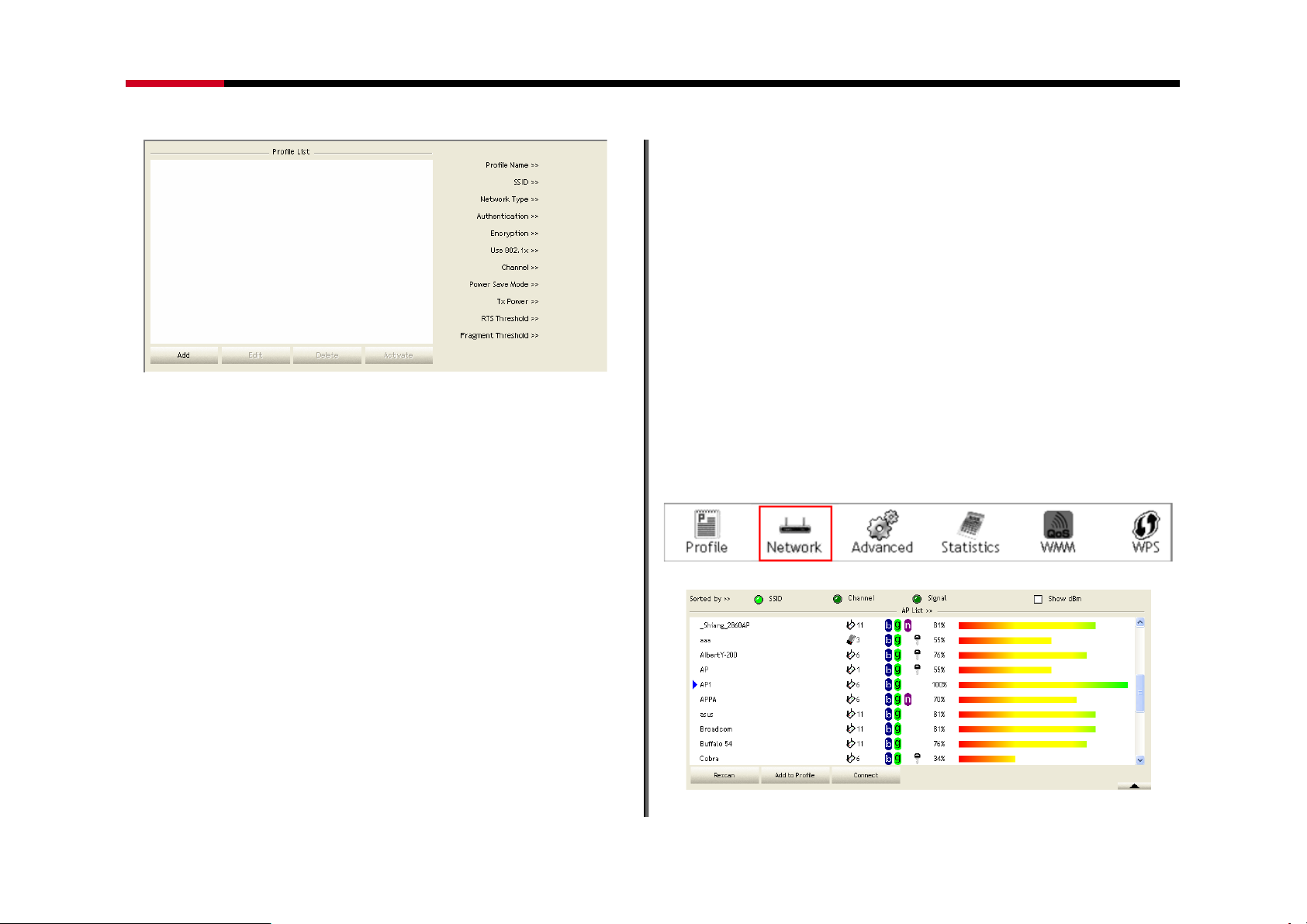

5.1.1 Profile..................................................................................................................................................................................- 25 -
5.1.2 Network............................................................................................................................................................................... - 26 -
- 5 -
Wireless N Adapter RNX-N150PCx User Manual
5.1.3 Advance..............................................................................................................................................................................- 27 -
5.1.4 Statistics............................................................................................................................................................................. - 27 -

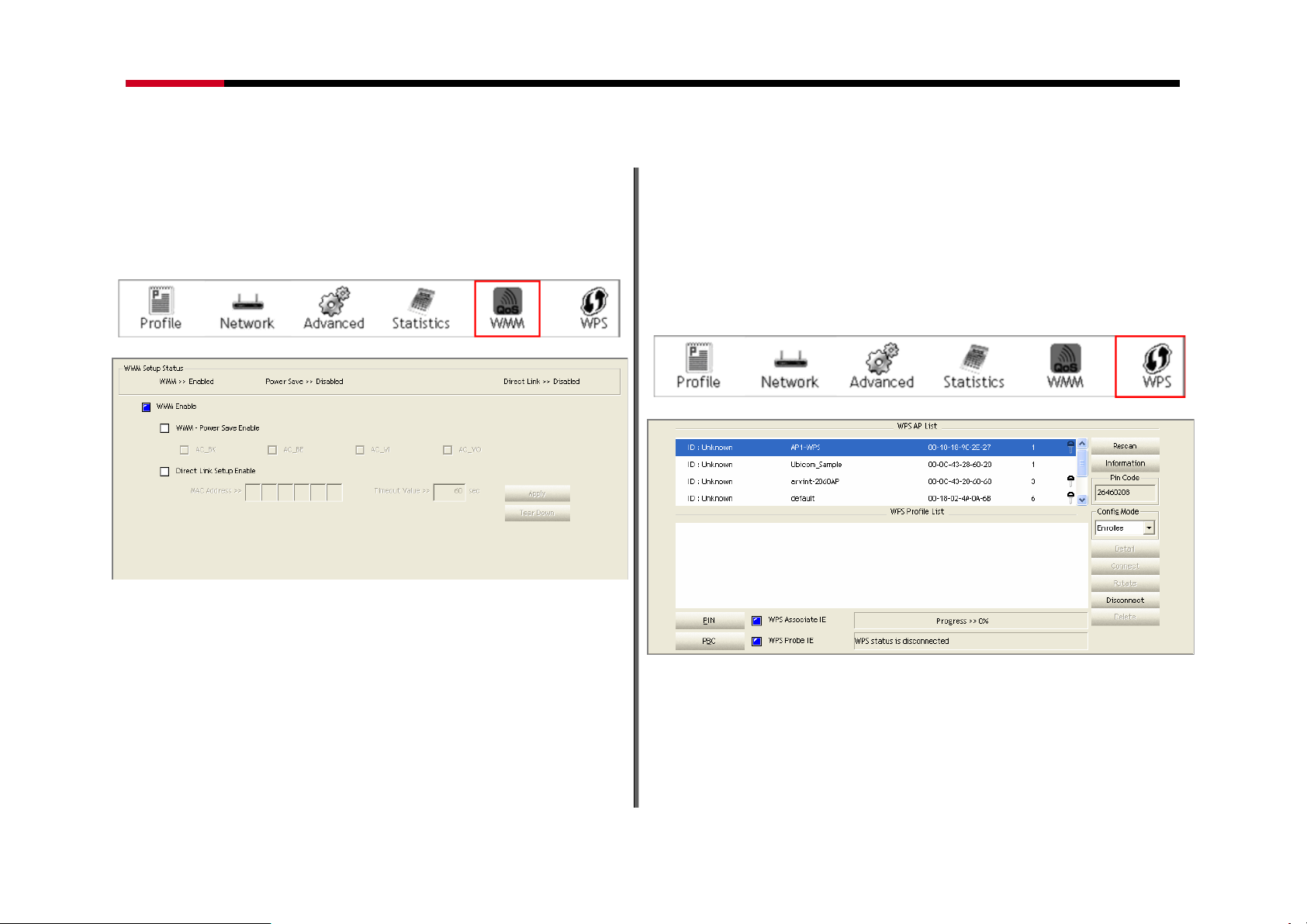

5.1.5 WMM....................................................................................................................................................................................- 29 -
5.1.6 WPS .....................................................................................................................................................................................- 29 -

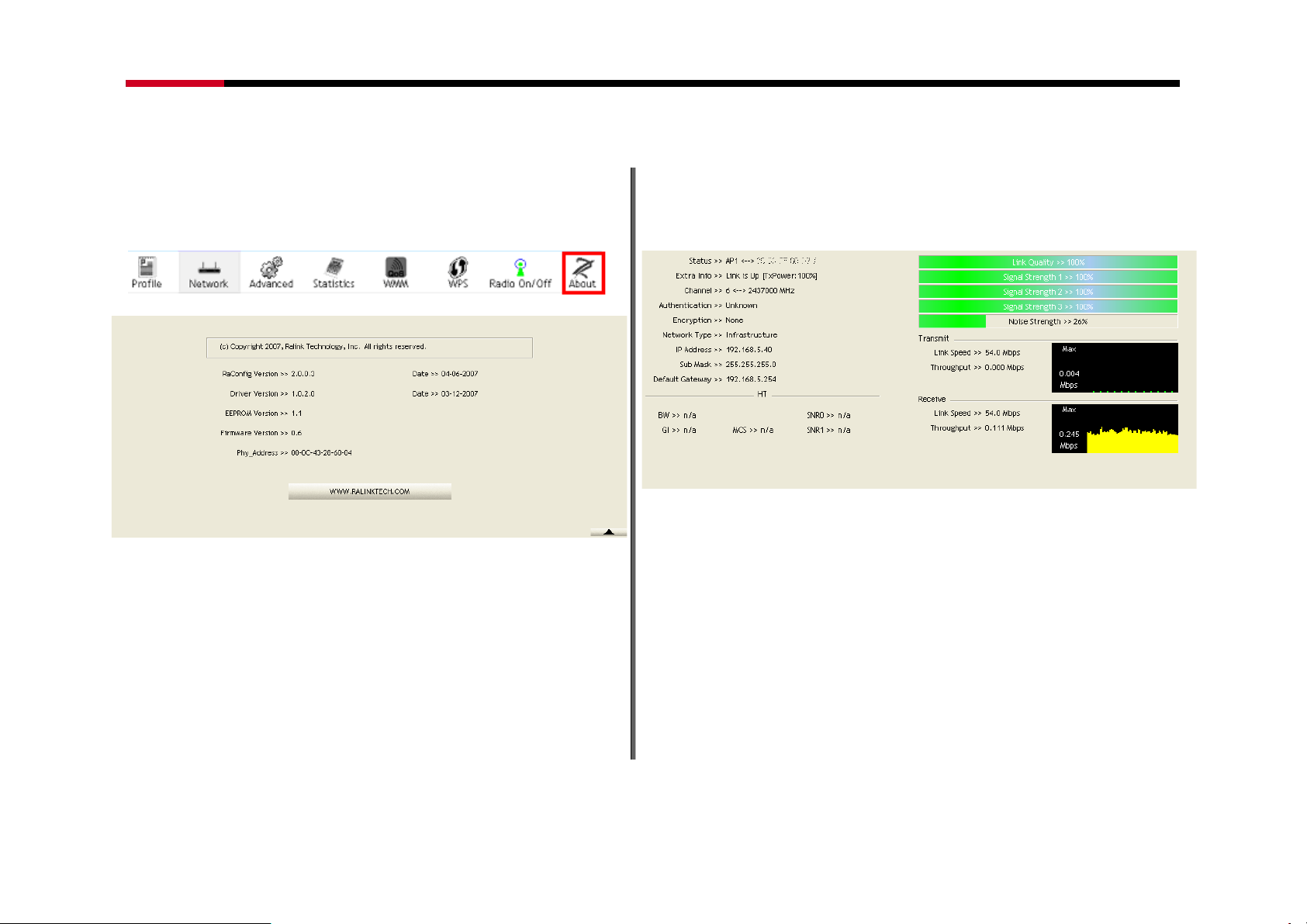

5.1.7 About...................................................................................................................................................................................- 31 -
5.2 Status Section Details................................................................................................................................................................. - 31 -
Chapter 6 Security Description Guide........................................................................................................................................................ - 33 -
6.1 Auth. \ Encry. Setting - WEP/TKIP/AES .................................................................................................................................. - 33 -
6.2 802.1x Setup Details:................................................................................................................................................................... - 33 -
6.2.1 Method and Authentication:.......................................................................................................................................... - 34 -
6.2.2 ID\Password:..................................................................................................................................................................... - 36 -
6.2.3 Client Certification:.......................................................................................................................................................... - 36 -
6.2.4 EAP Method: EAP Fast..................................................................................................................................................... - 36 -
6.2.5 Server Certification.......................................................................................................................................................... - 37 -
Chapter 7 Setup Examples Guide................................................................................................................................................................ - 38 -
7.1 WMM Setup Examples................................................................................................................................................................- 38 -
7.1.1 Example to configure to Enable DLS (Direct Link Setup).....................................................................................- 38 -
7.1.2 Example to Enable WMM – Power Save Enable ......................................................................................................- 39 -
7.2 WPS Setup Examples ................................................................................................................................................................. - 40 -
7.2.1 Example to Add to WPS Using PIN Method.............................................................................................................. - 40 -

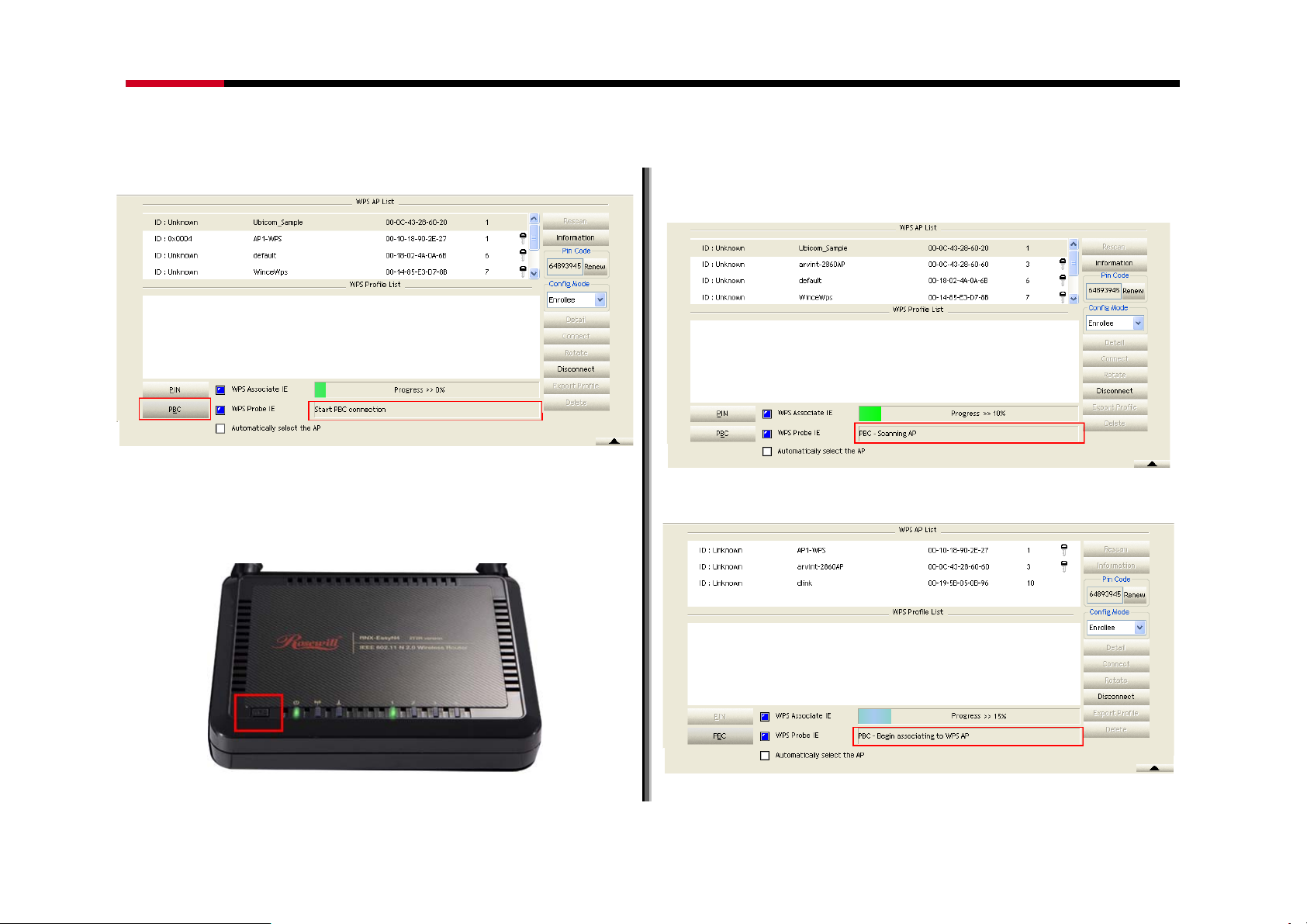

7.2.2 Example to Add to WPS Using PBC Method............................................................................................................- 41 -
7.3 Security Settings: WEP/WPA/WPA2........................................................................................................................................ - 43 -
7.3.1 Example to Configure Connection with WEP........................................................................................................... - 43 -
7.3.2 Example to Configure Connection with WPA-PSK.................................................................................................- 44 -
- 6 -
Wireless N Adapter RNX-N150PCx User Manual
Chapter 8 Troubleshooting............................................................................................................................................................................ - 45 -
- 7 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 1 Product Overview

Thank you for choosing Rosewill’s 802.11n Wireless PIC adapter – RNX-N150PCx. This chapter is to introduce you more about this Wireless Adapter.

1.1 Package Content

Before getting started, please verify that your package includes the following items:
1. Rosewill 802.11n Wireless PCI Adapter x 1
2. 2 dBi detachable Antenna x 1
3. Quick Installation Guide x 1
4. Resource CD x 1, including:
Rosewill Wireless N Client Utility and Driver
User Manual
Note: Make sure that the package contains the above items.

1.2 Overview of the Product

PCI Adapter connects you with IEEE802.11n (Draft 2.0) networks at receiving rate up to an incredible 150Mbps! By using the reflection signal, 802.11n technology increases the range and reduces “dead spots” in the wireless coverage area. Unlike ordinary wireless networking of 802.11b/g standards that are confused by wireless reflections, 802.11n can actually use these reflections to increase four times transmission range of 802.11g products.
Besides, when both ends of the wireless link are 802.11n products, the PCI card can utilize twice radio band to increase three times transmission speed of ordinary 802.11g standard products, and can comply with backwards 802.11b/802.11g standards.
Soft AP supported by PCI Adapter can help you establish wireless LAN networking with lowest cost. Also WPS (PBC and PIN)
encryption method can free you from remembering the long
If any of the listed items are damaged or missing, please contact with your distributor.
passwords. Complete WMM function makes your voice and video
more smooth.
- 8 -
Wireless N Adapter RNX-N150PCx User Manual
1.3 Product
Complies with IEEE 802.11n (Draft 2.0), IEEE
Features
802.11g, IEEE 802.11b standards
Provides 32-bit PCI interface Provides 150Mbps receiving rate and 150Mbps
sending rate
Supports 20MHz/40MHz frequency width Auto-detects and changes the network
transmission rate
Provides two work modes: Infrastructure and
Ad-Hoc
Supports Soft AP to establish your wireless LAN
networking with lowest cost
Supports 64/128-bit WEP, WPA, WPA2
encryption methods and 802.1x security authentication standard
Supports WPS (PBC and PIN) encryption method
to free you from remembering long passwords
Supports WMM to make your voice and video
more smooth
Supports Windows® 2000, XP 32/64, Vista 32/64, Extended Antenna for ease of signal adjustment
Win 7 32/64
- 9 -
Wireless N Adapter RNX-N150PCx User Manual
1.4 Product
Standard IEEE 802.11n Draft 2.0 and IEEE802.11g/b
Frequency Band
2.400GHz ~ 2.484GHz
Data Rate
802.11n: up to 150Mbps Upstream and up to 150 Mbps downstream
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
Operation Temperature 0°C ~ 55°C ambient temperature
Specification
RF Output Power(Typical)
802.11b: up to 17 ± 1 dBm
802.11g: up to 15 ± 1 dBm
802.11n: up to 16 ± 1 dBm Interface PCI interface 2.2
Antenna 100 cm 2dBi External Detachable antenna
Storage Humidity 10% ~ 90% (Non-condensing)
Driver Support Windows® 2000, XP 32/64, Vista 32/64, Win7 32/64
Security 64/128-bit WEP (Hex & ASCII), WPA(TKIP with IEEE 802.1x), WPA2(AES with IEEE 802.1x)
Dimension: Without Bracket
120 x 80 x 15 mm
4.7 x 1.7 x 0.5 inches
Weight: (with Bracket and Antenna)
45 g Storage Temperature
-20°C ~ 70°C ambient temperature
With Bracket
4.7 x 4.7 x 1.7 inches

1.5 System Requirement

You must have at least the following
A desktop PC with an available 32-bit PCI slot  Minimum 300MHz processor and 32MB memory  Windows 98SE, ME, 2000, XP 32/64, Vista 32/64, Win7 32/64  A CD-ROM Drive  PCI controller properly installed and w orking in the desktop PC
802.11n or 802.11b/g Access Point (for infrastructure Mode) or
another 802.11n or 802.11b/g wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)
- 10 -
Wireless N Adapter RNX-N150PCx User Manual
1.6
The status LED indicators of the PCI Adapter are described in the following.
Lnk/Act ON (Green): Indicates a valid connection.

PCI Adapter LED Status

Figure 1-1 Wireless PCI Card LED
Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving
data
- 11 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 2 Security Check List before Installation

Please also remember to keep a record of your wireless
network name, default password (The login name and
Wireless Networks are very convenient, however, since
password which you will need when linking into your it uses radio waves to send information. It can be vulnerable from those who intended to do harm. So we recommend you take additional steps to secure your wireless network.
Change the default wireless network name or SSID on
your wireless router
Change the default password on your wireless router  Enable encryption. We suggest enabling high level of the
encryption such as WPA and above.
Install Anti-virus program and personal firewall
software
When set your encryption password, please select strong
pass phrases that are at least eight characters in length.
Combines both letters and numbers to create stronger password and avoid using standard words that can be found in the dictionary.
wireless router through Internet explorer), SSID and
encryption password (the password which you will need
when connecting your wireless adapter with your wireless
network) somewhere in case you need them in the future.
- 12 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 3 Installation Guide

3.1 Hardware Installation

To install the adapter, follow these steps listed below:
1. Turn off your desktop PC and disconnect the power.
4. Reconnect your PC’s power and turn on your desktop PC.
2. Remove your PC case and locate an available PCI slot on the
motherboard. Remove the metal slot cover on the back of the PC. Check with your computer manufacturer for instructions if needed.
3. Slide the PCI Adapter into the PCI slot. Make sure that all of its
pins are touching the slot's contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis with a mounting screw as shown in Figure 3-1. Then, close your PC case.
Note: Select Cancel when “Found New Hardware” window
appears.
Figure 3-1
- 13 -
Wireless N Adapter RNX-N150PCx User Manual
3.2 Software
Note: The following driver installation guide uses Windows® XP as
the presumed operation system. The procedures and screens in Windows® 2000 and Vista are familiar with Windows® XP.
Installation
1. After Inserted PCI adapter into your computer. The system should
find the newly installed device automatically like Figure 3-2. Click cancel to close this w
indow.
2. Insert the CD-Rom that came with this product to your CD-Rom drive.
The menu window pops up automatically as Figure 3-3. Please click the “Driver” button of this product. Note: If the CD-Rom fails to auto-run, please click on “My Computer”> your CD-Rom Drive> (folder of this product)> Driver then double-click the “Setup” icon to start this menu.
Figure 3-2
- 14 -
Figure 3-3
Wireless N Adapter RNX-N150PCx User Manual

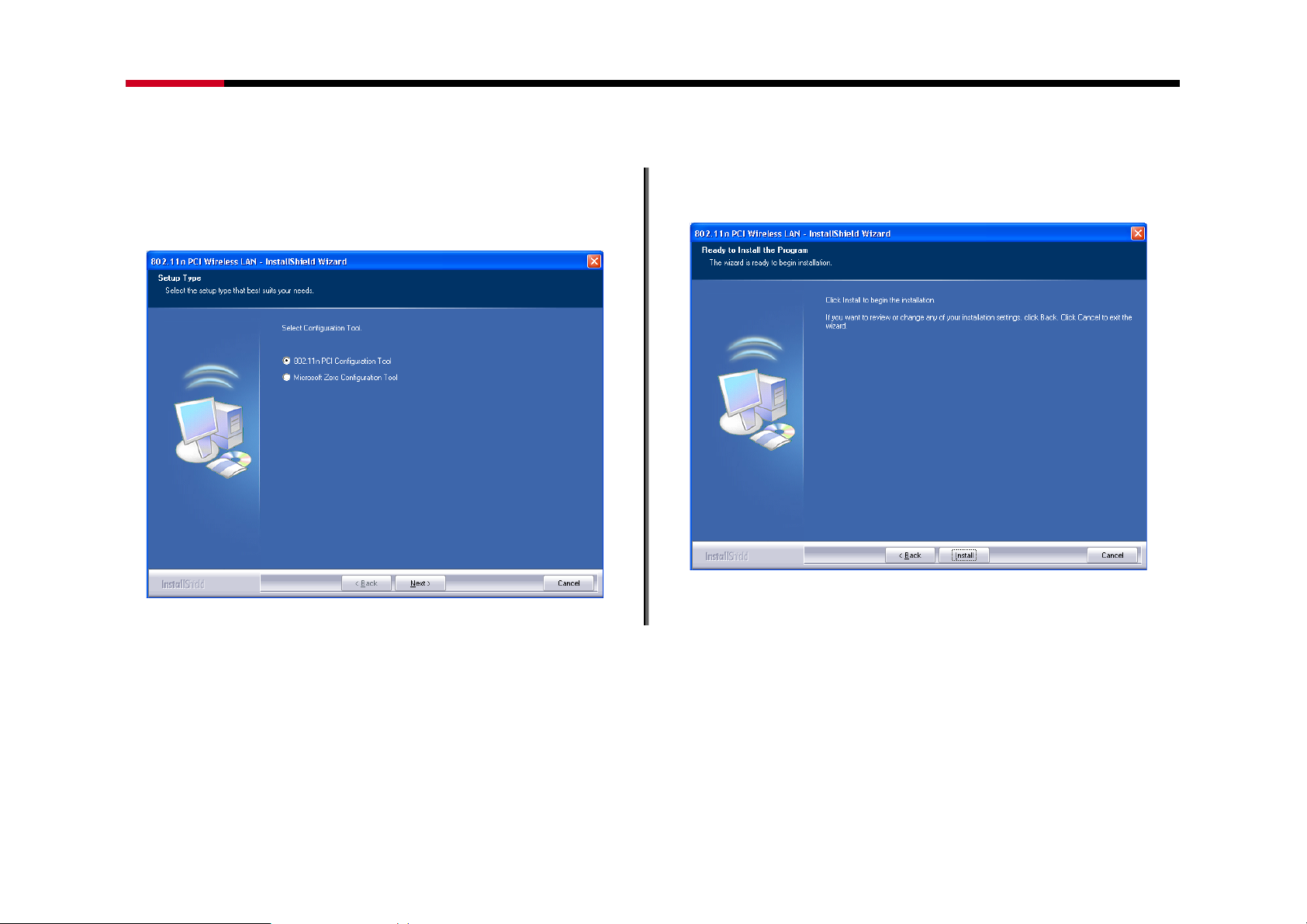

3. Select if you are going to configure your wireless network with this
Rosewill Utility or with Microsoft Zero Configuration tool.
Figure 3-4
4. Click the “Install” button to start installing.
Figure 3-5
- 15 -
Wireless N Adapter RNX-N150PCx User Manual
5. Click the “Finish” button to complete installation.
Figure 3-6
6. You may be prompt to restart your computer for the driver to take
effect. Please select “Restart” or depending on your desire, you can select “Restart Later
- 16 -
Wireless N Adapter RNX-N150PCx User Manual
Chapter 4 Connection Guide
This chapter will help you understand the management interface of the device and how to manage the device.

4.1 Configures a Basic Network Connection

4.1.1 Selecting configuration tool

Windows XP includes a wireless configuration utility named "Windows Zero configuration" (WZC) which provides basic configuration functions to RNX-N150PCx. Rosewill's utility provides additional WPA functionality. This utility will let users make a selection when it first runs after windows XP boots.
Note: You could use either the software we provide or Microsoft Zero Configuration tool to configure this adapter. To switch between the two configuration tools, please mouse right
click select Toolbars like Figure 4-1.
in the lower right hand corner of the
Figure 4-1

4.2 Connecting with Microsoft Zero Configuration

1. After specifying the Microsoft Zero Configuration tool
to configure your wireless network, right click on the icon
on system tray as Figure 4-2. Select “View
available wireless Networks” to specify your wireless network.
Figure 4-2
- 17 -
Wireless N Adapter RNX-N150PCx User Manual
2. The tool shows the available wireless networks. Select
your network SSID to connect with like Figure 4-3.
Figure 4-4
4. If your wireless Network does not contains encryption,
Figure 4-3
3. If your wireless Network has encryption enable, you will
be ask to enter the password like Figure 4-4. Please enter your wireless password at Network key” section twice and click Connect” to confirm.
select the intended access point and click "Connect". Then click "Connect Anyway" like Figure 4-5.
- 18 -
Wireless N Adapter RNX-N150PCx User Manual
Figure 4-6
Figure 4-5
5. Once completed, you should see like Figure 4-6 as your
computer is now Connected with your wireless
6. You should see the pop-up window on your low right
hand corner indicate the connected status. As shown in Figure 4-7.
Network.
Figure 4-7
- 19 -
Wireless N Adapter RNX-N150PCx User Manual
4.3

Connecting through Rosewill Utility

We provide this utility for users to connect to a wireless network easily. It provides more information and configuration for this adapter. As default, the utility is started automatically upon starting your computer and connects to a connectable wireless network with best signal strength. Please refer to the following chapters to get information regarding to the functions of this utility.
Clicking the Rosewill icon on your desktop will bring up the utility main window. Users can find the surrounding
AP signal in the list. The currently connected AP will be shown with a blue icon beside it, as shown in Figure 4-8. You can use the advanced tab to configure other advanced features provided by Rosewill's wireless NIC. For details on configuring the advanced features, please check with Chapter 5.
Figure 4-8
- 20 -
Wireless N Adapter RNX-N150PCx User Manual
4.3.1 Steps to add wireless signal with Rosewill
Utility for one time use
This section will lead you to link your wireless signal with your RNX-N150PCx. Please follow the Figure 4-9 in adding the signal.
1. ClickRescan: Click on Rescan to search for all wireless signals near you.
2. Select your desire SSID: Click to select your wireless signal, in this example, you can see
next to AP1; meaning we have select AP1 as
our desired SSID.
3. ClickAdd to Profile"or“Connect: I. Add to Profile: This part will help your
wireless adapter memorize the signal and password for your future use. Please see Next Section for more detail.
II. Connect: This is when you are in locations
where you do not need your adapter to remember the signal.
Figure 4-9
- 21 -
Wireless N Adapter RNX-N150PCx User Manual
4.3.2 Steps to add wireless signal into Profile and
keep for future record
Add to profile will help to store your wireless signal’s information with your RNX-N150PCx. Please follow the Figure 4-10 to add the signal into your profile so you don’t have to enter them in the future.
There are two ways to Add to Profile. You can add
through Network
Adding to Profile through Network Tab. (Figure
4-10):
1. First select Add to Profile
2. Choose the SSID you want to connect to. eg: Rosewill-1.
3. Key in your desired Profile Name, eg, HOME.
4. Or you can choose SSID with the pull-down window.
5. When complete, please select Auth.\ Encry” to enter your password.
tab or add through tab.
Figure 4-10
6. In Auth.\Encry., First select Authentication of your wireless signal, Like Figure 4-11.
7. Enter your Wireless Networks password.
8. Click OK to complete the process.
- 22 -
Wireless N Adapter RNX-N150PCx User Manual
Adding to Profile through Profile Tab. (Figure
4-12):
1. First select Add
2. Key in your desired Profile Name, eg, HOME.
3. Choose the SSID by selecting the pull-down window.
Figure 4-11
4. When complete, please select Auth.\ Encry” to enter your password.
Note: you could also add a new profile quickly by
selecting an available network in the “Network” function then press the “Add to Profile” button.
Figure 4-12
- 23 -
Wireless N Adapter RNX-N150PCx User Manual
5. In Auth.\Encry. Like Figure 4-13.
6. First select Authentication of your wireless signal. This should automatically provided to you when select your desired SSID.
7. Enter your password.
8. Click OK to complete the process.
Figure 4-13
- 24 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 5 Utility Detailed Definition Guide

The Rosewill Utility consisted of three parts:
Figure 5-1
1 Tab Section: on top of the window. You can click each button to
access each configuration windows includes Profile page,
2 Network Section: Provides you with information on the wireless
signals around you. You have options to setup wireless network here with “Rescan”, “Add to Profile”, and “Connect
3 Status Section: bottom of the utility window. It shows the
connection status and system information.

5.1 Tab Section Details

Figure 5-2
Tab Section provides you with the option to utilize RNX-N150PCx.

5.1.1 Profile

The Profile List keeps a record of your favorite wireless settings at home, office, and other public hot-spots. You can save multiple profiles, and activate the correct one at your preference. Figure 5-4 shows the basic profile section.
Network Page, Advanced Page, Statistics Page, WMM Page, WPS Page, Radio On/Off function, and About
Figure 5-3
- 25 -
Wireless N Adapter RNX-N150PCx User Manual
RTS Threshold: Users can adjust the RTS threshold number by
sliding the bar or keying in the value directly.
Fragment Threshold: The user can adjust the Fragment
threshold number by sliding the bar or key in the value directly.

5.1.2 Network

Network Tab lists the available wireless networks. The utility
Figure 5-4
connects to a wireless network with best signal strength automatically. You can change the connecting network by
Definition of Each Fields in Profile:
Profile Name: Name of profile, preset to PROF* (* indicate 1, 2,
3...).
SSID: The access point or Ad-hoc name.
Network Type: Indicates the networks type, including
infrastructure and Ad-Hoc.
Authentication: Indicates the authentication mode used. Encryption: Indicates the encryption Type used. Use 802.1x: Shows if the 802.1x feature is used or not. Cannel: Channel in use for Ad-Hoc mode.
Power Save Mode: Choose from CAM (Constantly Awake
Mode) or Power Saving Mode.
Tx Power: Transmitting power, the amount of power used by a
radio transceiver to send the signal out.
- 26 -
clicking on the network name and click the “Connect” button. To see detail information of each network, please double click on each item to pop up the Status below.
Figure 5-5
Figure 5-6
Wireless N Adapter RNX-N150PCx User Manual
Definition of Each Fields in Network:
SSID, Channel and Signal buttons: Click each button to sort
the listing networks by SSID, Channel and Signal strength. Show dBm: Mark the checkbox to show the signal strength in dBm.
Rescan: To rescan available wireless networks. Connect: Click this button to connect to a designated network.
Add to Profile: Click this button to add a network to profile after
selecting a network.

5.1.3 Advance

Advanced configurations for this adapter.
Figure 5-7
Definition of Each Fields in Advance:
Wireless mode: Click the drop list to select a wireless mode.
Enable TX Burst: Select to enable connecting to a TX Burst
supported device.
Enable TCP Window Size: Mark the checkbox to enable TCP
window size, which help enhance throughput.
Fast Roaming at __ dBm: Mark the checkbox to enable fast
roaming. Specify the transmit power for fast roaming.
Show Authentication Status Dialog: Mark the checkbox to show
“Authentication Status Dialog” while connecting to an AP with authentication. Authentication Status Dialog displays the process about 802.1x authentication
Enable CCX (Cisco Compatible extensions): Select to enable
CCX. This function can only be applied when connecting to a Cisco compatible device.

5.1.4 Statistics

Provides you with information on your wireless adapter. Statistics displays the detail counter
802.11 MIB counters. This page translates the MIB counters into a format easier for user to understand.
Figure 5-8
- 27 -
Figure 5-9
information based on
Wireless N Adapter RNX-N150PCx User Manual
Figure 5-10
Figure 5-11
Definition of Each Fields in Statistics - Transmit:
Frames Transmitted Successfully: Frames successfully sent.
Frames Retransmitted Successfully: Successfully
retransmitted frames numbers
Frames Fail To Receive ACK After All Retries: Frames failed
transmit after hitting retry limit
RTS Frames Successfully Receive CTS: Successfully receive
CTS after sending RTS frame
RTS Frames Fail To Receive CTS: Failed to receive CTS after
sending RTS
Restart Counter: Reset counters to zero
Definition of Each Fields in Statistics - Receive:
Frames Received Successfully: Frames received successfully Frames Received With CRC Error: Frames received with CRC
error
Frames Dropped Due To Out-of-Resource: Frames dropped
due to resource issue
Duplicate Frames Received: Duplicate received frames.
- 28 -
Wireless N Adapter RNX-N150PCx User Manual

5.1.5 WMM

This function allows users to activate the WMM function for
this device. Please note that this function only works while
connecting to a WMM compatible device.
Figure 5-12
Figure 5-13
Definition of Each Fields in WMM:

5.1.6 WPS

The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. This adapter supports the configuration setup using PIN configuration method or PBC configuration method through an internal or external Registrar.
Figure 5-14
WMM Enable: Enable Wi-Fi Multi-Media.
WMM - Power Save Enable: Enable WMM Power Save.
Please enable WMM before configuring this function.
Direct Link Setup Enable: Enable DLS (Direct Link Setup).
Please enable WMM before configuring this function.
Figure 5-15
Definition of Each Fields in WPS:
WPS AP List: Display the information of surrounding APs with WPS
IE from last scan result. List information includes SSID, BSSID, Channel, ID (Device Password ID), Security-Enabled.
- 29 -
Wireless N Adapter RNX-N150PCx User Manual
Rescan: Click to rescan the wireless networks.
Information: Display the information about WPS IE on the
selected network. List information includes Authentication
Type, Encryption Type, Config Methods, Device Password
ID, Selected Registrar, State, Version, AP Setup Locked,
UUID-E and RF Bands.
PIN Code: 8-digit numbers. It is required to enter PIN Code into
Registrar using PIN method. Each Network card has only
one PIN Code of Enrollee.
Config Mode: Enrollee or an external Registrar.
Table of Credentials: Display all of credentials got from the
Registrar. List information includes SSID, MAC Address,
Authentication and Encryption Type. If STA Enrollee,
credentials are created as soon as each WPS success. If
STA Registrar, RaUI creates a new credential with
WPA2-PSK/AES/64Hex-Key and doesn't change until next
switching to STA Registrar.
Disconnect: Stop WPS action and disconnect this active link.
And then select the last profile at the Profile Page of RaUI if exist. If there is an empty profile page, the driver will select any non-secure AP
Delete: Delete an existing credential. And then select the next
credential if exist. If there is an empty credential, the driver will select any non-security AP.
PIN: Start to add to Registrar using PIN configuration method PBC: Start to add to AP using PBC configuration method.
WPS associate IE: Send the association request with WPS IE
during WPS setup. It is optional for STA.
WPS probe IE: Send the probe request with WPS IE during
WPS setup. It is optional for STA. Progress Bar: Display rate of progress from Start to Connected status
Status Bar: Display currently WPS Status
Detail: Information about Security and Key in the credential.
Connect: Command to connect to the selected network inside
credentials.
Rotate: Command connect to the next network inside credentials
- 30 -
Note: When you click PIN or PBC, please don't do
any rescan within two-minute connection. If you want to abort this setup within the interval, restart PIN/PBC or press Disconnect to stop WPS action.
Wireless N Adapter RNX-N150PCx User Manual

5.1.7 About

Click "About" displays the wireless card and driver version information as shown in Figure 5-16.
Figure 5-16
Figure 5-17

5.2 Status Section Details

The Status page displays detailed information about the current connection as shown in Figure 5-18.
Figure 5-18
Definition of Each Fields in Status:
Status: Current connection status. If no connection, if will show
Disconnected. Otherwise, the SSID and BSSID will show here.
Extra Info: Display link status in use. Channel: Display current channel in use. Authentication: Authentication mode in use. Encryption: Encryption type in use. Network Type: Network type in use. IP Address: IP address about current connection.
- 31 -
Wireless N Adapter RNX-N150PCx User Manual
Sub Mask: Sub mask about current connection. Default Gateway: Default gateway about current connection. Link Speed: Show current transmit rate and receive rate.
Throughout: Display transmits and receive throughput in unit of
Mbps.
Link Quality: Display connection quality based on signal
strength and TX/RX packet error rate.
Signal Strength 1: Receive signal strength 1, user can choose
to display as percentage or dBm format.
Signal Strength 2: Receive signal strength 2, user can choose
to display as percentage or dBm format.
Signal Strength 3: Receive signal strength 3, user can choose
to display as percentage or dBm format.
Noise Strength: Display the surrounding environment noise
signal strength.
HT: Display current HT status in use, containing BW, GI, MCS,
SNR0, and SNR1 value.
(Show the information only for
802.11n wireless card.)
- 32 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 6 Security Description

6.1 Auth. \ Encry. Setting - WEP/TKIP/AES

Figure 6-1
Definition of Each Fields in Auth. \ Encry.:
Authentication Type: There are 7 authentication modes
supported by Rosewill Utility. They are open, Shared, LEAP, WPA and WPA-PSK, WPA2 and WPA2-PSK.
Encryption Type: For open and shared authentication mode,
the available encryption types are None and WEP. For WPA, WPA2, WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.
WEP Key: Only valid when using WEP encryption algorithm.
The key must match the AP's key. There are several formats to enter the keys.
Hexadecimal - 40bits: 10 Hex characters. Hexadecimal - 128bits: 32Hex characters. ASCII - 40bits: 5 ASCII characters. ASCII - 128bits: 13 ASCII characters.

6.2 802.1x Setup Details

802.1x is an advance Security function which used for authentication of the "WPA" and "WPA2" certificate by the server. Sometimes you may need to use this function when your wireless network under enterprise level.
802.1X: This is introduced in the topic of Section 3-2. WPA Pre-shared Key: This is the shared key between the AP
and STA. If operating in WPA-PSK and WPA2-PSK authentication mode, this field must be filled with a key between 8 and 32 characters in length.
Figure 6-2
- 33 -
Wireless N Adapter RNX-N150PCx User Manual

6.2.1 Method and Authentication

Definition of Each Fields in 802.1X Method and Authentication:
Figure 6-3
EAP Method:
PEAP: Protect Extensible Authentication Protocol. PEAP
transport securely authenticates data by using tunneling between PEAP clients and an authentication server. PEAP can authenticate wireless LAN clients using only server-side certificates, thus simplifying the implementation and administration of a secure wireless LAN.
TLS/Smart Card: Transport Layer Security. This provides for
certificate-based and mutual authentication of the client and the network. It relies on client-side and server side certificates to perform authentication and can be used to dynamically generate user-based and session-based WEP keys to secure subsequent communications between the WLAN client and the access point.
TTLS: Tunneled Transport Layer Security. This security method
provides for certificate-based, mutual authentication of the client and network through an encrypted channel. Unlike EAP-TLS, EAP-TTLS requires only server-side certificates.
EAP-FAST: Flexible Authentication via Secure Tunneling. It was
developed by Cisco. Instead of using a certificate, mutual authentication is achieved by means of a PAC (Protected Access Credential) which can be managed dynamically by the authentication server. The PAC can be supplied (distributed one time) to the client either manually or automatically. Manually, it is delivered to the client via disk or a secured network distribution method. Automatically, it is supplied as an in-band, over the air, distribution. For tunnel authentication, only support "Generic Token Card" authentication.
LEAP: Light Extensible Authentication Protocol is an EAP
authentication type used primarily by Cisco Aironet WLANs. It encrypts data transmissions using dynamically generated WEP keys, and supports mutual authentication.
MD5-Challenge: Message Digest Challenge. Challenge is an
EAP authentication type that provides base-level EAP support. It provides for only one-way authentication - there is no mutual authentication of wireless client and the network.
Tunnel Authentication:
Protocol: Tunnel protocol, List information include
- 34 -
Wireless N Adapter RNX-N150PCx User Manual
"EAP-MSCHAP v2", "EAPTLS/Smart card", "Generic Token Card", "CHAP", "MS-CHAP", "MS-CHAP-V2", "PAP" and "EAP-MD5".
Tunnel Identity: Identity for tunnel. Tunnel Password: Password for tunnel. Session Resumption: The user can choose "Disable" and
"Enable".
- 35 -
Wireless N Adapter RNX-N150PCx User Manual

6.2.2 ID\Password

Definition of Each Fields in 802.1X ID\Password:
Figure 6-5
Use Client certificate: Client certificate for server authentication.
Figure 6-4
ID \ PASSWORD
Authentication ID/Password: The identity, password and
domain name for server.
Only "EAP-FAST" and "LEAP" authentication can key in domain name. Domain names can be keyed in the blank space.
Tunnel ID/Password: Identity and Password for the server.

6.2.3 Client Certification

Definition of Each Fields in 802.1X Client Certification:

6.2.4 EAP Method: EAP Fast

Figure 6-6
Definition of Each Fields in 802.1X EAP Method at EAP Fast:
- 36 -
Wireless N Adapter RNX-N150PCx User Manual
Allow unauthenticated provision mode: During the PAC can
be provisioned (distributed one time) to the client automatically. It only supported "Allow unauthenticated
provision mode" and use "EAP-MSCHAP v2" authentication to authenticate now. It causes to continue with the
establishment of the inner tunnel even though it is made with an unknown server.
Use protected authentication credential: Using PAC, the
certificate can be provided to the client manually via disk or a secured network distribution method.

6.2.5 Server Certification

Server name: Enter an authentication sever root.
Figure 6-7
Definition of Each Fields in 802.1X Server Certification:
Certificate issuer: Select the server that issues the certificate.
Allow intermediate certificates: It must be in the server
certificate chain between the server certificate and the server specified in the "certificate issuer must be" field.
- 37 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 7 Setup Examples Guide

7.1 WMM Setup Examples

7.1.1 Example to configure to Enable DLS (Direct
Link Setup)
1. Click "WMM Enable" to enable this function
2. Click the "Direct Link Setup Enable" checkbox
Figure 7-2
5. The Timeout Value indicates the time in seconds
before it disconnects automatically. The value is an integer. The integer must be between 0~65535. A zero value specifies that it stays connected. The
Figure 7-1
default Timeout Value is 60 seconds.
3. Click the Network Tab to switch to the wireless
router signal that support DLS function
4. Fill in the blanks of Direct Link with MAC Address of Station you want to connect to like Figure 7-2. The station must meet these two conditions:
1. Connect with an AP that supports DLS features.
2. Ensure that DLS is enabled.
Figure 7-3
- 38 -
Wireless N Adapter RNX-N150PCx User Manual
6. Click "Apply". This Station will now be store in the list like Figure7-4. You can also remove the stored data by select and click “Tear Down” like Figure 7-5.
Figure 7-4
7.1.2 Example to Enable WMM – Power Save
Enable
1. Click "WMM-Power Save Enable" to enable this option
2. Select the AC type you want to enable: AC_BK: High throughput. Bulk data that
requires maximum throughput and is not time-sensitive is sent to this queue (FTP data, for example).
AC_BE: Medium throughput and delay. Most
traditional IP data is sent to this queue
AC_VI: Minimum delay. Time-sensitive video
data is automatically sent to this queue
AC_VO: Time-sensitive data like VoIP and
streaming media are automatically sent to this queue
Figure 7-5
Figure 7-6
- 39 -
Wireless N Adapter RNX-N150PCx User Manual
7.2 WPS
Setup Examples

7.2.1 Example to Add to WPS Using PIN Method

WPS connection through PIN Method requires you enter the PIN Code into the Wireless Router that you want to connect to.
1. Select "Enrollee" from the Config Mode drop-down
2. Click “Rescan” to update the available AP that
3. Select the AP that you want to join to.
list.
Figure 7-9
4. Click “PIN” to start the PIN entering process
Figure 7-7
supports WPS.
Figure 7-10
You should see PIN – Begin associating to xxx
Figure 7-8
- 40 -
(your AP) in 5 like Figure 7-10; The process bar will start
Wireless N Adapter RNX-N150PCx User Manual
5. You should enter the PIN number provided here to
your AP.
6. Once setup complete, you should see the utility shown as Figure 7-12
Figure 7-11
Note: If you use Microsoft Window Connection
Now as an External Registrar, you must start PIN connection at STA first. After that, search out your WPS Device name and MAC address at Microsoft Registrar. Add a new device and enter PIN Code of STA at Microsoft Registrar when prompted.

7.2.2 Example to Add to WPS Using PBC Method

WPS connection through PBC Method requires you to press the button within 2 minutes with the Wireless Router that you want to connect to.
1. Select "Enrollee" from the Config Mode drop-down list.
Figure 7-12
Figure 7-13
- 41 -
Wireless N Adapter RNX-N150PCx User Manual
2. Click PBC to start the PBC connection
Figure 7-14
3. Push the PBC button on AP which should look like this
4. You should see the Status bar indicating searching
for AP. Please allow some process time.
Figure 7-15
5. Once the right AP found, the utility will start process.
Figure 7-16
- 42 -
Wireless N Adapter RNX-N150PCx User Manual
6. When connect successfully. The result will be
displayed as it is in the figure below.
Figure 7-17
Note: WPS Status Bar Message:
WPS EAP process failed:  WPS configuration doesn't complete after

7.3 Security Settings: WEP/WPA/WPA2

7.3.1 Example to Configure Connection with WEP

1. Select an AP with WEP encryption and click
"Connect".
Figure 7-18
2. The Auth.\Encry. function will appear as below,
select with WEP encryption.
two-minute connection
Receive EAP with wrong NONCE  Receive EAP without integrity  An inappropriate EAP-FAIL received
- 43 -
Wireless N Adapter RNX-N150PCx User Manual
7.3.2 Example to Configure Connection with
WPA-PSK
1. Select an AP with WPA-PSK authentication mode
and click "Connect".
2. The Auth.\Encry. function will appear as below
select WPA-PSK as the Authentication Type, then
Figure 7-19
3. Enter your password in the Key#1 Hexadecimal
field. This value is same as your intended AP's setting. Click “OK”, then this process will be
complete.
select TKIP or AES for encryption. Enter the WPA Pre-Shared Key. The WPA Pre-Shared Key here is
use your intended APs setting. (12345678 here is just a reference, please use a more complex password for better protect of your wireless network).
Note: if the WPA Pre-Shared Key entered is not correct, you
won’t be able to exchange any data frames, even though the AP can be connected.
Figure 7-20
3. Click OK, then the process is complete.
- 44 -
Wireless N Adapter RNX-N150PCx User Manual

Chapter 8 Troubleshooting

This chapter provides solutions to problems that may occur during the installation and operation of PCI Adapter. Read the descriptions below to solve your problems.

1. The PCI Adapter does not work properly.

Reinsert PCI Adapter into your PC’s PCI slot. Right click on My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find PCI Adapter if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status of PCI Adapter. If there is a yellow question mark, please check the following: Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.) Make sure that you have inserted the right adapter and installed the proper driver. If PCI Adapter does not function after attempting the above steps, remove it and do the following: Uninstall the driver software from your PC. Restart your PC and repeat the hardware and software installation as specified in this User Guide.

2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure configuration.

Make sure that the PC to which PCI Adapter is associated is powered on. Make sure that PCI Adapter is configured on the same channel and with the same security options as with the other computers in the Infrastructure configuration.

3. What should I do when the computer with PCI Adapter installed is unable to connect to the wireless network and/or the Internet?

Check that the LED indicators for the broadband modem are indicating normal activity. If not, there may be a problem with the broadband connection. Check that the LED indicators on the wireless router are functioning properly. If not, check that the AC power and Ethernet cables are firmly connected. Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered for the network. In Infrastructure mode, make sure the same Service Set Identifier (SSID) is specified on the settings for the wireless
- 45 -
Wireless N Adapter RNX-N150PCx User Manual
clients and access points. In Ad-Hoc mode, both wireless clients will need to have the same SSID. Please note that it might be necessary to set up one client to establish a BSS (Basic Service Set) and wait briefly before setting up other clients. This prevents several clients from trying to establish a BSS at the same time, which can result in multiple singular BSSs being established, rather than a single BSS with multiple clients associated to it. Check that the Network Connection for the wireless client is configured properly. If Security is enabled, make sure that the correct encryption keys are entered on both PCI Adapter and the access point.
Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Support: techsupport@rosewill.com
- 46 -
Loading...
