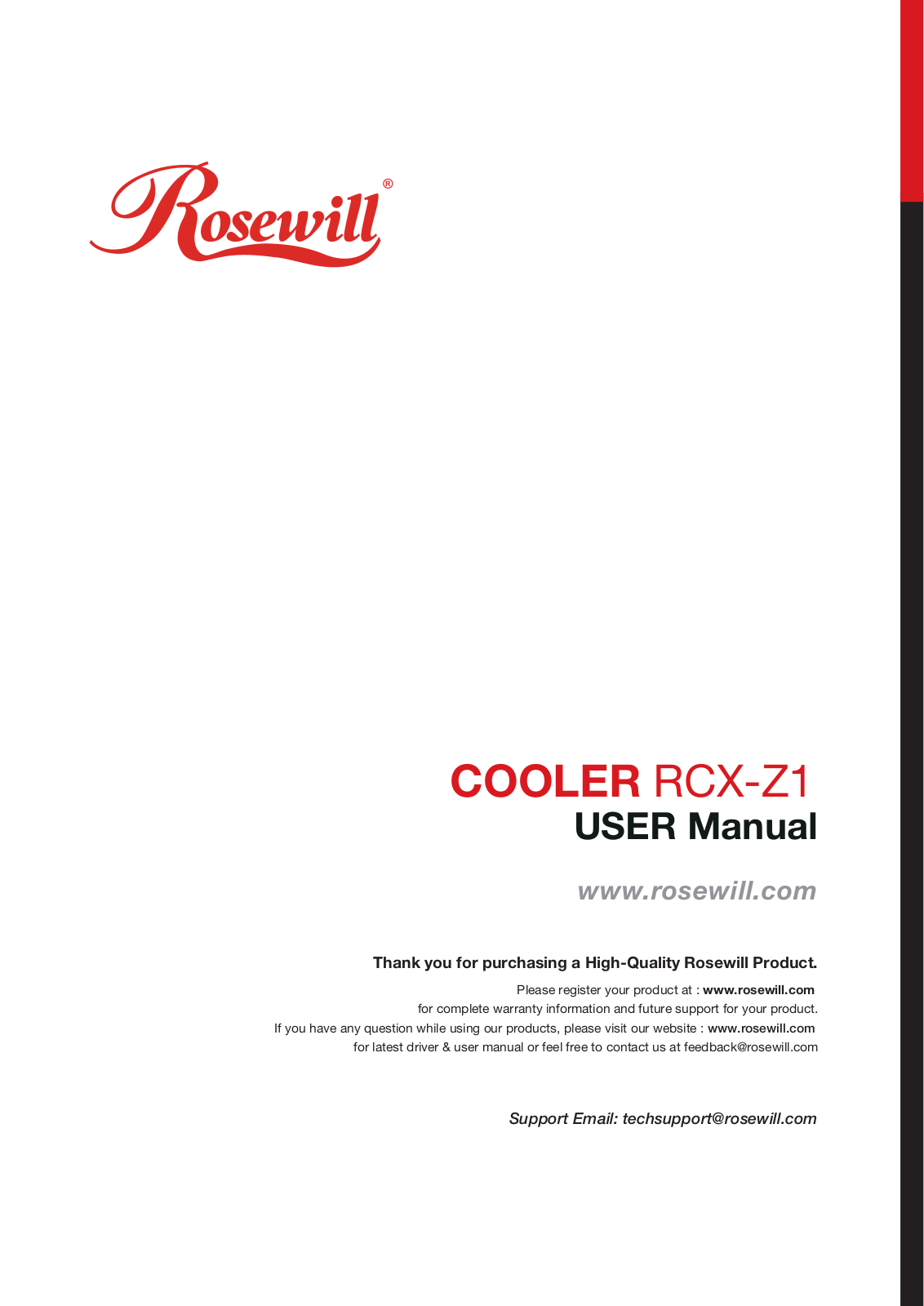

Rosewill RCX-Z1 User Manual

COOLER RCX-Z1

USER Manual

www.rosewill.com

Thank you for purchasing a High-Quality Rosewill Product.

Please register your product at : www.rosewill.com

for complete warranty information and future support for your product.

If you have any question while using our products, please visit our website : www.rosewill.com

for latest driver & user manual or feel free to contact us at [e-mail]

Support Email: [e-mail]

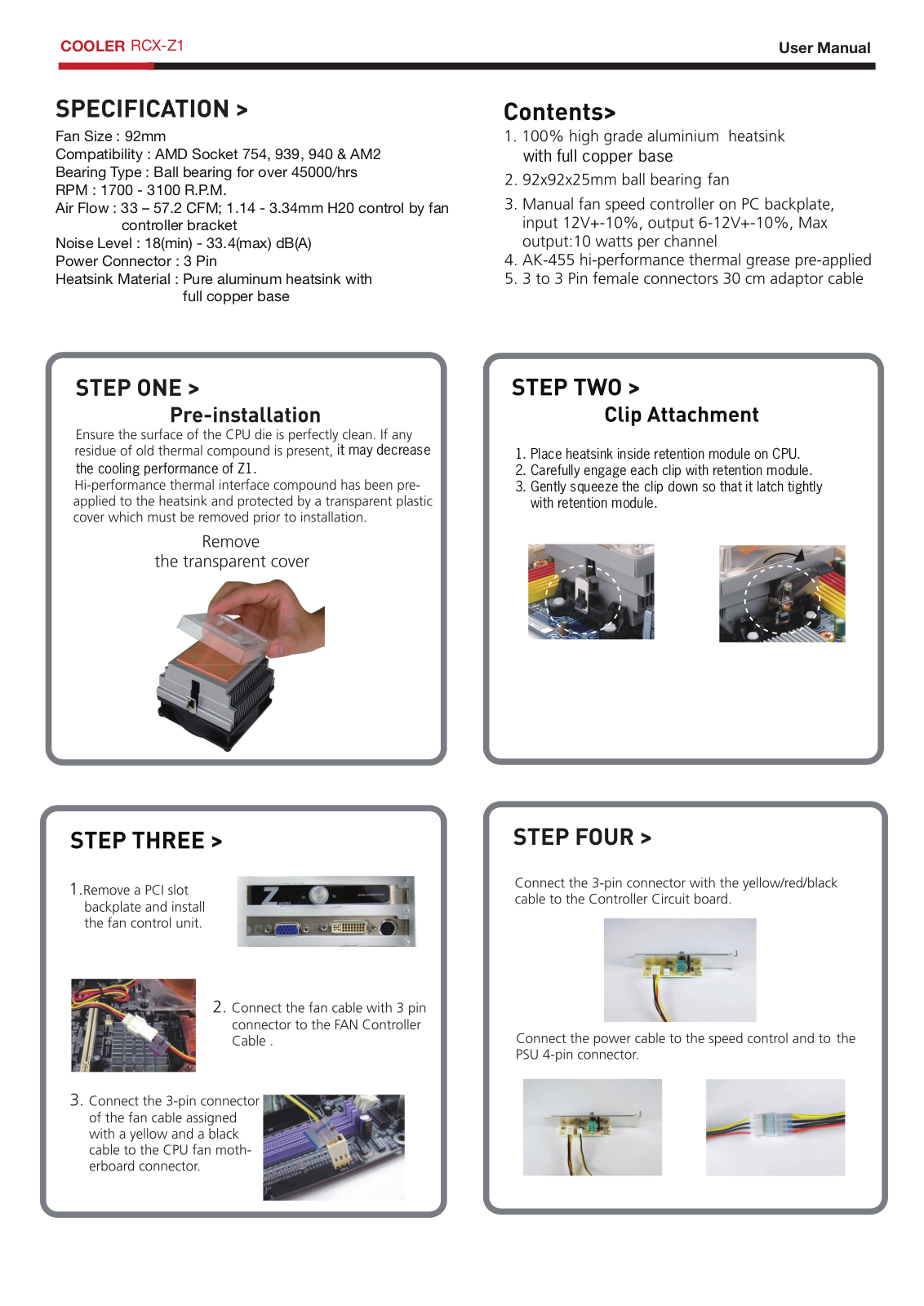

COOLER

RCX-Z1

Fan Size : 92mm
Compatibility : AMD Socket 754, 939, 940 & AM2
Bearing Type : Ball bearing for over 45000/hrs
RPM : 1700 - 3100 R.P.M.
Air Flow : 33 – 57.2 CFM; 1.14 - 3.34mm H20 control by fan
controller bracket
Noise Level : 18(min) - 33.4(max) dB(A)
Power Connector : 3 Pin
Heatsink Material : Pure aluminum heatsink with
full copper base

User Manual

with full copper base

the cooling performance of Z1.

it may decrease

1. Place heatsink inside retention module on CPU.

2. Carefully engage each clip with retention module.

3. Gently squeeze the clip down so that it latch tightly
with retention module.
