Rosewill RC-302 User Manual

1 ports Parallel PCI Adapter RC302

1 ports Parallel PCI Adapter RC302 User Manual

Overview

This PCI card is a single 1284 parallel port controller with PCI bus interface and supports the existing centronics printer

interface as well as PS2, EPP & ECP modes and uses an all-in-one solution from NetMos Technology, which provides

superior performance and unmatched data transfer rates. The most advanced feature is it uses of a single interrupt,

which is set automatically by the host system and share among all on-board I/O ports.

y Chipset: NetMos Nm 9715

y Data Transfer Rate: 1.5Mbytes/s(parallel port)

y Bus: PCI 32bit, 33MHz.

y Low power: Single 5V operation

y High speed transfer, single parallel port

y Multi-mode compatible controller (SPP, PS2, EPP &ECP)

y 16Byte FIFO (parallel)

y Software programmable mode selects

y Supports Window98, Window95, Window2000 & Window NT 4.0

Turn off your computer and all external devices connect it.

Disconnect your computer from the power sources.

Open the computer case. Refer to your computer user manual for more details.

Find an available PCI slot and remove the slot bracket. Save the bracket screw for later use.

Align the PCI I/O controller horizontally with respect to the PCI slot and insert it into the slot firmly and evenly. Take care

not to force it into the slot. Once you have properly positioned the PCI I/O controller card into the slot, fasten it to the

computer case with the bracket screw you have saved.

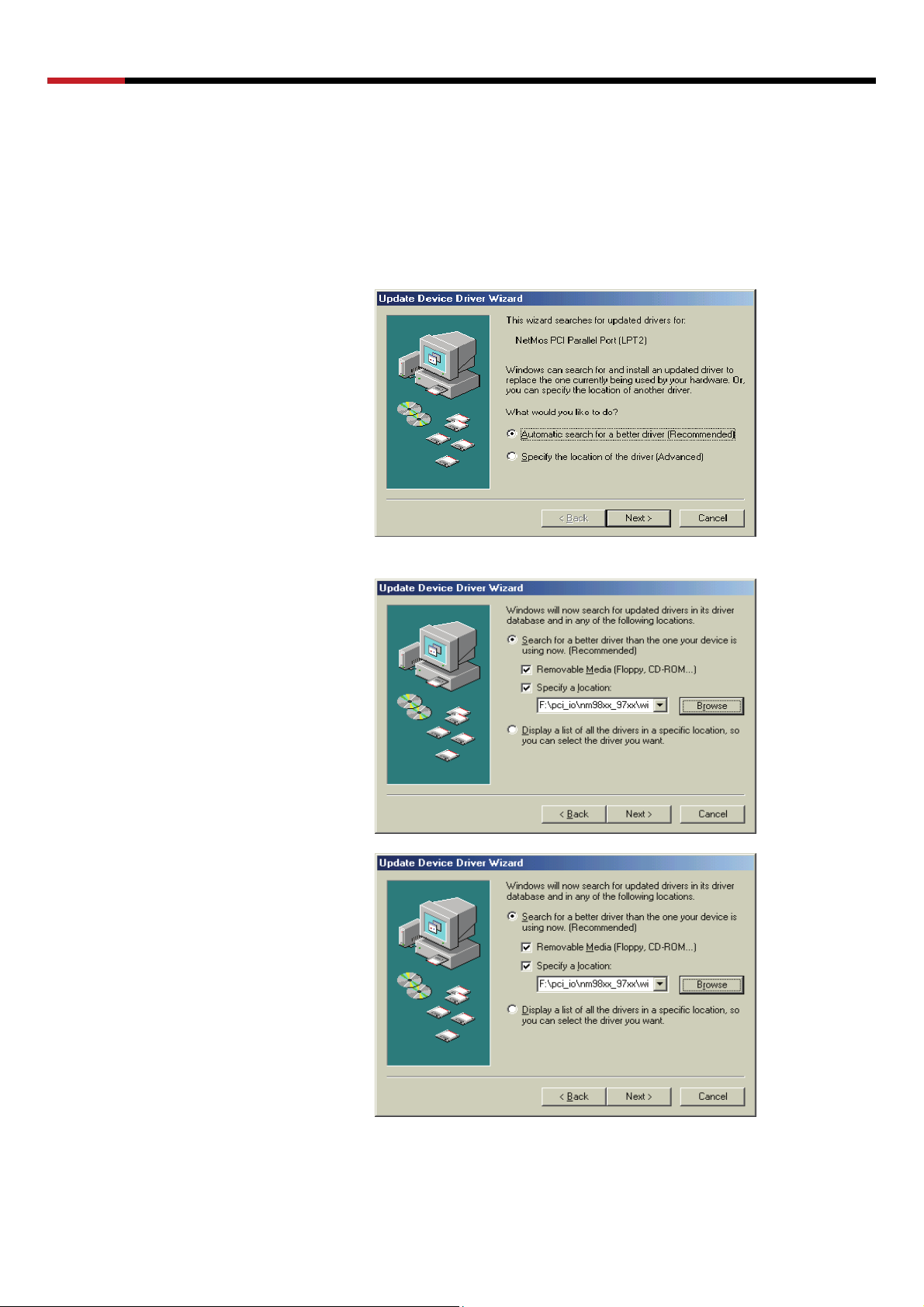

Close the computer case. Make sure to reconnect all the external devices power cords to your computer.
