Rosewill RC-110 User Manual

USB 2.0 + 1394a PCI Adapter RC110

User Manual

USB 2.0 + 1394a PCI Adapter RC110

User Manual

Overview

The IEEE1394 multimedia connection (also known as Fire Wire by Apple Computer, and iLink by

Sony) features hot swapping, high-speed performance, peer to peer communication and daisy

chained which can accept up to 63 devices connected simultaneously.

The idea of IEEE1394 standard is all other devices and peripherals that connected outside of PC

can simply plug into 1394 port instead of opening case and adding a circuit board. IEEE1394

standard is an important enabling technology for the emerging multimedia market.

Features

• Chipset: NEC 720101

• Data Transfer Rate: USB 1.1 OHCI 1.5Mbps, 12Mbps

USB 2.0 EHCI 480Mbps

• Bus: PCI 2.2 32-bit, 33MHz,5V

• Connector: NEC USB2.0 4+1PORT 4 external Type A USB ports and 1

internal Type A USB port

• Chipset: NEC single-chip uPD72873 (IEEE 1394 Controller)

VIA VT6212 (USB 2.0 Controller)

• Data Transfer Rate: 1394a 100/200/400Mbps, OHCI 1.1.

USB 1.1 OHCI 1.5Mbps, 12Mbps

USB 2.0 EHCI 480Mbps

• Bus: PCI 2.2 32 bit, 33MHz, 3.3V.

• Connector: 2 external 1394 6-pin connectors.

3 external Type A USB ports and 1 internal Type A USB port

IEEE 1394 Features

• Supports up to 63 devices.

• Supports devices hot swap.

• Supports Power class 0012(1).

• Auxiliary power connector J2/J2-A to increase the power available to 1394a bus to up to

15W.

• MS Windows compatible including DV and SBP-2 drivers, supports all common

1

USB 2.0 + 1394a PCI Adapter RC110

camcorders, disk drives, printers and scanners with 1394 interfaces.

• Supports Windows 98, Windows 98SE, Windows ME, Windows 2000 & Windows XP

USB 2.0 Features

• Supports up to 127 devices

• Supports devices hot swap and wake-up

• Output current per port = 500mA (max)

• Supports Windows 98, Windows 98SE, Windows ME, Windows 2000 & Windows XP

User Manual

Troubleshooting

If your system doesn’t work properly after connecting to a 1394 device, please turn off your

computer. Connect the auxiliary power connector (J2/J2-A) to power supply and then restart

again. If it still doesn’t solve the problem, please refer to the specifications of your 1394 device.

Check the power consumption and make sure it doesn’t exceed 15W.

Driver Installation

Windows ME

Once the IEEE1394 + USB 2.0 Host Adaptor is installed and the computer is restarted, Windows

will detect the board and automatic find the new hardware and install driver for it.

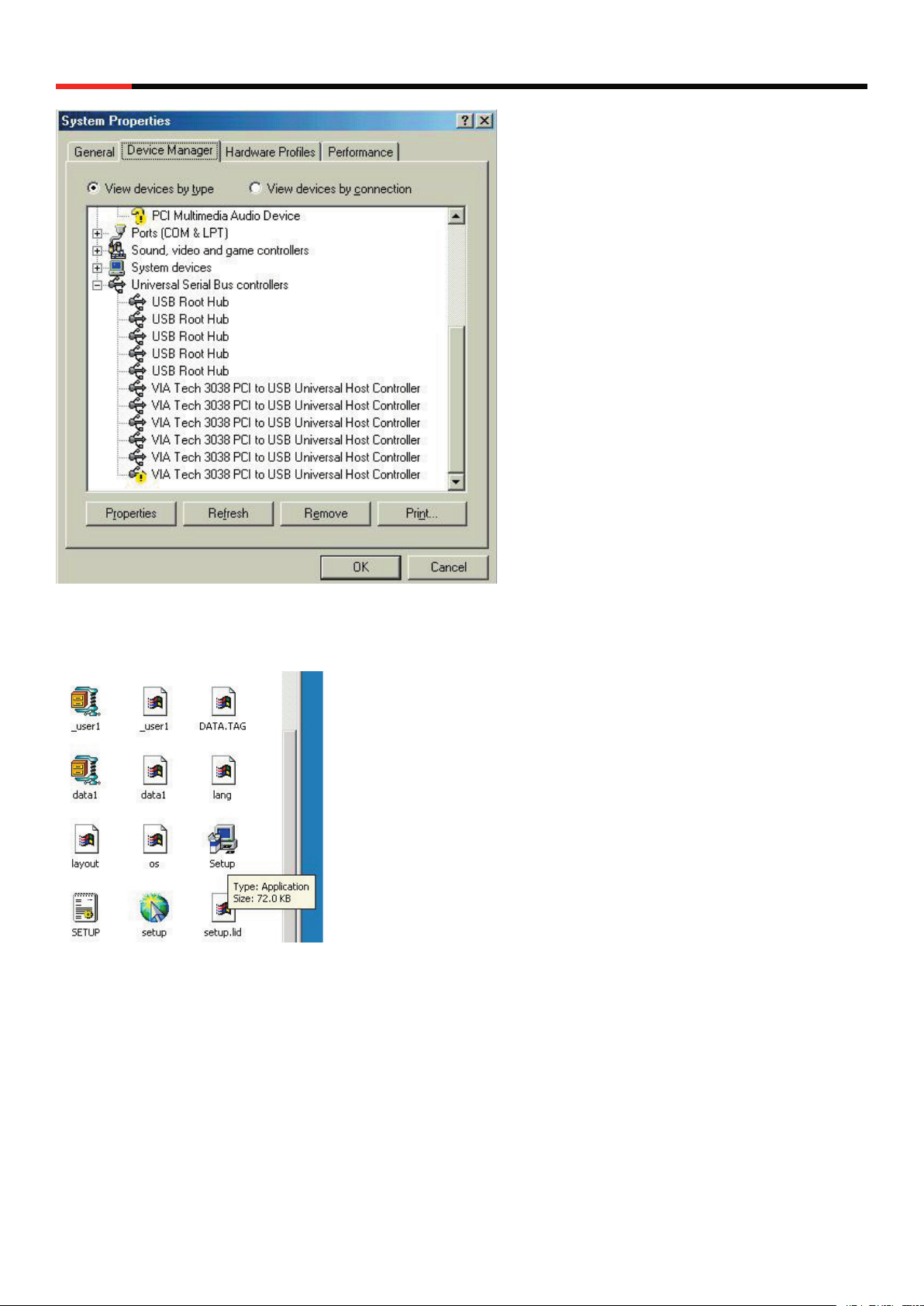

devices in Device Manager.

1. Windows has found new hardware “NEC Firewarden OHCI Compliant IEEE 1394 Host

Controller” and click Next to continue

2
