PRODUCT OVERVIEW
RPPS-22001 Series
Thank you for purchasing a Rosewill Pet Stroller.
Please read the instruction manual before use and retain for future reference.
4
5
6
8
1. Foldable Stroller
Frame
2. Hanging Organizer
Pocket x3
3. Rear Mesh Organizer
Pocket x3
4. Retractable Two-Way
Mesh Canopy Opening
5. Detachable Cradle
Carrier
6. Zippered Mesh
Opening
1
2
3
7
9
7. Removable Hanging
Storage Basket
8. 360° Swivel Front
Rubber Wheels
9. Pump-Free Rear Rubber
Wheels with Brake
1
PACKAGE CONTENTS
1 2 3 4
1. Cradle Carrier
2. Cradle Cushion Cover/Bedding (TBC)
3. Cradle Cushion Pad
4. Retractable Mesh Canopy
5. Aluminum Alloy Stroller Cart
5
HOW TO ASSEMBLE
1. Fix Cradle Carrier Frames:
Push cradle frames to both sides as shown below to place frames in position.
2
2. Install Cradle Cushion:
• Align the zipper pin on the cradle cushion cover with the zipper slider on the cradle as
shown below and pull the zipper up to secure cushion cover in place.
• Pull the tethers out from the opening on both sides while zippering up for later use.
• Place the cushion pad into the cradle to complete installation.
3

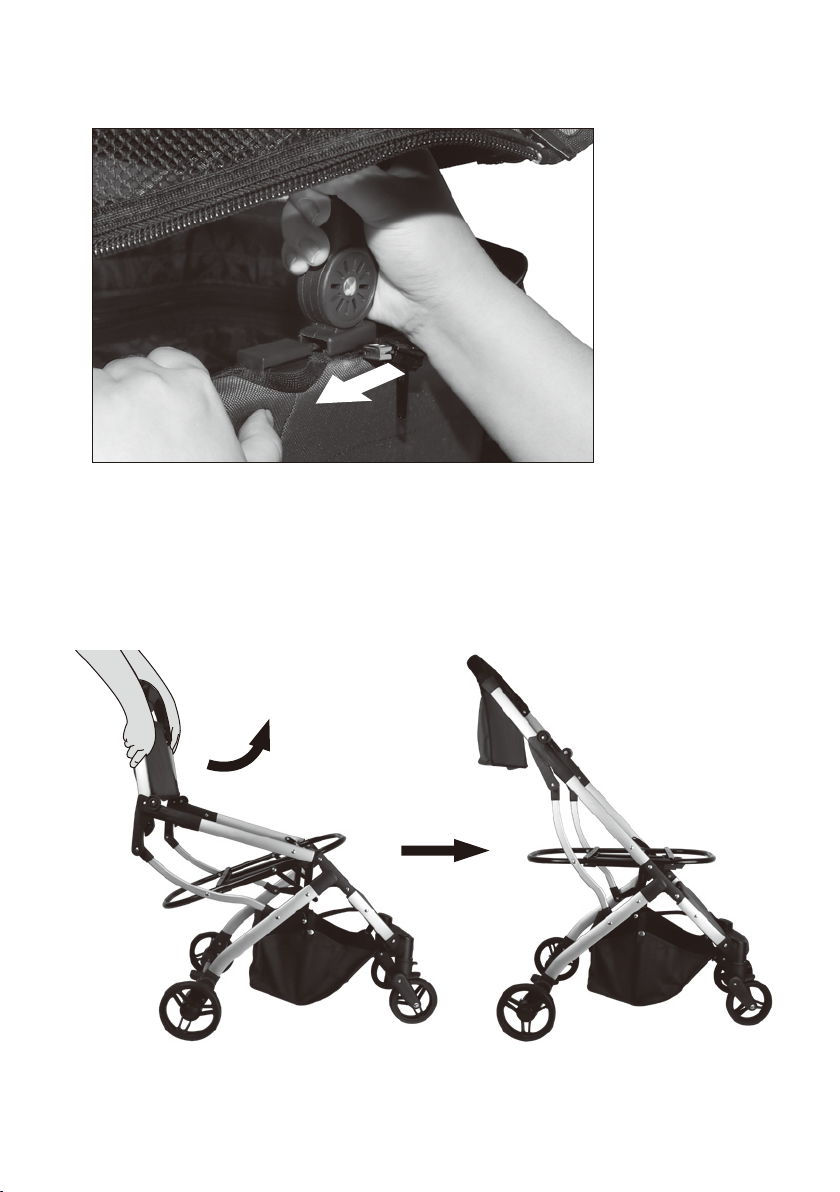

3. Install Mesh Canopy:
• Place canopy on top of the cradle and slide it onto the latch on both sides as shown below
to secure mesh canopy rmly in place.
• Pull the zippers around the canopy up and attach it to the cradle carrier to complete
installation.
4. Unfold Stroller Cart:
Hold the sides of stroller cart frame with both hands and pull the cart up until a click sound is
heard to extend the frame fully and make sure it is rmly xed in position.
4

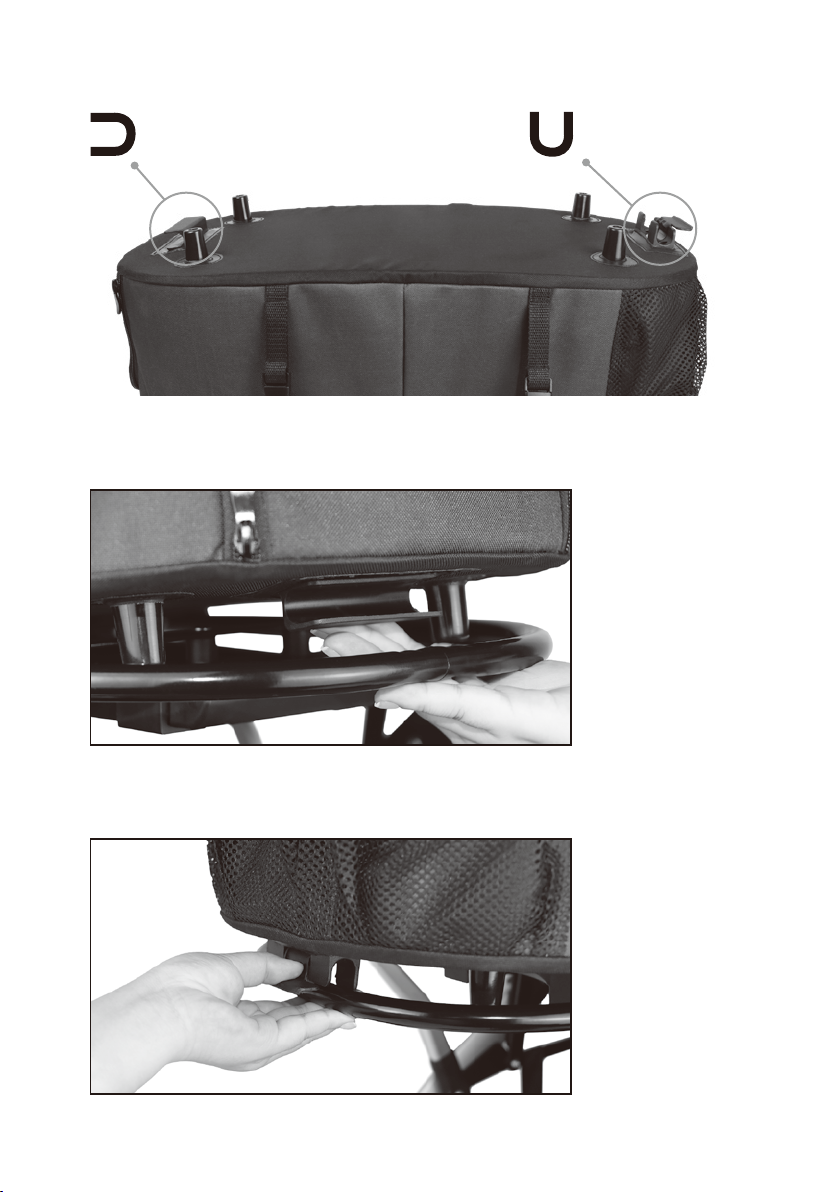

5. Install Cradle Carrier:
• Turn the cradle upside down and locate both the front and back tube ttings.
shaped front tube fitting shaped back tube fitting
• Turn the cradle back up and put it on the stroller cart frame with the front shaped tube
tting inserted to the front tube of the cart.
• Put your hand on the bottom of the cradle as shown below and press the cradle down to
secure the back U-shaped tube tting in place to complete installation.
5

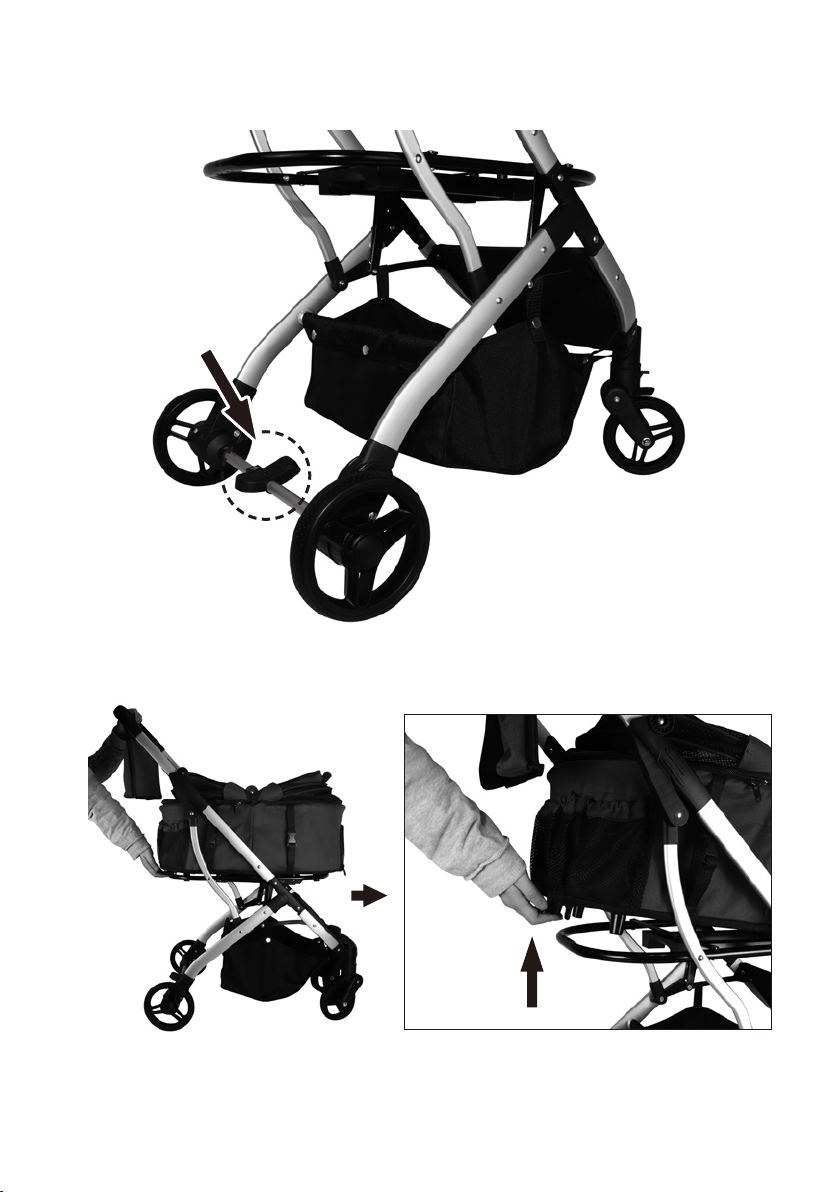

6. Detach Cradle Carrier:
• Step on the brake button located in between the rear wheels to lock the wheels and
prevent them from moving before detaching the cradle.
• Hold on to the bottom of the cradle and pull the cradle upwards to detach it from the cart.
6

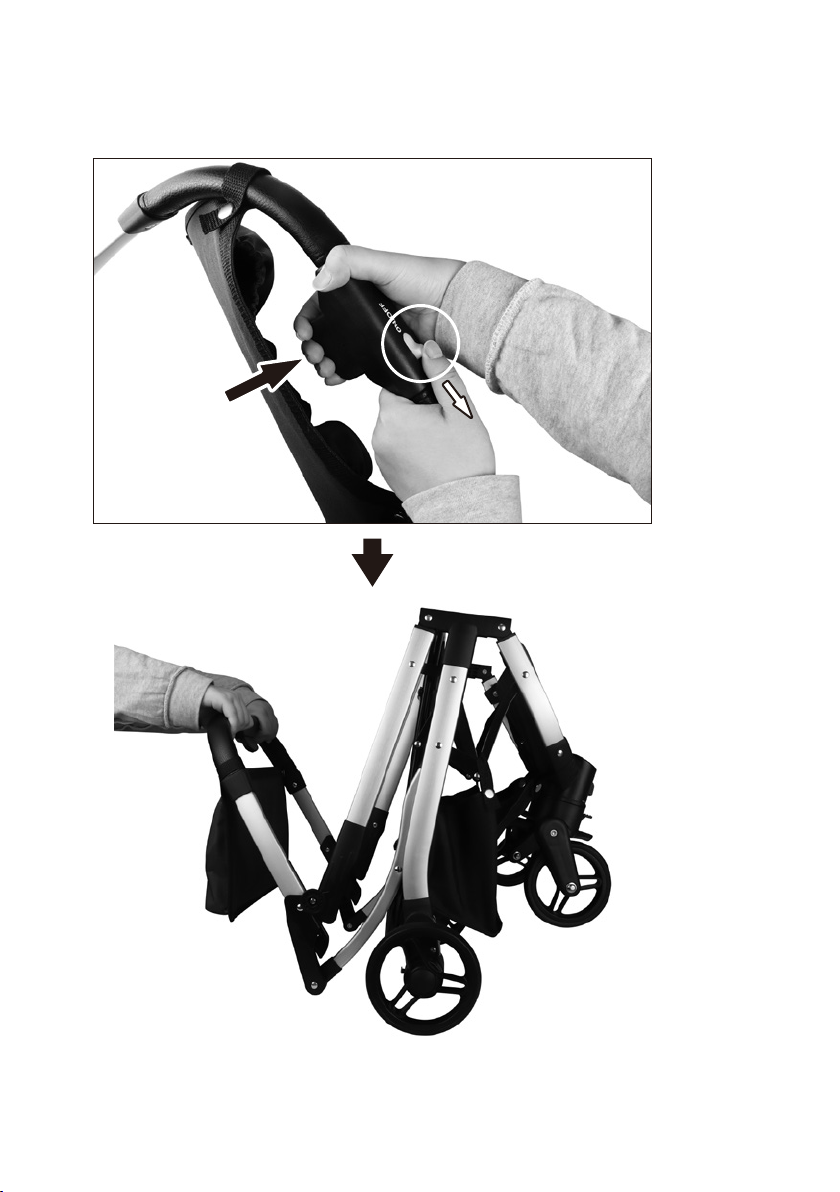

7. Fold Stroller Cart:
• Push and hold the white button on the stroller handle to the left to the “ON” position and
use your right hand to press the stroller button as shown below.
• Push the stroller handle forward to fold the cart for storage.
Technical Support Information techsupport@rosewill.com 1-800-575-9885
Please register your product at www.rosewill.com for complete warranty information and support for your product.
RPPS-22001 Series_A
