Rosewill Lineom User Manual
User’s Manual
© All rights reserved by Rosewill
User's ManualLINE-M
CASE
1
Contents
Disassemble Chart
P.2
P.3
Accessory Box
Installation Guide
Product Overview
P.10
Information

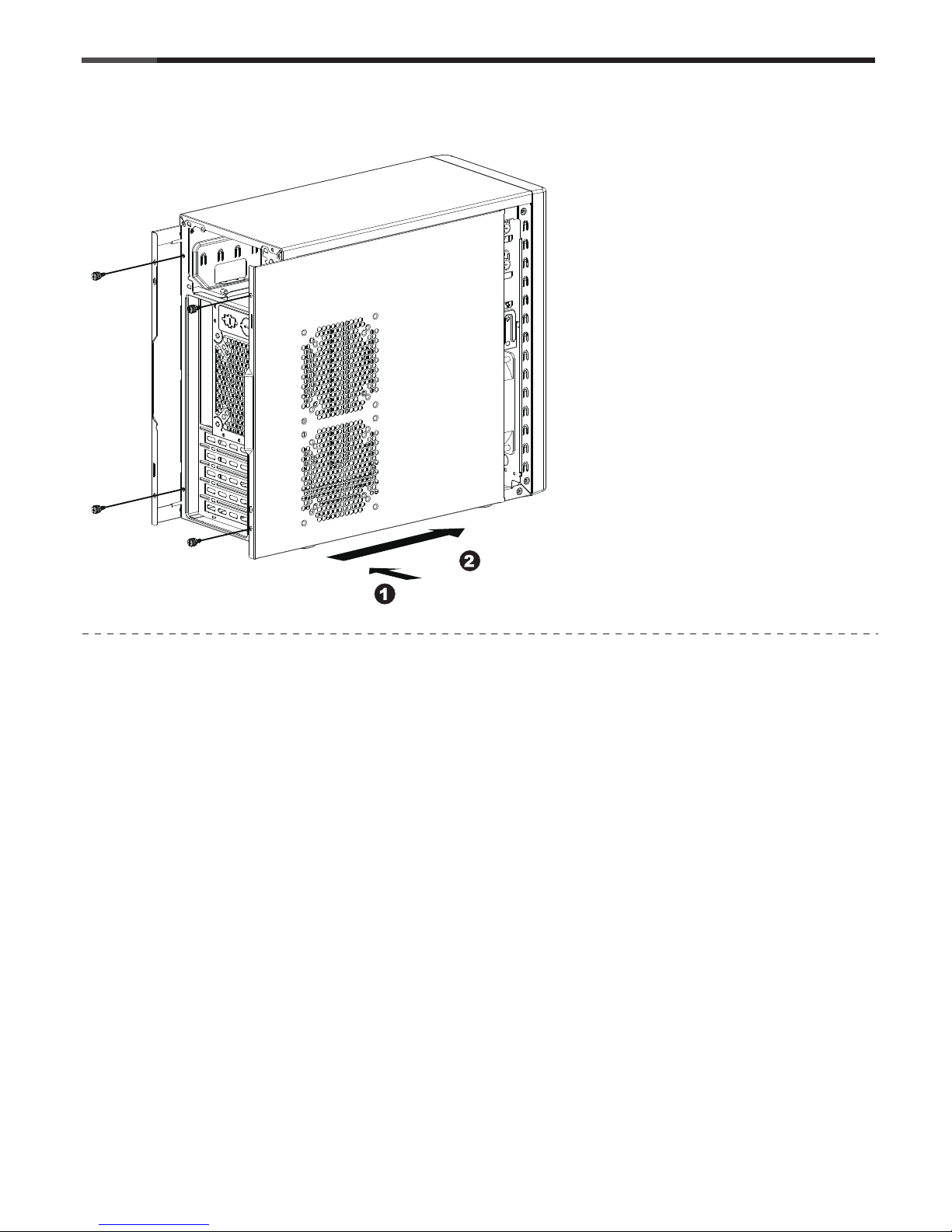

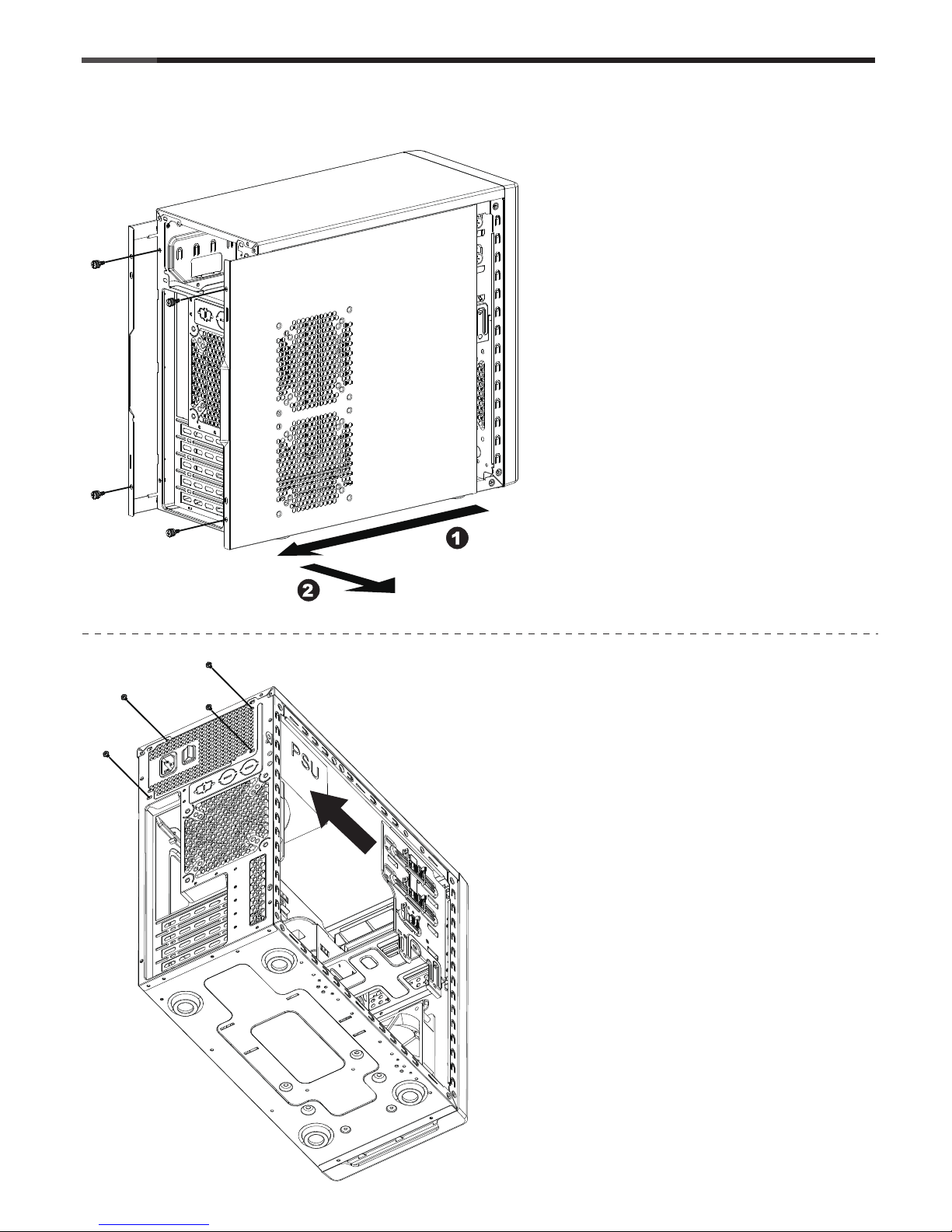

Opening Chassis
P.4
Installing Power Supply
P.4

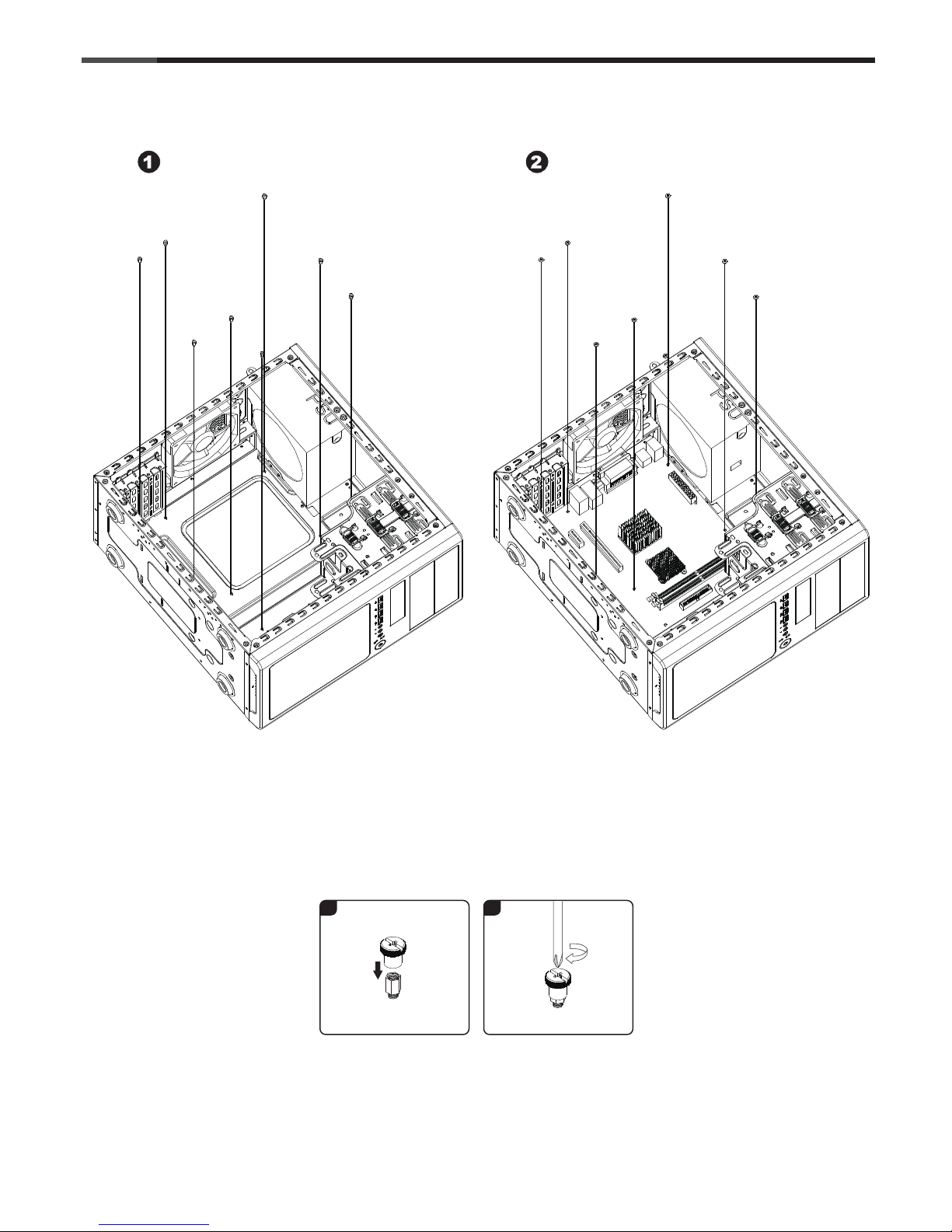

Installing Motherboard
P.5

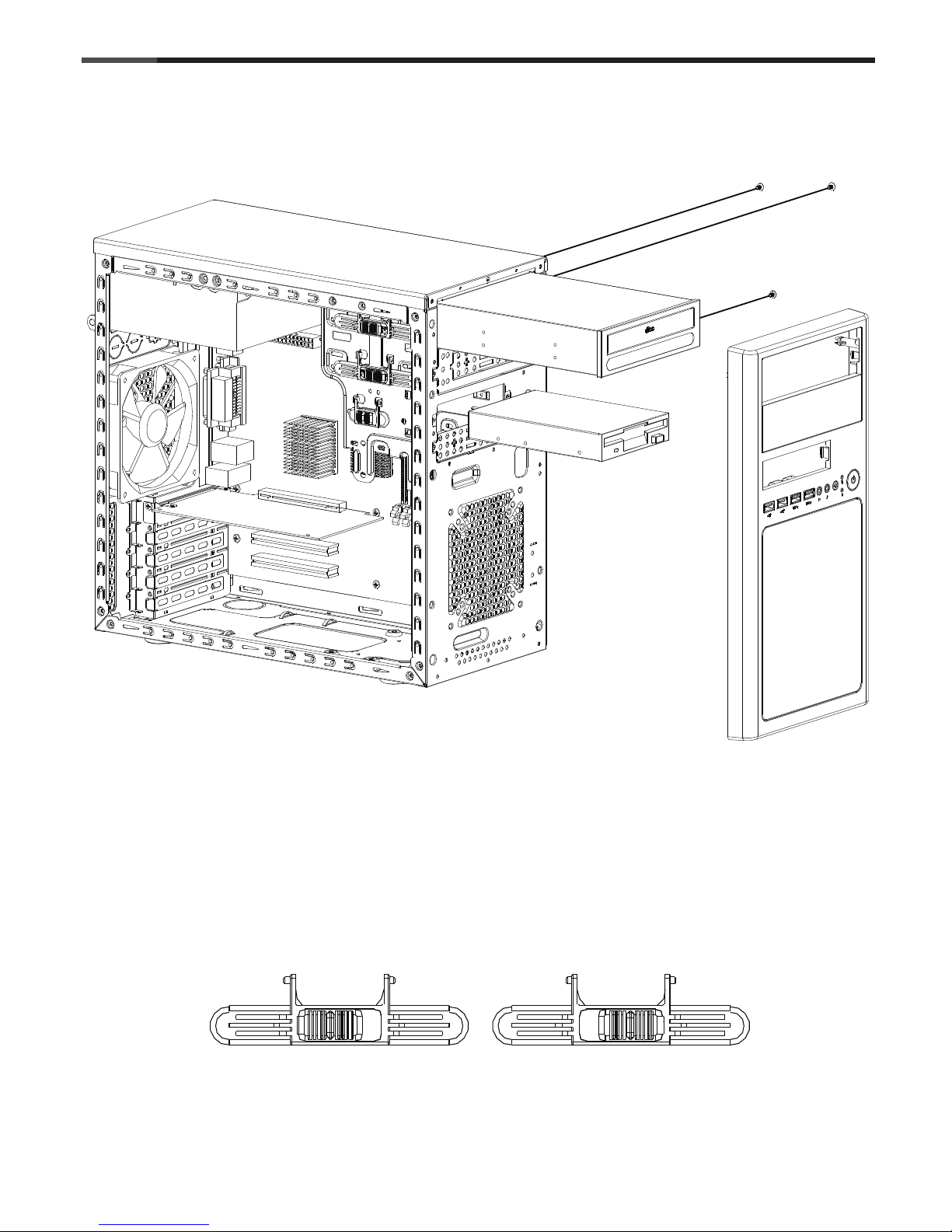

P.7~8Installing External 5.25" Device
P.7~8Installing External 3.5" Device
P.9Installing 3.5”/2.5” HDD/SSD
P.6

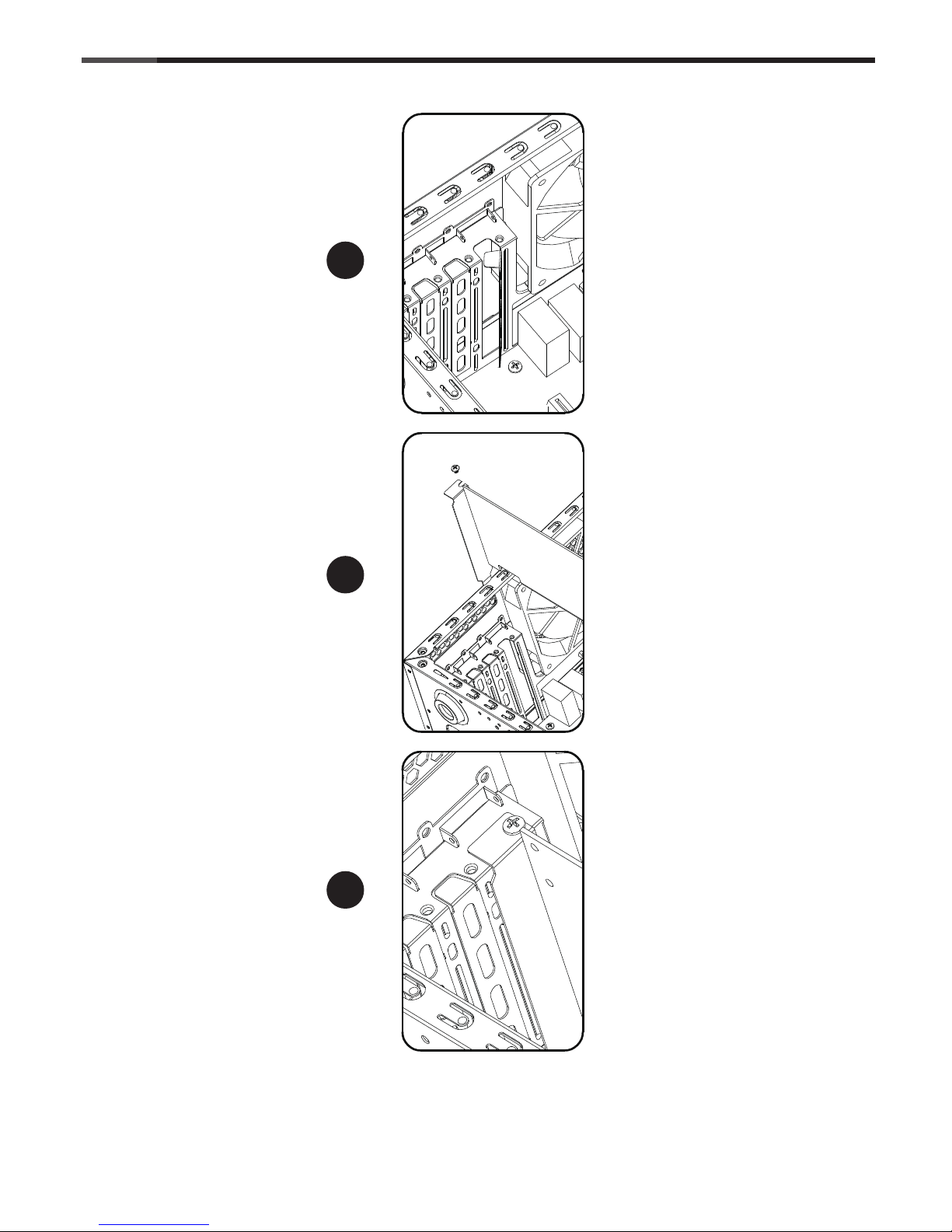

Installing Add On Card
© All rights reserved by Rosewill
User's ManualLINE-M
CASE
( For reference only. Models’ option may be varied by countries. )
Disassemble Chart
Rear 120mm fan ＊
Tool-less kits for
5.25” & 3.5” device ＊
Left side panel
＊= optional
Right side panel
Front 120mm fan ＊
Front panel ＊
Space for 1x 3.5”/2.5” HDD/SSD
2
( Please refer to your motherboard’s user’s manual to connect. )
USB 3.0 CONNECTOR
USB2.0 CONNECTOR HD CONNECTOR
AC97 CONNECTOR
USB+5V
LP
LP+
GND
NC
USB+5V
LP
LP+
GND
NO PIN
AUD GND
PRESENCE#
SENSE1 RETURN
NO PIN
SENSE2 RETURN
PORT1L
PORT1R
PORT2R
SENSE SEND
PORT2L
MIC
AUD GND
RET~R
NO PIN
RET~L
MIC
MIC~BIAA
FPOUT~R
+5V
FPOUT~L
NO PIN
NO PIN
NO PIN
© All rights reserved by Rosewill
User's ManualLINE-M
CASE
Accessory Box
Cables
Motherboard
Motherboard
Stand-off
3
Motherboard
2.5” HDD
5.25” device
3.5” device
PCI card
PSU
Motherboard
3.5” HDD
PCI slot
3.5” HDD
(bottom)
5 x Cable tie
1 x PC SPEAKER
1 x Stand-off socket
6 x MB stand-off
16 x Screw B
9 x Screw C
30 x Screw A
2 x PCI cover
4 x Screw D
(Pre-installed in the case)
