User’s Manual
www.rosewill.co m
V3 Plus
© All rights reserved by Rosewill
Contents
Specification P.2
Disassemble Chart P.3
P.3Accessory Box
P.3Connectors
Installation Guide
Product Overview
User’s ManualLegacy V3 Plus
CASE
Opening Chassis
P.4
Installing Motherboard
P.4
Installing Display Card
P.4
Installing 3.5”/2.5” HDD
P.4
Installing PSU
P.4
Finished
P.4
Hard drive LED Connection
Power Button Connection Power LED ConnectionHD AUDIO Connection
USB 3.0 Connection
V BU S
S SR X 1 S SR X 1 +
S ST X 1 S ST X 1 +
D 1D 1+
G ND
G ND
N C
V BU S
S SR X 2 -
G ND
S ST X 2 -
G ND
D 2-
S SR X 2 +
S ST X 2 +
D 2+
Connectors
Specification
1.5mm Aluminum Alloy
200mm x 210mm x 240mm (WxDxH)
ITX
1 x 3.5", 1 x 2.5" or 2 x 2.5"
4 x 40mm Fans (optional)
N/A
2
Not Higher Than 80mm
Not Longer Than 180mm
1 x USB3.0, 1 x USB2.0, 1 x MIC, 1 x Audio
Standard ATX PSII PSU
1.2 kg
Material
Dimension
Motherboard
Drive Bay
Cooling System
Fan Speed Controller
Expansion Slot
CPU Cooler
Display Card
Front I/O Port
Power Supply
Weight
Disassemble Chart
For locking 2.5”HDD 8PCS
For locking
motherboard and PSU
8PCS
Accessory Box
PORT 1L
PORT 1R
PORT 2R
SENCE_SEND
PORT 2L
AUG GND
PRESENCE
SENSE1_RETURN
SENSE2_RETURN
PSU, Display Card, Motherboard & HDDs are NOT INCLUDED.
Base Panel
1x 3.5” HDD
1x 2.5” HDD
Side Panel
ATX Power Supply
ITX Motherboard
Top Panel
Full Height
Display Card
1x 2.5” HDD
4PCS
Footstand
USB 2.0 Connection
USB+5V
LP-
LP+
GND
NC
USB+5V
LP-
LP+
GND
For locking 3.5”HDD 4PCS
For binding cables 3PCS
2
© All rights reserved by Rosewill
3
© All rights reserved by Rosewill
User’s ManualLegacy V3 Plus
CASE
User’s ManualLegacy V3 Plus
CASE

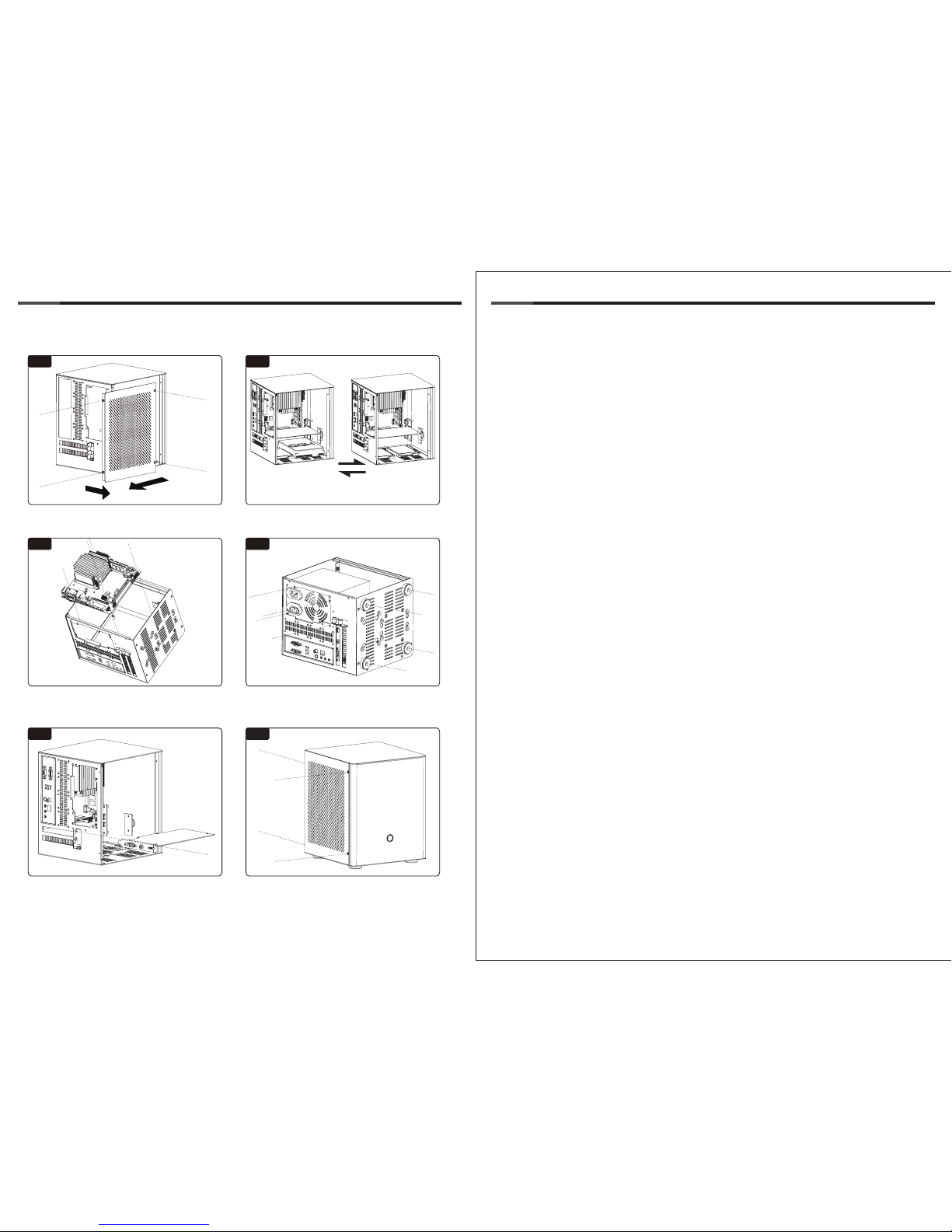

Installation Guide
Unscrew the 4 screws to remove the side panel. Install either 1 x 3.5" HDD & 1 x 2.5” SSD or
2 x 2.5" SSD on the base panel.
Install the PSU, and then install the footstand. (It’s
recommended to have the PSU fan face to the bottom.)
Reinstall the side panel. Assembly complete.
Install the motherboard and secure with 4 screws.
Install the display card and secure with the toolless
screws.
01
02
03
04
05
06
3.5”HDDx1 + SSDx1 SSDx2
Thank you for purchasing a High-Quality Rosewill Product.
Please register your product at : http://www.rosewill.com
for complete warranty information and future support for your product.
If you have any question while using our products, please visit our website : www.rosewill.com
for latest driver & user manual or feel free to contact us.
Support Phone Number: 800-575-9885
Support Email: techsupport@rosewill.com
