User’s Manual
www.rosewill.co m
QT01
© All rights reserved by Rosewill
User’s ManualLegacy QT01
CASE
Contents
Opening Chassis
P.4
P.4
Installing PSU
Installing ODD
P.4
Specification P.2
Disassemble Chart P.3
P.3Accessory Box
P.3Connectors
P.5
Installing Motherboard
P.5
Installing Display Card
P.5
Installing 3.5”/2.5” HDD
Finished
Installation Guide
Product Overview
P.4
Power Button Connection Power LED Connection Reset Switch Hard Drive LED Connection
HD AUDIO Connection
USB 3.0 Connection
VBUS
SSRX1-
SSRX1+
SSTX1-
SSTX1+
D1-
D1+
GND
GND
NC
VBUS
SSRX2-
GND
SSTX2-
GND
D2-
SSRX2+
SSTX2+
D2+
USB 2.0 Connection
Connectors
Specification
Material
Dimension
Motherboard
Drive Bay
Cooling
System
Fan Speed Controller
Expansion Slot
CPU Cooler
Display Card
Front I/O Port
Power Supply
Weight
SGCC Steel
ABS / 0.6mm Aluminum Alloy
195 mm x 500 mm x 445 mm (WxDxH)
ATX, Micro-ATX, U-ATX, ITX
3 x 5.25", 4 x 3.5", 5 x 2.5"
2 x 120mm fans (built-in)
1 x 120mm fan (built-in)
3 level of fan speed
7
Not Higher Than 160mm
Not Longer Than 320mm
1 x USB3.0, 1 x USB2.0, 1 x MIC, 1 x Audio
Standard ATX PSII PSU
8.0 kg
Front
Rear
Structure
Panel
Disassemble Chart
12PCS
4PCS
Accessory Box
* Please refer to the procedure of this menu and install step by step.
* Please pay attention to the direction and order for installing hard disk,
CD-Rom, CD-Rom bracket and hard disk bracket.
* If your motherboard only provides AC97 port, please pay attention not to plug
HD Audio connector into it, otherwise it may damage your motherboard.
Attention
Screw for ODD
Screw for Fan
9PCS
Stand-off for MB
1PCS
Stand off Socket
5PCS
Cable Tie
9PCS
4PCS
Screw for MB
Screw for PSU
1PCS
Soeaker
1PCS
Case Lock Kit
16PCS
HDD Toolless Kit
AUG GND
PRESENCE
SENCE1_RETURN
SENSE2_RETURN
PORT 1L
PORT 1R
PORT 2R
SENCE_SEND
PORT 2L
USB + 5V
LP -
LP +
GND
NC
USB + 5V
LP -
LP +
Front 120mm
Fan *2
Top Cover
Rear 120mm Fan
Left Side Panel
Right Side Panel
Front
Panel
PVC
Filter
PVC
Block
Plate *7
Silver Footstand *4
2
© All rights reserved by Rosewill
3
© All rights reserved by Rosewill
User’s ManualLegacy QT01
CASE
User’s ManualLegacy QT01
CASE

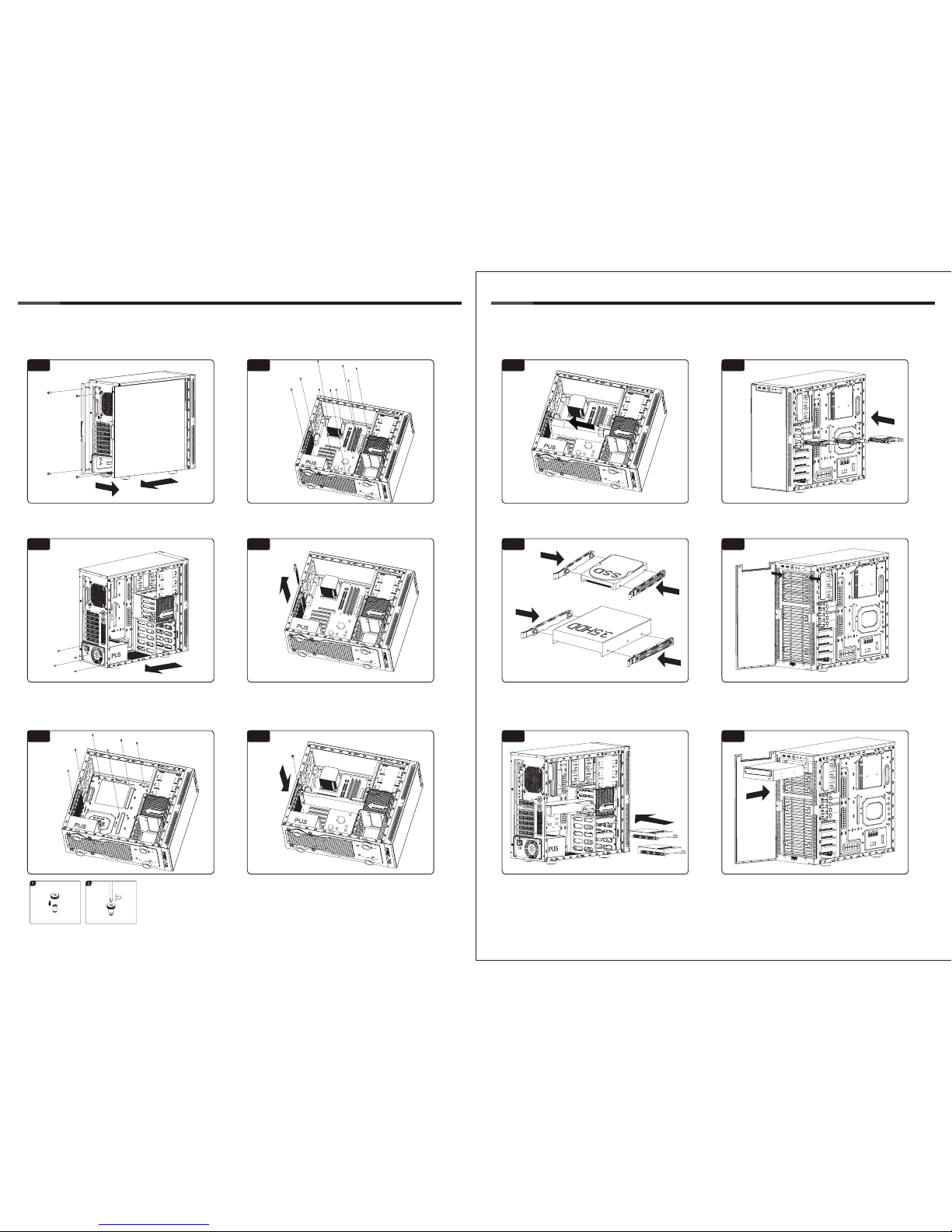

Installation Guide
Unscrew the 4 screws to remove side panel. Install the motherboard and secure with the screws.
Take out the PCI slot cover.
Install the display card and secure with tolless screws.
Place the power supply from the left side into the
chassis and secure with the screws.
Install stand-offs by
stand-off socket.
Pull out the display card protection bracket to support
the display card. (support 260-320mm display card)
Squeeze and take out the optical drive block panel.
Insert the optical drive into position.
Install the 3.5” and 2.5” HDD onto the HDD toolless.
Insert the 3.5” HDD into position.
Insert the 2.5” HDD/SSD into position.
01 04
02 05
03 06
07 10
08 11
09 12
User’s ManualLegacy QT01
CASE
User’s ManualLegacy QT01
CASE
4
© All rights reserved by Rosewill
5
© All rights reserved by Rosewill
Installation Guide

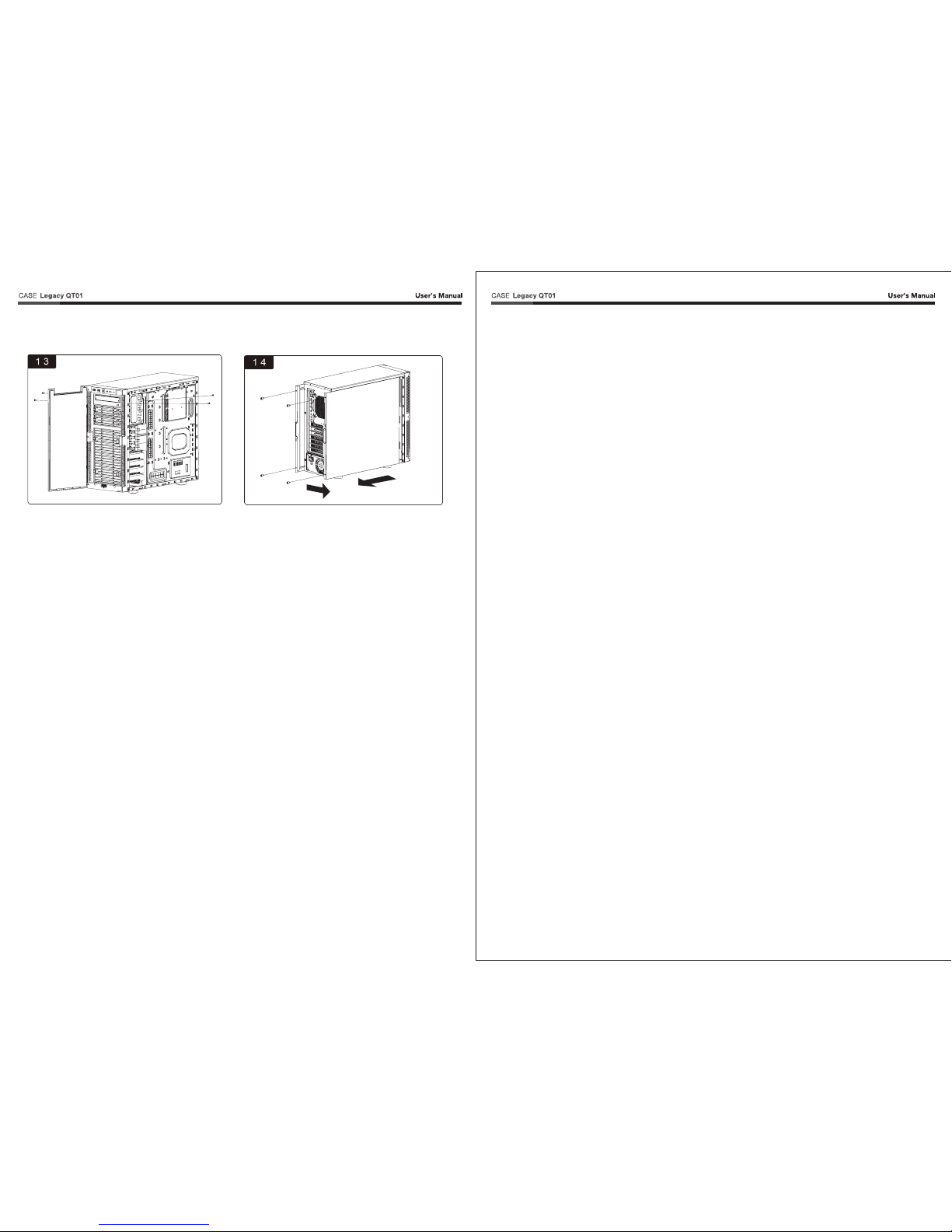

Reinstall the side panel with tolless screws.
Thank you for purchasing a High-Quality Rosewill Product.
Please register your product at : http://www.rosewill.com
for complete warranty information and future support for your product.
If you have any question while using our products, please visit our website : www.rosewill.com
for latest driver & user manual or feel free to contact us.
Support Phone Number: 800-575-9885
Support Email: techsupport@rosewill.com
Secure the optical drive with screws.
