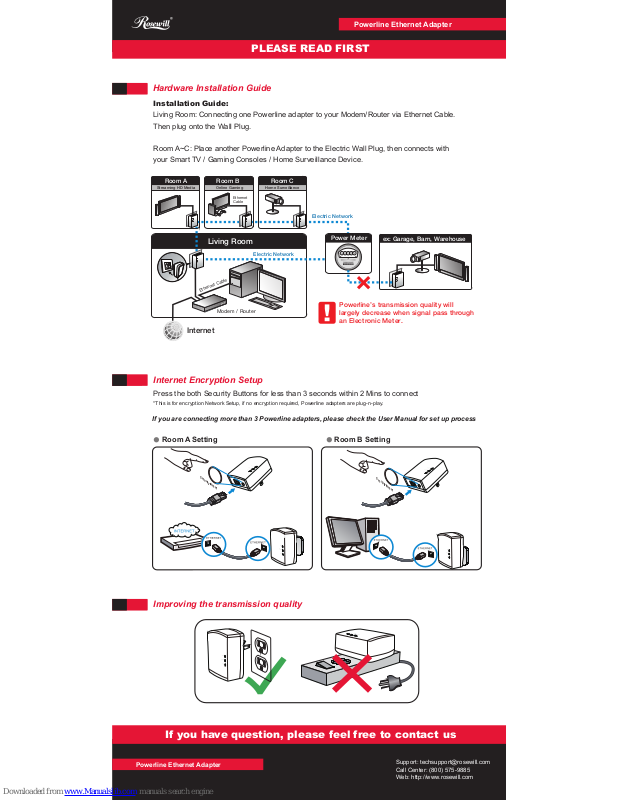

Rosewill Ethernet Adapter Installation Manual
PLEASE READ FIRST
Hardware Installation Guide
Installation Guide:
Living Room: Connecting one Powerline adapter to your Modem/Router via Ethernet Cable.
Then plug onto the Wall Plug.
Room A~C: Place another Powerline Adapter to the Electric Wall Plug, then connects with
your Smart TV / Gaming Consoles / Home Surveillance Device.
Powerline Ethernet Adapter
Support: techsupport@rosewill.com
Call Center: (800) 575-9885
Web: http://www.rosewill.com
If you have question, please feel free to contact us
Powerline Ethernet Adapter
If you are connecting more than 3 Powerline adapters, please check the User Manual for set up process
Internet Encryption Setup
Room A Setting Room B Setting
Press the both Security Buttons for less than 3 seconds within 2 Mins to connect
*This is for encryption Network Setup, if no encryption required, Powerline adapters are plug-n-play.
Power
Ethernet
Data
Reset/
Security
Power
Ethernet
Data
Security/Reset
Power
Ethernet
Data
Reset/
Security
Power
Ethernet
Data
Security/Reset
Improving the transmission quality
Power
Ethernet
Data
Power
Ethernet
Data
Internet
Ethernet Cable
Room A
Streaming HD Media
Room B
Online Gaming
Ethernet
Cable
Room C
Home Surveillance
Power Meter
Electric Network
Electric Network
Powerline’s transmission quality will
largely decrease when signal pass through
an Electronic Meter.
Living Room
Modem / Router
ex: Garage, Barn, Warehouse
