DVD Entertainment System
Owner's Manual
WIDE
R
SCREEN
SURROUND
SOUND
.mp3
RES
NOTICES
NOTICE OF INTENDED USE
ROSEN ENTERTAINMENT SYSTEMS ARE DESIGNED TO
ENABLE VIEWING OF VIDEO RECORDINGS ONL Y FOR REARSEA T OCCUPANTS.
MOBILE VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING BY THE DRIVER WHILE THE VEHICLE IS IN MOTION.
SUCH USE MA Y DISTRACT THE DRIVER OR INTERFERE WITH
THE DRIVER’S SAFE OPERATION OF THE VEHICLE, AND
THUS RESUL T IN SERIOUS INJURY OR DEA TH. SUCH USE
MA Y ALSO VIOLATE STA TE LAW.
ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THA T
MA Y RESUL T FROM ANY IMPROPER OR UNINTENDED USE.
About the Registered Marks
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
T able of Contents
Notices..................................................................................................................................................................................................................................... 3
Getting Started......................................................................................................................................................................................................................... 6
Switching On, Lowering and Adjusting the Screen, Finding the Remote Control Buttons Y ou Need, Listening Over the V ehicle Speakers
Introduction .............................................................................................................................................................................................................................. 8
Discs Played ............................................................................................................................................................................................................................ 9
Changing Display Settings, Using the Dome Lights .............................................................................................................................................................. 10
Using the Remote Control .......................................................................................................................................................................................................11
Basic Remote Control Buttons .............................................................................................................................................................................................. 12
Using Menu and Navigation Buttons, Using Audio Buttons.................................................................................................................................................. 13
Using DVD Disc Features ..................................................................................................................................................................................................... 14
Changing the Shape and Size of the Image ......................................................................................................................................................................... 14
Replacing the Remote Battery............................................................................................................................................................................................... 14
CD Audio and MP3 Playback ................................................................................................................................................................................................. 15
Listening Over the Vehicle Speakers .................................................................................................................................................................................... 16
Using the Included Wireless Headphones ............................................................................................................................................................................ 16
Replacing Headphone Batteries............................................................................................................................................................................................ 17
Rosen Entertainment Sound.................................................................................................................................................................................................. 17
Watching Broadcast Television (with Tuner-equipped systems) ........................................................................................................................................ 18
Using External Sources ......................................................................................................................................................................................................... 18
Optional Rosen Accessories ................................................................................................................................................................................................ 19
What Can I Do About Black Bars On the Screen?................................................................................................................................................................ 20
DVD Player Setup Options .................................................................................................................................................................................................... 22
Frequently Asked Questions ................................................................................................................................................................................................. 25
GETTING STARTED
Switching On, Lowering and Adjusting the Screen
Use the system only when the vehicle is running, or with the
ignition key switch in the “accessory” position.
First, press the OPEN button on the front panel,
or on the remote. The screen will deploy.
OPEN
ENTER
Second,
to adjust the
screen angle,
gently pull the
screen towards
you an inch or so,
and hold it there
with one hand.
Finally, let go of the screen and double-check the viewing angle.
You may need to repeat this process a few times to get the angle
just right for your height and the height of the vehicle seats.
SOURCE
Third,
while holding the
screen, move the
adjuster slider
left or right with
your other hand.
Watching Video
To Watch a DVD:
1 Press EJECT twice to remove
any loaded disc.
2 Insert a DVD onto the slot, label side up.
3 Most DVD discs begin playback
automatically. If a menu appears,
PLAY or ENTER as instructed on screen.
press
Note: While a disc is playing, the Stop/Eject button on the front
panel acts as a Stop button. To eject a disc while it is playing, press
the Stop/Eject button twice in quick succession. The Eject button
on the remote should always eject the disc immediately.
To Watch Broadcast Television (with optional TV tuner):
1 Press SOURCE until “TV Tuner “ and a channel number (for
example, “2” ) appear on the screen. If no channel number
appears, press the POWER button on the remote.
2 To change channels, press
panel, or UP CH and DOWN CH on the remote.
NEXT or PREVIOUS on the front
ENTER
OPEN
SOURCE
Previous
Next
Navigation
Keys
Speaker
Mute
Rosen
Entertainment
Sound
Source
Select
Play/
Pause
Stop/
Eject
Open
Dome Light
Front View
OPEN button
OPEN
Dome light
LCD Screen
ENTER
SOURCE
Console-mounted Jack Locations
Disc slot
Control Panel
Dome light
Screen angle
adjuster
Infrared transmitter
(for headphones)
Reset
Button
To Use An External Video Source
(optional video game or camcorder):
1 Connect the RCA audio and video outputs of the device to the
RCA inputs of the system.
2 Press
SOURCE until “Auxiliary Input” appears on the screen.
Listening Over the Vehicle Speakers
1 Press SPEAKER. “Speaker Sound Enabled” will appear on the
screen. (If “Headphone Sound Only” appears, press again.)
2 Turn on the car radio. Make sure A8
MUTE is off. T une to FM
frequency 87.9. If no A8 audio is heard, try tuning in 88.3.
Using the Dome Lights
1 Press the DOME LIGHT button to turn the dome lights on or off.
Note: To prevent battery drain, the dome light automatically shuts
off after 5 minutes of use.
The Front Panel Controls
Wired
Headphone
Jack
Auxiliary Input
RCA Jacks
Wired
Headphone
Jack
Rosen A8 Owner’s Manual
INTRODUCTION
To get the most enjoyment from using your system, please read
these instructions.
Your system includes the following components:
· An integrated widescreen flat panel display
· An internal DVD/CD/MP3 Player
· Wireless Infrared (IR) Headphones (2 pair) (AC 3003)
· A Remote Control (AC3025)
· A Stereo FM Modulator (lets system sound be heard over your
vehicle’s speakers)
· Other parts and cables installed out of sight in your vehicle
In order to operate the system, the
vehicle ignition key switch must be
in the ACC or engine ON position.
ACC or engine
ON position
WARNING!
Operate the system with the engine
running, if possible. To avoid a dead
battery, do not use the system for long
periods of time without starting the
engine.
8
Precautions
• Use this system only if properly installed by a qualified installer.
• If the units show signs of overheating or malfunction, power off
the unit and consult your dealer immediately. Do not open the unit there are no serviceable parts inside.
• Do not press on the display surface; this can damage it.
• Clean the LCD panel with a slightly damp, soft cloth using
household glass cleaner. Do not use solvents such as benzene,
thinner, or commercially available cleaners.
• If your car was parked in a very cold or very hot place, the
picture may not be clear, or you may see a temperature warning
on the screen instead of a picture. The system is not dam-
aged. The picture will return and become clear after the system
temperature returns to normal.
• When using portable radios and telephones near the system,
picture or sound interference may occur.
Notes:
The system’s operating voltage range is 11-16VDC operat-
ing voltage. The system operating temperature is 0o to 60
Celsius (32O to 140O Fahrenheit). Use of the system beyond
the safe operating ranges listed can cause temporary or
permanent damage to the unit, and such damage may not
covered by the manufacturer’s warranty.
When using optional wired headphones, use headphones
with a volume control, such as the Rosen AC3004. The
system has no volume adjustment - use the volume control
on the wireless headphones or on the vehicle radio.
o
DISCS PLA YED
Compatible Discs
DVD, Video CD (VCD), CD/CD-R, and MP3 discs are compatible with
the system. The identifying logo and description of each disc type is
given below.
DVD 12 cm disc/8 cm disc
(single-sided disc only)
Video CD 12 cm disc/8 cm disc
CD/CD-R, MP3 12 cm disc/8 cm disc
DVD Regions
This DVD player is designed and manufactured to respond to the
Region Management Information that is recorded on a DVD disc. If the
Region number described on the DVD disc does not correspond to
the Region number of this player, it will not be able to play the DVD
disc. Some DVD discs are manufactured to operate in “all” zones,
and those discs are compatible with this player.
DVD Region Icons:
These icons on the DVD case indicate the region code.
ALL
1
1
4
6
Rosen Entertainment Systems
Incompatible Discs:
The following disc types are incompatible:
· DVD-ROM
· DVD-R/DVD-RW/DVD-RAM
· Photo CD
· CD-ROM
· CD-Audio manufactured with certain copy protection methods
· Any DVD with a different Region number than the unit.
· Any disc that does not meet DVD Consortium standards.
DVD Operations that differ from disc to disc
When a DVD disc is created, the creator has to define how the disc
will operate when it’s loaded into a DVD player. For instance, some
discs begin playing immediately, while other discs only display a menu
and require a menu selection to be made before playback will start.
The DVD standard also allows the maker of a DVD disc to disable
certain functions at certain times, such as Fast-forward and Stop
(which is why you can’t skip past the copyright warning screen). If
some feature cannot be used, usually the disc is temporarily
preventing the player from executing the operation.
Discs which do not properly load
Some homemade discs which do not have all the data needed to
properly initialize all DVD players may not load properly, and may
create a state where the DVD player will not eject the disc at all. In
these cases, you must have your Rosen authoriozed dealer reset
the system.
9
Rosen A8 Owner’s Manual
Changing Monitor Settings
Display Adjustments: The A8 monitor has adjustable video settings.
To change these settings, press the ENTER button on the overhead
console and hold it for two seconds. A menu with the following
options appears:
COLOR (32)
CONTRAST (32)
BRIGHT (32)
TINT (32)
To select a setting to be changed: Press the DOWN button to move
the cursor down the menu list (it will cycle back to the the top).
To change the value of a setting: Use the LEFT and RIGHT arrow
buttons to decrease and increase the value of the setting. The range
is zero to 63, with 32 as the default.
To exit the menu: Press the ENTER button to save the settings and
exit the menu.
Selecting among various display modes: The A8 has a
“widescreen” display, with a 16:9 aspect ratio (the same aspect ratio
as high-definition televisions).
• To view widescreen DVD’s, press the DISPLAY MODE button
until “Wide” is displayed on the screen.
• To watch “fullscreen” DVD’s or broadcast television (using an
optional TV tuner), press until “Standard” is displayed.
• To stretch the picture to take up more of the screen, select the
“Stretch” mode.
10
Note: While it is not technically a “monitor” setting, the
internal DVD player can be configured for either a widescreen
16:9 output compatible with the 8” screen, or for a a standard
4:3 output. Using the correct “WIDE” setting will eliminate or
greatly reduce the “black bars” on the top and bottom of the
screen when viewing a widescreen DVD. See page 20 for
more information.
Using the Dome Lights
The system has built-in dome lights for interior illumination. In many
vehicles, this feature replaces an original factory dome light, which is
sometimes displaced by installation of the system. The dome lights
are controlled by both the Dome Light button on the front panel, and
by the matching Dome Light button on the remote control.
When the lights are off, press either button to turn them on.
When the lights are on, press either button to turn them off.
When the lights have been turned on manually using the Dome Light
button, they will automatically turn off after all the doors are closed.
Dome Light
button
OPEN
Note: Some vehicles have a dome light dimming feature that
causes the light to fade out gradually. The system light may
not fade in the exact manner as the factory dome light, but will
still turn on and off normally in conjunction with the use of the
vehicle’s doors. This is proper operation for the system. If you
have any questions, contact your Rosen authorized dealer.
ENTER
SOURCE
USING THE REMOTE CONTROL
Rosen Entertainment Systems
You can use the remote control to operate the system, including
access to features not available on the front panel.
For definitions of each remote control button’s specific function, see
the following pages.
1 Open/ Optional Source Unit Power 15 Info
2 Pause 16 Eject
3 Stop 17 Navigate left
4 Play 18 Enter
5 Previous Chapter/Track 19 Navigate Right
6 Reverse 20 Subtitle
7 Fast forward 21 Source Menu
8 Next Chapter/Track 22 Navigate Down
9 Speaker on/off 23 Disc Menu
10 Rosen Entertainment Sound 24 Disc Zoom
11 Rosen Surround-Sound 25 Dome Light
12 Mute 26 Day/night
13 Source select 27 Random Play
14 Navigate up 28 Display Mode
Note: If you try to perform a DVD action when it is not
permitted (such as accessing the disc menu while the disc is
loading), you’ll see the the following symbol on the screen:
1 2 3 4
5 6 7 8
9 10 11 12
RES
13 14 15 16
SOURCE
CH
INFO
17 18 19 20
21
SOURCE
MENU
ENTER
22
CH
+
23 24
DISC
MENU
25 26 27 28
RANDOM
PLAY
ROSEN
EJECT
SUB
TITLE
DISC
ZOOM
DISPLAY
MODE
11
Rosen A8 Owner’s Manual
BASIC REMOTE CONTROL BUTTONS
1 Open/ Optional Source Unit Power
Pressing this button when the screen is closed will deploy the
screen. This button also turns on some optional Rosen source units.
(There is also an OPEN button on the front panel.)
Note: The system automatically turns on and off as the screen is
opened and closed.
4 Play
Press to begin or resume playback of a DVD.
Note: When the disc is first inserted, you may have to press
PLAY or ENTER to begin playback.
3 Stop
Press once to temporarily stop playback of a DVD. To resume normal
playback from the same point, press PLAY.
Press STOP twice, then PLAY, to play the disc from the beginning.
Note: Once STOP is pressed twice, the player can only begin
playing from the beginning of the disc.
16 Eject
Press to eject a DVD or CD.
EJECT
5 Previous Chapter/Track
Press to jump to the previous title or chapter, if available on a DVD, or
to the previous track on an audio CD. Not supported with some VCDs.
8 Next Chapter/Track
Press to jump to the next title or chapter, if available on a DVD, or to
the next track on an audio CD. Not supported with some VCDs.
6 Reverse
Press to search in reverse. To resume normal playback, press PLAY.
7 Forward/Search
Press during playback to fast forward. Press the RIGHT and LEFT
arrow buttons to adjust search direction and speed. Options include
2x, 4x, 6x, 8x, 12x, 16x, 32x, and 64x. Press PLAY to resume regular
play.
25 Day/Night
This button lets you easily decrease the display brightness by 50%
for optimum picture quality in low light conditions.
Set the Brightness level in day-time conditions with lots of ambient
light. Then you can use this button to switch between Daylight and
Night brightness levels.
2 Pause/Frame Step
Press once to pause playback. Press repeatedly to advance video
frame by frame. To resume normal playback, press PLAY.
12
Rosen Entertainment Systems
USING MENU AND NA VIGA TION BUTTONS
ENTER
INFO
SOURCE
SOURCE
MENU
CH
CH
+
13 Source
Press to select the DVD/CD player, the internal Game, or the Auxiliary
input. This button also is used to access the optional TV Tuner, DVD
Changer, or other optional auxiliary sources.
14, 22 Up/Down Arrows
Press to move up or down in a menu or to change channel when
watching TV.
17, 19 Left/Right Arrows
Press to move left or right in a menu.
18 Enter
Press to make a menu selection.
21 Source Menu
Use to personalize operation of the internal DVD player. For more
information, see “Changing DVD Player Setup”.
15 Info
Press to view the status, current title number, track number and the
total playing time of the disc on the monitor.
Note: If the DVD Player is selected and there is no disc
loaded, pressing the INFO button will display production
information for the use of factory personnel.
USING AUDIO BUTTONS
9 Speaker Sound Control
Press this button to hear A8 audio through the car speakers; Speaker
Sound On appears on the screen. Headphone audio is not affected.
Press again to hear A8 audio only through the headphones; Headphone Audio Only appears on the screen. Refer to “Using the
Headphones” and “Listening Over the Car Speakers” for more details.
Note: The Speaker button on the control panel performs the
same function.
10 Rosen Entertainment Sound Processing
This button turns on and off the Rosen Entertainment Sound
Processing. With RES turned on, dialogue is automatically louder and
easier to hear, while loud passages, such as special effects, are
automatically lowered slightly. See Page 17 for more information.
11 Rosen Entertainment Surround-sound
This button turns on and off the Rosen Entertainment Surroundsound. Rosen Surround-sound is optimized for headphone listening.
Note: This button on the front control panel controls both
Surround-sound and Sound Processing.
12 Mute
Press once to mute the audio. As long as the Mute function is active,
“Mute” will appear on the screen. Press again to turn Mute off.
Note: The Mute button on the control panel performs the same
function.
RES
13
Rosen A8 Owner’s Manual
USING DVD DISC FEA TURES
SUB
20 Subtitle
TITLE
Press repeatedly to cycle through the various language subtitle
options available on the DVD disc being played.
23 Disc Menu
DISC
MENU
Press to see the main menu for the DVD being played. To resume
normal playback, press PLAY.
CHANGING THE SHAPE AND SIZE OF THE IMAGE
DISC
24 Disc Zoom
ZOOM
View the same scene at different magnifications.
1 Press the DISC ZOOM button during playback to select among the
following options: x1.5, x2, and x4.
2 Press the arrow buttons to shift the magnified section of the
screen.
3 To resume normal playback, press DISC ZOOM until “Zoom off” is
displayed.
28 Display Mode
DISPLAY
MODE
This button selects among various screen display modes.
• To view widescreen DVD’s, press this button until “Wide” is
displayed on the screen. This uses the full width of the screen.
• To watch “fullscreen” DVD’s or broadcast television, press until
“STANDARD” is displayed. This mode uses most of the screen,
but black bars will be visible on the sides, like this:
• To stretch the picture to take up more of the screen, select the
“Stretch” mode.
• To zoom the picture, select the “Zoom” mode.
Note: For best results when zooming in on DVD images, use the
Disc Zoom feature instead of the “ZOOM” Display Mode.
For more information about image shapes, see “What can I do about
Black Bars?”, on Page 20.
REPLACING THE REMOTE BATTER Y
Press tab here
and pull battery tray out
Use a single 3V battery, type CR2025. Insert as shown. Observe the
correct orientation of the battery as marked on the battery tray.
Battery life is approximately six months, depending on how often the
remote is used.
14
CD AUDIO AND MP3 PLA YBACK
CD Playback
When an Audio CD is inserted, “CD” will appear on the screen. To
display track information, press INFO.
MP3 Playback
When a compact disc with MP3 files is inserted, the SMART NAVI
screen will appear. To conceal the SMART NAVI screen, see the
“DVD Setup Menu” section. Each folder and file will be shown (the
order may be slightly different than that on your PC). Navigate the
files and folders using the navigation arrow keys, and select a file or
folder to be played by using the ENTER button. To move to the next
file or the previous file, use the NEXT and PREVIOUS buttons.
Rosen Entertainment Systems
- - SMART NAVI - -
ROOT
ARTIST NAME - SONG TITLE
ROOT 0
MP3
MP3
MP3
(ARTIST NAME) 1
(ARTIST NAME) 2
(ARTIST NAME) 3
MP3 Disc Recording and File Extensions
When recording a CD with MP3 files to be played on this system,
always add a file extension “ .MP3” or “.mp3” to MP3 files by using
single-byte letters. If you add a different file extension, or forget to
add the file extension “ .MP3” or “ .mp3,” the file cannot be played.
In addition, if you use upper case and lower case letters (capital and
small letters) mixed together for file extensions, the file may not play.
Notes:
· Some CDs recorded in CD-R or CD-RW mode may not play.
· Files saved without MP3 data will not play.
When recording Audio CDs or MP3 files, make sure to check
your CD recorder’s level setting - too high a level will result in
distorted sound.
Three repeat modes are available for MP3 use:
· NO REPEAT
· REP – ONE repeats the current file
· FOLDER REP repeats the current folder
Supported MP3 File Formats
· ISO9660, level 1 and level 2 (the most common type of MP3
format)
· Joliet (a version of ISO9660 that supports longer filenames)
· Romeo (a format used by some CD-creating software)
15
Rosen A8 Owner’s Manual
LISTENING OVER THE CAR SPEAKERS
The A8 uses an FM Modulator to send audio through the vehicle radio
and thus through the speakers. To listen to A8 system audio through
your car speakers:
1 Press SPEAKER. “Speaker Sound Enabled” will appear on the
screen. (If “Headphone Sound Only” appears, press SPEAKER
again.)
2 Turn on the car radio. Make sure MUTE is off. Tune to FM
frequency 87.9. If no system audio is heard, try tuning in 88.3.
To turn off A8 system audio over the car speakers, press SPEAKER.
“Headphone Sound Only” appears on the screen. Audio from the A8
system is then heard only over the headphones.
The system “remembers” which mode you have selected, and will
return to that mode each time the system is turned on. You may want
to store the FM Modulator frequency as a preset on your radio for
ease of use. This will be either 87.9 or 88.3 FM.
Note: When the FM Modulator is on, you may notice some
reduced radio reception. When the system is off, the FM
Modulator also turns off. To listen to the radio when the
system is not in use, close the monitor, and both the system
and the FM Modulator will turn off.
Note: If there seems to be a strong station on the FM
Modulator frequency, your Rosen authorized dealer can
switch the system to the alternate frequency.
USING THE INCLUDED WIRELESS HEADPHONES
The system comes with two pair of wireless infrared (IR) headphones, Rosen model number AC3003, which receive a signal from
an IR transmitter concealed in the frame around the display. These
headphones allow rear-seat passengers to hear a DVD, CD, video
cassette, or video game without disturbing front-seat passengers.
To turn the headphones on and off, push the Power ON/OFF button
on the right ear piece. The Power LED on the left ear piece indicates
when headphone power is on. Power turns off automatically after
three minutes of no audio to preserve battery life.
To adjust the headphone volume, rotate the thumb wheel switch on
the headphones.
To adjust the headphone size for differently-sized heads, slide the
top as needed (see below).
Adjust headphones
here
Power ON/Off
switch
Volume Knob
Power LED
16
Rosen Entertainment Systems
REPLACING HEADPHONE BA TTERIES
The wireless IR headphones require two AAA batteries. To replace
the batteries, slide off the battery compartment door on the right
earpiece and insert batteries, as shown. Make certain that the battery
polarity matches the marks inside the battery compartment.
USING OPTIONAL WIRED HEADPHONES
There are two jacks for wired headphones on the forward edge of
the unit, under a removable cover. When using optional wired
headphones, use headphones with a volume control, such as the
Rosen AC3004 (the system has no volume adjustment).
Mini-stereo Headphone Jacks
ROSEN ENTERT AINMENT SOUND FEATURES
RES Surround-sound. (DVD audio only). While many of us have
home theatre systems with center-channel speakers and subwoofers,
Rosen knows that most of us don’t have that luxury in our vehicles. So
Rosen’s surround-sound circuitry re-creates surround effects when
watching movies – especially when using headphones!
RES Sound Processing. (DVD audio only). Movie soundtracks were
meant to be heard in a quiet theatre – not in a moving car! The dialogue
can be difficult to hear over road noise, and the most dynamic portions
of the soundtrack can overpower the car’s sound system.
With RES Sound Processing turned on, dialogue is automatically louder
and easier to hear, while loud passages, such as special effects, are
automatically lowered slightly. Try RES whether you are listening through
the car speakers or wearing headphones, and use it whenever you
find it improves the sound.
Dynamic limit of headphones and most car audio systems
DVD movie
sound levels
without RES
Sound-effects
dynamic peaks
Soundtrack dialogue
DVD movie sound
levels with RES
Background noise floor
17
Rosen A8 Owner’s Manual
WA TCHING BROADCAST TELEVISION
(ON TV TUNER-EQUIPPED SYSTEMS)
You can watch television on the system if you have installed the
optional CV4000 TV Tuner kit (includes TV Tuner, antenna, and an
AC3024 harness).
Note: Broadcast television reception varies with location,
terrain, distance from the broadcast tower, and other factors.
Signal quality is likely to vary in a moving vehicle.
1 Press SOURCE to select the “TV Tuner” input. “TV Tuner” and a
channel number (for example, “2”) will appear on the screen. If no
channel is displayed, press the POWER button on the remote.
2 Press the UP CH and DOWN CH arrow buttons on the remote to
change channels. You can also use the UP and DOWN arrows on
the front control panel.
3 To scan all available channels, press SOURCE MENU.
Note: To watch broadcast television or videotapes in their
original format, press the DISPLAY MODE button on the
remote control until “Standard” is displayed on the screen.
This will properly size the image, instead of stretching the
image across the wide screen. In “Standard” mode, you will
see black bars on the sides of the image, like this:
USING EXTERNAL SOURCES
You may use optional external video games, camcorders, and other
portable video units by connecting the unit to the auxiliary RCA input
jacks on the unit. You must remove the cover to access the jacks,
and press SOURCE to select “Auxiliary Input”.
Color-Coded RCA Jacks
Red — Right channel audio input
White — Left channel audio input
Yellow — Video input
To use an external game system, a 12VDC to 110VAC power inverter,
available at most electronic retail stores, is often required.
Note: If you want to watch non-widescreen, 4:3 images, press
the DISPLAY MODE button on the remote control until
“Standard” is displayed on the screen. This will properly size
the image, instead of stretching the image across the wide
screen. In “Standard” mode, you will see black bars on the
sides of the image, like this:
18
OPTIONAL ROSEN ACCESSORIES
SOURCE
+
DISC
ZOOM
DISC
MENU
CH
CH
SOURCE
MENU
ENTER
DISPLAY
RANDOM
INFO
ROSEN
MODE
PLAY
SUB
TITLE
RES
EJECT
The following Rosen acessories are available. Most of these require
some installation parts and labor - check with your authorized Rosen
dealer for details.
CV4000 TV Tuner kit
The CV4000 includes a TV Tuner that receives U.S. television
broadcasts, a wire harness, and a TV antenna. When installed using
theAC3024 harness, the TV Tuner is controlled by the system
remote.
AC3025 Remote Control
This is the original replacement remote
control for the system.
AC3003 Infrared Wireless Headphones
Rosen Entertainment Systems
AC3062 Noise-Cancelling Infrared Wireless Headphones
These offer improved audio performance through electronic
cancellation of background and road noise.
AC3004 Wired Headphones with volume control
These are for use with the headphone jack on the front of the unit.
These are the original-equipment headphones
for the system.
19
Rosen A8 Owner’s Manual
WHA T CAN I DO ABOUT BLACK BARS ?
Motion picture film and cameras, and later
television screens, were originally designed
around a screen size that was almost square - it
was one-third wider than it was high (another
way to say this is that it had a width-to-height
ratio, or aspect ratio, of 4:3. This ratio, 4:3, can
also be expressed as 1.66:1.)
When widescreen movies using technologies
like Cinemascope and Panavision became
popular, new aspect ratios were used
for them - 1.78:1, 2.35:1, and even 2.55:1.
When high-definition television was
developed, a screen shape of 16:9, or 1.85:1,
was selected as the best compromise for
viewing widescreen movie images.
When you watch widescreen movies on a
standard 4:3 television, there are “black bars”
on the top and bottom of the screen. This is
often called a “letterbox” image. The alternative
is called “pan-and-scan”, where the edges of
the image are “cropped” off.
This system uses a widescreen 16:9, or 1.85:1
display - the same aspect ratio as highdefinition televisions. This means that when
viewing widescreen DVD’s, these black bars
are either non-existent, or greatly minimized.
20
4:3
1.66:1
16:9
1.85:1
Letterbox
Widescreen
WHY ARE THE BLACK BARS STILL THERE SOMETIMES?
There are three possible reasons for black bars to appear on the top
and bottom of the system’s display:
1) You are watching a widescreen movie with an aspect ratio
greater than 1.85:1.
Check the disc jewel box to determine the DVD’s aspect ratio - if
you see “2.3:1”, ” 2.33:1”, or ”2.35:1”, this applies to you.
2) The internal DVD player has been set for a 4:3 display instead of
the built-in 16:9 wide display. See DVD Setup, Page 23, to correct
this.
3) The “widescreen” DVD movie you are viewing is not “anamorphic”
or “enhanced for widescreen televisions”. These films, often older
DVD conversions, are not recommended for viewing on
widescreen displays, since they will not flll a wide screen instead, you often end up with a “picture frame’ effect. You can
usually determine if your DVD was produced for optimum
compatibility with widescreen televisions by looking for the word
“anamorphic” or the phrase “enhanced for widescreen
televisions” on the box.
ELIMINA TING BLACK BARS WHEN VIEWING A DVD:
First, Rosen recommends that for best results you use DVD’s that say
“anamorphic” or “enhanced for widescreen televisions” on the box.
However, this system can get rid of black bars with just about any
DVD, by following the steps below.
Note: To watch “fullscreen” DVD’s or broadcast television (using
an optional TV tuner), you can use the DISPLAY MODE button to
select “Standard”. This will properly size the image, instead of
stretching the image across the wide screen. In “Standard” mode,
you will see black bars on the sides of the image.
1) Make sure that the internal DVD player is set to “WIDE”
(see DVD Setup, page 23).
2) Use the Display Mode button to select “Wide” or “Zoom”.
• To view widescreen DVD’s, use “Wide”.
• To stretch the picture, use “Stretch” mode.
• To zoom the picture, use the “Zoom” mode.
Note: This feature will slightly “crop” the edges of the image.
For best results when zooming in on DVD images, use the Disc
Zoom feature below - not the “Zoom” Display Mode.
Rosen Entertainment Systems
3) If needed, use the Disc Zoom button. Again, the edges will
be “cropped”, but the screen will be filled.
Press the DISC ZOOM button during playback to select among the
following options: x1.5, x2, and x4. You can then use the arrow
buttons to shift the magnified image left and right.
21
Rosen A8 Owner’s Manual
AUDIO OUTUDIO OUT
MAIN PAGE
ANALOGANALOG
SPDIF/RAW
-- AUDIO SETUP --
SPDIF/PCM
DUAL MONO
LPCM OUT
OP MODE
DYNAMIC
PRO LOGIC
TV DISPLATV DISPLAY
OP MODE
ANGLE MARK
OSD LANG
MAIN PAGE
NORMAL/LB
WIDEWIDE
- - GENERAL PAGE - -
NORMAL/PS
CAPTIONS
SCR SAVER
DISC MENU
SUBTITLE
LOCALE
PARENTAL
- - PREFERENCES PAGE - -
TV TYPE
NTSC
PAL
MULTI
AUDIO
SUBTITLE
DVD TYPICAL SETUP AND CONFIGURA TION
The following section explains how to customize various features of
the Internal DVD Player, including various language, display, and
parental control features.
Note: Many DVD menu settings do not apply to this system,
since it is specifically engineered for automotive use.
Changing the state of some settings can cause apparent
system failure. If you have questions about the original state
of any DVD setting, please see the list on page 24.
To change the settings for the internal DVD Player:
1 Press SOURCE SETUP .
2 Use the navigation arrow buttons to highlight a selection.
3 Press the ENTER button to confirm your selection.
SETUP MENU -- MAIN PAGE
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCES
EXIT SETUP
If you try to perform an action that is not permitted (such as accessing the Preferences menu while a disc is playing), the on-screen
display will use the following symbol:
22

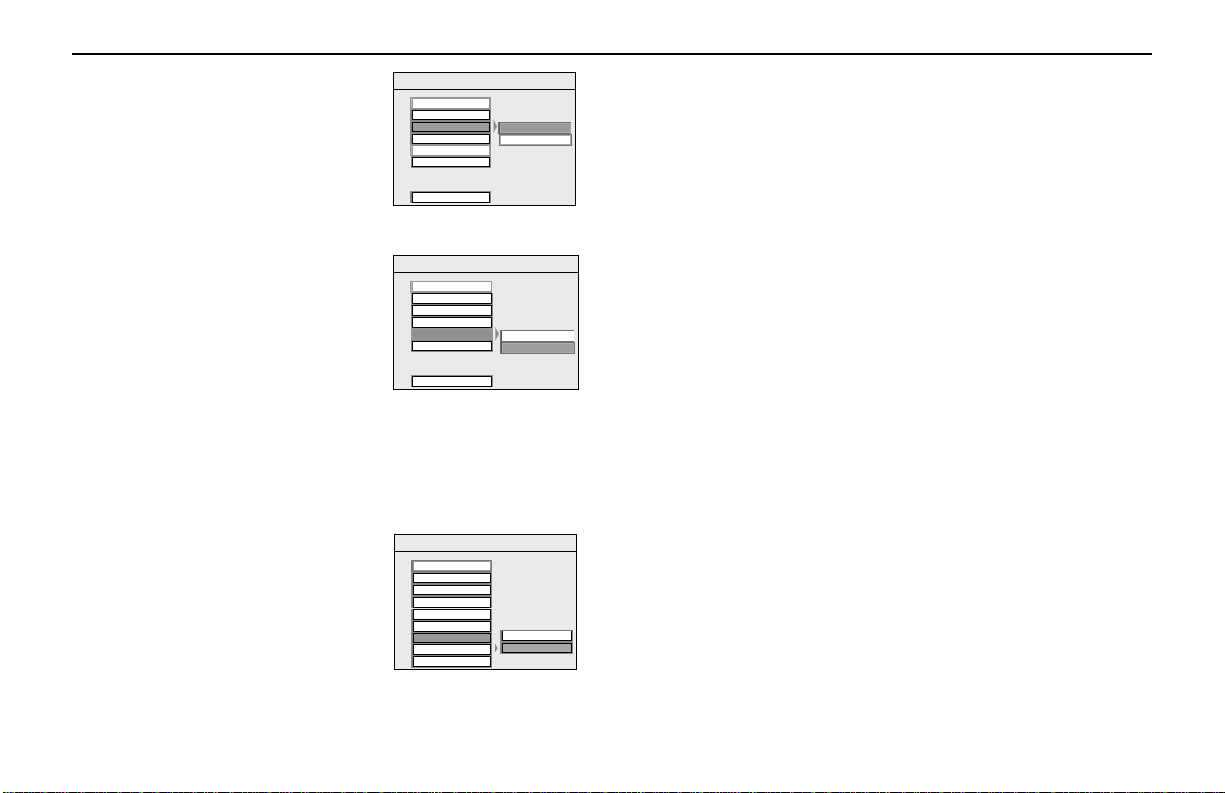

Changing the Aspect Ratio Mode
This is under the GENERAL tab. The
correct setting is WIDE. Changing this
setting to NORMAL/PS or NORMAL/LB
will result in distorted video.
Changing the Video Output Mode
To change the video output mode,
select GENERAL, and then select TV
TYPE. The default is NTSC. If you want
to be able to play PAL discs on your
NTSC monitors, select PAL.
Note: The default setting “MULTI” will automatically
output NTSC video from NTSC discs, and PAL video
from PAL discs. NTSC is the North American standard.
Sme discs do not play properly when MULTI is selected.
The Digital Output Setting
There is a setting in the menu for a
Digital Audio output. This unit does not
have a digital audio output. Leave this
setting in the ANALOG mode.
Note: Enabling the Digital Audio
mode disables the analog audio
output used by the FM Modulator
and the IR headphones, and can
resemble a system audio failure.
Rosen Entertainment Systems
OSD LANG
ENGLISH
DISC MENU
Parental Control
The supplied remote control does not support the Parental Control
feature.
Changing Language Settings
Several language settings can be customized on the DVD Player.
These languages can vary depending on the language supported by
the DVD disc.
Notes:
· Not all language settings are supported by all discs.
· The languages supported vary with the individual option setting -
there is not a global language setting.
To change the on-screen
display language, select GENERAL and
OSD LANG .
- - GENERAL PAGE - -
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ENGLISH
CHINESE
To change the soundtrack language, select PREFERENCES and
AUDIO.
To change the subtitle or caption
language, select PREFERENCES and
SUBTITLE.
To change the disc menu language,
select PREFERENCES and DISC MENU.
- - PREFERENCES PAGE - -
ORD
TS
AGE
AL
V
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
AGE - -
ENGLISH
FRENCH
SP
ANISH
CHINESE
JAP
ANESE
GERMAN
ITALIAN
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
GERMAN
ITALIAN
AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL
PASSWORD
SMART NAV
DEFAULTS
MAIN PAGE
- - PREFERENCES P
AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENT
PASSW
SMAR
T NA
DEF
AUL
MAIN P
- - PREFERENCES PAGE - -
AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL
PASSWORD
SMART NAV
DEFAULTS
MAIN PAGE
23
Rosen A8 Owner’s Manual
DISC MENU
UDIO
SUBTITLE
ORD
SMAR
T NA
MAIN P
GE
NO MENU
WITH MENU
Concealing the “Angle Mark”
To display or conceal the “angle mark,”
which appears during scenes that support a multiple-viewing-angle feature,
select GENERAL and ANGLE MARK.
Since the remote included does not support
this feature, the default state for this
setting is “OFF”.
Activating Captions and Subtitles
To enable or disable captions or subtitles,
select GENERAL and CAPTIONS.
Note: If CAPTIONS is set to OFF,
the SUBTITLE button will be
defeated from working. If SUBTITLE
OFF is selected under Preferences
– Audio, then the SUBTITLE button
can still enable subtitles during
playback, as long as CAPTIONS is
set to ON.
Deactivating the “Smart Nav” MP3
On-Screen Menu Display
To play MP3 discs without the “Smart Nav”
on-screen menu display, select PREFERENCES, then SMART NA V .
- - GENERAL PAGE - -
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
- - GENERAL PAGE - -
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
- - PREFERENCES PAGE - -
AUDIO
SUBTITLE
DISC MENU
LOCALE
PARENTAL
PASSWORD
SMAR
T NA
DEFAULTS
MAIN P
AGE
ON
OFF
ON
OFF
NO MENU
V
WITH MENU
DVD Setup Options List
The factory default options are given in bold type.
GENERAL P AGE
TV DISPLAY : NORMAL/PS, NORMAL/LB, WIDE
TV TYPE: MULTI, NTSC, P AL
ANGLE MARK: ON, OFF
OSD LANG: ENGLISH, CHINESE
CAPTIONS: ON, OFF
SCRN SAVER: OFF, ON
SPEAKER SETUP
DOWNMIX: LT/RT, STEREO
AUDIO SETUP
AUDIO OUTPUT : ANALOG, SPDIF/RAW , SPDIF/PCM
DYNAMIC: OFF to FULL (eight steps)
LPCM: 48K, 96K
PREFERENCES PAGE
AUDIO: ENGLISH, FRENCH, SPANISH, CHINESE,JAPANESE
SUBTITLE: ENGLISH, FRENCH, SPANISH, CHINESE,
JAPANESE, OFF
DISC MENU: ENGLISH, FRENCH, SP ANISH, CHINESE, JAPANESE
LOCALE: CHINA, FRANCE, HONG KONG , JAP AN, TAIWAN,
GBR, USA
PARENTAL: OFF
PASSWORD: 3308
SMART NAV: ON, OFF
24
FAQ’S
I HA VE NO PICTURE AND NO SOUND - WHA T’S WRONG?
The system has low- and high-voltage and temperature protection
circuits. If the voltage or temperature goes beyond the limits, the
system shuts off. The power wire or power harness may have been
disconnected, or the fuse may have failed. Contact your Rosen
authorized dealer to determine if this is the case.
Note: The system voltage range is 11-16VDC operating
voltage. The system operating temperature is 0o to 60o Celsius
(32O to 140O Fahrenheit). Use of the system beyond the safe
operating ranges listed can cause temporary or permanent
damage to the unit - such damage may not be covered by
manufacturer’s warranty.
I HAVE A PICTURE, BUT NO SOUND OR DIST ORTED SOUND. WHY?
Check the MUTE button. Check the volume on the radio, and make
sure the radio is tuned to the right frequency - try tuning the FMM and
the radio to a new frequency. Check the headphones; ensure the
headphones have a direct “line of sight” to the infrared transmitter
below the monitor. Replace headphone batteries, if needed. Check
the DVD Setup Menu - the Audio Output setting must be set to
“ANALOG” and the Speaker Downmix setting must be set to
“STEREO”. If using a CD you have made yourself, make sure you did
not set the recording level too high.
I HAVE GOOD SOUND, BUT A BLURRY PICTURE - WHY?
This happens if the system components are very cold. Allow the
interior of the vehicle to warm up before using the system.
Rosen Entertainment Systems
WHY DON’T THE PREVIOUS OR NEXT BUTTONS WORK WITH A
VCD?
Some VCDs don’t support these - erratic operation can result.
WHY DO I GET NO RESPONSE WHEN I PRESS THE REMOTE
BUTTONS?
Check the battery in the remote control.
THE DOME LIGHT WENT OUT - WHY?
The dome light has a 5-minute timer to prevent accidental battery drain.
I HAVE BLACK BARS ON THE T OP AND BOTTOM OF MY SCREEN
WITH A WIDESCREEN DVD - HOW DO I GET RID OF THEM?
See page 20.
THE STOP/EJECT BUTTON DOESN’T EJECT THE DISC RIGHT A W A Y
While a disc is playing, this button acts as a STOP button. To eject a
disc while it is playing, press the STOP/EJECT button twice in quick
succession. The Eject button on the remote control always ejects the
disc immediately.
THE DISC WILL NOT EJECT AT ALL
Have your Rosen authorized dealer reset the system.
If this section does not address your question, please contact your
Rosen authorized dealer. Also, your system has internal diagnostic
capabilities that are accessible to authorized Rosen dealers. To locate
a Rosen Entertainment Systems authorized dealer, please visit
www.rosenentertainment.com.
25
Rosen A8 Owner’s Manual
26
RES PN 9100 236 Rev A
© 2004 Rosen Entertainment Systems
www.rosenentertainment.com
(909) 898-9808
No part of this publication may be reproduced, stored in a retrieval sytem or transmitted in any form, electronic, mechanical, recording or other means without prior written permission from Rosen.
All rights reserved.
Loading...
