Multimedia Navigation System
Navigation
Bluetooth Hands-Free
Satellite Radio ready
iPod
Play DVDs, Audio CDs, MP3 Discs
Supports steering wheel controls
Back-Up Camera and/or sensor ready
TM
and MP3 compatible
Page 2
Page 3
Notices
NOTICE OF INTENDED USE
Some features of Rosen Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion,
such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice
prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or
interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also
Rosen Entertainment Systems disclaims any liability for
any bodily injury or property damage that might result
violate state or local laws.
from any improper or unintended use.
Copyright © 2009 by Rosen Entertainment Systems. All rights reserved. Except as permitted
under the Copyright Act of 1976, no part of this publication may be reproduced or distributed in
any form or by any means, or stored in a database or retrieval system, without the prior written
permission of Rosen Entertainment Systems.
About the Registered Marks
This product incorporates copyright protection technology that is protected by method claims
of certain U.S. patents and other intellectual property rights owned by Macrovision Corpora-
tion and other rights owners. Use of this copyright protection technology must be authorized
by Macrovision Corporation, and is intended for limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
iPod® is a registered trademark of Apple Computer, Inc.
NOTE: Features and specifications listed in this manual are subject to change without notice.
1
Page 4
Basic Functions
Turning The System On/Off
Vehicle ignition must be On or in ACC Mode
operate system.
Press the Power button on the right side of the
panel to turn the system ON/OFF.
When the vehicle is turned off, the unit will
automatically turn off.
Screen Organization
Your system will automatically default to the last screen you were on prior to turning off the unit.
The Information Bar is located at the
top of the screen. Depending on the
source, it will provide information or content
sensitive controls
to
This will take you to the Settings
Menu for advanced control settings
The Source Tabs located at the bottom of
the screen will give you direct access to
common sources.
Note: “PHONE” is highlighted BLUE when Bluetooth is enabled.
2
Page 5
Radio
Touch Button Descriptions
Short touch tunes up/down one
channel at a time
Long touch seeks the previous/next
available station
Touch to scan and play available
stations for several seconds. During
scan, the display will change color
Touch to select AM and FM1,2 & 3
preset screens
Satellite Radio (If Equipped)
Short touch tunes up/down one
channel at a time
Long touch tunes channels
continuously
Touch to select SAT 1,2 & 3 preset
screens
Preset Channels
To set a station as a Preset, press and hold a the
button. The name of the channel for SAT Radio
or station frequency for AM/FM Radio will
appear in the button when saved.
Short touch the desired Preset button to select
that channel.
3
Page 6
iPod Audio
When the optional iPod interface is connected to a compatible iPod player, the audio files stored
on the iPod can be played through the system.
Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left
connected with the vehicle off.
Touch Button Descriptions
Show/hide the key pad
Repeat the current played song
Scan and play songs in the
current folder. The next song will
be played after the current song
has played for several seconds
Play songs in the current folder
in random order
Touch to enter category list. The
system categorizes into 6 options
Press once to display song
information.
Press twice to display spectrum
graphics
Play A Song
Touch the song shown on playlist to play.
Select previous song
Select next song
Page up
Page down
Play/Pause
4
Page 7

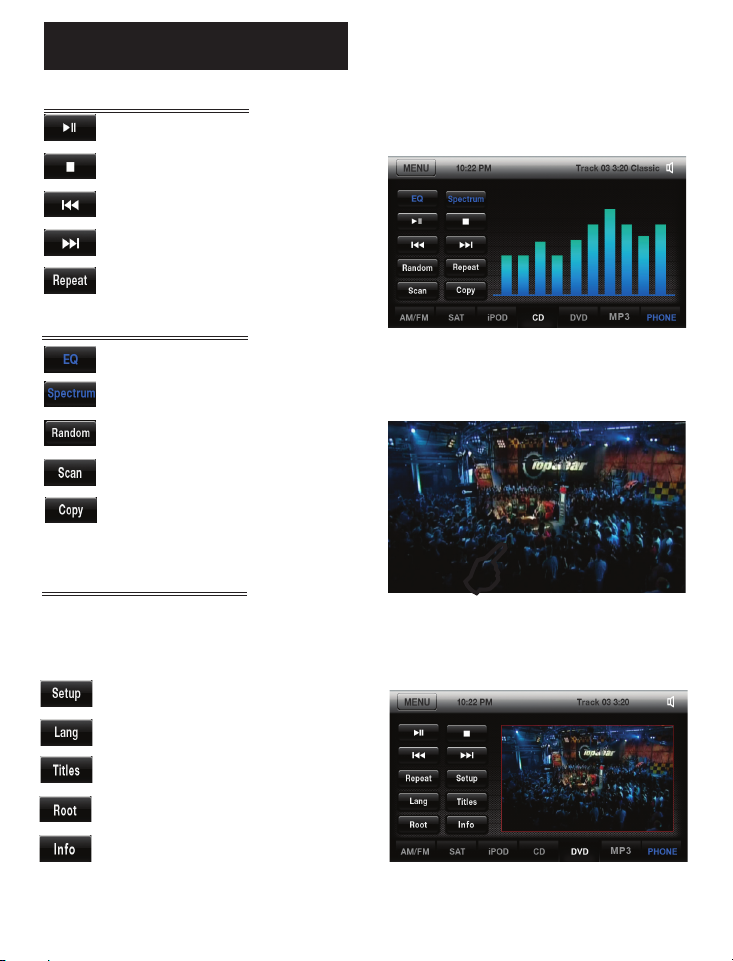

CD/DVD
CD/DVD
Play/Pause track
Stop track
Play previous song/chapter
Play next song/chapter
Repeat current song played
CD Only
Change audio EQ setting
Change spectrum display
Play songs on disc in random order
Scan songs for several seconds
Copy song to Favorites folder
DVD Only
Long Touch in DVD mode to show the DVD
control screen. To return to full screen,
either touch the image or let the screen idle
for 10 seconds
Set up DVD
Change language
Show current title info
Main DVD menu
Shows information such as Chapter,
Time Elapsed, etc
5
Page 8
Bluetooth Hands-Free
Note: This system requires a Bluetooth enabled phone. Bluetooth phones and software vary by
brand and date of manufacture. Some phones or phone functions may not be compatible or may
operate differently with this system during use. Phone compatibility problems are not warrantable
issues.
There are several different Blu
the PHONE function. The first screen you will see
is the Call Screen. To switch between screens,
press the PHONE tab repeatedly.

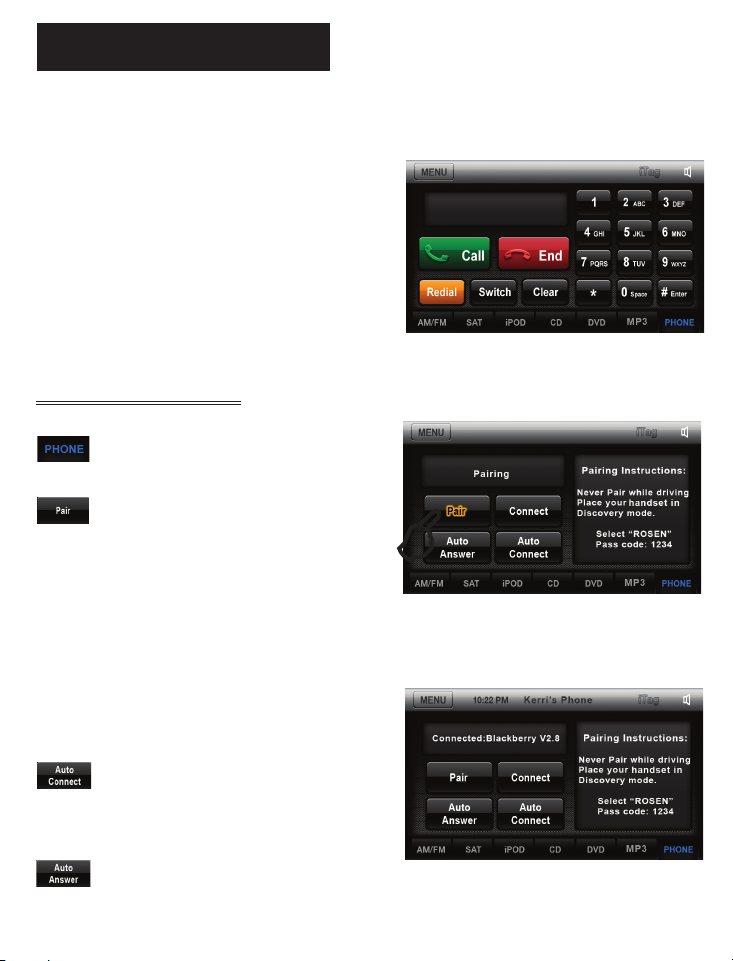

Pairing Your Phone
Place your phone into discovery mode.
Press the PHONE tab to open the
Bluetooth set-up page
Press “Pair” to pair your cell phone for
the first time. You will only need
to do this once, unless you connect to a
different cell phone or the connection is
deleted
“Pairing” will be displayed on the screen. After
the connection succeeds on your phone, select
“Rosen” and enter the password (1234). The system will indicate “Linking” and then “Connected.”
When your phone is connected its name will be
displayed on the unit.
Select Auto Connect If you desire the
system’s Bluetooth feature to automati
cally detect your cell phone when the
system is turned on
Select Auto Answer to set the system to
automatically pick up after three rings
etooth screens in
6
Page 9

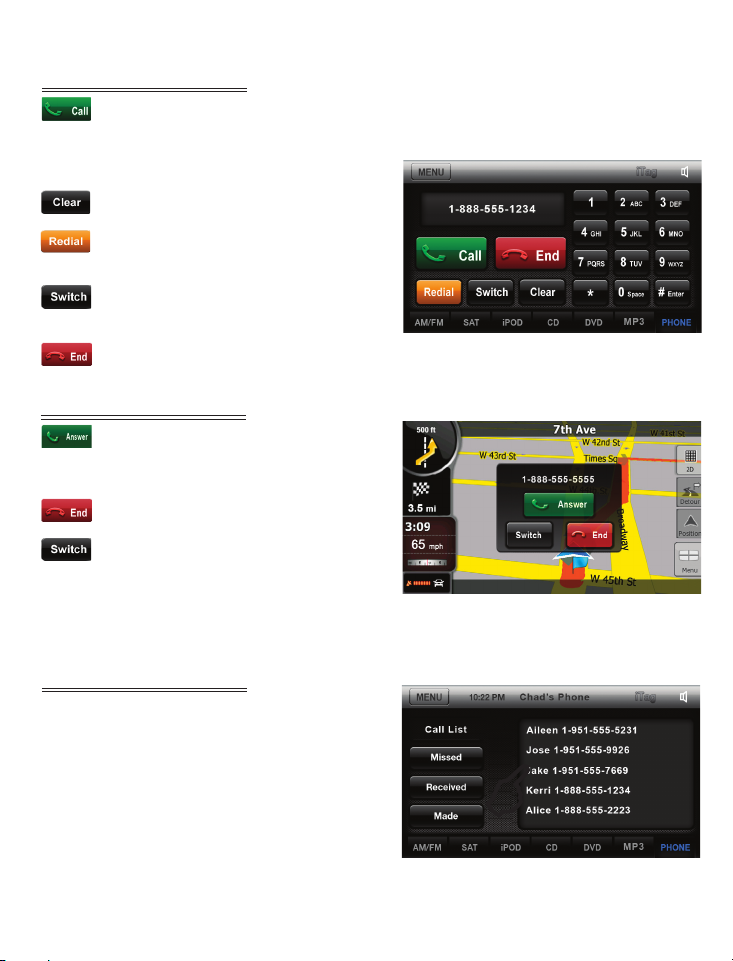

Making/Ending A Call
You can dial the number from your
phone or use the touch-screen shown at
the right by entering the number, then press
the Call button
Clear last number
Press to redial the last number dialed with
the touch screen
Press to transfer call between cell phone
and car speakers
Press to end the call
Answer An Incoming Call
For incoming calls, the system will
automatically switch to the answer screen.
Press to answer
Press the icon to refuse or end the call
Press to transfer call between cell phone
and car speakers
Note: While in Navigation mode the incoming call box will disappear. Touch the screen to
show the incoming call box.
Call List
The call list can be used to view missed,
received and made calls.
The system will not display your cell phone’s
internal phonebook but will show the last
numbers missed, received or made. Press the
appropriate button on the screen to view the
numbers. To make a call from the list, touch the
number on the screen and it will automatically dial
the number.
Note: If unit is equipped with the Phonebook option, this will display instead of “Call List”.
7
Page 10

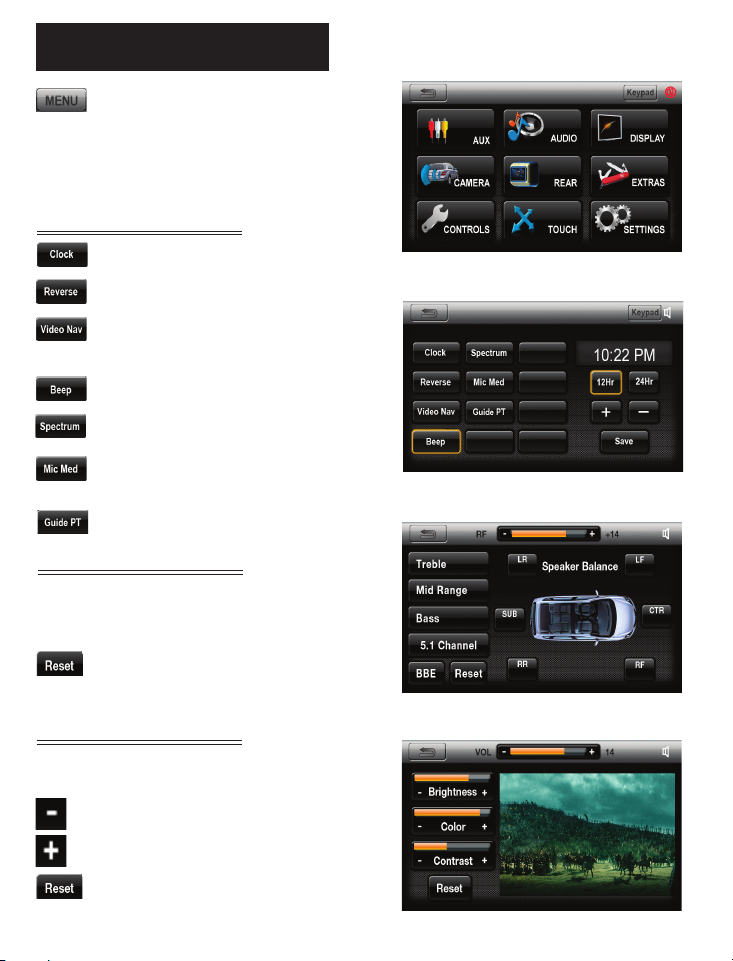

Settings
Press to enter the Settings Menu. To
change system settings, select desired
option
System Settings
The time displayed on all screens
Turn the backup camera on/off
Allows the Nav screen to display for a
short time when directions are given
Button beep on/off
Spectrum on/off
Display the microphone level. Press to
switch between “Low, Med, High”
Guidepoint On/Off
Audio Settings
The AUDIO screen will allow you to adjust
audio settings such as Treble, Mid Range,
Bass and 5.1 Channel.
Settings Menu Screen
Settings Screen
Audio Screen
Press to reset back to original audio
settings
Display Settings
Change the brightness, color and contrast of the
display.
Press to increase the value
Press to decrease the value
Press to reset back to original display
settings
8
Display Screen
Page 11
Steering Wheel Controls

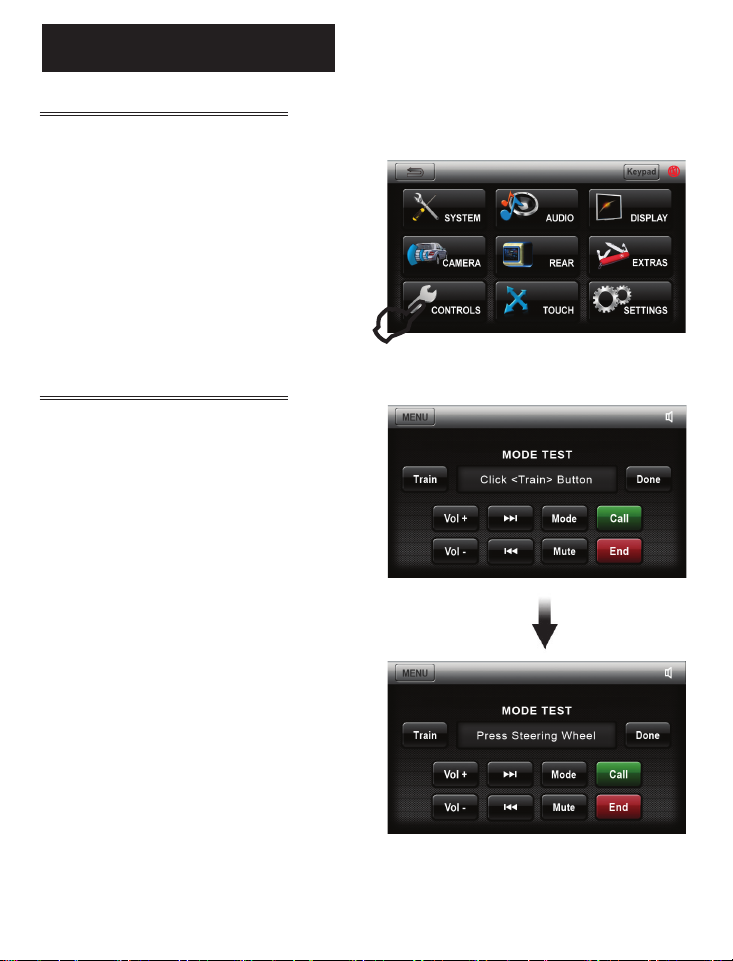

Steering Wheel Control Setup
Your system is equipped with a capability to
interface with most factory Steering Wheel
Controls.
To program your vehicles Steering Wheel
Controls, follow the steps below.
Note: Some vehicles use a data bus system,
which is not compatible. If you do not see the
“Choose Function” response, it‘s because the
system is not compatible.
Setup Instructions
1) Ensure the vehicle is RUNNING, not on
ACC
2) Press the MENU button, then the
CONTROLS Button
3) Press the TRAIN Button, the system will
respond with “Press Any SW Button”
4) Press ANY button on the Steering Wheel to
read the vehicle voltage level
5) Then, follow the on screen directions to
program the buttons
a.Select a Function on the Touch
Screen
b. Press the SAME Button on the
Steering Wheel
6) Repeat step 5 for all buttons you wish to
program
7) Press Done when you are finished
* Each steering wheel button can only be
programmed for one function
9
Page 12
Navigation
_______________________________________________________
Before operating your Rosen Navigation system, please carefully read and follow the
Start Up/Main Menu
When the Rosen Navigation software starts, you will see the reminder warning to use your
Rosen Navigation software safely and lawfully.
You must these conditions to continue.
Please refer to the User’s Manual for additional information and warning on the proper use of
the Rosen Navigation product.
instructions provided in the “Safety Information and Precautions”
located on the back cover of this Quick Start Guide.
_______________________________________________________
The Attention screen is displayed each time the system is turned ON as a reminder
to make use of the navigational aids in a safe manner.
10
Page 13

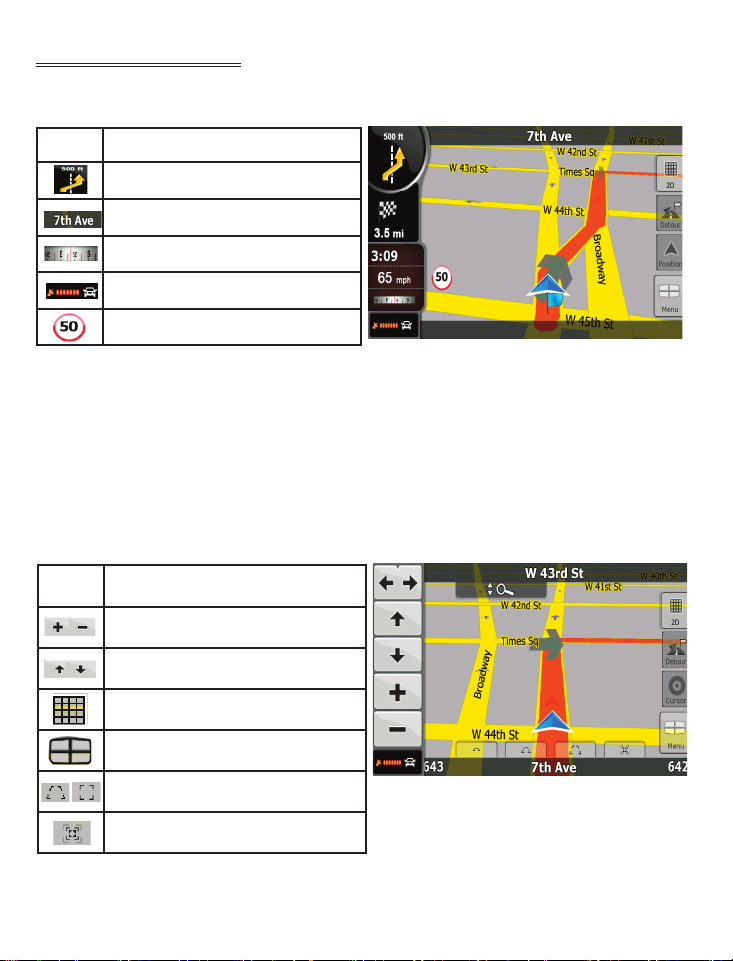

Map View Screens
Button Function
Indicates distance to and direction of
next turn
(Top of screen) Next turn street or
HWY
Compass, Current direction
GPS strength and quick menu option
Indicates posted speed if enabled
To adjust viewing position, short touch anywhere on the screen and the following will
appear:
Button Select this Option to...
Zoom the map view in and out
Til
t up/down adjustment for 3D view
Switch map display between 2D & 3D
views
Display menu, jump to Navigation
Menu
2D/3D Preset view options
Return to current GPS position
11
Page 14

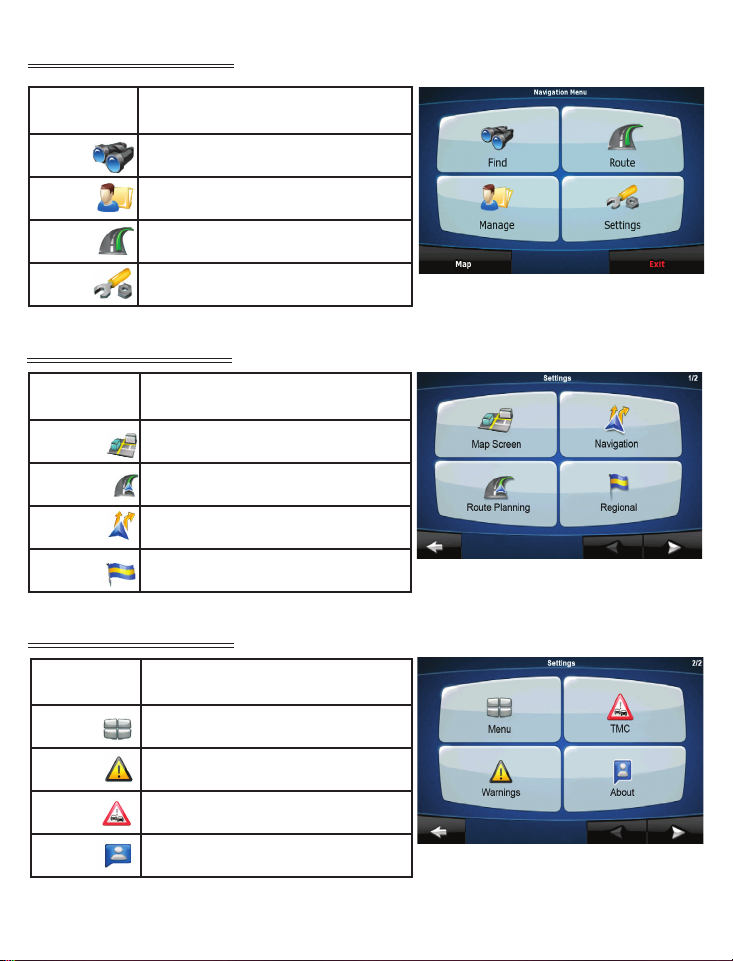

Navigation Menu
Menu
Select this Option to...
Option
Find Pick a destination for routing
Manage Organize or select saved routes or POI
Route Edit or cancel a route in progress
Settings Set preferences for navigation and more
Settings (Screen 1)
Menu
Select this Option to...
Option
Map Screen Tune appearance of the map screen
Route Planning
Navigation Settings for road position off track recal-
Regional Settings for language, voice, time, etc.
such as 3D settings and color profiles
Route Settings such as route calculation
method and road types
culation, etc.
Settings (Screen 2)
Menu
Select this Option to...
Option
Menu Modify look & behavior of menu screens
Warnings
TMC Connection to TMC receiver (Not avail
About Information on maps and licenses
Enable/Disable warnings such as speeding
in US)
included
12
Page 15

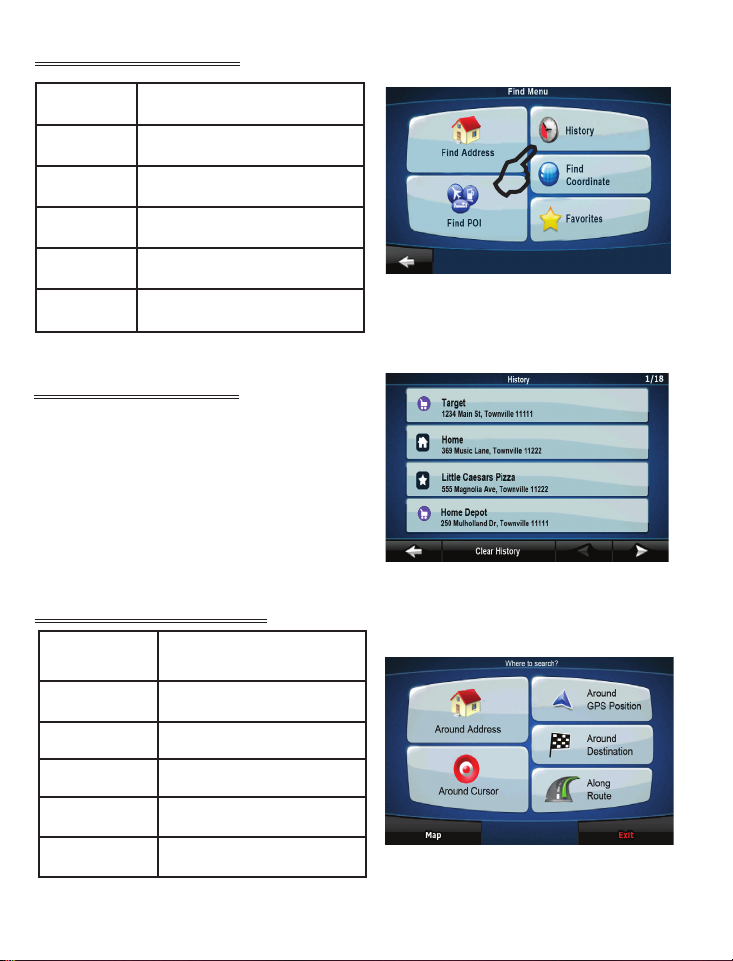

Find Menu
Option Select this Option to...
Find Address
Find POI
Enter destination address
Search for a POI using address,
cursor or GPS position
History View previous route history
Find
Coordinate
Favorites
View History Screen
You can view your route history by enter-
ing this screen from the “Find Menu”. You
can also repeat the same route by touching
desired selection.
Find Points of Interest Screen
POI Menu
Option
Around Address
Around Cursor
Around GPS
Position
Around
Destination
Along Route
NOTE: Once you have selected your POI Menu Option and entered the requested data, the
screen will switch to the POI Category Screen.
Enter specific coordinate
List of favorite destinations, POI,
etc.
Select this Option to...
Find POI by state, city and
address
Find POI by a cursor or location you have selected
Locate POI by your current
satellite location
Find POI around your final
destination
Find POI along your current
route
13
Page 16
Find Address
In this screen you will enter your destination address.
You will complete this section, touching one
line at a time. See examples in these 4 steps.

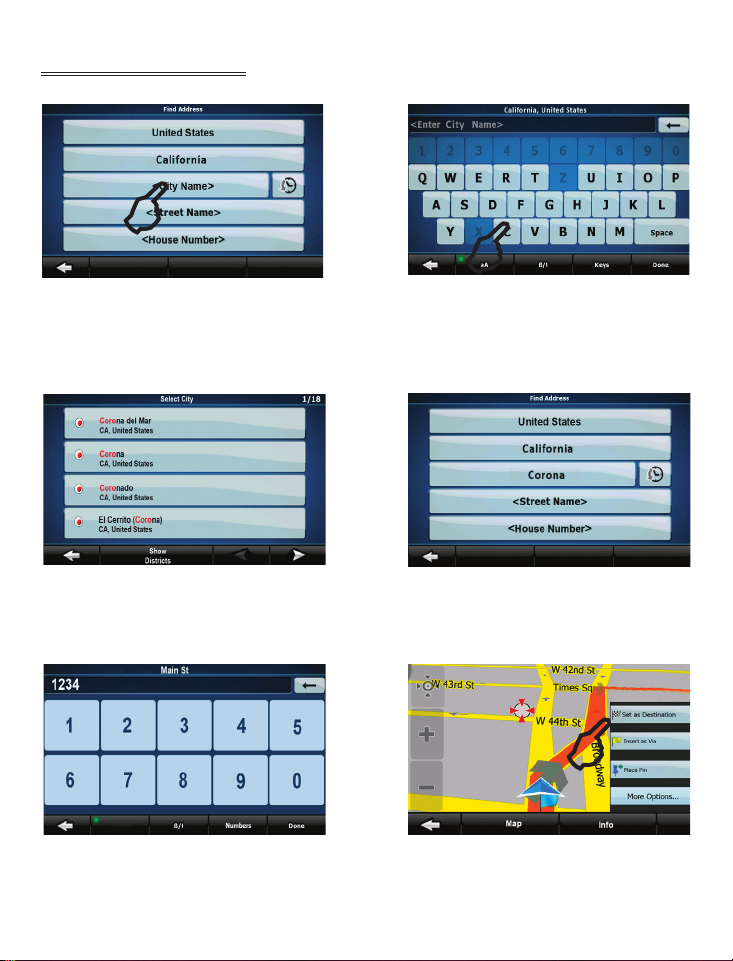

STEP 1: Touch “City Name” and the keyboard
screen will appear.
STEP 3: A “Select City” screen will appear.
This will show a list of cities that match your
selection. Touch the city you desire.
STEP 5: Type in address number and press
“Done”. This will automatically bring up the
map screen.
STEP 2: Start typing each letter of the city
name.
STEP 4: Repeat steps for street
number.
and house
6: Select “Set as Destination” and
STEP
your route will be displayed.
14
Page 17
Find a POI
In the following example, we will select “Around Cursor” and show you how to
search a POI using a keyword.

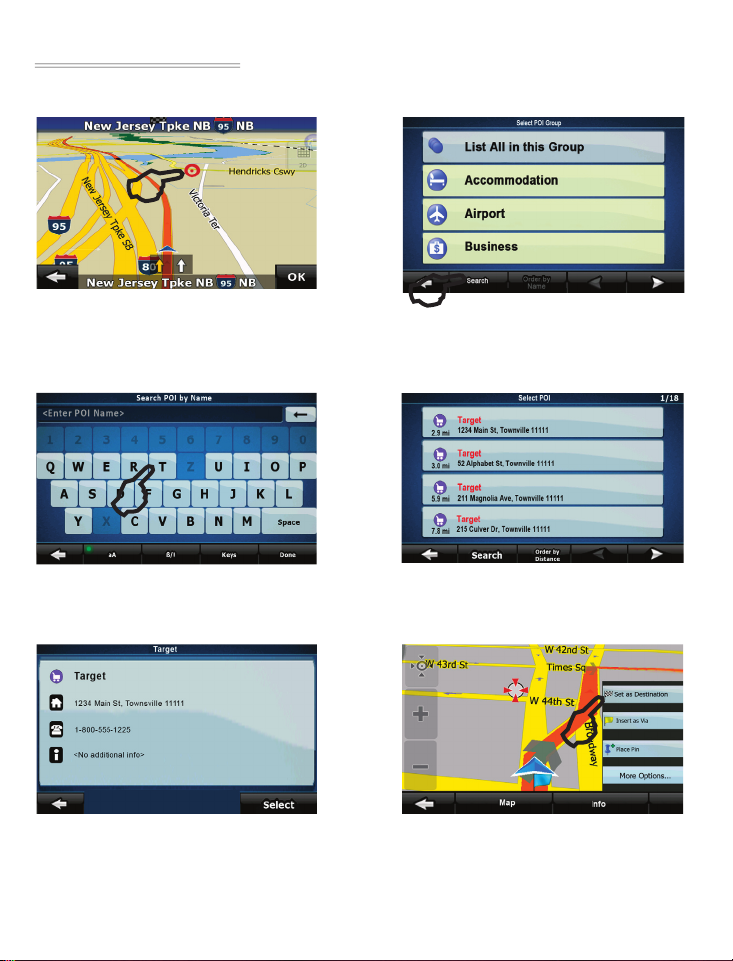

STEP 1: Touch anywhere on the screen to
place your cursor. Once cursor is in place,
press “OK” on the lower right screen.
STEP 3: Type in the
are finished, touch “Done”.
STEP 5: Touch your selection and the
screen will display this information window.
Press “SELECT” to display on map.
keyword and when you
STEP 2:
name, etc) touch “Search”.
STEP 4:
ing results.
STEP 6: Touch “
the route.
To search by keyword (business
The screen will display all match-
Set as Destination” to map
15
Page 18
Page 19
Page 20
Rosen Navigation Information
Safety Information and Precautions
WARNING! Please read and follow the following safety precautions.
Failure to follow the instructions below may increase
your risk of collision and personal injury.
The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede
any local traffic regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any maneuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely
complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place
you in an unsafe situation, or would route you into an area that you consider unsafe.
Do not use the Rosen Navigation software to locate emergency services (such as police, fire stations, hospitals, and clinics).
The database may not include all emergency service providers. Use your own best judgment and ask for directions in these
situations.
If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver
system unless the vehicle is parked in a safe location.
The Rosen Navigation software’s map database provides information on sug
affect your driving experience or the time required to arrive at your destination. For example, the system does not reflect road detours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions, etc.),
temporary traffic congestion, weather conditions, and similar factors.
Vehicle Position
The Rosen Navigation software’s computer considers vehicle speed and heading changes, together with
information, to accurately determine vehicle heading and position on a digital map.
Map and Information Database
The map database used by your Rosen Navigation software was created using high-resolution aerial and land based data collection.
Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its
release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn
restrictions or road names may change over time.
Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data
are the responsibility of the End-user.
End-User License Agreement
Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License
before operating this product.
gested routes without regard to factors that may
should not program the
longitude and latitude
All rights reserved. Copyright 2010. DP-UN1011 Rev B
Loading...
