Page 1

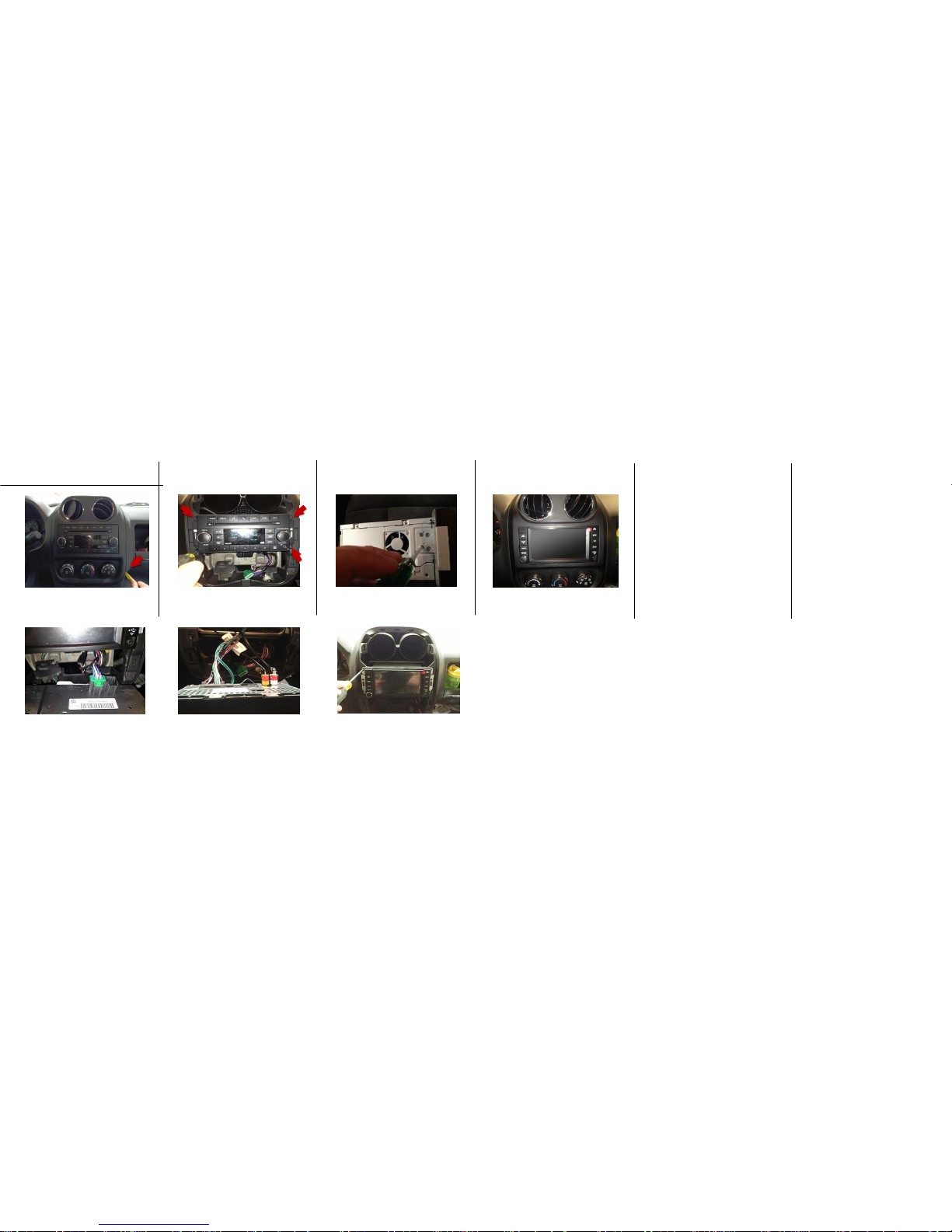

1. Disconnect the vehicle’s negative battery
terminal.
2. Remove dash bezel around radio

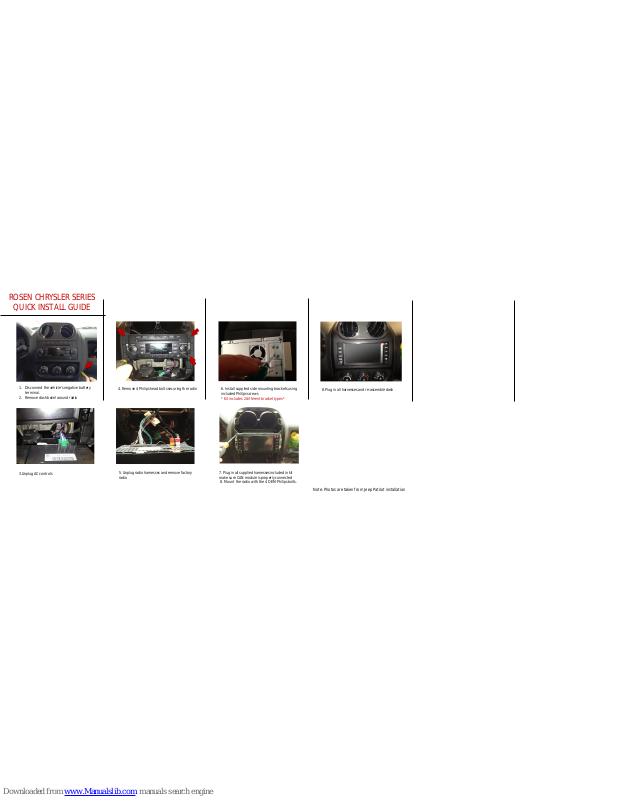

ROSEN CHRYSLER SERIES
QUICK INSTALL GUIDE
3.Unplug AC controls
4. Remove 4 Philips head bolts securing the radio
6. Install supplied side mounting brackets using
included Philips screws
* Kit includes 2 different bracket types*
7. Plug in all supplied harnesses included in kit
make sure CAN module is properly connected
8. Mount the radio with the 4 OEM Philips bolts.
5. Unplug radio harnesses and remove factory
radio
8. Plug in all harnesses and re-assemble dash
Note: Photos are taken from Jeep Patriot installation
Page 2

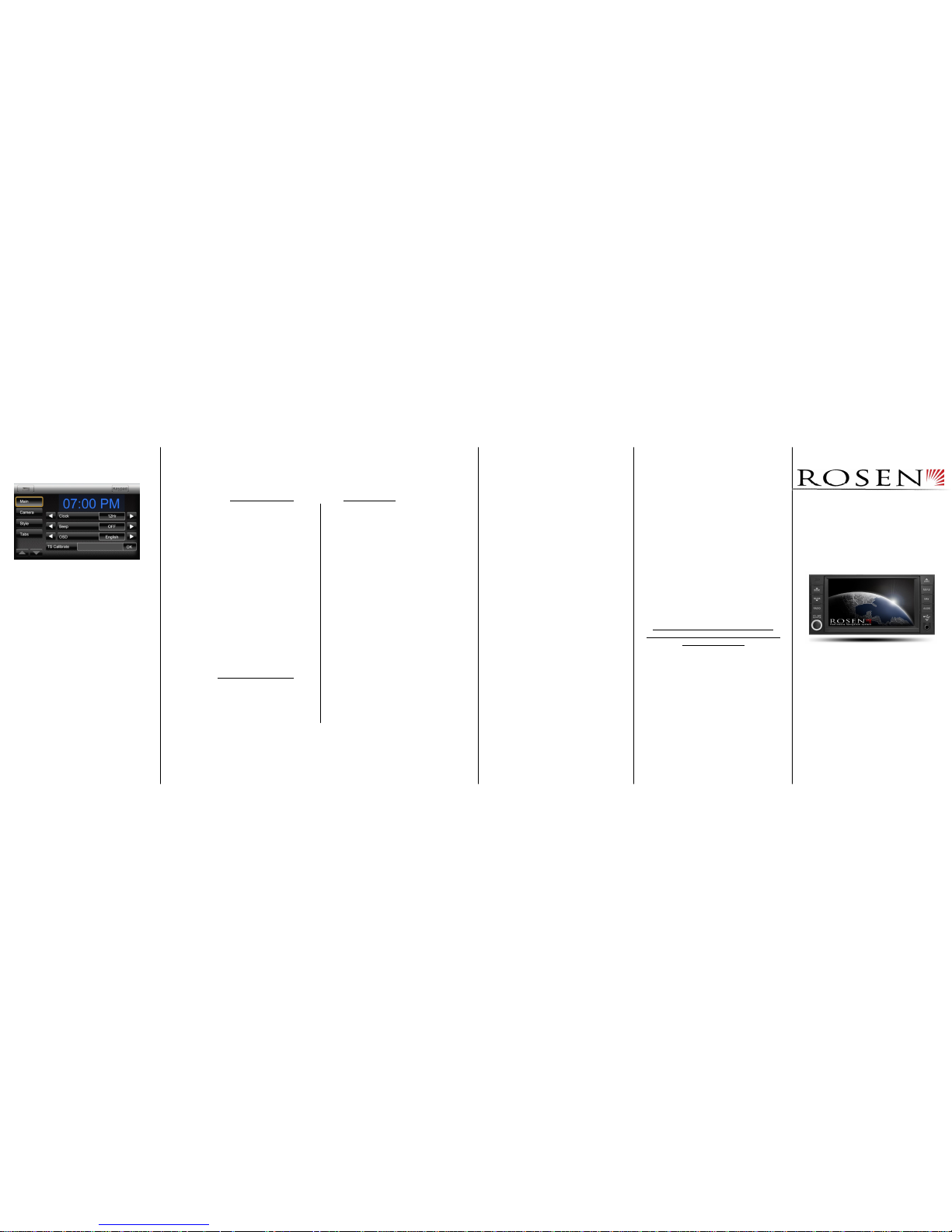

Installer Settings
1. Enter the “Settings”menu
2. Press “Keypad”, press “1120”then press “Enter”
Service and Optional Parts List
Part Numbers
PP-CHRY-LINK
PP-CR1210-2
PP-CR1210-6
PP-CR1210-7
PP-CR1210-9
PP-CR1210-12
PP1005
PP1006
PP1007
PP1008
PP1009
PP1011
PP1012
PP1014
Optional Accessories
PP1010
DP-1047
DP-1066
DP-1067
DP-1068
Description
Chrysler CAN module
Harness, Chrysler-Series main
Chrysler Bracket Type 1
Chrysler Bracket Type 2
Mounting Hardware
Installation guide, Chrysler-Series
Antenna, GPS, 5 meters
Ground plate, GPS antenna
Harness, line level pre-out w/sub
Harness, AUX in/cam in
Harness, AUX out
Harness, external BT microphone
Harness, AUX In 3.5/RCA
Display cleaning cloth
Harness, Sirius tuner
GPS antenna windshield mount
Camera, license plate black
Camera, license plate chrome
Camera, universal black
To contact Rosen Electronics
please email us at:
NOTICE OF INTENDED
INSTALLATION AND USE
The Rosen Multi-Media Navigation Systems contain an
internal video player, which is not intended for viewing
by the driver. The video player is disabled when the
vehicle is in motion through a connection to the parking
brake.
The Installer of this product must insure the
Video Disable Circuit is working properly prior to
delivery of the vehicle.
Improper installation could distract the driver or
interfere with safe operation of the vehicle, which
could result in serious injury or death, and could also
violate State and/or Federal law.
Rosen Entertainment Systems disclaims any liability for
any bodily injury or property damage that may result
from any improper or unintended installation and/or
use.
Chrysler Direct OEM
Replacement
Navigation
© Rosen Electronics 2012
Installation Guide
