Rosemount TCL Total Chlorine System
LIQ-PDS-TCL
Product Data Sheet
July 2017
Rosemount
TM
TCL
Total Chlorine System
A complete system designed to meet your total chlorine needs
The RosemountTM TCL total chlorine system features a complete sample conditioning system that permits a single sensor to
measure total chlorine in water. The system can also be used to measure chlorinated sea water.
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Overview
A Robust Sample Conditioning System
No metal wetted parts - ideal for sea water.
Low sample flow (about 15 mL/min) minimizes sample
waste.
Reagent-based system allows true chlorine measurement.
Continuously measure total chlorine for up to two months
on five gallons of reagent.
Trusted Sensor and Transmitter
The Rosemount 1056 Dual Channel Transmitter features a
four line, back-lit display with an easy to use interface, two
independent outputs, and optional fully programmable
alarms.
The Rosemount 56 Dual Channel Transmitter features a
four line, full color display with an easy to use interface,
four fully programmable outputs and relays, HART digital
communications, and data logger.
The 499ACL-02 Total Chlorine Sensor is a robust sensor
that is easy to maintain.
Continuously measure total chlorine for up to two months
on five gallons of reagent.
How It Works
The sample conditioning system continuously injects a
solution of acetic acid and potassium iodide in the drawn
sample. The acid lowers the pH to between 3.5 and 4.5
and allows total chlorine in the sample to quantitatively
react with the potassium iodide to produce iodine. The
sensor measures the iodine concentration, and the
transmitter displays the total oxidant concentration in
ppm as Cl2.
Contents
Ordering Information ..................................................................................................................................................................... 3
Specifications ................................................................................................................................................................................. 4
Dimensional Drawings ................................................................................................................................................................... 7
Rosemount TCL Engineering Specification Using Rosemount 1056 Transmitter ........................................................................... 12
Rosemount TCL Engineering Specification Using Rosemount 56 Transmitter ............................................................................... 13
Accessories .................................................................................................................................................................................. 14
2
www.Emerson.com/RosemountLiquidAnalysis
Ordering Information
The Rosemount TCL total chlorine system consists of a sample conditioning
system, a reagent carboy, a sensor, and a transmitter. Reagent kits for 0 to
5 ppm and 0 to 10 ppm chlorine ranges are available and must be ordered
separately (see Accessories).
Table 1. Rosemount TCL Total Chlorine System Ordering Information
Model Sensor type
TCL Total Chlorine System
Power input
11 115 Vac 50/60 Hz
12 230 Vac 50/60 Hz
Transmitter
- No selection - no transmitter
270 Rosemount 1056-01-24-38-AN, no relays, analog output
271 Rosemount 1056-01-24-38-HT, no relays, HART
272 Rosemount 1056-01-24-38-DP, no relays, Profibus DP
273 Rosemount 1056-03-24-38-AN, alarm relays, analog output
274 Rosemount 1056-03-24-38 HT, alarm relays, HART
275 Rosemount 1056-03-24-38-DP, alarm relays, Profibus DP
280 Rosemount 56-03-24-38-HT, relays, analog/HART
281 Rosemount 56-03-24-38-DP, relays, analog/Profibus DP
Sensor
- No selection - no sensor
30 Rosemount 499ACL-02-54 Total Chlorine Sensor with standard cable
31 Rosemount 499ACL-02-54-60 Total Chlorine Sensor with optimum EMI/RFI cable
32 Rosemount 499ACL-02-54-VP Total Chlorine Sensor with VP cable connector
Typical model number: TCL-11-280-32
®
1
1. Interconnecting VP cable sold separately.
www.Emerson.com/RosemountLiquidAnalysis 3
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Specifications
Table 2. Sample Conditioning System Specifications
General
Enclosure Fiberglass reinforced polyester, NEMA 3 (IP53) suitable for marine environments
Mounting Wall
Reagent carboy 5 gal (19 L); dimensions (L x W x H) 12.5 x 9.5 x 13.5 in. (318 x 233 x 343 mm)
Dimensions See drawing.
Ambient humidity 0-90% (non-condensing)
Power 115 Vac, 6.9 W, 50/60 Hz; 230 Vac, 7.0 W, 50/60 Hz
Hazardous location The TCL has no hazardous location approvals.
Weight/shipping weight (rounded up to the nearest 1
lb or 0.5 kg)
Ambient temperature 0 to 50 °C (32 to 122 °F)
Pumps EN 09: 1998
Sample requirements
Inlet connections Compression fitting, accepts 1/4 in. OD tubing
Drain connection 3/4 in. barbed fitting (must drain to open atmosphere)
Inlet pressure < 100 psig (791 kPa abs)
Flow At least 0.25 gph (15 mL/min)
Temperature 0 to 50 °C (32 to 122 °F)
Total alkalinity <300 mg/L as CaCO3. For samples containing <50 mg/L alkalinity, consult the factory.
Sample conditioning system
Reagent Potassium iodide in vinegar
Reagent usage 5 gallons (19 L) lasts approximately 60 days
Reagent pump Fixed speed peristaltic pump, about 0.2 mL/min
Sample pump Fixed speed peristaltic pump, about 11 mL/min
14 lb/16 lb (6.5 kg/7.5 kg)
Table 3. Rosemount 1056 Transmitter Specifications
Display Monochromatic back-lit LCD. Main character height 0.6 in. (15 mm). Display is user-programmable.
Case Polycarbonate, NEMA 4X, CSA4 (IP65)
Languages English, French, German, Italian, Spanish, Portuguese, and Chinese
Storage temperature -20 to 60 °C (-4 to 140 °F)
RFI/EMI
LVD
Alarms Four alarm relays. Any relay can be configured as a fault alarm instead of a process alarm. Each relay can be configured
Power -01 option: 115/230 Vac ±15%, 50 to 60 Hz, switching, 10 W
4
EN-61326
EN-61010-1
independently, and each can be programmed with interval timer settings.
-03 option: 84-265 Vac, 47.5 to 65.0 Hz, switching, 15 W
Equipment protected by double insulation
www.Emerson.com/RosemountLiquidAnalysis
Outputs Two 4-20 mA or 0-20 mA isolated outputs. Continuously adjustable. Linear or logarithmic. Maximum load
550 Ω. Output dampening is user-adjustable.
Relay contact ratings
Relays Form C, SPDT, epoxy sealed
Terminal connections rating Power connector (3 -leads): 18 -12 AWG wire size. Current output connectors (2-leads): 24 - 16 AWG wire
Hazardous location approvals For more information, refer to the Model 1056 product data sheet. Approvals apply to the transmitter
Weight/shipping weight (rounded
up to the nearest 1 lb or 0.5 kg)
5A at 28 Vdc or 300 Vac
1/8 HP at 120/240 Vac
size. Alarm relay terminal blocks: 18 - 16 AWG wire size
only. The TCL is not suitable for use in hazardous areas.
3 lb/4 lb (1.5 kg/2.0 kg)
Table 4. Rosemount 56 Transmitter Specifications
Display Full color LCD, 3.75 x 2.20 in. (95 x 56 mm); display can be customized by the user.
Languages English, French, German, Italian, Spanish, Portuguese, Chinese, Russian, and Polish.
Ambient temperature and humidity -10 to 60 °C (14 to 140 °F); relative humidity 45 to 95% (non-condensing). Between -5 and 55 °C (23 and
131 °F) there is no visible degradation in display response or performance.
Storage temperature -20 to 60 °C (-4 to 140 °F)
Power 85 to 265 Vac, 47.5 to 65.0 Hz, 20 W
RFI/EMI
LVD
Alarms and timers Four relays, fully configurable as a setpoint alarm, interval timer, TPC, bleed and feed timer, delay timer,
Control feautures PID control (analog output) and time proportional control or TPC (relays) are standard.
Data logger Data automatically stored every 30 seconds for 30 days; older data removed to make room for new data.
Event logger Stores up to 300 events with data and time stamps: faults, warnings, calibration data, calibration results
Data and event downloading Through USB port on front panel
Graphical display Dual graphical display shows measurement data on the Y-axis and time on the X-axis. Y-axis is fully assign-
Digital communications HART
Outputs Four 4-20 mA or 0-20 mA isolated current outputs; assignable to measurement or temperature; fully scal-
Relay contact ratings
Relays Form C, SPDT, epoxy sealed
Case Polycarbonate
Hazardous location approvals For more information, refer to the Model 56 product data sheet. Approvals apply to the transmitter only.
Weight/shipping weight (rounded
up to the nearest 1 lb or 0.5 kg)
EN 61326
EN 6101-01
date and time timer, and fault alarm.
The following data are automatically stored: data and time, ppm, temperature, and raw sensor current.
(pass or fail), power on/off cycles, and hold on/off. Alarm relay activation and deactivation can also be
stored. Older events are automatically removed to make room for new events.
able and scalable. X-axis can be set to 1 hour, 1 day, 7 days, or 30 days.
able; maximum load 550 Ω. HART digital signal is superimposed on output 1.
5A at 28 Vdc or 300 Vac (resistive)
1/8 HP at 120/240 Vac
The TCL is not suitable for use in hazardous areas.
3 lb/4 lb (1.5 kg/2.0 kg)
www.Emerson.com/RosemountLiquidAnalysis 5
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Table 5. Rosemount 499ACL-02 Sensor Specifications
Wetted parts Gold, Noryl1 (PPO), Viton, EPDM, and silicone
Dimensions 1.0 x 5.6 in. (25.4 x 143 mm)
Temperature rating 0 to 50 °C (32 to 122 °F)
Electrolyte capacity Approximately 25 mL
Electrolyte life Approximately 4 months
Cable 25 ft (7.6 m) standard. (Sensor is also available with Variopol quick-disconnect fitting.)
Pressure rating 0 to 65 psig (101 to 549 kPa)
Weight/shipping weight (rounded
up to the nearest 1 lb or 0.5 kg)
1. Noryl is a registered trademark of General Electric.
3 lb/4 lb (1.5 kg/2.0 kg)
Table 6. Complete System Specifications
Linear range 0 to 20 ppm (mg/L) as Cl2 (for higher ranges, consult factory)
Linearity (per ISO 15839) 0-10 ppm; 2%; 0-20 ppm: 3%
Response time Following a step change in concentration, the reading reaches 90% of final value within 7 minutes at 25 °C
(77 °F).
Drift At about 1.5 ppm in clean water and constant temperature, drift is typically less than 0.05 ppm over two
weeks.
Detection limit (per ISO 15839) 0.02 ppm (mg/L) in clean water at room temperature
6
www.Emerson.com/RosemountLiquidAnalysis
Dimensional Drawings
Figure 1. Dimensions of TCL Case
INCH
MILLIMETER
www.Emerson.com/RosemountLiquidAnalysis 7
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Figure 2. Rosemount 1056-24 Panel Mount Installation
The front panel is hinged at the bottom. The panel swings down for easy access to wiring terminals.
MILLIMETER
INCH
8
www.Emerson.com/RosemountLiquidAnalysis
Figure 3. Rosemount 1056-24 Pipe/Wall Mount Installation
The front panel is hinged at the bottom. The panel swings down for easy access to wiring terminals.
www.Emerson.com/RosemountLiquidAnalysis 9
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Figure 4. Rosemount 56-24 Panel Mount Installation
INCH
MILLIMETER
10
www.Emerson.com/RosemountLiquidAnalysis

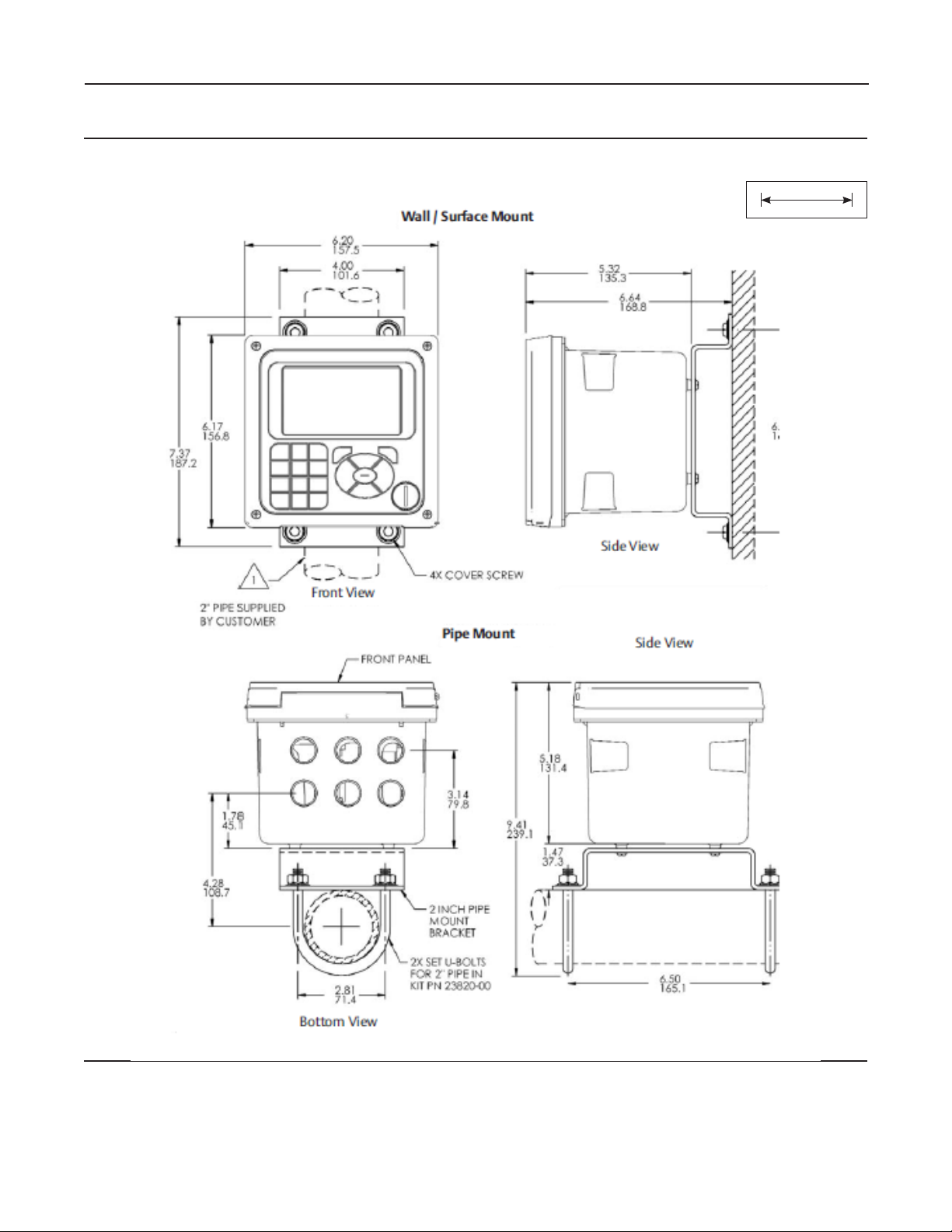

Figure 5. Rosemount 56-24 Pipe/Wall Mount Installation
INCH
MILLIMETER
www.Emerson.com/RosemountLiquidAnalysis 11
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Rosemount TCL Engineering Specification Using Rosemount 1056 Transmitter
1. The system shall be suitable for the determination of total
chlorine in water. The system shall consist of a transmitter,
sensor, reagent carboy, and sample conditioning system.
2. The system shall be suitable for use in a marine
environment. All wetted materials must be plastic.
3. To ensure determination of total chlorine, the system must
be reagent-based. The reagents shall consist of a solution
of potassium iodide in vinegar (acetic acid). Total chlorine
transmitters in which the acid and potassium iodide are
stored in separate containers are not acceptable. Total
chlorine transmitters that do not use vinegar are not
acceptable.
4. 5 gallons (19 L) of reagent shall last about two months.
5. The system shall be able to measure total chlorine in
samples containing as much as 300 ppm total alkalinity (as
CaCO3).
6. To avoid wasting water, the required sample ow shall be
no more than about 0.25 gallons per hour (15 mL/min). A
sample overow cup shall be used to divert excess sample
to waste.
7. The linear range of the system shall be 0 to 20 ppm (mg/L)
total chlorine as Cl2. Between 0 and 10 ppm, the linearity
shall be at least 2%; between 0 and 20 ppm, the linearity
shall be at least 3%.
14. The transmitter shall have a four line, back-lit display. The
display shall show ppm chlorine and temperature on one
screen. The user shall be able to program the display to
show additional information, such as raw sensor current.
15. The transmitter shall be capable of operating between 0
and 55 °C (32 and 131 °F) and between 5 and 95% relative
humidity (non-condensing).
16. The transmitter shall have dual 0/4-20 mA isolated
outputs. Outputs shall be fully scalable and assignable
independently of chlorine or temperature.
17. Digital communications using either HART or Probus DP
shall be available as options.
18. The transmitter shall have four (optional) alarm relays,
fully programmable for logic (high or low operation), dead
band, and set point. Relays shall also be congurable to
energize when the transmitter detects a fault with the
sensor itself.
19. All transmitter programming shall be through a front panel
membrane keypad. The language (English, Spanish, Italian,
Portuguese, German, French, or Chinese) used in the menu
screens shall be selectable by the user.
20. The transmitter shall have a security feature to prevent
unauthorized tampering with calibration and conguration
settings.
8. The sensor shall be a membrane-covered, two-electrode
amperometric device, having a gold cathode, silver/silver
chloride anode, and a silicone membrane.
9. Expected sensor electrolyte life shall be about four months.
10. No special tools shall be required to change the membrane
or to perform routine maintenance.
11. The sensor shall be available with a quick disconnect tting
to permit it to be replaced without removing and rewiring
the cable.
12. The transmitter shall receive the raw signal from the
sensor and automatically corrrect it for temperature
effects. Results shall be displayed as ppm Cl2. A dual input
transmitter shall also be available if the user wishes to
use a single transmitter to measure two parameters, for
example, total chlorine and pH.
13. The transmitter shall require single point calibration.
A correction for the sensor zero current shall also be
available.
21. The transmitter shall be Rosemount Model TCL with Model
1056 Transmitter and 499ACL-02 Total Chlorine Sensor or
approved equal.
12
www.Emerson.com/RosemountLiquidAnalysis
Rosemount TCL Engineering Specification Using Rosemount 56 Transmitter
1. The system shall be suitable for the determination of total
chlorine in water. The system shall consist of a transmitter,
sensor, and sample conditioning system.
2. The system shall be suitable for use in a marine
environment. All wetted materials must be plastic.
3. To ensure determination of total chlorine, the system must
be reagent-based. The reagents shall consist of a solution
of potassium iodide in vinegar (acetic acid). Total chlorine
transmitters in which the acid and potassium iodide are
stored in separate containers are not acceptable. Total
chlorine transmitters that do not use vinegar are not
acceptable.
4. 5 gallons (19 L) of reagent shall last about two months.
5. The system shall be able to measure total chlorine in
samples containing as much as 300 ppm total alkalinity (as
CaCO3).
6. To avoid wasting water, the required sample ow shall be
no more than about 0.25 gallons per hour (15 mL/min). A
sample overow cup shall be used to divert excess sample
to waste.
7. The linear range of the system shall be 0 to 20 ppm (mg/L)
total chlorine as Cl2. Between 0 and 2 ppm, the linearity
shall be at least 2%; between 0 and 20 ppm, the linearity
shall be at least 3%. One sensor shall be able to cover the
entire range.
8. The sensor shall be a membrane-covered, two-electrode
amperometric device, having a gold cathode, silver/silver
chloride anode, and a silicone membrane.
9. Sensor electrolyte life shall be about four months.
10. No special tools shall be required to change the membrane
or to perform routine maintenance.
11. The sensor shall be available with a quick disconnect tting
to permit it to be replaced without removing and rewiring
the cable.
12. The transmitter shall receive the raw signal from the
sensor and automatically corrrect it for temperature
effects. Results shall be displayed as ppm Cl2. A dual input
transmitter shall also be available if the user wishes to
use a single transmitter to measure two parameters, for
example, total chlorine and pH.
13. The transmitter shall require single point calibration.
A correction for the sensor zero current shall also be
available.
14. The transmitter shall have a four line, back-lit display.
The display shall show ppm chlorine and temperature on
one screen. The display shall be programmable to show
additional information, such as raw sensor current.
15. The transmitter shall have dual 0/4-20 mA isolated
outputs and HART digital communications as a standard
feature. Outputs shall be fully scalable and assignable
independently of chlorine or temperature. PID control
shall be available as a standard feature. Probus DP digital
communications shall be optional.
16. The transmitter shall have four (optional) alarm relays,
fully programmable as a high/low alarm with adjustable
deadband or as a timer. Timer functions shall include an
interval timer, bleed and feed timer, delay timer, and
date and time timer. Time-proportional control shall also
be available. In addition, relays shall be congurable to
energize when the transmitter detects a fault with itself or
the sensor.
17. All transmitter programming shall be through a front panel
membrane keypad. The language (English, Spanish, Italian,
Portuguese, German, French, Russian, Polish, or Chinese)
used in the menu screens shall be selectable by the user.
18. The transmitter shall have a data logger that automatically
stores data every thirty seconds for thirty days, with older
data being discarded to make room for newer data. In
addition to storing date and time, chlorine concentration,
and temperature, the transmitter shall store raw
sensor current (chlorine sensor). Stored data shall be
downloadable through a USB port.
19. The transmitter shall have a dual graphic display that allows
data to be viewed over one hour, one day, seven days, and
one month intervals.
20. The transmitter shall have a data logger that stores up to
200 events.
21. The transmitter shall have help screens, available at
the touch of a button, that provide information about
conguration, calibration, and troubleshooting.
22. The transmitter shall have a security feature to prevent
unauthorized tampering with calibration and conguration
settings.
23. The transmitter shall be Rosemount Model TCL-11 (or -12)-
280 (analog/HART) or TCL-11 (or-12)-281 (Probus DP) or
approved equal.
www.Emerson.com/RosemountLiquidAnalysis 13
Rosemount TCL Total Chlorine System Rosemount TCL Total Chlorine System
July 2017 July 2017
Accessories
Table 7. Sample Conditioning System Accessories
Part number Description
24134-00 Air pump, 115 Vac, 50/60 Hz
24134-01 Air pump, 230 Vac, 50/60 Hz
9160578 Air pump repair kit
9322052 Check valve for air injection line
24153-00 Carboy for reagent, 5 gal/19 L, includes cap
9100204 Fuse, 0.25 A, 250 V, 3 AG, slow blow for option-11 (115 Vac)
9100132 Fuse, 0.125 A, 250 V, 3 AG, slow blow for option -12 (230 Vac)
9380094 Reagent pump, 115 Vac, 50/60 Hz
9380095 Reagent pump, 230 Vac, 50/60 Hz
9380091 Reagent pump replacement tubing
24151-00 Reagent tubing replacement kit
24135-00 Reagent uptake tubing, 6 ft (1.8 m), includes weight
9380090 Sample pump, 115 Vac, 50/60 Hz
9380093 Sample pump, 230 Vac, 50/60 Hz
9380092 Sample pump replacement tubing
24152-00 Sample tubing replacement kit
24164-00 Potassium iodide, 25 g, sufficient for 5 gallons (19 L) of vinegar (0-5 ppm total chlorine)
24164-01 Potassium iodide, 50 g, sufficient for 5 gallons (19 L) of vinegar (0-10 ppm total chlorine)
24165-00 Acetic acid, 2 x 2.5 gal (9.5 L) bottles/case, with 25 g potassium iodide (0-5 ppm total chlorine)
24165-01 Acetic acid, 2 x 2.5 gal (9.5 L) bottles/case, with 50 g potassium iodide (0-10 ppm total chlorine)
Table 8. Rosemount 1056 and 56 Transmitters Accessories
Part number Description
23554-00 Cable glands (qty 5 of PG 13.5)
23820-00 Wall and 2 in. pipe mounting kit
240048-00 Stainless steel tag (specify marking)
Table 9. Sensor Accessories
Part number Description
23501-02 Total chlorine membrane, includes 1 membrane assembly and 1 O-ring
23502-02 Total chlorine membrane kit, includes 3 membrane assemblies and 3 O-rings
9210438 Total chlorine sensor fill solution, 4 oz (120 mL)
14
www.Emerson.com/RosemountLiquidAnalysis
Table 10. For First Time Variopol Installations
Part number Description
23747-06 Interconnecting cable, VP 6, 2.5 ft (0.8 m)
23747-04 Interconnecting cable, VP 6, 4 ft (1.2 m)
23747-02 Interconnecting cable, VP 6, 10 ft (3.0 m)
23747-07 Interconnecting cable, VP 6, 15 ft (4.6 m)
23747-08 Interconnecting cable, VP 6, 20 ft (6.1 m)
23747-09 Interconnecting cable, VP 6, 25 ft (7.6 m)
23747-10 Interconnecting cable, VP 6, 30 ft (9.1 m)
www.Emerson.com/RosemountLiquidAnalysis 15
Rosemount TCL Total Chlorine System
LIQ-PDS-TCL
Global Headquarters
Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA
+1 800 999 9307 or +1 952 906 8888
+1 952 949 7001
Liquid.CSC@Emerson.com
Latin America Regional Office
Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA
+1 954 846 5030
+1 952846 5121
RFQ.RMD-RCC@Emerson.com
Product Data Sheet
July 2017
Europe Regional Office
Emerson Automation Solutions Europe GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland
+1 954 846 5030
+1 952846 5121
RFQ.RMD-RCC@Emerson.com
Asia Pacific Regional Office
Emerson Automation Solutions Asia Pacific Pte LTD
1 Pandan Crescent
Singapore 128461
+65 6777 8211
+65 6777 0947
Enquiries@AP.Emerson.com
Middle East and Africa Regional Office
Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
+971 4 8118100
+971 4 88665465
RFQ.RMTMEA@Emerson.com
Analyticexpert.com
Linkedin.com/company/Emerson-Automation-Solutions
Twitter.com/Rosemount_News
Facebook.com/Rosemount
Youtube.com/user/RosemountMeasurement
Google.com/+RosemountMeasurement
The Emerson logo is a trademark and service mark of Emerson Electric
Co.
Rosemount and Rosemount logotype are trademarks of Emerson.
All other marks are the property of their respective owners.
© 2017 Emerson. All rights reserved.
Loading...
