Reference Manual
00809-0100-3560, Rev AB
July 2020

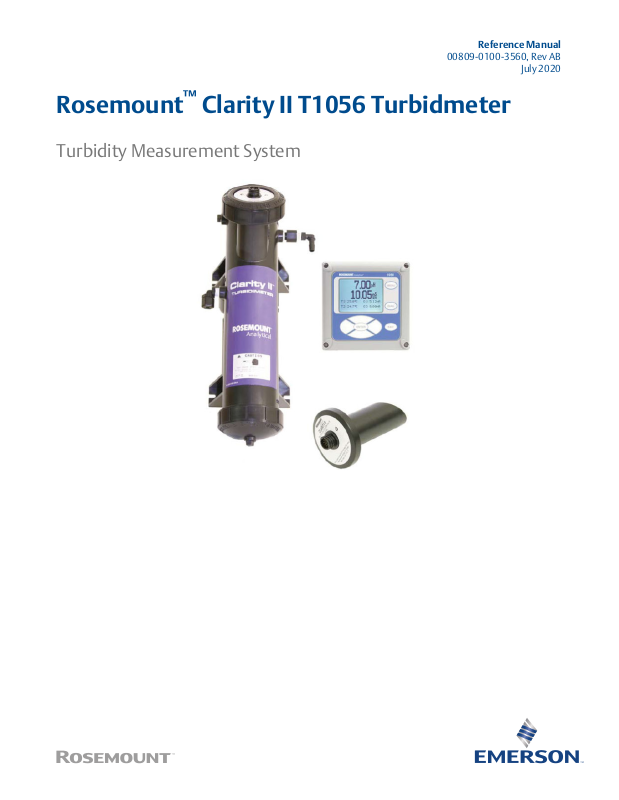

Rosemount™ Clarity II T1056 Turbidmeter
Turbidity Measurement System
Essential instructions
Read this page before proceeding!
Your instrument purchase from Emerson is one of the finest available for your particular application. These instruments have been designed and tested to meet many national and international standards. Experience indicates that its performance is directly related to the quailty of the installation and knowledge of the user in operating and maintaining the instrument. To ensure continued operation to the design specifications, read this Manual thoroughly before proceeding with installation, commissioning, operation, and maintenance of this instrument.
•Failure to follow the proper instructions may cause any one of the following situations to occur: loss of life, personal injury, property damage, damage to this instrument, and warranty invalidation.
•For clarification of instructions, contact your Rosemount representative.
•Follow all warnings, cautions, and instructions marked on and supplied with the product.
•Use only qualified personnel to install, operate, program, and maintain the product.
•Educate your personnel on the proper installation, operation, and maintenance of this product.
•Install equipment as specified in the installation instructions of the appropriate Reference Manual and per applicable local and national codes. Connect all products to the proper electrical and pressure sources.
•Use only factory documented components for repair. Tampering or unauthorized substitution of parts and procedures can affect the performance and cause unsafe operation of your process.
•All equipment doors must be closed, and protective covers must be in place unless qualified personnel are performing maintenance.
WARNING
Risk of electrical shock
Installation and servicing of this product may expose personnel to dangerous voltages.
Equipment protected throughout by double insulation.
Disconnect main power wired to separate power source before servicing. Do not operate or energize instrument with case open.
Signal wiring within this box must be rated at least 240 V.
Non-metallic cable strain reliefs do not provide grounding between conduit connections. Use grounding type bushings and jumper wires.
Unused cable conduit entries must be securely sealed by non-flammable closures to provide exposure integrity in compliance with personal safety and environmental protection requirements. Unused conduit openings must be sealed with NEMA 4X or IP65 conduit plugs to maintain the ingress protection rating (IP65).
Electrical installation must be in accordance with the National Electrical Code (ANSI/NFPA-70) and/or any other national or local codes.
Operate only with front panel fastened and in place.
Proper use and configuration is the operator's responsibility.
WARNING
This product is not intended for use in the light industrial, residential, or commercial environments per the instrument's certification to EN50081-2.
2
CAUTION
Radio interference
This product generates, uses, and can radiate radio frequency energy and thus can cause radio communication interference. Improper installation or operation may increase such interference. As temporarily permitted by regulation, this unit has not been tested for compliance within the limits of Class A computing devices, pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference.
Operation of this equipment in a residential area may cause interference, in which case the operator, at his own expense, will be required to take whatever measures may be required to correct the interference.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
Warranty
Seller warrants that the firmware will execute the programming instructiosn provided by Seller, and that the Goods manufactured or services provided by Seller will be free from defects in materials or workmanship under normal use and care until the expiration of the applicable warranty period. Goods are warranted for twelve (12) months from the date of intial installation or eighteen (18) months from the date of shipment by Seller, whichever period expires first. Consumables, such as glass electrodes, membranes, liquid junctions, electrolyte, O-rings, catalytic beads, etc. and services are warranted for a period of 90 days from the date of shipment or provision.
Products purchased by Seller for resale to Buyer ("Resale Products") shall carry only the warranty extended by the original manufacturer. Buyer agrees that Seller has no liability for Resale Products beyond making a reasonable commercial effeort to arrange for procurement and shipping of the Resale Products.
If Buyer discovers any warranty defects and notifies Seller thereof in writing during the applicable warranty period, Seller shall, at its option, promptly correct any errors that are found by Seller in the firmware or Services, or repair or replace F.O.B. point of manufacture that portion of Goods or firmware found by Seller to be defective, or refund the purchase price of the defective portion of the Goods/Services.
All replacements or repairs necessitated by inadequate maintenance, normal wear and usage, unsuitable power sources, unsuitable environmental conditions, accident, misuse, improper installation, modification, repair, storage or handling, or any other cause not the fault of Seller are not covered by this limited warranty, and shall be at Buyer's expense. Seller shall not be obligated to pay any costs or charges incurred by Buyer or by any other party except as may be agreed upon in writing in advance by an authorized Seller representative. All costs of dismantling, reinstallation and freight and the time and expenses of Seller's personnel for site travel and diagnosis under this warranty clause shall be borne by Buyer unless accepted in writing by Seller.
Goods repaired and parts replaced during the warranty period shall be in warranty for the remainder of the original warranty period or ninety (90) days, whichever is longer. This limited warranty is the only warranty made by Seller and can be amended only in a writing signed by an authorized representative of Seller. Except as otherwise expressly provided in the Agreement, THERE ARE NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES.
3
4
Reference Manual |
Contents |
00809-0100-3560 |
July 2020 |
Contents
Chapter 1 |
Quick start guide........................................................................................................ |
7 |
|
|
1.1 |
Rosemount T1056 screens........................................................................................................... |
8 |
Chapter 2 |
Description and specifications.................................................................................. |
11 |
|
|
2.1 |
Features and applications.......................................................................................................... |
11 |
|
2.2 |
Specifications............................................................................................................................ |
11 |
Chapter 3 |
Install....................................................................................................................... |
17 |
|
|
3.1 |
Unpack and inspect................................................................................................................... |
17 |
|
3.2 |
Install......................................................................................................................................... |
17 |
|
3.3 |
Install debubbler assembly........................................................................................................ |
25 |
|
3.4 |
Install sensor.............................................................................................................................. |
28 |
|
3.5 |
Sample point............................................................................................................................. |
29 |
Chapter 4 |
Wire......................................................................................................................... |
33 |
|
|
4.1 |
General wiring information........................................................................................................ |
33 |
|
4.2 |
Prepare conduit openings.......................................................................................................... |
34 |
|
4.3 |
Prepare sensor cable.................................................................................................................. |
34 |
|
4.4 |
Power, output, and sensor connections..................................................................................... |
34 |
Chapter 5 |
Display and operation.............................................................................................. |
43 |
|
|
5.1 |
User interface............................................................................................................................ |
43 |
|
5.2 |
Instrument keypad.................................................................................................................... |
43 |
|
5.3 |
Main display............................................................................................................................... |
45 |
|
5.4 |
Menu system............................................................................................................................. |
47 |
|
5.5 |
Using hold................................................................................................................................. |
49 |
Chapter 6 |
Programming the transmitter.................................................................................. |
51 |
|
|
6.1 |
General programming information............................................................................................ |
51 |
|
6.2 |
Changing start-up settings........................................................................................................ |
51 |
|
6.3 |
Configuring and ranging the current outputs............................................................................. |
52 |
|
6.4 |
Setting a security code............................................................................................................... |
54 |
|
6.5 |
Security access........................................................................................................................... |
55 |
|
6.6 |
Using hold................................................................................................................................. |
56 |
|
6.7 |
Reset factory default setting...................................................................................................... |
57 |
|
6.8 |
Programming alarm relays......................................................................................................... |
58 |
Chapter 7 |
Programming turbidity............................................................................................ |
65 |
|
|
7.1 |
Introduction to programming measurements........................................................................... |
65 |
|
7.2 |
Programming turbidity measurements...................................................................................... |
65 |
|
7.3 |
Choosing turbidity or total suspended solids............................................................................. |
72 |
|
7.4 |
Entering a turbidity to total suspended solids (TSS) conversion equation................................... |
77 |
Rosemount T1056 |
5 |
Contents |
Reference Manual |
July 2020 |
00809-0100-3560 |
Chapter 8 |
Calibrate.................................................................................................................. |
81 |
||
|
8.1 |
Introduction to calibration......................................................................................................... |
81 |
|
|
8.2 |
Calibrating turbidity................................................................................................................... |
81 |
|
Chapter 9 |
Maintenance............................................................................................................ |
89 |
||
|
9.1 |
Maintaining the transmitter....................................................................................................... |
89 |
|
|
9.2 |
Clean the sensor........................................................................................................................ |
89 |
|
|
9.3 |
Replace the lamp/light-emitting diode (LED) board................................................................... |
90 |
|
|
9.4 |
Maintaining the debubbler and measuring chamber.................................................................. |
93 |
|
|
9.5 |
Replacement parts..................................................................................................................... |
94 |
|
Chapter 10 |
Troubleshoot........................................................................................................... |
97 |
||
|
10.1 |
Troubleshooting overview....................................................................................................... |
97 |
|
|
10.2 |
Troubleshooting using fault codes........................................................................................... |
97 |
|
|
10.3 |
Troubleshooting calibration problems................................................................................... |
100 |
|
|
10.4 |
Troubleshooting other problems........................................................................................... |
101 |
|
Chapter 11 |
Return of material.................................................................................................. |
105 |
||
|
11.1 |
General return information.................................................................................................... |
105 |
|
|
11.2 |
Warranty repair..................................................................................................................... |
105 |
|
|
11.3 |
Non-warranty repair.............................................................................................................. |
106 |
|
Appendix A |
Verify linearity....................................................................................................... |
107 |
6 |
Emerson.com/Rosemount |
Reference Manual |
Quick start guide |
00809-0100-3560 |
July 2020 |
Complete the following steps to start the Rosemount T1056.
Prerequisites
Refer to Install for installation instructions.
The sensor cable is pre-wired to a plug that inserts into a recieving socket in the analyzer. The cable also presses through a strain relief fitting.
Procedure
1.To install the cable:
a)Remove the wrenching nut from the strain relief fitting.
b)Insert the plug through the hole in the bottom of the enclosure nearest the sensor socket. Seat the fitting in the hole.
c)Slide the wrenching nut over the plug and screw it onto the fitting.
d)Loosen the cable nut so the cable slides easily.
e)Insert the plug into the appropriate receptacle on the circuit board.
f)Adjust the cable slack in the enclosure and tighten the cable nut. For wall/ pipe mounting, be sure to leave sufficient cable in the enclosure to avoid stress on the cable and connections.
g)Plug the cable into the back of the sensor.
h)Place the sensor in either the measuring chamber or the calibration cup.
Important
The sensor must be in a dark place when power is first applied to the analyzer.
2.Make power, alarm, and output connections as shown in Wire.
3.Once connections are secured and verified, apply power to the transmitter.
When the transmitter is powered up for the first time, the Quick Start screens appear.
4.Follow the Quick Start Guide to enable live readings.
a)A blinking field shows the position of the cursor.
b)Use or to move the cursor left or right. Use or to increase or decrease the value of a digit. Use or to move the decimal point.
c)Press ENTER to store a setting. Press EXIT to leave without storing changes. Pressing EXIT also returns the display to the language selection screen.
Important
When using EPA/incandescent sensors (PN 8-0108-0002-EPA):
Rosemount T1056 |
7 |
Quick start guide |
Reference Manual |
July 2020 |
00809-0100-3560 |
•Do not power up the instrument without the sensor connected.
•Do not disconnect and reconnect a sensor while a transmitter is powered.
If this is inconvenient or cannot be avoided:
1.Cycle power to the instrument after connecting the sensor or
2.Perform a slope calibration or standard calibration routine after connecting the sensor. Following these guidelines will extend the life of the incandescent lamp and avoid premature warnings and faults due to reduced lamp life.
Figure 1-1: Quick Start Guide, Rosemount 1056
8 |
Emerson.com/Rosemount |
Reference Manual |
Quick start guide |
00809-0100-3560 |
July 2020 |
Figure 1-2: Rosemount 1056 Menu Tree
Rosemount T1056 |
9 |
Quick start guide |
Reference Manual |
July 2020 |
00809-0100-3560 |
10 |
Emerson.com/Rosemount |
Reference Manual |
Description and specifications |
00809-0100-3560 |
July 2020 |
•Complete system includes single or dual input analyzer, sensor(s), and debubbler assembly.(1)
•Choose US EPA Method 180.1 or ISO Method 7027 compliant sensors.
•Resolution 0.001 NTU
•Full featured analyzer with fully scalable analog outputs and fully programmable alarms with interval timers.
•Intuitive, user-friendly menu in seven languages makes setup and calibration easy.
The Rosemount T1056 turbidmeter is intended for the determination of turbidity in water. Low stray light, high stability, efficient bubble rejection, and a display resolution of 0.001 NTU make the turbidmeter ideal for monitoring the turbidity of filtered drinking water. You can also use the turbidmeter in applications other than drinking water treatment. Examples are monitoring wastewater discharges, condensate returns, and clarifiers.
Currently, new ISO 7027 systems are available, with replacement EPA 180.1 sensors available for current install base. USEPA 180.1 sensors use a visible light source. ISO 7027 sensors use a near infrared light emitting diode (LED). For regulatory monitoring in the United States, you must use USEPA 180.1 sensors. Regulatory agencies in other countries may have different requirements.
The turbidmeter consists of a transmitter, which accepts either one or two sensors, the sensors themselves, and a debubbler/measuring chamber and cable for each sensor. The cable plugs into the sensor and the transmitter, making setup fast and easy. Sensors can be located as far as 50 ft. (15.2 m) away from the transmitter.
The turbidmeter incorporates the popular and easy to use Rosemount 1056 transmitter. Menu flows and prompts are so intuitive that you practically do not need a manual. Analog outputs are fully scalable. Alarms are fully programmable for high/low logic and dead band. To simplify programming, the transmitter automatically detects whether an EPA 180.1 or ISO 7027 sensor is being used.
The turbidmeter is available in an optional configuration in which the transmitter, sensor(s), and debubbling flow cell(s) are mounted on a single back plate. The sensor cables are pre-wired to the transmitter, so setup is exceptionally fast and easy. Simply mount the unit on a wall, bring in power and sample, and provide a drain. To order this option, consult the factory.
Note
Specifications subject to change without notice.
(1) Clarity II is a trademark of Emerson.
Rosemount T1056 |
11 |
Description and specifications |
Reference Manual |
July 2020 |
00809-0100-3560 |
Enclosure |
Polycarbonate. Type 4X/CSA 4 (IP65). |
|
Dimensions |
Overall: 6.10 x 6.10 x 5.5-in. (155 x 155 x 131 mm). Cutout: ½ DIN |
|
|
5.45 x 5.45-in. (139 mm x 139 mm) |
|
Conduit openings |
Accepts ½-in. or PG 13.5 conduit fittings. |
|
Display |
Monochromatic graphic liquid crystal display. 128 x 96 pixel display |
|
|
resolution. Backlit. Active display area: 2.3 x 3.0-in. (58 x 78 mm) |
|
Security code |
3-digit code prevents accidental or unauthorized changes in |
|
|
instrument settings and calibration. |
|
Languages |
• |
English |
|
• |
French |
|
• |
German |
|
• |
Italian |
|
• |
Spanish |
|
• |
Portuguese |
|
• |
Chinese |
Units |
Turbidity |
|
|
• NTU |
|
|
• |
FTU |
|
• |
FNU |
|
Total suspended solids |
|
|
• |
mg/L |
|
• ppm |
|
|
• |
No units |
Display resolution- Four digits; decimal point moves from x.xxx to xxx.x turbidity
Display resolution- Four digits; decimal point moves from x.xxx to xxx.x
TSS
Calibration |
User-prepared standard, commercially prepared standard, or grab |
methods |
sample. For total suspended solids, you must provide a linear |
|
calibration equation. |
Ambient |
32 to 131 °F (0 to 55 °C). Turbidity only: 32 to 122 °F (0 to 50 °C), |
temperature and relative humidity 5 to 95 percent (non-condensing) |
|
humidity |
|
Altitude |
For use up to 6562 ft. (2000 m). |
12 |
Emerson.com/Rosemount |
Reference Manual |
Description and specifications |
00809-0100-3560 |
July 2020 |
Storage |
-4 to 140 °F (-20 to 60 °C) |
temperature |
|
effect |
|
Power |
Ordering code -02: 20 to 30 Vdc. 15 W min. input power |
|
Ordering code -03: 85 to 265 Vac, 47.5 to 65.0 Hz, switching. 15 W |
|
min. input power |
|
Equipment protected by double insulation. |
Inputs |
One or two isolated sensor inputs |
Outputs |
Two 4-20 mA or 0-20 mA isolated current outputs. Fully scalable. |
|
Max load: 550 Ohm. Output 1 has supermiposed HART® signal |
|
(configurations 1056-0X-2X-3X-HT only) |
Current output |
±0.05 mA at 25 °C |
accuracy |
|
Terminal connections rating
RFI/EMI
LVD
Hazardous location approvals
Power connector (3-leads): 24-12 AWG wire size. Signal board terminal blocks: 26-16 AWG wire size. Current output connectors (2-leads): 24-16 AWG wire size. Alarm relay terminal blocks: 24-12 AWG wire size (-02 24 Vdc power supply and -03 85-265 Vac power supply)
EN 61326 EN-61010-1
Options for CSA: 02, 03, 20, 21, 22, 24, 25, 26, 27, 30, 31, 32, 34, 35, 36, 37, 38, AN, and HT.
Class I, Division 2, Groups A, B, C, & D Class II, Division 2, Groups E, F, & G Class III T4A Tamb = 50 °C
Evaluated to the ANSI/UL Standards. The "C" and "US" indicators adjacent to the CSA mark signify that the product has been evaluated to the applicable CSA and ANSI/UL Standards, for use in Canada and the US respectively.
Relays |
Form C, SPDT, epoxy sealed |
|
|
Table 2-1: Maximum Relay Current |
|
|
|
|
|
Supply voltage |
Resistive |
|
|
|
|
28 Vdc |
5.0 A |
|
|
|
|
115 Vac |
5.0 A |
|
|
|
|
230 Vac |
5.0 A |
|
|
|
Inductive load |
⅛ HP motor (max.), 40 Vac |
|
Rosemount T1056 |
13 |
Description and specifications |
Reference Manual |
July 2020 |
00809-0100-3560 |
|
WARNING |
|
|
Risk of electrical shock |
|
|
|
|
Field wiring |
Removable terminal blocks for power, analog outputs, and sensors |
|
terminals |
|
|
2.2.2 |
Sensor |
|
|
Method |
ISO 7027 (using 860 nm LED source). |
|
Incandescent lamp life |
One year (EPA 180.1) |
|
LED life |
Three years (ISO 7027) |
|
Wetted materials |
Delrin®(2), glass, EPDM |
|
Accuracy after |
0-1 NTU: ±2% of reading or ±0.015 NTU, whichever is |
|
calibration at 20.0 NTU |
greater. |
|
|
0-20 NTU: ±2% of reading. |
|
|
|
|
|
Note |
|
|
Turbidity values of 2-200 NTU can be measured, but frequent |
|
|
cleaning may be required to maintain turbidity |
|
|
measurements. |
|
|
|
|
Cable |
20 ft. (6.1 m) or 50 ft. (15.2 m). Maximum 50 ft. (15.2 m). |
|
|
Connector is IP65. |
|
Maximum pressure |
30 psig (308 kPa abs) |
|
Temperature |
40 to 95 °F (5 to 35 °C) |
|
Sensor body rating |
IP65 when cable is connected |
Dimensions |
18.1 x 4.1-in. (460 mm x 104 mm) diagram (approximately) |
Wetted materials |
ABS, EPDM, Delrin®, polypropylene, nylon |
Inlet |
Compression fitting accepts ¼-in. OD tubing; fitting can be |
|
removed to provide ¼-in. FNPT. |
Drain |
Barbed fitting accepts ⅜-in. ID tubing; fitting can be removed |
|
to provide ¼-in. female national pipe thread (FNPT). Must |
|
drain to atmosphere. |
Sample temperature |
40 to 95 °F (5 to 35 °C) |
Minimum inlet |
3.5 psig (308 kPa abs). |
pressure |
|
(2) Delrin is a registered trademark of DuPont Performance Elastomers.
14 |
Emerson.com/Rosemount |
Reference Manual |
Description and specifications |
00809-0100-3560 |
July 2020 |
3.5 psig will provide about 0.01 oz./min (250 mL/min) sample flow.
Maximum inlet 30 psig (308 kPa abs). Do not block drain tube. pressure
Recommended sample 0.01 to 0.03 oz./min (250 to 750 mL/min) flow
Weight/shipping weight
Sensor |
1 lb./2 lb. (0.5 kg/1.0 kg) |
Transmitter |
2 lb./3 lb. (1.0 kg/1.5 kg) |
Debubbler |
3 lb./4 lb. (1.5 kg/2.0 kg) |
|
(rounded to the nearest lb. or 0.5 kg) |
Rosemount T1056 |
15 |
Description and specifications |
Reference Manual |
July 2020 |
00809-0100-3560 |
16 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
The Rosemount T1056 Turbidmeter is a complete system for the determination of turbidity in drinking water. The system consists of the transmitter, sensor(s), cable(s), and flow chamber/debubbler(s). Consult the table to verify that you have received the parts for the option you ordered.
Table 3-1: Rosemount T1056 Turbidmeter Parts
Item |
Model/part number |
|
|
Single input turbidity transmitter |
1056-03-27-38-AN |
|
|
Dual input turbidity transmitter |
1056-03-27-37-AN |
|
|
Single input turbidity transmitter with HART® |
1056-03-27-38-HT |
Dual input turbidity transmitter with HART |
1056-03-27-37-HT |
|
|
Sensor - EPA standards |
8-0108-0002-EPA |
|
|
Sensor - ISO standard |
8-0108-0003-ISO |
|
|
Cable - 3 ft. (0.9 m) |
2413800 |
|
|
Cable - 20 ft. (6.1 m) |
2409700 |
|
|
Cable - 50 ft. (15.2 m) |
2409800 |
|
|
Calibration cup |
2410100 |
|
|
Molded chamber/debubbler |
24170-00 |
|
|
Note
The transmitter model number is printed on a label attached to the side of the instrument.
3.2Install
1.Although the transmitter is suitable for outdoor use, do not install it in direct sunlight or in areas of extreme temperatures.
2.Install the transmitter in an area where vibration and electromagnetic and radio frequency interference are minimized or absent.
3.Keep the transmitter and sensor wiring at least one foot (0.3 m) from high voltage conductors. Be sure there is easy access to the transmitter.
4.The transmitter is suitable for panel, pipe, or surface mounting. Refer to the figures below.
Rosemount T1056 |
17 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
WARNING
Electrical shock
Electrical installation must be in accordance with the National Electrical Code (ANSI/ NFPA-70) and/or any other applicable national or local codes.
Do not operate or energize instrument with case open.
Note
Dimensions are in inches (millimeters).
Note
Panel mounting seal integrity (4/4X) for outdoor applications is the customer's responsibility.
Figure 3-1: Panel Mount Front View
18 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
Figure 3-2: Panel Mount Side View
1.Panel supplied by others. Maximum thickness: 3.75 in. (9.52 mm)
2.4X mounting brackets and screws provided with instrument
Rosemount T1056 |
19 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-3: Panel Mount Bottom View
A. Conduit openings
20 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
Figure 3-4: Panel Cut-out
A. Maximum radius
Rosemount T1056 |
21 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-5: Wall Mount Front View
A. Four cover screws
22 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
Figure 3-6: Wall Mount Side View
Rosemount T1056 |
23 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-7: Pipe Mount Bottom View
A.Front panel
B.Panel & pipe mount enclosure
C.6x Ø conduit openings
D.2-in. (50.8 mm) pipe mount bracket
E.2X set U-bolts for 2-in. (50.8 mm) pipe in kit PN 23280-00
The front panel is hinged at the bottom. The panel swings down for easy access to the wiring locations.
24 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
Figure 3-8: Pipe Mount Side View
See Figure 3-9 for installation.
Rosemount T1056 |
25 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-9: Debubbler and Flow Chamber
A.Inlet
B.Outlet
C.Sensor port
Procedure
1.Connect the sample line to the inlet fitting.
The fitting accepts ¼-in. OD tubing. See Sample point for recommended installation of the sample port.
2.Attach a piece of ⅜-in. ID soft tubing to the drain fitting. The debubbler must drain to atmosphere.
WARNING
High pressure and temperature
Before removing the sensor, be absolutely certain that the process pressure is reduced to 0 psig and the process temperature is lowered to a safe level!
26 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
CAUTION
Reading errors
During operation, the debubbler is under pressure. A 0.040 in. (1 mm) orifice in the outlet provides the pressure. Back pressure helps prevent outgassing, which can lead to bubbles accumulating on the sensor face, resulting in erroneous readings.
Do not exceed 30 psig (308 kPa abs) inlet pressure.
The amount of pressure in the debubbler can be estimated from the flow rate. See
Table 3-2.
Table 3-2: Approximate Debubbler Pressure as a Function of Flow (0.040 Inch
Outlet Orifice)
gph |
psig |
mL/min |
kPa abs |
|
|
|
|
2 |
1 |
100 |
110 |
|
|
|
|
4 |
3 |
200 |
120 |
|
|
|
|
6 |
8 |
300 |
140 |
|
|
|
|
8 |
14 |
400 |
160 |
|
|
|
|
10 |
21 |
500 |
190 |
|
|
|
|
11 |
26 |
600 |
240 |
|
|
|
|
12 |
31 |
700 |
280 |
|
|
|
|
-- |
-- |
800 |
340 |
|
|
|
|
To control and monitor sample flow, a valved rotameter with fittings is available (PN 24103-00).
3.Attach the rotameter to the debubbler outlet.
You can also use the rotameter to increase back pressure on the debubbler if additional pressure is needed to prevent outgassing.
Rosemount T1056 |
27 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-10: Sensor
A.O-ring PN 9550145
B.Light source
C.Detector
Procedure
1.Unscrew the nut on the side of the debubbler.
2.Insert the sensor in the mouth of the measuring chamber.
Be sure the pin on the debubbler lines up with the hole in the sensor.
3.Replace the nut.
4.Remove the protective cap from the sensor.
5.Screw the cable onto the receptacle.
The plug and receptacle are keyed for proper alignment.
The sensor is rated to IP65 when properly connected to the cable.
Postrequisites
To prevent possible water damage to the connector contacts, be sure the cable receptacle and the connector on the back of the sensor are dry when connecting or disconnecting the cable.
28 |
Emerson.com/Rosemount |
Reference Manual |
Install |
00809-0100-3560 |
July 2020 |
Locate the sample tap to minimize pickup of sediment or air.
See Figure 3-11.
Figure 3-11: Sampling for Turbidity
If possible, install a sampling port that extends one or two inches (25-50 mm) into the pipe. Use ¼-in. OD rigid plastic tubing. Avoid soft plastic tubing if possible. To reduce sample lag time, install the debubbler and flow chamber as close to the sample tap as possible.
Rosemount T1056 |
29 |
Install |
Reference Manual |
July 2020 |
00809-0100-3560 |
Figure 3-12: Non Incendive Field Wiring Installation (CSA) 1056-27/37
A.Sensor cable is shielded. Max cable length is 50 ft. (15.2 m).
B.Rosemount Clarity II Turbidity Sensor #2 (optional)
C.Rosemount Clarity II Turbidity Sensor #1 (optional)
D.Sensor cable is shielded. Max cable length is 50 ft. (15.2 m).
E.Unclassified area
F.Hazardous area
Class I, Div. 2 GPS A-D, 0 to 50 °C Class II, III, Div. 2 GPS E-G
G.Metal conduit
H.Alarm wiring (Vac) optional
I.Analog output
J.Ground connection may be made in hazardous area.
K.Power supply
•For FM installation, refer to installation drawing number 1400324.
•For CSA installation, refer to installation drawing number 1400325.
WARNING
Flammable
Use with non-flammable process media only.
Note
•Installation must conform to the CEC.
•Seal required at each conduit entrance.
30 |
Emerson.com/Rosemount |
