Quick Start Guide
00825-0100-2555, Rev AC
October 2020
Rosemount™ 2555 Solids Level Switches
Capacitance Probe
Contents
2 Quick Start Guide

1 Introduction

The level switch detects the presence and absence of a process media at its installation point, and reports it as a switched electrical output.
Note
Other language versions of this Quick Start Guide can be found at
Emerson.com/Rosemount.

1.1 Safety messages

NOTICE
Read this manual before working with the product. For personal and system safety, and for optimum product performance, ensure you thoroughly understand the contents before installing, using, or maintaining this product.
For technical assistance, contacts are listed below:
Customer Central
Technical support, quoting, and order-related questions.
• United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)
• Asia Pacific- 65 777 8211
North American Response Center
Equipment service needs.
• 1-800-654-7768 (24 hours a day — includes Canada)
• Outside of these areas, contact your local Emerson representative.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
Quick Start Guide 3
WARNING
Failure to follow safe installation and servicing guidelines could result in death or serious injury.
• Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
• Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
• In explosion-proof/flameproof, increased-safety, and dust ignition-proof
installations, do not remove the housing cover when power is applied to the level switch.
• The housing cover must be fully engaged to meet flameproof/explosion-
proof requirements.
Electrical shock could cause death or serious injury.
• Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
• Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the level switch.
• Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
• Ensure the level switch is handled carefully. If the process seal is
damaged, gas or dust might escape from the silo (or other vessel)
Any substitution of non-recognized parts may jeopardize safety. Repair (e.g. substitution of components) may also jeopardize safety and is not allowed under any circumstances.
• Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize safety. Unauthorized changes that interfere with the integrity of the welds or flanges, such as making additional perforations, compromise product integrity and safety. Equipment ratings and certifications are no longer valid on any products that have been damaged or modified without the prior written permission of Emerson. Any continued use of product that has been damaged or modified without the written authorization is at the customer’s sole risk and expense.
4 Quick Start Guide
CAUTION
The products described in this document are NOT designed for nuclear­qualified applications.
• Using non-nuclear qualified products in applications that require
nuclear-qualified hardware or products may cause inaccurate readings.
• For information on Rosemount nuclear-qualified products, contact your
local Emerson Sales Representative.
Individuals who handle products exposed to a hazardous substance can avoid injury if they are informed of and understand the hazard.
• If the product being returned was exposed to a hazardous substance as
defined by Occupational Safety and Health Administration (OSHA), a copy of the required Safety Data Sheet (SDS) for each hazardous substance identified must be included with the returned level switch.

1.2 Applications

A Rosemount™ 2555 Solids Level Switch is used for monitoring the level of bulk materials in all types of containers and silos.
The level switch can be used with all powdery and granulated bulk materials, slurry and liquids.
Four different housing options are available:
• Standard local — for installations in non-hazardous area (ordinary locations)
— for dust-ignition proof installations in hazardous areas
• Type 'D' local — for flameproof/explosion-proof/dust-ignition proof installations in
hazardous areas (classified locations)
• Type 'DE' local — as Type 'D' but with a terminal box (increased safety)
• Standard Remote — separated electronics connected to probe by a cable
Typical applications are:
• Building materials — Lime, extruded polystyrene foam (XPS), molding sand, etc.
• Food and beverage — Milk powder, flour, salt, etc.
Quick Start Guide 5
• Plastics — Plastic granulates, etc.
• Timber
• Chemicals
The level switch has a threaded, flanged, or Tri Clamp process connection for mounting it onto a silo (or other vessel). You can mount it on a side wall of the silo, so that it is level with the filling limit to be monitored. Alternatively, if it has an extended length, mount it vertically on top of a silo to monitor the maximum filling limit.
The length of the capacitance probe can be up to 98.4 in. (2.5 m) with a rod extension tube or up to 787 in. (20 m) with an extension rope.
The use of a sliding sleeve is recommended so that the switching point can be changed easily during the live operation of the level switch.
Note
The Rosemount 2555 Product Data Sheet has all dimensional drawings.
6 Quick Start Guide
A
B
C
D
E
F
G
H
I
J
B
K
Figure 1-1: Typical Installation Examples
A. Inactive length to reach distance from silo wall B. Inactive length due to long mounting nozzle C. Short length (full-silo detection)
D. Short length (on-demand detection)
E. Short length (empty-silo detection)
F. Application in down pipe G. Inactive length to bring active probe to required level H. Inactive length and sliding sleeve for adjustable height
I. Rope version (full-silo detection) J. Rope version (empty-silo detection)
K. Optional sliding sleeve
Active and inactive probe lengths
The active length is always inside the silo and generates an electrical field between the probe and the silo wall. With active shield technology, the RF measurements are unaffected by product build-up on the probe. The inactive length is used to extend the overall probe length.
Note
See the Rosemount 2555 Product Data Sheet for extended length options.
Quick Start Guide 7

1.3 Measurement principles

Using the principle of measuring capacitance through RF (Radio Frequency), the presence or absence of a solids medium is detected by monitoring the change in capacitance between the probe and the bottom of the silo.
When the solids medium in the vessel (silo) falls away from the probe level, it causes a decrease in capacitance that is detected by the electronics and the output switches to indicate an 'uncovered' state.
When the solids medium in the vessel (silo) rises and covers the rod, it causes an increase of capacitance that is detected by the electronics and the output switches to indicate a 'covered' state.
The electrical output will vary depending on the electronics selected when the Rosemount 2555 was ordered.
8 Quick Start Guide

2 Mechanical installation

2.1 Mounting considerations

Before mounting the level switch on a silo (or other vessel), review the safety and pre-mounting sections.

2.1.1 Safety

General safety
1. Installation of this equipment shall be carried out by suitably trained personnel, in accordance with the applicable code of practice.
2. If equipment is likely to come into contact with aggressive substances, it is the user’s responsibility to take suitable precautions that prevent it from being adversely affected, thus ensuring the type of protection is not compromised.
a. Aggressive substances: Acidic liquids or gases that may
attack metals or solvents that may affect polymeric materials.
b. Suitable precautions: Regular checks as part of routine
inspections or establishing from a material's data sheet that it is resistant to specific chemicals.
3. It is the responsibility of the installer to:
a. Take protective measures, such as fitting an angled shield
(reverse V shape) to the silo or selecting an extension tube option, when there are high mechanical forces.
b. Ensure that the process connection is tightened by the
correct amount of torque and sealed to prevent process leaks.
4. Technical data
a. The Rosemount 2555 Product Data Sheet has all the technical
specifications. See Emerson.com/Rosemount for other language versions.
Hazardous area safety
The Rosemount 2555 Product Certifications document has safety instructions and control drawings for hazardous area installations. See
Emerson.com/Rosemount for other language versions.
Quick Start Guide 9
A
B

2.1.2 Hygienic applications

Hygienic approvals and compliance requirements are in the Rosemount 2555 Product Certifications document (see Emerson.com/Rosemount for other language versions).

2.1.3 Tightening threaded process connections

When tightening the threaded process connection of a Rosemount 2555:
• Use an open-ended wrench on the hexagonal boss of the level switch or
the sliding sleeve.
• Never tighten by using the housing.
• Do not exceed the maximum torque of 80 Nm.

2.1.4 Sliding sleeve

Tighten both M8 screws with a torque of 20 Nm to establish a seal and maintain the process pressure.

2.1.5 Mechanical load

The load at points A and B (Figure 2-1) must not be exceeded. All ratings are for 104 °F (40 °C).
Figure 2-1: Maximum Mechanical Loads
Table 2-1: Maximum Mechanical Loads
Rosemount 2555S Rosemount 2555R
Rosemount 2555M Rosemount 2555P
Rosemount 2555E Rosemount 2555V
10 Quick Start Guide
Rod version: Rope version:
Rod version: Rope version:
Rod version: Rope version:
A: 125 Nm 4 kN tensile load
A: 525 Nm 40 kN tensile load
A: 525 Nm 10 kN tensile load
B: 20 Nm
B: 90 Nm
B: 20 Nm
> 2 (50)
> 3.9
(100)
> 3.9
(100)
> 7.9
(200)
> 7.9 (200)
> 19.7 (500)

2.1.6 Orientation of cable glands

When the level switch is mounted horizontally, ensure the cable glands are pointed downwards to avoid water getting inside the housing. Unused conduit entries must be completely sealed with a suitably rated stopping (blanking) plug.

2.1.7 Future maintenance

It is advisable to grease the screws of the housing cover (lid) when a corrosive atmosphere is present. This will help prevent difficulties when the cover needs to be removed during future maintenance tasks.

2.1.8 Minimum distances

Figure 2-2 shows the minimum distances required between installed level
switches, the walls of a silo, and a protective shield. The installation of a protective angled shield above the level switch is recommended depending on the type of bulk solids.
Figure 2-2: Minimum Distances
Note
Avoid installing the level switch directly under the flow of solids material (filling point).
Quick Start Guide 11
> 1.8 (50)
A
> 1.8
(50)
A
> 1.8
(50)
A
> 1.8
(50)
A
OK
OK OK
OK
E
F
G
C
D
B

2.2 Mounting the level switch

Figure 2-3 and Figure 2-4 show how the Rosemount 2555 should be
mounted.

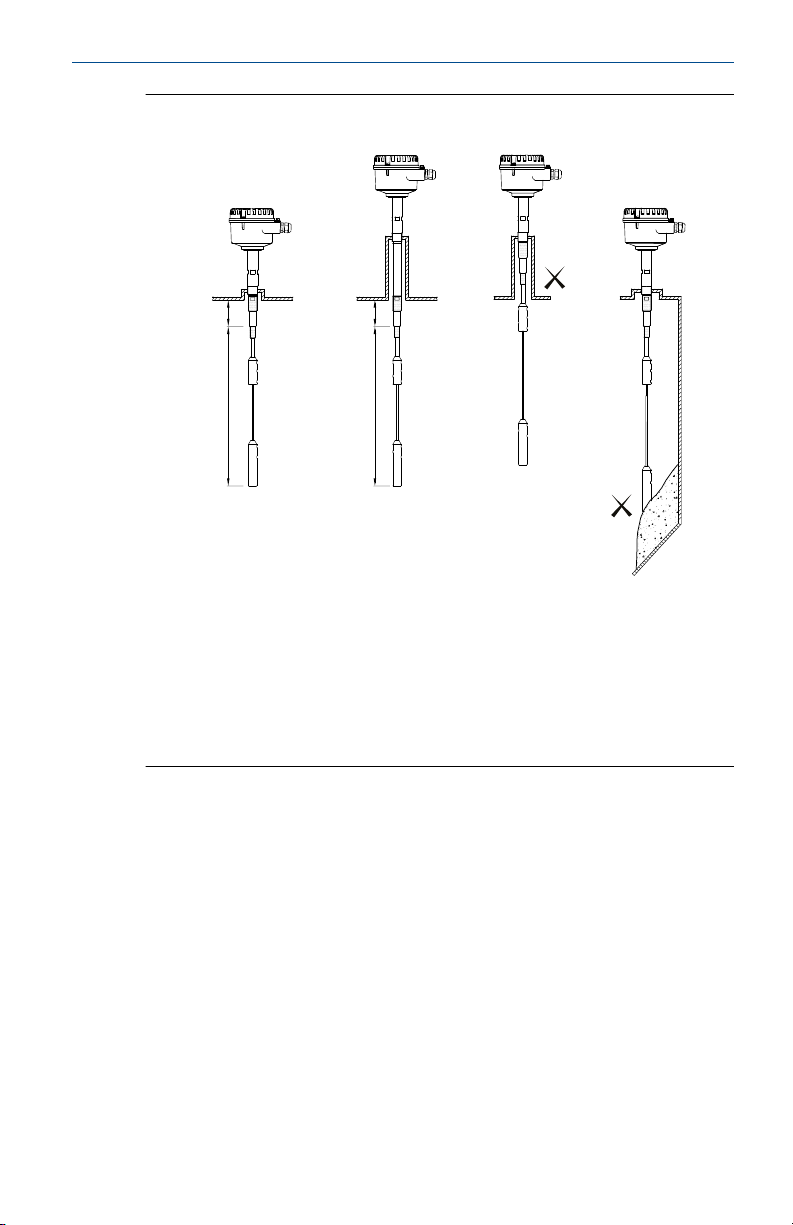

Figure 2-3: Correct and Incorrect Mounting (Rod Version)
A. Active probe B. Mounting the level switch at an angle helps solids material to fall away
and prevent build-up
C. Correct installation: The inactive length is correctly used with a long
socket
D. Correct installation: The inactive length is correctly used even though
there is a build-up of solids material E. Incorrect installation: The active probe is inside the socket F. Incorrect installation: The active probe is covered by a build-up of
material and is not detecting the true level
G. Incorrect installation: The active probe is located where solids material
would remain, even in an empty silo
12 Quick Start Guide
> 1.8 (50) > 1.8 (50)
A A
OK
OK
B C D E
Figure 2-4: Correct and Incorrect Mounting (Rope Version)
A. Active probe B. Correct installation: The socket height is short C. Correct installation: The inactive length is correctly used within a long
socket
D. Incorrect installation: The active probe is inside the socket
E. Incorrect installation: The active probe is covered by a build-up of
material and may not be detecting the true level
Quick Start Guide 13

3 Electrical installation

3.1 Wiring considerations

Note
See the Rosemount 2555 Product Data Sheet for the full electrical specifications.

3.1.1 Handling

In cases of improper handling or handling malpractice, the electrical safety of the device cannot be guaranteed.

3.1.2 Grounding (earthing)

Before any electrical installation, connect the internal or external Potential Earth (PE) terminal to a grounding point at the installation site if the Rosemount 2555 is mounted to a non-metal silo or other storage vessel.
Note
See Wiring the level switch for the location of the PE terminals.

3.1.3 Installation regulations

Local regulations or VDE 0100 (Regulations of German Electrotechnical Engineers) must be observed.
When using 24 V supply voltage, an approved power supply with reinforced insulation to mains is required.

3.1.4 Fuse

Use a fuse as stated in the connection diagrams.
For details, see Wiring the level switch.

3.1.5 Residual Current Circuit Breaker (RCCB) protection

In case of a defect, the distribution voltage must automatically be cut-off by an RCCB protection switch to protect against indirect contact with dangerous voltages.

3.1.6 Power supply

Power supply switch
A voltage disconnection switch must be provided near the device.
Supply voltage
Compare the supply voltage applied with the specifications given on the electronic module and nameplate before switching on the device.
14 Quick Start Guide

3.1.7 Wiring

Field wiring cables
The diameter has to match the clamping range of the used cable gland.
The cross-section has to match the clamping range of the connection terminals and the maximum current must be considered.
All field wiring must have insulation suitable for at least 250 Vac.
The temperature rating must be at least 194 °F (90 °C).
Use a shielded cable when there are electrical interferences present that are higher than stated in the EMC standards. Otherwise, an unshielded instrumentation cable can be used.
Guiding the cables in the terminal box
The field wiring cables must be cut to a length to be able to properly fit them into the terminal box.
Connection terminals
When preparing cable wires for connection to terminals in a standard or type 'D' housing, the wire insulation must be stripped to show no more than 0.31 in. (8 mm) of the copper strands. For Type 'DE' housings, remove insulation of no more than 0.35 in. (9 mm). Always check that the power supply is disconnected or switched-off to avoid coming into contact with dangerous live parts.

3.1.8 Cable glands

The screwed cable gland and stopping plug must have the following specifications:
• Ingress protection IP67
• Temperature range from -40 °C to +80 °C
• Hazardous area certification (depending on where the unit is installed)
• Pull relief
Ensure the screwed cable gland safely seals the cable and is tight enough to prevent water ingress. Unused conduit or cable entries must be sealed with a stopping (blanking) plug.
A strain relief must be provided for the field wiring cables when the device is installed with the factory-provided cable glands.
Cable glands and conduit system for ATEX or IECEx
The installation must comply with the regulations of the country where the level switch is installed.
Quick Start Guide 15
Loading...
+ 33 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
