Quick Start Guide
00825-0100-4951, Rev BC
March 2021
Rosemount™ 1067 Temperature Sensor
Quick Start Guide March 2021
Contents
About this guide...........................................................................................................................3
Wiring diagrams...........................................................................................................................5
Dimensional drawings..................................................................................................................7
Specifications...............................................................................................................................9
Product certifications................................................................................................................. 13
Declaration of Conformity..........................................................................................................20
China RoHS................................................................................................................................ 22
2 Emerson.com/Rosemount
March 2021 Quick Start Guide
1 About this guide
This guide provides basic guidelines for Rosemount 1067 Sensor models. It
does not provide instructions for configuration, diagnostics, maintenance,
service, troubleshooting, explosion-proof, flameproof, or intrinsically safe
(I.S.) installations.
If the Rosemount 1067 Sensor was ordered assembled to a temperature
transmitter, see the appropriate transmitter Quick Start Guide for
information on configuration and hazardous locations certifications.
NOTICE
Complications can arise when sensors and the transmitters to which they are
assembled are certified to compatible, but have unique approvals. Be aware
of the following situation:
• If an I.S. approved Rosemount 1067 Sensor is ordered with a housing, a
transmitter enclosed in that housing may have a different I.S. approval
rating. Refer to the transmitter IS certificate if applicable.
• If a sensor and transmitter have different certifications, or if either has
more certifications than the other, installation must comply with the
most restrictive requirements of either component. This is especially
(but not exclusively) relevant when combination approvals are ordered
on either the sensor or transmitter. Review certifications on both the
sensor and transmitter for installation requirements and ensure
installation of the sensor/transmitter assembly complies with a single
certification that is shared by both of these components and that meets
the requirements of the application.
Quick Start Guide 3
Quick Start Guide March 2021
WARNING
Explosions could result in death or serious injury.
Installation of this sensor in an explosive environment must be in accordance
with the appropriate local, national, and international standards, codes, and
practices.
Conduit/cable entries
• Unless marked, the conduit/cable entries in the transmitter housing use
a 1/2–14 NPT thread form. Entries marked “M20” are M20 1.5 thread
form. On devices with multiple conduit entries, all conduit entries will
have the same thread form.
• When installing in a hazardous location, use only appropriately listed or
Ex certified flameproof/dust plugs, adapters, or glands in cable/conduit
entries.
• Only use plugs, adapters, glands, or conduit with a compatible thread
form when closing these entries.
Physical Access
• Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.
• Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Refer to Product Certification section of this Quick Start Guide
documentation.
4 Emerson.com/Rosemount
White
White
Red
Red
Red
Red
Black
Blue
Blue
Green
Red
Red
Wht
Wht
4
3
1
6
1
3
4
6
Red
Red
Wht
3
2
1
Red
Red
Wht
6
5
4
123
456
March 2021 Quick Start Guide
2 Wiring diagrams
Figure 2-1: Rosemount 1067 RTD Lead Wire Configuration
Flying leads termination code 0 Terminal block termination code 2
Single element Dual element Single element Dual element
Figure 2-2: Rosemount 1067 Thermocouple Lead Wire Configuration
Flying leads termination code 0 Terminal block termination code 2
Single element Dual element Single element Dual element
Table 2-1: Rosemount 1067 Thermocouple Wire Color
IEC wire color ISA wire color
Type Positive (+) Negative (-) Positive (+) Negative (-)
E Violet White Violet Red
J Black White White Red
K Green White Yellow Red
N Rose White Orange Red
Quick Start Guide 5
R Orange White Black Red
S Orange White Black Red
Quick Start Guide March 2021
Table 2-1: Rosemount 1067 Thermocouple Wire Color (continued)
IEC wire color ISA wire color
T Brown White Blue Red
Table 2-2: Lead Wire Specifications
Rosemount
1067
RTD Single
Element
RTD Dual
Element
Thermocouple
Single Element
Thermocouple
Dual Element
Sensor
diameter -
mm
3/6 4 140 N/A
3/6 6 140 140
3/6 2 140 N/A
3/6 4 140 140
Number of
leads
Approximate lead wire length
(flying leads)
Element 1 -mmElement 2 -
mm
6 Emerson.com/Rosemount
41
33
5.95 + 0.00 - 0.06
41
33
5.95 + 0.00 - 0.06
28
5.95 + 0.00 - 0.06
41
5.95 + 0.00 - 0.06
41
28
March 2021 Quick Start Guide

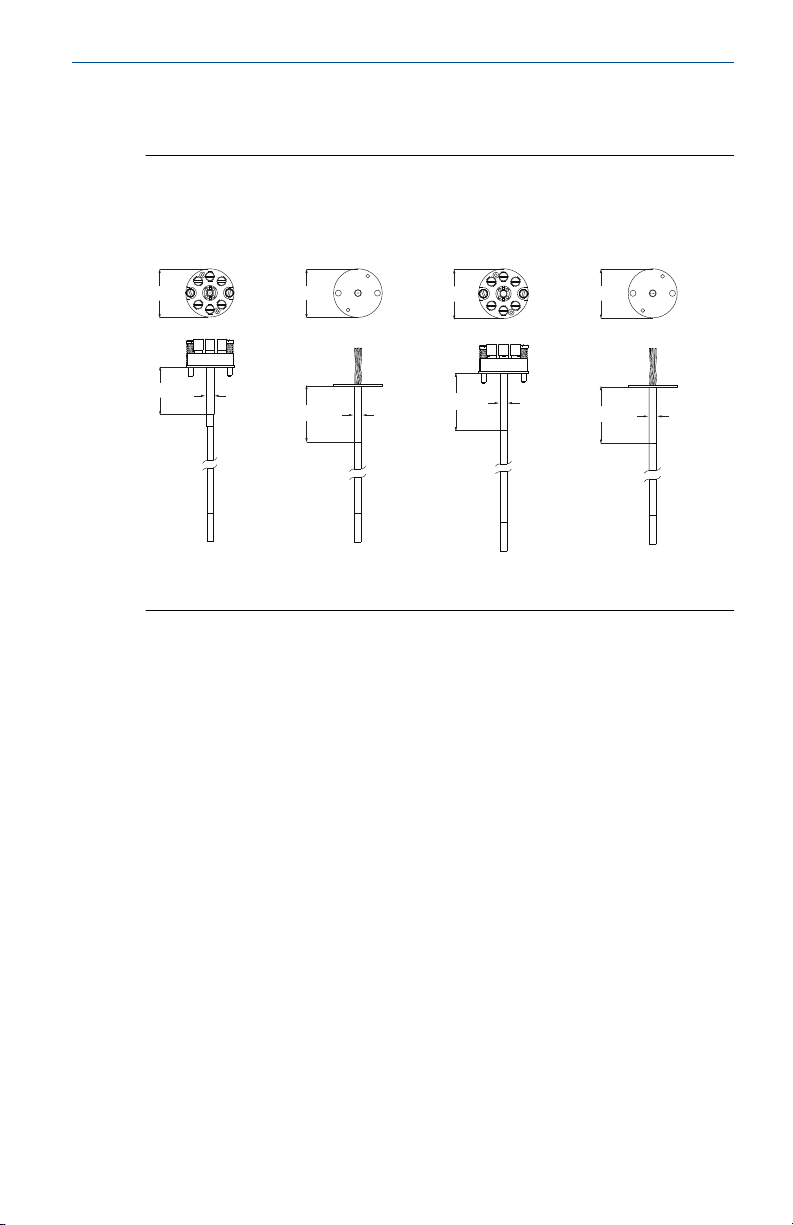

3 Dimensional drawings
Figure 3-1: Rosemount 1067 RTD and Thermocouple
3 mm 6 mm
Terminal block Flying leads Terminal block Flying leads
Dimensions are in millimeters.
Quick Start Guide 7
Rosemount 644 Rosemount 248 Rosemount 644
Rosemount 3144
Rosemount 248
40 mm
25 mm
L L
A
B
C
Quick Start Guide March 2021

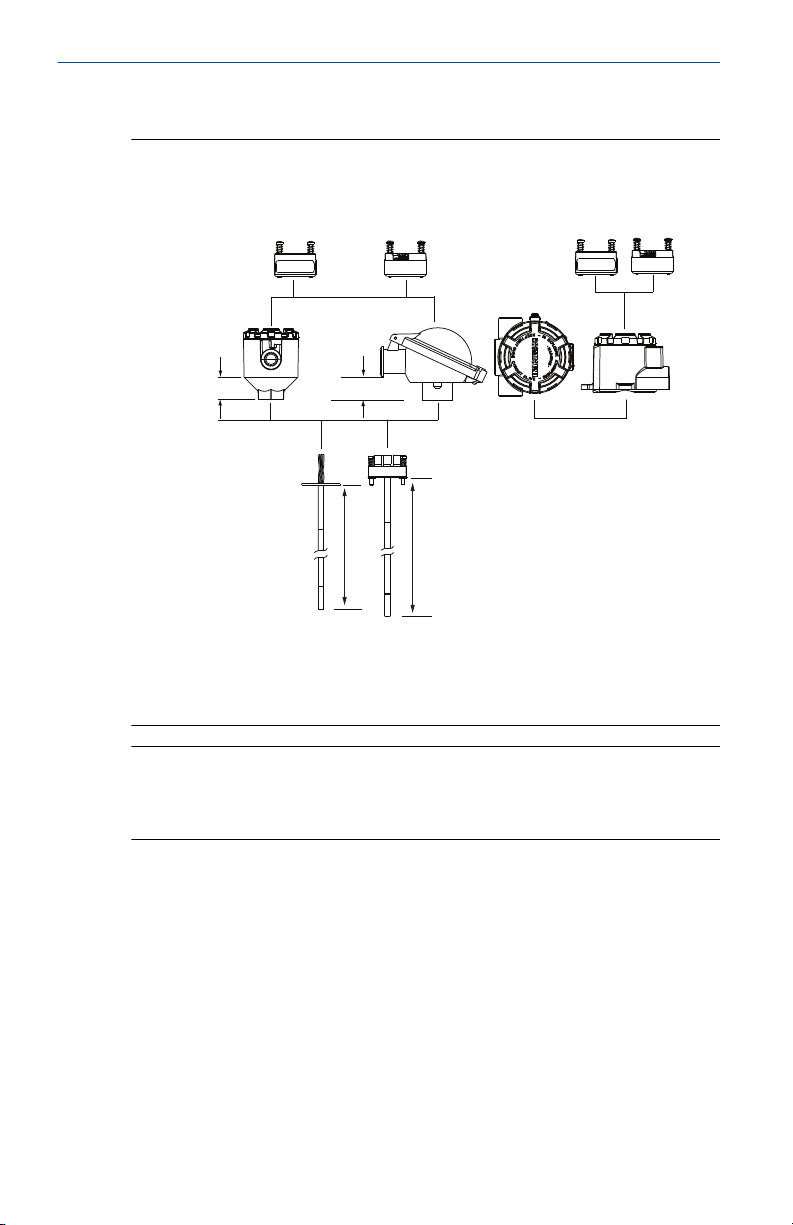

3.1 Sensor assembly
Figure 3-2: Sensor Assembly
Integral mount Remote mount
A. Head or field mount transmitters
B. Connection heads
C. Sensor with flying leads, terminal block
Note
Sensor assemblies can be provided without an enclosure or with an
enclosure such as the connection heads shown above or assembled to a
Rosemount transmitter.
8 Emerson.com/Rosemount
