NGA 2000
TRACE OXYGEN
ANALYZER MODULE
Rosemount Analytical
748374-E
OTICE
N
The information contained in this document is subject to change without notice.
Rosemount Analytical's NGA 2000 system of Modular Gas Analyzers and Controllers are patented, under U.S. Patent
5.787.015.
Teflon® is a registered trademark of E.I. duPont de Nemours and Co., Inc.
SNOOP
Waferpure™ is a trademark of Millipore Corp.
Nanochem
®
is a registered trademark of NUPRO Co.
®
is a registered trademark of Semigas Corp.
Manual Part Number 748374-E
September 2000
Printed in U.S.A.
Rosemount Analytical Inc.
4125 East La Palma Avenue
Anaheim, California 92807-1802
C
P
REFACE
PURPOSE/SAFETY SUMMARY........................................................................P1
GLOSSARY ......................................................................................................P3
SPECIFICATIONS - GENERAL .........................................................................P5
SPECIFICATIONS - SAMPLE............................................................................P5
SPECIFICATIONS - PHYSICAL.........................................................................P5
SPECIFICATIONS - GAS CONNECTIONS........................................................P6
CUSTOMER SERVICE, TECHNICAL ASSISTANCE AND FIELD SERVICE....P7
RETURNING PARTS TO THE FACTORY.........................................................P7
TRAINING ......................................................................................................P7
ONTENTS
DOCUMENTATION............................................................................................P7
COMPLIANCES .................................................................................................P8
S
ECTION
1.1 OVERVIEW...............................................................................................1-1
1.2 TYPICAL APPLICATIONS.........................................................................1-1
1.3 THEORY OF TECHNOLOGY....................................................................1-1
1.4 FEATURES ...............................................................................................1-2
1. I
NTRODUCTION
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
I
ONTENTS
C
SECTION 2. INSTALLATION
2.1 UNPACKING............................................................................................. 2-1
2.2 ASSEMBLY............................................................................................... 2-1
2.2.1 Electrolyte Addition...................................................................... 2-1
2.3 LOCATION................................................................................................ 2-2
2.4 GASES...................................................................................................... 2-2
2.4.1 Requirements.............................................................................. 2-2
2.4.2 Connections ................................................................................ 2-3
2.4.3 Leak Test..................................................................................... 2-5
2.5 ELECTRICAL CONNECTIONS................................................................. 2-6
SECTION 3. STARTUP AND OPERATION
3.1 OVERVIEW............................................................................................... 3-1
3.2 DISPLAYS................................................................................................. 3-1
3.2.1 Run Mode Display....................................................................... 3-1
3.2.2 Menu Displays............................................................................. 3-2
3.2.3 Help Displays .............................................................................. 3-4
3.3 STARTUP PROCEDURE..........................................................................3-5
3.4 QUICK START FEATURE........................................................................ 3-5
3.5 GAS SCALE FACTOR (GSF)................................................................... 3-5
3.6 CALIBRATION.......................................................................................... 3-6
3.7 ROUTINE OPERATION............................................................................ 3-8
3.8 ALARM INDICATION................................................................................ 3-8
SECTION 4. MAINTENANCE AND TROUBLESHOOTING
4.1 OVERVIEW............................................................................................... 4-1
4.1.1 Water Addition............................................................................. 4-2
4.2 FUSES...................................................................................................... 4-3
4.3 ELECTROLYTE REPLACEMENT............................................................ 4-3
4.4 SENSOR REPLACEMENT....................................................................... 4-4
4.5 FLOW SENSOR REPLACEMENT............................................................ 4-4
4.6 PRINTED CIRCUIT BOARDS................................................................... 4-5
4.7 TROUBLESHOOTING.............................................................................. 4-5
II
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
ONTENTS
C
S
ECTION
5.1 REPLACEMENT PARTS..........................................................................5-1
5. R
EPLACEMENT PARTS
APPENDIX A. NGA TO2 MENU STRUCTURE
APPENDIX B. USER INTERFACE HELP
A
PPENDIX
ACTORY CALIBRATION DATA SHEET
F
ATERIAL SAFETY DATA SHEET
M
G
ENERAL PRECAUTIONS FOR HANDLING
ARRANTY
W
IELD SERVICE AND REPAIR FACILITIES
F
C. TO2 I
DENTIFICATION MATRIX
PN 748377 (S
& S
ENSOR ELECTROLYTE
TORING HIGH PRESSURE CYLINDERS
)
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
III
ONTENTS
C
FIGURES
1-1 Trace Oxygen Detector Technology ......................................................... 1-2
1-2 Trace Oxygen Analyzer Module - Top View.............................................. 1-3
2-1 Analyzer Module Interconnection with Instrument Platform ......................2-3
2-2 Outline and Mounting Dimensions............................................................ 2-4
2-3 Back Panel Connections........................................................................... 2-5
2-4 Trace Oxygen Analyzer Front Panel......................................................... 2-6
3-1 Run Mode Display..................................................................................... 3-2
3-2 Main Menu................................................................................................ 3-2
3-3 Basic Controls Menu................................................................................. 3-3
3-4 Expert Controls Menu............................................................................... 3-3
3-5 Analyzer Module Setup Menu................................................................... 3-4
3-6 Typical Help Menu (shown is Zero/Span Calibration Help)....................... 3-4
4-1 Trace Oxygen Analyzer Sensor Assembly................................................ 4-2
4-2 Load Factory Calibration Data Menu ........................................................ 4-4
TABLES
3-1 Trace Oxygen Analyzer Module Alarms.................................................... 3-8
IV
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
P
REFACE
PURPOSE/SAFETY SUMMARY
The purpose of this manual is to provide information concerning the components,
functions, installation and maintenance of this particular NGA 2000 module.
Some sections may describe equipment not used in your configuration. The user
should become thoroughly familiar with the operation of this module before operating
it. Read this instruction manual completely.
To avoid explosion, loss of life, personal injury and damage to this equipment
and on-site property, all personnel authorized to install, operate and service this
equipment should be thoroughly familiar with and strictly follow the instructions
in this manual. Save these instructions.
If this equipment is used in a manner not specified in these instructions, protective
systems may be impaired.
DANGER is used to indicate the presence of a hazard which will cause severe
personal injury, death, or substantial property damage if the warning is ignored.
WARNING is used to indicate the presence of a hazard which can cause severe
personal injury, death, or substantial property damage if the warning is ignored.
CAUTION is used to indicate the presence of a hazard which will or ca n cause minor
personal injury or property damage if the warning is ignored.
NOTE is used to indicate installation, operation or maintenance information which is
important but not hazard-related.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
P1
REFACE
P
CAUTION
Do not operate or service before reading and understanding the Instruction
Manual and receiving appropriate training.
WARNING: PARTS INTEGRITY
Tampering with or unauthorized substitution of components may adversely
affect safety of this product. Use only factory-approved components for repair.
CAUTION: PRESSURIZED GAS
This module requires periodic use of pressurized gas. See General Precautions
for Handling and Storing High Pressure Gas Cylinders at the rear of this manual.
The electrolyte is a caustic solution. Review the Material Safety Data Sheet in
the rear of this manual.
This equipment is not designed and should not be used in the analysis of
flammable samples. Use of this equipment in this way could result in explosion
and death.
WARNING: CAUSTIC LIQUID
WARNING: POSSIBLE EXPLOSION HAZARD
P2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
G
LOSSARY
NALYZER MODULE
A
The module that contains all sensor/detector components for development of a
Primary Variable signal; includes all signal conditioning and temperature control
circuitry.
ACKPLANE
B
The interconnect circuit board which the Controller Board, Power Supply, Analyzer
Module power and network cables, I/O Modules and Expansion Modules plug into.
ONTROL MODULE
C
The Operator Interface plus the Controller Board.
ONTROLLER BOARD
C
The computer board that serves as the Network Manager and operates the Display
and Keypad.
REFACE
P
ISTRIBUTION ASSEMBLY
D
The Backplane and the card cages that hold I/O and Expansion Modules.
XPANSION MODULE
E
A circuit board that plugs into the Backplane from the front of the Platform and
performs special features not related to I/O functions.
I/O M
A circuit board that plugs into the Backplane from the rear of the Platform. Has a
connector terminal for communication with external data acquisition devices and
provides an input/output function.
O
The Display and Keyboard.
P
Any workable collection of the following: Controller Board, Power Supply, Distribution
Assembly, Enclosure and Operator Interface.
P
ODULE
PERATOR INTERFACE
LATFORM
OWER SUPPLY
Any of a variety of components that provides conditioned power to other NGA 2000
components, from the Power Supply Board that plugs into the front of the Backplane in
a stand-alone instrument to several larger ones that can power larger collections of
modules and components.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
P3
REFACE
P
RIMARY VARIABLE
P
The measured species concentration value from an Analyzer Module.
ECONDARY VARIABLE
S
Data placed on the network by a module regarding current status, e.g., sample flow,
source voltage and other diagnostic information.
OFTKEYS
S
The five function keys located below the front panel display; they assume the function
displayed directly above each on the display, a function dictated by software.
YSTEM
S
Any collection of Analyzer Module(s), Platform(s), I/O Module(s) and Expansion
Module(s).
P4
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
SPECIFICATIONS - GENERAL
MEASUREMENT
SPECIES
RANGES 0 to 100 ppm (output scalable down to 0-2 ppm fullscale)
A
CCURACY
S
ENSITIVITY
N
OISE
L
INEARITY
R
ESPONSE TIME
Z
ERO DRIFT
S
PAN DRIFT
E
FFECT OF
T
EMPERATURE
E
FFECT OF FLOW
O
PERATING
T
EMPERATURE
P
OWER REQUIREMENTS
Trace Oxygen
±3% of reading or ±0.02% of range (except for ranges ≤ 100
ppm: ±3% of reading or ±0.05% of range)
<10 ppb Oxygen
1% of fullscale, peak to peak
±1% of fullscale
Typically 90% in less than 20 seconds
≤±1% of fullscale/24 hours at constant temperature
≤±1% of fullscale/24 hours at constant temperature
0.32% of reading per °F from 70°F
(0.58% of reading per °C from 21°C)
≤2% of reading for a flow change of ±250 cc/min (0.5 SCFH)
32°F to 113°F (0°C to 45°C)
+24 VDC ±5%, 10 W max.
Ripple and Noise: <100 mV peak to peak
Line and Load Regulations: <±1%
REFACE
P
S
PECIFICATIONS
S
AMPLE
F
LOW RATE
S
UPPLY PRESSURE
T
EMPERATURE
P
ARTICULATES
S
AMPLE HUMIDITY
S
PECIFICATIONS
M
ATERIALS IN CONTACT
WITH SAMPLE
D
IMENSIONS
W
EIGHT
M
OUNTING
C
ASE CLASSIFICATION
MAX. S
FROM
EPARATION
P
LATFORM
- S
AMPLE
Non-flammable (below 100% of the LEL)
0.5 to 1.5 L/min.
1027 to 1082 hPa - absolute (0.2 to 1.0 psig)
32°F to 113°F (0°C to 45°C)
filtered to <0.1 mg/L; non-condensing at ambient temperature
non-condensing at ambient temperatures
- P
HYSICAL
Stainless steel, Teflon, Delrin, neoprene
See Figure 2-2, Outline and Mounting Dimensions
6.8 kg (15 lbs.)
Horizontal, external to Platform or custom installed in a panel
General Purpose for installation in w eather pr otect ed ar ea
1600 m (1 mile)
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
P5
REFACE
P
SPECIFICATIONS - GAS CONNECTIONS
S
AMPLE IN
1/4 inch O.D. tube fitting
SAMPLE OUT
See the Preface Section of the Platform manual for specifications regarding Platform related components.
1/4 inch O.D. tube fitting
P6
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
REFACE
P
C
USTOMER SERVICE
For order administration, replacement Parts, application assistance, on-site or factory
repair, service or maintenance contract information, contact:
, T
ECHNICAL ASSIST ANCE AND FIELD SERVICE
Rosemount Analytical Inc.
Process Analytical Division
Customer Service Center
1-800-433-6076
RETURNING PARTS TO THE FACTORY
Before returning parts, contact the Customer Service Center and request a Returned
Materials Authorization (RMA) number. Please have the following information when
you call: Model Number, Serial Number, and Purchase Order Number or Sales Order
Number.
Prior authorization by the factory must be obtained before returned materials will be
accepted. Unauthorized returns will be returned to the sende r, f re ight collect.
When returnin g any pro duct o r compon ent t hat has be en expo sed to a toxic, corrosi ve
or other hazardous material or used in such a hazardous environment, the user must
attach an appropriate Material Safety Data Sheet (M.S.D.S.) or a written certification
that the material has been decontaminated, disinfected and/or detoxified.
Return to:
Rosemount Analytical Inc.
4125 East La Palma Avenue
Anaheim, California 92807-1802
USA
TRAINING
A comprehensive Factory Training Program of operator and service classes is
available. For a copy of the Current Operator and Service Training Schedule contact
the Technical Services Depart men t at:
Rosemount Analytical Inc.
Phone: 1-714-986-7600
FAX: 1-714-577-8006
DOCUMENTATION
The following NGA 2000 Trace Oxygen Analyzer Module instruction materials are
available. Contact Customer Service or the local representative to order.
748374 Instruction Manual (this document)
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
P7
REFACE
9
6
P
COMPLIANCES
This product may carry approvals from several certifying agencies for use in nonhazardous, indoor locations. If so, the product will carry approval insignia on the
product name-rating plate.
®
NRTL /C
Rosemount Analytical Inc. has satisfied all obligations from the European
Legislation to harmonize the product requirements in Europe.
This product complies with the standard level of NAMUR EMC.
Recommendation (May 1993).
This product satisfies all obligations of all relevant standards of the EMC framework in
Australia and New Zealand.
NAMUR
N
P8
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
I
NTRODUCTION
1
1.1 OVERVIEW
This manual describes the Trace Oxygen (TO2) Analyzer Module of Rosemount
Analytical's NGA 2000 Series of gas analysis components.
The TO2 Analyzer Module is designed to continuously determine the concentration of
trace oxygen in a flowing gaseous mixture. The concentration is expressed in partsper-million.
The TO2 Analyzer Module is configured as a shelf-mount module, designed to be
installed external from the platform on an associated shelf capable of holding two
modules side-by-side, with gas connections made from the rear. All electronics relative
to sample detection and conditioning are included in this module.
1.2 TYPICAL APPLICATIONS
The TO2 Analyzer Module has specific applications in the following areas:
Trace oxygen in product nitrogen and argon streams from air separation plants
Trace oxygen in inerting atmospheres for heat treat furnaces
Trace oxygen in glove-box applications
1.3 THEORY OF TECHNOLOGY
The TO2 Analyzer Module uses the coulometric principle of oxygen detection. This
technology is based on the fact that oxygen in the sample is reduced by an
electrochemical reaction. This reduction occurs at the cathode and results in the
generation of hydroxyl ions. These hydroxyl ions migrate to the anode where they are
oxidized to reform oxygen. The oxidation reaction generates four electrons which in
turn migrate to the anode to participate in the reduction reaction:
(Cathode Reaction)
O2 + 2 H2O + 4 e- → 4 OH
(Anode Reaction)
4 OH- → O2 + 2 H2O + 4 e
-
-
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
1-1
NTRODUCTION
I
A polarizing voltage of approximately 1.3 VDC is applied between the anode and
cathode to drive the oxidation and reduction reactions. The resulting current flow
produced by the flow of electrons is directly proportional to the oxygen content in the
sample gas.
1.4 FEATURES
Among the features included in the TO2 Analyzer Module are:
• Quick start feature
• Electrolyte level alarm
• High oxygen protection circuit with alarm
• Sample flow indication.
BI-STRATA™ DIFF USION
BARRIER
SAMPLE IN
SAMPLE OUT
SENSING CATHOD E (-)
O
2
SECONDARY CATHODE (-)
SECONDARY ANODE (+)
-
e
S
KOH
O
2
OH
S
-
O
2
-
e
O
2
ELECTRONICS
SENSING ANODE (- )
IGURE
F
1-2
1-1. T
RACE OXYGEN DETECTOR TECHNOLOGY
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
Network/Power
Module
NTRODUCTION
I
Sensor Assembly
Sensor
Computer
Board
Power Board
Sample Flow
Sensor
IGURE
F
748374-E Rosemount Analytical September 2000
1-2. T
RACE OXYGEN ANALYZER MODULE
OP VIEW
- T
NGA 2000 Trace Oxygen Analyzer
1-3
NTRODUCTION
I
NOTES
1-4
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
I
NSTALLATION
2
2.1 UNPACKING
If the Trace Oxygen (TO2) Analyzer Module is received as a separate unit, carefully
examine the shipping carton and contents for signs of damage. Immediately notify the
shipping carrier if the carton or contents is damaged. Retain the carton and packing
material until all components associated with the TO2 Analyzer Module are
operational.
2.2 ASSEMBLY
Before installation of the TO2 Analyzer Module, electrolyte must be added to the
Sensor. Follow the procedure described below under section 2.2.1.
After addition of electrolyte, locate the analyzer module on an appropriate mounting
surface and connect the network cable to either the NETWORK 1 or NETWORK 2
connection on the Analyzer Module, and the NETWORK connection on the Platform
network I/O port. (See Figures 2-1 and 2-4.)
2.2.1 E
LECTROLYTE ADDITION
Before adding electrolyte to the Sensor, it is recommended to check the Sensor for
possible leakage caused by damage in shipment. To check the Sensor for leakage,
remove the top cover of the Analyzer Module and locate and remove the 5 mounting
screws which hold the Sensor Assembly (Sensor, flow meter, plumbing, inlet/outlet
fittings) to the module (see Figure 4-2). Be careful not to lose these screws as they
have metric threads. Carefully lift out the Sensor assembly and remove from the
analyzer module. Place on a flat surface and remove the black Sensor cover by
unscrewing counterclockwise.
Add distilled or deionized water to the Sensor to the maximum level indication on the
Sensor reservoir. Let Sensor stand for approximately 15 minutes and check for leaks
around the base of the reservoir, and at the seams and corners. If a leak is found,
contact the factory before proceeding. Drain the Sensor.
Fill the Sensor with one bottle of electrolyte supplied with the analyzer module. Use
the entire contents of the bottle.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
2-1
NSTALLATION
I
Note:
Do not add water. The volume and concentration of the bottled electrolyte is
pre-measured.
Reinstall the black Sensor cover and carefully reinstall the Sensor Assembly inside the
Analyzer Module. Do not the tilt the Sensor Assembly excessively as electrolyte may
leak out.
2.3 LOCATION
(See Figure 2.2) The TO2 Analyzer Module comes standard with mounting ears for
easy installation on flat, horizontal surfaces. Install the TO2 Analyzer Module in a
clean, weather-proofed, vibration-free location free from extreme temperature
variations and moisture. For best results, install the instrument near the sample stream
to minimize sample transport time.
Operating ambient temperature is 0 °C to 45 °C (32 °F to 81 °F). Temperature change
should not exceed 10 °C (18 °F) per hour. The same temperature restrictions apply to
the location of the zero and span gas cylinders.
2.4 GASES
2.4.1 R
EQUIREMENTS
The TO2 Analyzer Module requires only a standard of accurately known composition
for use as a span gas. The span gas should be supplied from a cylinder equipped with
a clean, metallic diaphragm, two-stage regulator. A shutoff valve is recommended.
ALIBRATION GASES
C
The TO2 module does not require routine zero calibration. The zero is factory set and
does not experience routine drift. Over long periods of time, the zero may experience
minor drift. For low ppm range analyzers, you may wish to check the zero at one year
intervals. Oxygen-free nitrogen is recommended for use as zero gas. This gas is
certified to <0.5 ppm oxygen and can be improved by passing the zero gas through an
oxygen scrubber such as Millipore™ Waferpure or Semigas Nanochem® resin
purifiers. A mixture of trace oxygen in a background of nitrogen is recommended as
span gas. For maximum accuracy, the concentration of trace oxygen in the span gas
should be as high as possible for the range of measurement.
2-2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
NSTALLATION
I
AMPLE
S
The sample must be clean and dry before entering the Analyzer Module. Sample
should be filtered for particulates down to two microns, and should have a dew point at
least 5 °C (13 °F) below the coldest expected ambient temperature.
RESSURE
P
Constant between 13.8 and 69 hPa - gauge (0.2 and 1.0 psig) sample inlet pressure
is recommended. If a needle valve is used upstream of the Analyzer Module to control
flow, the inlet pressure to the needle valve should not exceed 345 hPa (5 psig). A
constant sample flow rate between 1.0 to 3.0 SCFH (0.5 to 1.5 l/min) is recommended
for best results. The Analyzer Module must vent to atmosphere to avoid back
pressure influences on the oxygen reading.
2.4.2 C
ONNECTIONS
(See Figure 2-3. ) Connect inlet and outlet lines for sample to appropriately labeled
fittings on the rear panel. SAMPLE IN and SAMPLE OUT are 1/4-inch ferrule-type
compression fittings. Zero and span gases should be introduced at the SAMPLE IN
fitting at normal sample inlet flow rate.
Metallic tubing is recommended for the sample line. The use of plastic, Teflon, or
other non-metallic tubing can result in ambient oxygen permeation through the tubing
causing higher than expected reading. Exhaust tubing should be 1/4 inch (6.3 mm) or
larger, and can be metallic or non-metallic.
ANALYZER MODULE
CONNECTIONS
Network 1
Backplane
Controller Board
Connector
BACKPLANE
CONNECTIONS
Power In dicator Light
IGURE
F
748374-E Rosemount Analytical September 2000
2-1. A
NALYZER MODULE INTERCONNECTION WITH INSTRUMENT PLATFORM
Network
Power
NGA 2000 Trace Oxygen Analyzer
2-3
NSTALLATION
[
]
2
]
I
18.56
471
12.00
[305]
.23
[6]
11.00
[279]
.266
[6.75]
DIA
7.75
[197]
7.75
[197]
1.61
[41]
.23
[6]
5.78
[147]
IGURE
F
2-2. O
6.00
[152]
7.00
[178]
8.25
[206]
8.10
[206]
2.70
[68]
6.62
[168]
UTLINE AND MOUNTING DIMENSIONS
10.15
[258]
.06
[1.5]
[31]
1.
[31
1.2
2-4
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
Sample
Inlet
1/4" Tube
Sample
Exhaust
1/4" Tube
NSTALLATION
I
IGURE
F
2-3. B
ACK PANEL CONNECTIONS
CAUTION: GAS OVERPRESSURE
At no time should sample, zero or span gas inlet pressure exceed 69 hPa gauge (1.0 psig). Damage to the Sensor may occur if this pressure level is
exceeded.
CAUTION: SAMPLE FLOW
Do not test the sample pressure by blocking the exhaust. When the pressure is
released the sudden surge of flow will spin the internal flowmeter off its
bearings and destroy it.
2.4.3 LEAK TEST
The TO2 Analyzer Module is completely tested at the factory for gas leakage. The
user is responsible for testing for leakage only at the inlet and outlet fittings on the rear
panel. Caution: Do not expose the Sensor to pressure in excess of 1.0 psig as
this may cause damage.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
2-5
NSTALLATION
I
Network Connections
Power Connection
Fuse
Power Indicator Light
IGURE
F
2-4. T
RACE OXYGEN ANALYZER FRONT PANEL
2.5 ELECTRICAL CONNECTIONS
NOTE: Electrical connnections must be made in compliance with National
Electrical Code (ANSI/NFPA 70) and/or any applicable national or electical
codes.
Two electrical connections are required on the Analyzer Module: POWER and
NETWORK (See Figure 2-4). On the Analyzer Module, two NETWORK connectors
are available, either of which is appropriate for: 1) interconnection with the Backplane
of the Platform or 2) "daisy-chaining" with other NGA 2000 components (A star
connection is acceptable for LON lengths under abo ut 10 meters.)
Connect a source of 24 V 5A DC power to the power inlet. Make sure that the ground
connection is made, and that this is separate from the power return lead. Failure to
ensure a good ground may result in random noise and disturbance in the analyzer
readings.
2-6
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
S
TARTUP AND OPERATION
3
3.1 OVERVIEW
Prior to initial startup, the user should perform the leak test procedure outlined in
Section 2
For the remainder of this section, Analyzer Module interconnection with a Platform or
some interfacing component will be assumed. Display and Keypad information refers
to that which the user can expect to see and do with regard to the Front Panel of the
Platform.
(For a complete description of Platform Front Panel controls and indicators, see the
Platform instruction manual
3.2 DISPLAYS
Three kinds of Display screens are available to the user:
• Run Mode
• Menu
• Help
3.2.1 R
UN MODE DISPLAY
The Run Mode is the normal mode of operation. In this mode, the Display will show
the current gas measurement, the component of interest, the current operations of the
softkeys, and several graphics: a bar representing the displayed concentration as a
percent of fullscale and up to four lines showing user selectable secondary parameters
from either the Analyzer Module or any IO module bound to it. See the Platform
manual for information as to how to select these.
If more than one Analyzer Module is connected to the system, an additional Run Mode
display will show as many as four (f ive for versio n 2 .3 and later) ga s m easurem en ts on
screen.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
3-1
TARTUP AND OPERATION
S
TO2 1
2
50
IGURE
F
3.2.2 M
3-1. R
UN MODE DISPLAY
ENU DISPLAYS
19.4
0 Range 3
Sensor current: 1.4403 mA
Sensor temperature: 26.3 C
Temperature current: 2.01 mA
Sample Flow: 511 ml/min
DISPLAY PARMS. MENU NEXT INFO
ppm O
The Menu structure enables the user to access data and functions, and put
information onto the network. From the Run Mode display, press the MENUS softkey
to gain access to the Main Menu.
Main Menu
Basic controls . . .
Expert controls and set up . . .
(Operational configuration)
Technical level configuration . . .
(Diagnostic and manufacturing/service)
DISPLAY PARMS. NEXT EXT LOCK INFO
IGURE
F
3-2. M
AIN MENU
The Main Menu is subdivided into three levels of control based generally on which
personnel is likely to use it: Basic Controls - Operators, Expert Controls and set up -
System Engineers, and Technical level configuration - Analyzer technicians. Many
layers of the menu structure are described at appropriate places throughout this
manual.
From the Run Mode display, press the MENUS softkey to gain access to the Main
Menu.
3-2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
The Basic controls menu is as follows:
Basic Controls
Measurement range number:
Range upper limit:
Range and functional control:
Sleep Mode:
Exit Sleep Mode!
Initiate Quick Start!
Quick Start:
HOME ESCAPE INFO
CURRENTRNGHI
CONTROL
TARTUP AND OPERATION
S
IGURE
F
3-3. B
ASIC CONTROLS MENU
This menu allows the user to view the current range’s upper limit, Sleep mode, and
quick start status. It also allows quick start initiation or exit from sleep mode.
In the figure above, the words in italics are the names of the network variables whose
values are in fact shown on the screen.
The Expert controls menu is as follows:
Measurement range number:
Range lower limit:
Range upper limit:
Range and functional control:
HOME ESCAPE INFO
Expert controls
CURRENTRNGHI
CONTROL
IGURE
F
3-4. E
XPERT CONTROLS MENU
This menu shows the current range number and range limits.

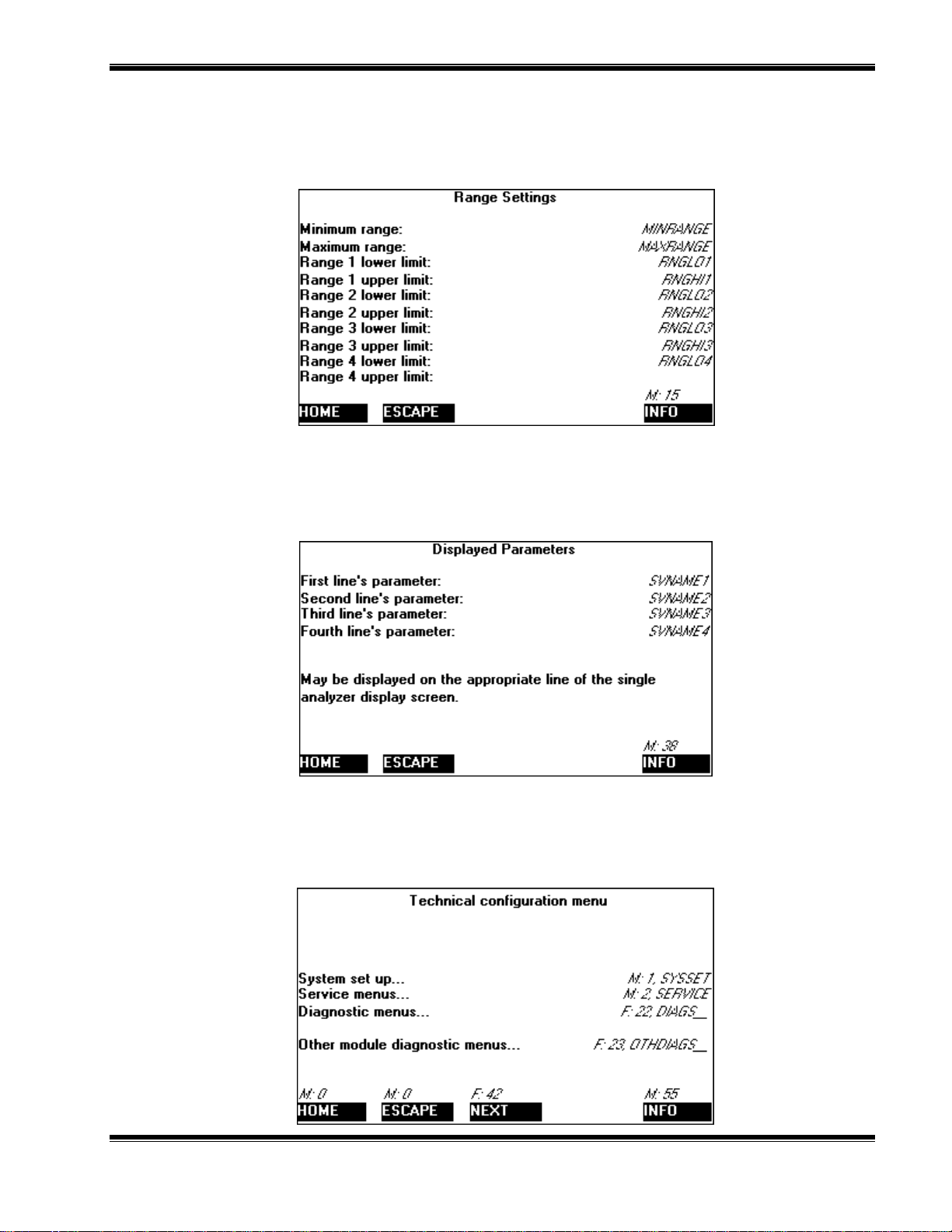

The analyzer range settings may be configured through the Analyzer Module set up
menu, under Expert controls and set up.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
3-3
TARTUP AND OPERATION
S
Analyzer module set up
Range settings . . .
Displayed parameters . . .
Analyzer tag:
HOME ESCAPE INFO
TAG
IGURE
F
3.2.3 H
3-5. A
ELP DISPLAYS
NALYZER MODULE SET-UP MENU
The Help structure is intended to be an on-line "tutorial," context-sensitive and topicinterconnected, so that the user can practically operate NGA 2000 without the need of
an instruction manual.
A typical help menu:
This allows manual control of the zero and span. Flow zero
gas, and make sure the zero gas value is right;
Press the zero key to make the analyzer zero.
Or select Factors and individually adjust the reading on each
range. In this way you can make the analyzer read what you
want.
Do the same with span gas. If the zero was not a real zero,
the span action will change the zero reading>
Set cal gas values in the Calibration gas list screen.
HOME ESCAPE CALINFO INFO
Zero/Span calibr atio n h elp
IGURE
F
3-4
3-6. T
YPICAL HELP MENU (SHOWN IS ZERO/SPAN CALIBRATION HELP
This is the help screen for the calibration menus.
)
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
TARTUP AND OPERATION
S
3.3 STARTUP PROCEDURE
Establish sample or zero gas flow through the analyzer module at a nominal flow rate
of 2 SCFH (1 l/min). Allow gas to flow for 15 to 30 seconds before applying power.
Apply power to the TO2 Analyzer Module.
Upon initial startup, the separate modules, Controller Board and network "self-install."
The display shows the progress of the automatic installation routine, together with a
button marked RE_INIT. If the initialization hangs up, pressing the RE_INIT button will
restart it, but will cause all the binding information to be erased. The Display will then
appear as above. For details on binding, please consult the Platform instruction
manual.
Establish that sample flow rate is within specifications (see the Specifications page in
this manual). Input security codes (see reference manual), calibrate, and begin routine
operation as following subsections indic ate.
3.4 QUICK START FEATURE
This analyzer module is equipped with a quick start feature which allows the sensor to
begin measuring low ppm oxygen faster. This feature can be used when the analyzer
is first turned on to decrease the time required for the sensor to reach equilibrium.
This function is most effective for gas sample measurements below 100 ppm. To
maintain sensor life, it is recommended that this feature be used no more than two
times in any 24 hour period.
Under the Basic Controls sub-menu, move the cursor to Initiate quick start! and press
the ↵ key. The unit will begin the quick start function imm ediately. This p rocedure will
last for approximately 45 seconds. The last measured value is held for the duration of
the procedure to prevent false reading fluctuations.
3.5 GAS SCALE FACTOR (GSF)
The Gas Scale Factor is used to correct for background gases other than nitrogen.
When the backgro u nd of the sam p le is oth e r t ha n ni tro ge n , th e d iff us io n rate of o xygen
into the sensor changes. By correcting for the background difference, the diffusion
change can be compensated in software. The GSF can be entered manually or
calculated automatically. Calculation of the GSF requires the user to enter the sample
gas composition. In most applications, the GSF is not required. However, some
backgrounds exhibit significantly different diffusion characteristics versus nitrogen
(such as helium or hydrogen) and the GSF may improve performance.

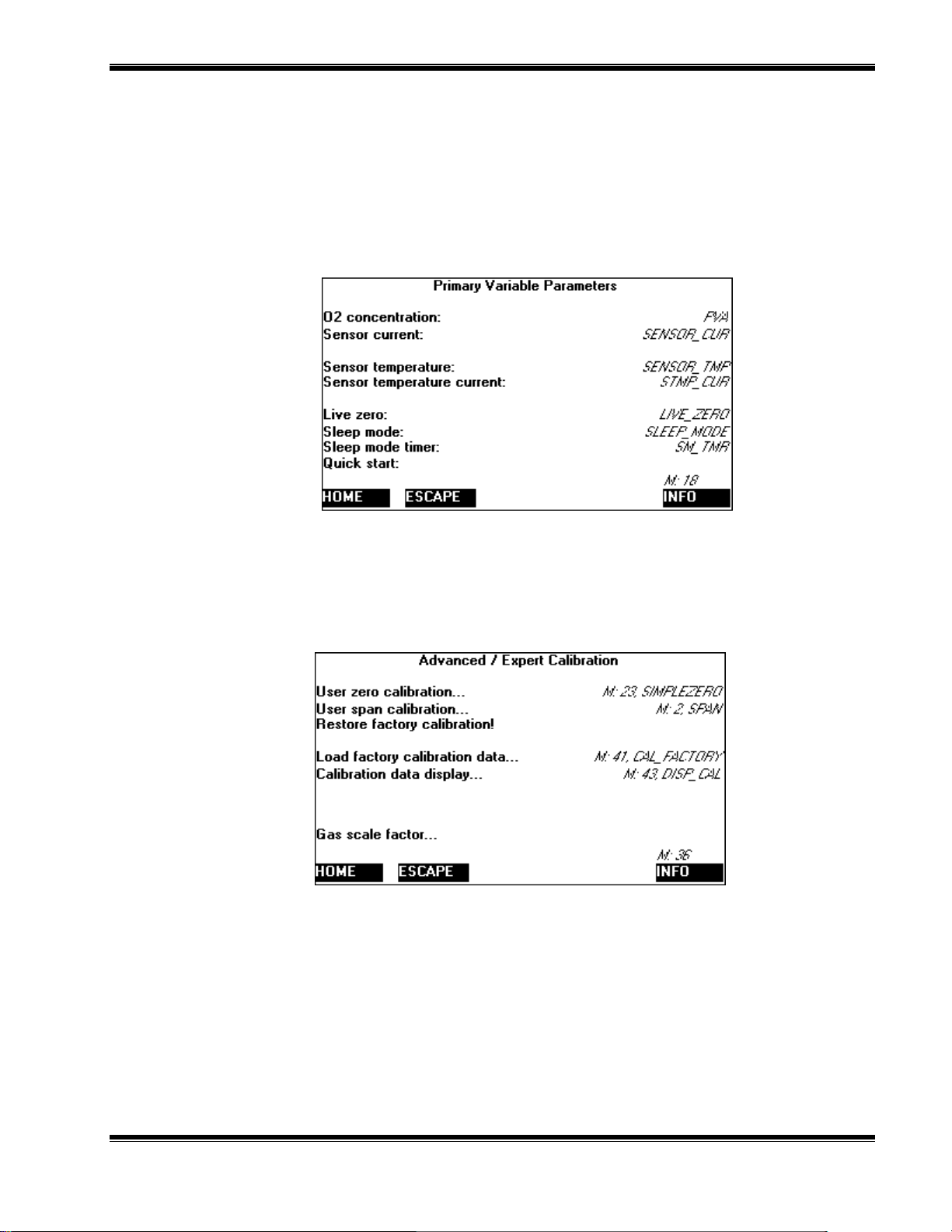

Under the Technical Level Configuration sub-menu, select Diagnostic menus... and
then select Analyzer Module Diagnostics…. In the Analyzer Module Diagnostics sub-
menu select Calibration Parameters.... In the Advanced/Expert Calibration sub-menu
select Gas Scale Factor.... To use the GSF, enter the volumetric percentages of each
component present in the sample gas. To view more background components, press
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
3-5
TARTUP AND OPERATION
S
the MORE softkey. The total must add up to 100 or a new factor will not be computed.
If you have a background component which is not shown in this menu, please consult
the factory for assistance.
Once you have entered all the background composition information, move the cursor
to Compute new adjusted gas scale factor! and press the ↵ key and the analyzer
module will automatically calculate the new gas scale factor.
3.6 CALIBRATION
The TO2 analyzer module is fully factory calibrated using certified gas standards prior
to shipment. If the analyzer is operated within its specified operating conditions, no
calibration is required. The zero calibration is very stable and does not require
checking more than once a year. Depending upon the nature of your application, it
may be beneficial to verify the span calibration of the analyzer module every 3-4
months. The following procedure illustrates how to initiate a zero/span calibration.
Under the Expert Controls sub-menu select Expert Analyzer Controls and
Measurement…, set the Range Number to the range that will be used during sample
analysis. Return to the Main Menu by pressing the HOME softkey.
Introduce zero gas into the SAMPLE INLET, and, after a stable reading is reached, do
the following:
1. Move the cursor to Technical Level Configuration... and enter. Select Diagnostic
Menus…, then Analyzer Module Diagnostics…, and then Calibration parameters...
and enter.
2. Select the User zero calibration... to enter the User zero calibration menu.
Note:
Before proceeding any further, be sure that the zero value is stable and valid.
The zero may take 24 hours or longer to achieve stable zero for the low ranges.
3. Move the cursor to the Press the select key for user zero calibration now!
4. Press the ↵ key. The new zero calibration will now be entered.
5. Press the ← key to return to the previous menu.
6. Introduce a suitable span gas into the SAMPLE INLET and allow reading to
stabilize. Move the cursor to the User span calibration... line and press the ↵ key.
3-6
7. Move the cursor to the Span gas concentration: line and press the ↵ key. Enter
the correct span gas value by using the ↑↓ keys to change value and the
←→ keys to select position. Press the ↵ key to enter the new span gas value.
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
TARTUP AND OPERATION
S
8. Move the cursor to the Press the select key for user span calibration now! and
press the ↵ key. The new span calibration will now be entered.
9. Press the ← arrow key to return to the previous menu.
10. You can view the new calibration data in the Calibration data display screen. To
access this screen go to the Expert controls and set up sub-menu and select
Analyzer module set up... From the Analyzer module set up sub-menu select
Calibration... and from the Advanced/Expert calibration sub-menu select
Calibration data display... This screen is a view only display and data cannot be
edited from this screen.
11. If for any reason you want to restore the original factory calibration data, you can
do so from the Advanced/Expert calibration sub-menu (see #9 above for directions
to this sub-menu). Select Restore factory calibration! and the original values will
be restored.
Note:
Do not alter data in the Load factory calibration data... sub-menu except when
replacing sensors. Any changes made to this sub-menu will become the new
default restore factory calibration! values.
12. Press the HOME softkey to re-enter the Main Menu.
13. Press DISPLAY softkey for the Run Mode display.
If you are unable to calibrate the module for some reason, see the NGA Reference
manual for a list of possible causes and solutions. The most likely cause is the use of
incorrect span gases.
3.7 ROUTINE OPERATION
The TO2 Analyzer Module is designed to analyze the sample stream continuously.
Normally, it is never powered off except for servicing or for a prolonged shutdown.
Maximum permissible interval between calibration checks depends on the analytical
accuracy required, and therefore cannot be specified. Initially, the instrument should
be checked at least once every 3-4 months. This practice should continue until
experience indicates that some other interval is more appropriate.
For details as to the general operation of the NGA analyzer module software, and the
use of IO modules with the TO2 module, see the Platform Components manual.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
3-7
TARTUP AND OPERATION
S
3.8 ALARM INDICAT ION
NGA analyzer modules continuously monitor a number of internal parameters. It is
possible to make the analyzer generate certain kinds of alarm indications if these
parameters' values exceed or reduce below specified levels. The general alarm
variable will have its value changed if an alarm occurs. See the NGA Reference
manual for further details.
DESCRIPTION TYPE
ABLE
T
Low Electrolyte WARNING
Low Sample Flow WARNING
Sleep Mode WARNING
Low Sensor Temperature WARNING
High Sensor Temperature WARNING
Software Error FAILURE
3-1. T
RACE OXYGEN ANALYZER MODULE ALARMS
3-8
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
M
AINTENANCE AND TROUBLESHOOTING
4
4.1 OVERVIEW
CAUTION: QUALIFIED PERSONNEL
This equipment should not be adjusted or repaired by anyone except properly
qualified service personnel.
WARNING: PARTS INTEGRITY
Tampering with or unauthorized substitution of components may adversely
affect safety of this product. Use only factory-approved components for repair.
The TO2 Analyzer Module requires very little maintenance during normal operation.
The sensor in the TO2 utilizes a liquid e lectrolyte. When me asuring dry gases, it may
be necessary to replenish the liquid by adding distilled or deionized water.
The sensor is designed to hold at least 100 cc of electrolyte. Typically, bone dry
sample gas can extract approximately 5-10 cc of water per month from the sensor. It
is recommended to check the electrolyte level every 3-4 months to assure that the
electrolyte level is within the acceptable operating limits as indicated by the label on
the reservoir section of the sensor.
The TO2 analyzer module is equipped with a low electrolyte alarm which indicates
when replenishment of the sensor is required. Please refer to the Platform manual for
details on configuring alarms.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
4-1
AINTENANCE AND TROUBLESHOOTING
M
CAUTION: REFILLING SENSOR
When refilling the sensor, only use distilled or deionized water. Do not use
electrolyte or tap water as they can cause damage to the sensor. Take care not
to overfill.
Sensor Cover
Indicator,
Electrolyte Level
Sensor Reservoir
SIDE VIEW
Mounting Screws
(3 places)
IGURE
F
4.1.1 W
4-1. T
ATER ADDITIONTO ADD WATER
RACE OXYGEN ANALYZER SENSOR ASSEMBLY
:
1. Remove the top cover of the analyzer module.
2. Unscrew the black sensor cover.
TOP VIEW
Flow Sensor
Enclosure
Back Wall
Mounting Screws
(2 places)
4-2
3. Slide the cover back just enough to allow the neck of the fill bottle to fit into the
sensor reservoir.
4. Add distilled or deionized water using the fill bottle provided with the analyzer
module. Fill to approximately midway between th e m in a nd ma x level ind icato rs o n
the sensor label. Be careful not to spill water, splash electrolyte or overfill sensor.
5. Replace the sensor cover securely.
6. Replace the top cover of the analyzer module.
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
AINTENANCE AND OPERATION
M
If the electrolyte alarm is activated but the sensor shows sufficient electrolyte, the
electrolyte may have been contaminated by substances present in the sample which
are chemically incompatible with the sensor or electrolyte. If this should occur, the
electrolyte must be drained and replaced with fresh electrolyte.
Refer to section 4.3 for the proper procedure for replacing electrolyte.
Several other components may require replacement. These are discussed in the
following sections.
4.2 FUSES
Remove power to the Analyzer Module prior to fuse replacement. To replace the
Power Fuse, locate the fuse cover on the front panel of the Analyzer Module, as
shown partially in Figure 2-3. Push and turn the fuseholder cover 1/4 turn
counterclockwise. Remove and replace the fuse as required. There are no other
fuses in the Analyzer Module.
4.3 ELECTROLYTE REPLACEMENT
Before replacing the electrolyte, be sure to turn off and disconnect all gas connections
to the analyzer module. Turn off or disconnect the power to the analyzer module.
To replace the Sensor electrolyte, remove the Analyzer Module from its mounting
location and place on a sturdy work surface. Be careful not to tilt the module from its
horizontal position as the Sensor contains liqu id that can spill. Remove the cover of
the Analyzer Module and locate the 5 mounting screws that hold the Sensor Assembly
onto the Analyzer Module chassis (see Figure 4-1). Remove the 5 screws and retain.
Do not lose the screws - they have metric threads.
Disconnect the Sensor signal connector (J5) and the Flow Sensor connector (J6) from
the power board. Remove the complete Sensor Assembly from the Analyzer Module.
Remove the black sensor cover and invert the Sensor Assembly over a suitable
receptacle. Flush the Sensor twice with deionized water. Dispose of the discarded
electrolyte and rinse water in accordance with National, Federal, State and Local
regulations.
Refill the Sensor with electrolyte as instructed in Section 2.2.1. Reinstall th e Sensor
Assembly and reconnect J5 and J6 to the power board.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
4-3
AINTENANCE AND TROUBLESHOOTING
M
4.4 SENSOR REPLACEMENT
If the Sensor cannot be regenerated by the addition of water or the replacement of
electrolyte, or if the Sensor shows signs of leakage, it may be necessary to replace the
Sensor. To replace the Sensor, remove the Sensor Assembly and remove the
electrolyte as described in section 4.3 above. Reinstall the black sensor cover to
catch any residual electrolyte. Invert the Sensor Assembly and locate the four (4)
mounting screws which hold the Sensor to the Sensor Assembly mounting plate.
Remove and retain the four screws.
Install replacement Sensor in reverse order. Check Sensor for leaks and add
electrolyte as described in section 2.2.1. Reinstall Sensor Assembly in Analyzer
Module and reconnect J5 and J6 to the power board.
After installation of new Sensor, it will be ne cessary to load the new calibration data
supplied with the Sensor. Enter the new calibration data by entering the Load Factory
Calibration Data menu. You can get to this menu as follows: Main Menu, Technical
Level Configuration, Analyzer Module Diagnostics, Calibration Parameters, Load
Factory Calibration Data. This menu screen will look as follows:
Load factory calibration data
IGURE
F
4-2. L
Concentration 1:
Output 1:
Temperature 1:
Concentration 2:
Output 2:
Temperature 2:
Concentration 3:
Output 3:
Temperature 3:
HOME ESCAPE MORE
OAD FACTORY CALIBRATION DATA MENU
The data is supplied with the new sensor and must be entered exactly as shown on
the sensor data sheet. To enter the data for data points 4 & 5 and the sensor model,
press the MORE soft key to access the next screen.
4.5 FLOW SENSOR REPLACEMENT
See figure 1-2 for Flow Sensor location. To replace Flow Sensor, remove all
connecting hardware and undo connections to the sample line. The Flow Sensor is
mounted to the Sensor Assembly mounting plate by two screws. Be sure to install the
new Flow Sensor with the flow indication toward the outlet.
4-4
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
AINTENANCE AND OPERATION
M
4.6 PRINTED CIRCUIT BOARDS
All three printed circuit boards can be replaced, if necessary. Refer to Figure 1-2 for
location of the Power, Network and Computer Boards.
To remove any PCB, disconnect the associated cables first. Tag each connector and
its location before disconnecting any wiring. This helps in reassembly. The Power
board and Computer board are located on a common bracket.
4.7 TROUBLESHOOTING
The following provides a short list of common troubleshooting tips. Additional
information is contained in the Platform Manual.
HE
T
TO2
Prior to conducting any changes to the system, try running a quick start sequence (see
section 3.4) to see if the oxygen reading goes lower. If the reading does decrease, the
sensor has not been allowed sufficient time to consume the dissolved oxygen in the
electrolyte. If the reading continues to read high a leak may exist in the sample lines.
The number one problem associated with trace oxygen analyzer installation is the
occurrence of leaks in your sample plumbing. If the oxygen reading will not come
down to ppm levels or is reading higher than expected, the sample plumbing prior to
the instrument may have a leak. A quick check can be conducted by observing the
oxygen reading at two different flow levels; 0.5 and 2.0 scfh. If the oxygen reading
drops significantly when the flow is increased from 0.5 to 2.0 scfh, this is a good
indication that a leak exists.
To check for leaks prior to the sensor, disconnect the Analyzer Module and cap the
inlet line. Pressurize the inlet line to 5 - 10 psig and check all connections with a
soapy solution (SNOOP®) to identify leaks.
ANALYZER FAILS TO PURGE DOWN TO PPM LEVELS
.
WARNING: SENSOR DAMAGE
Do not pressure check the sample line with the sensor connected. Overpressurization of the sensor can result in damage.
HE
T
TO2
Check to make sure that your vent line is not blocked. If you see a rise in reading with
an increase in flow, you may be over-pressurizing the sensor due to a blocked vent.
Since the sensor is a partial pressure measuring device, an increase in sample
pressure will cause an increa se in reading. If the reading drops with increased flow,
conduct the leak check outlined in the troubleshooting tip above.
748374-E Rosemount Analytical September 2000
ANALYZER EXHIBITS FLOW SENSI TIVITY
.
NGA 2000 Trace Oxygen Analyzer
4-5
AINTENANCE AND TROUBLESHOOTING
M
T
HE
TO2
ANALYZER GIVES ERR ATIC AND VERY INSENSITIVE READINGS
.
Check to see that the electrolyte level is within the limits indicated on the reservoir.
Add distilled water as required. If the level is within limits, the electrolyte may have
been contaminated. Refer to section 4.2 above for proper procedure to replace
electrolyte. If replacement of electrolyte does not improve the performance of the
sensor, the sensor may have been damaged due to over-pressurization or poisoning.
Sensor replacement may be required as described in section 4.3 above.
4-6
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
R
EPLACEMENT PARTS
5
WARNING: PARTS INTEGRITY
Tampering with or unauthorized substitution of components may adversely
affect safety of this product. Use only factory-approved components for repair.
5.1 R
EPLACEMENT PAR T S
658350 Computer Analysis Board
657466 LON/Power Board
658300 Power Supply Board
902931 Sensor, Gas Flow
904675 Sensor, Oxygen 0-100 ppm
904676 Electrolyte Solution
903347 Fuse, Time-Delay 6A 250 VAC
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
5-1
EPLACEMENT PARTS
R
NOTES
5-2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
A
PPENDIX
A. M
ENU STRUCTURE
A
A.1 NGA TO2 MENU STRUCTURE INTRODUCTION
This Appendix contains a listing of the menus belonging to the TO2 Analyzer Module.
It also lists the available configuration elements, and where they are to be found.
A.2 NGA TO2 ANALYZER MODULE MENUS
From the main menu, you can access the three major menu trees.
Basic controls…allows access to range number selection and range limit, Quick Start
initiation and status, and Sleep Mode status and cancellation.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
A1
PPENDIX
A
ENU STRUCTURE
A. M
Expert Controls and set up … allows access to the Expert analyzer controls… and
Analyzer module set up… sub me nus.
The Expert Controls menu allows range number and functional control selection. It
also shows the range upper and lower limits.
A2
The Analyzer Module Setup menu allows access to the Range settings… and Display
parameters… sub menus.
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
ENU STRUCTURE
M
The Range Settings menu allows configuration of the upper and lower limit of the 4
ranges on the Analyzer Module. The maximum and minimum range limits are shown
and adjustment beyond these limits is not allowed.
The Displayed parameters are the secondary parameters shown on the Display
screen (see figure 3-1). The desired parameters can be selected from this menu.
Technical level configuration… provides access to the service and diagnostic menus
including calibration, gas scale factor, and sensor factory calibration data.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
A3
PPENDIX
A
ENU STRUCTURE
A. M
The Analyzer Manufacturing Data screen and Analyzer Module Service History screen
are both accessible from the Service menus… sub menu. These screens provide
factory set data concerning the configuration of the Analyzer Module.
A4
From the Analyzer Diagnostics menu, all analyzer health diagnostic information can be
accessed. Calibration controls are also accessible from this menu.
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
ENU STRUCTURE
M
The Primary Variable Parameters screen provides details on the sensor, and advises
the current status of the sleep mode. If the oxygen concentration exceeds 100 ppm,
the sleep mode timer begins counting. At the end of 45 minutes, if the concentration
has not dropped below 100 ppm, the Analyzer Module will go into sleep mode to
protect the sensor from damage due to high oxygen exposure.
The Advanced / Expert Calibration menu allows access to user calibration screens,
and the factory calibration data screens for viewing and data entry. The Gas Scale
Factor menu is also accessed from this menu.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
A5
PPENDIX
A
ENU STRUCTURE
A. M
It is not recommended to conduct user zero and span calibration functions since the
sensor is factory calibrated and does not exhibit detectable degradation of calibration
over time. The risk of erroneous calibration due to inaccurate gases is greater than
the potential of factory calibration chang e.
A6
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
ENU STRUCTURE
M
The Load Factory Calibration screens allow the user to enter the factory calibration
data unique to the sensor in the Analyzer Module. If the sensor is replaced, this data
must be entered from the data sheet provided with the replacement sensor. Additional
data points can be accessed by pressing the MORE softkey.
Calibration Data Display screens look identical to the Load Factory Calibration screens
except they are not editable.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
A7
PPENDIX
A
ENU STRUCTURE
A. M
The Gas Scale Factor screens allow the user to enter in information relating to the
background gas of the trace oxygen measurement. The total concentration of all
entries must add up to 100 or the unit will not compute the new adjusted gas scale
factor.
A8
The Physical Measurements screen displays sample flow information as well as
electrolyte level validity.
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
ENU STRUCTURE
M
Temperature Parameters… selection directs the user to the sensor temperature
information.
It is recommended that the user not conduct temperature calibration of the sensor in
the field.
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
A9
PPENDIX
A
NOTES
ENU STRUCTURE
A. M
A10
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
A
PPENDIX
B. U
SER INTERFACE HELP
B
USER INTERFACE HELP INSTRUCTIONS
This section provides a means of rapidly finding any desired function or configuration
factor in the menu system.
The NGA menu system is necessarily complex due to the wide variety of configuration
possibilities available with the NGA architecture.
This section consists of a series of titles describing the function or configuration
desired, with a series of menu titles that show the path taken to that function.
The menu selections are sometimes abbreviated; Basic Controls is referred to as
Basic for example, Expert controls and setup as Expert, and Technical level as well as
Technical.
MENU ITEMS
ITEM PATH NOTES
Add a service date
Alarm enablin g
Analyzer specific
alarms
Analyzer diagnostics
Analyzer specific
controls (remote)
Binding
Displayed parameters
Technical - Service menus - Service
history - Analyzer module history - Add
service date!
Technical – Listing of all modules – Analog
I/O – Select I/O module - Relay status
Expert - Auxiliary module setup - Select
Analog output module – Alarm conditions
Technical - Diagnostic menus - Analyzer
module diagnostics
Expert - Auxiliary module setup - Select
Analog output module – Input line control
Technical - System setup – Module
Binding
Expert - Analyzer module setup -
v 2.3 only
v 2.3 only
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
B1
PPENDIX
A
SER INTERFACE HELP
B. U
ITEM PATH NOTES
Displayed parameters
Technical - Diagnostic menus - Analyzer
Electrolyte level
module diagnostics - Physical
measurements
Exit sleep mode Basic
Technical - Diagnostic menus - Analyzer
Gas scale factor
module diagnostics - Calibration
parameters - Gas scale factor
Initiate quick start Basic
Last service date
List of detected NGA
modules
Load factory calibration
data
Technical – Service menus – Service
history – Analyzer module history
Technical - Listing of all modules
Technical - Diagnostic menus - Analyzer
module diagnostics - Calibration
parameters
Technical – Service menus Manufacturing data - Analyzer module
Manufacturing data
Maximum range
Minimum range
data
Expert - Analyzer module setup - Range
settings
Expert - Analyzer module setup - Range
settings
Technical – Diagnostic menus – Analyz er
Power supply voltages
module diagnostics - Power supply
voltages
Quick start status Basic
User updated
Jumps from there
into their diagnostic
screens
Required when
changing sensor
Maximum range
upper limit
Minimum range
upper limit
Range number
selection
Range lower limits
Range upper limits
Basic
Expert - Analyzer module setup - Range
settings
Expert - Analyzer module setup - Range
settings
Technical - Service menus – Service
Record service codes
history - Analyzer module history - List
notes
Reset system Technical - System setup – System reset
B2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
PPENDIX B. USER INTERFACE HELP
A
ITEM PATH NOTES
Resolution of main
reading
Sensor current,
temperature
Technical - System setup – Main display
configuration - Display resolution
Technical - Diagnostics menus - Analyzer
module diagnostics - Primary variable
parameters
Sleep mode status Basic
Technical - Diagnostics menus - Analyzer
Sleep mode timer
module diagnostics - Primary variable
parameters
Software diagnostics
Software revision level
Technical - Diagnostic menus - Control
module diagnostics
Technical - Service menus Manufacturing data - Control module data
Technical - Diagnostic menus - Analyzer
Span calibration
module diagnostics - Calibration
parameters - User span calibration
Technical - Service menus -
Tag number
Manufacturing data - Analyzer module
data
Highly recommend
not to be conducted
in the field
User editable
Test relay operation
View sensor calibration
data
Zero calibration
Technical – Listing of all modules – Analog
I/O – Select I/O module - Relay status
Technical - Diagnostic menus - Analyzer
module diagnostics - Calibration
parameters - Calibration data display
Technical - Diagnostic menus - Analyzer
module diagnostics - Calibration
parameters - User zero calibration
Highly recommend
not to be conducted
in the field
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
B3
PPENDIX
A
NOTES
SER INTERFACE HELP
B. U
B4
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
A
PPENDIX
C. TO2 I
DENTIFICATION
M
ATRIX
C
Each analyzer is configured per the customer sales order. Below is the TO2 sales
matrix which lists the various configurations available.
To identify the configuration of an analyzer, locate the analyzer name-rating plate.
The 12-position sales matrix identifier number appears on the analyzer name-rating
plate.
TA NGA 2000 TO2 TRACE OXYGEN ANALYZER MODULE
Code CONFIGURATION IDENTIFIER
A20 RANGE: 0 - 100 ppm
B20 RANGE: 0 - 100 ppm with X-GAS Sensor
X99 Special Ranges
Code CABLE SELECTION
A Standard (3 ft LON and 3 ft interconnect AM to Platform)
B System (10 ft LON and 10 ft interconnect AM to 25A PS)
Z None
Code MOUNTING CONFIGURATION
A Base Plate Assembly
Z None (utilize mounting ears on AM)
Code NO SELECTION
ZZZZZ None
TA A20 B Z ZZZZZ (EXAMPLE)
748374-E Rosemount Analytical September 2000
NGA 2000 Trace Oxygen Analyzer
C1
PPENDIX
A
NOTES
C. TO2 I
DENTIFICATION MATRIX
C2
September 2000 Rosemount Analytical 748374-ENGA 2000 Trace Oxygen Analyzer
Material Safety Data Sheet
748377-B
PRODUCT:
PART NUMBER:
LECTROLYTE
E
904676
1
24 HOUR EMERGENCY TELEPHONE NUMBER:
CHEMTREC (800) 424-9300
SECTION I - GENERAL
Distributor: Rosemount Analytical Inc.
4125 East La Palma Avenue, CA 92807-1802
714-986-7600
Chemical name and synonyms
Trade name and synonyms
Chemical family
Formula
CAS Number
SECTION II – HAZARDOUS INGREDIENTS
Hazardous mixtures of other liquids,
solids or gases
SECTION III – PHYSICAL DATA
Boiling point
Melting point
Vapor pressure
Vapor density (air=1)
Specific gravity (H2O=1)
% Volatile by volume
Evaporation rate (H2O=1)
Solubility in water
Appearance and odor
Potassium Hydroxide Solution, 1N
DF-E05
Inorganic Base
KOH (5%-6% by weight in water and inorganic salts)
na
none
104.5°C
-3.5°C
16.1mm Hg @ 20 °C
NA
1.15
NA
NA
Complete
Colorless liquid, no odor
SECTION IV – FIRE AND EXPLOSION HAZARD DATA
Flash point
Extinguishing media
Special fire fighting procedures
Unusual fire and explosion hazards
Non-combustible
Dry chemical, carbon dioxide, water spray or foam
Extinguish using agents indicated, do not use water directly on
material.
Not combustible. Highly corrosive. Contact with some metals may
generate hydrogen gas.
SECTION V – REACTIVITY DATA
Stability
Conditions to avoid
Incompatibility (material to avoid)
Hazardous decomposition or
byproducts
Hazardous polymerization
1
Is contained in Model TO2 Ship Kit
4125 East La Palma Avenue • Anaheim, California 92807-1802 • TEL 714-986-7600 • FAX 714-577-8006
September 2000 • 748377-B • Printed in USA
Unstable
May ignite combustibles (wood, paper, oil, etc.)
Acids, flammable liquids, organic halogens, metals (aluminum,
lead, tin, zinc)
Thermal decomposition products may include corrosive fumes of
Potassium Oxide and toxic Oxides of Carbon.
Will not occur.
Rosemount Analytical Inc.
M
ATERIAL SAFETY DATA SHEET
SECTION VI – HEALTH HAZARD DATA
Threshold limit value
Routes of entry
Effects of overexposure
Emergency & first aid procedures
NA
Inhalation, eyes, skin, ingestion
Corrosive to tissue. Inhalation of mist may cause respiratory tract
damage,
Eyes - Corrosive, immediately flush wi th wate r for at l ea st 15 minu tes.
Call a physician.
Skin - Corro sive , remove contaminated clothing. Wash with soap or
mild detergent and large a mounts of water at least 1 5 minute s. Call a
physician.
Inhalation - Corrosive, remove to fresh air i mmediately . Get medi cal
attention immediately .
Ingestion - Corrosive/toxi c, gi ve water or milk immediately and allow
vomiting to occur, keeping head bel ow hips to prevent aspir ation. Get
medical attention immediatel y.
SECTION VII – SPILL OR LEAK PROCEDURE
Steps to be taken in case material is
released or spilled
Waste disposal method
Neutralize with dilute acid, take up with sand or other absorbent
material and place in container for disposal.
Disposal must be in accordance with standards applicable to
generators of hazardous waste, 40CFR262. EPA Hazardous
waste number D002.
SECTION VIII – SPECIAL PROTECTION INFORMATION
Respiratory protection
Ventilation
Protective gloves
Eye protection
Other protective equipment
NA
mechanical (general)
rubber gloves
splash proof or dust-resistant safety goggles with face shield
appropriate protective clothing and equipment to prevent
possibility of skin contact. Eye wash fountain, safety shower.
748377-B
SECTION IX – SPECIAL PRECAUTIONS
Precautions to be taken in handling
and storing
Other precautions
Store away from incompatible substances.
none
SECTION X – TRANSPORTATION
DOT Hazard Classification 49CFR172.101: Potassium Hydroxide Solution, Class 8, UN1814, Packing Group
II
♦ Exceptions: When transported by Air 49CFR173.154 (b) (1) + (2)
♦ Exceptions: By Motor Vehicle or Rail Car 49CFR173.154 (d) (1)
IATA Hazard Classification 4.2: Potassium Hydroxide Solution, Class 8, UN1814, Packing Group II
Exceptions: 2.8 (Ltd. Qty.)
NOTICE: WHILE ROSEMOUNT ANALYTICAL BELIEVES THE INFORMATION CONTAINED HEREIN IS
VALID AND ACCURATE, ROSEMOUNT ANALYTIC AL MAKES NO W ARRANTY OR REPRESENTATION AS
TO ITS VALIDITY, ACC URACY, OR CURRENCY. ROSEMOUNT ANALYTICAL SHALL NOT BE LIABLE OR
OTHERWISE RESPON SIBLE IN AN Y WAY FOR U SE OF EIT HER THIS INFO RMATION OR T HE MAT ERIAL
TO WHICH IT APPLIES. DIS PO SAL O F HAZ ARDO US M AT ERIA L M A Y B E SU BJE CT TO FEDERAL, STAT E,
OR LOCAL LAWS AND/OR REGULATIONS.
Sheet 2 of 2
September 2000
