Manual Supplement

00809-0400-4697, Rev AA
April 2003

Interfacing Analog Transmitters to

OUNDATION

F

INSTALLING THE MODEL 848T WITH AN ANALOG CONNECTOR

The analog connector converts the 4–20 mA signal to a 20–100 mV signal. The
Model 848T transmitter uses a standard mV sensor type to output the scaled 4–20
mA signal onto the F

Use the following steps when installing the Model 848T with the analog connector:

1. The Model 848T, when ordered with option code S002, comes with four
analog connectors. Replace the standard connector with the analog
connector on the desired channels.

2. Wire one or two analog transmitters to the analog connector according to
Figure 1-1. There is space available on the analog connector label for
identification of the analog inputs.

NOTE

Power supply should be rated to support the connected transmitter(s).

™

Fieldbus

OUNDATION fieldbus.

3. If the analog transmitters can communicate using the HART protocol, the
analog connectors are supplied with the ability to switch in a 250 ohm resistor
for HART communication (see Figure 1-2).

One switch is supplied for each input (top switch for “A” inputs and bottom
switch for “B” inputs). Setting the switch in the “ON” position (to the right)
bypasses the 250 ohm resistor. Terminals are provided for each analog input
to connect a HART communicator for local configuration.

Model 848T

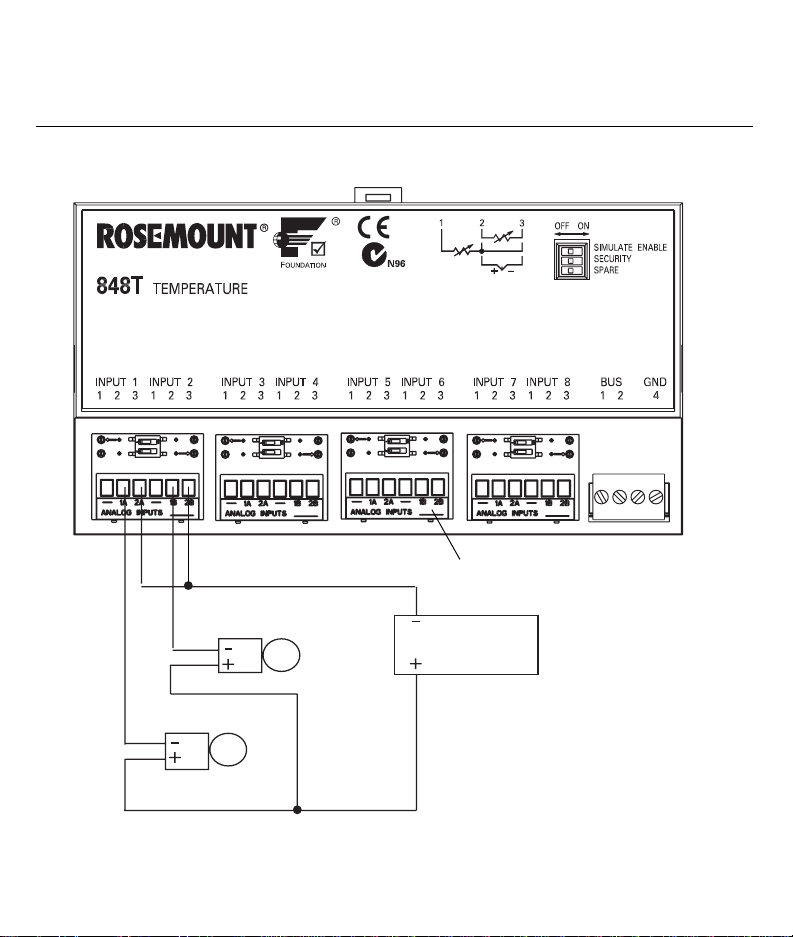

Figure 1-1. Model 848T Analog Input Wiring Diagram

CHANHASSEN, MN. USA

MODEL 848TNA5S001T1
SERIAL NO. 555999
FACTORY CAL. 0 to 100 DEG. C
FOUNDATION TYPE 11X BUS-POWERED
TT-101

Analog Transmitters

Power

Manual Supplement

00809-0400-4697, Rev AA

April 2003

Analog Input

S-2
