Manual Supplement

00809-1800-4530, Rev AB

Rosemount™ 5300 Level Transmitter

Single Probes with Cold Temperature
Option Code BR5

July 2020

Manual Supplement July 2020

Contents

Safety messages...........................................................................................................................3

About the cold temperature option code BR5.............................................................................. 4

Perform Trim Near Zone...............................................................................................................7

Surface threshold for option code BR5......................................................................................... 9

Surface threshold for option code BR5 in combination with High Level Supervision....................11

2 Rosemount 5300 Level Transmitter

July 2020 Manual Supplement

1 Safety messages

WARNING

Failure to follow safe installation and servicing guidelines could result in
death or serious injury.

• Only qualified personnel should install the equipment.

• Use the equipment only as specified in this guide and the Reference

Manual. Refer to the Rosemount 5300 Level Transmitter Reference

Manual for more instruction.

Explosions could result in death or serious injury.

• Installation of device in an explosive environment must be in accordance

with appropriate local, national, and international standards, codes, and
practices.

• Ensure device is installed in accordance with intrinsically safe or non-

incendive field practices.

Electrical shock could cause death or serious injury.

• Avoid contact with the leads and terminals. High voltage that may be

present on leads can cause electrical shock.

• Ensure the mains power to the transmitter is off and the lines to any

other external power source are disconnected or not powered while
wiring the transmitter.

Process leaks could result in death or serious injury.

• Handle the transmitter carefully.

• If the process seal is damaged, gas could escape from the tank when

removing the transmitter head from the probe.

WARNING

Physical access

Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.

Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.

Manual Supplement 3

Manual Supplement July 2020

2 About the cold temperature option code BR5

The Rosemount 5300 Level Transmitter with option code BR5 has been
factory configured for best performance in cold ambient temperature, down
to -67 °F (-55 °C).

This document describes option code BR5 factory settings and required
commissioning, for Rosemount 5300 with single probes.

For general Rosemount 5300 information, refer to the Rosemount 5300
Level Transmitter Product Data Sheet.

High Level Supervision (HLS)

Specific instructions for HLS in combination with option code BR5 are
described in this document. For general HLS information and instructions,
refer to the High Level Supervision Manual Supplement.

2.1 Required commissioning

The Trim Near Zone function shall be performed during commissioning, see
section Perform Trim Near Zone for further instructions.

2.2 Specification

Rosemount 5300 option code BR5 specification is listed in Table 2-1.

Table 2-1: Rosemount 5300 Option Code BR5 Specification

Option code BR5

Firmware version Requires version 2.M0 or later

Surface threshold factory settings • Surface threshold for option code BR5 -

Ambient temperature range during
operation for HLS

Start-up time See Start-up sequence

(1) Requires calibration performed within proper ambient temperature range, see

High Level Supervision Manual Supplement.

4 Rosemount 5300 Level Transmitter

factory settings

• Surface threshold for option code BR5 in

combination with HLS - factory settings

-67 °F to 158 °F (-55 °C to +70 °C)

(1)

$

&

%

)

(

'

July 2020 Manual Supplement

2.3 Start-up sequence

The Rosemount 5300 start-up time is normally <40 s. However for devices
with option code BR5 at temperatures below -40 °F (-40 °C), the start-up
sequence is delayed for five minutes with an undefined current value. Refer
to Figure 2-1 and Figure 2-2.

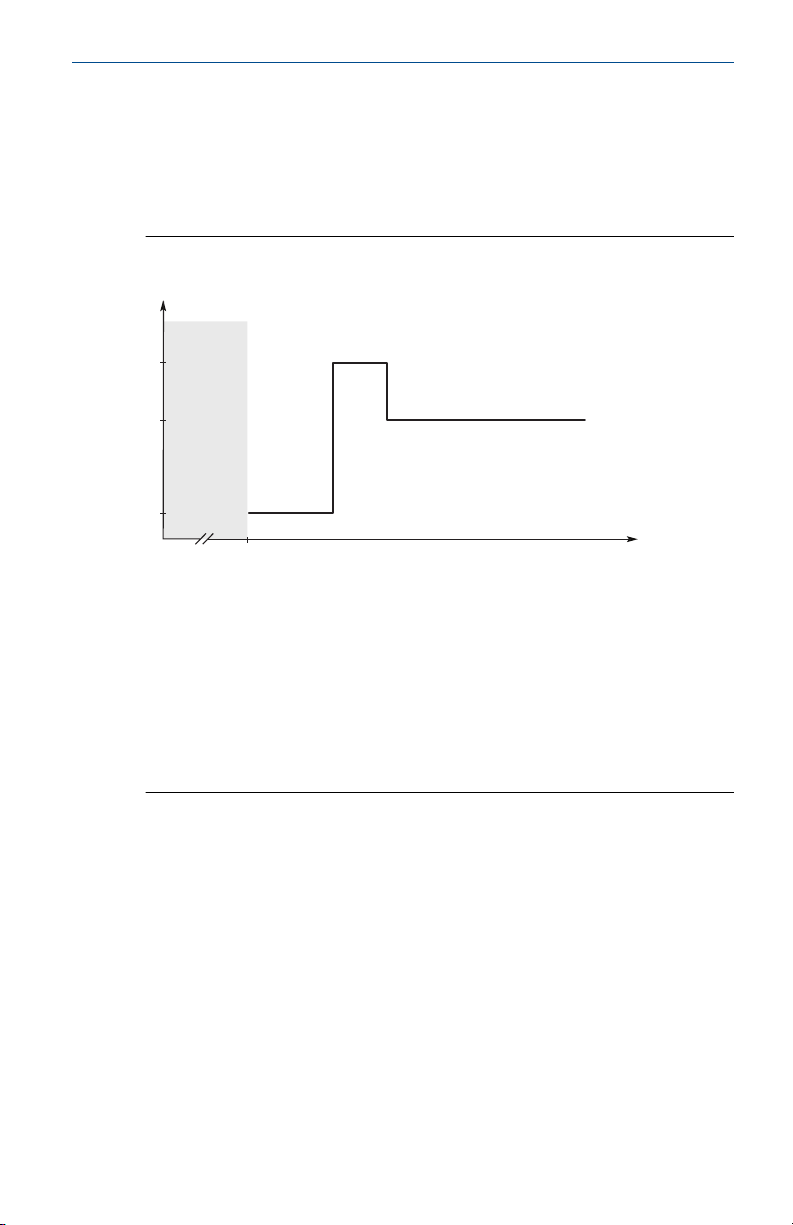

Figure 2-1: Start-Up Sequence, Alarm Mode High

A. Current, mA
B. Time, s
C. High Alarm current (Rosemount or Namur value, according to

configuration)

D. Actual level value

E. Low Alarm current (Rosemount or Namur value, according to

configuration)

F. For option code BR5 at temperatures below -40 °F (-40 °C): Five minutes

delay with an undefined current value

Manual Supplement 5
