Rosemount Manual Supplement: Emerson™ Smart Wireless Gateway User Interface Terminology Guide for Firmware Revision 4.5 Manuals & Guides

Manual Supplement

00809-1600-4420, Rev AA September 2015

Emerson™ Smart Wireless Gateway User Interface Terminology Guide for Firmware Revision 4.5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

Home page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2

About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Network Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5

Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6

System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13

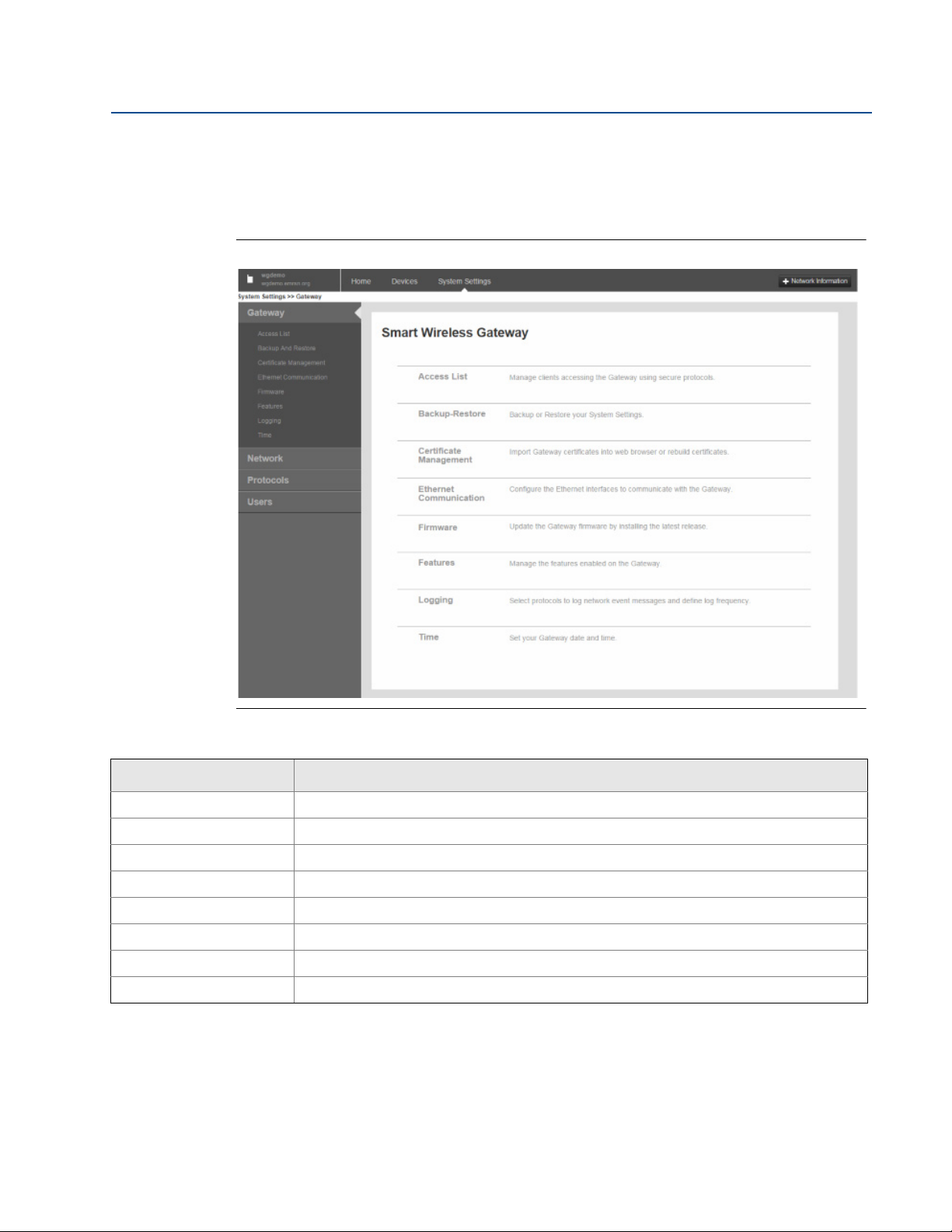

System Settings > Gateway pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

System Settings > Network pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25

System Settings > Protocols pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

System Settings > Users pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 41

Redundancy option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 43

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

1.1 Introduction

The Gateway 4.5 Firmware is intuitive and easy to use. The updated design and layout provides actionable information at your fingertips with the ability to view high level network overview summaries on the home page and make real-time decisions for fast predictive maintenance.

This document describes the terms, user fields, and parameters used in the Smart Wireless Gateway Web Based User Interface.

To download a version of the new firmware, follow this link:

http://www2.emersonprocess.com/en-US/plantweb/wireless/Smart-Wireless-Downloads/ Pages/Smart-Wireless-Downloads.aspx

Note

Bold items listed within the tables below indicate clickable links in the software.

1.2 Home page

Manual Supplement

00809-1600-4420, Rev AA

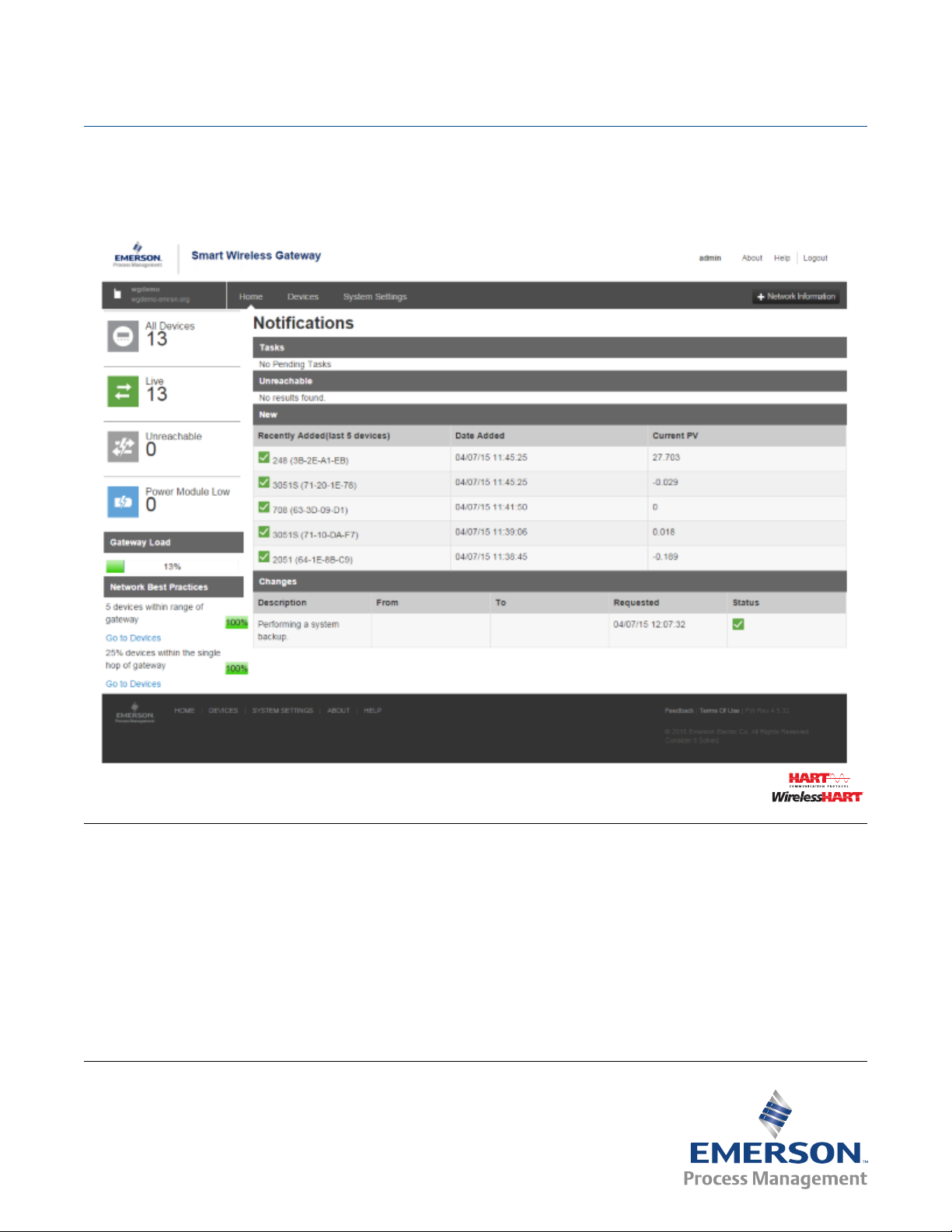

Figure 1-1. Home

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

Table 1-1. Home

Item Description

Devices Click to view a list of all devices participating in the network.

System Settings Click to view and edit all the accessible settings in the gateway.

Network Information Click to view network information and when adding a new device to the network.

About

Help Click to find additional help documentation.

Logout Allows user to sign out of the user interface

Gateway Status Icon Displays gateway name and indicates when gateway is in simplex or redundant mode

All Devices Click to view all devices participating in the gateway’s network.

Live Click to view all devices currently online (does not include unreachable devices).

Unreachable Click to view all devices that have dropped offline or are not publishing as configured.

Power Module Low Click to view all devices signaling that their power module is low (needs to be replaced).

Gateway Load Indicates percentage of available gateway bandwidth currently in use

Network Best Practices

Click to find detailed gateway information such as serial numbers, version number, system up time, etc.

Provides snap shot of the most critical network best practices (for more information, see the Systems Engineering Guide on www.emerson.com)

5 devices within range of gateway

25% devices within the singe hop of gateway

Indicates percentage based on number of devices directly communicating with the gateway (once five or more devices are within range, percentage will remain at 100%)

Indicates percentage based on number of devices directly connected to the gateway (if at least 25% of network devices have gateway connection, this value will be 100%)

Ta sk s Provides information on recommended/required actions

New Newly added devices (includes last five devices added to the network)

Recently Added (last 5 devices)

Last five devices added to the network

Date Added Date and time device was added

Current PV Last received primary process variable (PV) value

Changes Most recent changes to the gateway and network

Description Details of any changes made

From Previous value of any parameters involved in a change

To Current value of any parameters involved in a change

Requested Date and time action was performed

Status Change status (either successful or not)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

1.3 About

Figure 1-2. About

Manual Supplement

00809-1600-4420, Rev AA

Table 1-2. About

Item Description

Gateway Final Assembly Number Serial number supplied during final device assembly

Gateway Serial Number Unique software serial number used by firmware to identify that particular gateway

Gateway Version

System Up Time Amount of time the system has been up and running

Software version currently installed on the gateway (to check for updated firmware, see www.emerson.com)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

1.4 Network Information

Figure 1-3. Network Information

Table 1-3. Network Information

September 2015

Item Description

Network ID

Common Join Key

Turn on Active Advertising

Network Settings Click to view full list of the network settings.

Unique ID used for this particular gateway network. Each field device must be configured with this ID to join this gateway's wireless network. The gateway pushes this information to all devices when changed if they are connected to the network.

Gateway's current common join key (password that allows devices to securely join wireless network). Each device must be configured with this key to join this gateway's wireless network.

Toggles the method gateway uses to search for new network devices. Devices will join without this feature however enabling this will make the process faster (automatically enabled if a device drops offline).

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

1.5 Devices

Figure 1-4. Devices

Manual Supplement

00809-1600-4420, Rev AA

Table 1-4. Devices

Item Description

Device sorting and filtering tools

Device Icons Allows user to filter device by their current state (Live, Unreachable, Power Module, or All Devices)

First dropdown Allows user to select number of devices shown on the page

Second dropdown

Third dropdown Allows user to select sort display order based on device name

Fourth field Allows user to search list for a particular device name (or sub-string contained within the name)

Name Name of the device

Last Update Time stamp of last measurement received from the wireless field device

Allows user to filter device by their current state (Live, Unreachable, Power Module Low, or All Devices)

Value of the HART® primary variable (1st variable), typically the primary function of the device (e.g. temperature, pressure, level)

Value of the HART secondary variable (2nd variable), additional function of the device (e.g. temperature, pressure, level)

Value of the HART tertiary variable (3rd variable), additional function of the device (e.g. temperature, pressure, level)

Value of the HART quaternary variable (4th variable), additional function of the device (e.g. temperature, pressure, level)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

1.5.1 Devices > Open Devices bar

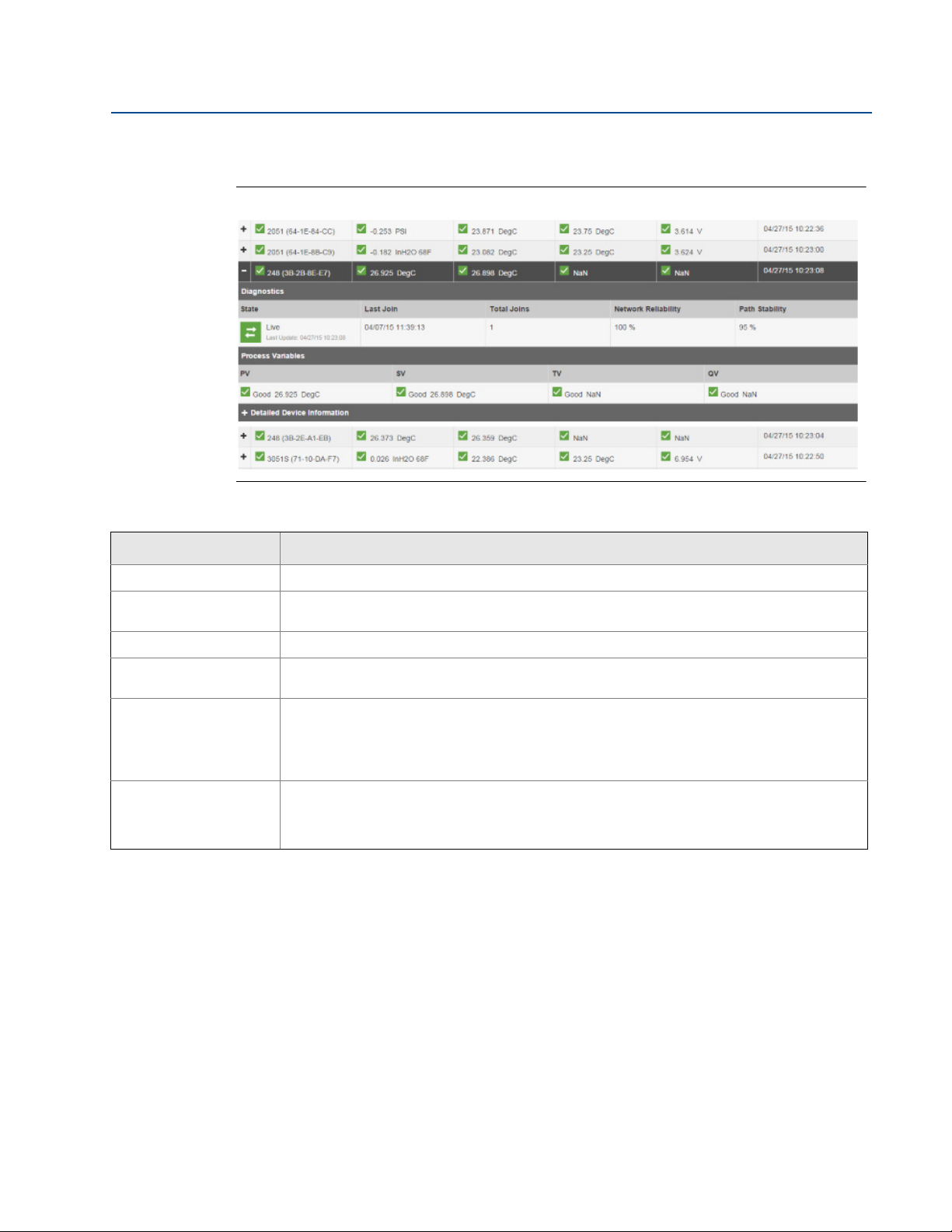

Figure 1-5. Open Devices

September 2015

Table 1-5. Open Devices

Item Description

Diagnostics Displays useful information for troubleshooting devices

State

Last Join Date and time field device made its last successful join

Total Joins

Network Reliability

Path Stability

Current device status (possibilities values include live, late, stale, joining, low voltage, unreachable, or unknown)

Number of times field device has been successfully added to the network after being unreachable

Percentage of packets transmitted by a device and received by the gateway (100.0% reliability indicates every expected data packet was received). This value represents reliability of the wireless network to deliver data and is rounded to the nearest tenth. This is a lifetime statistic that is reset via a gateway restart; it is possible to have a small number of late/missed updates over a long time and still have 100.0% reliability.

Percentage of transmitted packets successfully reaching their destination over a given path (two neighboring devices) calculated over the most recent 15-minute period. Network reliability is always higher than path stability due to automatic re-transmission using multiple paths and different RF channels.

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

Manual Supplement

00809-1600-4420, Rev AA

1.5.2 Devices > Open Devices bar > Detailed Device Information

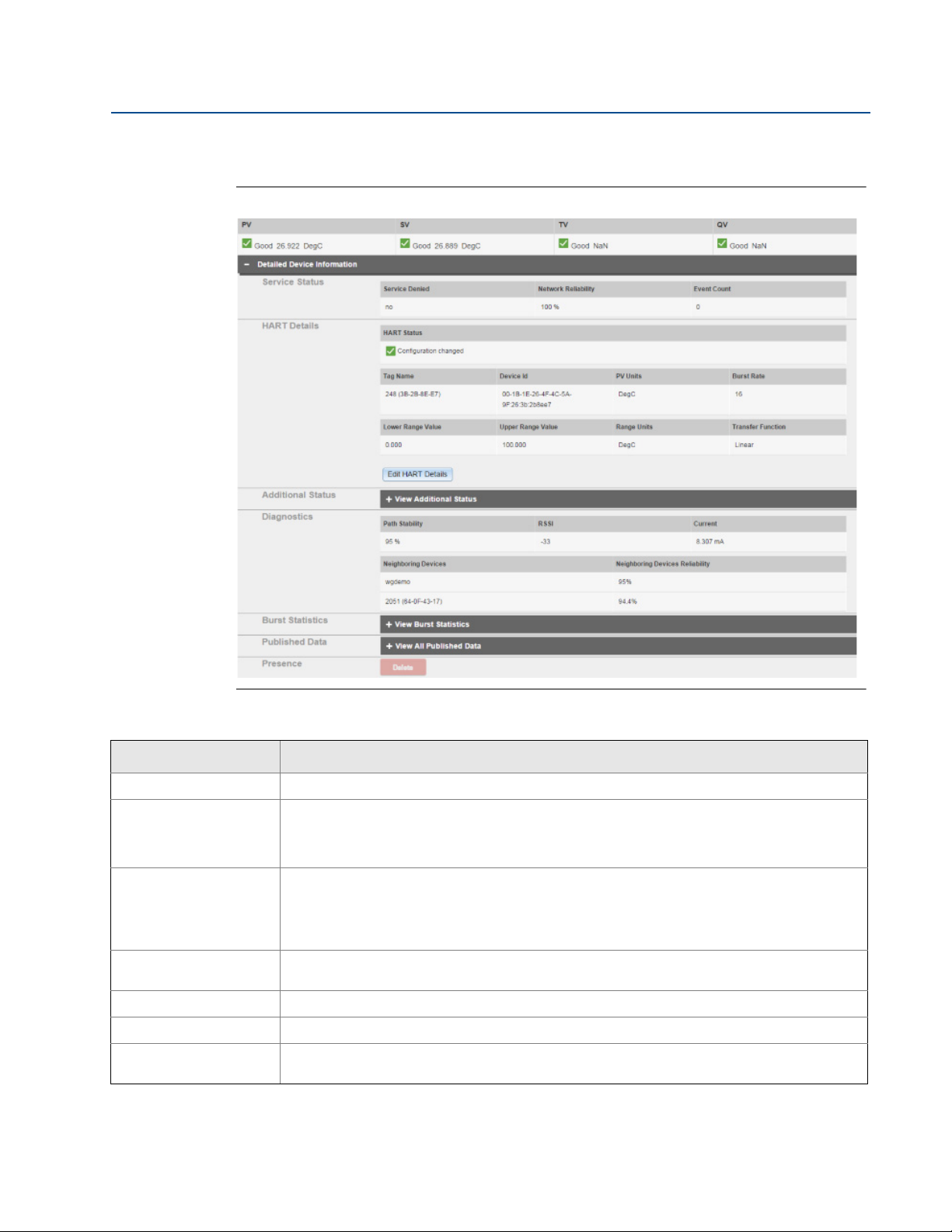

Figure 1-6. Detailed Device Information

Table 1-6. Detailed Device Information

Item Description

Service Status Provides information regarding that device's bandwidth

Indicates whether the field device has been denied bandwidth because a) too many devices are

Service Denied

Network Reliability

Event Count

HART Details Displays device's HART information

HART Status Indicates overall field device HART status (if not green, troubleshooting may be required)

Tag Nam e

on the WirelessHART® network or b) the device has asked for an update rate not currently supported by the wireless network (this can occur if there is a 'pinch-point' in the network that is at its maximum load)

Indicates the number of times this action has occurred (number of times any enabled events are triggered displays here)

32-character HART long tag (for HART 7 devices) or 32-character HART message (for HART 5 devices)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Table 1-6. Detailed Device Information

Item Description

Unique device identification number, all WirelessHART devices should begin with 00-1E-1B (next

Device ID

PV Units Units of measure of the primary variable (PV)

Burst Rate

four digits represent device type, the last six digits vary from device to device). This name cannot be changed; it represents the unique device the same way a serial number would. Keep track of this number if using the Access Control list.

Interval the field device transmits it’s measurement data to the gateway (set based on how often the user wants the device to send data to the gateway). Some field devices burst multiple messages and at different rates. Burst rates under one minute are reported in seconds white rates one minute or greater are reported in hh:mm:ss. Also known as update rate.

September 2015

Lower Range Value

primary variable (when primary variable reaches the Lower Range Value, the percent of range will be 0%)

User-configured upper range point used to calculate percent of range value based on current

User-configured lower range point used to calculate percent of range value based on current

Upper Range Value

primary variable (when primary variable reaches the Upper Range Value, the percent of range will be 100%)

Range Units Engineering unit of measure associate with the lower and upper range points

Transfer Function Describes algorithm used to compute the percent of range for the primary variable

Edit HART Details Enable this to edit the features in the table (remember to save after editing)

View Additional Status Expand to view additional field device statuses

Diagnostics General information provided by the device and its neighbors

Percentage of transmitted packets successfully reaching their destination over a given path (two

Path Stability

neighboring devices) calculated over the most recent 15-minute period. Network reliability is always higher than path stability due to automatic re-transmission using multiple paths and different RF channels.

Received signal strength indication (RSSI) for the field device and neighbor (average calculated

RSSI

over the most recent 15-minute period). It represents how well that device is hearing other devices or the gateway within a network during a receive. Ideally, this number is greater than -79 dBm (e.g. a -45 dBm device has a greater signal strength than -79 dBm).

Current Loop current controlled or measured by the field device

Other nearby field devices with connections to this device (also known as neighbors). This

Neighboring Devices

indicates the HART tag of other devices within range of that device or gateway and will populate up to three of the strongest devices.

Neighboring Devices Reliability

Path stability of the neighboring devices.

View Burst Statistics

View All Published Data

Delete

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Expand to view all burst statistics for the field device and status of communication between the device and gateway

Expand to view all published parameters for the field device (each parameter can be mapped in the protocols section)

Removes the device completely from the network and from all gateway host and user interfaces (device must be offline for this function to work)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

Manual Supplement

00809-1600-4420, Rev AA

1.5.3 Devices > Open Devices bar > Detailed Device Information > View Additional Status

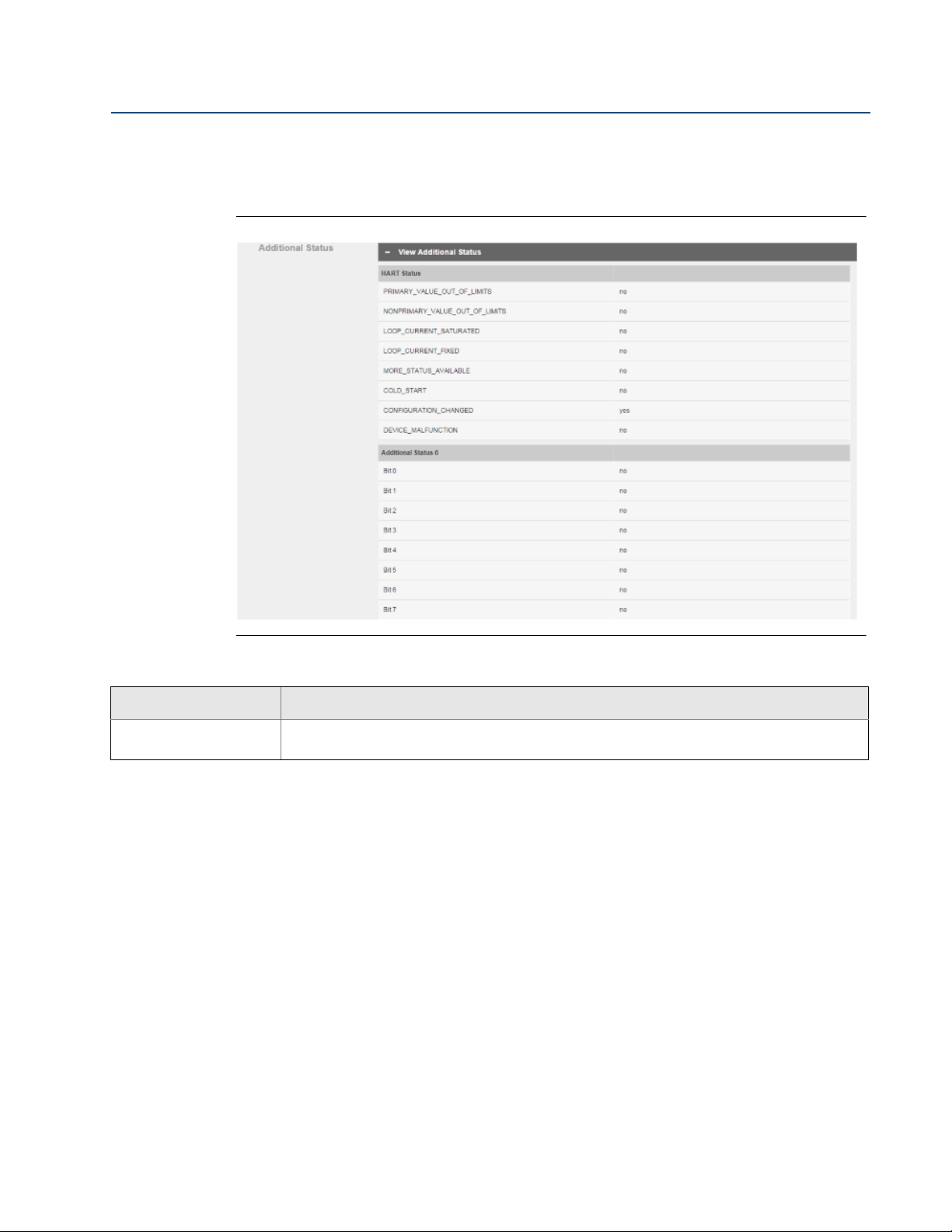

Figure 1-7. View Additional Status

Table 1-7. View Additional Status

Item Description

Additional Status

Displays detailed status information published by the field device (reference the device manufacturer's documentation for additional information)

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

1.5.4 Devices > Open Devices bar > Detailed Device Information > View Burst Statistics

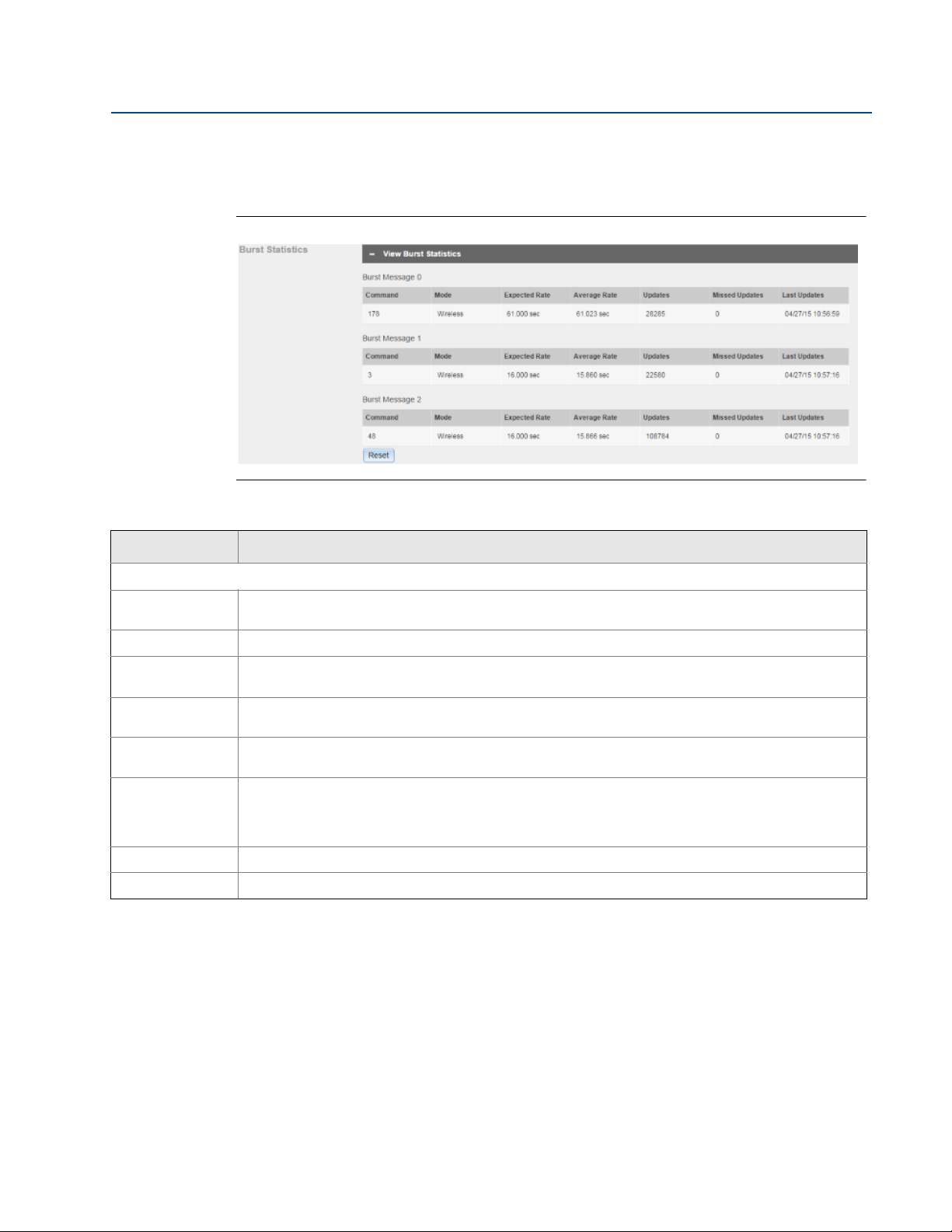

Figure 1-8. View Burst Statistics

Table 1-8. View Burst Statistics

Item Description

Burst Statistics

Command

Mode Device interface used to publish the command

Expected Rate

Average Rate

Updates

Missed Updates

Last Updates Time stamp of the last burst message received

Reset Clears all previous burst statistics shown, and resets all values in this section

HART command number published by the device (a field device may publish multiple commands at different burst intervals)

Expected time interval between successive burst messages.

Average time interval between burst messages calculated for all messages received since the device initially joined the network or since burst statistics were reset by the user

Number of updates received from the device since initially joining the network or since user reset the burst statistics

Number of updates device has missed since initially joining the network or since user reset the burst statistics. Missed updates can be caused by the device falling off line (e.g. during power module replacement) or poor network reliability. Packets arriving late or out of sequence are also counted as missed.

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

Manual Supplement

00809-1600-4420, Rev AA

1.5.5 Devices > Open Devices bar > Detailed Device Information > View All Published Data

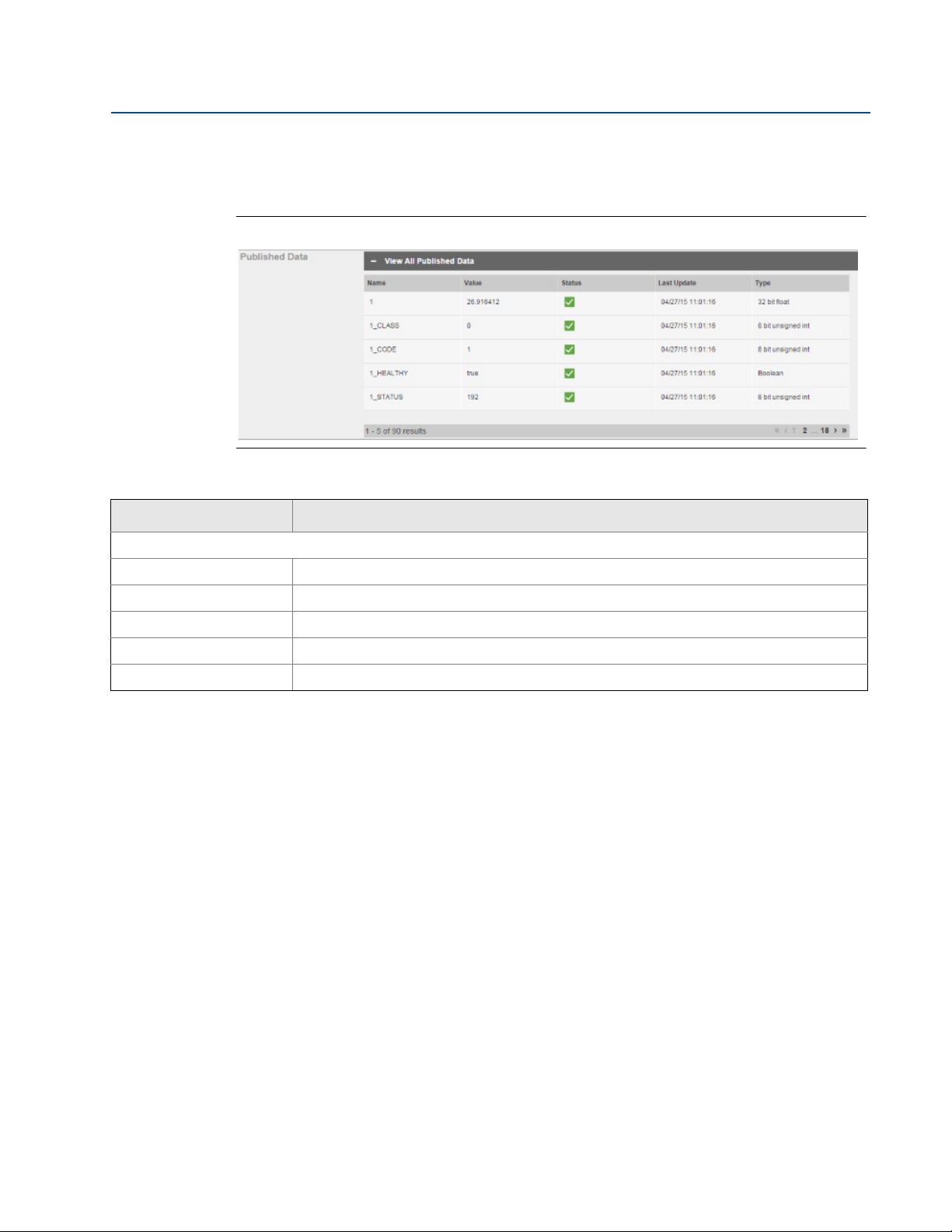

Figure 1-9. View All Published Data

Table 1-9. View All Published Data

Item Description

Published Data

Name Parameter name

Val ue Current parameter value

Status HART status indicator for this parameter

Last Update Time stamp of last parameter value received from the wireless field device

Typ e Data type of parameter

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

Manual Supplement

00809-1600-4420, Rev AA

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

1.6 System Settings

1.6.1 System Settings > Gateway

Figure 1-10. Gateway

September 2015

Table 1-10. Gateway

Item Description

Access List Click to manage clients accessing the gateway using secure protocols.

Backup and Restore Click to backup or restore system settings.

Certificate Management Click to import gateway certificates into web browser or rebuild certificates.

Ethernet Communication Click to configure Ethernet interfaces to communicate with the gateway.

Firmware Click to update the gateway firmware by installing the latest release.

Features Click to manage features enabled on the gateway.

Logging Click to select protocols for logging network event messages and define log frequency.

Time Click to set gateway date and time.

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

September 2015

1.6.2 System Settings > Network

Figure 1-11. Network

Manual Supplement

00809-1600-4420, Rev AA

Table 1-11. Network

Item Description

Channels Click to control radio frequencies used by the WirelessHART network.

Network Settings Click to configure WirelessHART network settings (includes network name, network ID, and join key).

Access Control List Click to configure individual join keys for each device.

Network Statistics Click to display current wireless network statistics.

Smart Wireless Gateway Terminology Guide for Firmware Rev 4.5

+ 32 hidden pages

Rosemount Manual Supplement: Emerson™ Smart Wireless Gateway User Interface Terminology Guide for Firmware Revision 4.5 Manuals & Guides

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Introduction

1.2 Home page

1.3 About

1.4 Network Information

1.5 Devices

1.6 System Settings
