Emerson™ Smart Wireless Gateway 4.6 User
Guide
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1
®
HART
adapter support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1
Custom user security roles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Stale data configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
1.0 Introduction
This document is designed to assist users with the new navigation within the Smart Wireless
Gateway Firmware. Only the updates for this version of the firmware are included in this
document.
2.0 HART® adapter support
2.1 System Settings>Protocols>HART
The HART adapter control has returned to the firmware in version 4.6. The control allows all
the HART adapters on the network to be shown as devices on the device page. This will also
change the device count on the page if there are any adapters on the network.
Figure 1-1. HART Gateway Set up Page
Emerson Smart Wireless 4.6
1
Emerson Smart Wireless 4.6
June 2016
3.0 Custom user security roles
3.1 System Settings>Users>User Accounts
The user functions Executive, Operator, and Maintenance all have customizable User
Privileges. Admin privileges can be selected for each user function type in the table on the
User Accounts page. To see the list of customizable roles, log in as the admin user.

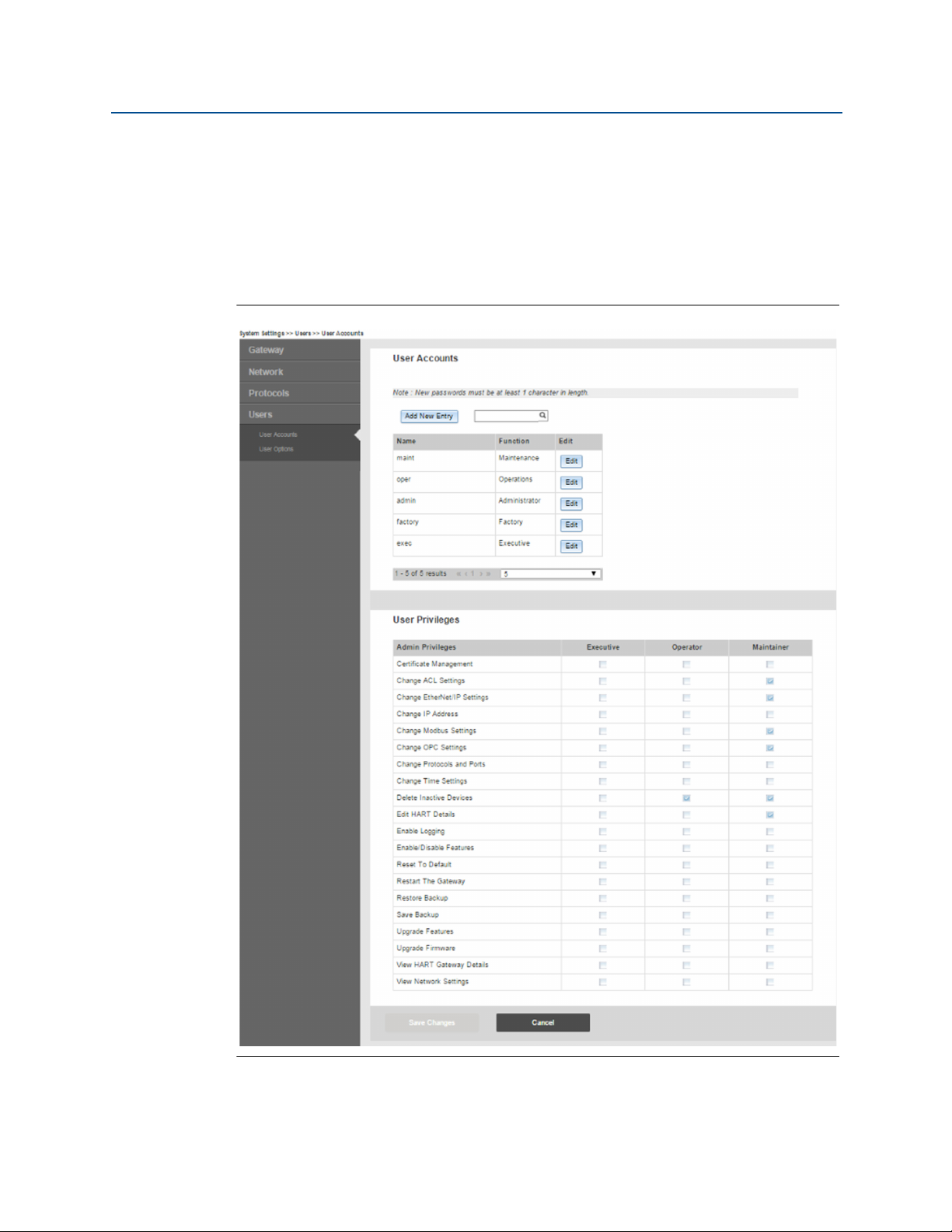

Figure 1-2. User Accounts Page
