Manual Supplement
00809-0200-2410, Rev AB

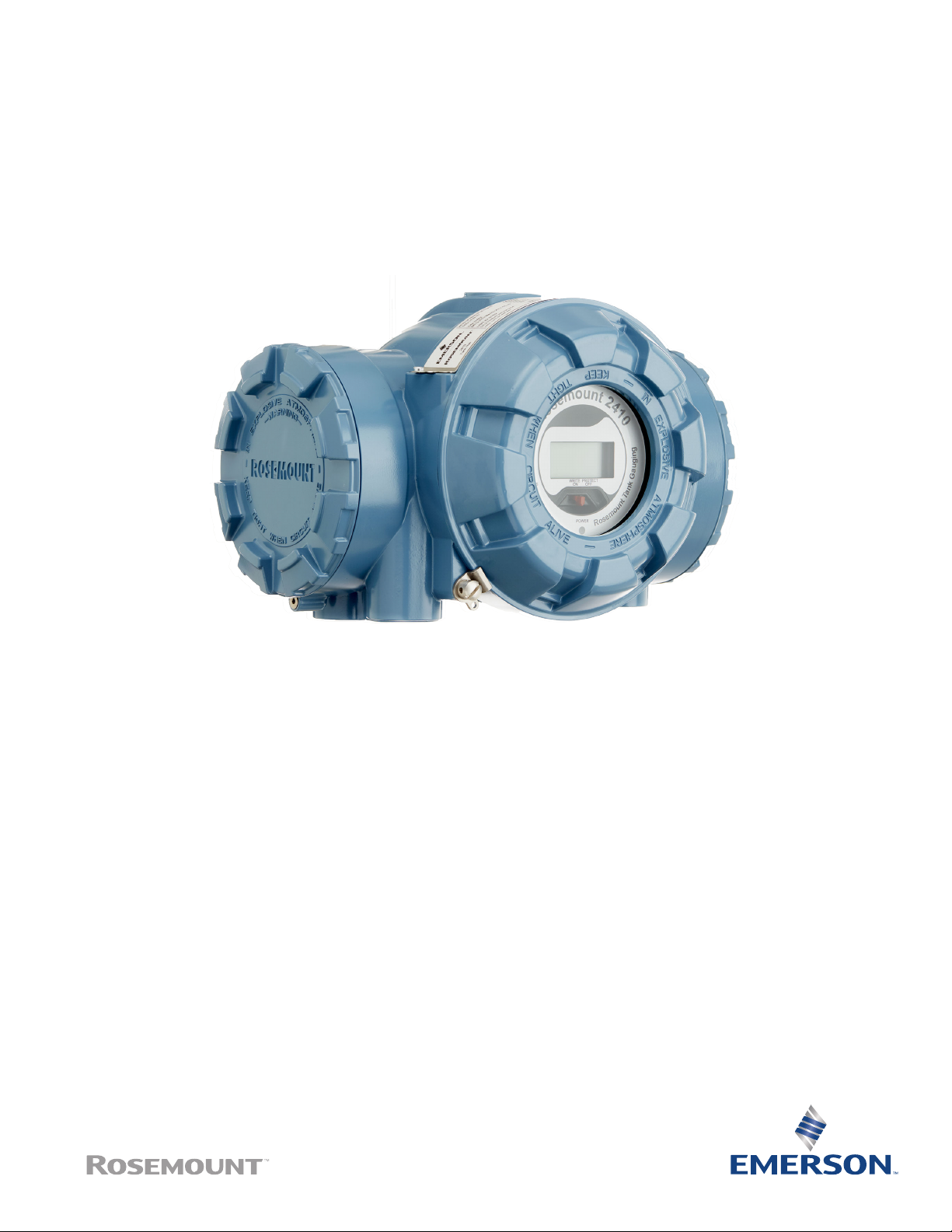

Rosemount™ 2410 Tank Hub
Upgrade Instruction for Primary Bus and Secondary Bus
January 2022
Safety messages
WARNING
Failure to follow these installation guidelines could result in death or serious injury.
• Ensure only qualified personnel perform the installation.
• Use the equipment only as specified in this manual. Failure to do so may impair the protection provided by the equipment.
Explosions could result in death or serious injury.
• Verify that the operating environment of the device is consistent with the appropriate hazardous locations certifications.
• To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.
Electrical shock could cause death or serious injury.
• Use extreme caution when making contact with the leads and terminals.
• Ensure the mains power to the device is off and the lines to any other external power source are disconnected or not powered
while wiring the device.
WARNING
Any substitution of non-recognized parts may jeopardize safety. Repair (e.g. substitution of components) may also jeopardize
safety and is not allowed under any circumstances.Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize safety. Unauthorized changes that interfere with the integrity
of the welds or flanges, such as making additional perforations, compromise product integrity and safety. Equipment ratings and
certifications are no longer valid on any products that have been damaged or modified without the prior written permission of
Emerson. Any continued use of product that has been damaged or modified without the written authorization is at the customer’s
sole risk and expense.
2
Manual Supplement Contents
00809-0200-2410 January 2022
Contents
Chapter 1 Introduction.............................................................................................................. 5
Chapter 2 The upgrade kit..........................................................................................................7
Chapter 3 Installation procedure................................................................................................9
Chapter 4 Upgrade procedure.................................................................................................. 11
Rosemount 2410 Tank Hub 3
Contents Manual Supplement
January 2022 00809-0200-2410
4 Emerson.com/Rosemount
Manual Supplement Introduction
00809-0200-2410 January 2022
1 Introduction
This instruction describes how to upgrade a Primary/Secondary Fieldbus on existing
Rosemount 2410 Tank Hub.
Note
The upgrade must be documented. This includes stating the serial number of the device,
date of upgrade, type of upgrade and name of the person performing the upgrade.
Rosemount 2410 Tank Hub 5
Introduction Manual Supplement
January 2022 00809-0200-2410
6 Emerson.com/Rosemount
