UVS & UVIRS Flame Detectors

Junction Box with HART Interface

Part Number: MAN-0119

HART COMMUNICATION

with

& HART Flame Junction Box interface

FLAME DETECTORS

USER MANUAL

Rev 1 August 2014

IMPORTANT INFORMATION

This manual is for informational purposes only. Although every effort has been made to ensure the correctness of the information, technical inaccuracies may occur and periodic changes may be made without notice. Net Safety Monitoring Inc., assumes no responsibility for any errors contained within this manual.

If the products or procedures are used for purposes other than as described in the manual, without receiving prior confirmation of validity or suitability, Net Safety Monitoring Inc., does not guarantee the results and assumes no obligation or liability.

No part of this manual may be copied, disseminated or distributed without the express written consent of Net Safety Monitoring Inc.

Net Safety Monitoring Inc., products are carefully designed and manufactured from high quality components and can be expected to provide many years of trouble free service. Each product is thoroughly tested, inspected and calibrated prior to shipment. Failures can occur which are beyond the control of the manufacturer. Failures can be minimized by adhering to the operating and maintenance instructions herein. Where the absolute greatest of reliability is required, redundancy should be designed into the system .

Warranty

Net Safety Monitoring Inc., warrants its sensors against defective parts and workmanship for a period of 24 months from date of purchase; other electronic assemblies for 36 months from date of purchase. No other warranties or liability, expressed or implied, will be honoured by Net Safety Monitoring Inc. Contact Net Safety Monitoring Inc or an authorized representative for details.

Contact Information

Net Safety Monitoring Inc. 2721 Hopewell Place NE Calgary, AB Canada T1Y 7J7 Telephone: (403) 219-0688 Fax: (403) 219-0694

www.emersonprocess.com/safety

E-mail: safety.csc@emerson.com

Table of Contents

Important Information ................................................................................................................................... 1

Warranty ....................................................................................................................................................... 1

Contact Information ...................................................................................................................................... 1

SECTION 1: INTRODUCTION .................................................................................................................. 4

1.2 Unpack ................................................................................................................................................ 5

1.3 Mounting ............................................................................................................................................. 5

1.4 Installation Considerations .............................................................................................................. 5

1.5 Wiring ................................................................................................................................................. 5

1.6 Sealing................................................................................................................................................. 6

1.7 HART for Flame Dimensional Drawing ............................................................................................. 6

Figure 1: Dimensional Drawing (Measurements are in Inches and Millimeters) ................................ 6

SECTION 2: Operation ................................................................................................................................ 6

2.1 Current Loop power configurations .................................................................................................... 7

SECTION 3: Configuring the system .......................................................................................................... 8

3.1 Terminals designations for HART and HART/Relay model Junction Box ........................................ 8

Figure 2: HART Flame Junction Box board ......................................................................................... 8

3.1.1 Configuring the relays of HART /Relay Junction Box ................................................................ 9

SECTION 4: HART Connection and Communication .............................................................................. 10

4.1 HART Communicator connection .................................................................................................... 10

Figure 4: Direct HART Communication ............................................................................................ 10

Figure 5: Remote HART Communication via HART Port separation board ..................................... 11

4.2 HART Communication Protocol ...................................................................................................... 12

4.2.1 HART Menu Tree (Structure) .................................................................................................... 13

SECTION 5: Wiring and communication diagrams .................................................................................. 14

5.1 Current Loop power block diagrams ................................................................................................ 14

Figure 6: Current sink and source wiring. ........................................................................................... 14

5.2 Typical Field wiring diagrams .......................................................................................................... 15

5.2.1 IR3S-AH/AHR Non-Isolated current output wiring .................................................................. 15

Figure 7: IR3S-AHR Non Isolated current output wiring diagram .................................................... 15

5.2.2 IR3S-AH/AHR Isolated current output wiring .......................................................................... 16

Figure 8: IR3S-AHR Isolated current output wiring diagram............................................................. 16

5.2.3 UV/IRS-AH/AHR & UVS-AH/AHR Non-Isolated current output wiring ............................... 17

Figure 9: UV/IRS -AHR & UVS-AHR Non- Isolated current output wiring diagram ...................... 17

5.2.4 UV/IRS-AH/AHR & UVS-AH/AHR Isolated current output wiring ........................................ 18

Figure 10: UV/IRS-AHR & UVS-AHR Isolated current output wiring diagram ............................... 18

SECTION 6: Maintenance ......................................................................................................................... 19

6.1 Troubleshoot ..................................................................................................................................... 19

6.2 Spare Parts / Accessories .................................................................................................................. 19

6.3 How to Return Equipment ................................................................................................................ 20

Appendix A: Electrostatic Sensitive Device (ESD) .................................................................................... 21

Appendix B: Resistance Table .................................................................................................................... 22

Appendix C: Specifications and Approvals for HART Flame Junction Box ............................................ 23

SECTION 1: INTRODUCTION

1.1 Description

With the increase in demand for effective, interactive and non-intrusive systems, Net Safety has released its HART for Flame product providing HART communication with distinct flame detectors. This involves HART Communication with the Phoenix Triple IR, UV/IR and UV Flame Detectors along with the Hydrogen Flame Detection line of UV and UV/IR Flame Detectors.

The introduction of HART Communication with flam e detecto rs allows convenient access to the Flame Detector’s features and provides easy on the spot monitoring. This is important for effective and reliable maintenance. Access to the HART menu structure and functions of the flame detector is gained by using the HART Communicator. This may also be done using and any other HART communication devices that are compatible with the enhanced device descript ion language (EDDL) of Net Safety’s Flame Detectors.

Product components:

This HART for Flame product has two component products; a flame detector with Analog /AnalogDigital output alongside a HART Communication Output inter fa ce . Th is HART Outpu t ci rcuitry is enclosed in Net Safety’s Explosion Proof Multipurpose Junction Box and allows users to choose AnalogHart or Analog-Hart with Relays outputs. The HART for Flame product is available in Aluminum and Stainless Steel.

Choice of flame detector:

The model flame detector used with the HART Output interface will depend on users’ choice and nature of the application. In specific cases users may want to detect hydrogen based fi re s in which case the UV/IRS-H2-A/AR or the UVS-H2-A/AR flame detector based HART for Flame product would be suitable. In other cases users may want to use either the IR3S-A/AD, UV/IRS-A/AR or the UVS-A/AR flame detector based HART for Flame product to detect Hy drocarbon based fires. Refer to available models offered below.

Available Model HART for Flame Product (this includes HART Flame Junction Box interface):

UV/IRS-AH/AHR, UVS-AH/AHR, UV/IRS-H2-AH/AHR, UVS-H2-AH/AHR ATEX models: UV/IRS-AH-X/AHR-X, UVS-AH-X/AHR-X, UV/IRS-H2-AH-X/AHR, UVS-H2-AHX/AHR-X Both CSA/FM and ATEX models are available in Aluminum and Stainless Steel.

Available Model HART Flame Junction Box interface:

JB-MPHF-A (HART output, Aluminum version), JB-MPHF-S (HART output, Stainless Steel version), JB-MPHFR-A (HART & Relay output, Aluminum version), JB-MPHFR (HART & Relay output, Stainless Steel version).

System configuration:

After choosing the type of flame detector based on the HART for Flame product, the system should be configured. This is done via DIP Switch 2 (SW2) located on the HART Flame Junction Box PCB. See Table 1 when configuring the system.

1.2 Unpack

Carefully remove all components from the packaging. Check components against the enclosed packing list and inspect all components for obvious damage such as broken or loose parts. If you find any components missing or damaged, notify the representative or Net Safety Monitoring immediately.

1.3 Mounting

The HART Flame Junction Box has three ¾ inch-14 NPT conduit entries. The flame detector will be connected to one of these entries. Connection of conduit and cable glands to remaining conduit entries should be done so by use of appropriate tools. A 6mm Hex Key is required for installing or removing conduit entry plugs. The junction box has mounting holes for installing directly on a wall or to a pole as desired. The junction box is supplied with one ATEX stopping plug.

1.4 Installation Considerations

• Point flame detector toward where the flame is expected.

• Ensure an unobstructed view of the area to be monitored.

• Employ more than one flame detector and HART Flame Junction Box to ensure the hazard is fully

covered.

• Mount the flame detector and HART Flame Junction Box a few feet (about 1 metre) below the ceiling

so the flame detector can respond before being blocked by smoke accumulation at the ceiling.

• If dense smoke is likely to accumulate prior to flame (as in an ele ctric al fire ), supp lem ent flame

detector(s) with other protection such as Net Safety Monitoring Airborne Particle Monitor.

• The flame detector should be accessible for cleaning the window and reflector surfaces.

• Tilt the flame detector downward a minimum of 10 to 20

could obscure the detector’s viewing window.

• Securely mount the flame detector and HART Flame Junction Box so as to reduce vibration as much

as possible.

• When located outside, the flame detector’s sensitivity can be reduced by heavy fog, rain and/or ice.

• Consider shortening the time delay settings when smoke is expected to accumulate before or during a

fire. See relevant manual.

• Reduce sensitivity setting if false alarms, related to surrounding activities, occur.

• When installed near or on water (such as an off shore platform), be sure to take into account the low

horizon level when tilting detector downward.

For more on installation considerations on flame detectors refer to specific flame detector manual.

° to reduce dirt and dust accumulation wh ich

1.5 Wiring

Warning Wiring must comply with all applicable regulations relating to the installation of

electrical equipment in a hazardous area and is the responsibility of the installer. Proper shielding and grounding procedures, for the specific area must be followed. Consult local electrical code and /or qualified personnel before w iring .

Warning Do not open the HART Flame Junction Box or flame detector in a classified area (Do

not open when an explosive atmosphere may be present). The area should be de-classified prior to opening.

1.6 Sealing

Warning To fully avoid any environmental exposure (water ingress), the use of seals is

recommended, especially for installations that use high-pressure or steam cleaning devices in proximity to the HART Flame Junction Box and flame detector.

It is recommended that explosion-proof drains and conduit breathers be used. Changes in temperature and barometric pressure can cause 'breathing' which allows moist air to enter conduit. Joints are seldom enough to prevent 'breathing'.

Consult qualified personnel on sealing requirements relating to equipment, application and local regulations.

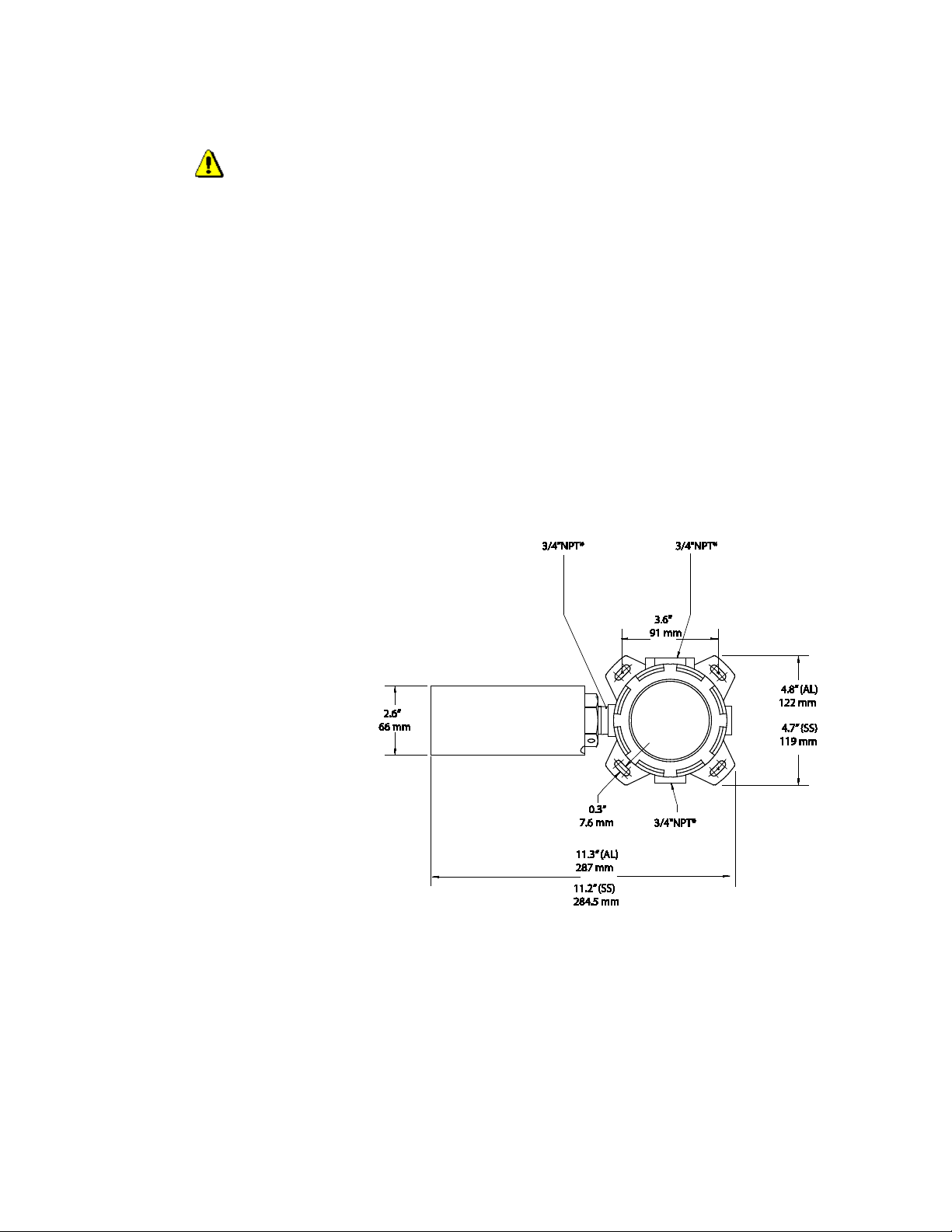

1.7 HART for Flame Dimensional Drawing

The drawing below shows the dimensions of the Aluminum (AL) and Stainless Steel (SS) models of the flame detector with HART Flame Junction Box enclosure.

Figure 1: Dimensional Drawing (Measurements are in Inches and Millimeters)

Note: CSA/FM model shown ATEX model has an ATEX locking collar

* M20 & ½” NPT threads also available

SECTION 2: Operation

The model flame detector will determine the model HART for flame unit being used. Specific combinations of SW2 positions (DIP Switch 2 positions) have been assigned for each available type of flame detector. Selecting DIP Switch 2 positions correctly will determine the operation of the unit. See Table 1 and Figure 2 or Figure 3. Once the system has been powered up, confirm operation by referencing the specific Flame Detector manual. Meter Test Jacks are available on the HART Flame Junction box PCB to check and monitor the current output (4-20mA). If the HART / Relay model junction box is being used, note that the relays are dry contacts and are Form C SPDT rated 5 Amperes at 30 VDC/250AC.

If the HART Communicator is to be placed in the current loop, ensure that the HART Jumper (J5) is in the factory default position (pins jumpered), then place a 250 Ohm resistor in the current loop and connect the communicator across the resistor. Refer to Figure 2 or Figure 3 along with Current Loop power block diagrams and / or Typical Field wiring diagrams. If the HART Communicator is to be used with the HART Port connector for direct or remote communication, see Section 4.

2.1 Current Loop power configurations

The two current loop power configurations available are the Non –Isolated power configuration and the Isolated power configuration. When using the Non-Isolated power configuration (Non-Isolated current loop), the Non –ISO / ISO select jumper (JP1) located on the HART Flame Junction box PCB should remain in its default pos it io n . ‘ISO’ on the power terminal side is not used in this configuration. For the Isolated power configuration (Isolated current loop), JP1 should be placed over pin 1 and pin 2 and a separate power supply used to supply +24VDC to ‘ISO’ on the power terminal side. See figure 2 or figure 3 for JP1’s location. Also refer to Current Loop power block diagrams and / or Typical Field wiring diagrams.

Note: By factory default JP1 (Non –ISO / ISO select jumper) is connected across pin 2 and pin 3 (NonIsolated power configuration). Also by factory default the HART Jumper (J5) is connected (pins are jumpered).

SECTION 3: Configuring the system

Flame Detector models and DIP Switch 2 (SW2) positions

Flame Detector models

(SW2)Position 1

(SW2)Position 2

IR3S-AD

UV/IRS-A, UVIRS-H2-A

OFF

UVS-A, UVS-H2-A

OFF

IR3S-A

OFF

Flame Detector Terminal (J4)wiring

Terminal J4

Designation/Function

V+ / VDC(+)

S_IN / 4-20 mA signal

MVI / MVI Test

A/communication

B/communication

GND / VDC(-)

ISO / Isolated V+

Power Terminal (J1) wiring

Terminal J1

Designation/Function

V+ / Power (+)

ISO/ Isolated V+

RRS/Alarm Reset

MVI / MVI Test

S_OUT / 4-20 mA signal

GND / Power (-)

SW2- detector configuration DIP Switch

JP1- to select Non-Isolated or

configuration.)

J5- HART Jumper (default

When using the specific model flame detectors (IR3S-AD, UV/IRS-A, UV/IRS-H2-A, UVS-A, UVS-H2A, IR3S-A), corresponding SW2 (detector configuration DIP Switch located on HART Flame Jbox PCB) positions have to be set. The correct combinations of position 1 and position 2 have to be made in order to have proper operation of the flame detec tor and HART or HART/Relay model Junction Box. See Table 1 and Figure 2 or Figure 3.

Table 1: Configuring HART Flame Junction Box for specific Flame Detector

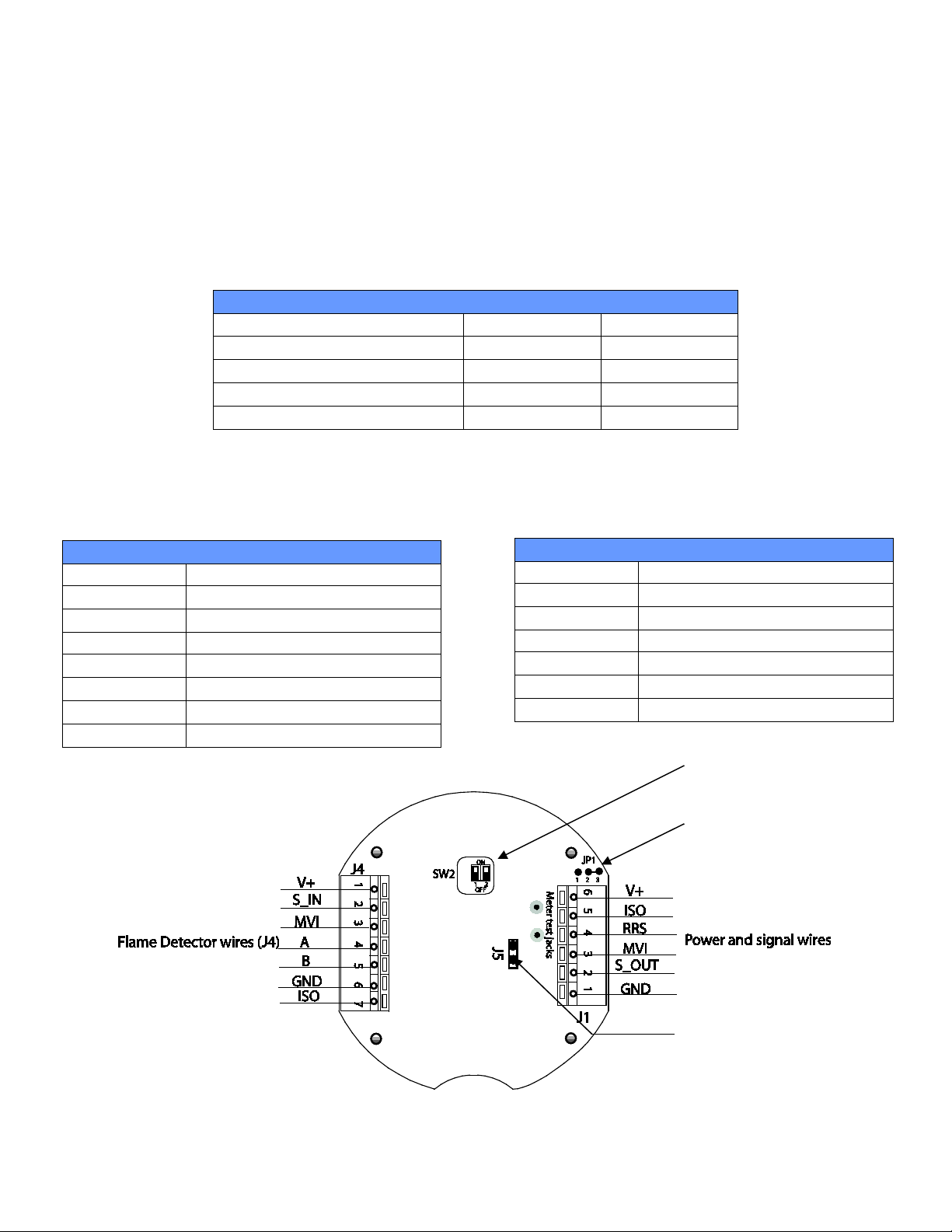

3.1 Terminals designations for HART and HART/Relay model Junction Box

Table 2: Flame Detector wiring Table 3: Power and output wiring

Figure 2: HART Flame Junction Box board

Isolated power configurations (default position - Pin 2 & 3 jumpered for Non-Isolated power

position - pins are jumpered)
