Rosemount™ FS-UVIR-975
Reference Manual
00809-0800-4975, Rev DD
May 2022
Safety information
WARNING
All individuals who have or will have responsibility for using, maintaining, or servicing this product must read this manual
thoroughly.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This could
be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access
by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
NOTICE
The device is not field-repairable due to the meticulous alignment and calibration of the sensors and the respective circuits.
Do not attempt to modify or repair the internal circuits or change their settings, as this will impair the system's performance and
void the Emerson product warranty.
Legal notice
The device described in this document is the property of Emerson.
No part of the hardware, software, or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any form or by any means, without prior written permission from
Emerson.
While great efforts have been made to ensure the accuracy and clarity of this document, Emerson assumes no liability resulting
from any omissions in this document or from misuse of the information obtained herein. The information in this document has
been carefully checked and is believed to be entirely reliable with all of the necessary information included. Emerson reserves the
right to make changes to any products described herein to improve reliability, function, or design and reserves the right to revise
this document and make changes from time to time in content hereof with no obligation to notify any persons of revisions or
changes. Emerson does not assume any liability arising out of the application or any use of any product or circuit described herein;
neither does it convey license under its patent rights or the rights of others.
2
Warranty
1. Limited Warranty . Subject to the limitations contained in Section 2 (Limitation of Remedy and Liability) herein, Seller
warrants that (a) the licensed firmware embodied in the Goods will execute the programming instructions provided by
Seller; (b) that the Goods manufactured by Seller will be free from defects in materials or workmanship under normal use
and care; and (c) Services will be performed by trained personnel using proper equipment and instrumentation for the
particular Service provided. The foregoing warranties will apply until the expiration of the applicable warranty period. The
flame simulator is warranted against defective parts and workmanship for 24 months from the date of purchase, the
battery for 12 months, and the charger for 6 months. Products purchased by Seller from a third party for resale to Buyer
(Resale Products) shall carry only the warranty extended by the original manufacturer. Buyer agrees that Seller has no
liability for Resale Products beyond making a reasonable commercial effort to arrange for procurement and shipping of
the Resale Products. If Buyer discovers any warranty defects and notifies Seller thereof in writing during the applicable
warranty period, Seller shall, at its option, (i) correct any errors that are found by Seller in the firmware or Services; (ii)
repair or replace FOB point of manufacture that portion of the Goods found by Seller to be defective; or (iii) refund the
purchase price of the defective portion of the Goods/Services. All replacements or repairs necessitated by inadequate
maintenance; normal wear and usage; unsuitable power sources or environmental conditions; accident; misuse; improper
installation; modification; repair; use of unauthorized replacement parts; storage or handling; or any other cause not the
fault of Seller, are not covered by this limited warranty and shall be replaced or repaired at Buyer's sole expense and Seller
shall not be obligated to pay any costs or charges incurred by Buyer or any other party except as may be agreed upon in
writing in advance by Seller. All costs of dismantling, re-installation, freight and the time and expenses of Seller's
personnel and representatives for site travel and diagnosis under this limited warranty clause shall be borne by Buyer
unless accepted in writing by Seller. Goods repaired and parts replaced by Seller during the warranty period shall be in
warranty for the remainder of the original warranty period or 90 days, whichever is longer. This limited warranty is the
only warranty made by Seller and can be amended only in a writing signed by an authorized representative of Seller. The
limited warranty herein ceases to be effective if Buyer fails to operate and use the Goods sold hereunder in a safe and
reasonable manner and in accordance with any written instructions from the manufacturers. THE WARRANTIES AND
REMEDIES SET FORTH ABOVE ARE EXCLUSIVE. THERE ARE NO REPRESENTATIONS OR WARRANTIES OF ANY KIND,
EXPRESSED OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH
RESPECT TO ANY OF THE GOODS OR SERVICES.
Limitation of Remedy and Liability SELLER SHALL NOT BE LIABLE FOR DAMAGES CAUSED BY DELAY IN PERFORMANCE.
2.
THE REMEDIES OF BUYER SET FORTH IN THE AGREEMENT ARE EXCLUSIVE. IN NO EVENT, REGARDLESS OF THE FORM OF
THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY,
OTHER TORT, OR OTHERWISE), SHALL SELLER'S LIABILITY TO BUYER AND/OR BUYER'S CUSTOMERS EXCEED THE PRICE TO
BUYER OF THE SPECIFIC GOODS MANUFACTURED OR SERVICES PROVIDED BY SELLER GIVING RISE TO THE CLAIM OR
CAUSE OF ACTION. BUYER AGREES THAT IN NO EVENT SHALL SELLER'S LIABILITY TO BUYER AND/OR BUYER'S CUSTOMERS
EXTEND TO INCLUDE INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES. THE TERM "CONSEQUENTIAL DAMAGES"
SHALL INCLUDE, BUT NOT BE LIMITED TO, LOSS OF ANTICIPATED PROFITS, REVENUE, OR USE AND COSTS INCURRED
INCLUDING WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF BUYER'S CUSTOMERS.
Release history
Revision
A June 2016 First release
B August 2017 Updated certification information.
C March 2018 Updated approval information and charging instructions.
DA February 2020 Updated approval marking.
DB September 2020 Updated battery power specifications, reorganized sections, changed
DC June 2021 Updated approvals.
DD November 2021 Added UK CA certification and reorganized chapters.
Date Revision History
terminology, and added section on RoHS directive.
3
4
Reference Manual Contents
00809-0800-4975 May 2022
Contents
Chapter 1 Introduction.............................................................................................................. 7
1.1 Flame simulator compatibility with flame detector models..........................................................7
1.2 Features and benefits...................................................................................................................7
1.3 Principles of operation................................................................................................................. 7
1.4 Structure..................................................................................................................................... 8
Chapter 2 Operation................................................................................................................ 11
2.1 Unpacking................................................................................................................................. 11
2.2 Operate..................................................................................................................................... 11
2.3 Simulator status.........................................................................................................................12
2.4 Charge the battery.....................................................................................................................12
2.5 Replace the battery....................................................................................................................13
Chapter 3 Troubleshoot........................................................................................................... 15
3.1 LED flashes three times in three consecutive cycles....................................................................15
3.2 LED flashes three times in five consecutive cycles...................................................................... 15
3.3 LED does not turn on..................................................................................................................15
3.4 Flame simulator seems to work properly but does not activate the flame detector....................16
Chapter 4 Maintenance............................................................................................................17
Chapter 5 Ordering information...............................................................................................19
Chapter 6 Technical specifications............................................................................................21
6.1 Detection ranges per detector/flame simulator......................................................................... 21
6.2 General specifications................................................................................................................21
6.3 Electrical specifications..............................................................................................................21
6.4 Physical specifications................................................................................................................21
6.5 RoHS directive........................................................................................................................... 22
6.6 Electromagnetic interference (EMI) compatibility......................................................................22
Chapter 7 Product certifications...............................................................................................23
7.1 ATEX and IECEx.......................................................................................................................... 23
7.2 UK CA........................................................................................................................................ 23
7.3 TR CU.........................................................................................................................................23
7.4 InMetro......................................................................................................................................23
7.5 Certification instructions........................................................................................................... 24
Chapter 8 Technical support.....................................................................................................27
Rosemount FS-UVIR-975 5
Contents Reference Manual
May 2022 00809-0800-4975
6 Emerson.com/Rosemount
Reference Manual
00809-0800-4975 May 2022
Introduction
1 Introduction
To comply with local standards and jurisdictional authorities, perform end-to-end loop
testing of fire protection alarm systems, including detectors, periodically. Many safety
authorities and plant managers of high value/high risk assets and facilities insist on
quarterly end-to-end testing of their entire fire protection systems using an external flame
simulator.
Rosemount Flame Simulators emit electromagnetic radiation in a unique sequential
pattern corresponding to and recognizable as fire by the specific Rosemount 975 Flame
Detector. This allows the detector to be tested under real fire conditions without the
associated risk of an open flame.
Rosemount Flame Simulators are ATEX certified EExd for use in Zone 1 and Zone 2
hazardous areas and are powered by rechargeable lithium ion batteries. When fully
charged, the flame simulator will operate for at least 100 tests without recharging.
The Rosemount Flame Simulator is the only non-hazardous and safe method to test the
flame detector's sensors, internal electronics, alarm activation software, cleanliness of the
viewing window/lens, wiring integrity, actual relay activation, and proper functionality of
any other outputs used (mA, RS-485, or HART®).
1.1 Flame simulator compatibility with flame detector models
The Rosemount FS-UVIR-975 Flame Simulator is compatible with the following:
Table 1-1: Flame simulator compatibility
Simulator Part number Compatible with
Ultraviolet infrared flame simulator FS-UVIR-975 Rosemount 975UR and
975UF
1.2 Features and benefits
• Used for maintenance and testing of flame detectors.
• Can activate the flame detector from a distance of 23 ft (7 m).
• Includes rechargeable battery.
• Operates at least 100 tests before the battery must be recharged.
1.3 Principles of operation
The simulator includes a reflector which accumulates the infrared energy and directs it
towards the detector. The Rosemount FS-UVIR-975 also includes a sight in order to point
the simulator to the center of the flame detector.
Rosemount FS-UVIR-975 7
Introduction Reference Manual
May 2022 00809-0800-4975
1.4 Structure
This device is built from black coated aluminum housing. It includes:
• Reflector
• Electronic compartment
• Battery compartment
• Hand grip
The electronic compartment includes a PC board with an infrared (IR) or halogen lamp,
which is assembled on the PC board and emits the light through a sapphire window.
The battery compartment includes a battery pack containing four lithium ion batteries of
total 14.8 Vdc and 2.6 Ah.

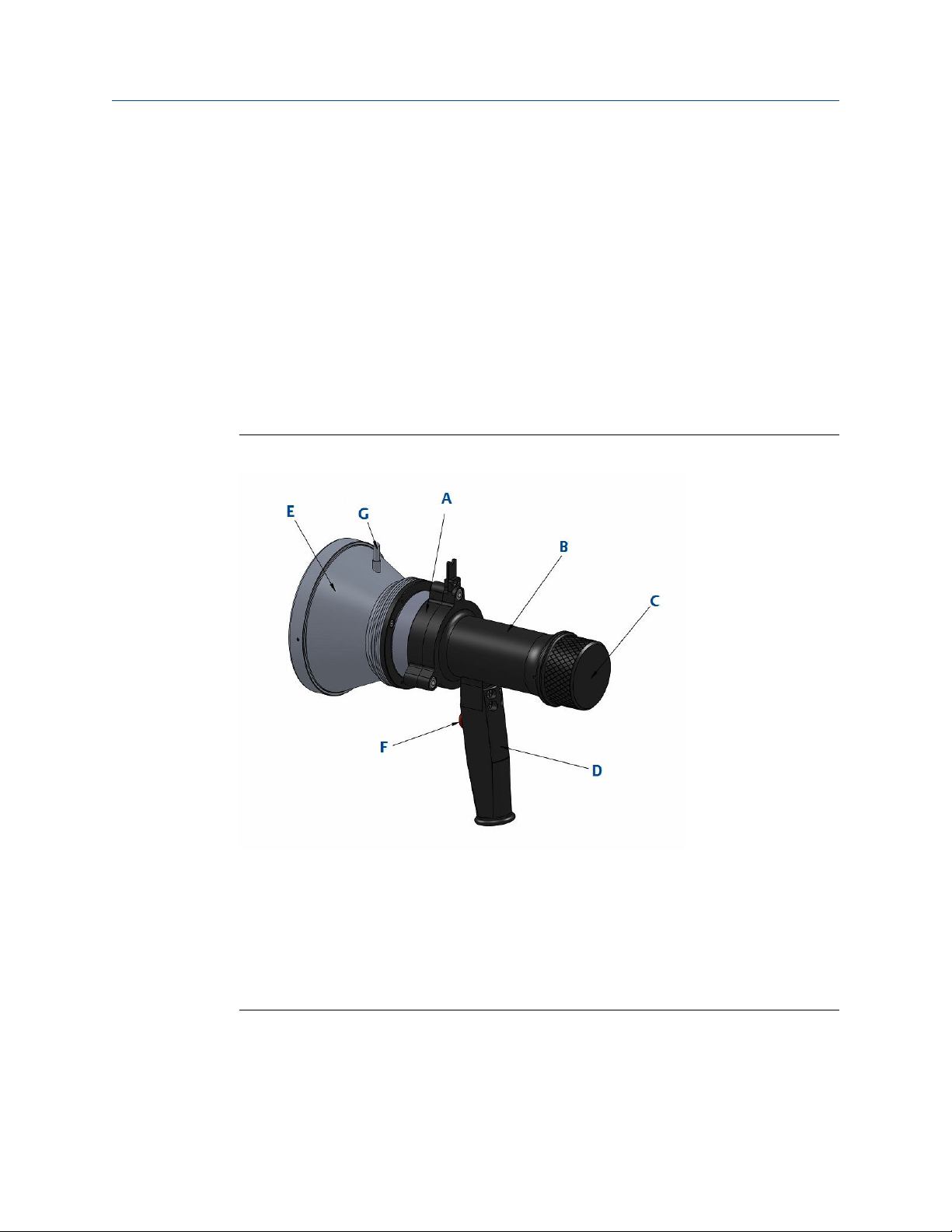

Figure 1-1: Flame Simulator side view
A. Electronic compartment
B. Battery compartment
C. Battery compartment cover
D. Hand grip
E. Reflector
F. Push button
G. Sight
8 Emerson.com/Rosemount
Reference Manual Introduction
00809-0800-4975 May 2022
Figure 1-2: Flame Simulator rear view
A. Hand grip
B. Reflector
C. Sight
D. Back cover locking screw
Rosemount FS-UVIR-975 9
