Model 1054B DO
Dissolved Oxygen Microprocessor Analyzer
Instruction Manual
PN 51-1054BDO/rev.B
April 2003
WARNING
ELECTRICAL SHOCK HAZARD
Making cable connections to and servicing this
instrument require access to shock hazard level
voltages which can cause death or serious
injury.
Be sure to disconnect all hazardous voltage
before opening the enclosure.
Relay contacts made to separate power sources
must be disconnected before servicing.
Electrical installation must be in accordance
with the National Electrical Code (ANSI/NFPA-
70) and/or any other applicable national or local
codes.
Unused cable conduit entries must be securely
sealed by non-flammable closures to provide
enclosure integrity in compliance with personal
safety and environmental protection requirements.
The unused conduit openings need to be sealed
with NEMA 4X or IP65 conduit plugs to maintain
the ingress protection rating (IP65).
For safety and proper performance this instrument must be connected to a properly grounded three-wire power source.
Proper relay use and configuration is the
responsibility of the user.
No external connection to the instrument of
more than 69VDC or 43V peak allowed with the
exception of power and relay terminals. Any violation will impair the safety protection provided
Do not operate this instrument without front
cover secured. Refer installation, operation and
servicing to qualified personnel..
ESSENTIAL INSTRUCTIONS
READ THIS PAGE BEFORE PRO-
CEEDING!
Rosemount Analytical designs, manufactures, and tests its
products to meet many national and international standards. Because these instruments are sophisticated technical products, you must properly install, use, and maintain
them to ensure they continue to operate within their normal
specifications. The following instructions must be adhered
to and integrated into your safety program when installing,
using, and maintaining Rosemount Analytical products.
Failure to follow the proper instructions may cause any one
of the following situations to occur: Loss of life; personal
injury; property damage; damage to this instrument; and
warranty invalidation.
• Read all instructions prior to installing, operating, and
servicing the product. If this Instruction Manual is not the
correct manual, telephone 1-949-757-8500 and the
requested manual will be provided. Save this Instruction
Manual for future reference.
• If you do not understand any of the instructions, contact
your Rosemount representative for clarification.
• Follow all warnings, cautions, and instructions marked
on and supplied with the product.
• Inform and educate your personnel in the proper installation, operation, and maintenance of the product.
• Install your equipment as specified in the Installation
Instructions of the appropriate Instruction Manual and
per applicable local and national codes. Connect all
products to the proper electrical and pressure sources.
• To ensure proper performance, use qualified personnel
to install, operate, update, program, and maintain the
product.
• When replacement parts are required, ensure that qualified people use replacement parts specified by
Rosemount. Unauthorized parts and procedures can
affect the product’s performance and place the safe
operation of your process at risk. Look alike substitutions may result in fire, electrical hazards, or improper
operation.
• Ensure that all equipment doors are closed and protective covers are in place, except when maintenance is
being performed by qualified persons, to prevent electrical shock and personal injury.
WARNING
This product is not intended for use in the light industrial,
residential or commercial environment, per the instrument’s certification to EN50081-2.
Emerson Process Management
Rosemount Analytical Inc.
2400 Barranca Parkway
Irvine, CA 92606 USA
Tel: (949) 757-8500
Fax: (949) 474-7250
http://www.RAuniloc.com
© Rosemount Analytical Inc. 2001
MODEL 1054B DO TABLE OF CONTENTS
MODEL 1054B DO
MICROPROCESSOR ANALYZER
TABLE OF CONTENTS
Section Title Page
1.0 DESCRIPTION AND SPECIFICATIONS................................................................. 1
1.1 General Description ................................................................................................. 1
1.2 Physical Specifications ............................................................................................ 1
1.3 Instrument Specifications......................................................................................... 1
1.4 Ordering Information ................................................................................................ 2
2.0 INSTALLATION ....................................................................................................... 3
2.1 General .................................................................................................................... 3
2.2 Unpacking and Inspection........................................................................................ 3
2.3 Mechanical Installation............................................................................................. 3
2.4 Electrical Wiring ....................................................................................................... 4
3.0 DESCRIPTION OF CONTROLS ............................................................................. 12
3.1 Keyboard Functions ................................................................................................. 12
4.0 CONFIGURATION ................................................................................................... 16
4.1 General .................................................................................................................... 16
4.2 Alarm 1 and 2........................................................................................................... 19
4.3 Interval Timer ........................................................................................................... 20
4.4 Temperature Configuration ...................................................................................... 21
4.5 Current Output ......................................................................................................... 21
4.6 Dissolved Oxygen Range Units ............................................................................... 22
4.7 Barometric Pressure Units ....................................................................................... 22
4.8 Solubility Correction Factor...................................................................................... 23
4.9 Sensor Compatibility ................................................................................................ 23
4.10 Defaults....................................................................................................................23
4.11 Software Version Number........................................................................................ 24
4.12 Display Test.............................................................................................................. 24
4.13 Alarm Setpoint ......................................................................................................... 25
4.14 Output Scale Expansion .......................................................................................... 26
4.15 Output Display/Output Simulation............................................................................ 27
4.16 Hold.......................................................................................................................... 27
5.0 START-UP AND CALIBRATION............................................................................. 28
5.1 General.................................................................................................................... 28
5.2 Start-up.................................................................................................................... 28
5.3 Calibration................................................................................................................ 28
6.0 KEYBOARD SECURITY......................................................................................... 31
7.0 THEORY OF OPERATION...................................................................................... 32
7.1 General.................................................................................................................... 32
7.2 Measurement Variables ........................................................................................... 32
8.0 DIAGNOSTICS AND TROUBLESHOOTING ......................................................... 34
8.1 Diagnostics .............................................................................................................. 34
8.2 Troubleshooting....................................................................................................... 35
8.3 Instrument Maintenance .......................................................................................... 35
9.0 RETURN OF MATERIALS ...................................................................................... 37
i
MODEL 1054B DO TABLE OF CONTENTS
TABLE OF CONTENTS CONT’D.
LIST OF FIGURES
Figure No. Title Page
2-1 Panel Mounting Cutout ............................................................................................ 5
2-2 Panel Mounting Tab Installation ............................................................................... 6
2-3 Wall Mounting J-Box Installation.............................................................................. 7
2-4 Wall Mounting J-Box Wiring ..................................................................................... 8
2-5 Pipe Mounting Installation........................................................................................ 9
2-6 Electrical Wiring ....................................................................................................... 10
2-7 Wall Mount Enclosure (Option -20) .......................................................................... 11
3-1 Function Select on Keypad...................................................................................... 12
3-2 Accessing Editing Function...................................................................................... 12
3-3 Accessing Configuration Menus .............................................................................. 12
3-4 LCD Display............................................................................................................. 13
4-1 Set Function Menu................................................................................................... 17
4-2 Alarm Setpoint ......................................................................................................... 25
4-3 Output Scale Expansion .......................................................................................... 26
5-1 DO Standardization Formula ................................................................................... 29
LIST OF TABLES
Table No. Title Page
1-1 Replacement Parts .................................................................................................. 2
1-2 Accessories.............................................................................................................. 2
3-1 Key Description........................................................................................................ 14
3-2 Information Mnemonics............................................................................................ 15
3-3 Set Function Mnemonics ......................................................................................... 15
4-1 Configuration Worksheet.......................................................................................... 18
8-1 Fault Mnemonics...................................................................................................... 34
8-2 RTD Resistance Values ........................................................................................... 34
8-3 Troubleshooting Guide............................................................................................. 36
ii
1
MODEL 1054B DO SECTION 1.0
DESCRIPTION AND SPECIFICATIONS
SECTION 1.0
DESCRIPTION AND SPECIFICATIONS
1.1 GENERAL DESCRIPTION. The Model 1054B DO
Microprocessor Analyzer is designed to continuously measure and
control dissolved oxygen in industrial and municipal processes.
Housed in a NEMA 4X (IP65) weatherproof corrosion-resistant, flame
retardant enclosure, the Model 1054B is suitable for panel, pipe, or
wall mounting. All functions are accessed through the front panel
membrane keyboard which features tactile feedback.
The 1054B transmits a user selected isolated current output continuously expandable over the measurement range in either direct or
reverse action. The output can be displayed in milliamps or percent
of full scale. Output dampening is user selectable.
Dual programmable alarms are a standard feature on the Model
1054B and are programmable for either high or low operation. Alarm
2 may be programmed as a fault alarm. Both alarms feature independent setpoints, adjustable hysteresis, and time delay action. The
time delay is convenient when an alarm is used for corrective action.
Time delay ignores temporary upsets and prevents relay chatter. An
interval timer with relay is also provided.
The 1054B DO analyzer, which is intended for use with a membrane-covered amperometric sensor, automatically compensates for
changes in membrane permeability with temperature. Temperature
can be displayed in either °C or °F.
Calibrating the analyzer is as simple as exposing the sensor to air
and keying in the barometric pressure. If removing the sensor from
the process is impractical, the analyzer can also be calibrated
against a laboratory measurement made on a grab sample.
Solubility correction factors for liquids containing high concentrations
of electrolytes can be programmed into the analyzer. The microprocessor automatically calculates ppm dissolved oxygen or % saturation.
The 1054B DO Microprocessor Analyzer comes with either LCD or
LED display. The display indicates dissolved oxygen in ppm or %
saturation as well as temperature, alarm status, hold output, and
fault conditions.
1.2 PHYSICAL SPECIFICATIONS
Enclosure: Black, ABS, NEMA 4X, IP65
CSA Enclosure 4
144 X 144 X 192 mm (5.7 X 5.7 X 7.6 in.)
Wall Mount Enclosure: NEMA 4X, Heavy duty fiberglass,
reinforced thermoplastic.
356 X 450 X 180 mm (14 X 17.7 X 7.1 in.)
Dimensions include latches and mounting feet
Front Panel: Membrane keypad with tactile feedback and user
selectable security.
Digital Display: LCD, black on grey, Optional red LED
Character Height: 18 mm (0.7 in.)
Electrical Classification:
FM Class I, Div. 2, Group A thru D
28 Vdc relays - 5.0 amps resistive only
150 mA - Groups A & B; 400 mA - Group C ;
540 mA - Group D; Ci = 0; Li = 0
CSA Class I, Div. 2, Group A thru D.
28 Vdc, 110 Vac & 230 Vac relays
5.0 Amps resistive only
Wall Mount Enclosure: General Purpose
Power: 100 - 127 VAC, 50/60 Hz ± 6%, 4.0 W
200 - 253 VAC, 50/60 Hz ± 6%, 4.0 W
EMI/RFI: EN61326
LVD: EN61010-1
Model option -20 (Wall Mount Enclosure) does not meet
CE requirements
Current Output: Isolated, 0-20 mA or 4-20 mA into
600 ohms maximum load at 115/230 Vac or
550 ohms maximum load at 100/200 Vac;
direct or reverse output; dampening: 0-255 sec
Ambient Temperature: -10 to 65°C (14 to 149°F);
-50 to 65°C (-58 to 149°F) with optional
heater in wall mount enclosure.
Ambient Humidity: LED: 0-95% RH
LCD: 0-85% RH @ 50°C
Alarms: Dual, field selectable High/Low, High/High, Low/Low
Alarm 2 configurable as a fault alarm
Time Delay 0 to 255 seconds
Dual Setpoints, continuously adjustable
Hysteresis adjustable up to 2.00 ppm
for low side/High Alarm and high side/Low Alarm
Interval Timer: Interval: 10 min. to 2999 days
On Counts: 1 to 60
On Duration: 0.1 to 299.9 seconds
Off Duration: 0.1 to 299.9 seconds
Wait Duration: 0.1 to 299.9 seconds
Controls dedicated relay
Relay Contacts: Epoxy Sealed Form A contacts, SPST,
Normally Open.
Resistive
Inductive
28 VDC 5.0 Amps 3.0 Amps
115 VAC 5.0 Amps 3.0 Amps
230 VAC 5.0 Amps 1.5 Amps
Weight/Shipping Weight: 1.1 kg/1.6 kg (2.5 lb/3.5 lb)
1.3 INSTRUMENT SPECIFICATIONS
Operating Ranges: 0-20 ppm (mg/l); 0-250% saturation; 0-50°C
Accuracy: ± 1% full scale
Repeatability: ± 0.1% of range
Stability: Zero Drift: ± 1% full scale/month
Span Drift: ± 1% full scale/month
Response Time: 0-95% full scale in less than 15 secs
Temperature Correction for Membrane Permeability:
Automatic between 0-50°C. Temperature compensation can
be disabled if desired.
2
MODEL 1054B DO SECTION 1.0
DESCRIPTION AND SPECIFICATIONS
The Model 1054B Dissolved Oxygen Microprocessor Analyzer: Housed in a NEMA 4X corrosion resistant,
weatherproof housing suitable for panel, pipe, or wall mounting. Standard features include isolated digital display,
current outputs, dual programmable alarms and timer relay, default settings, and automatic or manual temperature compensation.
MODEL
1054BDO MICROPROCESSOR ANALYZER (3.5 lbs./1.5 kg)
CODE STANDARD ENCLOSURE OPTIONS
01 LCD Display
02 LED Display
CODE OPTIONS
20 Wall Mount Enclosure (wall mount enclosure does not meet CE requirements)
1054BDO 01 20 EXAMPLE
1.4 ORDERING INFORMATION
P/N DESCRIPTION
22966-00 PCB, LCD Digital Display
23025-01 Panel Mounting Kit
23245-01 PCB, LED Digital Display
32937-00 Gasket, Rear Cover
32938-00 Gasket, Front Cover
9100157 Fuse, .10A, 250V, 3AB,
Slo Blo
23739-00 PCB, Power Supply
23740-00 PCB, Motherboard
23695-12 Keyboard Overlay,
LCD Version
23695-13 Keyboard Overlay,
LED Version
33469-00 Enclosure Body
33470-00 Enclosure, Rear Cover
9100160 Fuse, .250A, 125V,
Axial lead PICO II
9100189 Fuse, .750A, 125V,
Axial lead PICO II
23666-00 PCB, CPU, Dissolved
Oxygen
TABLE 1-1. Replacement Parts TABLE 1-2. Accessories
P/N DESCRIPTION
2001492 Tag, Stainless Steel, Specify
Marking
23053-00 Mounting Bracket, 2-inch Pipe
23054-01 Mounting Bracket, Wall, with
Junction Box
23268-01 Heater, 115 VAC, 50/60 Hz,
1054B (Code 20 Only)
23268-02 Heater, 230 VAC, 50/60 Hz,
1054B (Code 20 Only)
3
MODEL 1054B DO SECTION 2.0
INSTALLATION
SECTION 2.0
INSTALLATION
2.1 GENERAL. The analyzer is suitable for outdoor
use. However, it should be located in an area where
temperature extremes and vibrations are minimized or
absent. Installation must be performed by a trained
technician.
2.2 UNPACKING AND INSPECTION. Inspect the
analyzer for shipping damage. If damaged, notify the
carrier immediately. Confirm that all items shown on
the packing list are present. Notify Rosemount
Analytical if items are missing.
2.3 MECHANICAL INSTALLATION. Select an installation site that is at least one foot from any high voltage conduit, has easy access for operating personnel,
and is not in direct sunlight. Mount the analyzer as follows:
1. Remove the four screws that secure the rear
cover of the enclosure.
2. Remove the four screws holding the front panel
assembly of the enclosure and carefully pull the
front panel and connected printed circuit boards
straight out.
3. Follow the procedure for the appropriate mounting
configuration: Section 2.3.1 for panel mounting,
Section 2.3.2 for wall mounting, Section 2.3.3 for
pipe mounting.
2.3.1 Panel Mounting (Standard). The Model 1054B
is designed to fit into a DIN standard 137.9 mm X
137.9 mm (5.43 in. X 5.43 in.) panel cutout (Refer to
Figures 2-1 and 2-2).
1. Prepare the analyzer as described in Section 2.3.
2. Install the mounting latches as described in Figure
2-2 (latches are shown oversize for clarity). If the
latches are not installed exactly as shown, they
will not work correctly. The screws provided are
self-tapping. Tap the screw the full depth of the
mounting latch (refer to side view) leaving a gap
greater than the thickness of the cutout panel.
3. Align the latches as shown and insert the analyzer enclosure through the front of the panel cutout.
Tighten the screws for a firm fit. To avoid damaging the mounting latches, do not use excessive
force.
4. Replace the front panel assembly. Circuit boards
must align with the slots on the inside of the enclosure. Assure that the continuity wire is connected
to the rear cover and the interface board’s closest
mounting screws. Replace the door and four front
panel screws.
2.3.2 Wall Mounting Plate with Junction Box
(P/N 23054-01). Refer to Figures 2-3 and 2-4.
1. Prepare the analyzer as described in Section 2.3.
2. Mount the junction box and bracket to the analyzer with the hardware provided. All wiring can be
brought to the terminal strip prior to mounting the
analyzer.
3. Place the metal stiffener on the inside of the analyzer and mount the two 1/2-inch conduit fittings
using two each weather seals as shown. Mount
NEMA 4X conduit plug (included) into center conduit hole.
4. Mount the analyzer to the junction box using the
1/2-inch conduit fittings.
5. Complete wiring from the analyzer to the junction
box (Refer to Figure 2-4).
NOTE
Run sensor wiring out of the left opening
(From front view) to J-Box. All others out
right opening to J-Box.
2.3.3 Pipe Mounting (P/N 23053-00). The 2-inch pipe
mounting bracket includes a metal plate with a cutout
for the analyzer (Refer to Section 2.3 for mounting the
analyzer into the plate). Mounting details are shown in
Figure 2-5.
2.3.4 Wall Mount Enclosure (option -20). See
Figure 2-7 for installation details.
2.4 ELECTRICAL WIRING.
All electrical connections are made to terminal strips
on the rear panel (interface board) of the instrument.
To access the interface board, remove the four (4)
screws securing the rear cover of the enclosure.
Gently pull away the rear cover, which is connected to
the back panel by a continuity wire. If the continuity
wire is disconnected for any reason, it must be reconnected to the nearest interface board mounting screw
before the rear enclosure cover is replaced.
The three openings in the bottom rear of the Model
1054B analyzer housing accommodate 1/2-inch conduit fittings. Looking at the analyzer from the front, the
conduit opening on the left is for sensor wiring, the
center opening is for signal output, and the opening
on the right is for timer, alarm, and AC connections.
Always run sensor wiring in a separate conduit from
power wiring.
NOTE
For best EMI/RFI protection, shield the
output cable and enclose it in an earthgrounded, rigid metal conduit. Connect
the outer cable shield to the earth
ground terminal on TB-A when using the
wall mounting junction box (Fig. 2-4) or
to terminal 8 on TB3 when wiring directly to the instrument (Fig. 2-6).
The sensor cable should also be shielded. When wiring directly to the instrument, connect the outer shield of the
sensor cable to the earth ground of the
instrument on terminal 8 of TB2. If the
outer shield of the sensor cable is braid,
an appropriate metal cable gland fitting
may be used to connect the braid to
earth ground by way of the instrument
case. When wiring to the wall mounting
junction box, connect the outer shield of
the sensor cable to the earth ground terminal on TB-A.
2.4.1 Power Input Wiring. The Model 1054B can be
configured for either 115 VAC or 230 VAC power.
Connect AC power to TB1-8 and -9 (115 VAC) or TB17 and -8 (230 VAC) ground to the ground terminal at
TB3-8 (refer to Figure 2-6).
4
MODEL 1054B DO SECTION 2.0
INSTALLATION
CAUTION
The sensitivity and stability of the analyzer
will be impaired if the input wiring is not
grounded. DO NOT apply power to the
analyzer until all electrical connections are
verified and secure. The following precautions are a guide using UL 508 as a safeguard for personnel and property.
1. AC connections and grounding must be in compliance with UL 508 and/or local electrical codes.
2. The metal stiffener is required to provide support
and proper electrical continuity between conduit
fittings.
3. This type 4/4X enclosure requires a conduit hub
or equivalent that provides watertight connect,
REF UL 508-26.10.
4. Watertight fittings/hubs that comply with the
requirements of UL 514B are to be used.
5. Conduit hubs are to be connected to the conduit
before the hub is connected to the enclosure,
REF UL 508-26.10.
6. If the metal support plate is not used, plastic fittings must be used to prevent structural damage
to the enclosure. Also, appropriate grounding lug
and awg conductor must be used with the plastic
fittings.
2.4.2 Output Wiring. The signal output and alarm
connections are made to terminals 1 through 6 of TB1
and TB3-1 and 2. (Refer to Figure 2-6).
5
FIGURE 2-1. Panel Mounting Cutout
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
DWG. NO. REV.
41054B01 B
MODEL 1054B DO SECTION 2.0
INSTALLATION
6
MODEL 1054B DO SECTION 2.0
INSTALLATION
FIGURE 2-2. Panel Mounting Tab Installation
DWG. NO. REV.
41054A26 A
SIDE VIEW
7
MODEL 1054B DO SECTION 2.0
INSTALLATION

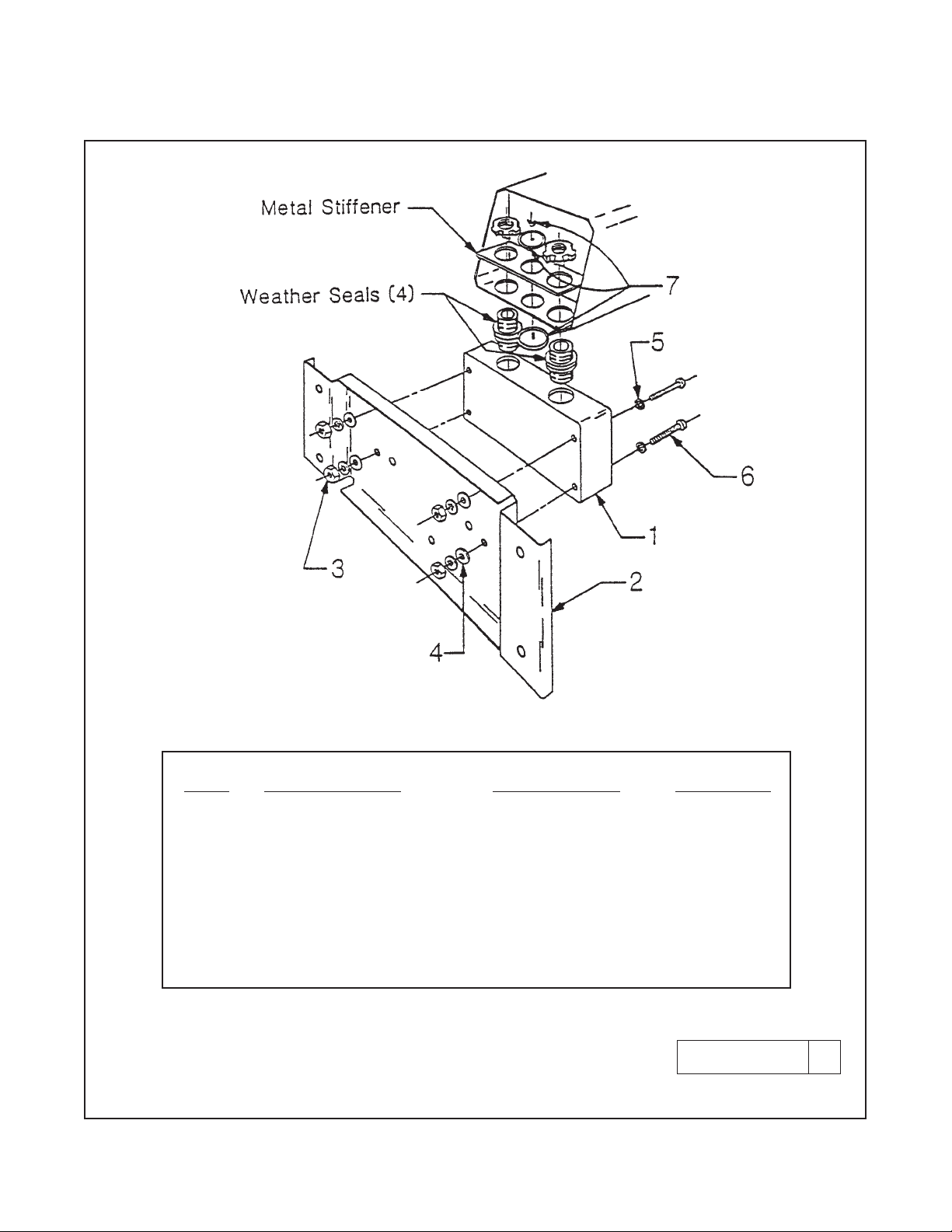

FIGURE 2-3. Wall Mounting J-Box Installation
DWG. NO. REV.
41054A27 A
ITEM PART NUMBER DESCRIPTION QUANTITY
1 23058-01 S Assy, J-Box 1
2 33030-00 Bracket, wall mtg 1
3 9900600 Nut, 6-32 Hex 4
4 9910600 Washer, Flat #6 4
5 9910610 Washer, Lock Int. #6 8
6 9600612 Screw, 6-32 X .75 4
7 9510048 Seal, Weathertight 1
8
MODEL 1054B DO SECTION 2.0
INSTALLATION

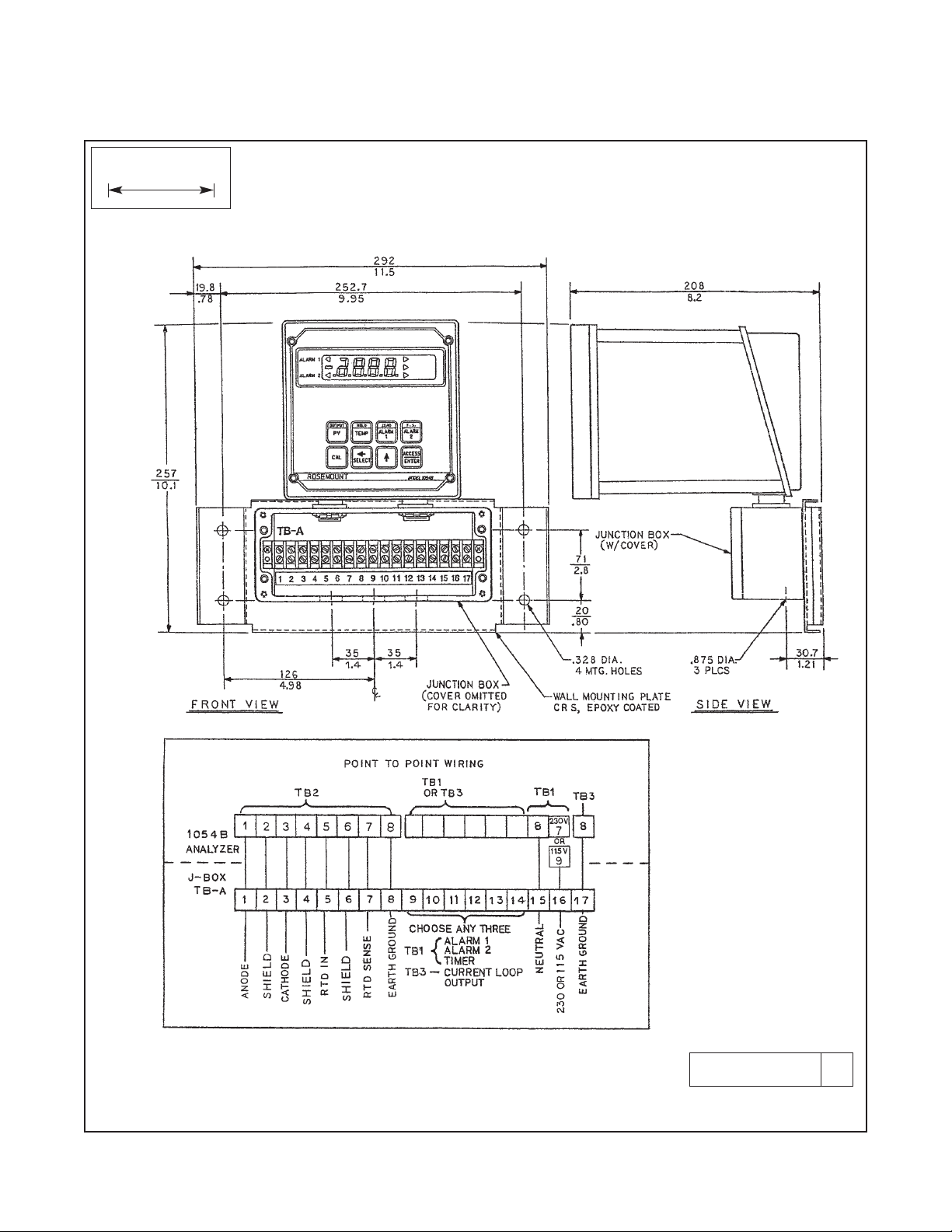

FIGURE 2-4. Wall Mounting J-Box Wiring
WHEN INCH AND METRIC DIMS
ARE GIVEN
MILLIMETER
INCH
DWG. NO. REV.
41054B17 E
Loading...
