Quick Start Guide
00825-0100-4115, Rev AC
December 2021
Rosemount™ IO-Link USB Communicator
Quick Start Guide December 2021
Contents
About this guide...........................................................................................................................3
About this product....................................................................................................................... 4
Install hardware............................................................................................................................5
Install software.............................................................................................................................6
Download and install IODD files....................................................................................................7
Reference information................................................................................................................. 9
2 Emerson.com/Rosemount
December 2021 Quick Start Guide
1 About this guide
This guide provides basic guidelines for the Rosemount IO-Link USB
Communicator. It does not provide instructions for diagnostics,
maintenance, service, or troubleshooting. This guide is available
electronically on Emerson.com/Rosemount.
1.1 Safety messages
WARNING
Installation considerations
Read this guide before working with the product. For personal and system
safety, and for optimum product performance, ensure you thoroughly
understand the contents before installing, using, or maintaining this
product.
Failure to follow these installation guidelines could result in death or serious
injury.
Use the equipment only as specified in this manual. Failure to do so may
impair the protection provided by the equipment.
Use the equipment only as specified. Failure to do so may impair the
protection provided by the equipment.
Ensure the device is installed by qualified personnel and in accordance with
applicable code of practice.
All operation described in this document must be carried out by authorized,
trained personnel only.
Equipment modifications
Do not make changes to the source code or individual components.
Changes such as this which are not explicitly stated in this document may
forfeit any rights to technical support by the manufacturer.
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
Quick Start Guide 3
Quick Start Guide December 2021
2 About this product
The Rosemount IO-Link USB Communicator connects IO-Link devices to a PC
for quick and easy parameter setup via for example Rosemount IO-Link
Assistant, PACTware, or other FDT containers. The IO-Link USB
communicator is not intended for operations in manufacturing plants.
Related information
Rosemount IO-Link Assistant Reference Manual
4 Emerson.com/Rosemount
December 2021 Quick Start Guide
3 Install hardware
Procedure

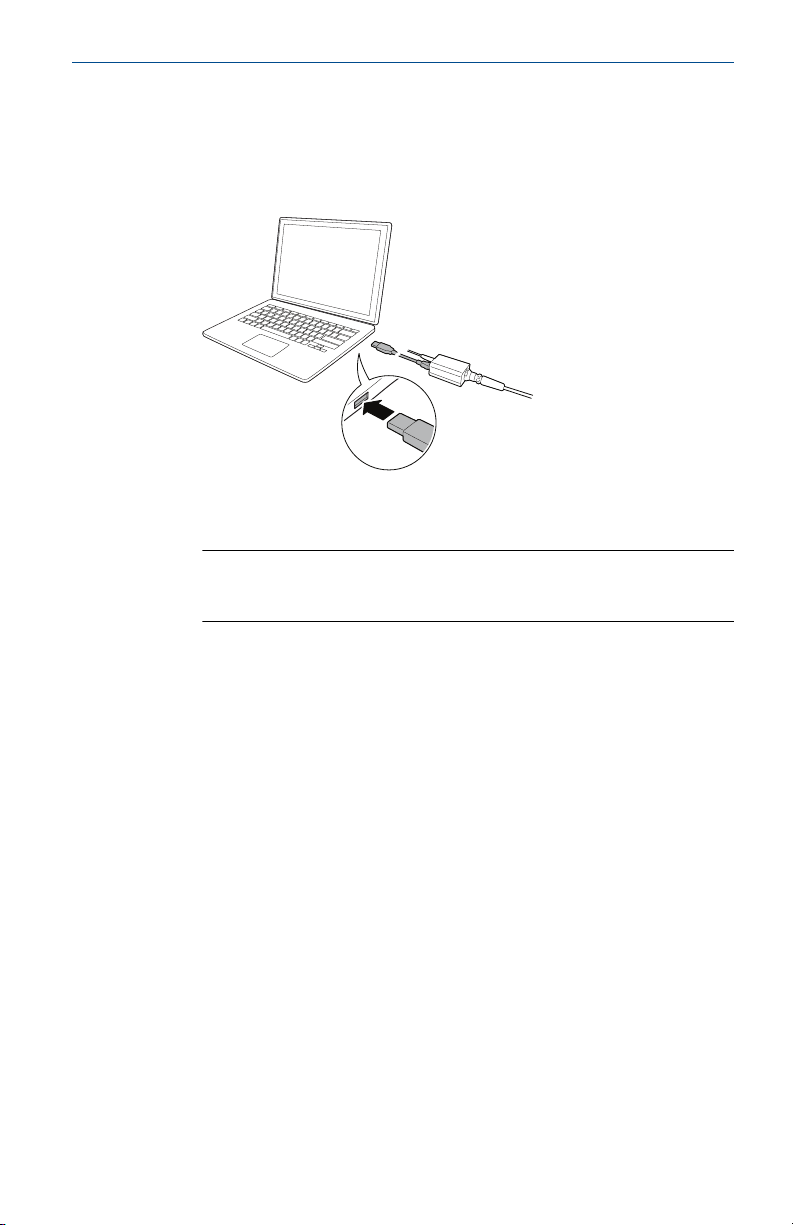

1. Connect the USB IO-Link Communicator to the PC.
2. Connect the M12 cable and screw tight.
3. If required, connect the external power supply.
Note
The external power supply is required only for IO-link devices with a
higher current consumption (> 80 mA).
Quick Start Guide 5
Quick Start Guide December 2021
4 Install software
4.1 Download the device software
The installation package contain the driver software and DTM file.
Prerequisites
The driver is also included in the Rosemount IO-Link Assistant installation
package.
Procedure
1. Go to the Rosemount IO-Link USB Communicator product page at
Emerson.com/Rosemount.
2. Click Documents & Drawings → Software Download & Drivers.
3. Download the "Gateway DTM for IO-link USB Communicator"
package.
4.2 Install the device software
Procedure
1. Unzip the "Rosemount IO-Link Gateway DTM" package.
2. Run the "Setup.exe" file.
3. Follow the instructions in the installation wizard.
6 Emerson.com/Rosemount
December 2021 Quick Start Guide
5 Download and install IODD files
5.1 Rosemount IO-Link Assistant
5.1.1 Get the latest IODD files
The Rosemount IO-Link Assistant software checks and lets you download the
latest IODDs for your device catalog.
Prerequisites
For an online update, an internet connection is required.
Procedure
1.
Click the
2. In the Vendor list, select Rosemount Inc., and then select the check
box for the devices to be installed/updated.
Alternatively, browse to an already downloaded IODD zip file, and
select Open.
3. Select OK.
Related information
Rosemount IO-Link Assistant Reference Manual
icon.
5.2 FDT®/DTM framework
5.2.1 Download the IODD file
Procedure
1. Download the IODD from the IODDFinder portal at
Ioddfinder.io-link.com.
2. Unzip the IODD package.
5.2.2 Integrate IODDs into an FDT®/DTM framework
An IODD DTM Interpreter is required to integrate IODDs into an FDT/DTM
environment (e.g PACTware).
Prerequisites
The IODD DTM Interpreter is usually included in the FDT/DTM software
installation package. It can also be downloaded from
Emerson.com/Rosemount.
Procedure
1. Start the IODD DTM Interpreter software.
Quick Start Guide 7
Quick Start Guide December 2021

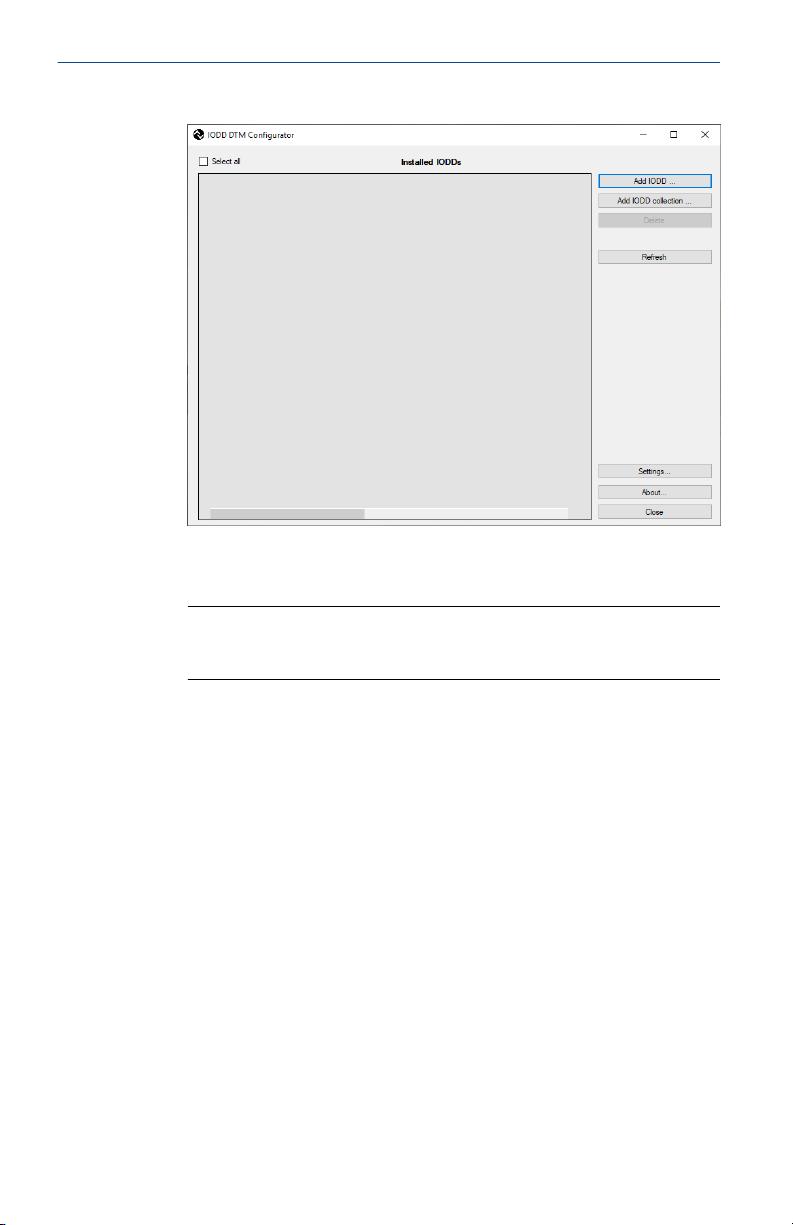

2. Select Add IODD.
3. Browse to the IODD file (.xml) and select Open.
4. Start the configuration tool and update the device catalog.
Need help?
If the new DTM is not added automatically at start-up, then select
View → Device Catalog → Update Device Catalog.
8 Emerson.com/Rosemount
1
4
2
3
5
December 2021 Quick Start Guide
6 Reference information
6.1 Connections

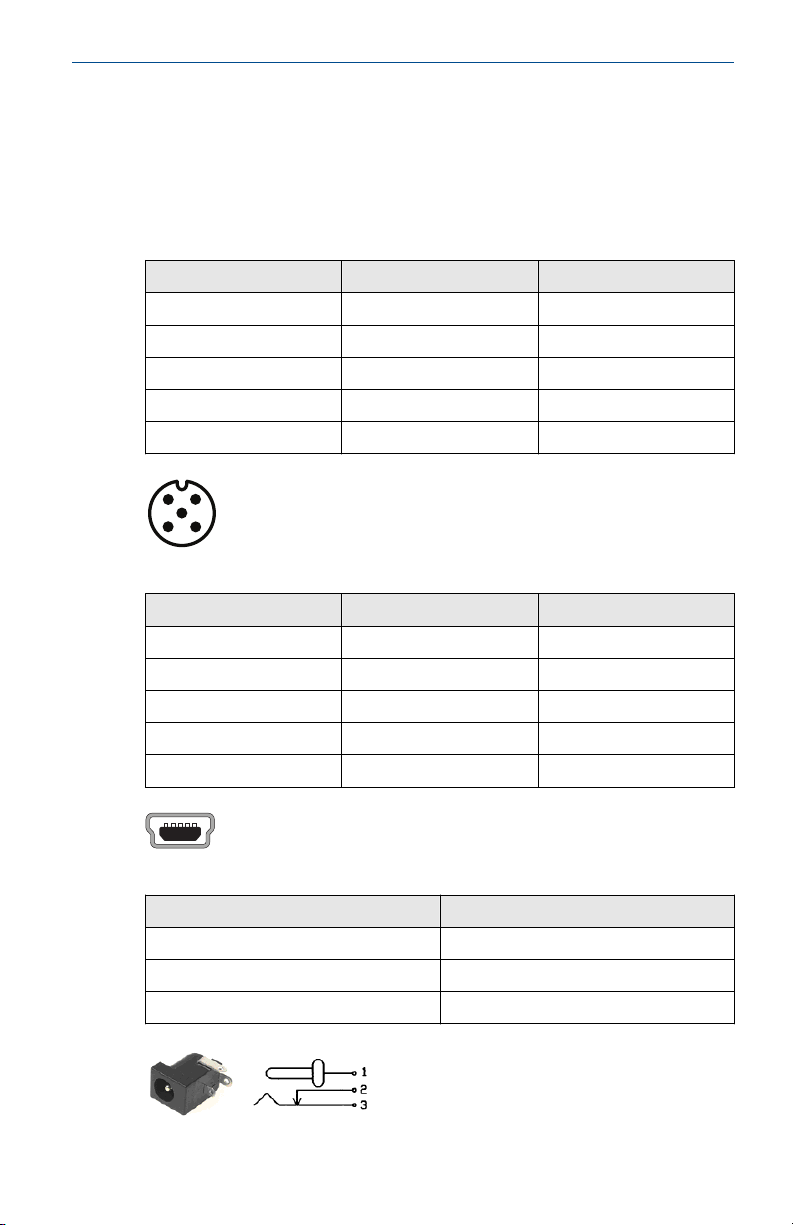

Table 6-1: IO-Link connection
M12 (a-Coded connector) interface to the sensor with IO-Link
Pin Signal Function
1 +24 V +24V 1 A / 80 mA
2 IO-Link IO-Link
3 GND 0 V
4 IO-Link IO-Link
5 - NC
Table 6-2: USB connection
Pin Signal Function
1 +5 V VBUS +5VDC/500 mA
2 D- Data -
3 D+ Data +
4 ID Not connected
5 GND Ground
Table 6-3: Wall power supply
Pin Signal
1 +24 V
2 GND
3 GND
Quick Start Guide 9
0.63
(16)(54)
2.13 0.95
(24)
A
B
D
E
C
1.61
(41)
Quick Start Guide December 2021
6.2 Light emitting diodes
Inscription Color Definition
PWR Yellow Indicates power supply at the USB port
CH1(C/Q) Green/yellow Green: IO-Link mode
• LED blinks slowly if no IO-Link connection
• LED blinks quickly in pre-operate state
• LED constantly lit if IO-Link connection is
active (operate state)
Yellow: SIO mode (indicates digital state at port
C/Q)
CH2(DI/DO) Yellow Indicates the digital state at port DIO
Error Red Flashes in case of errors (e.g. short circuit, errors
in data transmission)
6.3 Dimensions

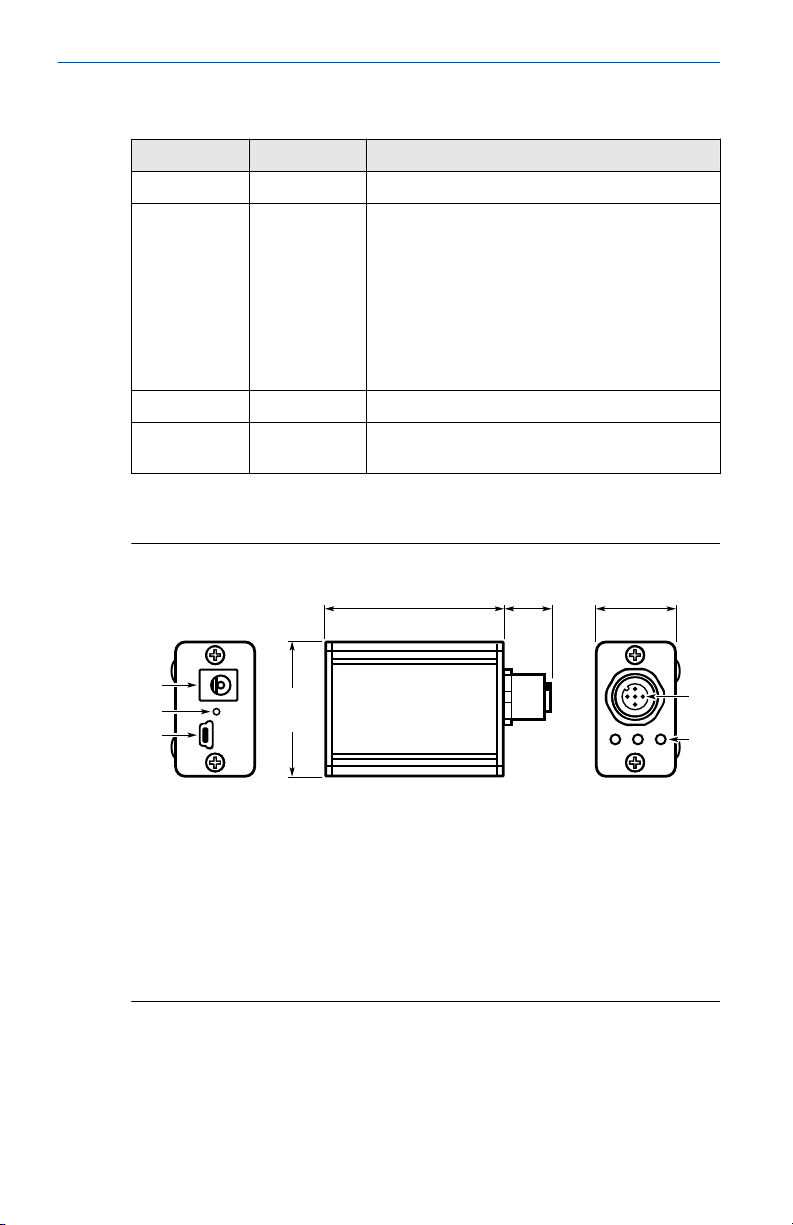

Figure 6-1: Rosemount IO-Link USB Communicator
A. DC 24V
B. PWR LED
C. Mini USB B
D. M12-A
E. CH1(C/Q)
CH2(DI/DO)
Error
Dimensions are in inches (millimeters).
10 Emerson.com/Rosemount
December 2021 Quick Start Guide
Quick Start Guide 11
*00825-0100-4115*
00825-0100-4115, Rev. AC
Quick Start Guide
December 2021
For more information:
©
2021 Emerson. All rights reserved.
Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo
is a trademark and service mark of
Emerson Electric Co. Rosemount is a mark
of one of the Emerson family of
companies. All other marks are the
property of their respective owners.
www.emerson.com
