User’s Guide
Ref. no: 303035E
Fourth Edition, February 2007
Rosemount TankMaster.net
Configuration
www.rosemount-tg.com
Rosemount TankMaster.net Configuration
User’s Guide
Fourth Edition
Copyright © 2001 – 2007 Rosemount Tank Radar AB
3 Rosemount TankMaster.net
Fourth Edition, February 2007
Copyright © 2001 – 2007 Rosemount Tank Radar AB
Copyright law and international treaties protect this program. Unauthorized
reproduction, distribution of this program or any portion of it may result in severe civil
and criminal penalties, and will be prosecuted to the maximum extent possible under
the law.
Rosemount TankMaster.net 4
Fourth Edition, February 2007
Overview of Manuals
Overview of Manuals
TMn2Installation.pdf
This manual describes the procedure for installing TankMaster.net on Windows
2000 Server, Windows XP Pro and Windows 2003 Server with Internet
Information Services (IIS). Before installing TankMaster.net Server, minimum
system requirements have to be met that are mentioned in this manual. The
manual also presents the minimum system requirements for installing
TankMaster.net.
TMn2Config.pdf
This manual describes the procedure for configuring the TankMaster.net
Server. The information that is viewed on the TankMaster.net Website/WAP
website is set by the Administrator using the TankMaster.net Configuration
application. The manual describes how the Administrator can create, edit,
delete and assign rights to the Users and Groups for viewing tanks.
TMn2DataCollector.pdf
This manual describes the DataCollector application, which displays the Live
and Static data of the tanks polled with the current date and time. The manual
also explains how to start and end the application manually or automatically.
The data collected by this application is displayed on the TankMaster.net
Website/WAP websites.
TMn2Website.pdf
This manual provides a detailed description of various menus, products,
information etc which are viewed by the user on the website. The user can
change limited details of his profile, view details of all products, individual tanks,
view graphs and download tank information in Excel format.
TMn2UserStatus.pdf
This manual gives a detailed description of the information that is available on
users who are logged on to the TMn2Web website. It also displays the current
page being viewed by the user, the session Id assigned, session start time and
session expiry time. Only the Administrator can access this website.
Rosemount TankMaster.net 5
Fourth Edition, February 2007
Overview of Manuals
TMn2Wapsite.pdf
This manual describes how the TankMaster.net WAP website works using an
Internet browser. It also describes how to view details of individual tanks and
product groups.
6 Rosemount TankMaster.net
Fourth Edition, February 2007
Contents
Contents
1.0 Introduction .........................................................................................9
1.1 Overview..........................................................................................9
1.1.1 Map Servers and Tanks................................................................9
1.1.2 Setup Users ..............................................................................10
1.1.3 Setup Groups............................................................................10
1.1.4 Setup HTML Info .....................................................................10
2.0 Menus ...............................................................................................11
2.1 TankMaster.net Configuration menus................................................11
2.1.1 File Menu.................................................................................11
2.1.2 Advanced Menu........................................................................12
2.1.3 Help Menu ...............................................................................13
2.2 Live Data Items menus....................................................................14
2.2.1 File Menu.................................................................................14
2.2.2 Help Menu ...............................................................................15

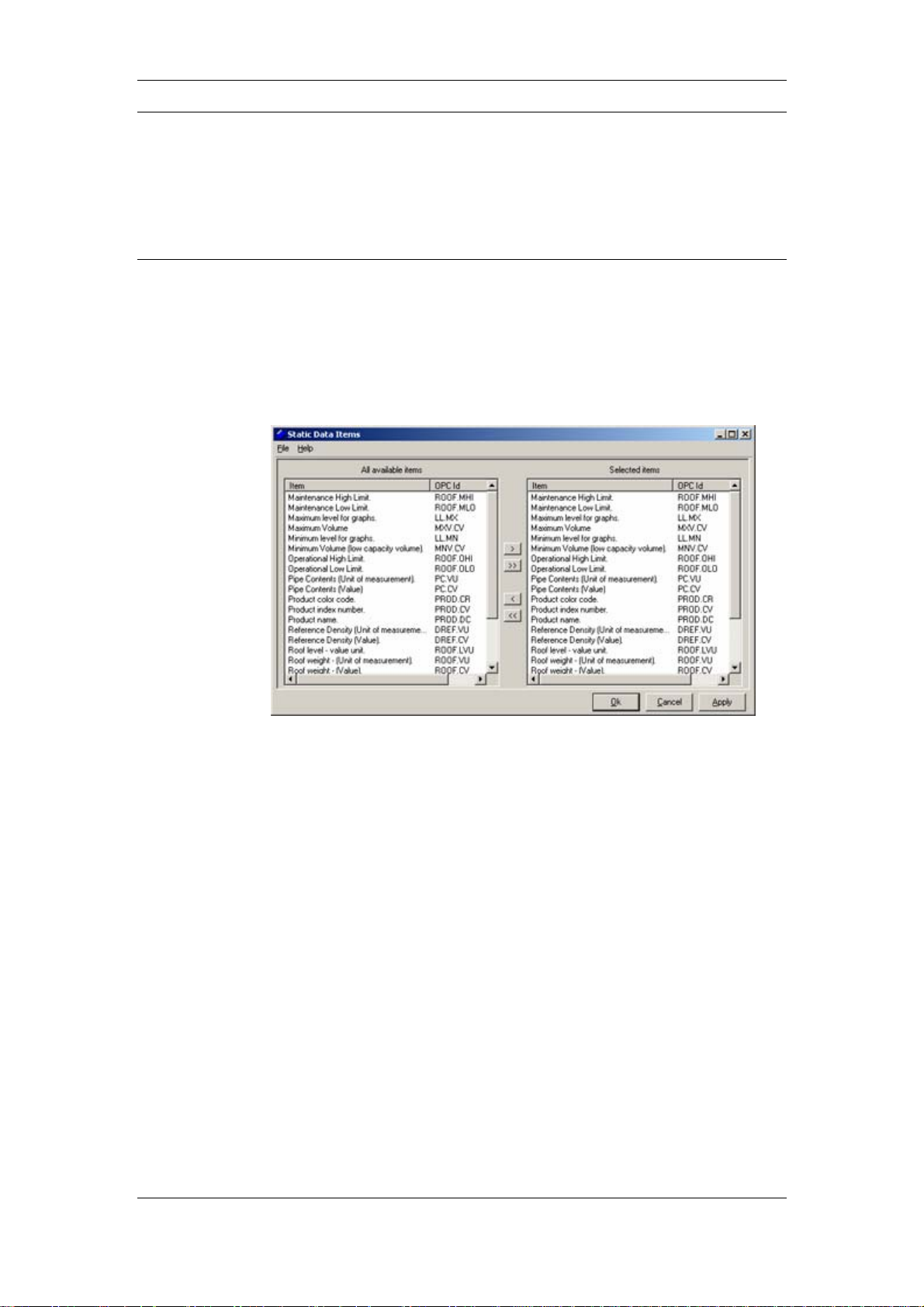

2.3 Static Data Items menus...................................................................16
2.3.1 File Menu.................................................................................16
2.3.2 Help Menu ...............................................................................17
3.0 Status bar...........................................................................................18
4.0 Configuration of the TMn2Config application.......................................19
4.1 Map Servers and Tanks....................................................................20
4.1.1 To map TankMaster Server to your local machine........................23
4.1.2 To Unmap the TankMaster Server from the local machine............24
4.2 Setup Users ....................................................................................24
4.2.1 To Add a User ..........................................................................25
4.2.2 To Edit a User...........................................................................26
4.2.3 To Delete a User.......................................................................27
4.2.4 To assign rights to the User........................................................27
4.3 Setup Groups..................................................................................27
4.3.1 To Add a Group........................................................................29
4.3.2 To Edit A Group.......................................................................31
4.3.3 To Delete a Group.....................................................................33
4.4 Setup HTML info............................................................................34
4.4.1 To set the company name for display on the website ....................34
4.4.2 To set the name of the location of this site...................................34
4.4.3 To display the ‘Support’ Message...............................................34
4.4.4 To set the ‘Support’ email address..............................................35
4.4.5 To set the ‘Support’ phone number.............................................35
4.4.6 To set the ‘Support’ fax number .................................................35
4.4.7 To set the Company Logo..........................................................35
4.5 Data Polling....................................................................................35
4.5.1 Live Data Items ........................................................................36
4.5.2 Static Data Items.......................................................................37
Rosemount TankMaster.net 7
Fourth Edition, February 2007
Contents
5.0 Keyboard Map ...................................................................................39
5.1 Function Keys for TankMaster.net Configuration window..................39
5.2 Action Keys for TankMaster.net Configuration window.....................39
6.0 Glossary ............................................................................................41
7.0 Troubleshooting .................................................................................46
8 Rosemount TankMaster.net
Fourth Edition, February 2007
Introduction
1.0 Introduction
1.1 Overview
The main aim of TankMaster.net is to make data of the tanks and
products available to users all over the world from offices, residences or
WAP phones. This data is available to users who are assigned a
Username and Password by the administrator. Users can only read the
data available on the website and view/download data in the form of
Excel spreadsheets for editing. The configuration of TankMaster.net is
achieved with the help of the TankMaster.net Configuration and
TankMaster.net DataCollector applications.
TankMaster.net Configuration
The TMn2Config application is used to create users, groups and set up
a connection between machines on which the TankMaster Server and the
TankMaster.net Server have been installed. The topics mentioned below,
help the administrator to configure the TankMaster.net website. The
administrator has to setup the following options in the TankMaster.net
Configuration. Only the administrator can login to this configuration. The
default username and password are admin. It is recommended that the
password be changed at the earliest.
Illegal Characters
Certain characters cannot be used for Excel Sheet names (in TMn, the
Product names are used as Sheet names). No product can have any of
the following characters: \, /, ?, *, [, ]. The product name should not
exceed 31 characters.
Prohibited characters for all of TMn are: |, *, %, <, >, {,},’ (single quote), “
(double quote). None of the User names, Group names, Server Names,
Server Aliases, Tank Names, Tank Aliases, Titles or Descriptions can use
any of the above characters.
A few ANSII characters are invalid in UTF-8 and UTF-16 (for example,
ASCII 160). These will give trouble in Web/Wap pages.

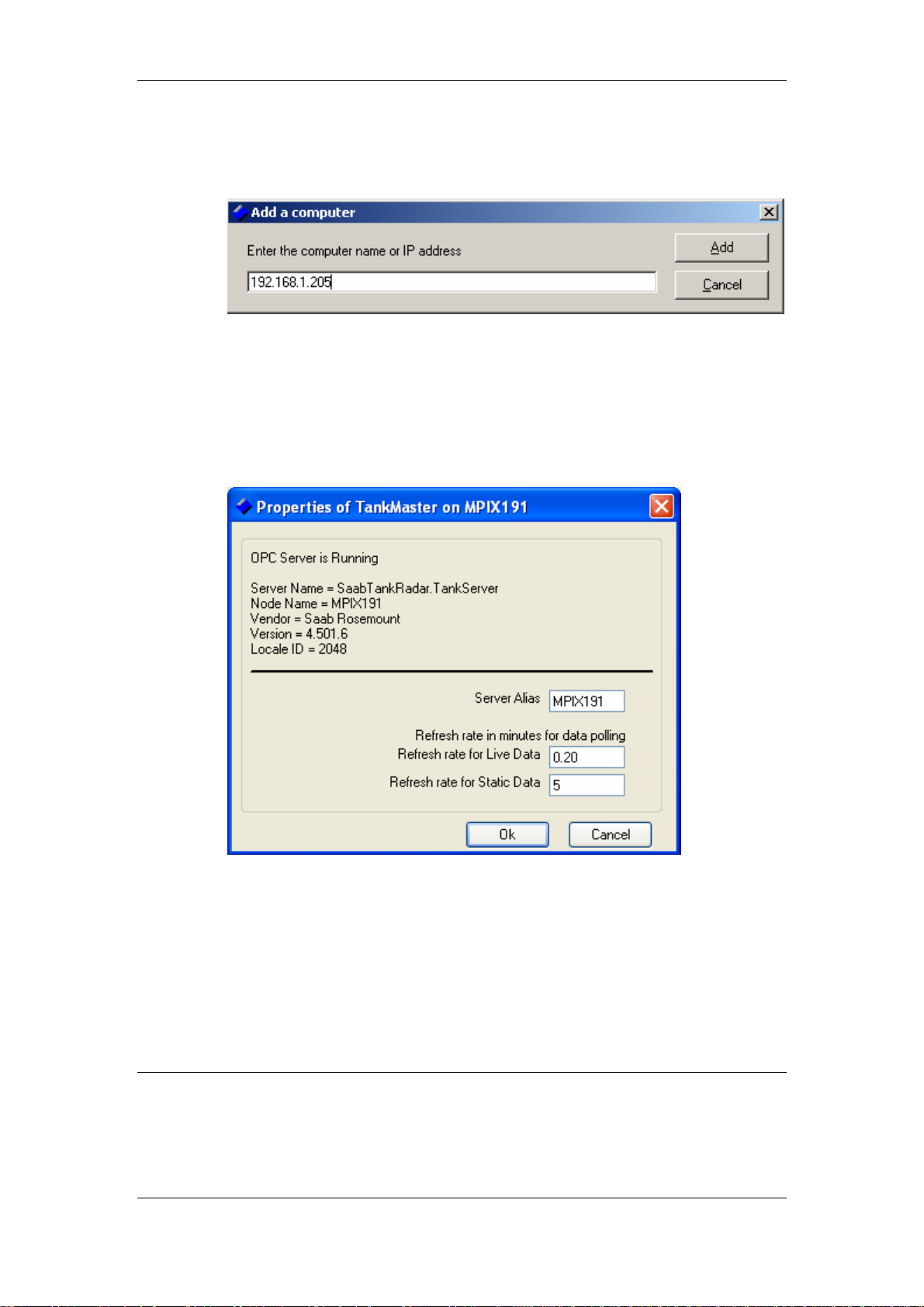

1.1.1 Map Servers and Tanks
The Map Servers & Tanks tab allows the administrator to map
Servers to the client machine. The Mapping of Servers on the client
machine allows the administrator to connect to the TankMaster
Server. This can be installed on various client machines that are
connected on the Local Area Network (LAN). You can access the
tanks available in the TankMaster Server only if the TankMaster
Server is mapped to your local machine. To view the data of the
tanks on the web site you have to map at least one Server on the
client machine. The administrator can also control the Properties
Rosemount TankMaster.net 9
Fourth Edition, February 2007
Introduction
and Refresh Rates of the Live and Static Tank Data of the tanks on
a TankMaster Server.
Refer to Section 4.1 for details on Mapping Servers and Tanks.
1.1.2 Setup Users
The Setup Users tab allows the administrator to add, edit and
delete users. Only these users have access to the TankMaster.net
website. The last user in the group of administrators cannot be
deleted. The administrator assigns the users their LoginID and
Passwords in the
Configuration. The users created by the administrator form a group.
A user can be assigned to more than one group. When
TankMaster.net is installed, two default users are created namely,
Admin and DEMO. To create groups the administrator will have to
use the
and must be unique.
Refer to Section 4.2 for details on Setting up Users.
Setup Groups option. A User Name cannot be duplicated

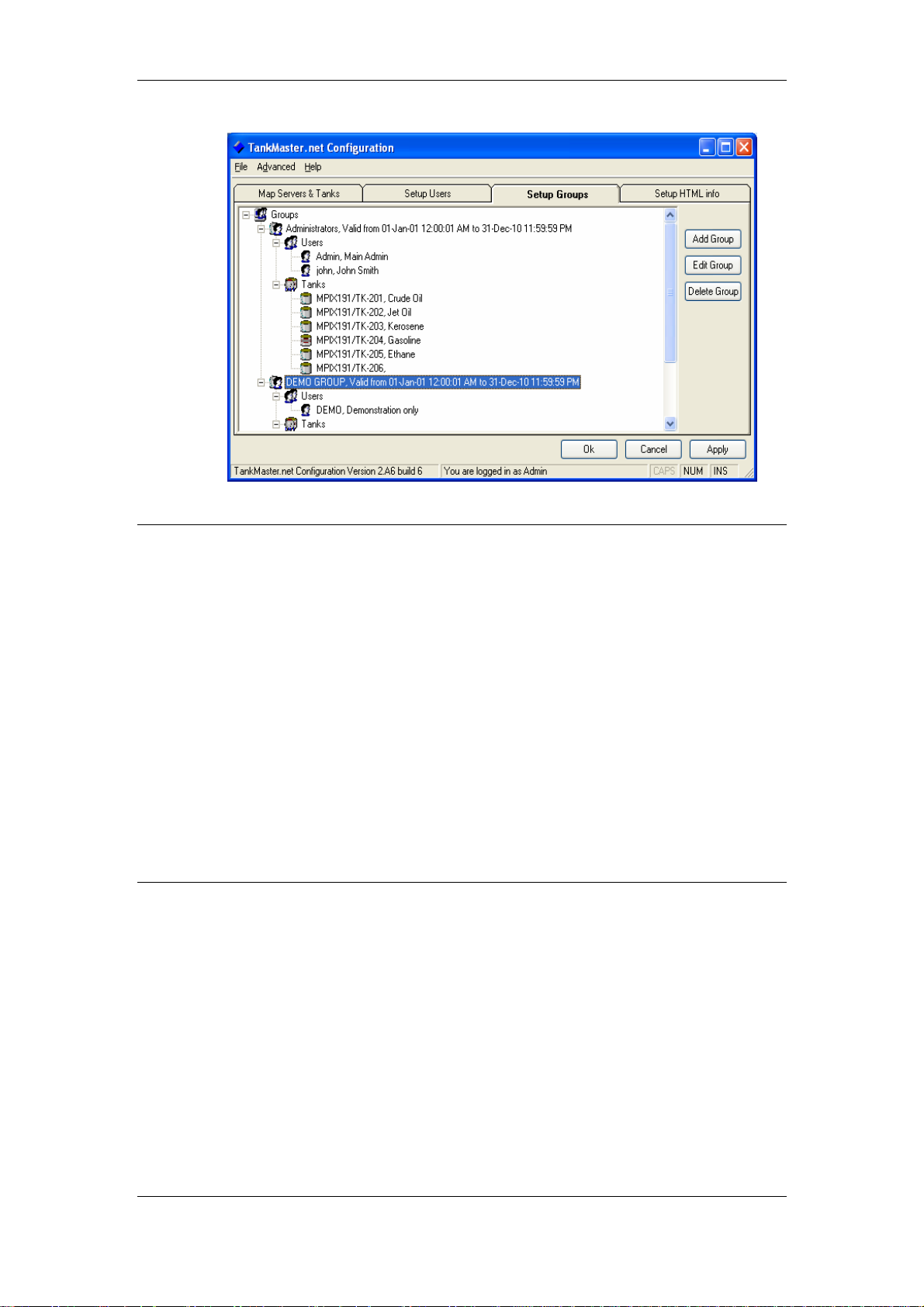

1.1.3 Setup Groups
The Setup Groups tab allows the administrator to create groups by
adding existing users. The users of the group will be able to view,
on the website, details of the tanks that are assigned to them.
When TankMaster.net is installed on the machine, two default
groups are created in the
DEMO GROUP. The users and tanks in these groups can be added
and removed. The Administrators group cannot be deleted. A group
name cannot be duplicated and must be unique.
Refer to Section 4.3 for details on Setting up Groups.
1.1.4 Setup HTML Info
The Setup HTML Info tab of the TankMaster.net Configuration
allows the administrator to set up the Company’s name and location
that will be displayed on the TankMaster.net website on the top left
corner. This Company name and location of the site will be the one
to which the TankMaster.net belongs. The
allows the administrator to add the support email address, Fax
number and Telephone number which will be displayed on the
bottom left corner of the website.
Refer to Section 4.4 for details on Setting up HTML Info.
Note! All configuration changes made in the TankMaster.net Configuration
application will be saved in the TMnConfig.mdb file located in the
\ProgramFiles\Saab\TankMasternet\TMnData directory. This file contains
details of mapped tanks, user and group details and info to be displayed
on the TankMaster.net website.
Setup Users tab of the TankMaster.net
Setup Groups tab, Administrators and
Setup HTML Info option
10 Rosemount TankMaster.net
Fourth Edition, February 2007
Menus
2.0 Menus
Menu bar
2.1 TankMaster.net Configuration menus
2.1.1 File Menu
The File menu has two sub menus Save / Apply and
Exit / Cancel.
Rosemount TankMaster.net 11
Fourth Edition, February 2007
Save / Apply
The Save /Apply sub menu saves the data entered by the
administrator.
Exit / Cancel
Exit / Cancel sub menu closes the application window.
The
2.1.2 Advanced Menu
The Advanced menu has a sub menu called Data Polling. This
option has two sub menus, Live Tank Data and Static Tank Data.
Menus
Live Tank Data
The Live Tank Data option opens the Live Data Items window. It
allows the administrator to select the OPC items for Current data.
Refer to Section 4.5.1 for details on Live Tank Data.
Static Tank Data
The Static Tank Data option opens the Static Data Items window.
It allows the administrator to select the OPC items for Static data.
Refer to Section 4.5.2 for details on Static Tank Data.
12 Rosemount TankMaster.net
Fourth Edition, February 2007
Menus
2.1.3 Help Menu
Note! Pressing the F1 key on the keyboard will take you to the help section of
the relevant page.
The Help menu has two sub menus, Help on TMn2Config and
About.
Help on TMn2Config
The Help on TMn2Config option opens the help file for the
TankMaster.net Configuration application.
About
The About option provides information about the version and build
number of the TankMaster.net Configuration application. It also
provides an option to view the System information of the current
machine.
Rosemount TankMaster.net 13
Fourth Edition, February 2007
2.2 Live Data Items menus
2.2.1 File Menu
The File menu has three sub menus Load Defaults, Save / Apply
and Exit / Cancel.
Menus
Load Defaults
The Load Defaults sub menu sets the default OPC items in the
Selected items window.
Save / Apply
The Save / Apply sub menu saves the changes that are made in
the Live Data Item window.
Exit / Cancel
The Exit / Cancel sub menu closes the Live Data Items window
and returns to the TankMaster.net Configuration main window.
14 Rosemount TankMaster.net
Fourth Edition, February 2007
Menus
2.2.2 Help Menu
The Help menu has two sub menus Help on Data Items and
About.
Help on Data Items
The Help on Data Items sub menu opens the help file of the Live
Data Items.
About
The About sub menu provides information about the version and
build number of the TankMaster.net Configuration application. It
also provides an option to view the System information of the
current machine.
Rosemount TankMaster.net 15
Fourth Edition, February 2007
Loading...
