Rosemount BP20E Power Module for Wireless Corrosion Transmitters Quick Start Guide

Quick Start Guide

00825-0100-4212, Rev BA

December 2020

Rosemount™ BP20E Power Module for
Wireless Corrosion Transmitter

Quick Start Guide December 2020

NOTICE

This guide provides basic guidelines for the installation of the Rosemount Power Module for the
Rosemount Wireless Permasense Corrosion Transmitter. It does not provide instructions for
configuration, diagnostics, maintenance, service, troubleshooting or intrinsically safe (I.S.)
installations. Refer to the Rosemount Wireless Permasense Corrosion Transmitter Reference Manual
for more instruction. The manual and this guide are also available electronically on Emerson.com

\Permasense.

WARNING

Explosion hazard

Explosions could result in death or serious injury.

Installation of this power module in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Review the Product
Certifications section for any restrictions associated with a safe installation.

Electrostatic hazard

The power module may be replaced in a hazardous area. However, its enclosure has surface resistivity
greater than one gigaohm. Care must be taken during transportation to and from the point of
installation to prevent electrostatic charge build-up.

Physical access

Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end
users’ equipment. This could be intentional or unintentional and needs to be protected against.

Physical security is an important part of any security program and fundamental to protecting your
system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for
all systems used within the facility.

CAUTION

Shipping consideration

Each BP20E power module contains two “D” size primary lithium battery. Primary lithium batteries are
regulated in transportation by the U.S. Department of Transportation, and are also covered by IATA
(International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD
(European Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure
compliance with these or any other local requirements. Please consult current regulations and
requirements before shipping

The power module must be installed correctly to avoid risk of becoming detached and falling.

Do not short circuit, recharge, puncture, incinerate, crush, force discharge, expose contents to water
or expose to temperatures above 212 °F (100 °C). Risk of fire or explosion.

2 Emerson.com/Rosemount

December 2020 Quick Start Guide

Contents

Overview......................................................................................................................................5

Physical installation...................................................................................................................... 6

Verify operation........................................................................................................................... 8

Disposal/recycling........................................................................................................................ 9

Product certifications................................................................................................................. 10

Quick Start Guide 3

Quick Start Guide December 2020

4 Emerson.com/Rosemount

December 2020 Quick Start Guide

1 Overview

1.1 Warning on product labels

The Rosemount BP20E Power Module for Wireless Corrosion Transmitters
each have a warning printed on them. In each case the warning text is the
same. Below is a figure that shows the label. The text of the warning is: “Use
only with approved sensor – see instructions. Potential static hazard.”

Quick Start Guide 5

Quick Start Guide December 2020

2 Physical installation

2.1 Compatibility

Permasense WT100 Corrosion Transmitter

Rosemount Wireless Permasense WT210 Corrosion Transmitter

Rosemount Wireless Permasense ET210 Corrosion Transmitter

Rosemount Wireless Permasense ET310 Corrosion Transmitter

Rosemount Wireless Permasense ET410 Corrosion Transmitter

2.2 Required tooling

Tooling is supplied in the Permasense IK220 Installation Kit:

• Hex key, 2.5 mm, for power module retaining bolts

2.3 Power module installation

To install the power module:

1. Check power module and sensor terminals are clean and corrosion
free.

2. Ensure the ring seal around the connector on the power module is
present.

3. Clip on the power module as shown in Figure 2-1.

4. Fit the two M3 retaining bolts using a 2.5 mm AF hex key.

5. The sensor will resume normal operation. No configuration is
required.

Figure 2-1: Rosemount BP20E Installation

6 Emerson.com/Rosemount

December 2020 Quick Start Guide

2.4 Power module removal

To remove the power module:

1. Remove the two M3 retaining bolts using a 2.5 mm AF hex key.

2. Depress the clip on the front of the power module (on the opposite
side to the sensor label).

3. Pull off the power module.

Note

There is a secondary clip mechanism in the electrical connector.
Some force may be required to remove the power module, especially
in cold weather.

4. Dispose of old power module according to local regulations. Refer to
the relevant power module datasheet.

Quick Start Guide 7

Quick Start Guide December 2020

3 Verify operation

3.1 Sensor operation

Correct sensor operation can be verified by:

• Checking the join status in Gateway Manager software, OR

• Checking in Data Manager that data has been received once the sensor

has joined the gateway.

8 Emerson.com/Rosemount

December 2020 Quick Start Guide

4 Disposal/recycling

4.1 Disposing of depleted power modules

1. Dispose in accordance with applicable laws and regulations in your
country and state.

2. Disposal should only be performed by authorized professionals in
accordance with applicable requirements for hazardous waste
transportation and disposal.

3. Incineration should only be performed by trained professionals in
authorized facilities.

4.2 Shipping regulations

Primary lithium batteries are regulated in transportation by the U.S.
Department of Transportation, and are also covered by IATA (International
Air Transport Association), ICAO (International Civil Aviation Organization),
and ARD (European Ground Transportation of Dangerous Goods). It is the
responsibility of the shipper to ensure compliance with these or any other
local requirements. Please consult current regulations and requirements
before shipping.

4.3 Handling considerations

Each power module contains two “D” size primary lithium battery. Under
normal conditions, the battery materials are self-contained and are not
reactive as long as the batteries and the battery pack integrity are
maintained. Care should be taken to prevent thermal, electrical, or
mechanical damage. Contacts should be protected to prevent premature
discharge.

Use caution when handling the power module. It may be damaged if
dropped onto a hard surface. Battery hazards remain when cells are
discharged.

4.4

Quick Start Guide 9

Environmental considerations

As with any battery, local environmental rules and regulations should be
consulted for proper management of spent batteries. If no specific
requirements exist, recycling through a qualified recycler is encouraged.
Consult the materials safety data sheet for battery specific information.

Quick Start Guide December 2020

5 Product certifications

Rev 0.1

5.1 European Directive information

A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.

5.2 Ordinary location certification

As standard, the device has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).

5.3 North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code
(CEC) permit the use of Division marked equipment in Zones and Zone
marked equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.

5.4 USA

Certificate:

Standards:

Markings:

SGSNA/19/BAS/0003

UL 913 - 8th Edition, Revision Dec 6 2013

CLASS I, DIV 1, GP ABCD, T4, T

= -50 °C to +75 °C, IP67

amb

5.5 Canada

Certificate:

Standards:

Markings:

SGSNA/19/BAS/0003

CAN/CSA C22.2 No. 157-92 (R2012) +Upd1 +Upd2

CLASS I, DIV 1, GP ABCD, T4, T

= -50 °C to +75 °C, IP67

amb

5.6 Europe

Certificate:

Standards:

Markings:

10 Emerson.com/Rosemount

Baseefa18ATEX0144X

EN IEC 60079-0:2018
EN 60079-11: 2012

II 1 G, Ex ia IIC T4 Ga, T

= -50 °C to +75 °C, IP67

amb

December 2020 Quick Start Guide

Specific Condition for Safe Use (X):

The polymer enclosure may present a potential electrostatic ignition hazard
and must not be rubbed or cleaned with a dry cloth.

5.7 International

Certificate:

Standards:

Markings:

Specific Conditon For Safe Use (X):

The polymer enclosure may present a potential electrostatic ignition hazard
and must not be rubbed or cleaned with a dry cloth.

5.8 Brazil

Safety - UL

Certificate:

Standards:

Markings:

Specific Condition for Safe Use (X):

See certificate.

5.9

China

China (NEPSI)

Certificate:

Standards:

Markings:

IECEx BAS 18.0088X

IEC 60079-0:2017 Edition 7.0, IEC 60079-11: 2011 Edition 6.0

Ex ia IIC T4 Ga, T

UL 19.1144X Issue 1

ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013

Ex ia IIC T4 Ga (-50 °C ≤ T

GYJ20.1347X

GB3836.1-2010, GB3836.4-2010, GB3836.20-2010

Ex ia IIC T4 Ga

= -50 °C to +75 °C, IP67

amb

≤ +75 °C)

amb

Specific Condition For Safe Use (X):

See certificate for specific conditions of safe use.

China (CCC)

Certificate:

Standards:

Markings:

Quick Start Guide 11

2020322303000948

GB3836.1-2010, GB3836.4-2010

Ex ia IIC T4 Ga

Quick Start Guide December 2020

5.10 EAC - Kazakhstan and Russia

IM (EAC) Intrinsic Safety

Included on sensor certificates:

Standards:

Specific condition for safe use (X):

See certificate for specific conditions of safe use.

5.11 Korea

IP Korea (KCs) Intrinsic Safety

Certificate:

Markings:

Specific Condition For Safe Use (X):

See certificate for specific conditions of safe use.

5.12 India

Safety - PESO

Equipment reference
number:

Applicable standards:

Markings:

C-GB.МЮ62.В.05219,
C-GB.МЮ62.В.05220

ТР ТС 012/2011

20-KA4BO-0501X

Ex ia IIC T4

P451607/1 and P451607/2

EN 60079-0:2018, EN60079-11:2012, IEC
60079-0:2017, IEC 60079-11:2011

Ex ia IIC T4

Specific condition for safe use (X):

See certificate.

5.13

12 Emerson.com/Rosemount

Japan

I4 CML Intrinsically Safe (IS)

Included on sensor certificates:

Standards:

CML 19JPN2097X, CML 19JPN2339X

JNIOSH-TR-46-1:2015
JNIOSH-TR-46-6:2015

December 2020 Quick Start Guide

Markings:

Specific condition for safe use (X):

See certificate for specific conditions of safe use.

5.14 Declaration of Conformity

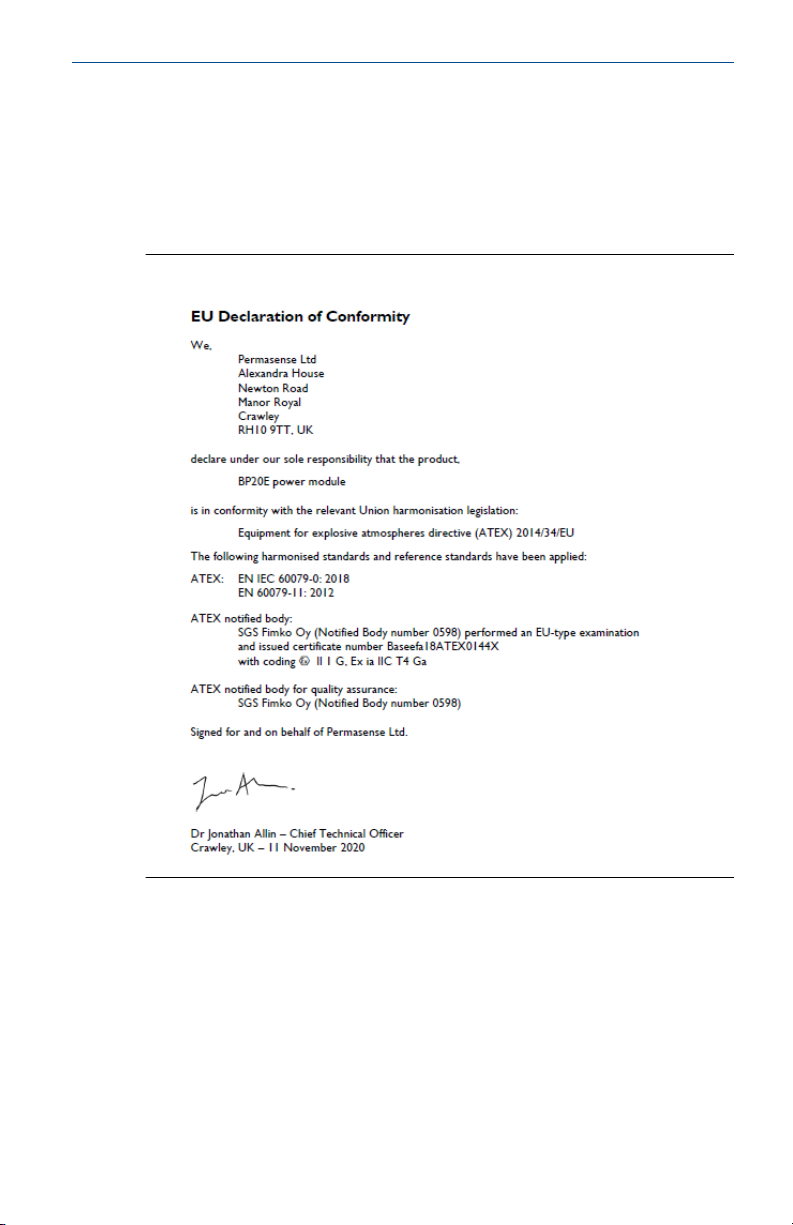

Figure 5-1: Declaration of Conformity

Ex ia IIC T4 Ga (-50 °C ≤ T

≤ +75 °C)

amb

Quick Start Guide 13

Quick Start Guide December 2020

5.15 China ROHS

14 Emerson.com/Rosemount

December 2020 Quick Start Guide

Quick Start Guide 15

*00825-0100-4212*

00825-0100-4212, Rev. BA

Quick Start Guide

December 2020

Emerson Automation Solutions

6021 Innovation Blvd.
Shakopee, MN 55379, USA

[phone] or [phone]
[phone]
[e-mail]

Latin America Regional Office

Emerson Automation Solutions
1300 Concord Terrace, Suite 400
Sunrise, FL 33323, USA

[phone]
[phone]
[e-mail]

Asia Pacific Regional Office

Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461

[phone]
[phone]
[e-mail]

North America Regional Office

Emerson Automation Solutions
8200 Market Blvd.
Chanhassen, MN 55317, USA

[phone] or [phone]
[phone]
[e-mail]

Europe Regional Office

Emerson Automation Solutions Europe
GmbH
Neuhofstrasse 19a P.O. Box 1046
CH 6340 Baar
Switzerland

[phone]
[phone]
[e-mail]

Middle East and Africa Regional Office

Emerson Automation Solutions
Emerson FZE P.O. Box 17033
Jebel Ali Free Zone - South 2
Dubai, United Arab Emirates

[phone]
[phone]
[e-mail]

Linkedin.com/company/Emerson-

Automation-Solutions

Twitter.com/Rosemount_News

Facebook.com/Rosemount

Youtube.com/user/

RosemountMeasurement

©

2020 Emerson. All rights reserved.

Emerson Terms and Conditions of Sale are
available upon request. The Emerson logo is a
trademark and service mark of Emerson Electric
Co. Rosemount is a mark of one of the Emerson
family of companies. All other marks are the
property of their respective owners.
