Page 1
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
Preliminary Copy

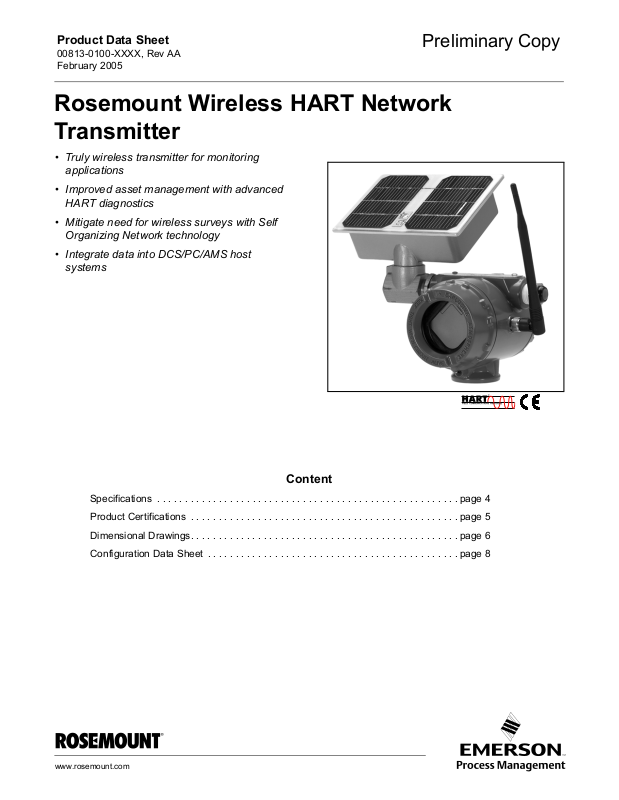

Rosemount Wireless HART Network
Transmitter
• Truly wireless transmitter for monitoring
applications
• Improved asset management with advanced
HART diagnostics
• Mitigate need for wireless surveys with Self
Organizing Network technology
• Integrate data into DCS/PC/AMS host
systems
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Dimensional Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Configuration Data Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8
www.rosemount.com
Content
Page 2
Product Data Sheet
00813-0100-XXXX, Rev AA
Scalable and Flexible Device Networks
Scalable Flexible
February 2005
• Automatically recognize new device installation
• Tiered measurement offering
• Wireless solution maintains data accuracy
• Integrates with pressure, temperature, level, and flow devices
• HART/analog and discrete inputs
• Truly wireless solution for easy installation
2
Page 3
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
ORDERING OPTIONS
Selection Guide
Remote Mount
REMOTE MOUNT WITH REMOTE
POWER SUPPLY
Wireless Housing with Integrated Pressure Transmitter
INTEGRATED PRESSURE TRANSMITTER AND
REMOTE POWER SUPPLY
ENERGY EFFICIENT REMOTE
MOUNT WITH LINE POWER
24VDC
ENERGY EFFICIENT INTEGRATED
PRESSURE TRANSMITTER
24 VDC
3
Page 4
Specifications
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
PERFORMANCE SPECIFICATIONS
Vibration Effect
Less than +/- 0.1% of URL when tested per the requirements of
IEC 60770-1 field or pipeline with high vibration level (10-60 Hz
0.211mm displacement peak amplitude / 60-2000 Hz 3g).
Housing style codes 1J, 1K, 1L, 2J
Less than +/- 0.1% of URL when tested per the requirements of
IEC60770-1 field with general application or pipeline with low
vibration level (10-60 Hz 0.15mm displacement peak amplitude /
60-500 Hz 2g).
Electromagnetic Compatibility (EMC)
Meets all relevant requirements of IEC/EN 61326 and NAMUR
NE-21.
FUNCTIONAL SPECIFICATIONS
Power Supply
External power supply:
• Rosemount Remote Power Supply with solar panel and
battery
P
= 1.5W
max
Amp = 1.2
Voltage at P
• 6 to 28 Vdc with no load
Temperature Limits
Ambient
-4 to 140 °F (-20 to 60 °C)
Storage
-40 to 185 °F (-40 to 85 °C)
max
= 16.5V
PHYSICAL SPECIFICATIONS
Electrical Connections
½ - 14 NPT conduit.
Paint
Polyurethane
Cover O-rings
Buna-N

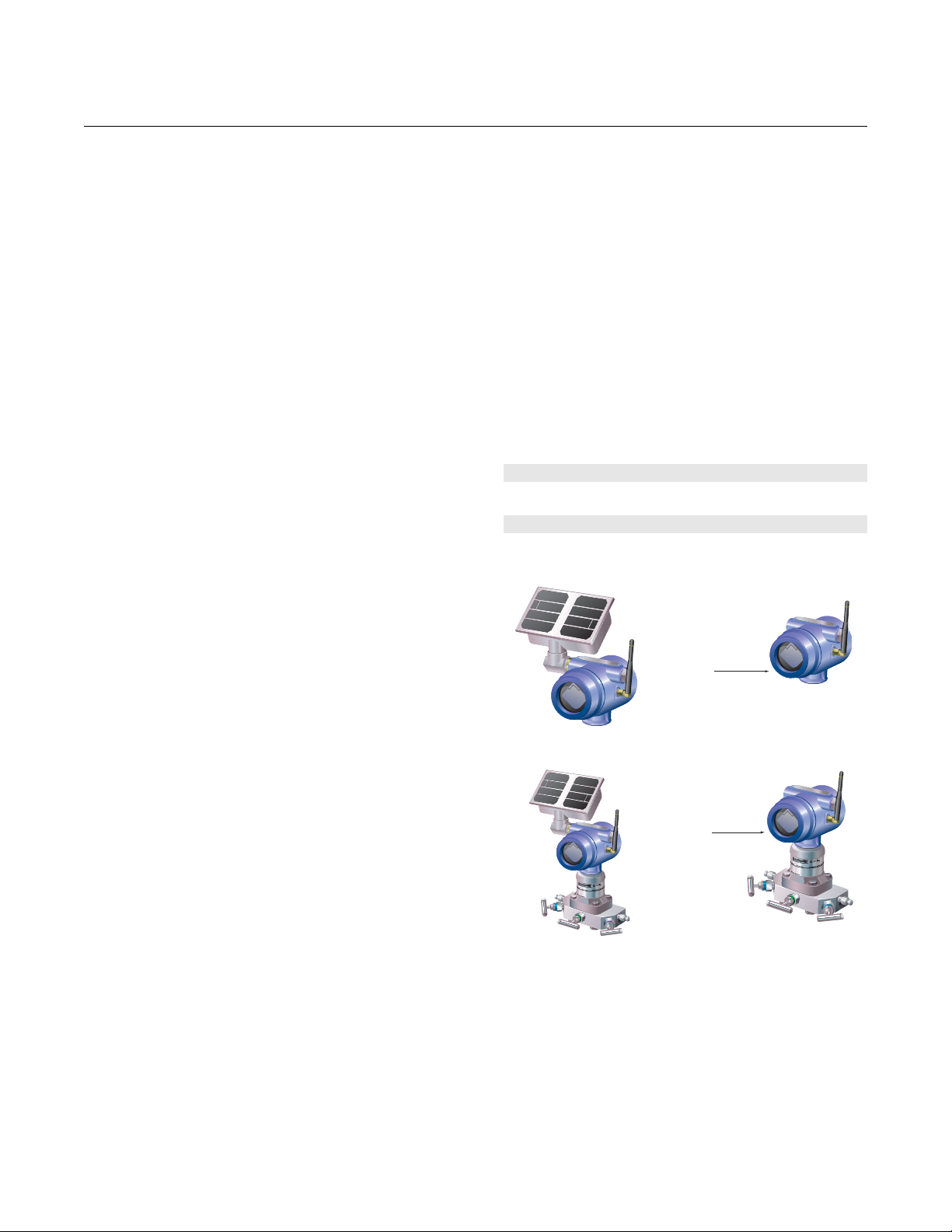

Assembly Configurations
A Remote mount with remote power supply
B Remote mount
C Wireless housing with integrated pressure transmitter
and remote power supply
D Wireless housing with integrated pressure transmitter
A
24VDC
C
B
D
Humidity Limits
0-100% relative humidity
Turn-On Time
Performance within specifications less than 2.0 seconds after
power is applied to the transmitter or as determined by the
measurement transmitter (whichever is greater).
Vibration
Suitable for 60-2000 Hz 2g as specified in IEC 60770-1
Power Management
Update intervals from once per minute to once per hour.
4
24 VDC
Page 5
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
Product Certifications
Approved Manufacturing Locations
Rosemount Inc. — Chanhassen, Minnesota USA
FCC Compliance
This product is in compliance with FCC regulations.
FCC ID: LW2753S
IC ID: 2731-753S
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following conditions:
• this device may not cause harmful interference, and
• this device must accept any interference received, including
interference that may cause undesired operation
Changes or modifications not expressly approved by
Rosemount, Inc. could void your authority to operate
the equipment.
5
Page 6

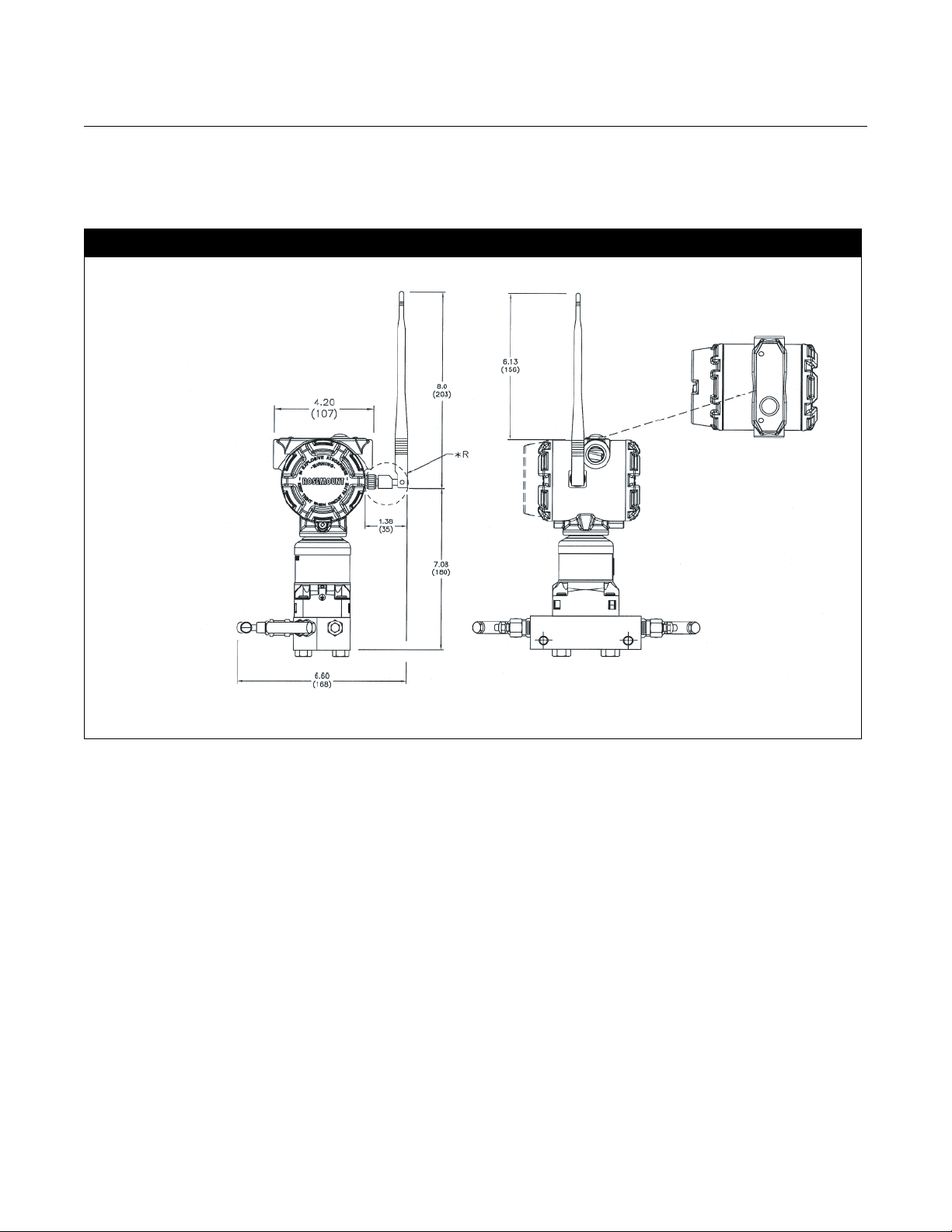

Dimensional Drawings
Transmission Antenna
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
* R - SMA CONNECTOR
6
Page 7
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005

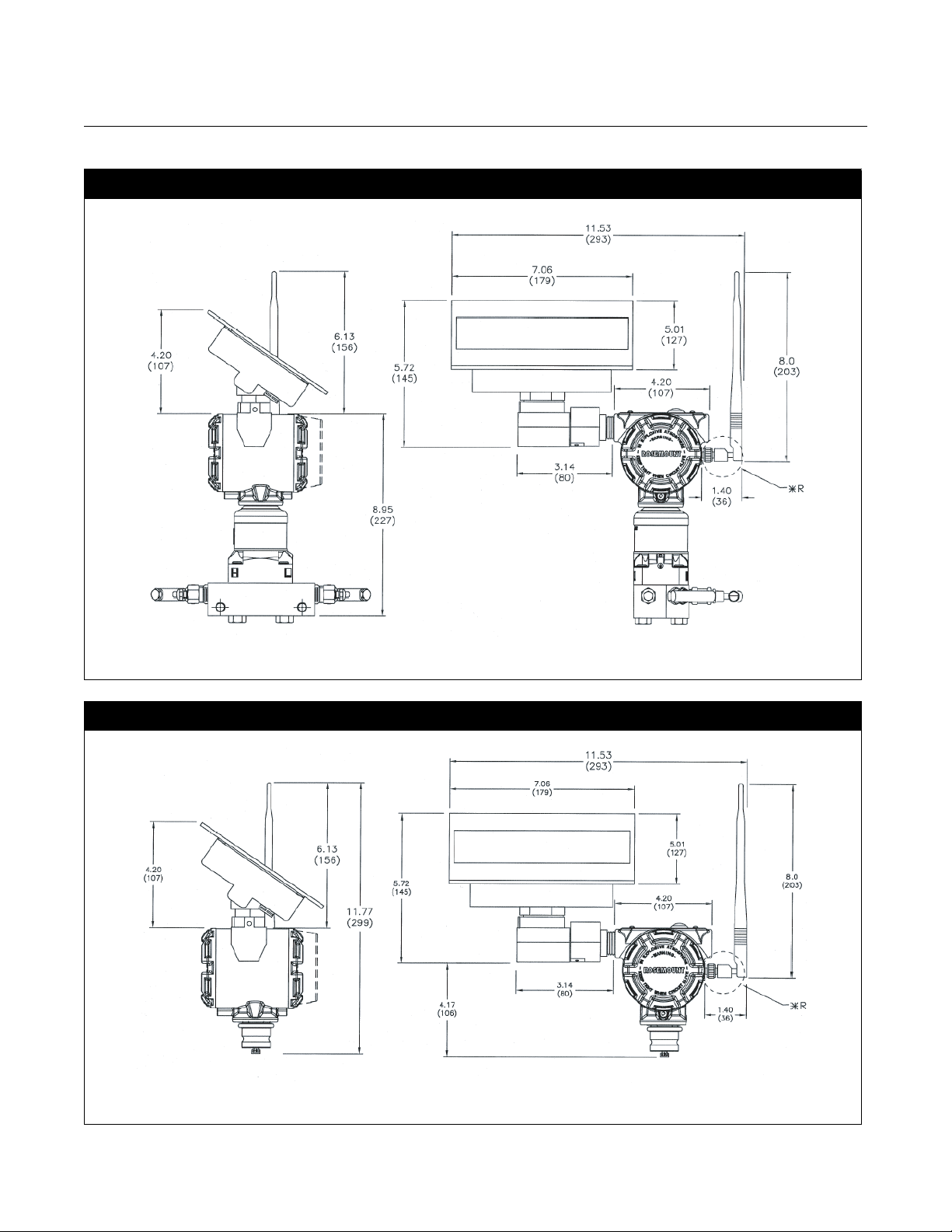

Assembly
Remote Power Supply
* R - SMA CONNECTOR
* R - SMA CONNECTOR
7
Page 8
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
Configuration Data Sheet
Configuration Data Sheet
Customer: _____________________________________________ P.O. No.:_______________________________________________
Model No.: _____________________________________________ Line Item: ______________________________________________
Input Output Information
Type of Measurement Variable Input: □ HART (multi-drop mode)
□ 1
753R / iTraX Information
Device Tag Name: I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I_I
(20 characters maximum)
Measurement Variables to Transmit: □ PV
□ SV
□ TV
□ QV
Read/Transmit Interval:
□ Read and transmit once per minute
□ Read and transmit once every 5 minutes
□ Read and transmit once every 15 minutes
□ Read and transmit once every 30 minutes
□ Read and transmit once per hour
Event Expiration Time: _______ minutes (default 30 minutes)
Device Startup Time: _______ seconds (default 2 seconds)
Power Mode:
□ Power Save
□ Always On
Button Configuration
Mode: □ Enable
□ Disable
Application Information (If Applicable)
Location (city, state, country): _____________________________________________
Process Material Name: _____________________________________________
Material Phase: □ Liquid
□ Gas
□ Solid
□ Steam
Expected Date of Installation: _________
8
Page 9
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
9
Page 10
Product Data Sheet
00813-0100-XXXX, Rev AA
February 2005
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
PlantWeb is a registered trademark of one of the Emerson Process Management group of companies.
All other marks are the property of their respective owners.
Emerson Process Management
Rosemount Division
8200 Market Boulevard
Chanhassen, MN 55317 USA
T (U.S.) 1-800-999-9307
T (International) (952) 906-8888
F (952) 949-7001
www.rosemount.com
Rosemount Temperature GmbH
Frankenstrasse 21
63791 Karlstein
Germany
T 49 (6188) 992 0
F 49 (6188) 992 112
Emerson Process Management Asia
Pacific Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947
[email protected]
¢00813-XXXX-XXXXm¤
© 2005 Rosemount Inc. All rights reserved.
