Rosemount 5402, 5401 Reference Manual

Download

Page 1

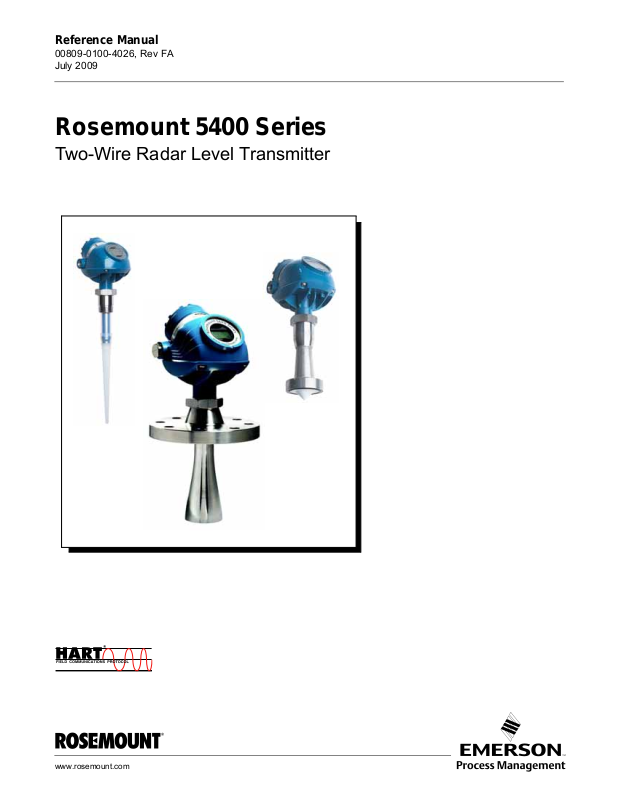

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Two-Wire Radar Level Transmitter

www.rosemount.com

Page 2

Page 3

Reference Manual

NOTICE

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product.

Within the United States, Emerson Process Management has two toll-free assistance numbers.

Customer Central: 1-800-999-9307(7:00 a.m. to 7:00 p.m. CST) Technical support, quoting, and order-related questions.

North American Response Center:

Equipment service needs. 1-800-654-7768 (24 hours a day – Includes Canada)

For equipment service or support needs outside the United States, contact your local Emerson Process Management representative.

There are no health hazards from the Rosemount 5400 Series transmitter. The microwave power density in the tank is only a small fraction of the allowed power density according to international standards.

The products described in this document are NOT designed for nuclear-qualified applications.

Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings.

For information on Rosemount nuclear-qualified products, contact your local Emerson Process Management Sales Representative.

This product is designed to meet FCC and R&TTE requirements.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Rosemount 5400 Series Radar T ransmitter ma y be prot ected by one or more U. S. Patent s pending and forei gn patents pending. Cover Photo: 5400_08, 5400_Process_Seal.tif, 5400_Rod. tif

www.rosemount.com

Page 4

Page 5

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

SECTION 1 Introduction

SECTION 2 Transmitter Overview

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Product Recycling/Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

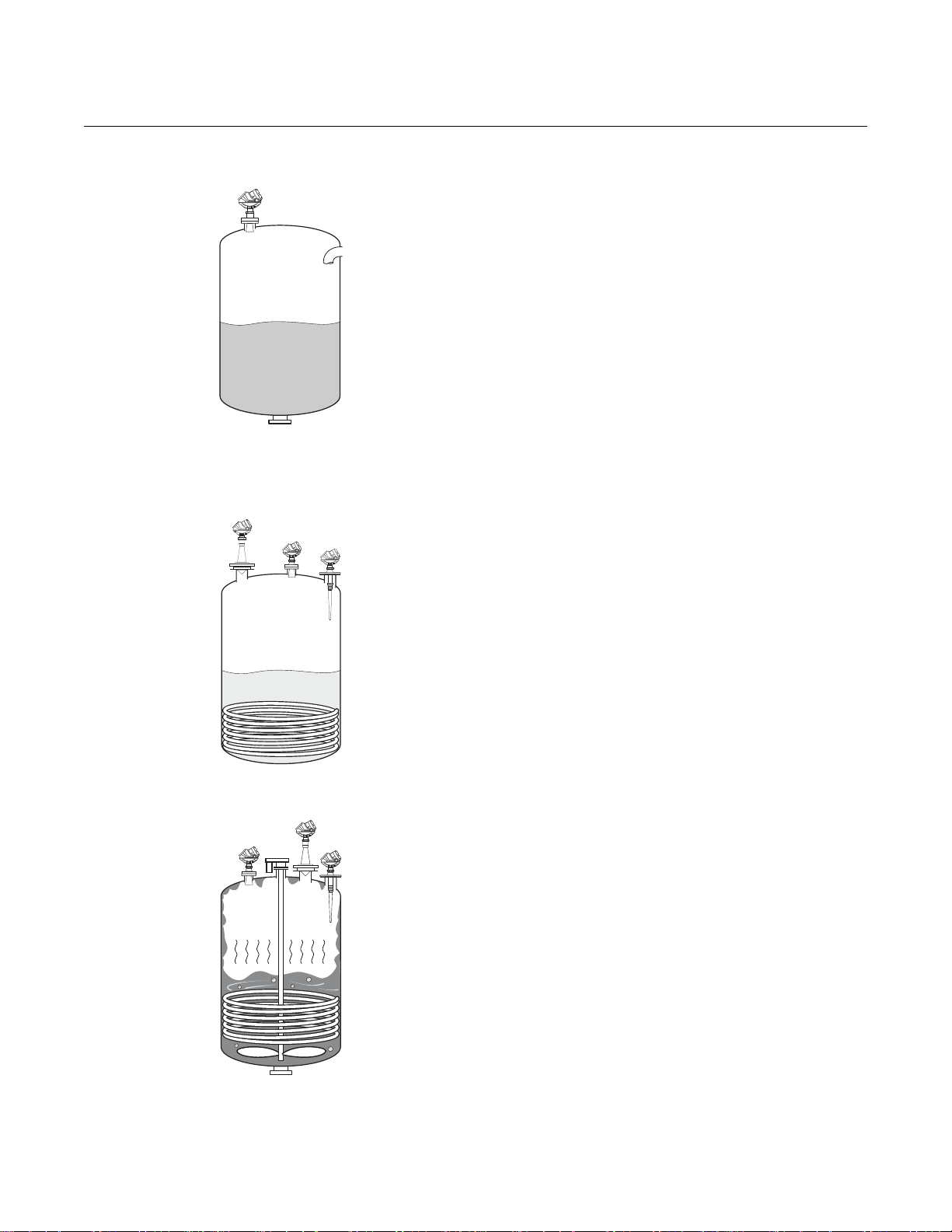

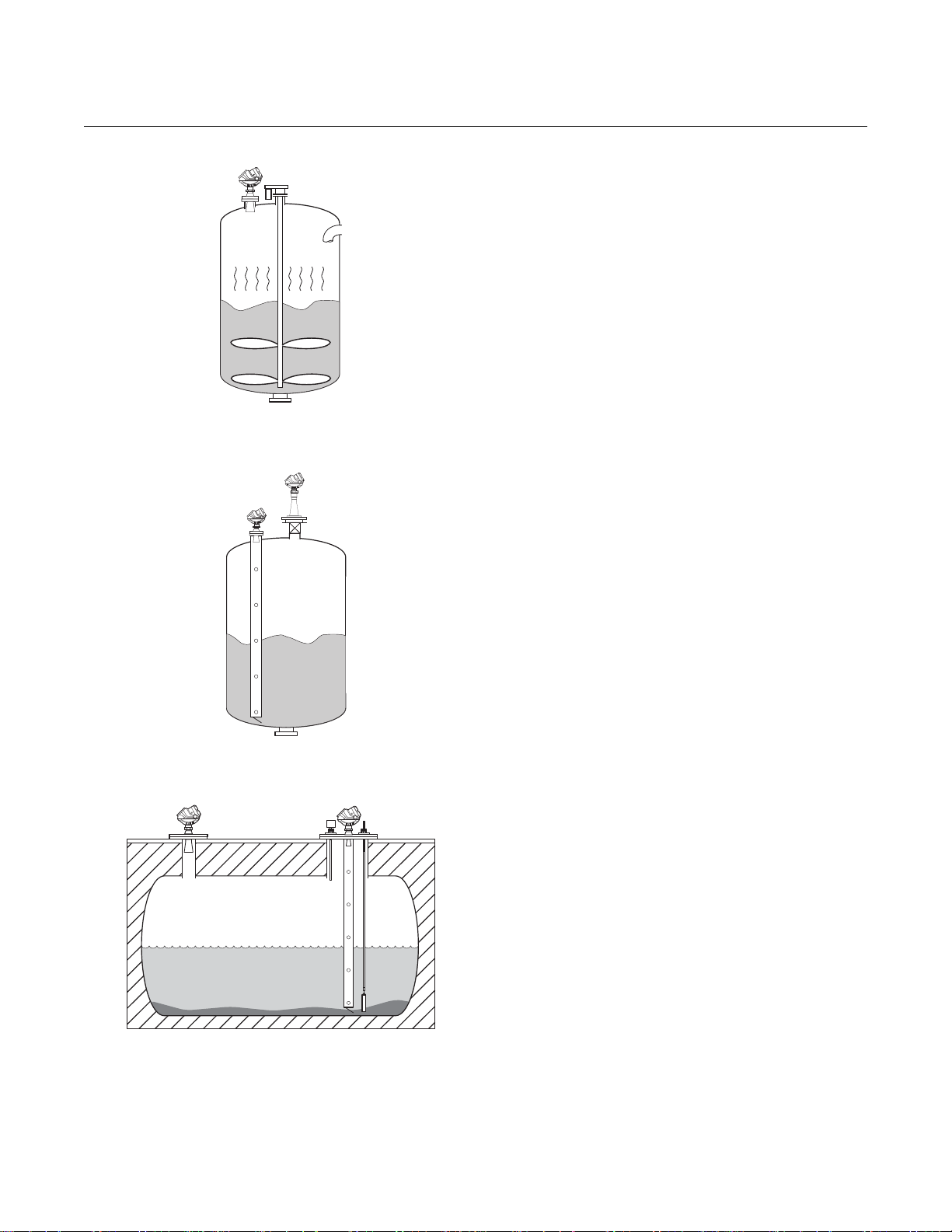

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Tanks, vessels, and containers with calm surfaces . . . . . . . . . 2-2

Overfill and underfill detection . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Corrosives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Sticky, viscous and crystallizing products . . . . . . . . . . . . . . . . . 2-2

Sludges and slurries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Reactor vessels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Mounting flexibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Underground tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

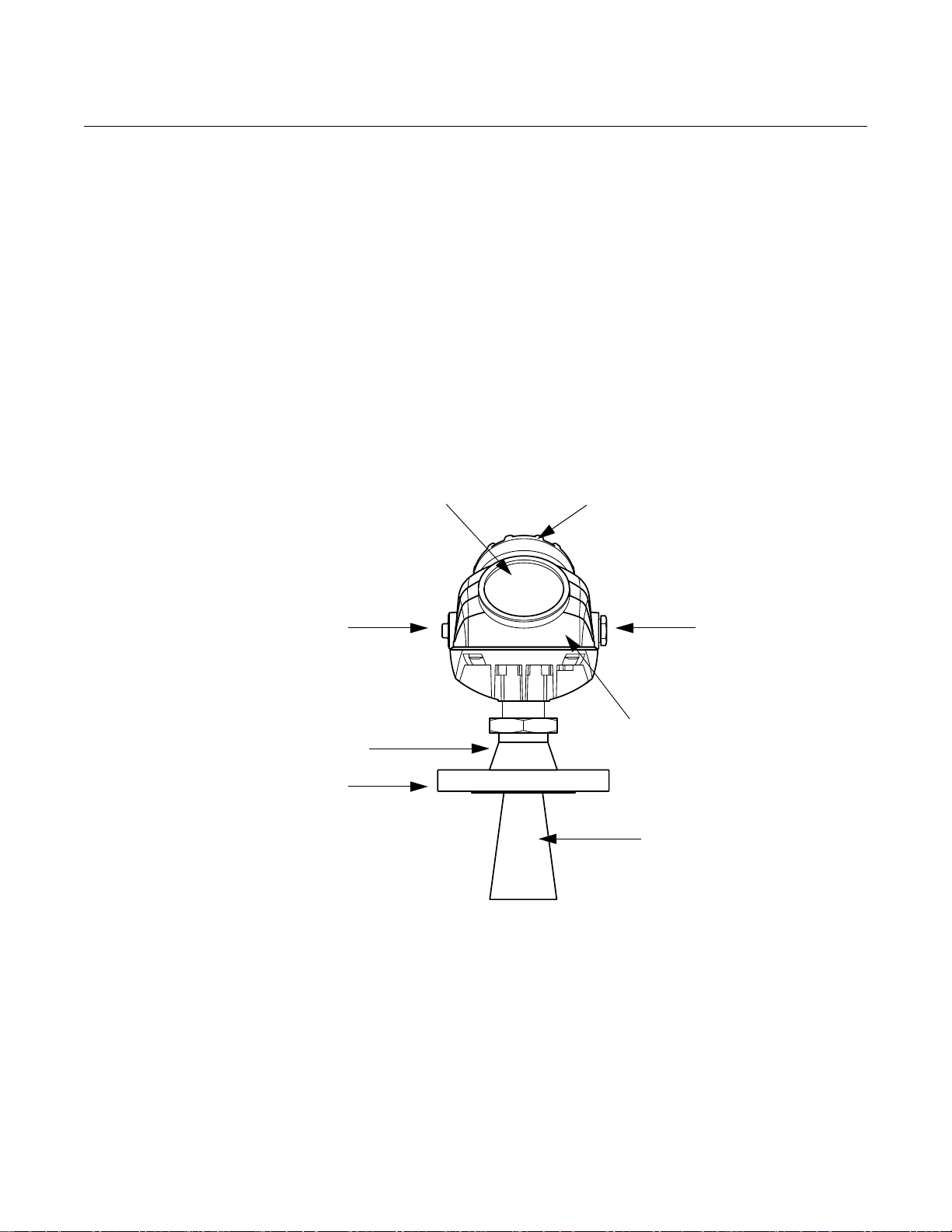

Components of the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

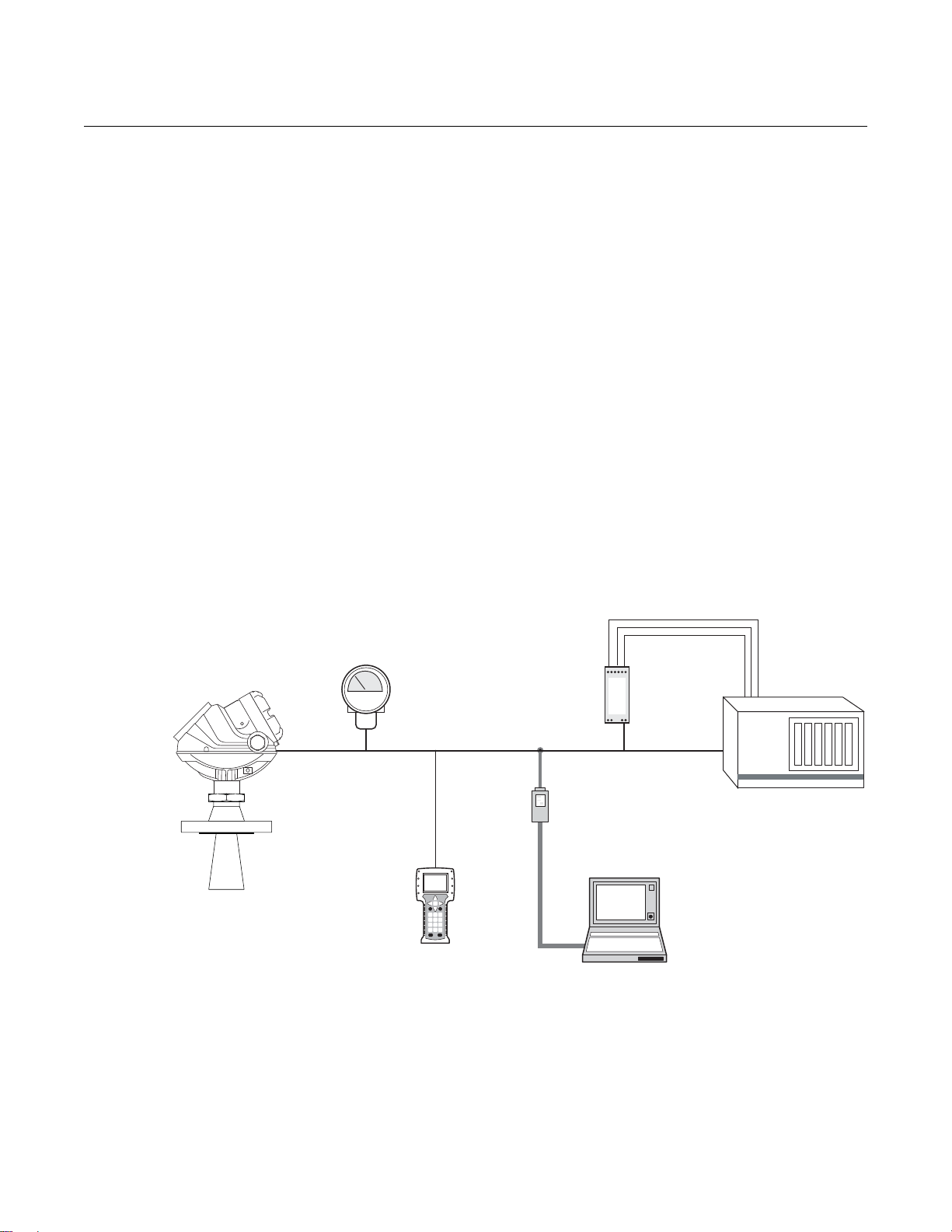

System Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Process Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Dielectric constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Foam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Temperature/Pressure/

Density and Vapor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Condensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Tank Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

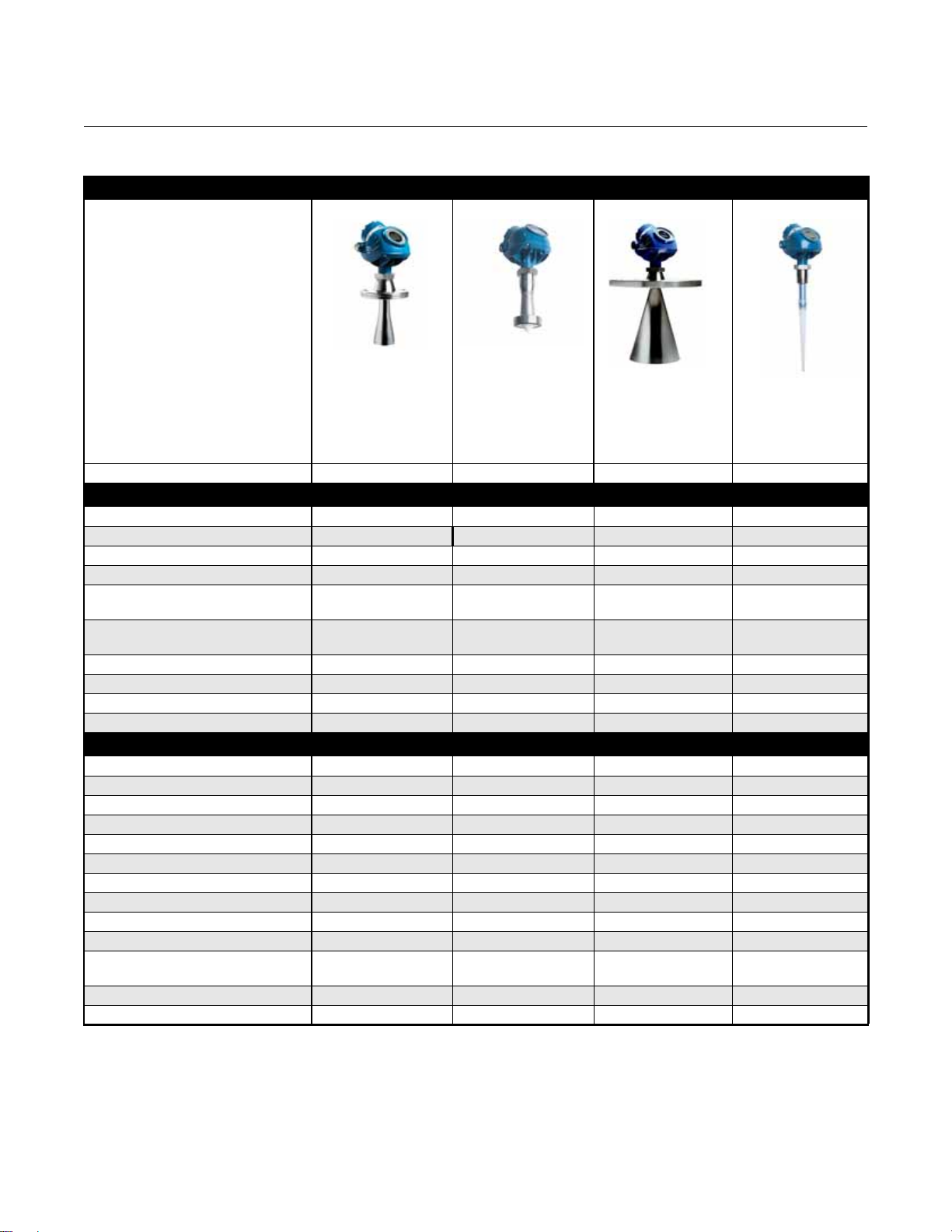

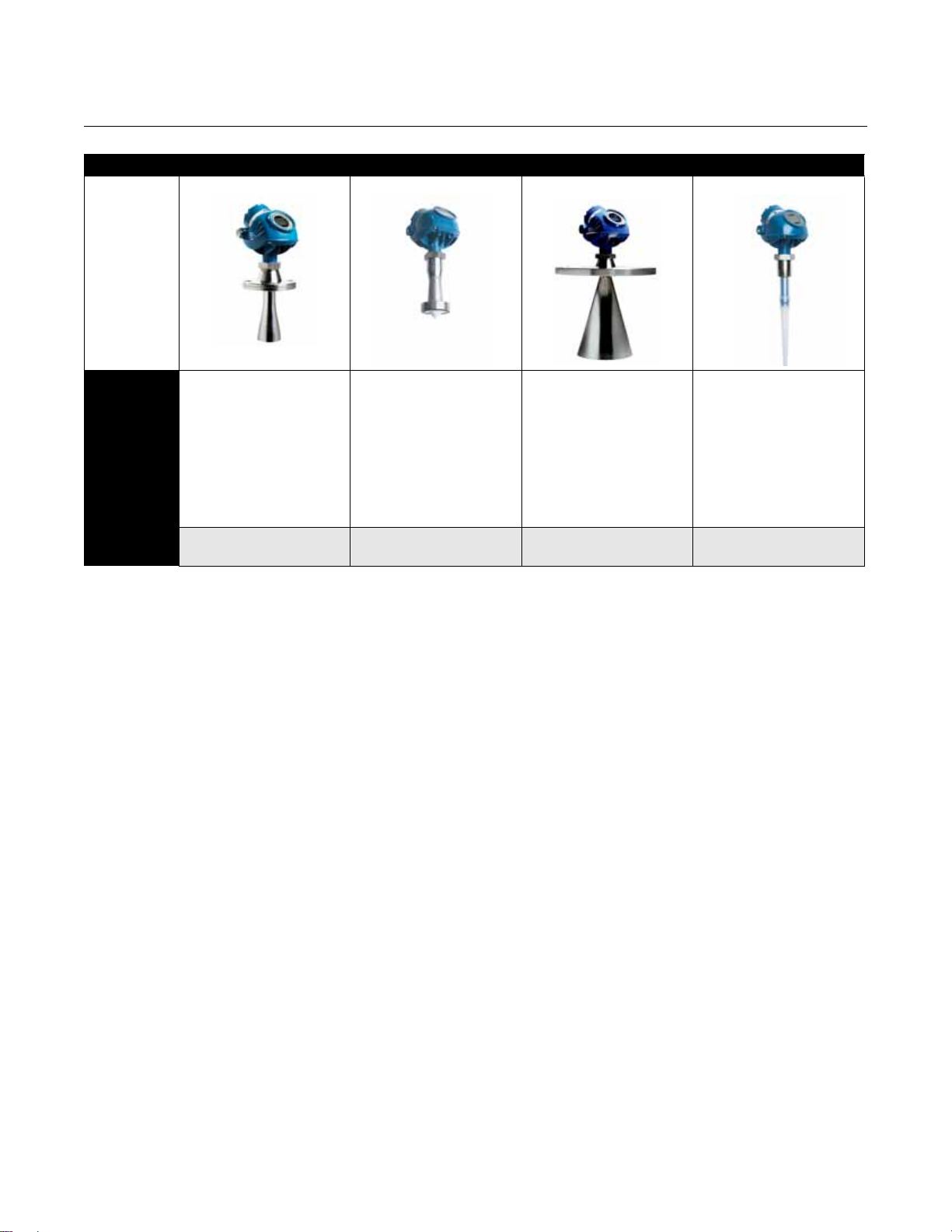

Antenna Selection Guide/Measuring Range . . . . . . . . . . . . . . . . . . . . 2-7

SECTION 3 Mechanical Installation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

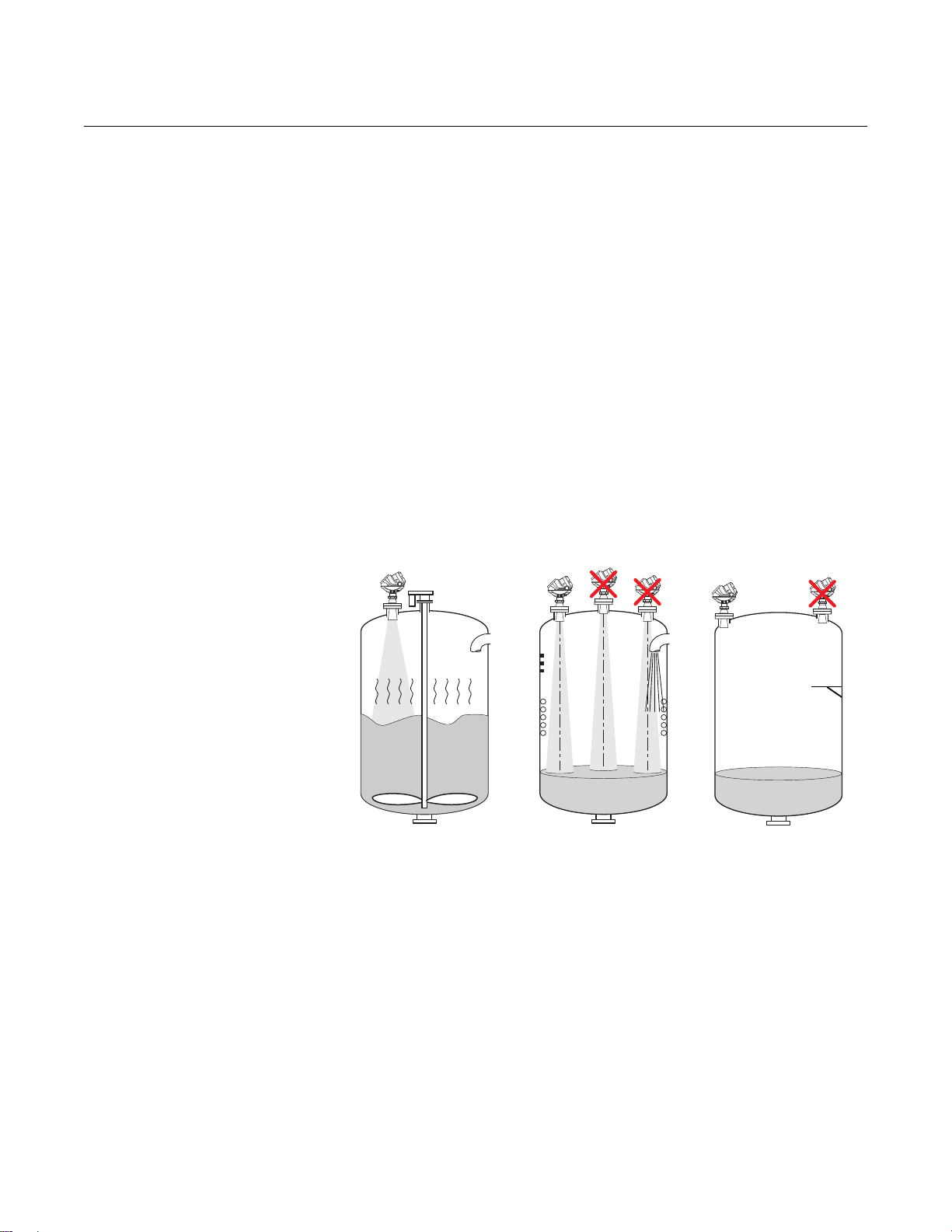

Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

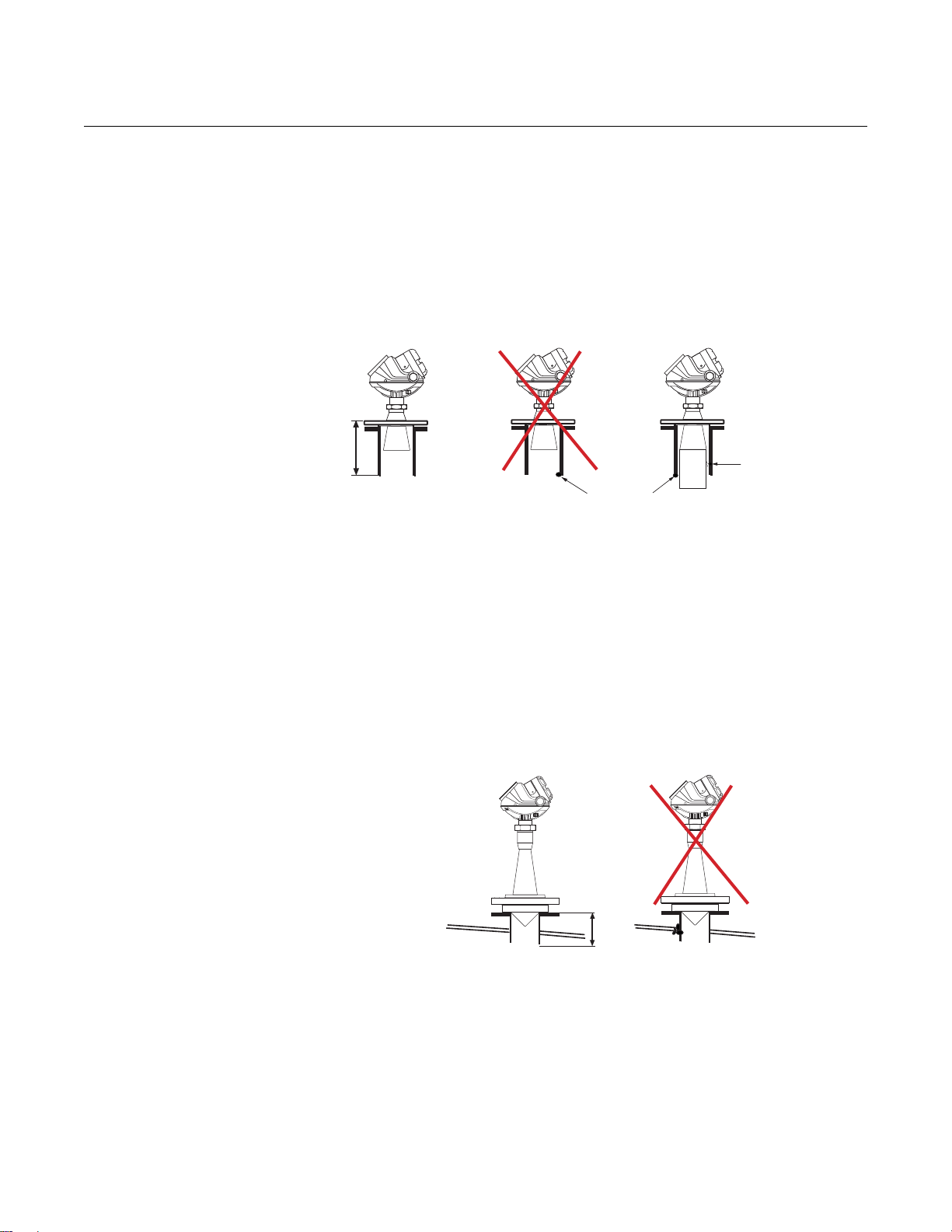

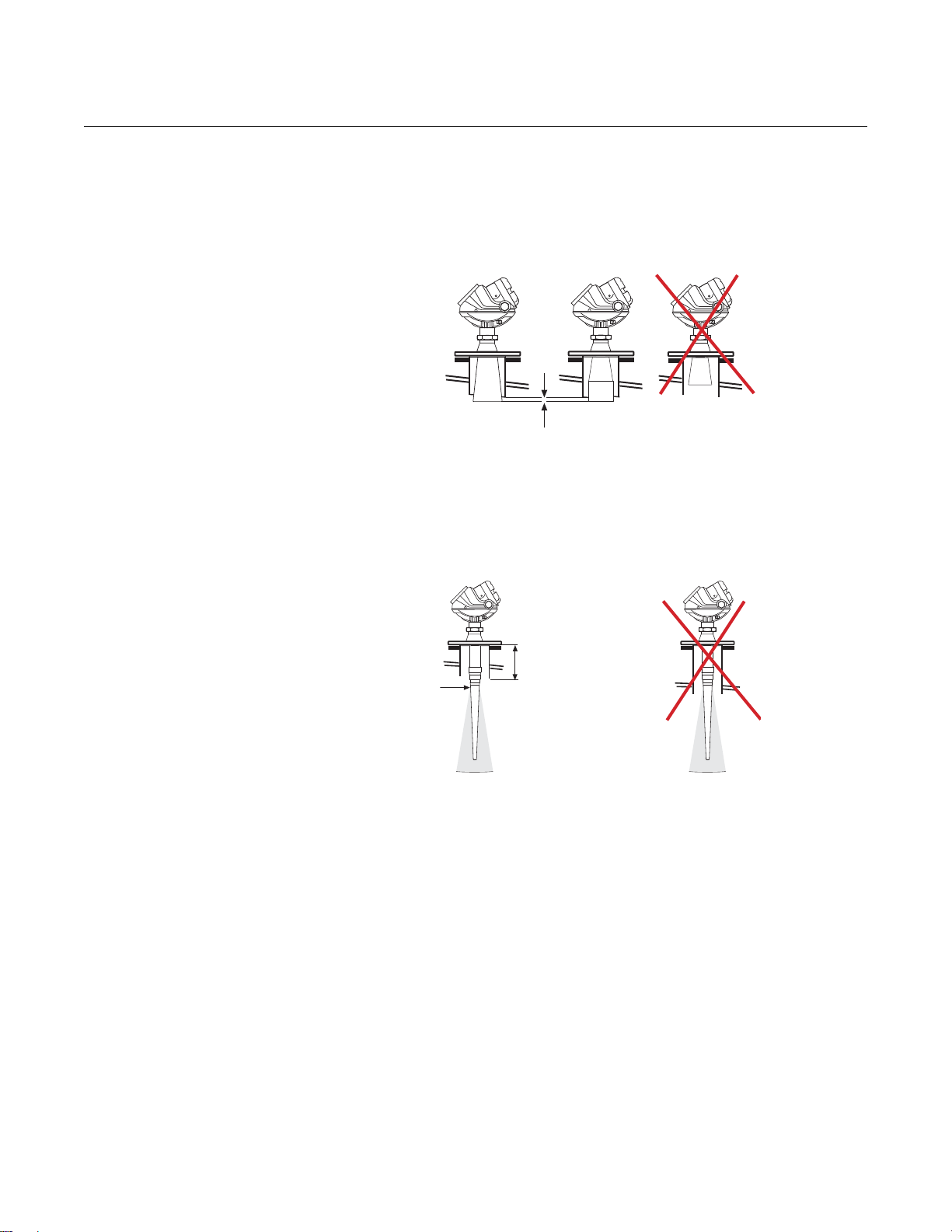

Nozzle Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

5402 with Cone Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

5402 with Process Seal Antenna . . . . . . . . . . . . . . . . . . . . . . . 3-5

5401 with Cone Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

5401 with Rod Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

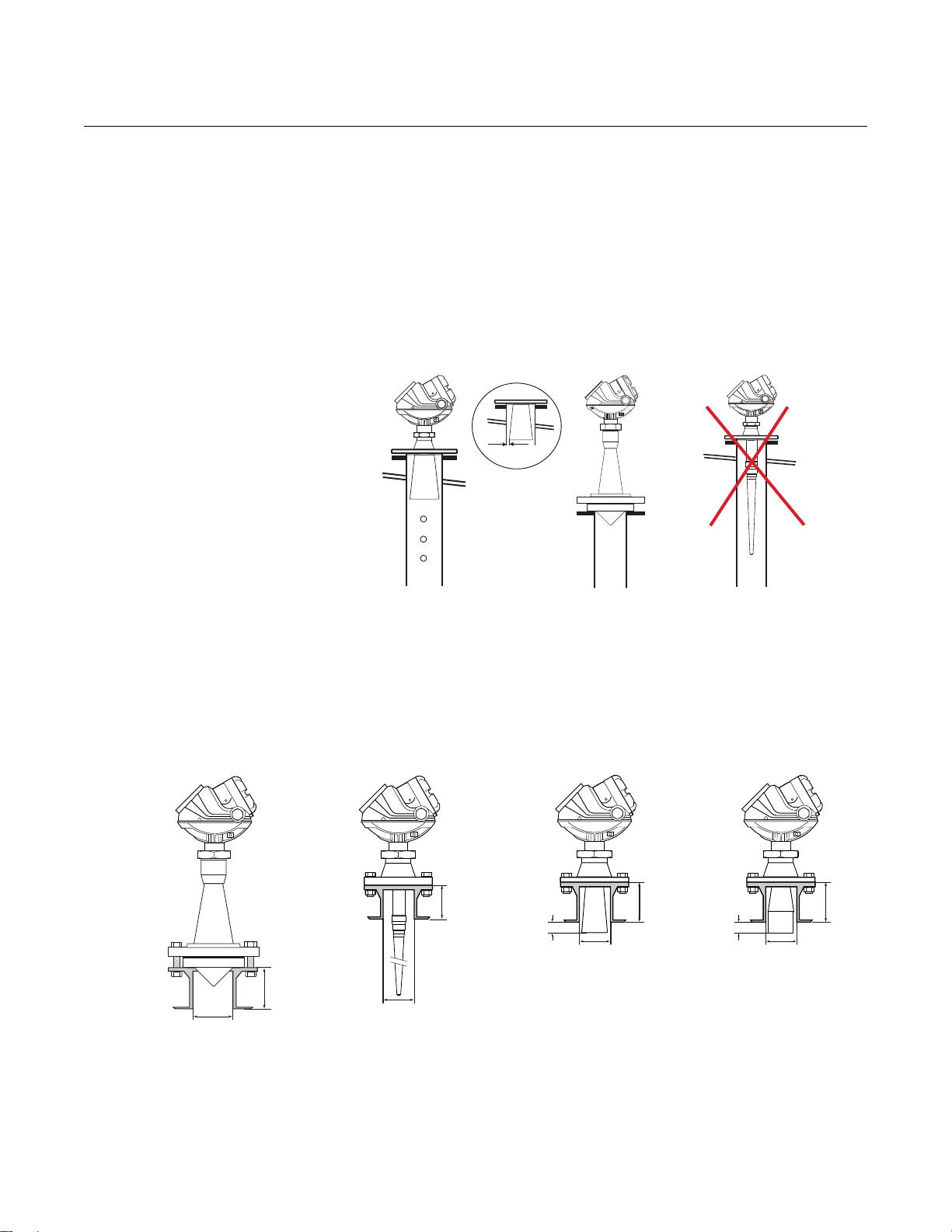

Still-pipes in Metallic Materials . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Nozzle Recommendations and Requirements . . . . . . . . . . . . . . . . 3-7

Service Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

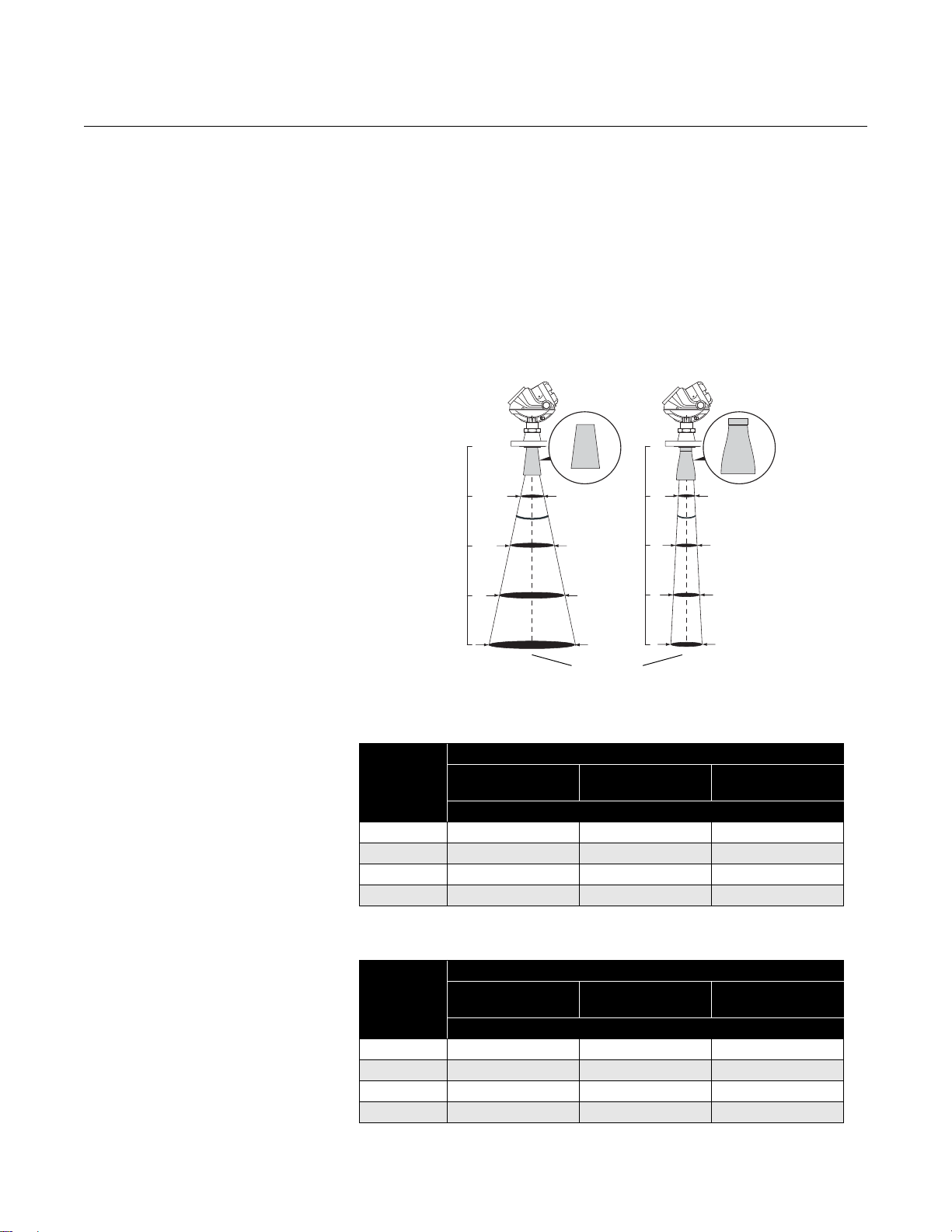

Beamwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Vessel Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Disturbing Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Valves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

www.rosemount.com

Page 6

Rosemount 5400 Series

Cone Antenna Flange Connection . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Process Seal Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

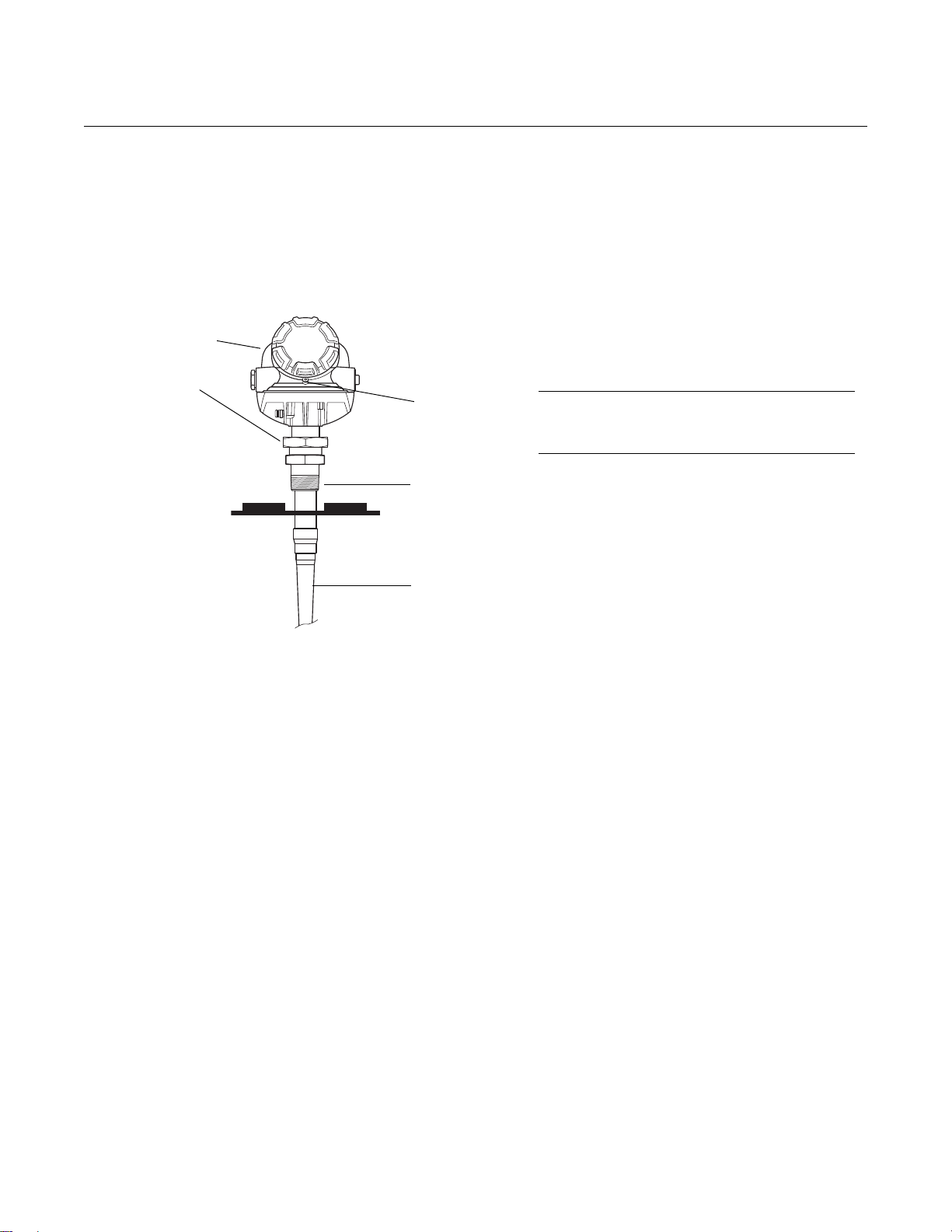

Rod Antenna Threaded Connection . . . . . . . . . . . . . . . . . . . . . . . 3-15

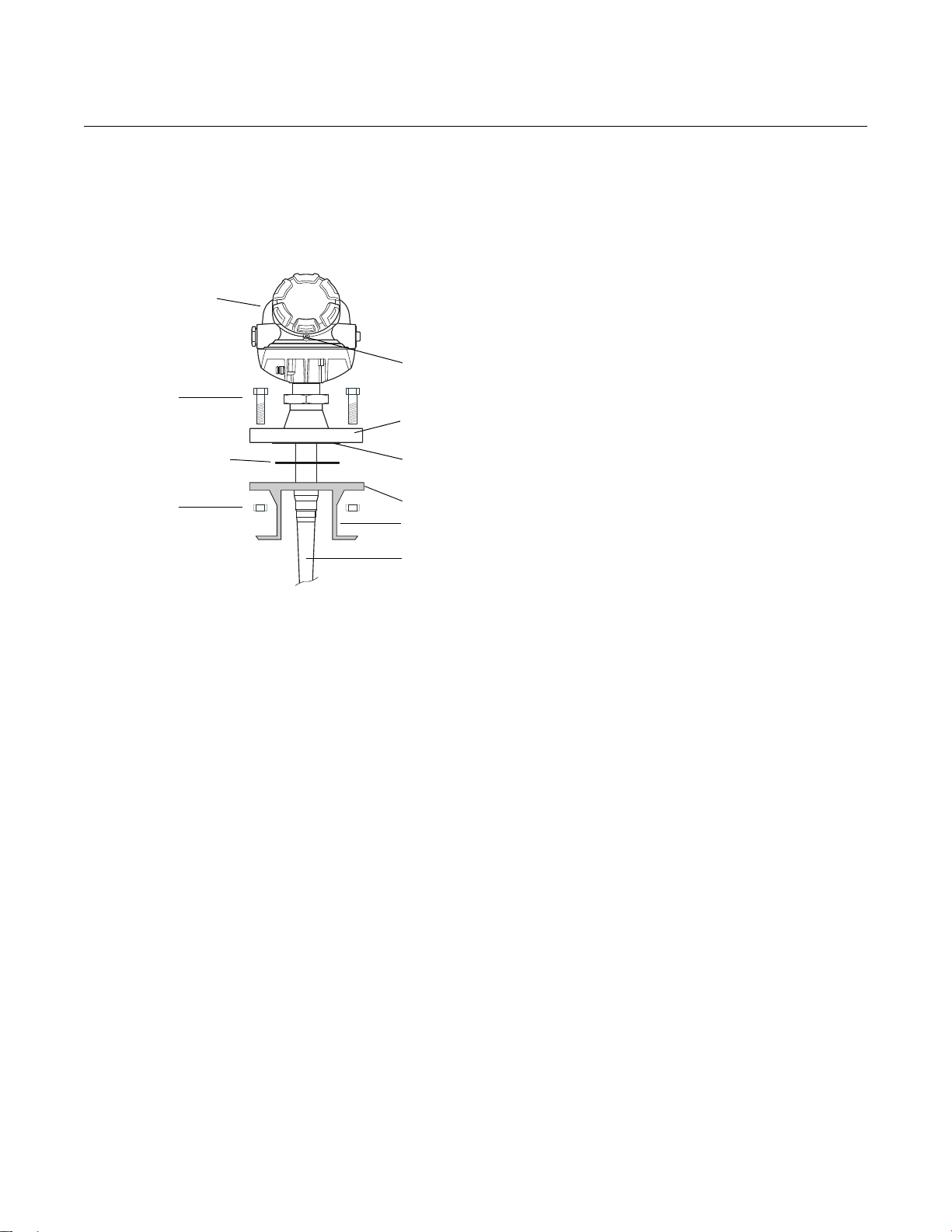

Rod Antenna Flanged Connection . . . . . . . . . . . . . . . . . . . . . . . . 3-16

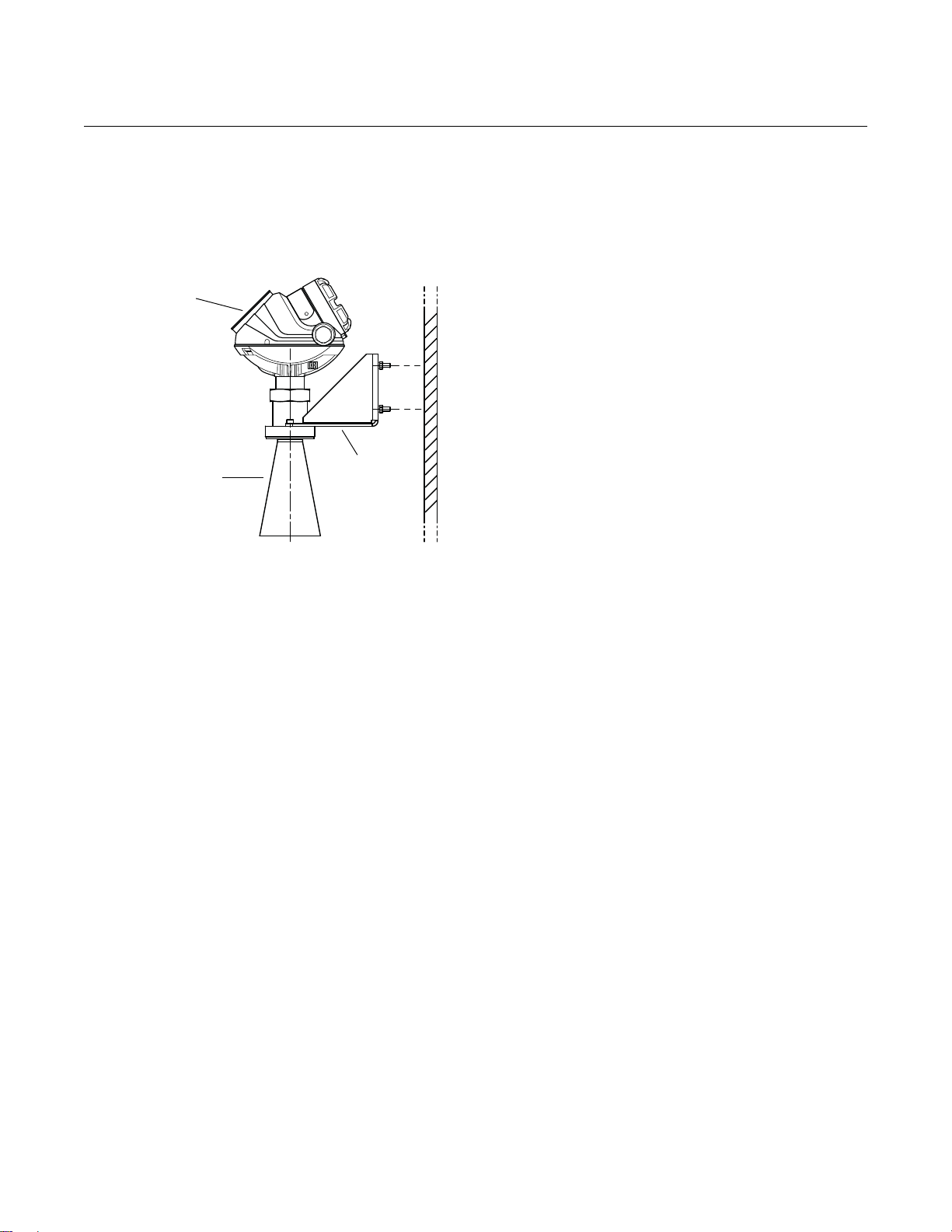

Bracket Mounting on Wall. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

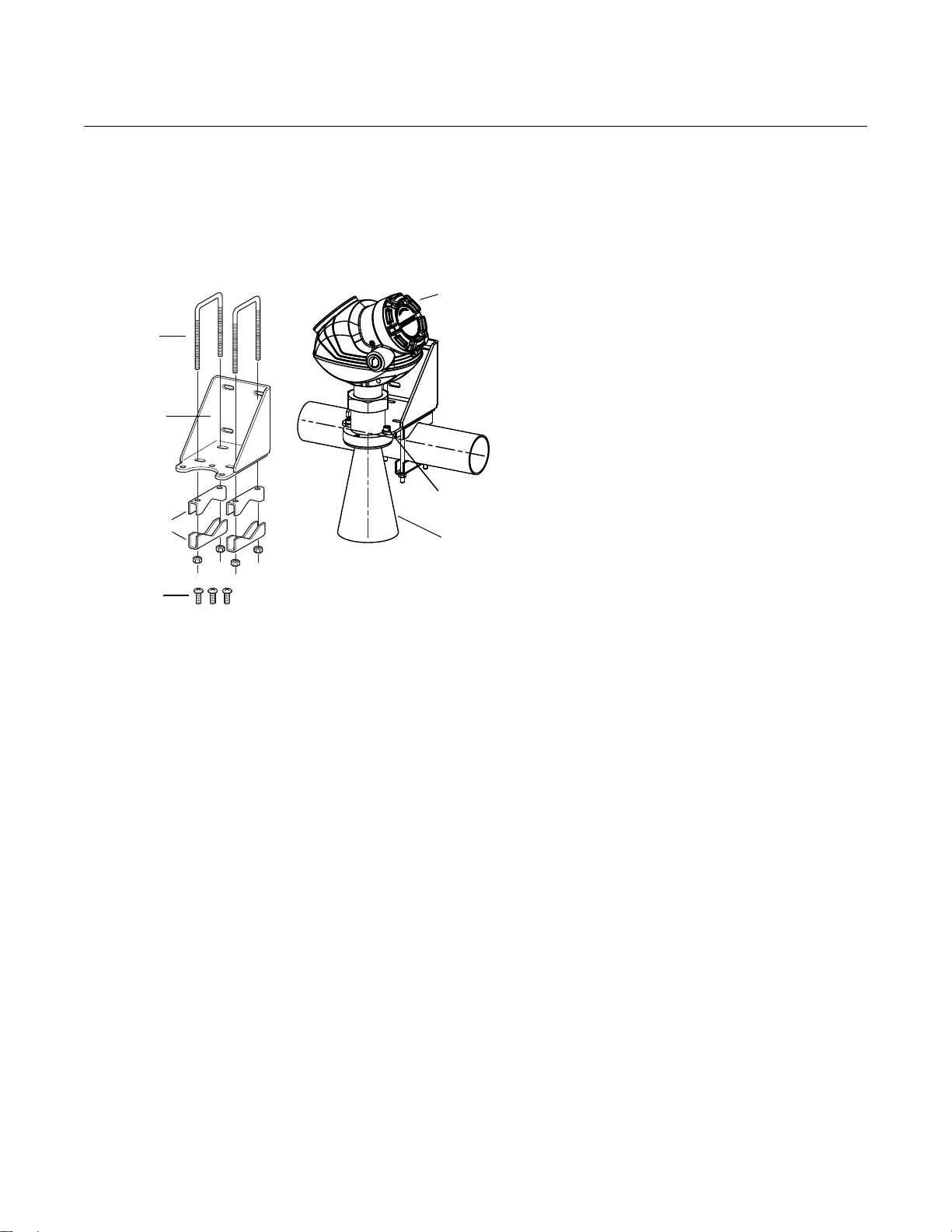

Bracket Mounting on Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

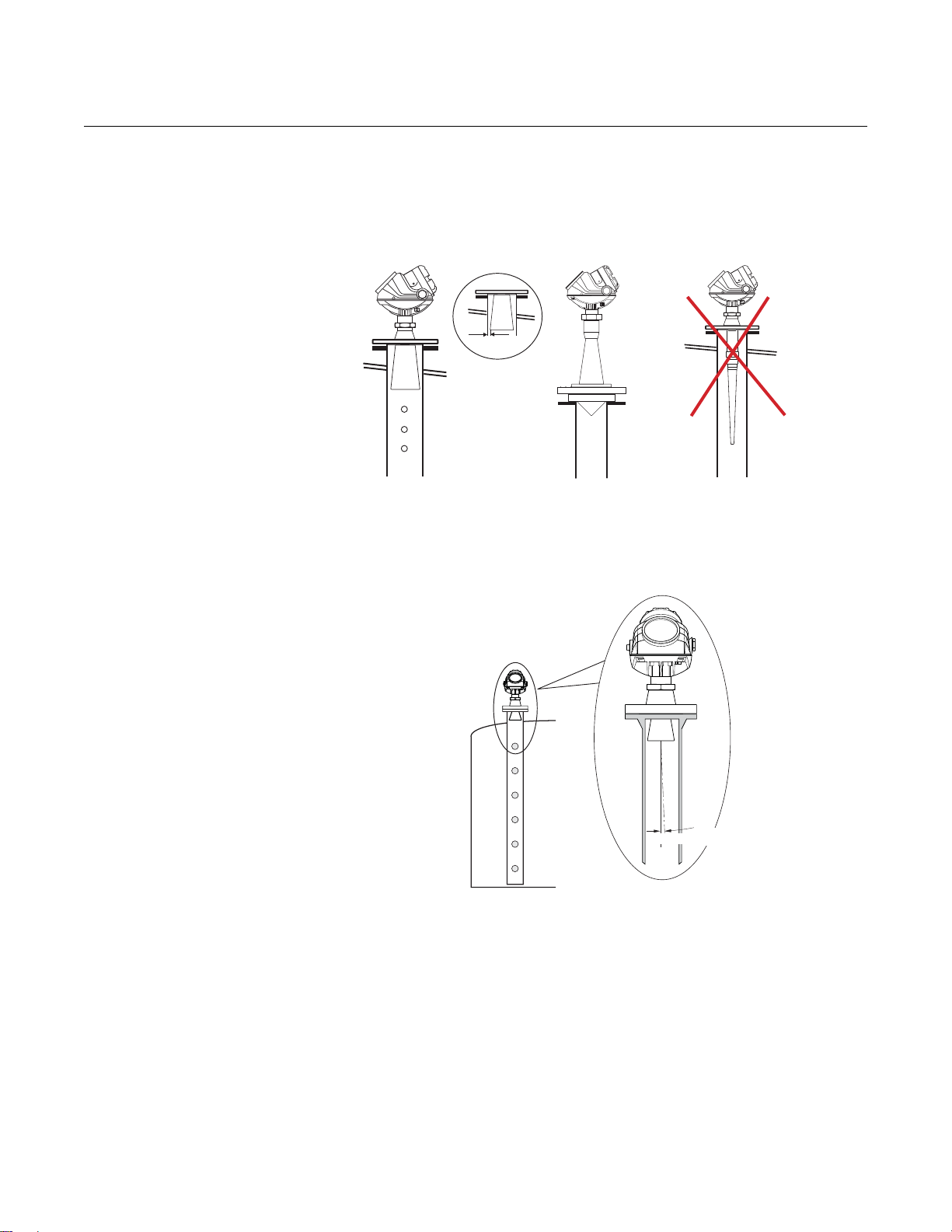

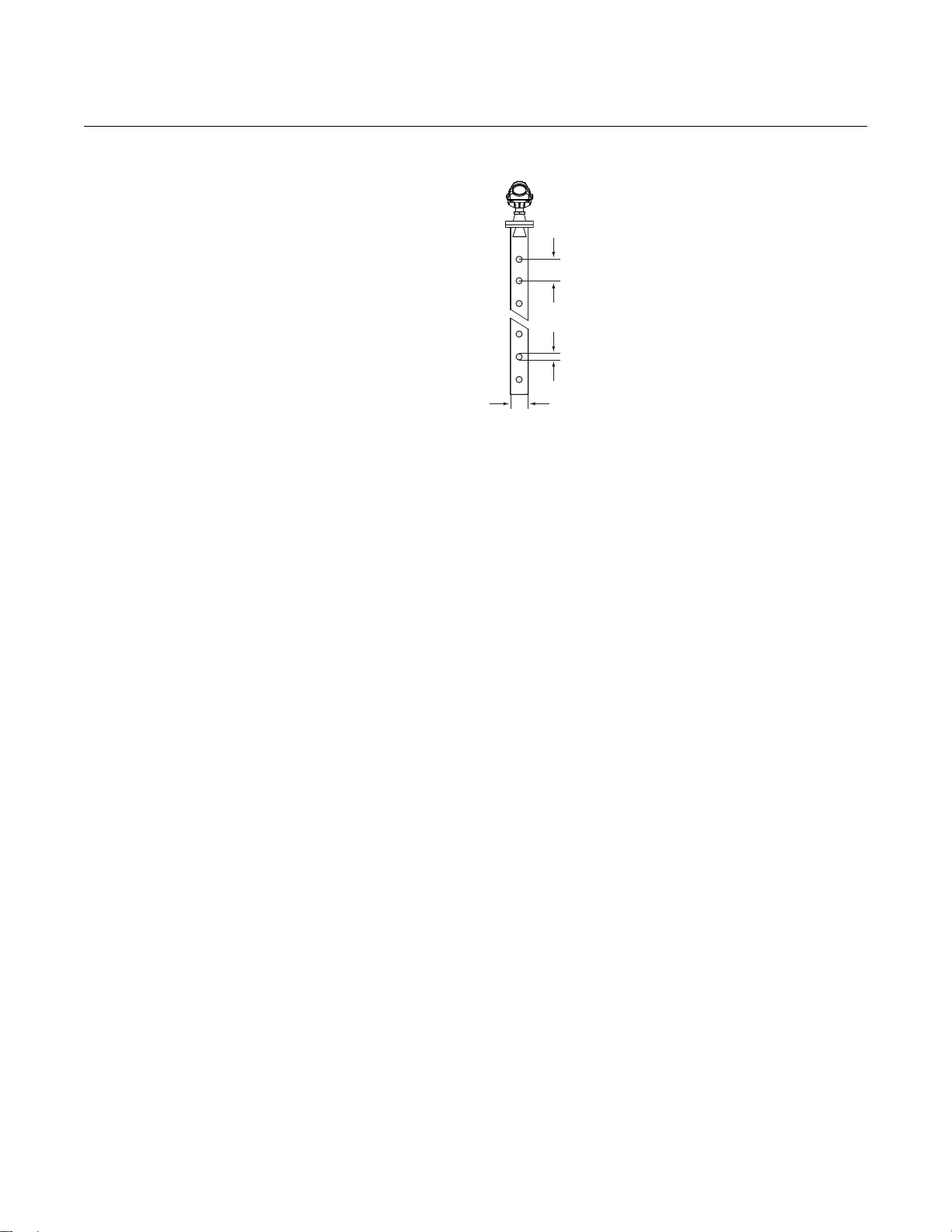

Mounting in Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Reference Manual

00809-0100-4026, Rev FA

July 2009

Recommendations for pipe installations . . . . . . . . . . . . . . . . . 3-19

SECTION 4 Electrical Installation

SECTION 5 Basic Configuration/ Start-Up

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Cable/Conduit Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Conduit Electrical Connector Wiring (using Minifast®). . . . . . . . . . 4-4

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Cable Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Hazardous Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

External Circuit Breaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

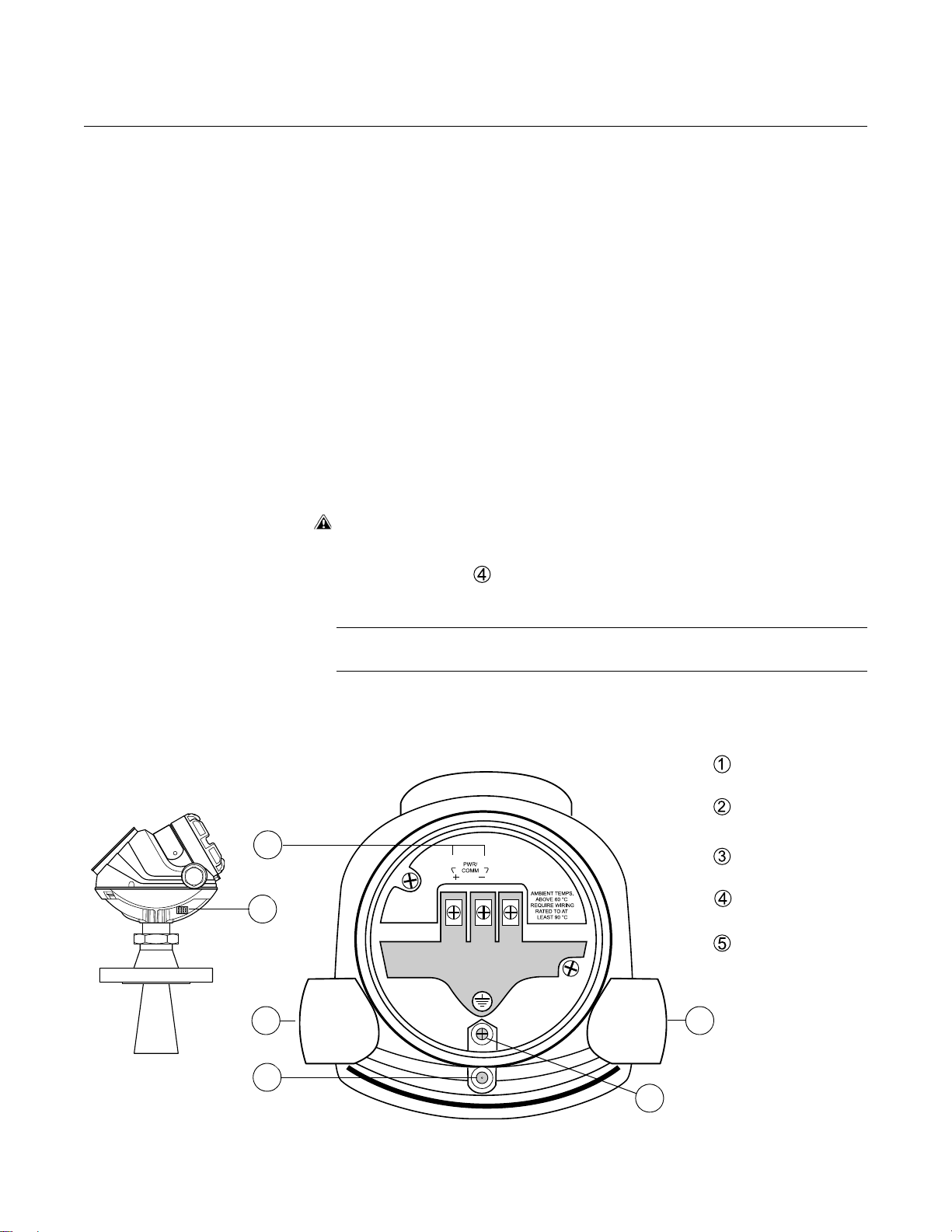

Connecting the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Non-Intrinsically Safe Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Intrinsically Safe Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

IS parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Tri-Loop HART to analog converter . . . . . . . . . . . . . . . . . . . . . . . . 4-9

751 Field Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Basic Configuration Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Configuration Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Basic Configuration Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Measurement Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

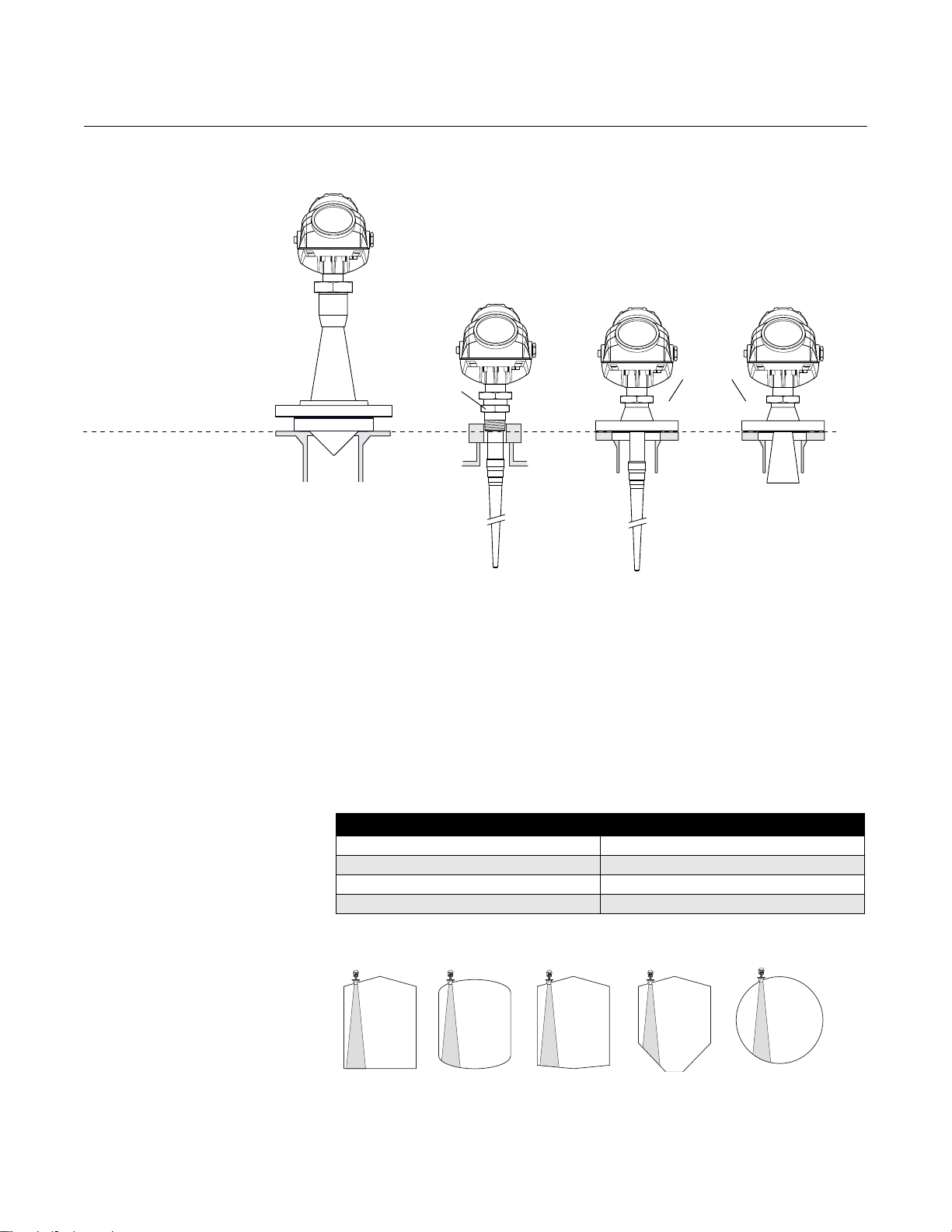

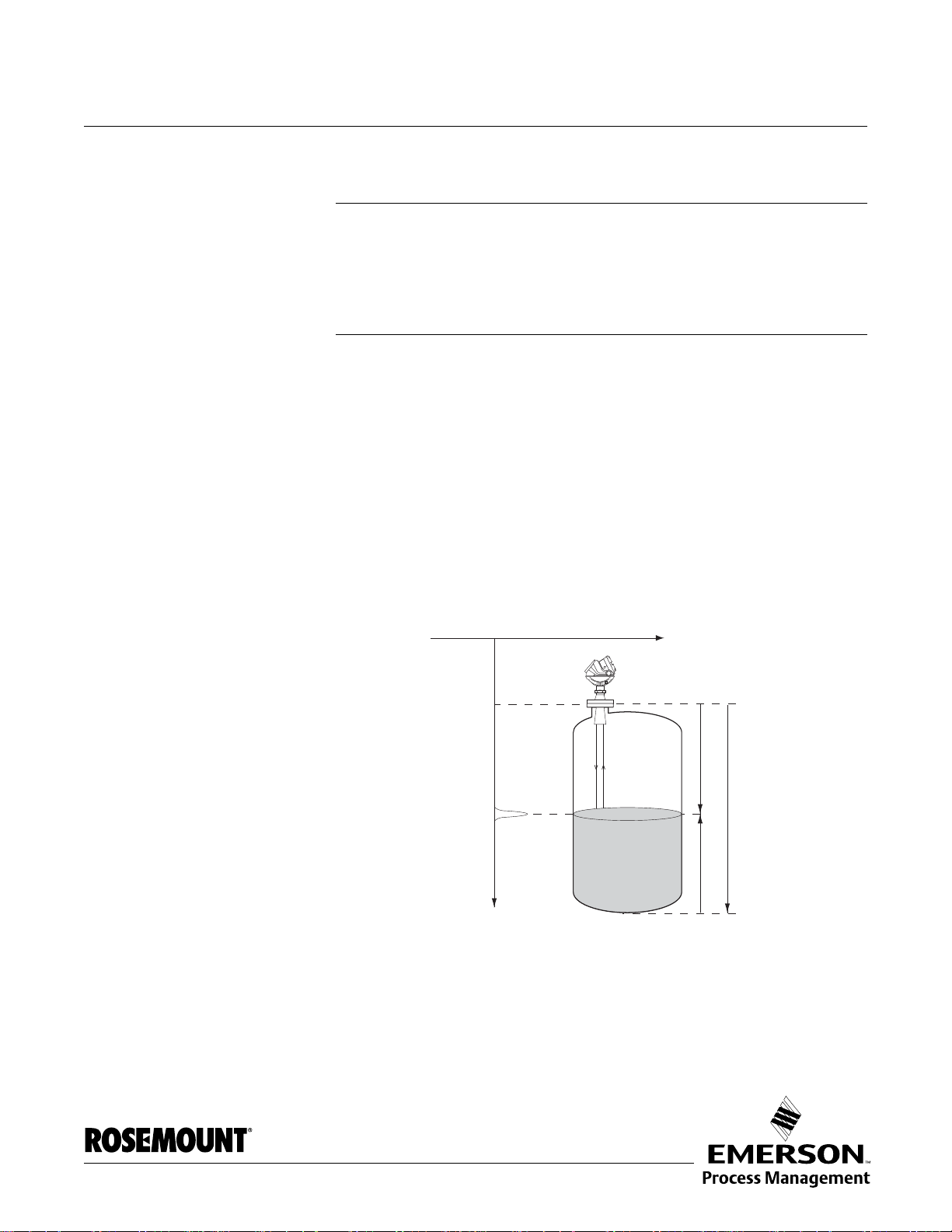

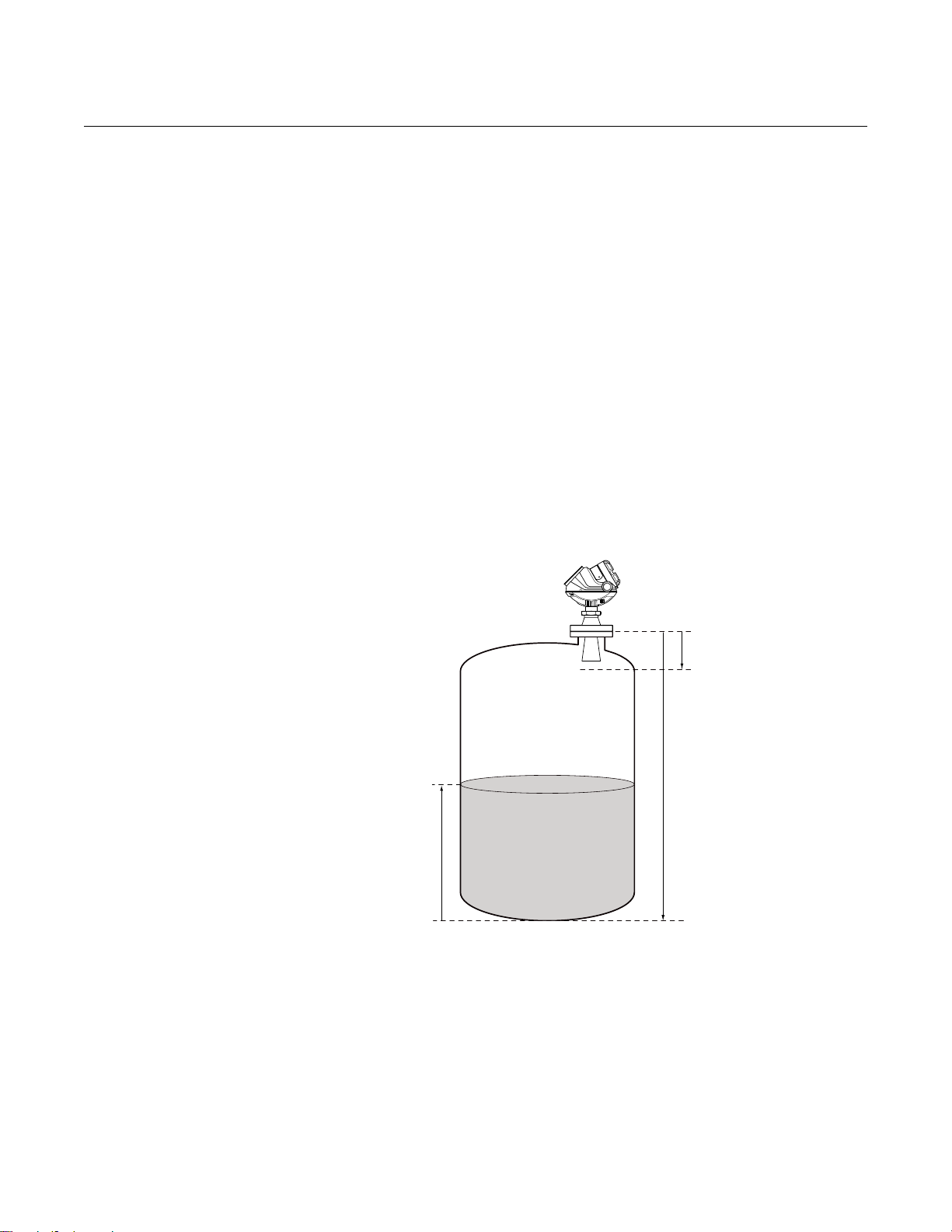

Tank Geometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Tank Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Tank Type and Tank Bottom Type . . . . . . . . . . . . . . . . . . . . . . 5-4

Pipe Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Transition Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Process Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Rapid Level Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Turbulent Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Foam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Product Dielectric Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Volume Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

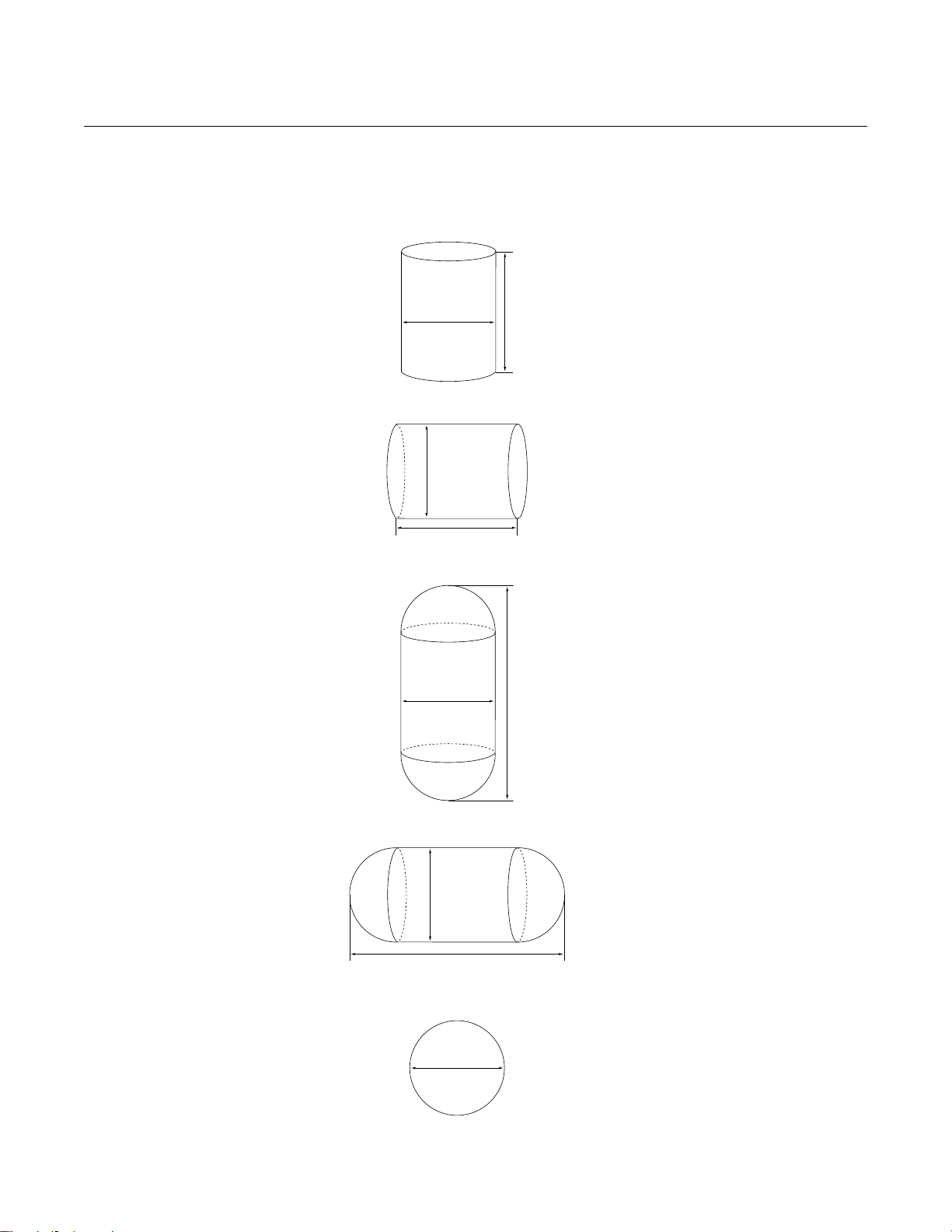

Standard Tank Shapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Vertical Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Horizontal Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Vertical Bullet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Horizontal Bullet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Sphere. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Strapping Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

TOC-2

Page 7

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Analog Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Output Source/Primary Variable . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Upper/Lower Range Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Alarm Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Echo Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

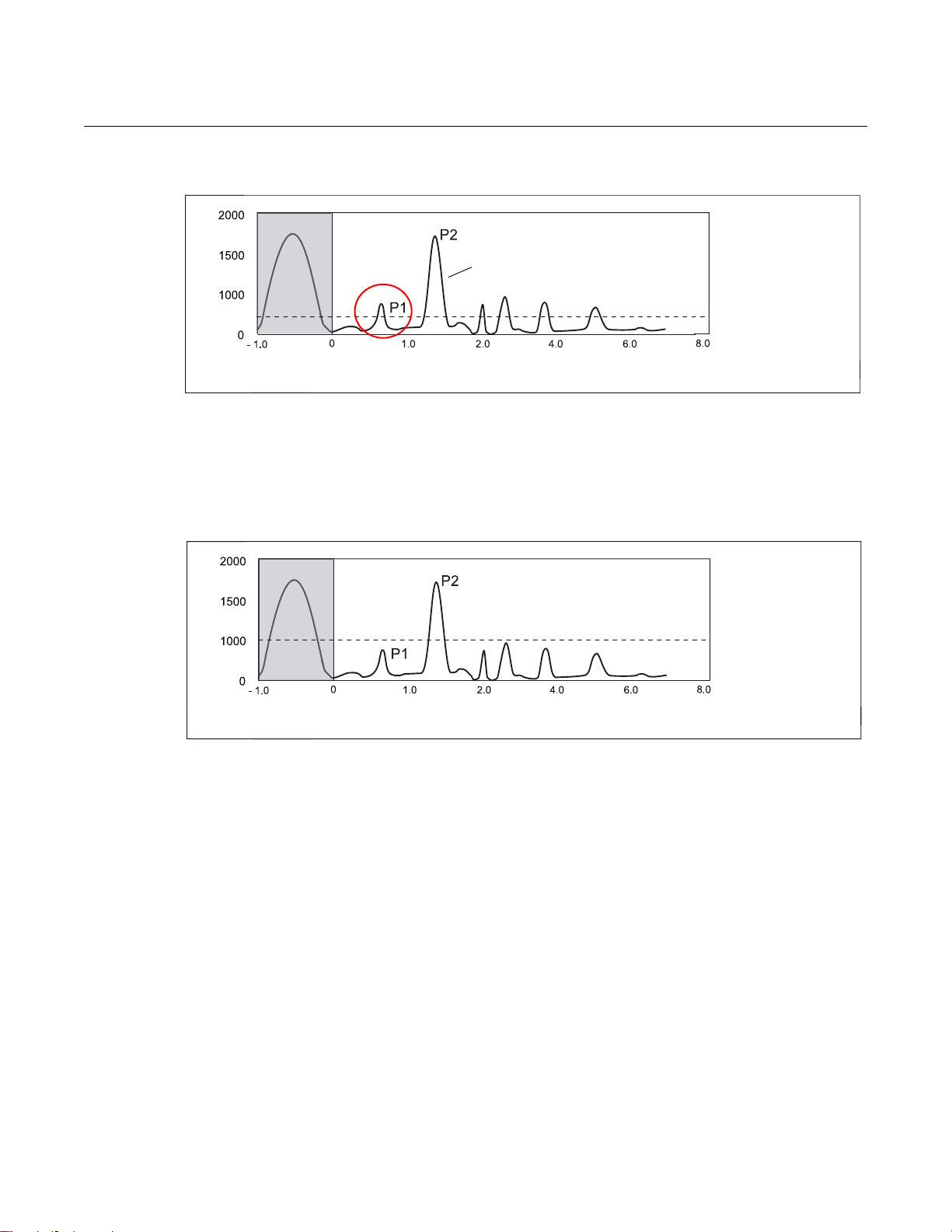

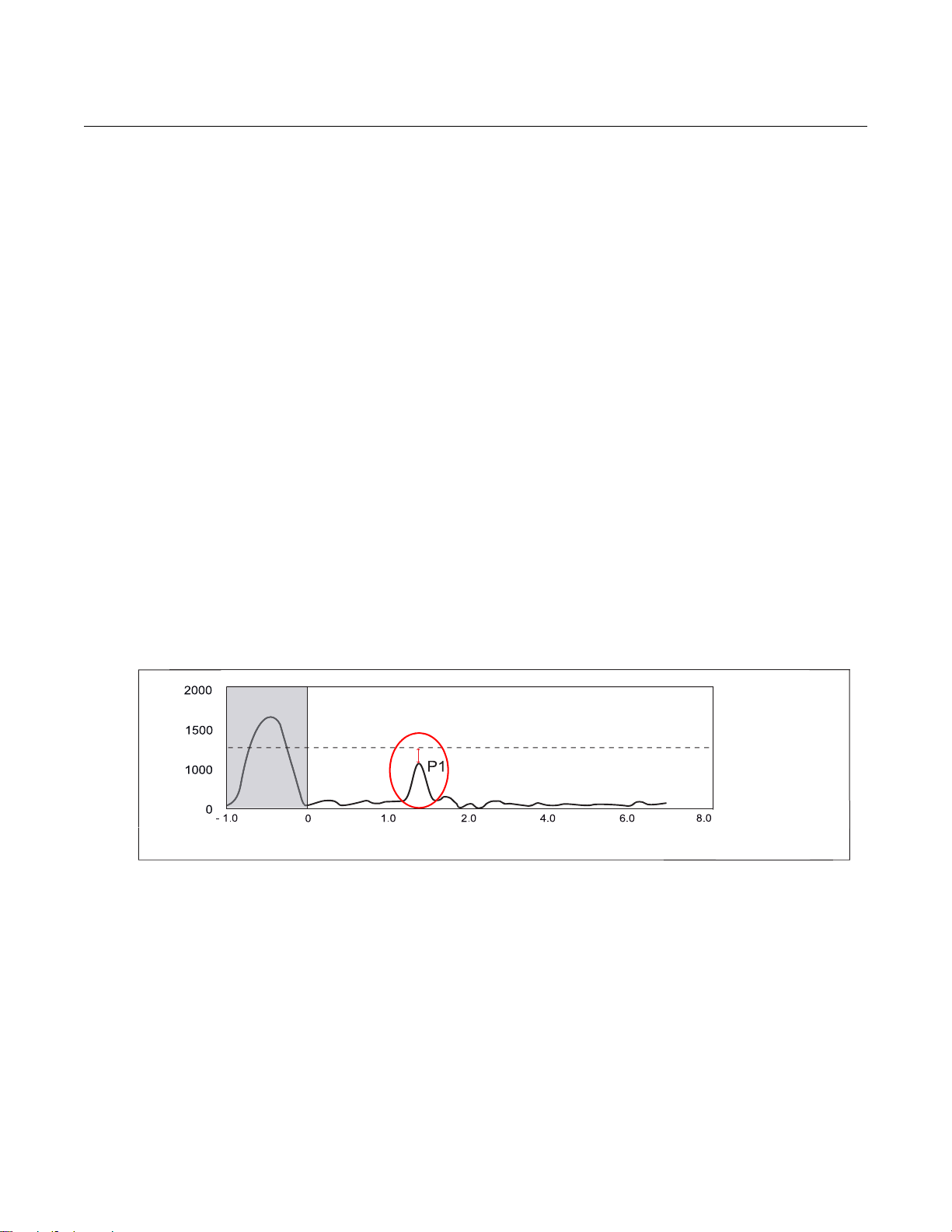

Amplitude Threshold Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Basic Configuration Using Rosemount Radar Master . . . . . . . . . . . . 5-11

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Help in RRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Installing the RRM software for HART communication . . . . . . . . 5-13

Getting started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Specifying the COM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

To set the COM port buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Specifying Measurement Units. . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

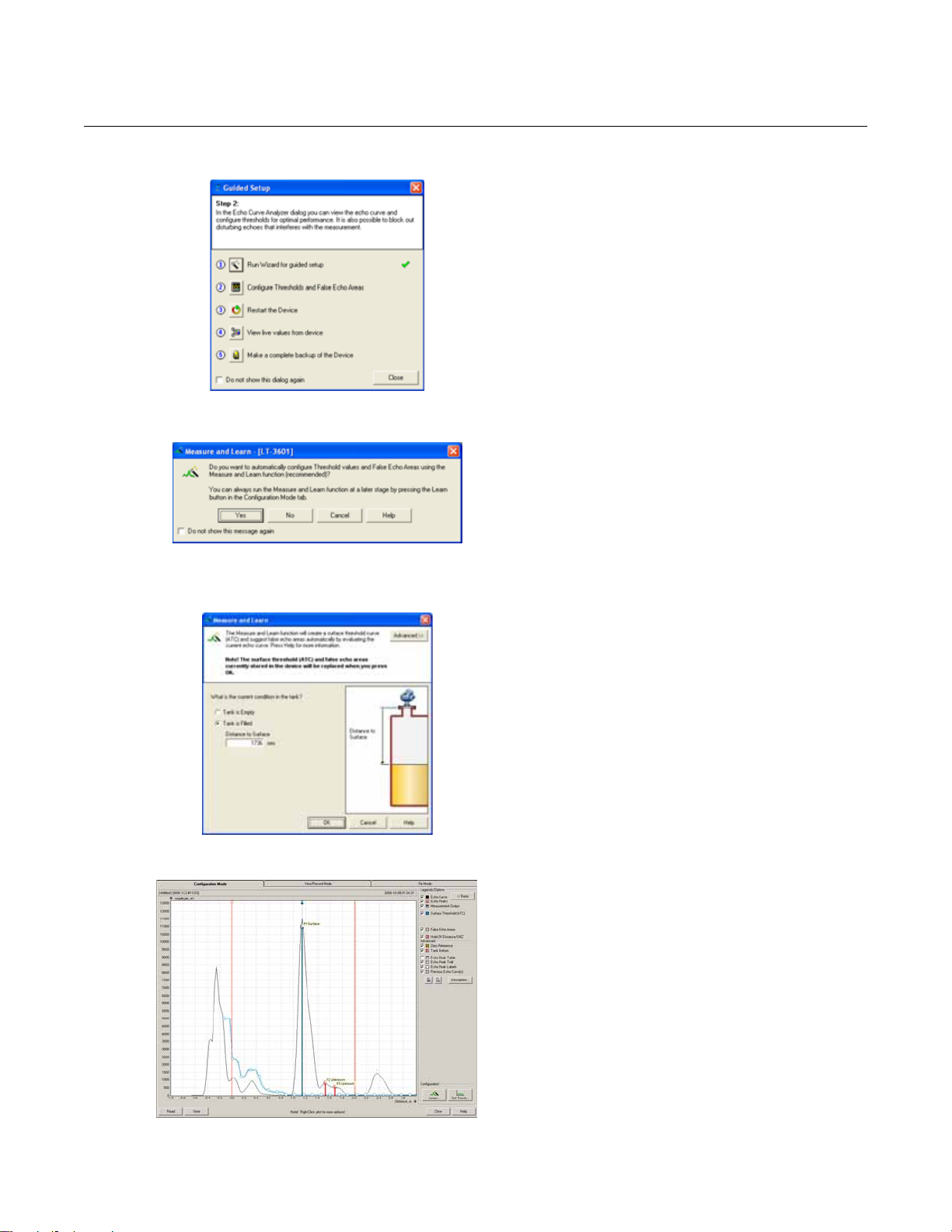

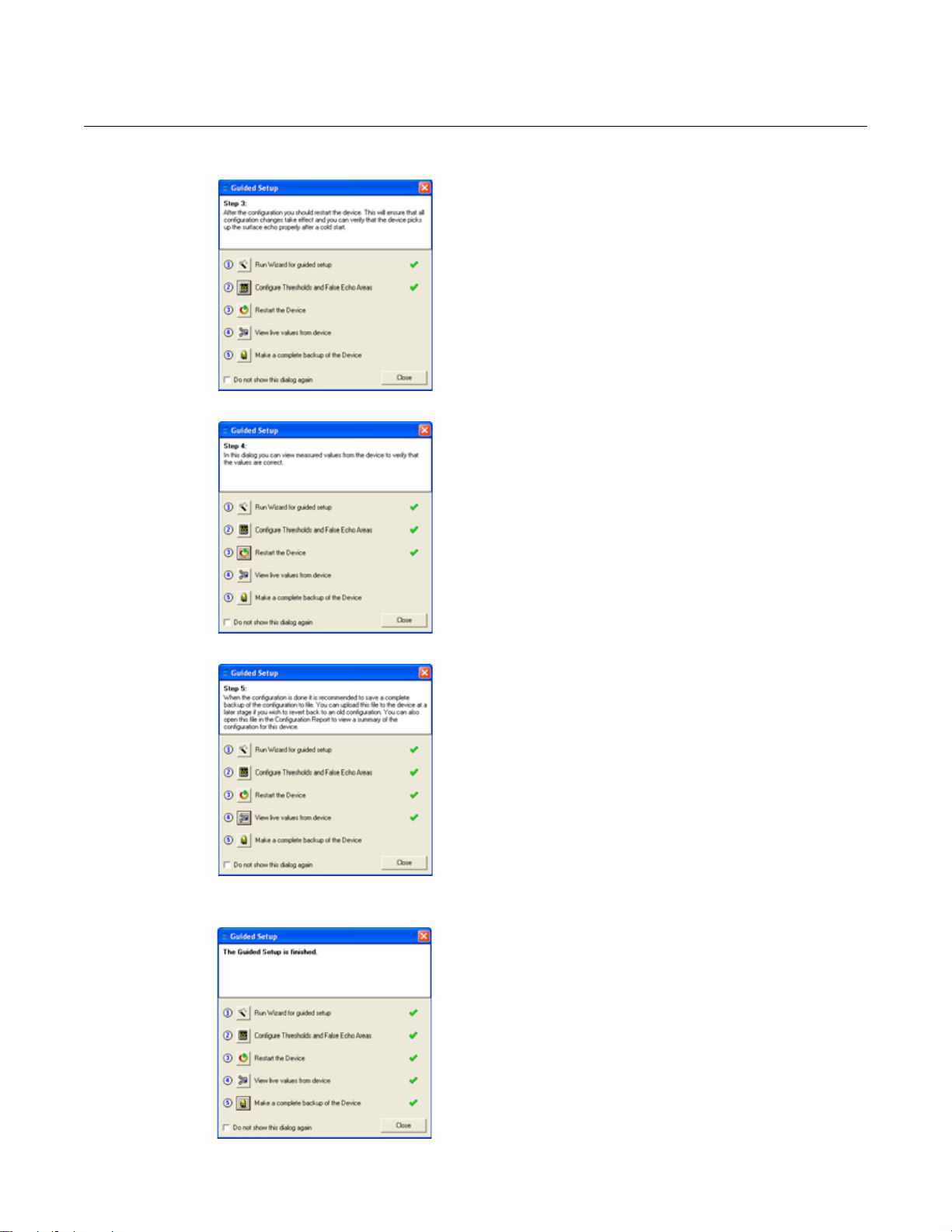

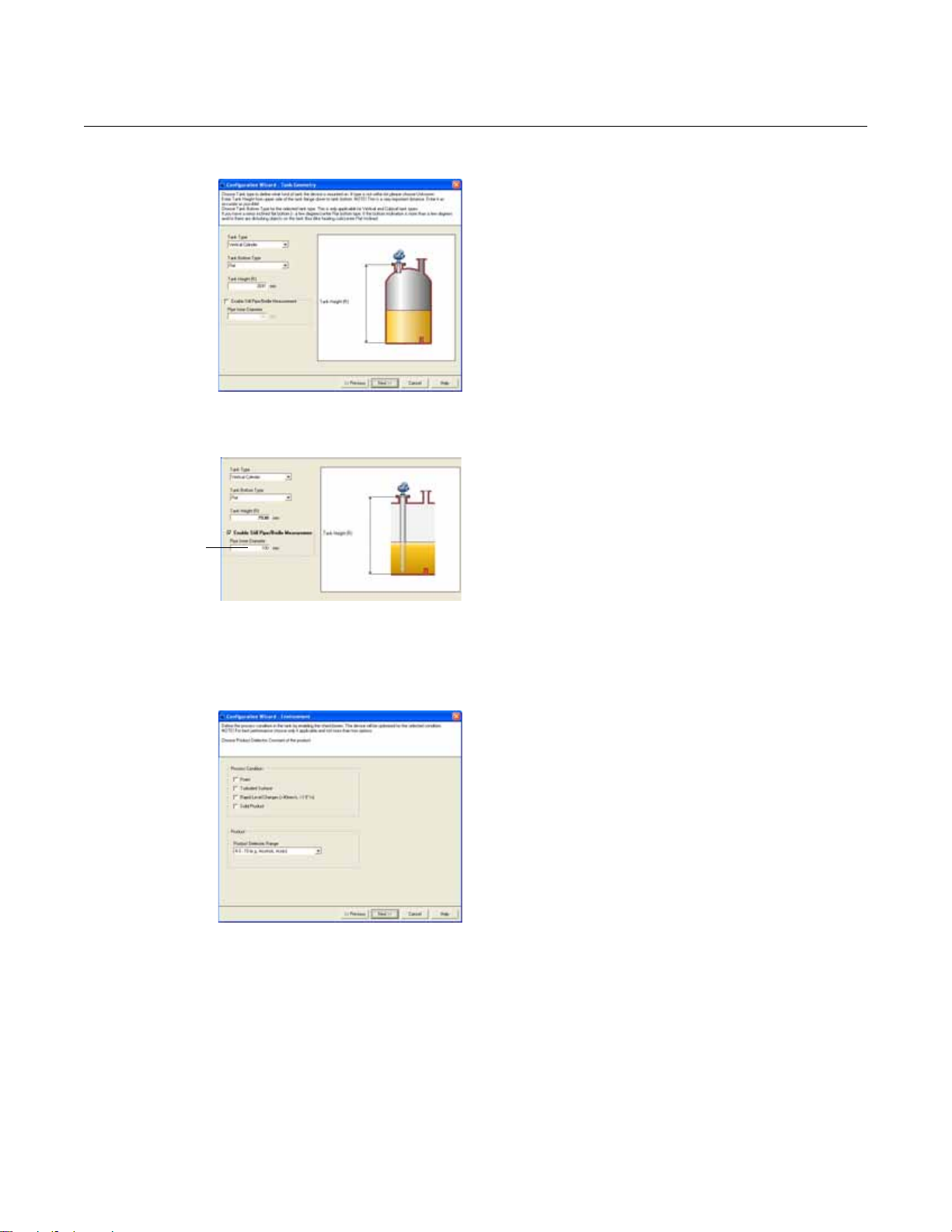

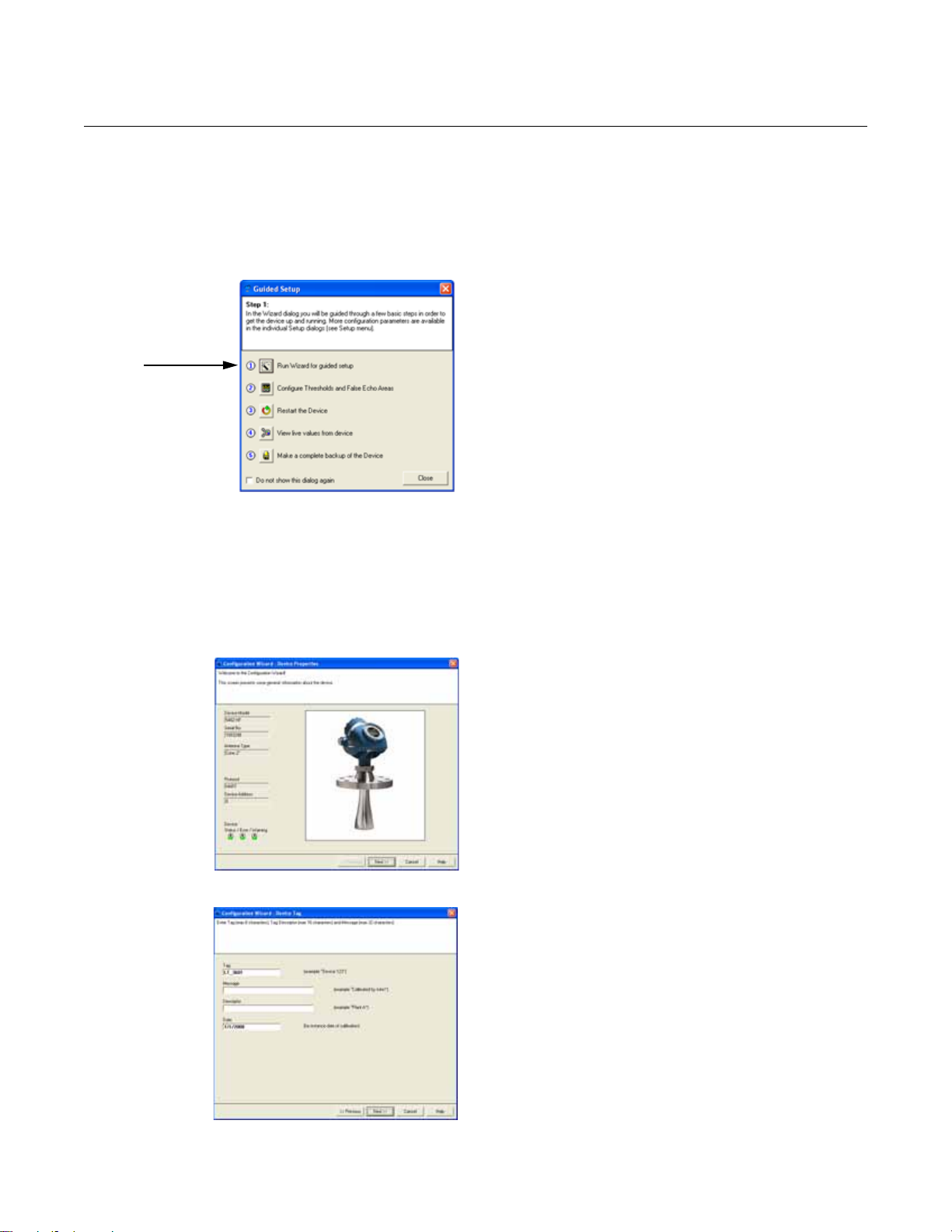

Guided Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

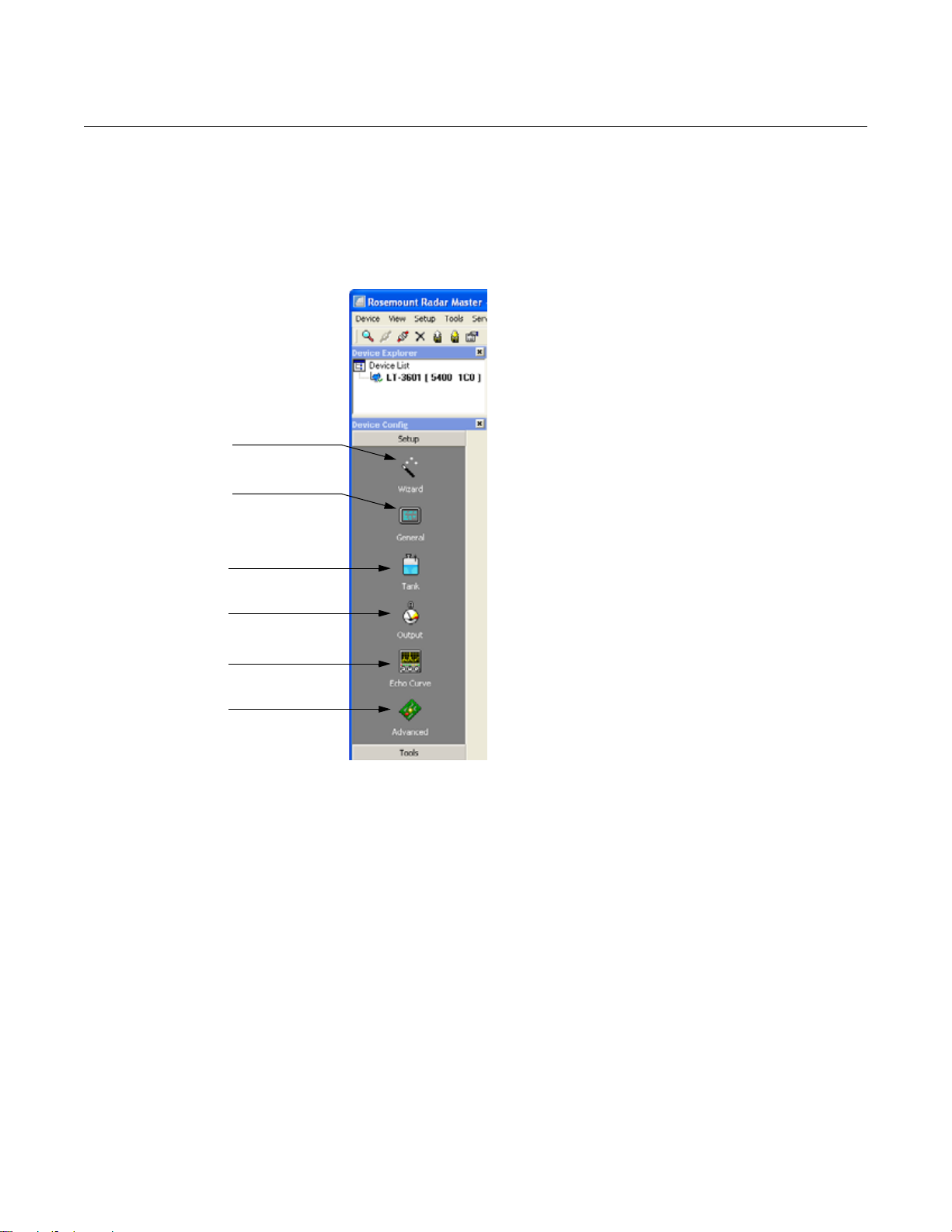

Using the Setup Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

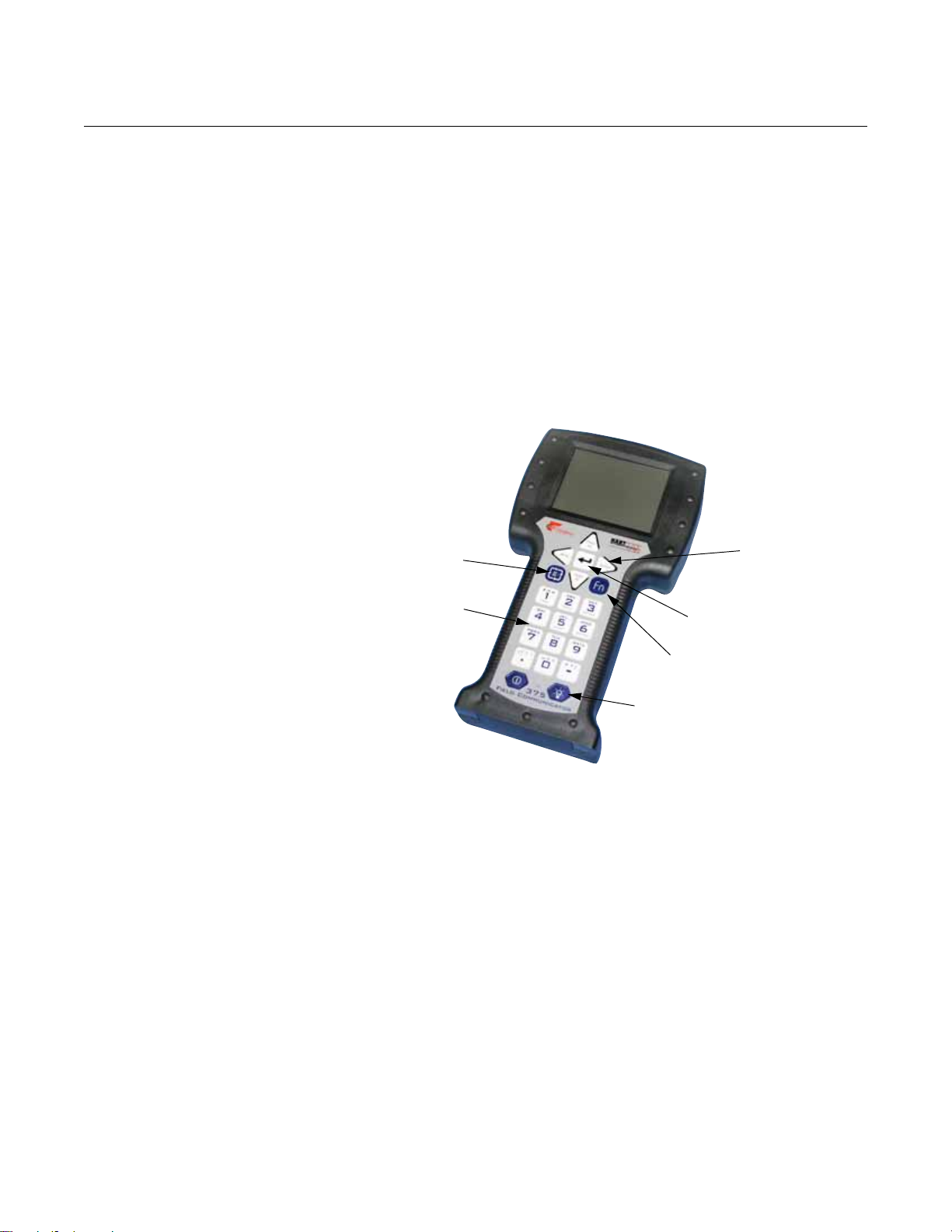

Configuration Using a 375 Field Communicator . . . . . . . . . . . . . . . . 5-21

Basic Configuration Using AMS Suite . . . . . . . . . . . . . . . . . . . . . . . . 5-24

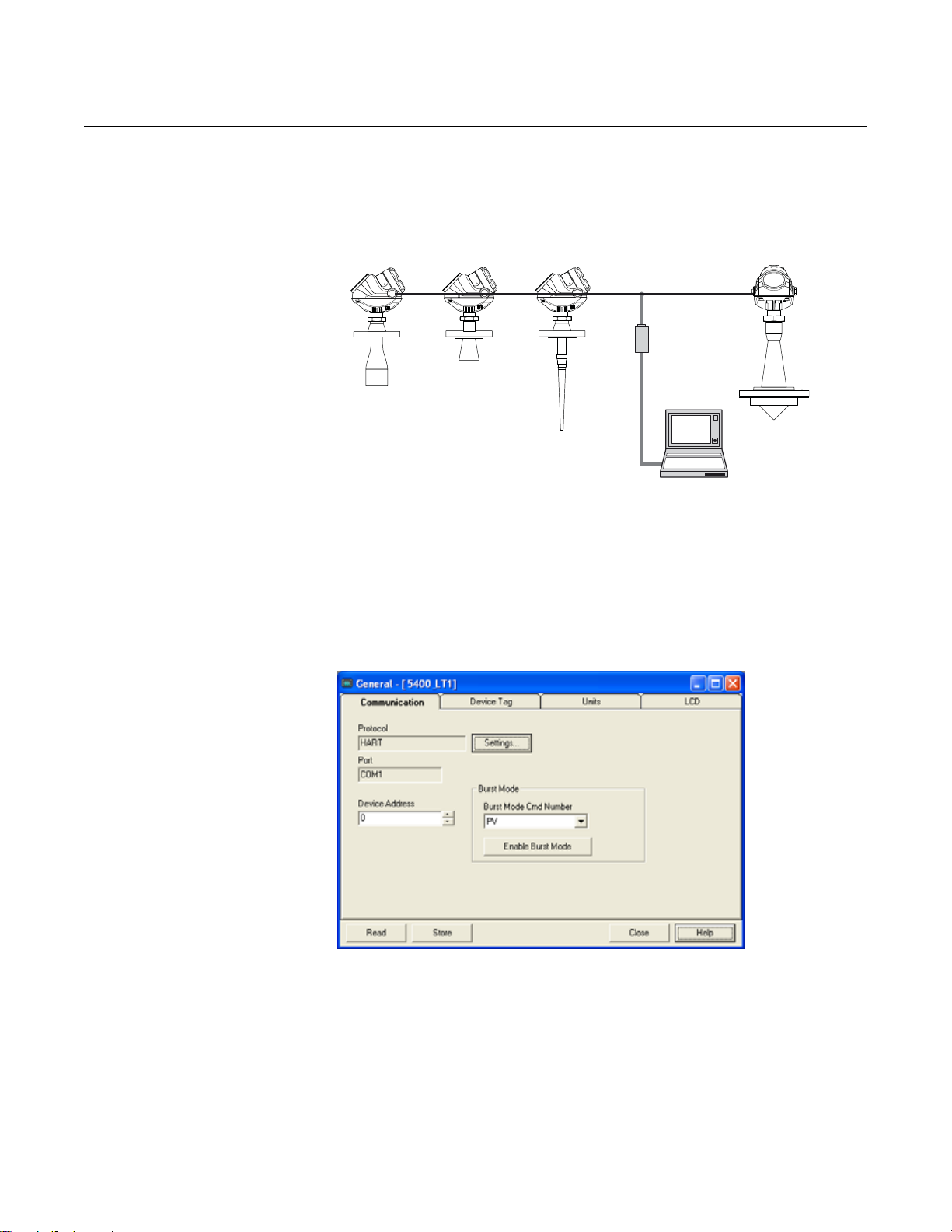

HART Multidrop Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

SECTION 6 Operation

SECTION 7 Service and Troubleshooting

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Viewing Measurement Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

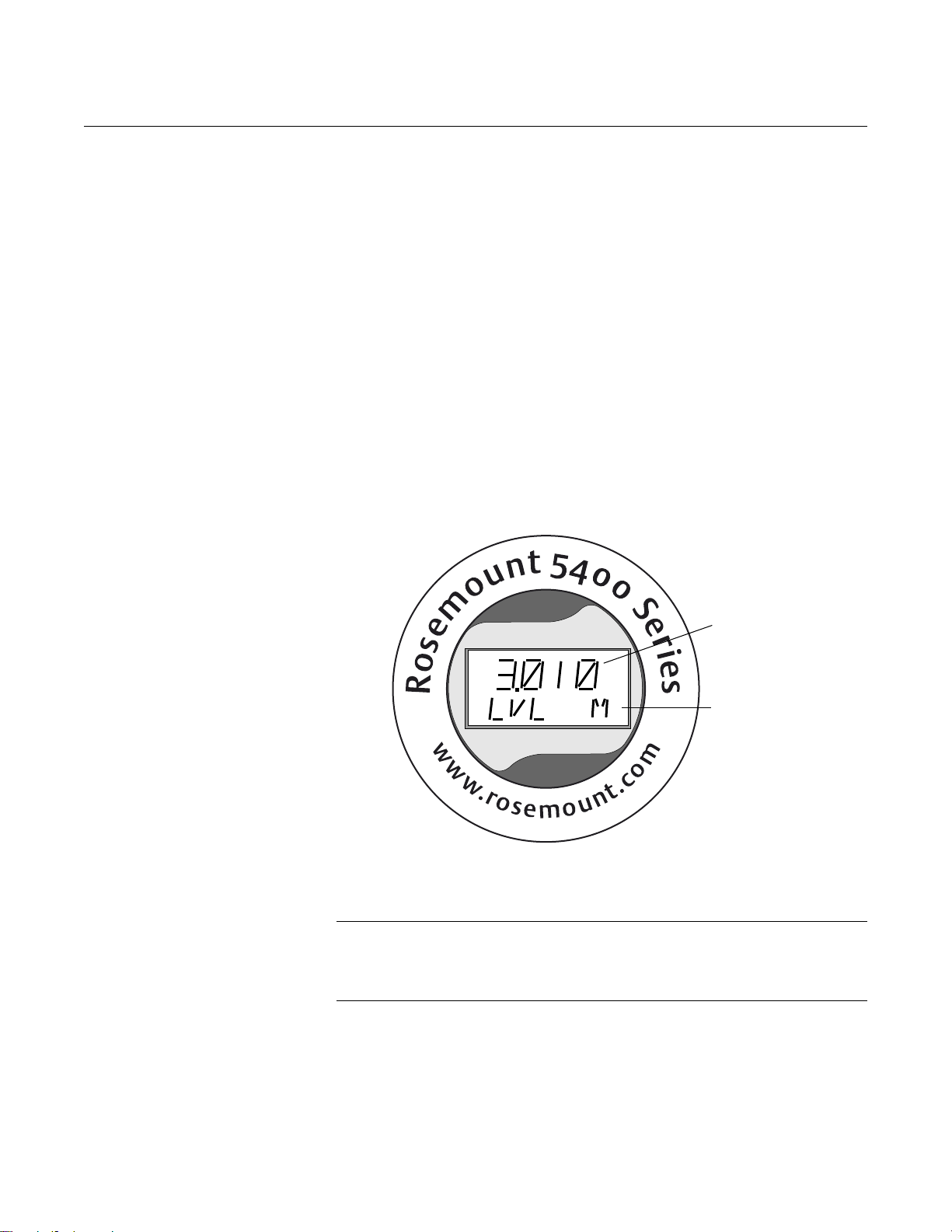

Using the Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

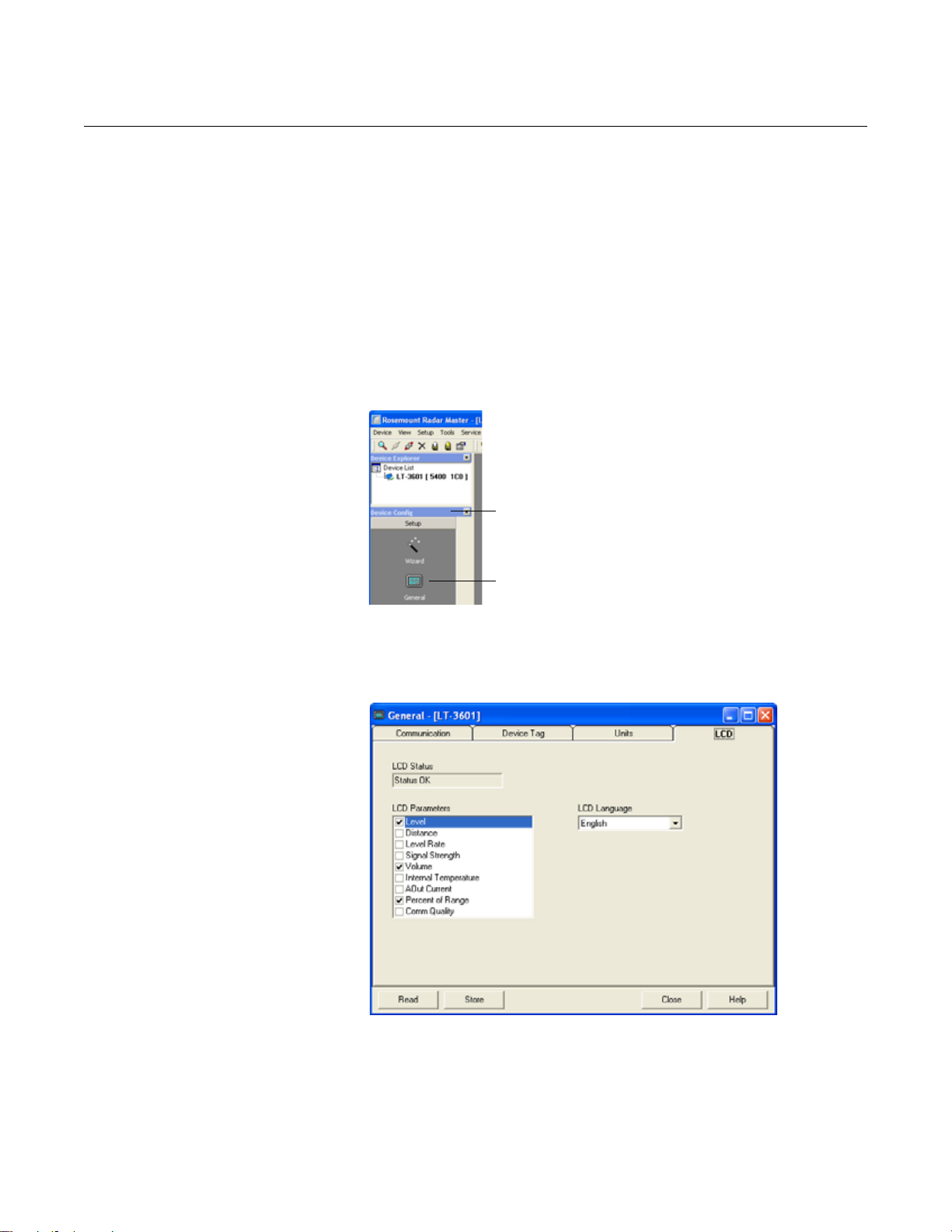

Specifying Display Panel Variables . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Using a Field Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Using Rosemount Radar Master (RRM) . . . . . . . . . . . . . . . . . . 6-3

Using AMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

LCD Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

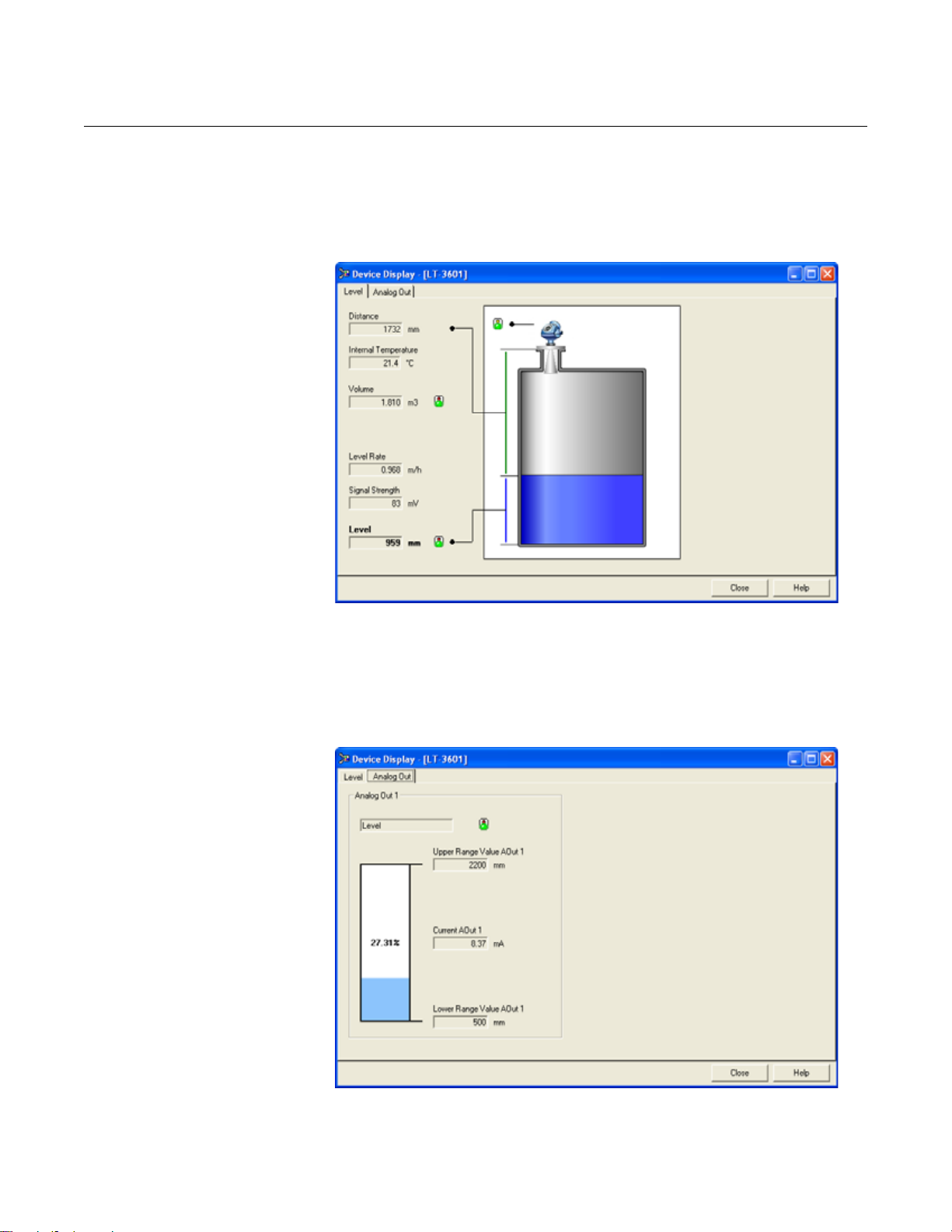

Viewing Measurement Data in RRM . . . . . . . . . . . . . . . . . . . . . . . 6-6

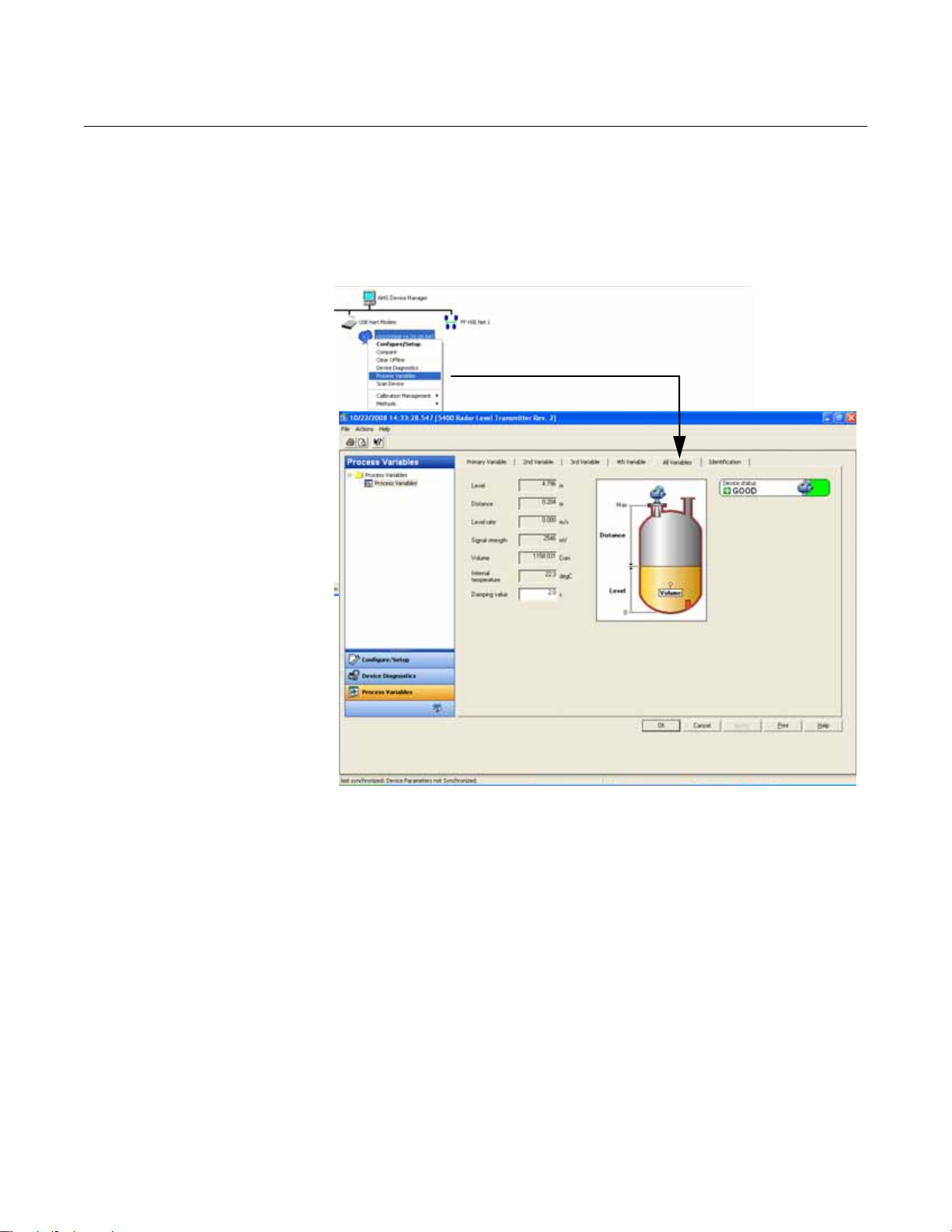

Viewing Measurement Data in AMS Suite . . . . . . . . . . . . . . . . . . . 6-7

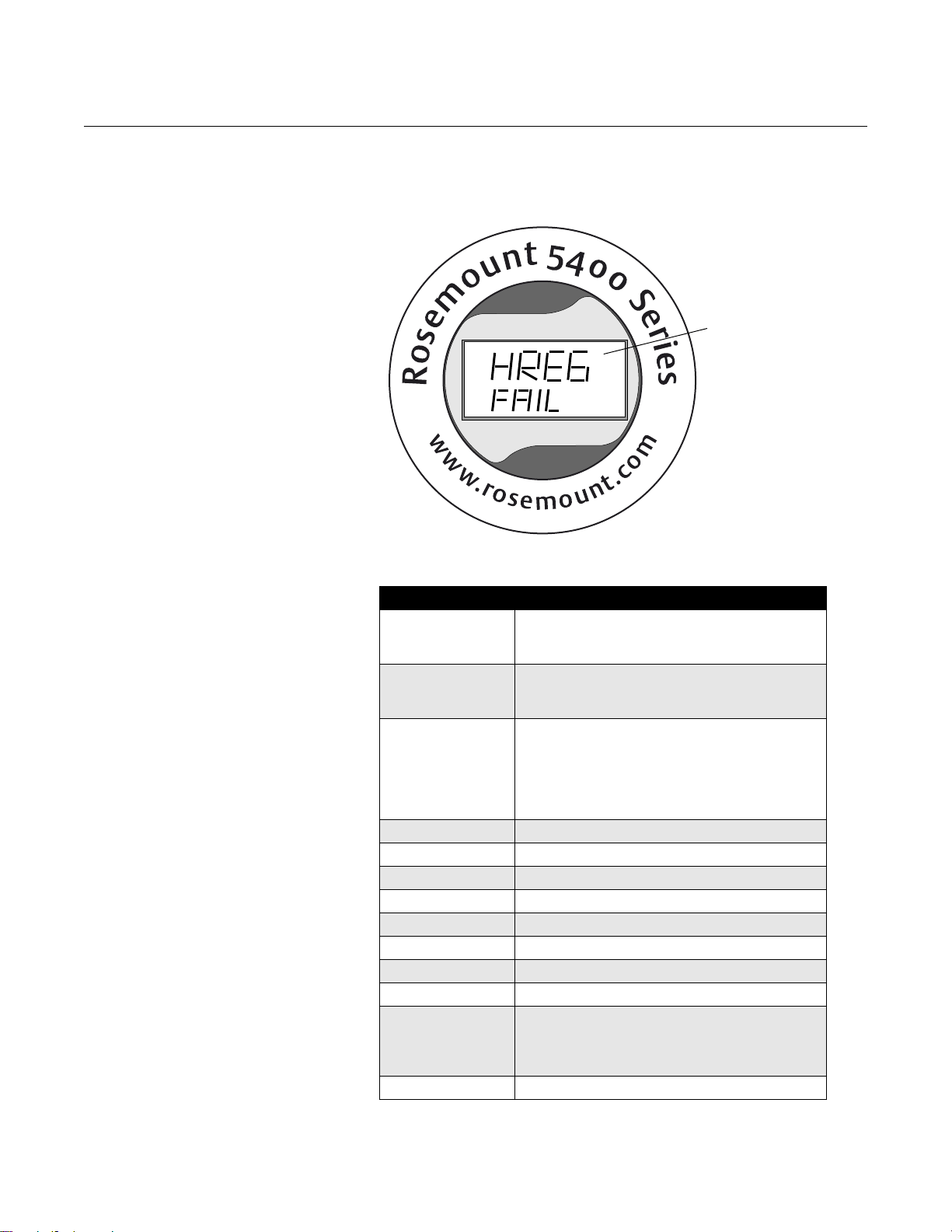

LCD Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

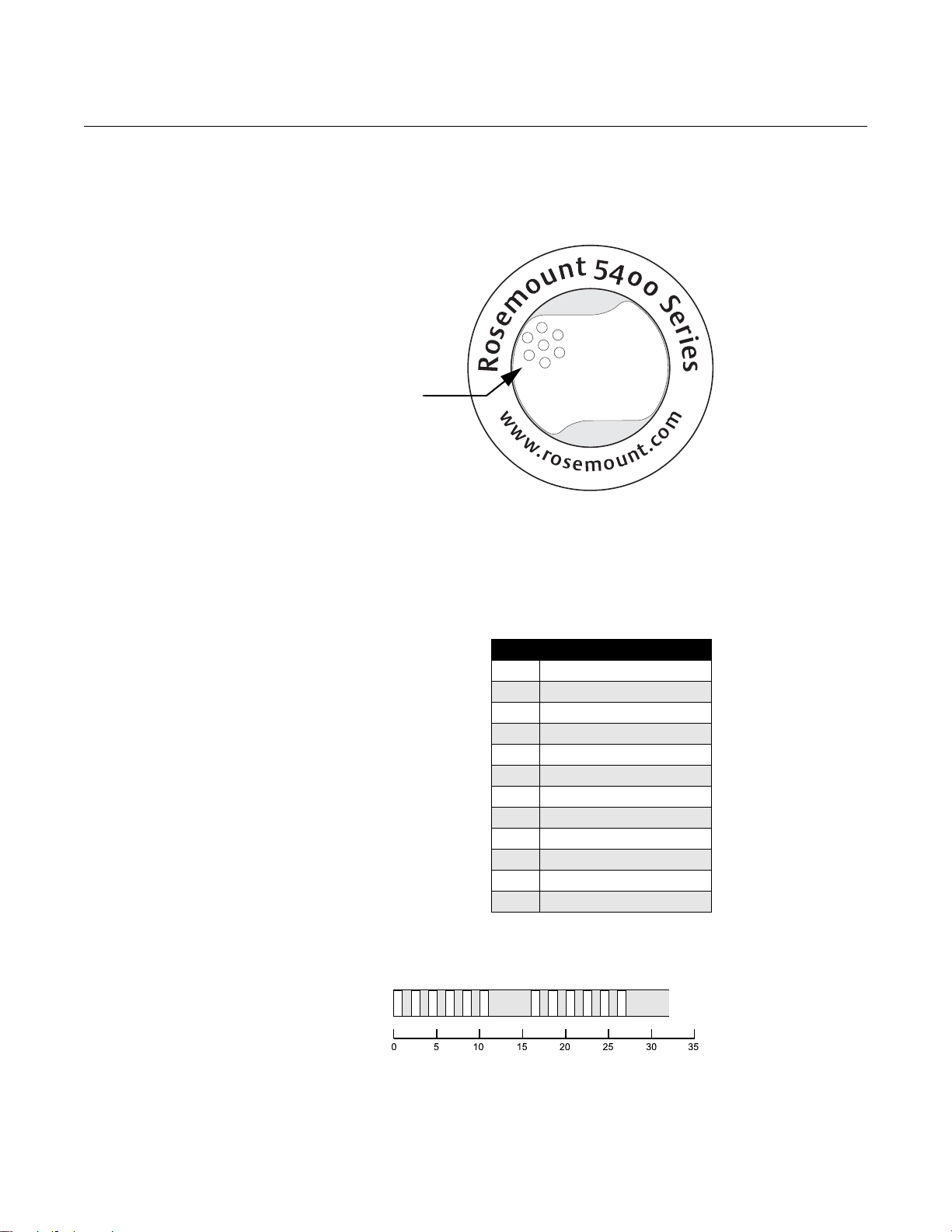

LED Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Troubleshooting Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Service Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Analyzing the Measurement Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Surface Pulse Not Found. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Registration of False Echoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

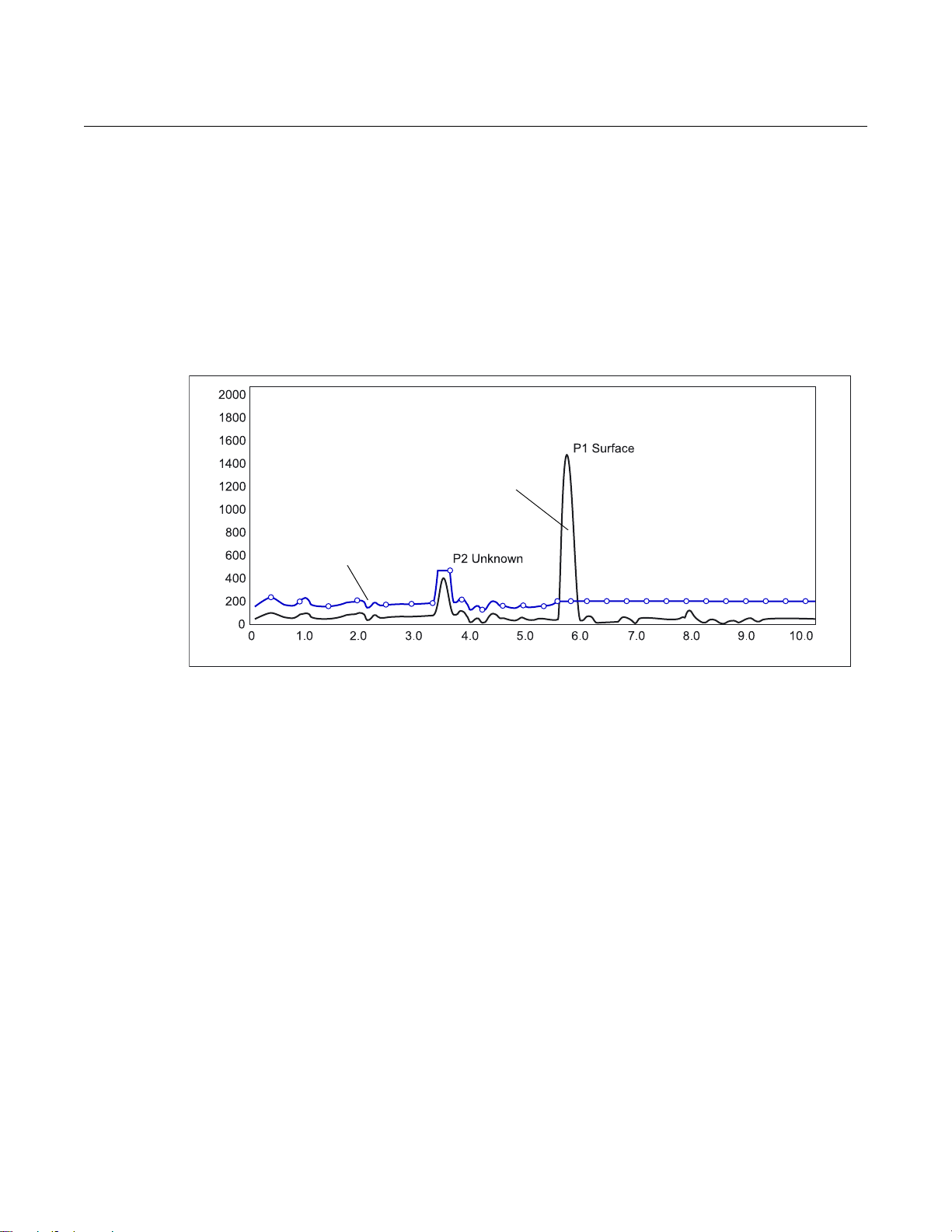

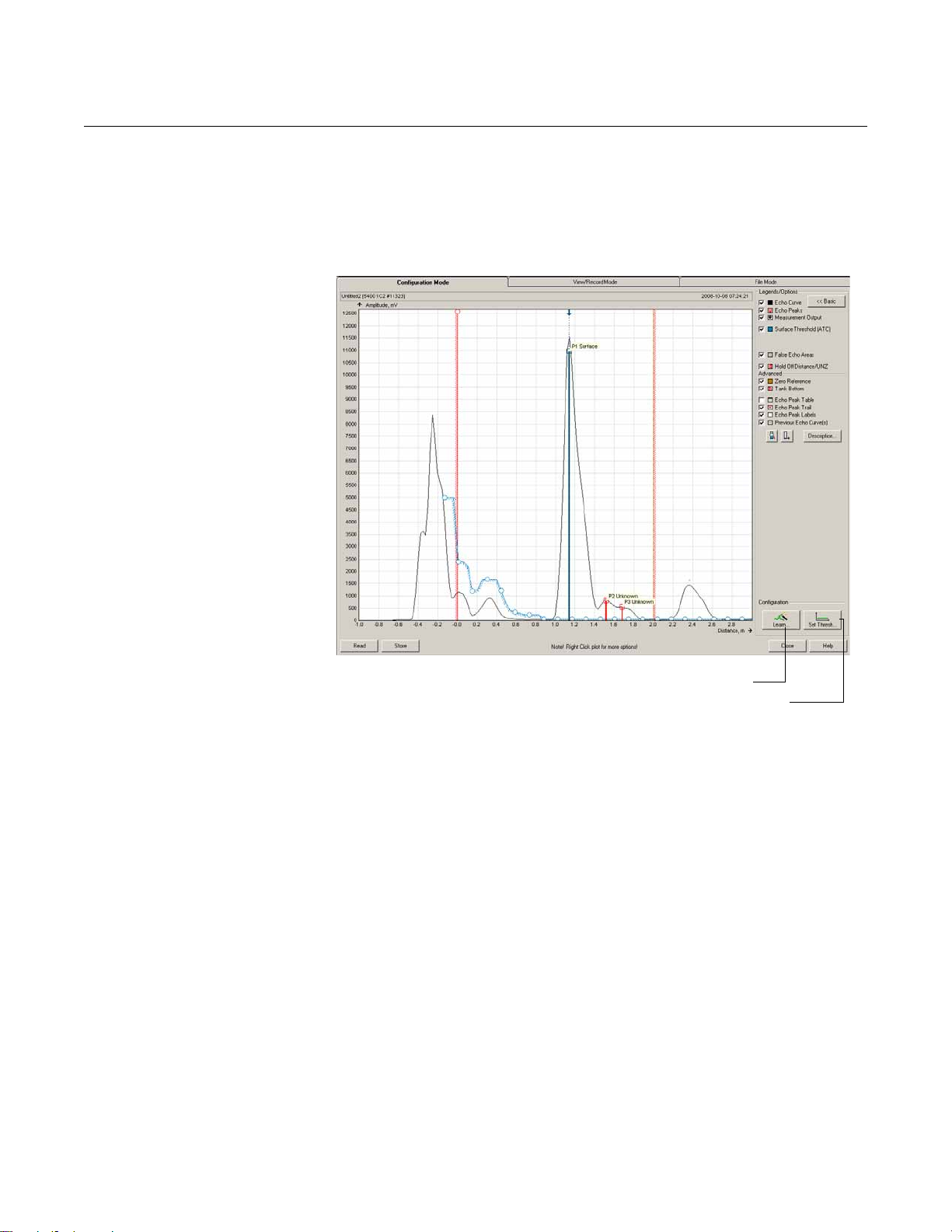

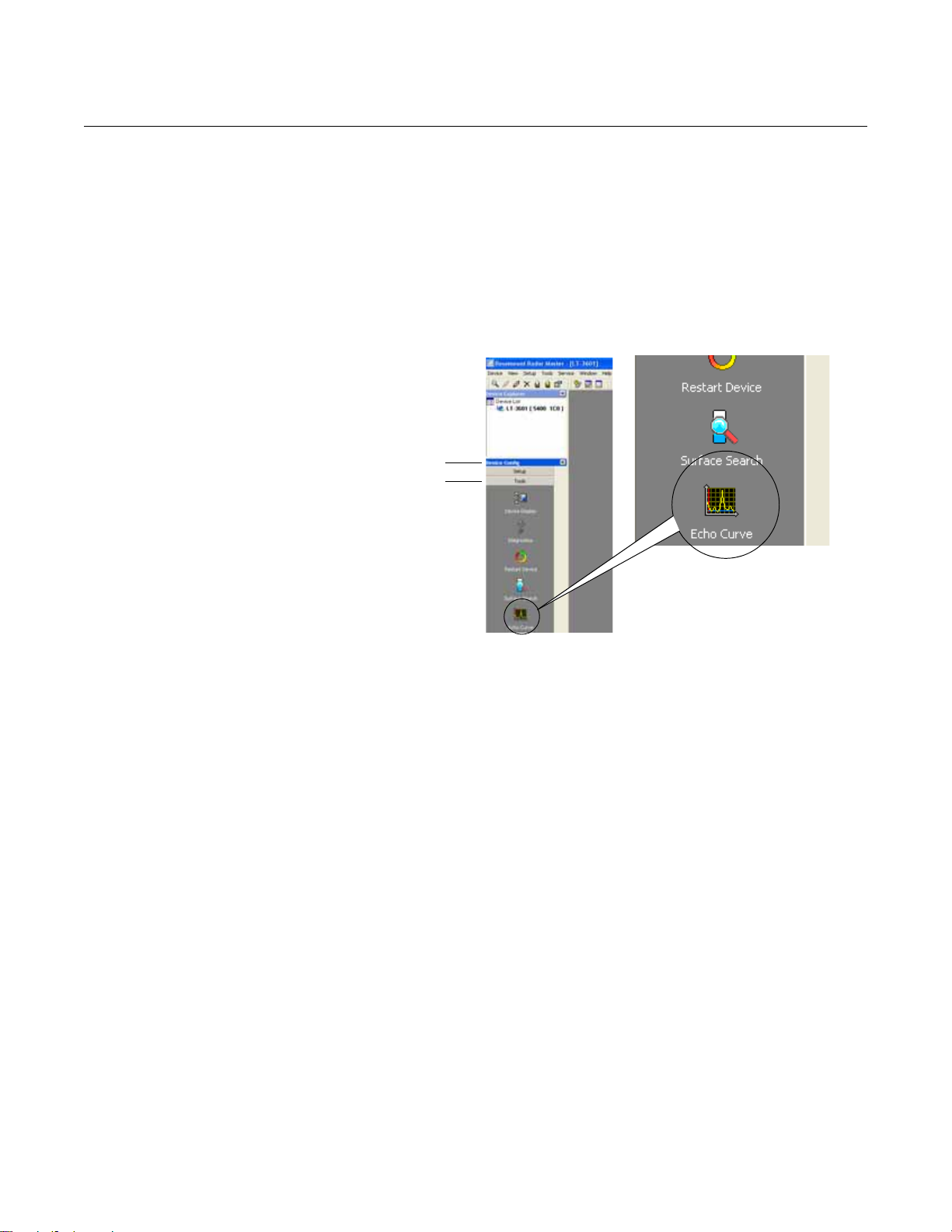

Using the Echo Curve Analyzer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

The Configuration Mode Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

The View/Record Mode Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Record Tank Spectra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

File Mode Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

TOC-3

Page 8

Rosemount 5400 Series

Using the Echo Curve Analyzer with a 375 Field Communicator. 7-12

Analog Output Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Logging Measurement Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Backing Up the Transmitter Configuration. . . . . . . . . . . . . . . . . . . . . 7-15

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

Configuration Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

Viewing Input and Holding Registers. . . . . . . . . . . . . . . . . . . . . . . . . 7-18

Reset to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Surface Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Using the Simulation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Write Protecting a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Diagnostic Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

Measurement Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24

Volume Calculation Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-25

Analog Output Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26

Application Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27

Reference Manual

00809-0100-4026, Rev FA

July 2009

Viewing the Echo Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

Threshold Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

Rosemount Radar Master . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

AMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

HART command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

APPENDIX A Reference Data

APPENDIX B Product Certifications

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Temperature and Pressure Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Flange Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Operating Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Electronics Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Dimensional Drawings and Mechanical Properties . . . . . . . . . . . . . . . A-5

Process Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-12

Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-18

Safety messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

EU Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

European ATEX Directive Information. . . . . . . . . . . . . . . . . . . . . . . . . B-3

Intrinsic Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Special Conditions for Safe Use (X) . . . . . . . . . . . . . . . . . . . . . B-3

Flameproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Special Conditions for Safe Use (X) . . . . . . . . . . . . . . . . . . . . . B-4

Hazardous Locations Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Factory Mutual (FM) Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Canadian Standards Association (CSA) Approval . . . . . . . . . . . . . B-6

Dual Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

IECEx Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Technology Institution of Industrial Safety (TIIS) Approval. . . . . . . B-9

National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation (NEPSI) Approvals . . .B-10

TOC-4

Page 9

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Approval Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-11

APPENDIX C Advanced Configuration

Tank Geometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Distance Offset (G). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Minimum Level Offset (C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

Hold Off Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Calibration Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-2

Advanced Analog Output Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . .C-3

Advanced Transmitter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Antenna Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Empty Tank Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Empty Tank Detection Area . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Bottom Echo Visible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Tank Bottom Projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Extra Echo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-4

Level Alarm is Not Set When Tank is Empty. . . . . . . . . . . . . . . C-5

Full Tank Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-5

Full Tank Detection Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Level above Hold Off Distance Possible . . . . . . . . . . . . . . . . . .C-5

Level Alarm is Not Set When Tank is Full . . . . . . . . . . . . . . . . . C-5

Double Bounce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Surface Echo Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Slow Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Slow Search Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Double Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Upper Product Dielectric Constant . . . . . . . . . . . . . . . . . . . . . .C-6

Select Lower Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Echo Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Close Distance Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Filter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Damping Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Activate Jump Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-6

Advanced Functions in RRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

Empty Tank Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-7

Bottom Echo Visible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-7

Empty Tank Detection Area . . . . . . . . . . . . . . . . . . . . . . . . . . .C-8

Extra Echo Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-9

Full Tank Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-10

Double Bounce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-11

Surface Echo Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-12

Hold Off Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-13

TOC-5

Page 10

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

TOC-6

Page 11

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 1 Introduction

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-1

Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-3

Service Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 1-4

Product Recycling/Disposal . . . . . . . . . . . . . . . . . . . . . . .page 1-4

SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to

ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a warning symbol ( ). Refer to the safety messages listed at the beginning of each section before performing an operation preceded by this symbol.

Failure to follow safe installation and service guidelines could result in death or serious injury

• Make sure only qualified personnel perform installation or service.

• Use the equipment only as specified in this manual. Failure to do so may impair the protection provided by the equipment.

• Any substitution of non-authorized parts or repair, other than exchanging the complete transmitter head or antenna assembly, may jeopardize safety and is prohibited.

• Unauthorized changes to the product are strictly prohibited as they may unintentionally and unpredictably alter performance and jeopardize safety. Unauthorized changes that interfere with the integrity of the welds or flanges, such as making additional perforations, compromise product integrity and safety. Equipment ratings and certifications are no longer valid on any products that have been damaged or modified without the prior written permission of Emerson Process Management. Any continued use of product that has been damaged or modified without prior written authorization is at the customer's sole risk and expense.

Explosions could result in death or serious injury

• Verify that the operating environment of the transmitter is consistent with the appropriate hazardous locations specifications.

• In an Explosion-proof/Flameproof installation, do not remove the transmitter cover when power is applied to the unit.

• Before connecting a make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

Electrical shock can result in death or serious injury

• Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.

• Make sure the main power to the 5400 Series transmitter is off and the lines to any other external power source are disconnected or not powered while wiring the transmitter.

HART® based communicator in an explosive atmosphere,

www.rosemount.com

Page 12

Rosemount 5400 Series

Antennas with non-conducting surfaces

• Antennas with non-conducting surfaces (e.g. Rod antenna and Process Seal

Reference Manual

00809-0100-4026, Rev FA

July 2009

antenna) may generate an ignition-capable level of electrostatic charge under extreme condtions. Therefore, when the antenna is used in a potentially explosive atmoshpere, appropriate measures must be taken to prevent electrostatic discharge.

1-2

Page 13

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

MANUAL OVERVIEW This manual provides installation, configuration and maintenance information

for the Rosemount 5400 Series Radar Transmitter.

Section 2: Transmitter Overview

• Theory of operation

• Descripton of the transmitter

• Process and vessel characteristics

Section 3: Mechanical Installation

• Mounting considerations

• Mounting

Section 4: Electrical installation

• Cable/conduit entries

• Grounding

• Cable selection

• Hazardous areas

• External circuit breaker

• Power requirements

• Connecting the transmitter

• Non-intrinsically safe power supply

• Intrinsically safe power supply

• Optional devices

Section 5: Configuration/Start-Up

• Configuration instructions

• Configuration using the RRM software

• Configuration using a 275/375 Field Communicator

Section 6: Operation

• Viewing measurement data with a Display panel

• Viewing measurement data with Rosemount Radar Master

Section 7: Service and Troubleshooting

• Troubleshooting

• Error and warning codes

• Communication errors

Appendix A: Reference Data

• Specifications

• Ordering Information

1-3

Page 14

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

Appendix B: Product Certifications

• Examples of labels

• European ATEX Directive information

• FM approvals

• CSA approvals

• IECEx approvals

• TIIS approval

• NEPSI approvals

• Approval drawings

Appendix C: Advanced Configuration

• Advanced Tank Geometry

• Advanced transmitter settings

• Advanced functions in RRM

July 2009

SERVICE SUPPORT To expedite the return process outside of the United States, contact the

nearest Emerson Process Management representative.

PRODUCT RECYCLING/DISPOSAL

Within the United States, call the Emerson Process Management Instrument and Valves Response Center using the 1-800-654-RSMT (7768) toll-free number. This center, available 24 hours a day, will assist you with any needed information or materials.

The center will ask for product model and serial numbers, and will provide a Return Material Authorization (RMA) number. The center will also ask for the process material to which the product was last exposed.

Emerson Process Management Instrument and Valves Response Center representatives will explain the additional information and procedures necessary to return goods exposed to hazardous substance can avoid injury if they are informed of and understand the hazard. If the product being returned was exposed to a hazardous substance as defined by Occupational Safety and Health Administration (OSHA), a copy of the required Material Safety Data Sheet (MSDS) for each hazardous substance identified must be included with the returned goods.

Recycling of equipment and packaging should be taken into consideration and disposed of in accordance with local and national legislation/regulations.

1-4

Page 15

Reference Manual

Time

Level

Distance

Tank Height

Signal Amplitude

00809Rev BA-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 2 Transmitter Overview

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2-1

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 2-2

Components of the Transmitter . . . . . . . . . . . . . . . . . . . . page 2-4

System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-5

Process Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2-6

Antenna Selection Guide/Measuring Range . . . . . . . . . .page 2-7

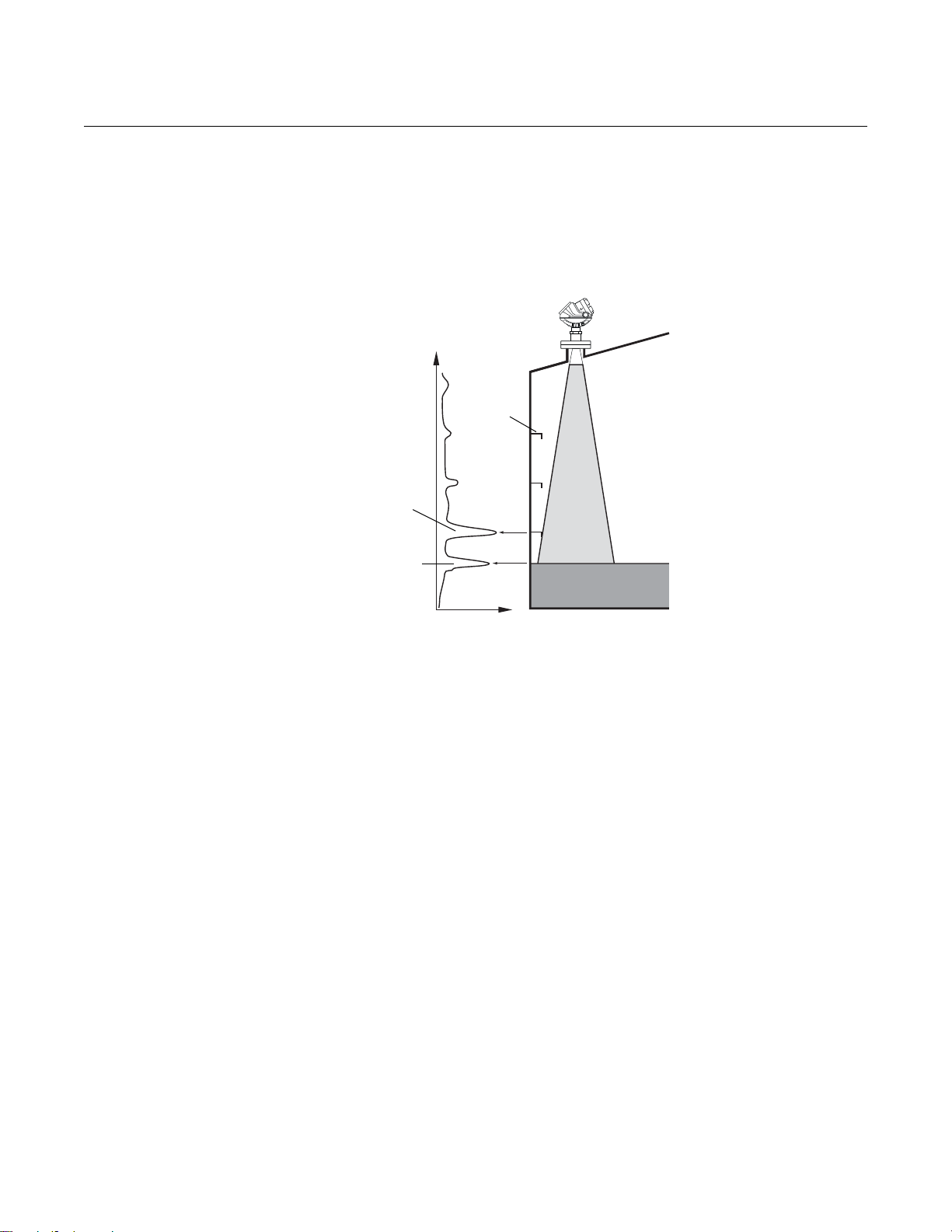

THEORY OF OPERATION The Rosemount 5400 Series Radar Transmitter is a smart, two-wire

continuous level transmitter. A 5400 transmitter is installed at the top of the tank and emits short microwave pulses towards the product surface in the tank. When a pulse reaches the surface, part of the energy is reflected back to the antenna for subsequent processing by the transmitter electronics. The time difference between the transmitted and reflected pulse is detected by a micro-processor and is converted into a distance, which calculates the level.

The product level is related to the tank height and the measured distance by the following expression:

Figure 2-1. Measurement principle for the Rosemount 5400 Series.

Level = Tank Height - Distance.

www.rosemount.com

Page 16

Rosemount 5400 Series

APPLICATION EXAMPLES

Reference Manual

00809-0100-4026, Rev FA

July 2009

Tanks, vessels, and containers with calm surfaces

Non-contacting radar can also be used in less challenging applications, such as storage and buffer tanks:

• It is easy to mount, maintenance-free, and highly accurate

• Gives precise monitoring and control of the process

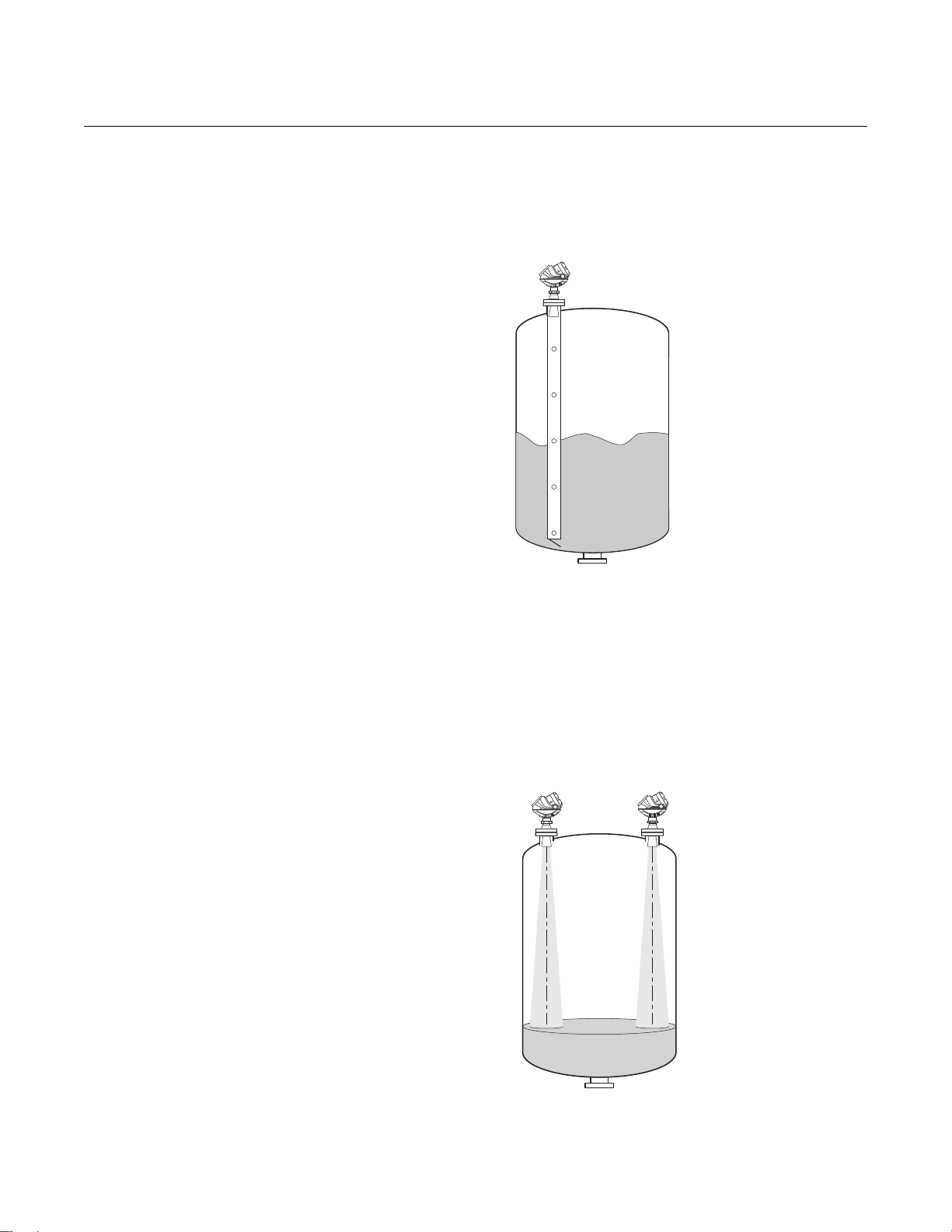

Overfill and underfill detection

The Rosemount 5400 Series can be advantageous in risk reduction systems:

• Continuous measurement may reduce or simplify proof-tests

• Multiple 5400s can be used in the same tank

Corrosives

Radar measurement is ideal for most corrosive products, such as caustics, acids, solvents and many other chemicals:

• Does not contact the process product

• Wide material offering such as PTFE, Alloy C-276 and Alloy 400

• Works well in non-metallic tanks also

Sticky, viscous and crystallizing products

The best-in-class Rosemount 5400 Series provides an accurate and reliable level reading with difficult products, such as resins and adhesives:

• Non-contacting is best practice

• Almost unaffected by coating and build-up because of the uniquely designed condensation resistant antennas

2-2

Sludges and slurries

Applications like mud, pulp-stock and lime slurries are ideal for non-contacting measurement:

• Immune to splashing and solids content

• Unaffected by density changes

• No re-calibration, no or little maintenance

Page 17

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Reactor vessels

The innovative design of the Rosemount 5400 Series makes it an excellent choice for the most difficult applications, such as reactor vessels:

• Unique circular polarization provides greater mounting flexibility – no tank wall clearance distance is needed

• Direct measurement – independent of most variations in process conditions, such as density, dielectric, vapor, temperature, and pressure

• Can handle turbulent conditions created by agitation, top-filling, or process reaction

Mounting flexibility

The versatile Rosemount 5400 Series can be used in mounting configurations other than standard nozzles:

• Fits most existing pipes: 2-8 in. (50-200 mm)

• Easy to isolate from the process – use a ball-valve

Still-pipes reduce the influence of foam, turbulence, and tank obstructions. Ball-valves can be used on both still-pipes and nozzles.

Underground tanks

The mounting flexibility of the Rosemount 5400 Series makes it an excellent choice for many underground tanks:

• Easy top-mounting

• Can handle long narrow nozzles, and pipes

• Unaffected by dirty products with solids content

2-3

Page 18

Rosemount 5400 Series

Cable Entry:

½" NPT. Optional adapters: M20

Transmitter Head with Radar Electronics

Antenna

Display Panel Terminal side

Cable Entry:

½" NPT. Optional adapters: M20

Flange

Tank Seal

Reference Manual

00809-0100-4026, Rev FA

July 2009

COMPONENTS OF THE TRANSMITTER

Figure 2-2. Transmitter components.

The Rosemount 5400 Series Radar Transmitter is available with a die-cast aluminum or stainless steel housing

(1)

containing advanced electronics for

signal processing.

The radar electronics produces an electromagnetic pulse that is emitted through the antenna. There are different antenna types and sizes available for various applications.

The transmitter head has separate compartments for electronics and terminals, and can be removed without opening the tank. The head has two entries for conduit/cable connections.

The tank connection consists of a Tank Seal and a flange (ANSI, EN (DIN) or JIS).

2-4

(1) Pending.

Page 19

Reference Manual

Integral Display

Rosemount Radar Master or AMS Suite

HART modem

375 Field Communicator

Rosemount 751 Field Signal Indicator

3 x 4-20 mA

DCS

Rosemount 5400 Series Radar Transmitter

Tri-Loop

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

SYSTEM ARCHITECTURE

Figure 2-3. HART system architecture

The Rosemount 5400 Series Radar Transmitter is loop-powered, and uses the same two wires for power supply and output signal. The output is a 4-20 mA analog signal superimposed with a digital HART signal.

By using the optional HART Tri-loop, the HART signal can be converted up to three additional 4-20 mA analog signals.

With the HART protocol multidrop configuration is possible. In this case, communication is restricted to digital, since current is fixed to the 4 mA minimum value.

The transmitter can be connected to a Rosemount 751 Field Signal Indicator, or it can be equipped with an integral display.

The transmitter can easily be configured using a 375 Field Communicator or a PC with the Rosemount Radar Master software. Rosemount 5400 Series transmitters can also be configured with the AMS

Suite and DeltaV™ software, and other tools that support Electronic Device Description Language (EDDL) functionality.

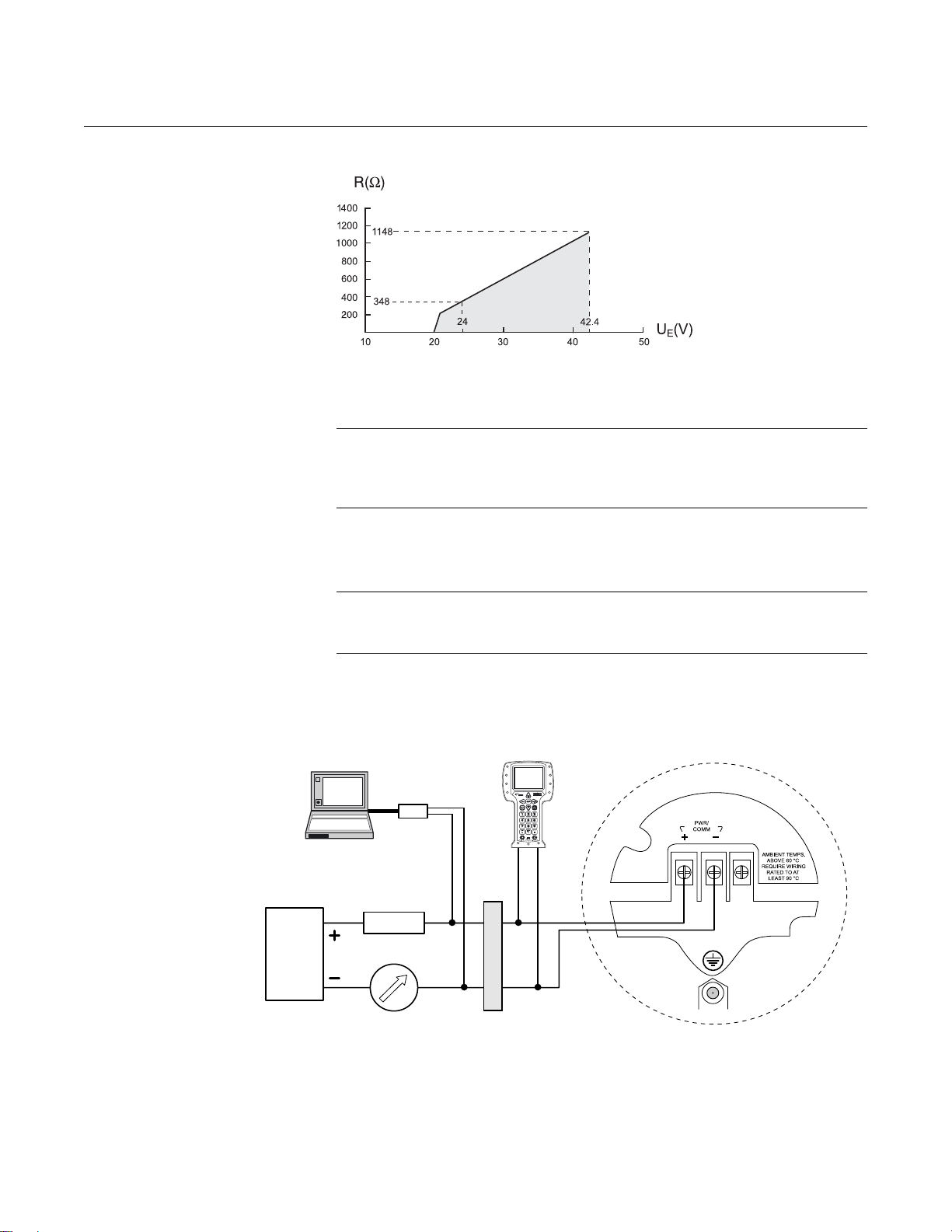

For HART communication a minimum load resistance of 250within the loop is required.

Note! For HART communication a minimum load resistance of 250 within the loop is required.

2-5

Page 20

Rosemount 5400 Series

PROCESS CHARACTERISTICS

Reference Manual

00809-0100-4026, Rev FA

July 2009

Dielectric constant

A key parameter for measurement performance is reflectivity. A high dielectric constant of the media provides better reflection and enables a longer measuring range.

Foam Rosemount 5400 Series Radar Transmitter measurement in foamy

applications depends on the foam properties; light and airy or dense and heavy, high or low dielectrics, etc. If the foam is conductive and creamy, the transmitter may measure the surface of the foam. If the foam is less conductive, the microwaves may penetrate the foam, and measure the liquid surface.

Turbulence A calm surface gives better reflection than a turbulent surface. For turbulent

applications, the maximum range of the radar transmitters is reduced. The range depends on the frequency, the antenna size, the dielectric of the material, and the degree of turbulence. Consult Tables 2-1 and 2-2 on page 2-7 for the expected maximum range with the variables listed.

Temperature/Pressure/ Density and Vapor

Temperature, pressure, product density and vapor generally have no impact on measurements.

Condensation For applications where heavy condensation and vapors may occur, the low

frequency version Rosemount 5401 is recommended.

Tank Characteristics The conditions inside the tank have a significant impact on measurement

performance. For more information see “Vessel Characteristics” on page 3-12.

2-6

Page 21

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

ANTENNA SELECTION GUIDE/MEASURING RANGE

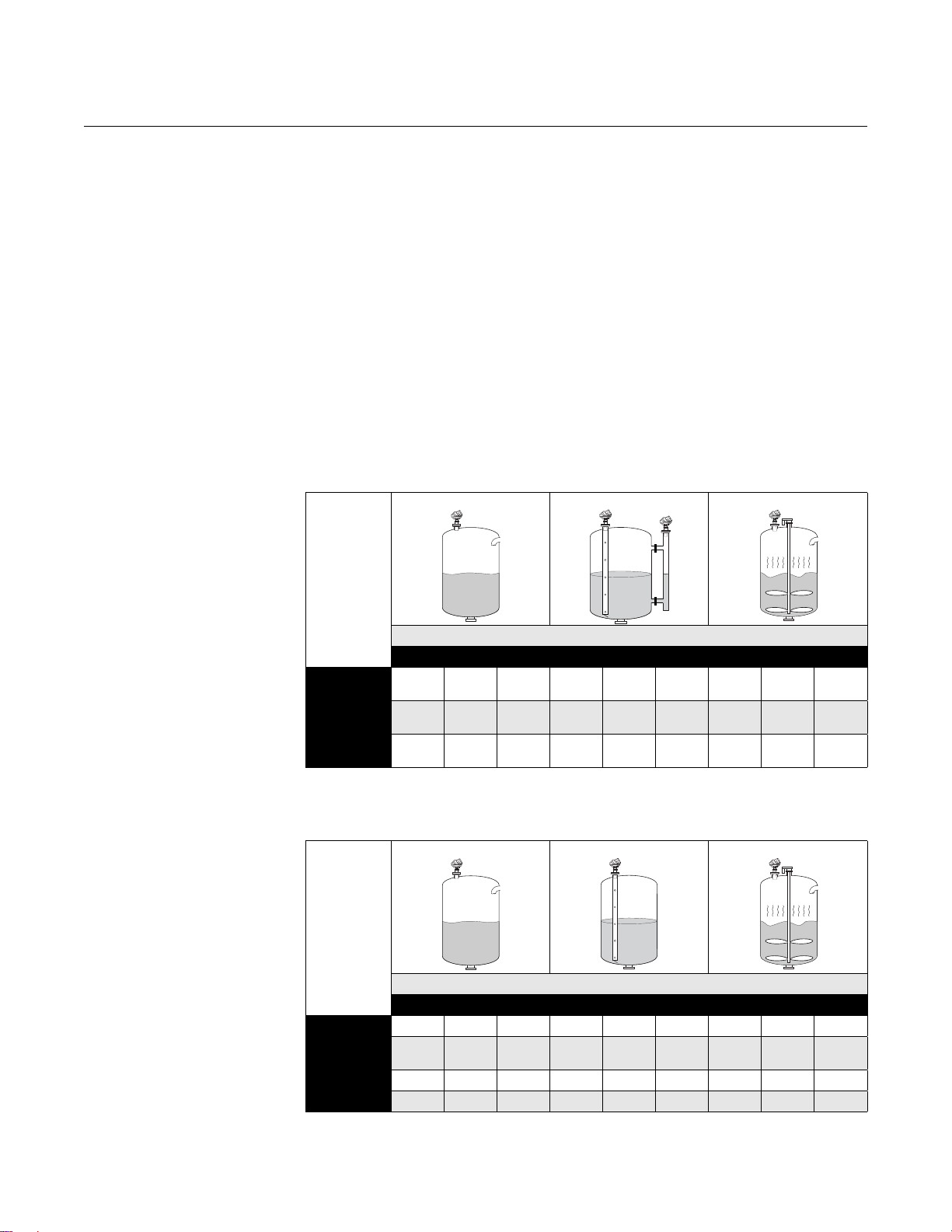

Table 2-1. Maximum recommended measuring range for the Rosemount 5402 model.

The measuring range depends on the microwave frequency, antenna size, the dielectric constant (

) of the liquid, and process conditions. A higher

dielectric constant value produces a stronger reflection. The figures in the tables below are guidelines for optimum performance. Larger measuring ranges may be possible. For more information, contact your local Emerson Process Management representative.

A. Oil, gasoline or other hydrocarbons, and petrochemicals (

= 1.9-4.0).

In pipes or with ideal surface conditions, for some liquefied gases (

= 1.4-4.0)

B. Alcohols, concentrated acids, organic solvents, oil/water mixtures, and

acetone (

= 4.0-10.0).

C. Conductive liquids, e.g. water based solutions, dilute acids, and alkalis

> 10.0).

(

High Frequency Antennas

Units: ft (m)

Table 2-2. Maximum recommended measuring range for the Rosemount 5401 model.

A B C A B C A B C

2-in. Cone / Process Seal

3-in. Cone / Process Seal

4-in. Cone / Process Seal

Low Frequency Device

Units: ft (m)

3-in. Cone 4-in. Cone /

(2)

Rod 6-in. Cone 8-in. Cone

(1) Pipe installations only. NA = not applicable. (2) Pipe installations are not allowed with rod antennas.

33 (10) 49 (15) 66 (20) 82 (25) 115 (35) 115 (35) 9.8 (3) 20 (6) 33 (10)

49 (15) 66 (20) 98 (30) 82 (25) 115 (35) 115 (35) 13 (4) 30 (9) 39 (12)

66 (20) 82 (25) 115 (35) 82 (25) 115 (35) 115 (35) 23 (7) 39 (12) 49 (15)

A B C A B C A B C

(1)

NA NA NA 82 (25) 115 (35) 115 (35) NA NA NA

23 (7) 39 (12) 49 (15) 82 (25) 115 (35) 115 (35) 13 (4) 26 (8) 39 (12)

43 (13) 66 (20) 82 (25) 82 (25) 115 (35) 115 (35) 20 (6) 33 (10) 46 (14)

66 (20) 82 (25) 115 (35) 82 (25) 115 (35) 115 (35) 26 (8) 39 (12) 52 (16)

Dielectric Constant

2-7

Page 22

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

Model and Antenna Guide 5402 5401

This table gives guidelines on which model and antenna to select, depending on application.

G = Good AD = Application Dependent (consult

your local Emerson Process Management representative)

NR = Not Recommended

Cone (preferred) Process Seal Cone (preferred) Rod

July 2009

Best choice for a broad range of applications, free propagation and pipe installations.

Ideal for small tanks and corrosive applications. Also good for heavy antenna

Suitable for some extreme process conditions.

Suitable for small process connections, and corrosive environment.

condensation/build-up.

Accuracy ± 0.1 in. (3 mm) ± 0.1 in. (3 mm) ± 0.4 in. (10 mm) ± 0.4 in. (10 mm)

Tank Considerations

Installation close to smooth tank wall G G G G

Internal obstructions, directly in path NR NR AD AD

Internal obstructions, avoidance

(1)

GGNRNR

Antenna extends below nozzle G G G G

Antenna recessed in smooth nozzle up

GGAD

(2)

(3)

to 6 ft (2 m)

Antenna recessed in nozzle with

(2)

AD AD

(2)

(3)

irregularities, such as bad welds

Still-pipe mounting G G G NR

Val ves G G NR NR

Pressure/Temperature considerations See page A-4 See page A-4 See page A-4 See page A-4

Measuring range considerations See page A-1 See page A-1 See page A-1 See page A-1

Process Medium Characteristics

Vapor (light, medium) G G G G

Vapor (heavy) NR AD G G

Condensing vapor/product build-up

(4)

AD G G AD

Boiling/Turbulent surface (low/medium) G G G G

Boiling/Turbulent surface (heavy) AD AD G

(5)

Boiling/Turbulent surface (still-pipe) G G G NR

(6)

NR NR AD AD

Foam

Foam (still-pipe)

Corrosive products (options available) G

(6)

G G G NR

(7)

Materials with very low dielectric G G G AD

Changing density/dielectric/pH/

GGGG

pressure/temperature

Coating/viscous/crystallizing liquids G G G G

Cleanability of antenna AD G AD G

(1) The obstruction should not be within the radar beam. Preferred choices due to more narrow radar bea m: Model 5402, and cone antenna. (2) An extended cone antenna can be used. (3) The active part must protrude beneath the nozzle. (4) Build-up can often be avoided or reduced by using heat-tracing or cleaning arrangements. (5) Use a 6 or 8 in. (150-200 mm) cone antenna. (6) Foam can either reflect, be invisible, or absorb the radar sig nal. Pipe mounting is advantageous since it reduces the foaming tendency. (7) See wetted material on page A-6.

2-8

Page 23

Reference Manual

00809-0100-4026, Rev FA July 2009

Transmitter model and antenna combination

Cone Process Seal Cone Rod

Rosemount 5400 Series

5402 (~ 26 GHz) 5401 (~ 6 GHz)

Wetted Material

Antenna options:

• 316 / 316 L SST (EN 1.4404)

Antenna option:

•PTFE

O-ring

• Alloy C-276

• Alloy 400

•NACE

Tank Seal:

•PTFE

(2)

O-ring

Process

Flange or Bracket Flange Flange or Bracket Flange, Thread or Bracket

Connection

(1) PFA is a fluoropol ymer with properties similar to PTFE. (2) O-ring options: Viton

, Kalrez®, EPDM and Buna-N.

Antenna options:

(2)

• 316 / 316 L SST (EN 1.4404)

• Alloy C-276

• Alloy 400

Antenna options:

(1)

•PFA

(1)

•PFA

and 316 / 316 L SST (EN 1.4404)

(2)

•NACE

Tank Seal:

•PTFE

(2)

O-ring

2-9

Page 24

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

2-10

Page 25

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 3 Mechanical Installation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 3-2

Mounting Considerations . . . . . . . . . . . . . . . . . . . . . . . . .page 3-3

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3-13

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

ensure the safety of the personnel performing the operations. Information that raises potential safety issues is indicated by a warning symbol ( ). Please refer to the following safety messages before performing an operation preceded by this symbol.

Failure to follow safe installation and service guidelines could result in death or serious injury

• Make sure only qualified personnel perform installation or service.

• Use the equipment only as specified in this manual. Failure to do so may impair the protection provided by the equipment.

• Any substitution of non-recognized spare parts may jeopardize safety. Repair, e.g. substitution of components etc. may also jeopardize safety and is under no circumstances allowed.

Explosions could result in death or serious injury

• Verify that the operating environment of the transmitter is consistent with the appropriate hazardous locations specifications.

• In an Explosion-proof/Flameproof installation, do not remove the transmitter cover when power is applied to the unit.

• Before connecting a make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

Electrical shock can result in death or serious injury

• Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.

• Make sure the main power to the 5400 Series transmitter is off and the lines to any other external power source are disconnected or not powered while wiring the transmitter.

Antennas with non-conducting surfaces

• Antennas with non-conducting surfaces (e.g. Rod antenna and Process Seal antenna) may generate an ignition-capable level of electrostatic charge under extreme conditions. Therefore, when the antenna is used in a potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic discharge.

HART® based communicator in an explosive atmosphere,

www.rosemount.com

Page 26

Rosemount 5400 Series

Review Installation

Considerations

(see page 3-3)

Mount the transmitter

(see page 3-13)

Wire the transmitter

(see page 4-3)

Make sure covers and cable/conduit

connections are tight

Power up the

transmitter

Configure the

transmitter

(see page 5-1)

Verify measurements

Reference Manual

00809-0100-4026, Rev FA

July 2009

INSTALLATION PROCEDURE

Follow these steps for proper installation:

3-2

Page 27

Reference Manual

(D) (A) (E) (B) (F) (C)

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

MOUNTING CONSIDERATIONS

Before installing a Rosemount 5400 Series transmitter, consider specific mounting requirements, vessel, and process characteristics.

Mounting Location For optimal performance, the transmitter should be installed in locations with

a clear and unobstructed view of the level surface (A):

• Filling inlets creating turbulence (B), and stationary metallic objects with horizontal surfaces (C) should be kept outside the signal beam – see page 3-10 for beamwidth information

• Agitators with large horizontal blades may reduce the performance of the transmitter, so install the transmitter in a location where this effect is minimized. Vertical or slanted blades are often invisible to radar, but create turbulence (D)

• Do not install the transmitter in the center of the tank (E)

• Because of circular polarization, there is no clearance distance requirement from the tank wall if it is flat and free of obstructions such as heating coils and ladders (F). Usually, the optimal location is 1/4 of the diameter from the tank wall

Figure 3-1. It is important to consider the proper mounting position.

• The antenna is normally aligned vertically

3-3

Page 28

Rosemount 5400 Series

(G)

(H)

• A metal still-pipe can be used to avoid disturbing objects, turbulence,

Figure 3-2. Mounting in still-pipe

Reference Manual

00809-0100-4026, Rev FA

July 2009

and foam (G)

Figure 3-3. Multiple 5400 transmitters in the same tank

• The walls in non-metallic tanks are invisible to the radar signal, so nearby objects outside of the tank may be detected

• Choose the largest possible antenna diameter for installation. A larger antenna concentrates the radar beam, and will be less susceptible to obstruction interference, and assures maximum antenna gain

• Multiple 5400 transmitters can be used in the same tank without interfering with each other (H)

3-4

Page 29

Reference Manual

Spray nozzle

(I)

Smooth nozzle

Bad weldings

(K) Bad welding

(J)

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Nozzle Considerations Special considerations may have to be taken because of the nozzle,

depending on the selection of transmitter model and antenna.

5402 with Cone Antenna

The antenna can be recessed in smooth nozzles up to 6 ft (2 m). If the inside of the nozzle contains disturbing objects, use the extended cone (I).

Figure 3-4. Nozzle considerations for 5402 with Cone Antenna.

Figure 3-5. Nozzle considerations for 5402 with Process Seal Antenna.

5402 with Process Seal Antenna

The antenna can be used on nozzles up to 6 ft (2 m), (J). Disturbing objects inside the nozzle (K) may impact the measurement, and should therefore be avoided.

The flange on the tank should have a flat or raised face. Other tank flanges may be possible, please consult your local Emerson Process Management representative for advice.

3-5

Page 30

Rosemount 5400 Series

(L) 0.4 in. (10 mm) or more

Active part starts here

(M) Max. 4 or 10 in.

(100 or 250 mm) for short and long version respectively

5401 with Cone Antenna

The antenna should extend 0.4 in. (10 mm), or more, below the nozzle (L). If required, use the extended cone solution.

Figure 3-6. Nozzle considerations for 5401 with Cone Antenna.

5401 with Rod Antenna

Reference Manual

00809-0100-4026, Rev FA

July 2009

Figure 3-7. Nozzle considerations for 5401 with Rod Antenna

The active part of the rod antenna should protrude below the nozzle (M).

3-6

Page 31

Reference Manual

(N)

Max. 0.2 in. (5 mm)

Minimum Diameter

>0.4 in. (10 mm)

Minimum Diameter

Process Seal Antenna Rod Antenna Cone Antenna Extended Cone Antenna

>0.4 in. (10 mm)

00809-0100-4026, Rev FA July 2009

Figure 3-8. Nozzle considerations for Still-pipes in Metallic Materials

Rosemount 5400 Series

Still-pipes in Metallic Materials

If used correctly, pipe measurement can be advantageous in many applications:

• Use cone or process seal antennas – not the rod antenna

• The gap between the cone antenna and the still-pipe is limited to 0.2 in. (5 mm). If required, order an oversized antenna and cut on location (N). Only applicable to 5401 cone antennas and cone antennas with wetted flange plate (i.e. straight antennas)

Nozzle Recommendations and Requirements

The Rosemount 5400 Series is mounted on a nozzle by using appropriate flanges. For best performance, it is recommended that the nozzle meets the following recommendations for height (L) and diameter:

Figure 3-9. Mounting of the 5400 Series transmitter.

3-7

Page 32

Rosemount 5400 Series

Table 3-1. Minimum nozzle diameter and maximum nozzle height for cone antennas.

Model Antenna/Material

(1)

5402

5401 Cone 3 in. (75 mm) SST Pipe installations only

(1) For Rosemount 5402, the values for maximum nozzle height are recommendations.

Reference Manual

00809-0100-4026, Rev FA

July 2009

max

in. (mm)

Cone 2 in. (50 mm) SST 6.1 (155) 2.2 (55) Cone 3 in. (75 mm) SST 5.5 (140) 2.8 (72) Cone 4 in. (100 mm) SST 8.5 (215) 3.8 (97) Cone 2 in. (50 mm) Alloy C-276, Alloy 400 5.5 (140) 2.2 (55) Cone 3 in. (75 mm) Alloy C-276, Alloy 400 6.5 (165) 2.8 (72) Cone 4 in. (100 mm) Alloy C-276, Alloy 400 9.6 (240) 3.8 (97)

Cone 4 in. (100 mm) SST 5.5 (140) 3.8 (97) Cone 6 in. (150 mm) SST 6.9 (175) 5.7 (145) Cone 8 in. (200 mm) SST 10.2 (260) 7.6 (193) Cone 3 in. (75 mm) Alloy C-276, Alloy 400 Pipe installations only Cone 4 in. (100 mm) Alloy C-276, Alloy 400 5.5 (140) 3.8 (97) Cone 6 in. (150 mm) Alloy C-276, Alloy 400 6.9 (175) 5.7 (145) Cone 8 in. (200 mm) Alloy C-276, Alloy 400 10.2 (260) 7.6 (193)

Min. Diameter

in. (mm)

Table 3-2. Minimum nozzle diameter and maximum nozzle height for rod antennas.

Table 3-3. Minimum nozzle diameter and maximum nozzle height for process seal antennas.

Table 3-4. Minimum nozzle diameter and maximum nozzle height for extended cone antennas.

Model Antenna L

(1)

5401

(1) For Rosemount 5401, the values for minimum nozzle diameter and maximum nozzle height are

Model Antenna L

5402

(1) For Rosemount 5402, the values for maximum nozzle height are recommendations.

Model Antenna L

5402 5401 Extended Cone Antenna, S3

(1) For Rosemount 5402, the values for maximum nozzle height are recommendations. (2) The extended cone antennas are available in 5 in. (125 mm) step increments from 10 to 50 in.

Rod (short) 4.0 (100) 1.5 (38) Rod (long) 10 (250) 1.5 (38)

requirements.

(1)

Process Seal 2 in. (50 mm) 19.7 (500) 2.0 (51) Process Seal 3 in. (75 mm) 19.7 (500) 3.0 (77) Process Seal 4 in. (100 mm) 19.7 (500) 4.0 (102)

(1)

Extended Cone Antenna, S3

(250-1250 mm). Consult your local Emerson Process Management representative for more information. Expect long lead times for sizes other than the 20 in. (500 mm) version.

(2)

in. (mm)

max

in. (mm)

max

in. (mm)

max

20 in. (500 mm) See Table 3-1

Min. Diameter

in. (mm)

Min. Diameter

in. (mm)

Min. Diameter

in. (mm)

3-8

Page 33

Reference Manual

Rod Antenna Cone Antenna

Process Seal Antenna

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Install the transmitter as follows:

• Align the antenna vertically

• Choose the largest antenna diameter possible. A larger receiving area concentrates the radar beam and ensures maximum antenna gain. Increased antenna gain permits greater margin for weak surface echoes. A larger antenna also results in smaller beam angle and thereby, less interference from any internal structures in the tank

• For best measurement performance, the antenna should extend below the nozzle 0.4 in. (10 mm) or more

For more information, see “Nozzle Considerations” on page 3-5.

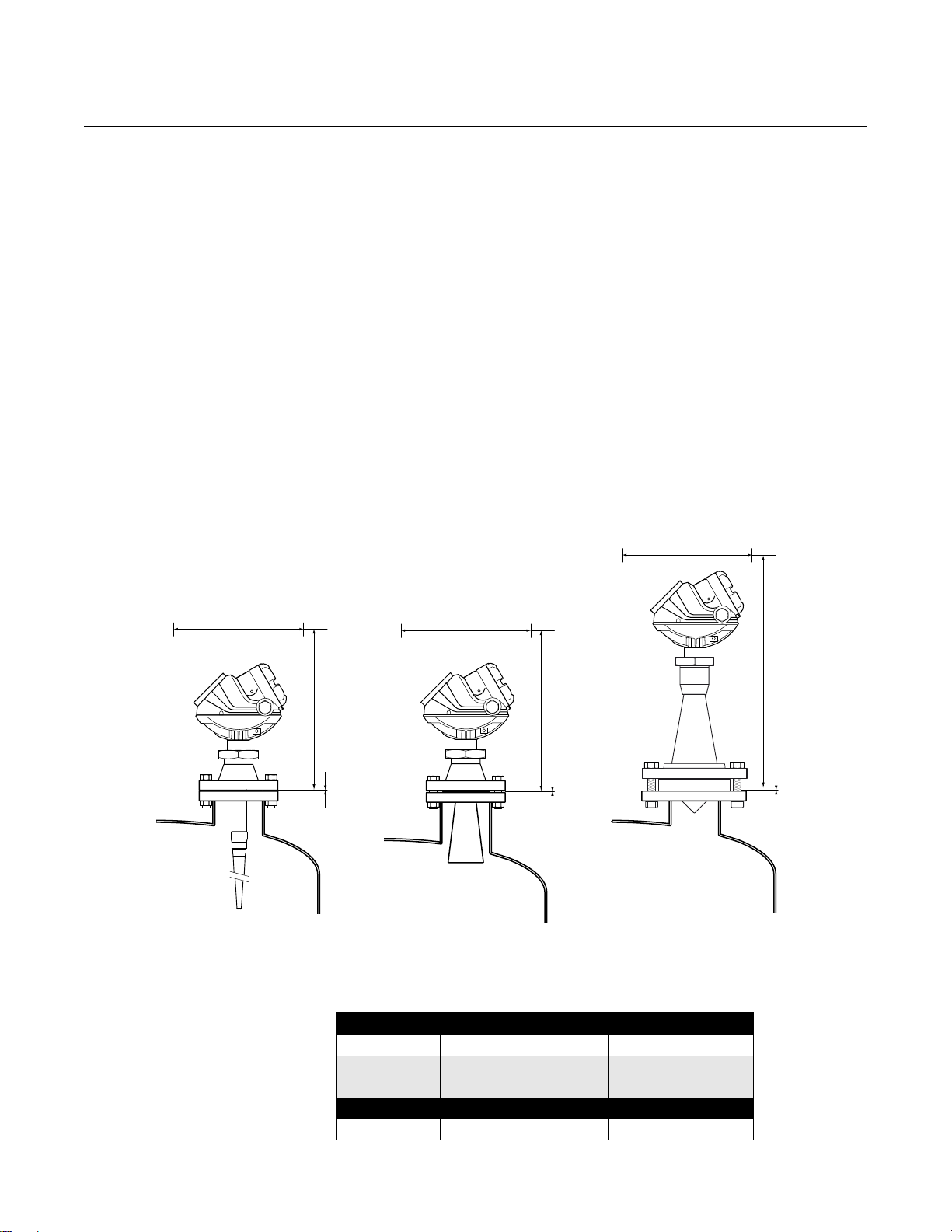

Service Space For easy access to the transmitter, mount it with sufficient service space.

There is no requirement on clearance distance from the tank wall, provided it is flat and free of obstructions such as heating coils and ladders. The optimal location is often 1/4 of the tank diameter.

Figure 3-10. Service space recommendations.

Service space Distance inch (mm)

A Cone, Rod, Process Seal 20 (500)

Inclination Maximum angle

C Cone, Rod, Process Seal 3°

Cone, Rod 24 (600)

Process Seal 33 (850)

3-9

Page 34

Reference Manual

Distance

5401 (low frequency)

5402 (high frequency)

16 ft (5 m)

33 ft (10 m)

49 ft (15 m)

66 ft (20 m)

Beamwidth

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

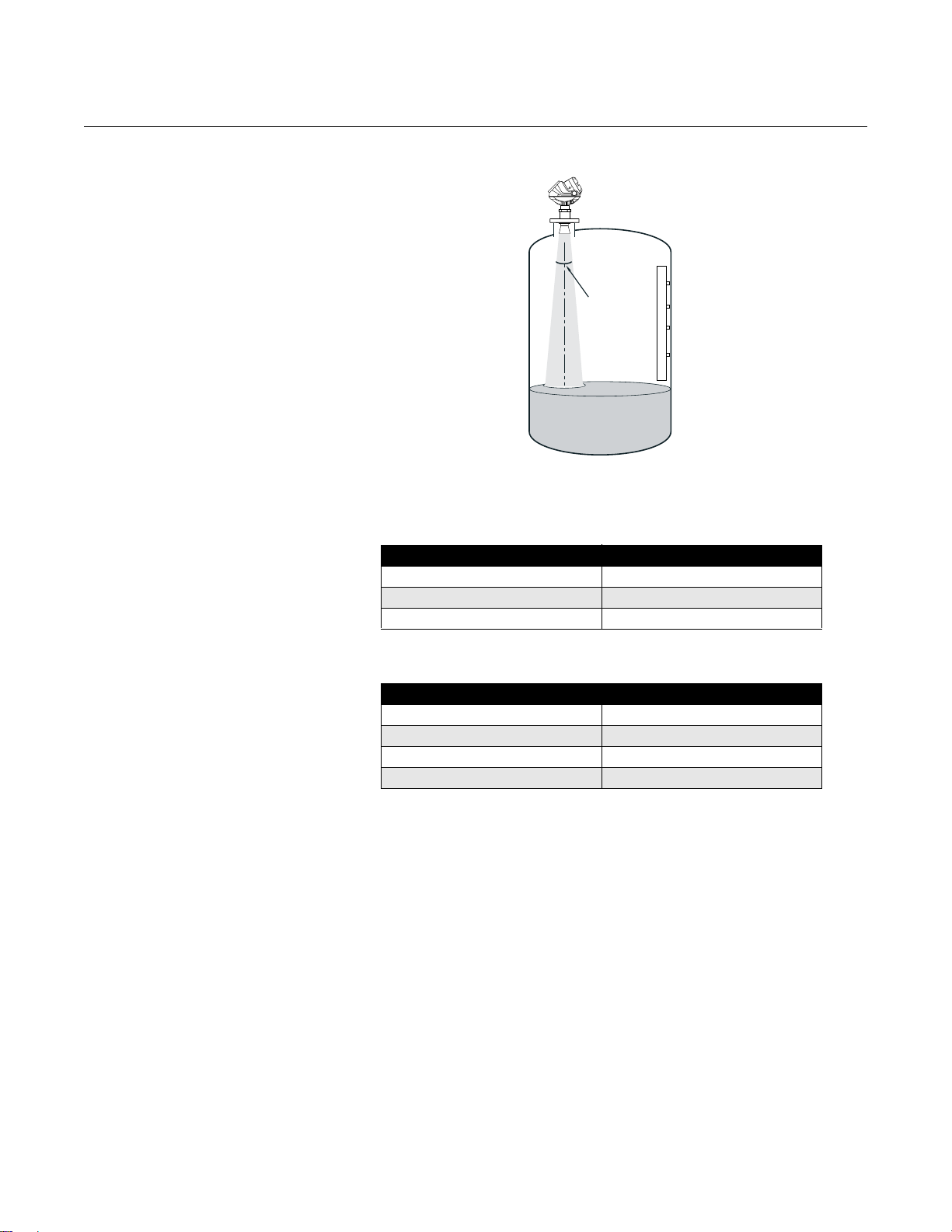

Beamwidth The following recommendations should be considered when mounting the

transmitter:

• The transmitter should be mounted with as few internal structures as possible within the beam angle

• The flat tank wall can be located within the antenna beam angle if there is a minimum distance from the transmitter to the tank wall (see Figure 3-10 for preferred installation)

Figure 3-11. Beamwidth at various distances from the flange.

Table 3-5. Beamwidth for the Rosemount 5402 model.

Table 3-6. Beamwidth for the Rosemount 5401 model.

16 ft (5 m) 4.9 (1.5) 3.3 (1.0) 3.3 (1.0)

33 ft (10 m) 9.8 (3.0) 6.6 (2.0) 4.9 (1.5)

49 ft (15 m) 14.8 (4.5) 9.8 (3.0) 8.2 (2.5)

66 ft (20 m) 19.7 (6.0) 13.1 (4.0) 9.8 (3.0)

16 ft (5 m) 9.8 (3..0) 6.6 (2.0) 4.9 (1.5)

33 ft (10 m) 21.3 (6.5) 13.1 (4.0) 9.8 (3.0)

49 ft (15 m) 32.8 (10) 19.7 (6.0) 14.8 (4.5)

66 ft (20 m) 41 (12.5) 26.2 (8.0) 19.7 (6.0)

Distance

2 in. (DN 50) Cone/ Process Seal

4 in. (DN 100) Cone

/Rod

Antenna

3 in. (DN 80) Cone/ Process Seal

Beamwidth, ft (m)

Antenna

6 in. (DN 150) Cone 8 in. (DN 200) Cone

Beamwidth, ft (m)

4 in. (DN 100) Cone/ Process Seal

3-10

Page 35

Reference Manual

Beam Angle

00809-0100-4026, Rev FA July 2009

Figure 3-12. Beam Angle.

Rosemount 5400 Series

Table 3-7. Beam Angle for the Rosemount 5402.

Table 3-8. Beam Angle for the Rosemount 5401.

Antenna Beam Angle

Cone 2 in. (50 mm) / Process Seal 17°

Cone 3 in. (75 mm) / Process Seal 11°

Cone 4 in. (100 mm) / Process Seal 9°

Antenna Beam Angle

3 in. (75 mm) Cone Pipe installations only

4 in. (100 mm) Cone / Rod 35°

6 in. (150 mm) Cone 23°

8 in. (200 mm) Cone 17°

3-11

Page 36

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

Vessel Characteristics Heating coils, agitators and other objects in the tank may lead to disturbing

echoes and noise in the measurement signal. Vertical structures cause minimal effect since the radar signal is scattered rather than directed back to the antenna.

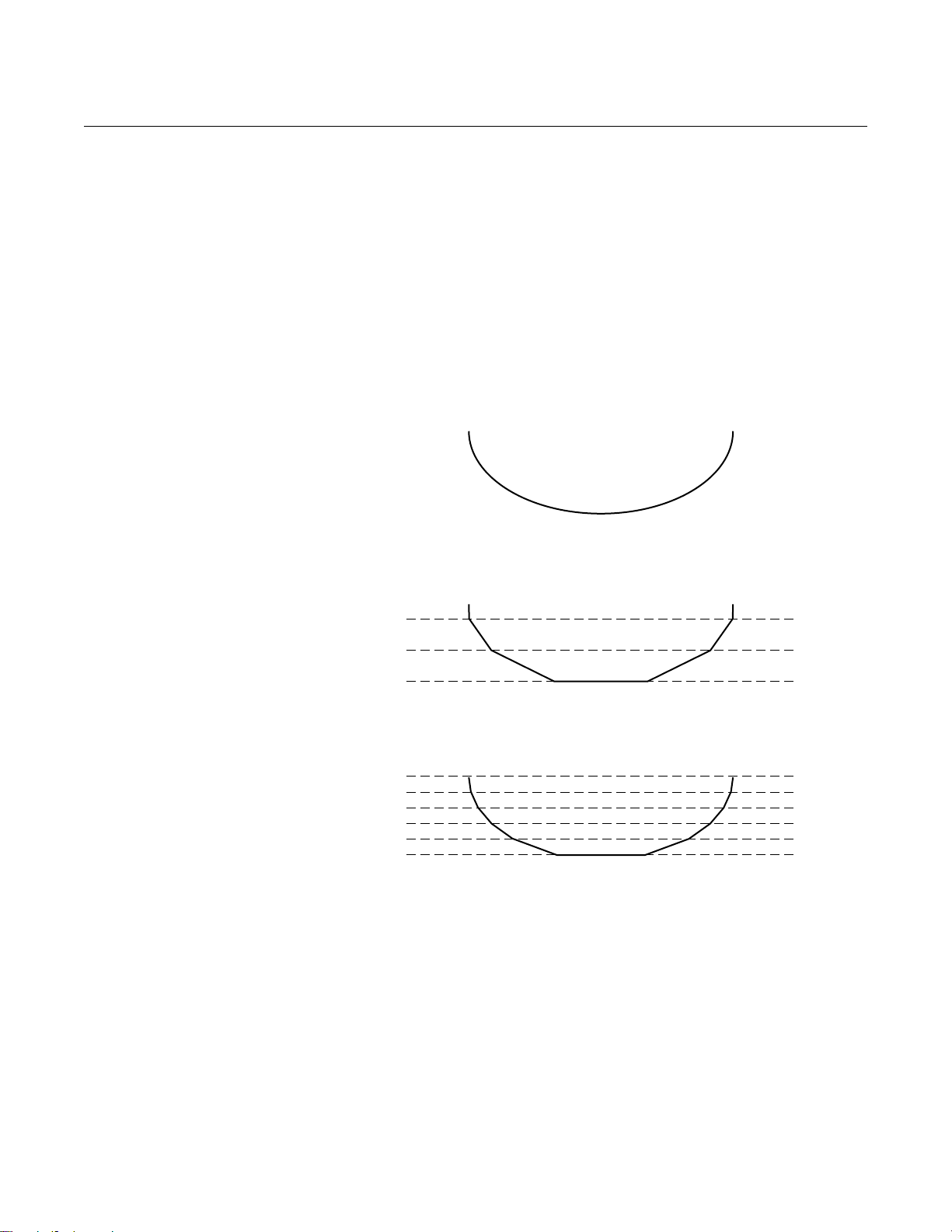

The shape of the tank bottom affects the measurement signal when the product surface is close to the tank bottom. The Rosemount 5400 Series has built-in functions which optimize measurement performance for various bottom shapes (see “Tank Type and Tank Bottom Type” on page 5-4).

Disturbing Objects The Rosemount 5400 Series transmitter should be mounted so that objects

such as heating coils, ladders, etc. are not in the radar signal path. These objects may cause false echoes resulting in reduced measurement performance. However, the transmitter has built-in functions designed to reduce the influence from disturbing objects where such objects cannot be totally avoided.

The Rosemount 5402 has a more narrow radar beam that is particularly suitable in installations with tall or narrow nozzles, or nozzles close to the tank wall. It may also be used to avoid disturbing objects in the tank.

Valves The 5400 Series transmitter can be isolated from the process by using a

valve:

• Use a full-port ball valve

• The 5402 is required, and the Process Seal Antenna is the preferred choice, since it does not require a spool piece. The cone antenna can also be used

• Ensure there is no edge between the ball valve and the nozzle/pipe, the inside should be smooth

Valves can be combined with pipes.

3-12

Page 37

Reference Manual

Transmitter housing

Bolt

Gasket

Flange

Tank flange

Cone antenna

Nut

Nozzle

Locking screw (ATEX)

Nut, 60 Nm (44 Lbft)

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

MOUNTING Mount the transmitter on a nozzle on top of the tank making sure only

qualified personnel perform the installation.

The transmitter housing must not be opened.

If the transmitter housing must be removed for service, make sure that the PTFE sealing is carefully protected against dust and water.

Cone Antenna Flange Connection

Figure 3-13. Mounting the 5400 with cone antenna and flange.

1. Place a gasket on top of the tank flange.

2. Lower the transmitter with antenna and flange into the tank nozzle.

3. Tighten the bolts and nuts with sufficient torque for the flange and gasket choice.

3-13

Page 38

Rosemount 5400 Series

O-ring (no gasket required)

Process Seal window

Bolt

O-rings (one customer mounted, and one integrated)

Flange

Transmitter housing

Nut, 60 Nm (44 Lbft)

Locking screw (ATEX)

Process Seal antenna

Nozzle

Tank flange

Nut

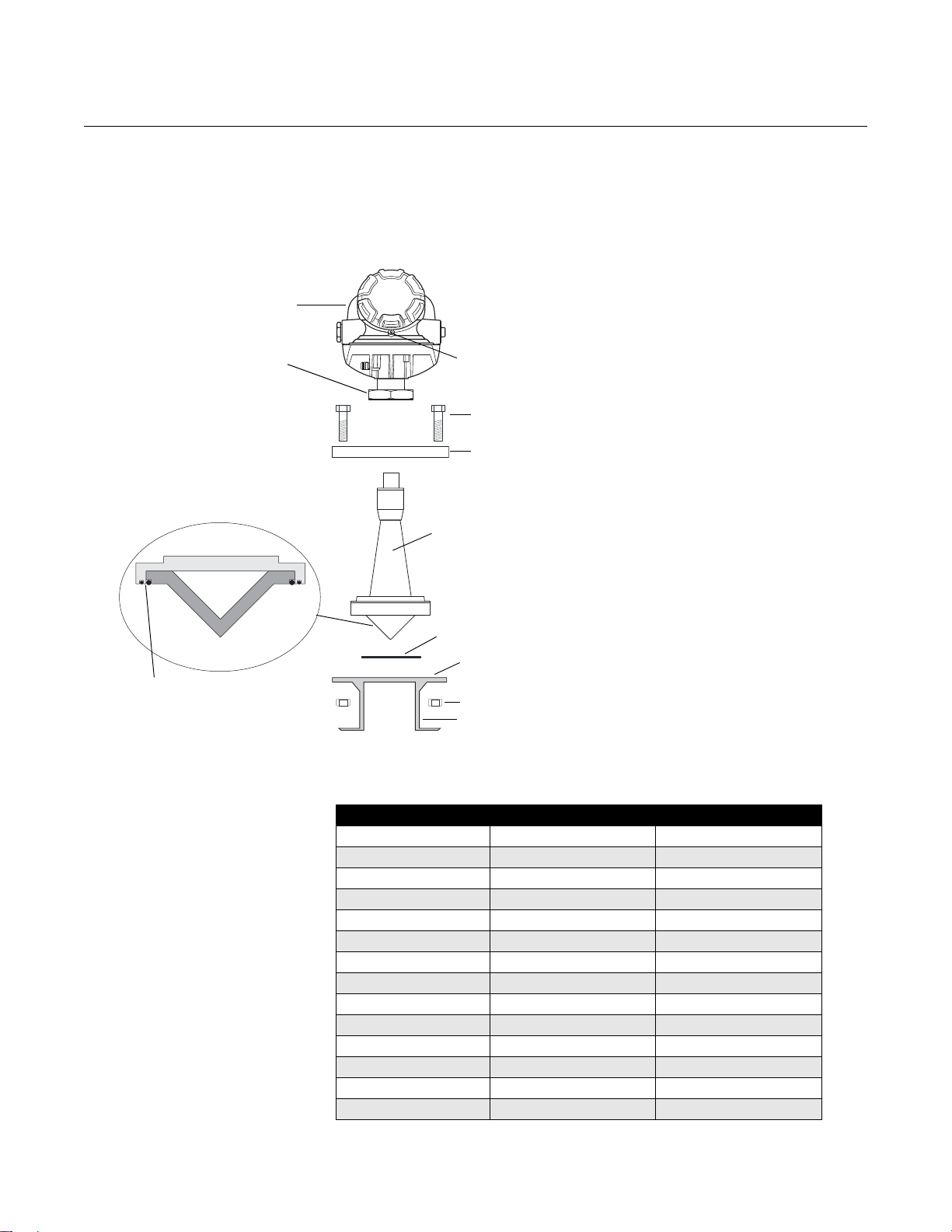

Process Seal Antenna

Figure 3-14. Mounting the 5400 with Process Seal.

Reference Manual

00809-0100-4026, Rev FA

July 2009

1. Place the O-ring in the groove on the

underside of the antenna process window. See page A-8 for information on temperature ranges for the O-ring.

2. Place the antenna on top of the nozzle.

3. Mount the flange and tighten the bolts

cross-wise. For torque information, see Ta bl e 3 -9 .

4. Mount the transmitter head and tighten

the nut to 60 Nm (44 Lbft).

5. Re-tighten the flange bolts after 24 hours.

Table 3-9. Tightening torque for Process Seal flanges.

3-14

Flange Torque (Nm) Torque (Lbft)

2 in. (50 mm), 150lbs 80 59

2 in. (50 mm), 300lbs 80 59

3 in. (75 mm), 150lbs 80 59

3 in. (75 mm), 300lbs 125 92

4 in. (100 mm), 150 lbs 80 59

4 in. (100 mm), 300 lbs 125 92

DN 50 PN 40 109 80

DN 80 PN 40 109 80

DN 100 PN 16 109 80

DN 100 PN 40 135 100

50A 10K 109 80

80A 10K 109 80

100A 10K 109 80

150A 10K 135 100

Page 39

Reference Manual

Rod antenna

Sealant on threads

Locking screw (ATEX)

Transmitter housing

Nut, 60 Nm (44 Lbft)

00809-0100-4026, Rev FA July 2009

Rod Antenna Threaded Connection

Figure 3-15. Mounting the 5400 with rod antenna and threaded tank connection.

Rosemount 5400 Series

1. Lower the transmitter and antenna into

the tank.

2. Turn the transmitter until it is properly

secured in the process connection.

NOTE!

Tank connections with NPT threads require a sealant for pressure-tight joints.

3-15

Page 40

Rosemount 5400 Series

Gasket (optional for the All PFA version)

Flange

Tank flange

Rod antenna

PFA plate (only All PFA version, 1R, 2R)

Transmitter housing

Bolt

Nut

Locking screw (ATEX)

Nozzle

Rod Antenna Flanged Connection

Figure 3-16. Mounting the 5400 with rod antenna and flange.

Reference Manual

00809-0100-4026, Rev FA

July 2009

1. Place a gasket on top of the tank

2. Lower the transmitter with antenna and

3. Tighten the bolts and nuts with sufficient

(1)

flange

. The gasket thickness and

material must be suitable for the process.

flange into the tank nozzle.

torque for the flange and gasket choice.

(1) Gasket is optional for the All-PFA version of the rod antenna.

3-16

Page 41

Reference Manual

Transmitter housing

Bracket

Antenna

00809-0100-4026, Rev FA July 2009

Bracket Mounting on Wall

Figure 3-17. Bracket Mounting the 5400, on wall.

Rosemount 5400 Series

1. Mount the bracket directly to the wall with

screws suitable for the purpose.

2. Mount the transmitter with antenna to the

bracket, then secure the installation with the three supplied screws.

3-17

Page 42

Rosemount 5400 Series

Clamping Bracket

Antenna

Transmitter housing

Bracket

U-bolt

Screws

Screw

Bracket Mounting on Pipe

Figure 3-18. Bracket Mounting the 5400, on pipe.

Reference Manual

00809-0100-4026, Rev FA

July 2009

1. Put the two U-bolts through the holes of

the bracket. Holes are available for both vertical and horizontal pipe mounting.

2. Put the clamping brackets on the U-bolts

and around the pipe.

3. Fasten the bracket to the pipe with the

four supplied nuts.

4. Mount the transmitter with antenna to the

bracket, and secure with the three supplied screws.

3-18

Page 43

Reference Manual

Max. 0.2 in (5 mm)

max. 1 °

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Mounting in Pipes Still-pipe mounting is recommended for tanks with extremely turbulent surface

conditions. All cone antenna sizes for the Rosemount 5400 Series of transmitters can be used for Still-pipe installations. The 3 in. (75 mm) antenna for the 5401 is designed for use in Still-pipes only. Rod antennas are not recommended for Still-pipes.

When the transmitter is mounted on a Still-pipe, the inclination should be within 1°. The gap between the antenna and the Still-pipe may be up to 0.2 in. (5 mm).

Figure 3-19. Mount the transmitter vertically.

Recommendations for pipe installations

• The pipe interior must be smooth

• Not suitable for adhesive products

• At least one hole is above the product surface

• The hole diameter Ø should not exceed 10% of the pipe diameter D

• Holes should only be drilled on one side

3-19

Page 44

Rosemount 5400 Series

min. 6 in. (150 mm)

max. Ø: D/10.

Figure 3-20. Recommended hole size for pipe installations.

Reference Manual

00809-0100-4026, Rev FA

July 2009

3-20

Page 45

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 4 Electrical Installation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-1

Cable/Conduit Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-3

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-5

Cable Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4-5

Hazardous Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-5

External Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-5

Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-5

Connecting the Transmitter . . . . . . . . . . . . . . . . . . . . . . . .page 4-6

Non-Intrinsically Safe Power Supply . . . . . . . . . . . . . . . .page 4-7

Intrinsically Safe Power Supply . . . . . . . . . . . . . . . . . . . . page 4-8

Optional Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-9

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

www.rosemount.com

Page 46

Rosemount 5400 Series

Failure to follow safe installation and service guidelines could result in death or serious injury

• Make sure only qualified personnel perform installation or service.

• Use the equipment only as specified in this manual. Failure to do so may

• Any substitution of non-recognized spare parts may jeopardize safety. Repair,

Explosions could result in death or serious injury

• Verify that the operating environment of the transmitter is consistent with the

• In an Explosion-proof/Flameproof installation, do not remove the transmitter

• Before connecting a

Electrical shock can result in death or serious injury

• Avoid contact with the leads and terminals. High voltage that may be present

• Make sure the main power to the 5400 Series transmitter is off and the lines to

Antennas with non-conducting surfaces

• Antennas with non-conducting surfaces (e.g. Rod antenna and Process Seal

Reference Manual

00809-0100-4026, Rev FA

July 2009

impair the protection provided by the equipment.

e.g. substitution of components etc. may also jeopardize safety and is under no circumstances allowed.

appropriate hazardous locations specifications.

cover when power is applied to the unit.

HART® based communicator in an explosive atmosphere,

make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

on leads can cause electrical shock.

any other external power source are disconnected or not powered while wiring the transmitter.

antenna) may generate an ignition-capable level of electrostatic charge under extreme conditions. Therefore, when the antenna is used in a potentially explosive atmosphere, appropriate measures must be taken to prevent electrostatic discharge.

4-2

Page 47

Reference Manual

Remove the orange protective plastic plugs, used for transportation. Seal any unused port with the enclosed metal plug.

Cable Entry Cable Entry

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

CABLE/CONDUIT ENTRIES

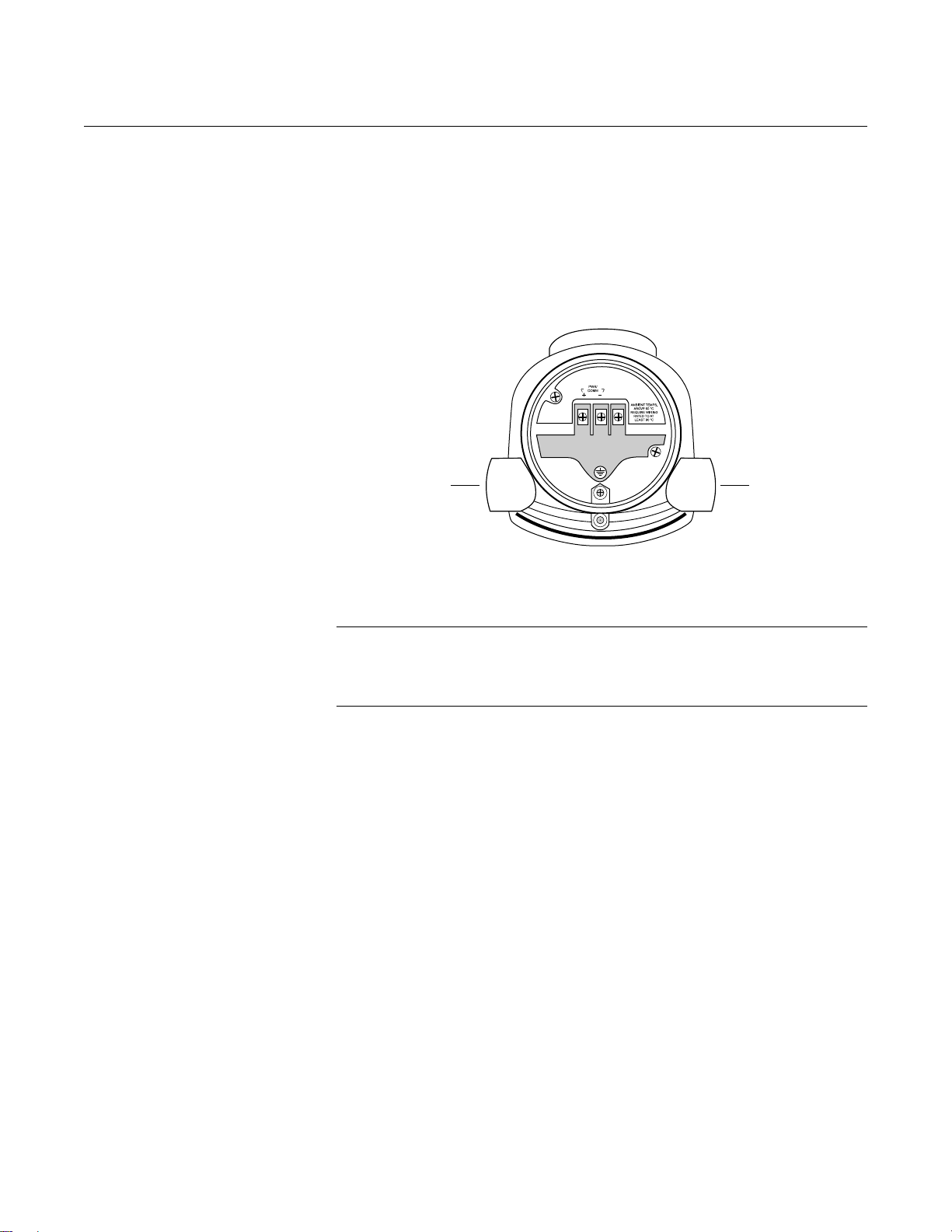

Figure 4-1. Cable Entries.

The electronics housing has two entries with ½ - 14 NPT threads. Optional M20×1.5 adapters are also available. The connections are made according to national, local and plant electrical codes.

Properly seal unused ports to prevent moisture or other contamination from entering the terminal compartment of the electronics housing. Install wiring with a drip loop with the bottom of the loop lower than the cable/conduit entry.

NOTE!

Use the enclosed metal plug to seal the unused port. The temporary orange plastic plugs used at delivery are not sufficient seals! Failure to use the metal plug to seal the unused port invalidates product certification.

4-3

Page 48

Rosemount 5400 Series

“+”

“-”

No Connection

Ground

Conduit Electrical Connector Wiring (using Minifast®)

Reference Manual

00809-0100-4026, Rev FA

July 2009

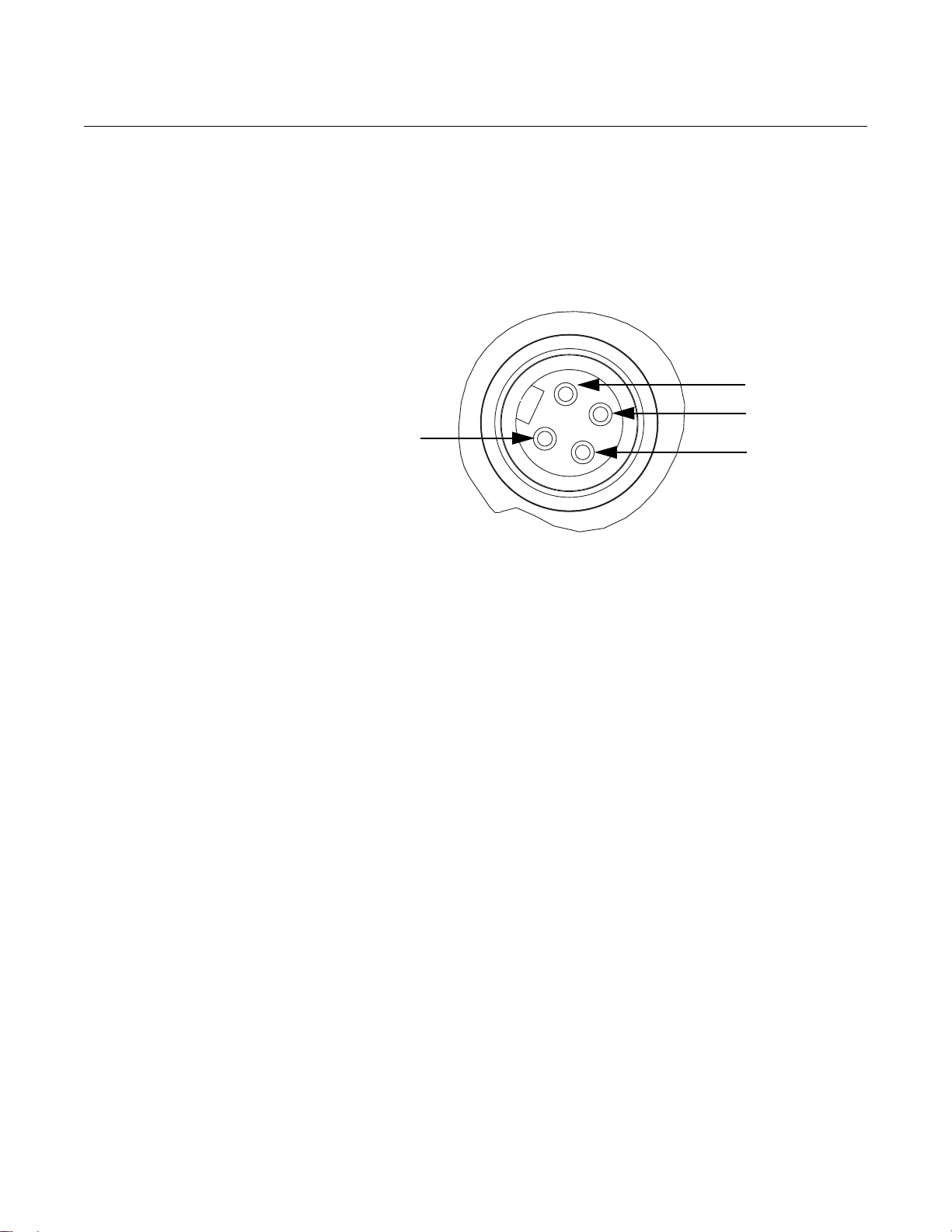

Figure 4-2. Quick Connect Housing Pin-Out.

For wiring details, refer to pin-out drawing and the cordset manufacturer’s installation instructions.

For 5400 transmitters with conduit electrical connector M, refer to the cordset manufacturer’s installation instructions for wiring details.

4-4

Page 49

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

GROUNDING The housing should always be grounded according to national and local

electrical codes. Failure to do so may impair the protection provided by the equipment. The most effective grounding method is direct connection to earth ground with minimal impedance. There are two grounding screw connections provided. One is inside the Terminal compartment of the housing and the other is located on one of the cooling fins below the housing. The internal

ground screw is identified by a ground symbol: .

NOTE!

Using the threaded conduit connection for grounding may not be sufficient!

NOTE!

After installation and commissioning, make sure that no ground currents exist from high ground potential differences in the installation.

CABLE SELECTION Use shielded twisted pair wiring for the Rosemount 5400 Series. The cables

must be suitable for the supply voltage and approved for use in hazardous areas, where applicable. For instance, in the U.S., explosion-proof conduits must be used in the vicinity of the vessel. For the ATEX flameproof approval version of the Rosemount 5400 Series, suitable conduits with sealing device or flameproof (EEx d) cable glands must be used depending on local requirements.

Use 18 AWG to 12 AWG wiring to minimize the voltage drop to the transmitter.

HAZARDOUS AREAS When the Rosemount 5400 Series transmitter is installed in a hazardous

area, all national and local regulations and specifications in applicable certificates must be observed.

EXTERNAL CIRCUIT BREAKER

POWER REQUIREMENTS

Table 4-1. Minimum input voltage (U

) at different currents.

For complicance with Low Voltage Directive 73/23/EEG, an external circuit breaker should be installed.

Terminals in the transmitter housing provide connections for signal wiring.

The 5400 transmitter operates with the following power supplies:

Hazardous

approval

Non-Hazardous Installations and Intrinsically Safe Installations

Explosion-proof / Flameproof Installations

3.75 mA 21.75 mA Minimum input voltage (UI)

16 Vdc 11 Vdc

20 Vdc 15.5 Vdc

Current

4-5

Page 50

Rosemount 5400 Series

Cable entries.

Internal Ground screw.

Terminals for signal and power supply.

Locking screw.

External Ground screw.

Reference Manual

00809-0100-4026, Rev FA

July 2009

CONNECTING THE TRANSMITTER

The Rosemount 5400 Series accepts power supplies ranging from 16 Vdc to

42.4 Vdc. It uses 4-20 mA power superimposed with a HART signal.

To connect the transmitter:

1. Make sure the housing is grounded (including IS ground inside the Terminal compartment) according to Hazardous Locations Certifications, national, and local electrical codes.

2. Make sure the power supply is disconnected.

3. Remove the terminal block cover.

4. Pull the cable through the cable gland/conduit. For Explosion-proof/ Flameproof installations, use cable glands or conduit entry devices certified Explosion-proof or Flameproof. Install the wiring with a drip loop, with the bottom of the loop lower than the cable/conduit entry.

5. Connect the wires according to Figure 4-4 for non-intrinsically safe power supplies, and according to Figure 4-7 for intrinsically safe power supplies.

6. Remove the orange protective plastic plugs used for transportation and seal any unused port with the enclosed metal plug.

7. Mount the cover and tighten the cable gland, making sure the cover is secure to meet explosion-proof requirements. For ATEX, IECEx, NEPSI and TIIS installations, lock the cover with the Locking screw .

8. Connect the power supply.

Figure 4-3. Terminal compartment and external ground screw.

NOTE!

Use PTFE tape or other sealant at the NPT threads in the Cable Entries.

4-6

Page 51

Reference Manual

Power supply

Rosemount 375 Field Communicator

Load resistance

HART Modem

Rosemount 5400 Series Radar Level Transmitter

250



Operating Region

Maximum Load Resistance

External Power Supply Voltage

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

NON-INTRINSICALLY SAFE POWER SUPPLY

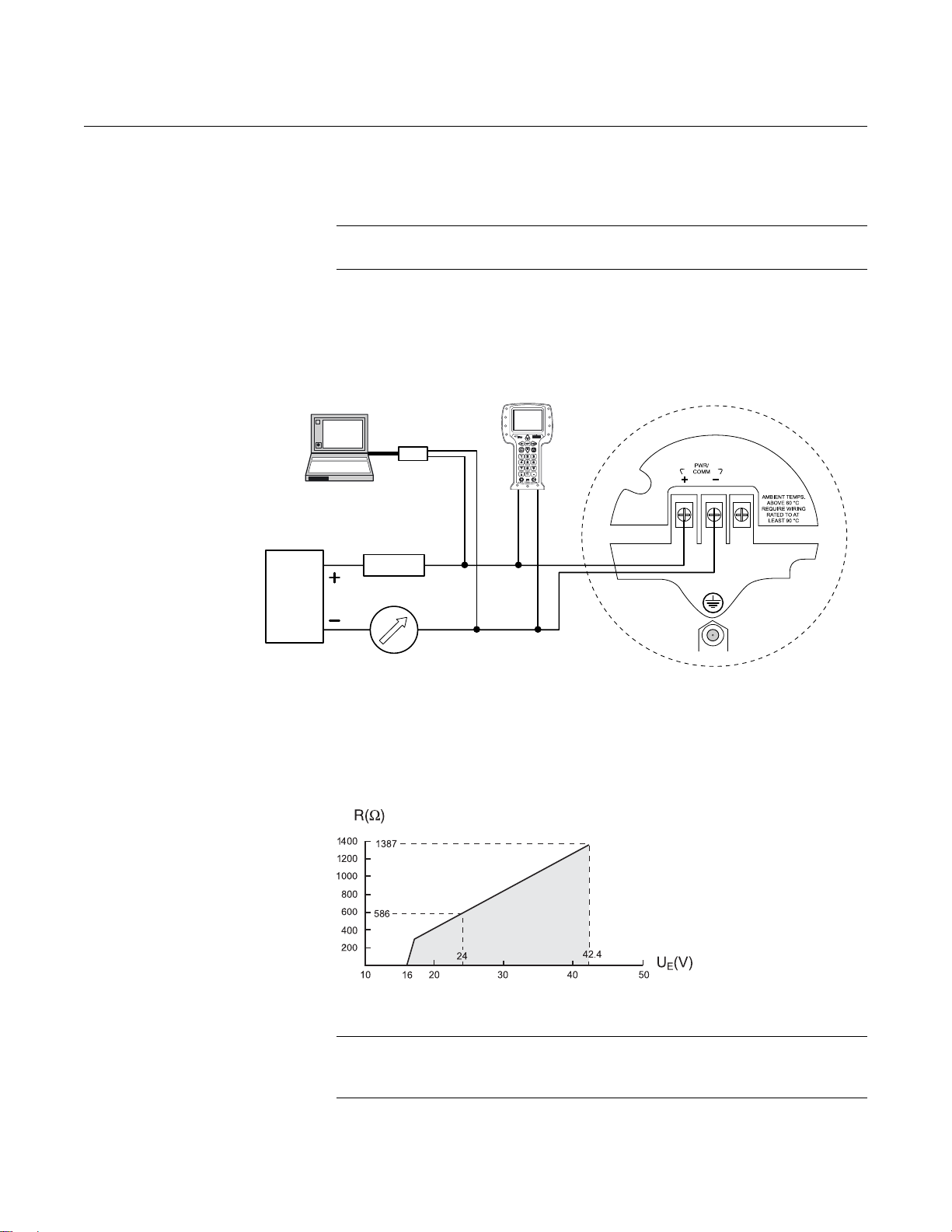

Figure 4-4. Wiring for non-intrinsically safe power supply.

With a non-intrinsically safe power supply in non-hazardous installations or Explosion-proof/Flameproof installations, wire the transmitter as shown in Figure 4-4.

NOTE!

Make sure that the power supply is off when connecting the transmitter.

Figure 4-5. Maximum load resistance for Non-hazardous installation.

The 375 Field Communicator and the HART Modem require a minimum load resistance of 250within the loop to function properly. For maximum loop resistance, see Figure 4-5.

See Figure 4-4 for wiring information.

NOTE!

The diagram is valid only if the HART load resistance is at the + side and if the

- side is grounded, otherwise the load resistance value is limited to 435.

4-7

Page 52

Rosemount 5400 Series

NOTE This diagram is valid only if the HART load resistance is at the + side and if the - side is grounded, otherwise the maximum load resistance is limited to 435.

Operating Region

Maximum Load Resistance

External Power Supply Voltage

Power supply

Rosemount 375 Field Communicator

HART Modem

Rosemount 5400 Series Radar Level Transmitter

Approved IS Barrier

Load resistance

250



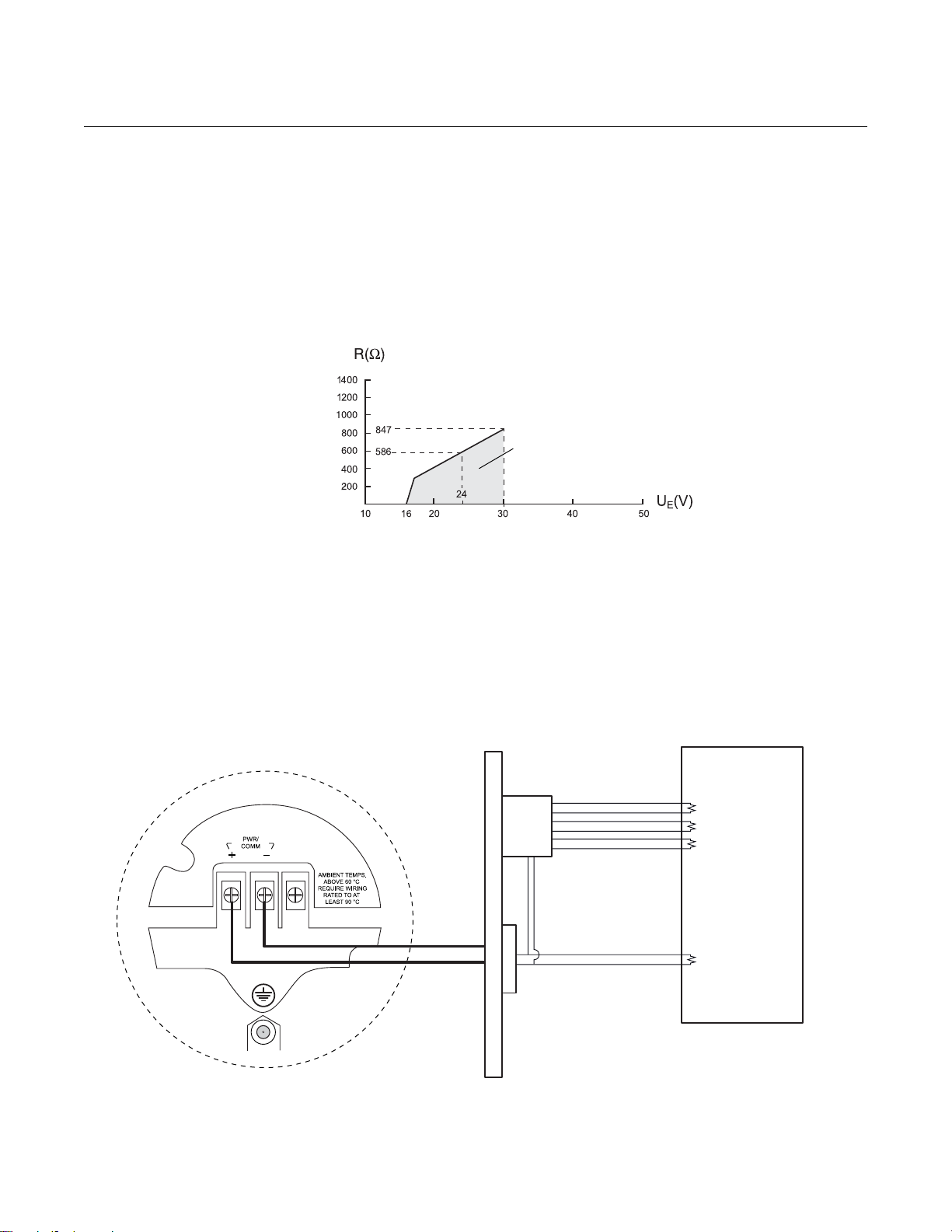

Figure 4-6. Maximum load resistance for Explosion-Proof/ Flameproof installation.

See Figure 4-7 for wiring information.

NOTE!

For Explosion-proof/Flameproof installations make sure the transmitter is grounded to the I.S. ground terminal inside the terminal compartment in accordance with national and local electrical codes.

Reference Manual

00809-0100-4026, Rev FA

July 2009

INTRINSICALLY SAFE POWER SUPPLY

Figure 4-7. Wiring diagram for intrinsically safe power supply.

With an intrinsically safe power supply, wire the transmitter as shown in Figure 4-7.

NOTE!

Make sure the instruments in the loop are installed according to intrinsically safe field wiring practices.

4-8

The 375 Field Communicator and the HART Modem require a minimum load resistance within the loop of 250 to function properly. For maximum load resistance see Figure 4-8.

Page 53

Reference Manual

Operating Region

Maximum Load Resistance

External Power Supply Voltage

Ch. 3 Ch. 2 Ch. 1

Each Tri-Loop Channel recieves power from Control Room

Channel 1 must be powered for the Tri-Loop to operate

Device recieves power from Control Room

250

HART Burst Command 3/ Analog Output

Intrinsically Safe Barrier

DIN Rail Mounted HART Tri-Loop

Control Room

Burst Input to Tri-Loop

00809-0100-4026, Rev FA July 2009

Figure 4-8. Maximum load resistance for Intrinsically Safe installation.

IS parameters

=30 V.

=130 mA.

=1 W.

=7.26 nF.

=0 H.

Rosemount 5400 Series

OPTIONAL DEVICES Tri-Loop HART to analog

converter

Figure 4-9. Wiring diagram for HART Tri-Loop.

The Rosemount 5400 transmitter outputs a HART signal with four process variables. The Model 333 HART Tri-Loop provides up to three additional analog 4-20 mA outputs.

4-9

Page 54

Rosemount 5400 Series

Power supply

Rosemount 5400 Radar Transmitter

Model 751 Field Signal Indicator

Configure Channels 1, 2, and 3 to reflect the units in addition to Upper Range Values and Lower Range Values for secondary, tertiary, and fourth variables (variable assignment is configured in the Model 5400). It is also possible to enable or disable a channel from this menu.

751 Field Signal Indicator

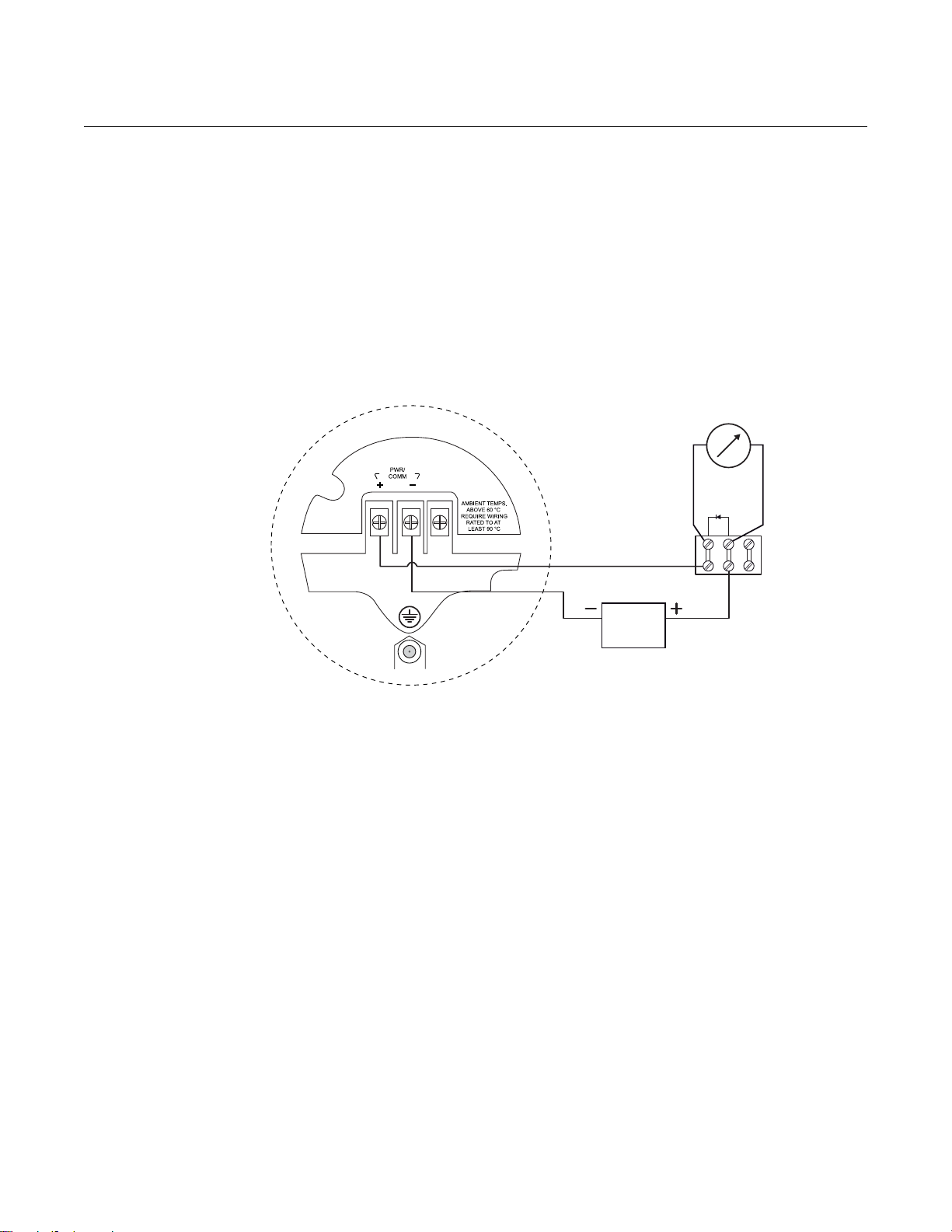

Figure 4-10. Wiring diagram for a Rosemount 5400 transmitter with a 751 Field Signal Indicator.

Reference Manual

00809-0100-4026, Rev FA

July 2009

4-10

Page 55

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 5 Basic Configuration/Start-Up

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5-2

Basic Configuration Parameters . . . . . . . . . . . . . . . . . . . . page 5-3

Basic Configuration Using Rosemount Radar Master . . page 5-11

Configuration Using a 375 Field Communicator . . . . . . . page 5-21

Basic Configuration Using AMS Suite . . . . . . . . . . . . . . . page 5-24

HART Multidrop Configuration . . . . . . . . . . . . . . . . . . . . . page 5-25

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

Explosions could result in death or serious injury:

Verify that the operating environment of the gauge is consistent with the appropriate hazardous locations certifications.

Before connecting a HART-based communicator in an explosive atmosphere, make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

Do not remove the gauge cover in explosive atmospheres when the circuit is alive.

All connection head covers must be fully engaged to meet explosion-proof requirements.

Failure to follow safe installation and servicing guidelines could result in death or serious injury:

Make sure only qualified personnel perform the installation.

Use the equipment only as specified in this manual. Failure to do so may impair the protection provided by the equipment.

Do not perform any service other than those contained in this manual unless you are qualified.

www.rosemount.com

Page 56

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

OVERVIEW Configuration of a Rosemount 5400 transmitter is normally a simple and

straight-forward task. If the transmitter is pre-configured at the factory according to ordering specifications in the Configuration Data Sheet, no further Basic Configuration is required, unless tank conditions have changed.

The 5400 Series supports a set of advanced configuration options that can be used to handle special tank conditions and applications. For further information on advanced configuration options, see “Advanced Configuration” on page C-1.

Basic Configuration Parameters

The Basic Configuration includes parameters for a standard configuration which is sufficient in most cases. The Basic Configuration comprises the following items:

• Measurement Units

• Tank Configuration

- Tank Geometry

- Environment

- Volume

• Analog Output

• Echo Tuning: see page 5-10 for more information on the ATC, and “Registration of False Echoes” on page 7-7 for more information on False Echo Registration

Configuration Tools There are several tools available for basic configuration of a 5400 transmitter:

• Rosemount Radar Master (RRM). Note that RRM is required for advanced configuration features. See “Basic Configuration Using Rosemount Radar Master” on page 5-11 for information on using RRM to configure the 5400 Series.

• Rosemount 375 Field Communicator. See “Configuration Using a 375 Field Communicator” on page 5-21 for the Field Communicator Menu Tree.

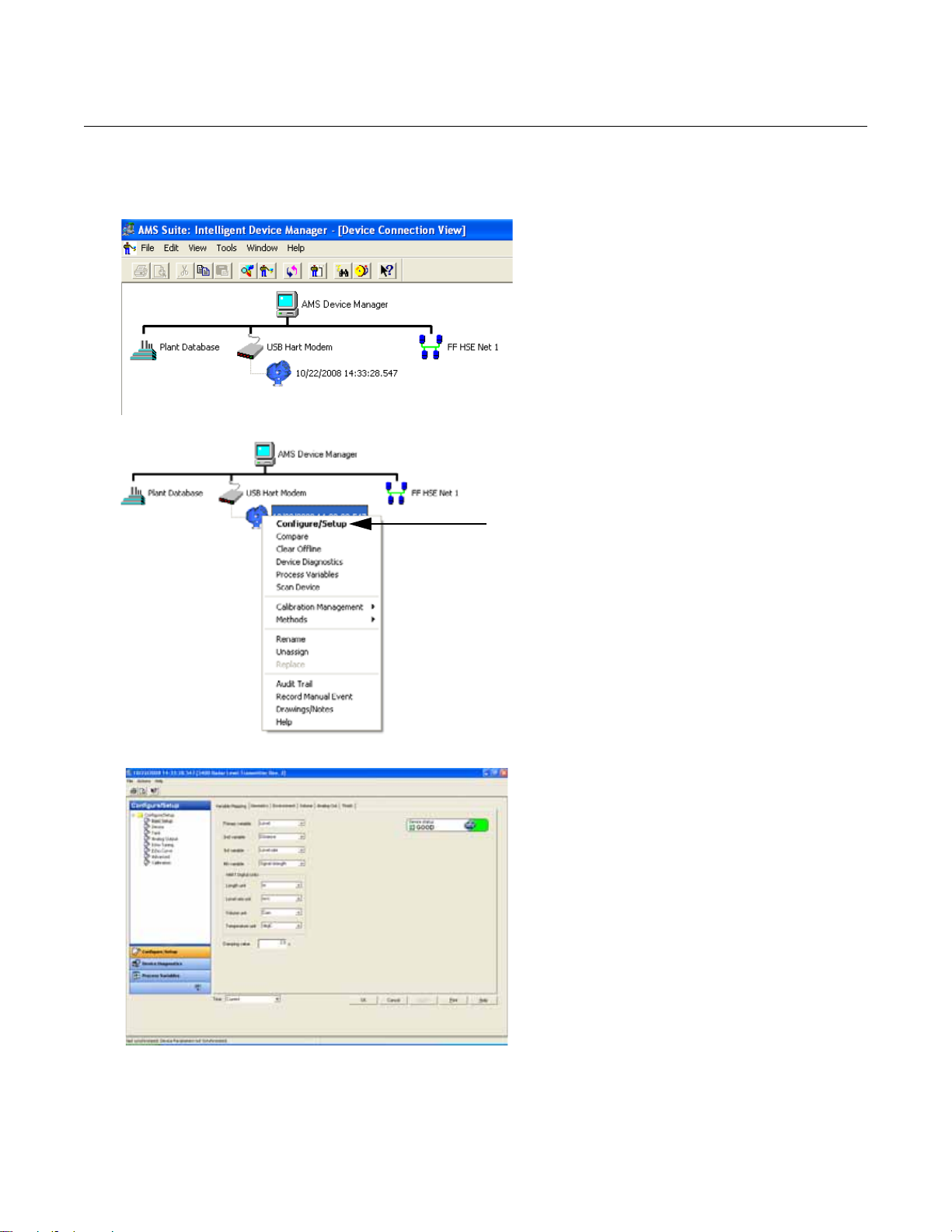

• AMS Suite software. See “Basic Configuration Using AMS Suite” on page 5-24 for information on configuring AMS Suite.

RRM is a user-friendly, Windows waveform plots, off-line/on-line configuration Wizard, logging, and extensive on-line help.

based software package that includes

5-2

To communicate with the transmitter using RRM, a MACTek Viator HART modem (see “Other Accessories” on page A-24) is recommended.

Page 57

Reference Manual

Tank Height (R)

Product Level

Upper Reference Point

Lower Reference Point (Level=0)

Transition Zone

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

BASIC CONFIGURATION PARAMETERS

This chapter describes the basic parameters that need to be configured for a Rosemount 5400 transmitter. If the transmitter is factory-configured according to the ordering specifications in the Configuration Data Sheet, no further basic configuration is needed unless conditions have changed since the ordering date.

Different configuration tools are described at the end of this section.

Measurement Units Measurement units can be specified for presentation of Level, Level Rate,

Volume and Temperature values.

Tank Geometry Tank Height

The Tank Height is the distance between the Upper Reference Point at the underside of the transmitter flange or the threaded adapter, and the Lower Reference Point close to or at the bottom of the tank (see Figure 5-2 for further information on Upper Reference Points for various tank connections). The transmitter measures the distance to the product surface and subtracts this value from the Tank Height to determine the product level.

Figure 5-1. Tank Geometry.

5-3

Page 58

Rosemount 5400 Series

Cone antenna

Rod antenna with flange

Rod antenna with threaded tank connection

UPPER REFERENCE POINT

Adapter

Flange

Process Seal antenna

Flat Dome ConeFlat inclined Spherical

Figure 5-2. Upper Reference Point.

Reference Manual

00809-0100-4026, Rev FA

July 2009

Table 5-1. Tank Type and Tank Bottom Type

Figure 5-3. The transmitter can be optimized for different tank types and bottom shapes.

Tank Type and Tank Bottom Type

The 5400 transmitter is optimized according to the Tank Type and Tank Bottom Type configuration by automatically setting some parameters to

predefined default values.

Select Tank Bottom Type Flat Inclined if the bottom inclination is between 10

and 30 degrees. If the inclination is less than 10 degrees, but there are disturbing objects on the tank floor (like heating coils) within the radar beam, this selection should also be used. If the inclination is greater than 30

degrees, use the Cone Tank Bottom Type.

Tank Type Tank Bottom Type

Vertical Cylinder Flat, Dome, Cone, Flat inclined/Obstructed Horizontal Cylinder Not used Spherical Not used

Cubical Flat, Dome, Cone, Flat inclined/Obstructed

5-4

Page 59

Reference Manual

00809-0100-4026, Rev FA July 2009

Pipe Diameter

When the transmitter is mounted in a still-pipe, the inner diameter of the pipe must be specified. The Pipe Diameter is used to compensate for the lower microwave propagation speed inside the pipe. An incorrect value gives a scale factor error. If locally supplied still-pipes are used, make sure the inner diameter is noted before the pipe is installed.

Trans ition Zone

The measurement accuracy is reduced within the Transition Zone region 6 in. (150 mm) from the lower end of the antenna. It is recommended that the Upper Range Value (20 mA) be set outside the Transition Zone, areas where measurements are not recommended.

Rosemount 5400 Series

Process Conditions Describe the conditions of the tank according to the Tank Environment

parameters for Process Conditions listed below. For best performance,

choose only if applicable, and no more than two options.

Rapid Level Changes

Optimize the transmitter for measurement conditions where the level changes quickly from the filling and emptying of the tank. As a default standard, a 5400 transmitter is able to track level changes of up to 1.5 in./s (40 mm/s). When the Rapid Level Changes check-box is selected, the transmitter can track level changes of up to 8 in./s (200 mm/s).

Turbulent Surface

This parameter should be used if the tank has a turbulent surface. The reason for the turbulence might be splash loading, agitators, mixers, or boiling product. Normally, the waves in a tank are quite small and cause local rapid level changes. By setting this parameter, the performance of the transmitter will improve when there are small and quickly changing amplitudes and levels.

Foam

Setting this parameter optimizes the gauge for conditions with weak and varying surface echo amplitudes, such as foam. When the foam is light and airy, the actual product level is measured. For heavy and dense foam, the transmitter measures the level of the foam’s upper surface.

Product Dielectric Range

The Dielectric Constant is related to the reflectivity of the product. By setting this parameter, measurement performance can be optimized. However, the transmitter will still be able to perform properly, even if the actual Dielectric Constant differs from the configured value.

5-5

Page 60

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

Volume Configuration For volume calculations, choose one of the standard tank shapes or the

strapping option. Select None if volume calculation is not used. For the standard tanks, a Volume Offset parameter can be specified which can be used for a non-zero volume that corresponds to the zero level. This may be useful, for example, if the user wants to include the product volume below the zero level.

Volume calculation is performed by using a predefined tank shape or a strapping table. One of the following standard tank shapes can be chosen:

• Sphere

• Vertical Cylinder

• Horizontal Cylinder

• Vertical Bullet

• Horizontal Bullet

The following parameters must be entered for a standard tank shape:

• Tank diameter

• Tank height (not for spherical tanks)

• Volume Offset

5-6

Page 61

Reference Manual

Diameter Height

Diameter

Height

Diameter Height

Diameter

Height

Diameter

00809-0100-4026, Rev FA July 2009

Figure 5-4. Standard tank shapes

Rosemount 5400 Series

Standard Tank Shapes

Vertical Cylinder

Vertical Cylinder tanks are specified by Diameter, Height, and Volume Offset.

Horizontal Cylinder

Horizontal Cylinder tanks are specified by Diameter, Height, and Volume Offset.

Vertical Bullet

Vertical Bullet tanks are specified by Diameter, Height, and Volume Offset. The volume calculation model for this tank shape estimates that the radius of the bullet end is equal to the Diameter/2.

Horizontal Bullet

Horizontal Bullet tanks are specified by Diameter, Height, and Volume Offset. The volume calculation model for this tank shape estimates that the radius of the bullet end is equal to the Diameter/2.

Sphere

Spherical tanks are specified by Diameter and Volume Offset.

5-7

Page 62

Rosemount 5400 Series

Actual tank bottom may look like this.

Using only 3 strapping points results in a level-to-volume profile that is more angular than the actual shape.

Using 10-15 of the points at the bottom of the tank yields a level-to-volume profile that is similar to the actual tank bottom.

Strapping Table

The Strapping Table option is used when the tank shape deviates significantly from an ideal sphere or cylinder, or when high volume accuracy is required.

The Strapping Table divides the tank into segments. Level values and corresponding volumes are entered at the bottom of the tank. These figures can typically be obtained from tank drawings or from a certificate provided by the tank manufacturer. A maximum of 20 strapping points can be entered. For each level value the corresponding total volume up to the specified level is entered.

The volume value is interpolated if the product surface is between two level values in the table.

Figure 5-5. Strapping points

Reference Manual

00809-0100-4026, Rev FA

July 2009

5-8

Page 63

Reference Manual

20 mA Upper Range Value (URV)

Product Level

4 mA Lower Range Value (LRV)

Range 0-100%

Lower Reference Point (Level=0)

Upper Reference Point

Transition Zone

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Analog Output For the analog output. the Output Source (Primary Value), Range Values, and

Alarm Mode are specified.

Figure 5-6. Standard Range Value settings.

Output Source/Primary Variable

Specify the source to control the analog output. Typically, the Primary Value is configured to be the Product Level.

Upper/Lower Range Value

Enter the range values that correspond to the analog output values 4 and 20 mA. The 20 mA point should be set below the Transition Zone, since the measurement accuracy is reduced in this region. For information on the Transition Zone, see “Specifications” on page A-1.

If a measured value goes beyond the measurement range, the transmitter enters saturation mode (if limit alarm is disabled) or alarm mode, depending on the current configuration.

Alarm Mode

Choose the desired Alarm mode to specify the analog output state when there is a failure or a measurement error.

High: the output current is set to the High Alarm Limit. Low: the output current is set to the Low Alarm Limit. Freeze Current: the output current is set to the last valid value at the time

when the error occurs.

5-9

Page 64

Rosemount 5400 Series

Default settings for alarm mode:

• Measurement errors: Output current = High

• Measured value out of range: transmitter enters saturation mode (if

Table 5-2. Analog Output: Standard Alarm Values vs. Saturation Values.

Table 5-3. Analog Output: NAMUR-Compliant Alarm Values vs. Saturation Values

Level 4–20 mA Saturation Values 4–20 mA Alarm Value

In saturation mode, if the primary variable is not in low alarm mode, the minimum output is 3.9 mA. If the primary variable is not in high alarm mode, the maximum output is 20.8 mA.

Level 4–20 mA Saturation Values 4–20 mA Alarm Value

Reference Manual

00809-0100-4026, Rev FA

July 2009

Limit Alarm is disabled)

Low 3.9 mA 3.75 mA

High 20.8 mA 21.75 mA

High 20.5 mA 22.5 mA

Echo Tuning When Basic Configuration is performed, the transmitter may need to be tuned

to handle disturbing objects in the tank. There are different methods available for handling disturbance echoes with the Rosemount 5400 Series Transmitter:

• Amplitude Threshold Curve (ATC)

• False Echo registration, see “Registration of False Echoes” on page 7-7

The Guided Setup in the Rosemount Radar Master configuration program includes a Measure and Learn function which automatically registers false

echoes and creates an ATC (see “Guided Setup” on page 5-15).

The created ATC is based on the present tank spectra and process condition settings. Disturbances below the product surface might not be handled by the

Measure and Learn function.

5-10

Page 65

Reference Manual

Amplitude Threshold Curve

Measurement signal

Amplitude, mV

Distance, m

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Amplitude Threshold Curve

Figure 5-7. Weak disturbing echoes can be filtered out by creating an amplitude threshold.

Setting up an ATC makes tracking of the product surface more robust in the presence of noise and weak disturbing echoes. The ATC is normally used for filtering out disturbances with an amplitude smaller than the amplitude of the product surface echo.

The ATC is designed as a number of individually adjustable amplitude threshold points.

The Amplitude Threshold Curve function is available in the Rosemount Radar Master (RRM) program.

BASIC CONFIGURATION USING ROSEMOUNT RADAR MASTER

The Rosemount Radar Master (RRM) is a user-friendly software tool that

allows configuration of the Rosemount 5400 transmitter. Choose either of the following methods to configure a Rosemount 5400 transmitter with RRM:

• Guided Setup if you are unfamiliar with the 5400 transmitter (see page 5-15)

• Setup functions if you are already familiar with the configuration process or for changes to the current settings (see page 5-20)

System Requirements Hardware

Processor (minimum/recommended): Pentium 200 MHz/1 GHz

Memory (minimum/recommended): 64/128 MB RAM

COM Port: 1 serial COM port or 1 USB port

Graphical Card (minimum/recommended): screen resolution 800 x 600/1024 x 768.

Hard drive space: 100 MB

5-11

Page 66

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

Software

Operating Systems supported:

Windows 2000 - Service Pack 3

Windows XP - Service Pack 2

July 2009

Help in RRM Help is accessed by selecting the Contents option from the Help menu. Help

is also available from a Help button in most windows.

5-12

Page 67

Reference Manual

RRM communicates with the transmitter

No communication with the transmitter

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

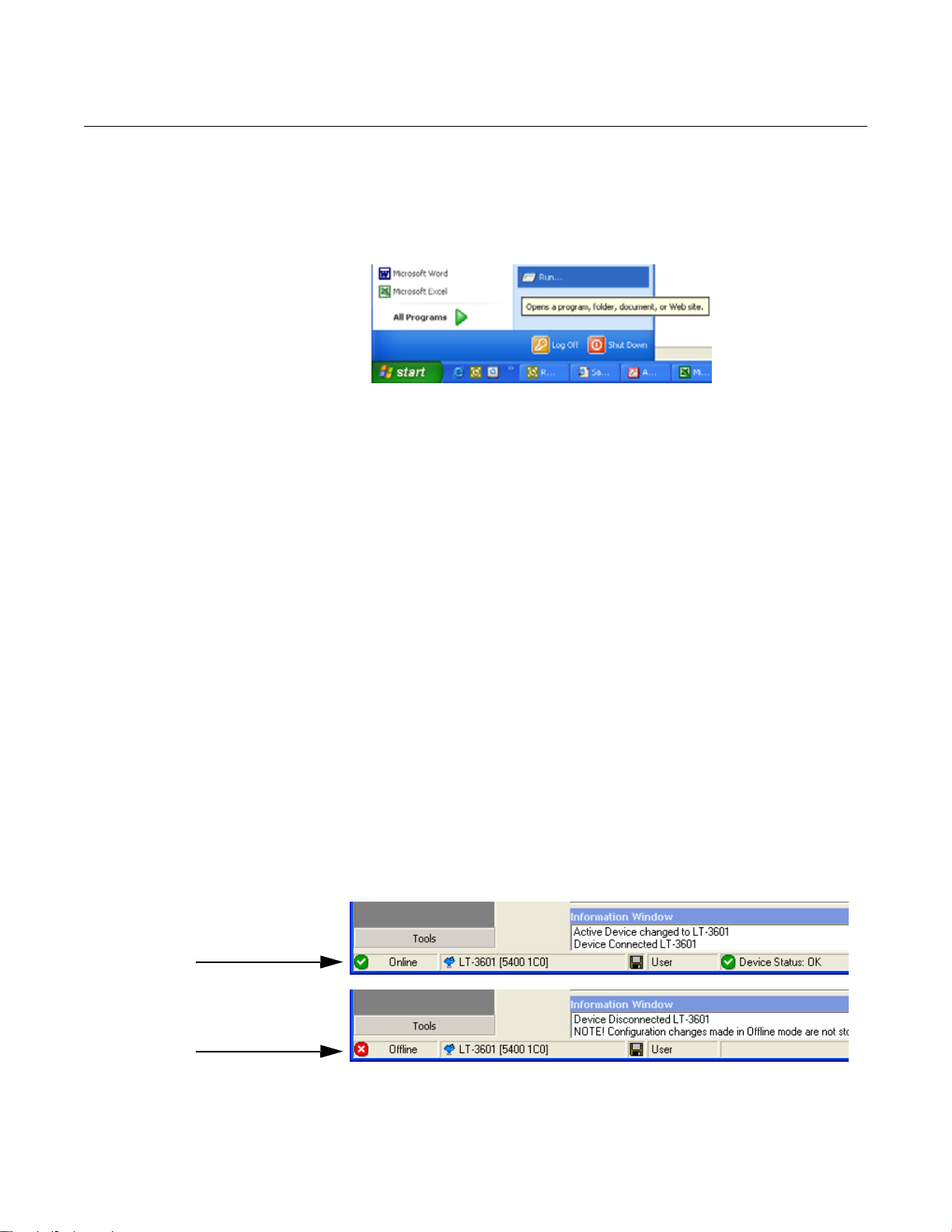

Installing the RRM software for HART communication

To install the Rosemount Radar Master:

1. Insert the installation CD into the CD-ROM drive.

2. If the installation program is not started automatically, choose Run from

the Windows Start bar.

3. Type D:\RRM\Setup.exe where D is the CD-ROM drive.

4. Follow the instructions on the screen.

5. Make sure that HART is chosen as default protocol.

6. Set COM Port Buffers to 1, see page 5-14.

Getting started

1. From the Start menu, click Programs > Rosemount > Rosemount Radar Master or click the RRM icon in the Windows workspace.

2. If the Search Device window did not appear automatically, choose menu option Device > Search.

3. In the Search Device window, choose communication protocol HART and click the Start Scan button (click the Advanced button to specify start

and stop address). Now RRM searches for the transmitter.

4. The Search Device window presents a list of found transmitters.

5. Select the desired transmitter and press OK to connect. If

communication does not work, check that the correct COM port is configured correctly and is connected to the computer. See “Specifying the COM Port” on page 5-14. Verify from the Communication Preferences window that HART communication is enabled.

6. The RRM Status Bar can be used to verify that RRM is communicating with the transmitter:

5-13

Page 68

Reference Manual

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

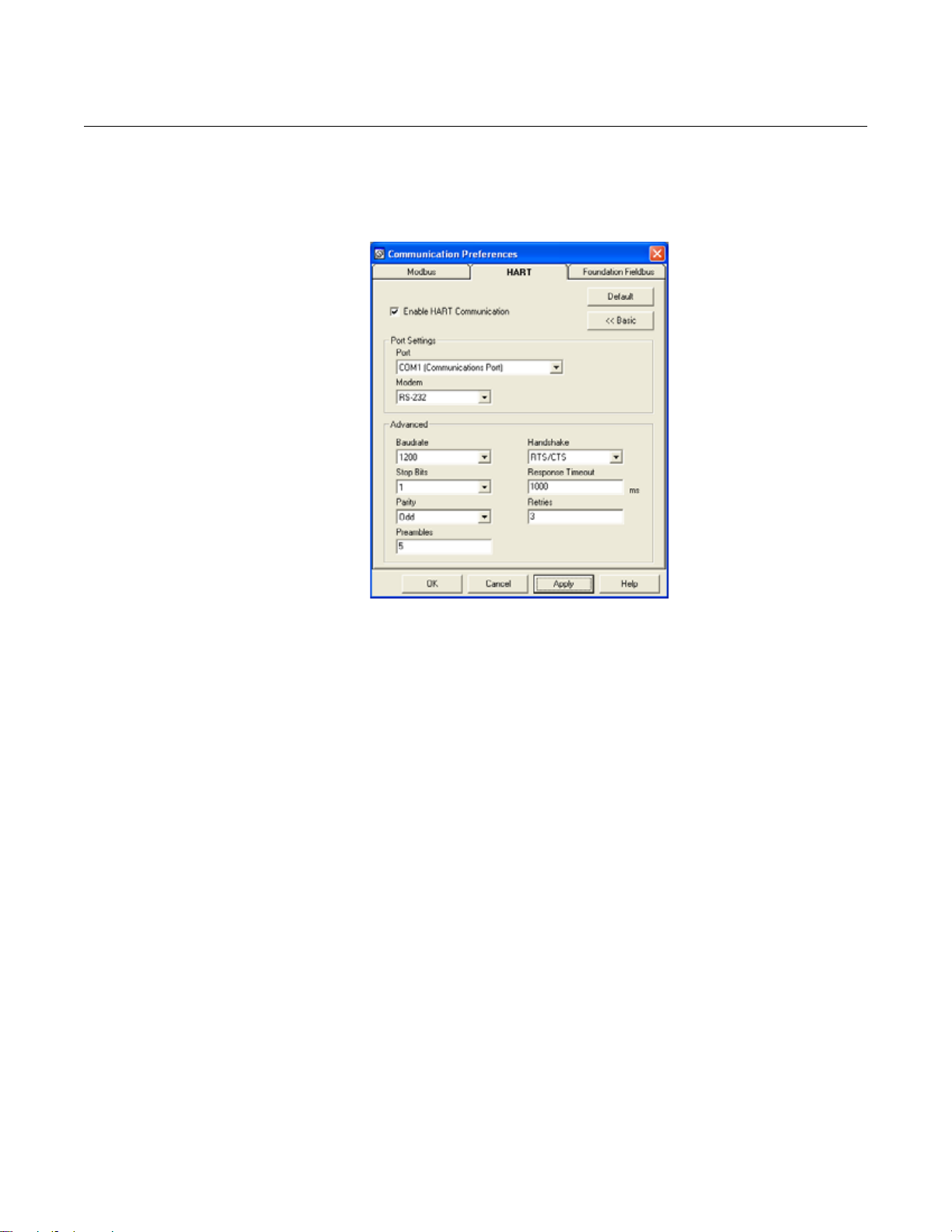

Specifying the COM Port If communication is not established, open the Communication Preferences

window and check that the correct COM Port is selected:

1. From the View menu, select Communication Preferences in RRM.

Figure 5-8. Communication Settings.

To set the COM port buffers

Specifying Measurement Units

2. Make sure that HART communication is enabled.

3. Check which COM port is connected to the modem.

4. Choose the COM port option matching the actual COM port on the PC that is connected to the transmitter.

The COM port Receive Buffer and Transmit Buffer need to be set to 1 by doing the following:

1. In the MS Windows Control Panel, open the System option.

2. Choose the Hardware tab and click the Device Manager button.

3. Expand the Ports node in the tree view.

4. Click the right mouse button on the selected COM port and choose

Properties.

5. Select the Port Settings tab and click the Advanced button.

6. Drag the Receive Buffer and Transmit Buffer slides to 1.

7. Click the OK button.

8. Reboot the computer.

Measurement units for data presentation in RRM can be specified when the RRM program is installed. Units can also be changed as follows:

1. Choose the Application Preferences option from the View menu.

2. Select the Measurement Units tab.

3. Choose the desired units for Length, Level Rate, Volume and Temperature.

5-14

Page 69

Reference Manual

Run Wizard

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Guided Setup The following description tells how to use the RRM Guided Setup. The

corresponding HART commands (275/375 Handheld Communicator Fast Key Sequence) are also shown. The Guided Setup is useful for those unfamiliar with the 5400 transmitter.

Guided Setup and Configuration Wizard

1. Start the RRM program. RRM automatically presents a list of available transmitters. Select the desired transmitter. The transmitter is now

connected and the Guided Setup window

appears.

2. In the Guided Setup window , click the Run Wizard... button and follow the instructions

through a short transmitter installation procedure.

Note! The Guided Setup is an extended

installation guide including more than just the configuration Wizard. It can be disabled by

deselecting the Open Guided Setup dialog

after Connect check-box in the Application Preferences window (menu option

View > Application Preferences).

Device Properties

3. The first window in the configuration wizard presents general information that is stored in the transmitter database, such as device model, serial number, antenna type, communication protocol, and device address. Verify that the information matches the ordering information.

Device Information

4. The Tag, Message, Descriptor, and Date information is entered in this window. This information is not required for the operation of the transmitter and may be left out, if desired. HART command: [2, 2, 1].

5-15

Page 70

Rosemount 5400 Series

Enter inner diameter of the pipe

Reference Manual

00809-0100-4026, Rev FA

July 2009

Tank Geometry

5. Choose the Tank Type corresponding to the

actual tank. If none of the available options matches the tank, choose Unknown. HART command: [2, 1, 2, 1].

Tank Bottom Type is important for the

measurement performance close to the tank bottom. HART command: [2, 1, 2, 2].

Tank Height is the distance from the Upper

Reference Point to the Lower Reference Point (see “Tank Geometry” on page 5-3). This number needs to be as accurate as possible. HART command: [2, 1, 2, 3].

Select the Enable Still-Pipe/Bridle

Measurement check-box and enter the Pipe Inner Diameter if the transmitter is mounted

on a Still-Pipe. HART command: [2, 1, 2, 4] / [2, 1, 2, 5].

For more information, see “Tank Geometry” on page 5-3.

Tank Environment

6. In the Process Condition box, select the check-boxes that correspond to the conditions of the tank. Select as few options as possible and no more than two. See “Process Conditions” on page 5-5 for more information.

The Dielectric Chart lists the dielectric

constants of a large number of products and

can be opened by selecting View > Dielectric Constant Chart menu option.

Choose the Product Dielectric Range that

corresponds to the current product. If the correct range value for this parameter is unknown, or the contents in the tank are

continually changing, choose Unknown.

HART command: [2, 1, 3, 2].

5-16

Page 71

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

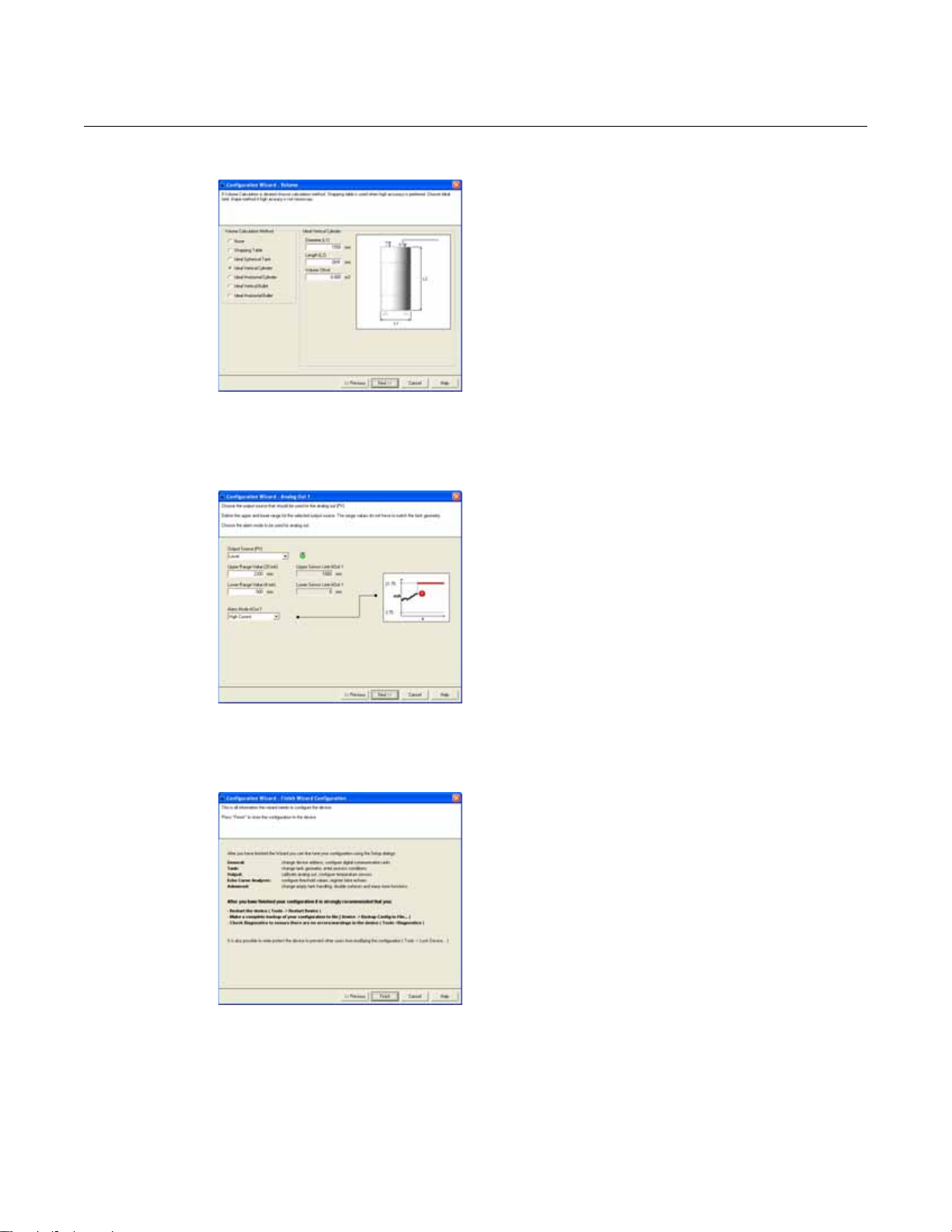

Volume

7. For volume calculation, choose a pre-defined calculation method based on a tank shape that corresponds to the actual tank. Choose

None if volume calculation is not needed.

The Strapping Table option is used if the actual tank does not match any of the available options for pre-defined tanks or if higher calculation accuracy is desired. HART command: [2, 1, 4, 1].

For more information, see “Volume Configuration” on page 5-6.

Analog Output

8. Typically, the Primary Variable (PV) is

configured to be Product Level or Volume. Set the analog output range by inputting the

Lower Range Value (4 mA) and the Upper Range Value (20 mA) to the desired values.

The Alarm Mode specifies the output state

when a measurement error occurs. HART command: [2, 1, 5].

See “Analog Output” on page 5-9 for more information on Analog Output configuration and Alarm Mode settings.

Finish Configuration Wizard

9. This is the last window in the Configuration Wizard. The configuration can be changed at any time by using the Setup windows (General, Tank, Output etc., see “Using the Setup Functions” on page 5-20), which contain further options not available in the configuration wizard. Click the Finish button and continue with the next step in the Guided Setup.

5-17

Page 72

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

Echo Tuning

10. Step 2 in the Guided Setup allows automatic configuration of the Amplitude Threshold Curve and registration of false echoes by

running the Measure and Learn function. See “Echo Tuning” on page 5-10 for more

information on amplitude thresholds and false echoes.

Click button 2 to start the Measure and Learn

function. (If Echo Tuning is not needed, or is done at a

later stage, go on to step 3 in the Guided Setup).

Measure and Learn Function

11. Click the Yes button to run the Measure and Learn function. If No is clicked, this function

can be run at a later stage using the Spectrum Analyzer in RRM. Make sure there is no filling or emptying

occurring when the Measure and Learn

function is used.

Tank Precondition Settings

12. The Measure and Learn function creates an Amplitude Threshold Curve (ATC) automatically and suggests False Echo Areas. See “Echo Tuning” on page 5-10.

(By clicking the Advanced button, one or both

of the options can be selected in the corresponding check-box). Verify the Tank Precondition settings, verify

that the Distance to Surface value is correct. If

not, it may be due to a disturbing object in the

tank). Choose Empty Tank if the tank is

empty.

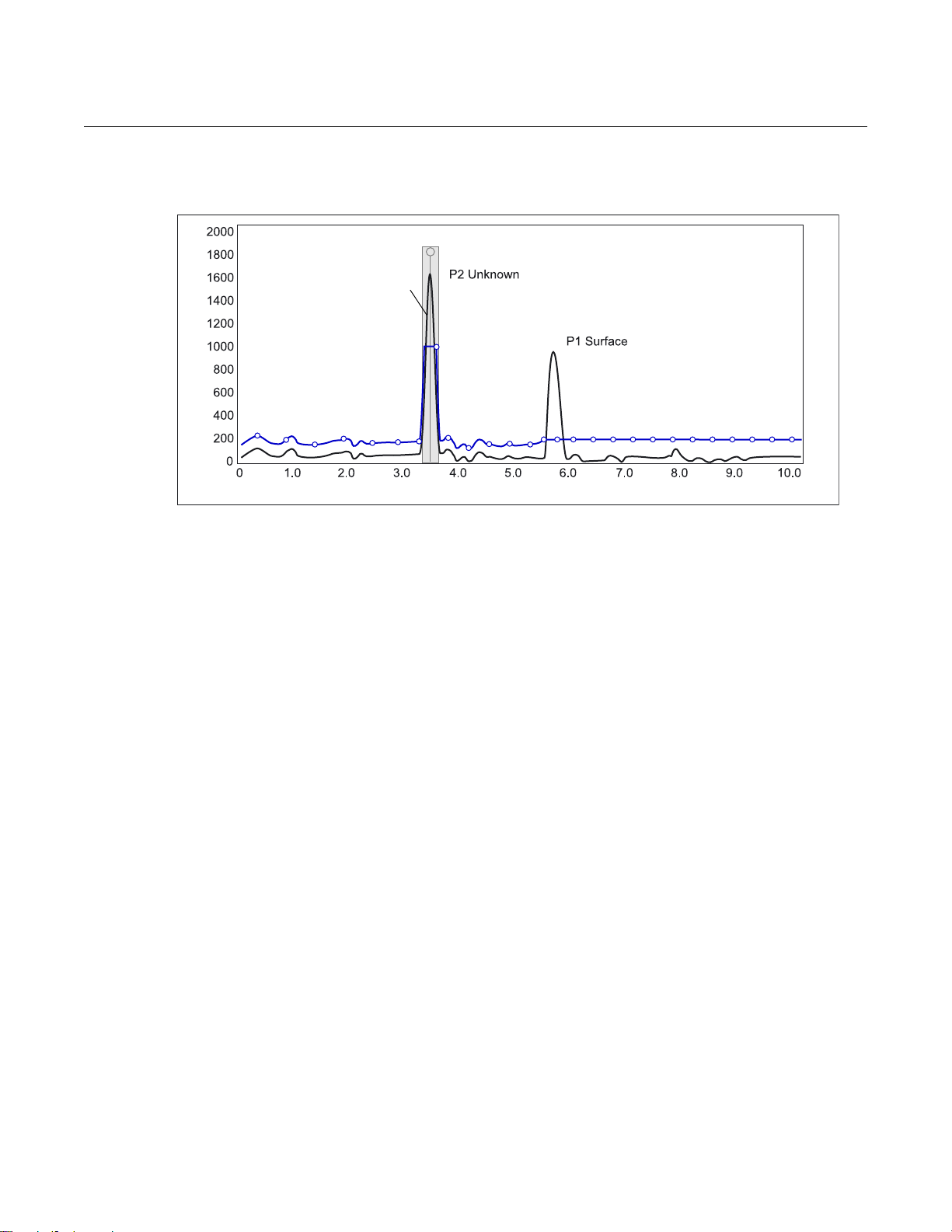

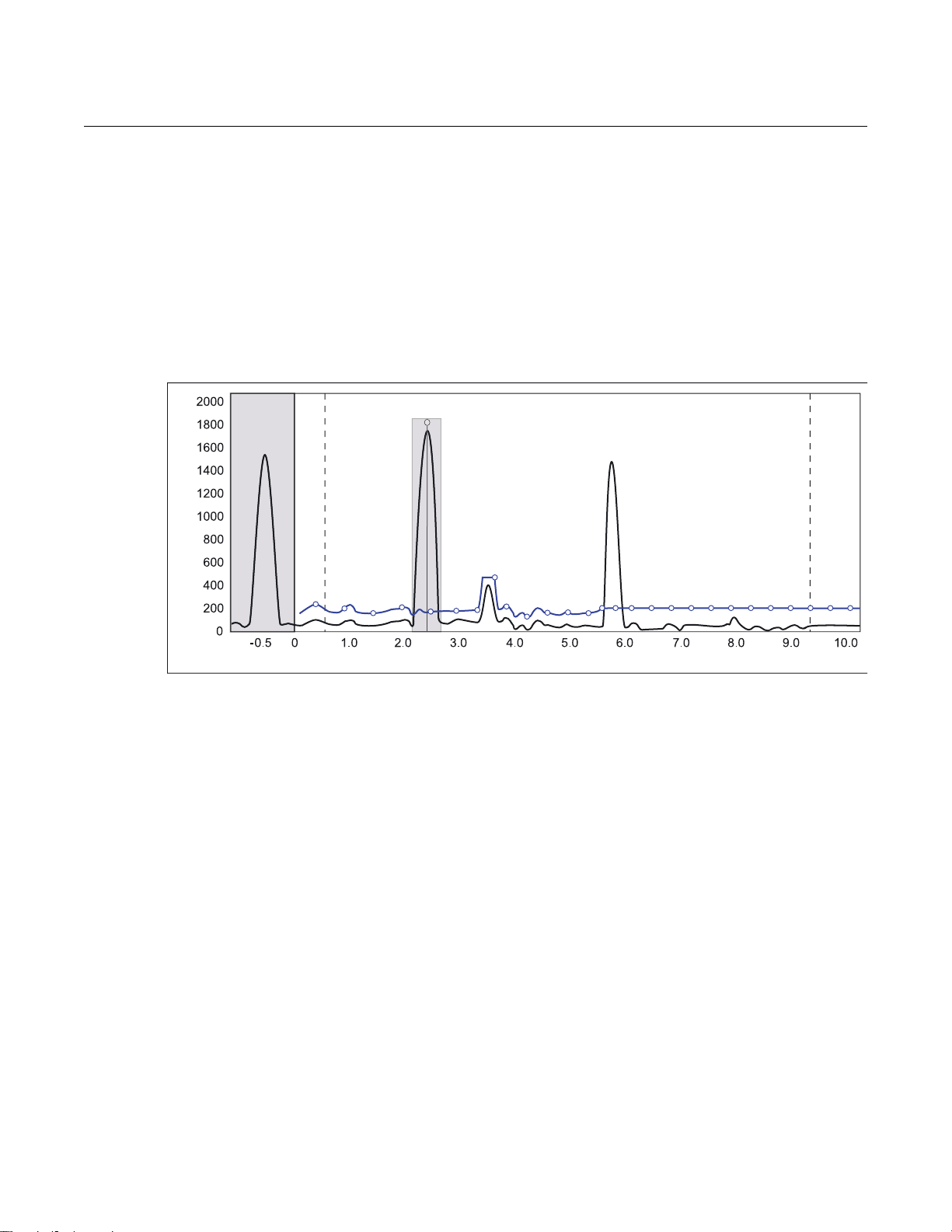

Spectrum Plot

13. The automatically created Amplitude Threshold Curve (ATC) and False Echo Areas are shown in the Spectrum Plot. False Echo Areas are presented as shaded areas, and represent tank levels where RRM found interfering echoes to be blocked out. False Echo Areas can be moved or removed before storing to the transmitter database. Verify that each False Echo Area is identified as an object in the tank that gives rise to a disturbing echo. See “Echo Tuning” on page 5-10 for more information.

Click the Store button to save the ATC and the

registered disturbance echoes.

5-18

Page 73

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Restart the Transmitter

14. Restart the transmitter to activate all of the configuration changes. It may take up to 60 seconds after the restart button is pressed before measurement values are updated.

View Measured Values

15. Step 4 shows measurement values to verify that the transmitter is working correctly. If the measured values seem incorrect, configuration settings may need to be adjusted.

Configuration Backup

16. When configuration is complete, the configuration should be saved to a backup file. This information is useful for:

- installing another 5400 in a similar tank, since the file can be directly uploaded to a new device.

- restoring the configuration, if configuration data is lost or accidentally modified, making the device inoperable.

The Configuration Report window

automatically appears when the backup is complete.

Guided Setup Complete

17. The Guided Setup is now complete. To exit

the Guided Setup, click the Close button.

5-19

Page 74

Rosemount 5400 Series

General

Tank Geometry, Environment, Volume

Analog Output

Echo Curve

Advanced

Wizard

Reference Manual

00809-0100-4026, Rev FA

July 2009

Using the Setup Functions

Figure 5-9. Setup functions in RRM.

Use the Setup function if you are already familiar with the configuration

process for the 5400 transmitter or to change the current settings:

1. Start the RRM software.

2. In the RRM workspace, choose the appropriate icon for configuring transmitter parameters:

• Wizard: guides the user through

the basic configuration procedure of the Rosemount 5400 transmitter

• General: configures general

settings, such as measurement units and communication parameters, and which LCD variables to display

• Tank: configures Tank Geometry,

Tank Environment, and Volume

• Output: configures Analog Output

• Echo Curve: disturbance echo

handling

• Advanced: advanced

configuration

5-20

Page 75

Reference Manual

Function Key

Navigation Keys

Alphanumeric Keys

Backlight adjustment key

Tab Key

Enter Key

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

CONFIGURATION USING A 375 FIELD COMMUNICATOR

Figure 5-10. The 375 Field Communicator.

This section describes the configuration of a 5400 transmitter with a 375 Field Communicator.

The menu tree with the various configuration parameters is shown in Figure 5-11 on page 5-22.

Section “Basic Configuration Parameters” on page 5-3 describes the basic

configuration parameters. See sections “Echo Tuning” on page 5-10 and “Advanced Configuration” on page C-1 for information on disturbance echo handling and advanced configuration.

For information on all capabilities, refer to 375 Field Communicator Product Manual (Document No. 00809-0100-4276).

To make a basic setup of the transmitter, do the following:

1. Check that the desired Measurement Units are selected. HART command: [2, 1, 1, 5].

2. Enter configuration parameters for the following:

• Device info. HART command: [2, 2, 1]

• Geometry. HART command: [2, 1, 2]

• Environment. HART command: [2, 1, 3]

• Volume. HART command: [2, 1, 4]

• Analog Out. HART command: [2, 1, 5]

3. Run Measure and Learn. HART command: [2, 1, 6, 2]. This function

4. Restart the transmitter. HART command: [2, 1, 6, 4].

To view the Echo Curve and adjust threshold settings, see “Using the Echo Curve Analyzer with a 375 Field Communicator” on page 7-12.

creates an Amplitude Threshold Curve (ATC).

5-21

Page 76

Rosemount 5400 Series

Process Variables

1 Process Variables 2Setup 3 Diagnostics

4 Level 5 Analog Out 6 Distance 7 Signal Strength

1 Primary Variable 22nd 33rd 44th 5 All variables 6 Identification

1 Basic Setup 2 Device 3Tank 4 Analog output 5Echo Curve 6 Advanced 7Calibration

1 Diagnostics 2 Tools

1 Variable Mapping 2Geometry 3 Environment 4 Volume 5 Analog Out 6 Finish

1 Identification 2 Variable Mapping 3LCD 4 Communication 5 Alarm/Sat. Limits

1Geometry 2 Environment 3 Volume 4 Antenna

1 Analog Out 2 Alarm/Sat. Limits

1 Echo Peaks 2 Echo Curve

1Empty Tank 2 Echo Tracking 3 Double Bounce 4 Bottom Projection 5 Double Surface 6 Filter Settings 7 Full Tank

1 Analog Output

Setup

Diagnostics

1 Primary Variable 2 2nd 33rd 44th 5 HART Digital Units 6 Damping Value 7 Device Status

1 Tank Type 2 Tank Bottom Type 3 Tank Height 4 Still-pipe/Bridle Meas 5 Drawing

1 Process Condition 2 Product Dielectric

Range

1 Volume Calculation

Method

2 Drawing

1 Primary Variable 2 Range Values 3 Alarm Mode 4 Sensor Limit 5 Alarm Mode

Definition

2 Measure and Learn 4Restart Device

1 Found Echo Peaks 2 Measurement Output 3 Register False

Echoes 4 Add False Echo 5 Remove False Echo

1 Measure and Learn 2 Set Threshold 3 Echo Curve

Figure 5-11. HART Communicator Menu Tree corresponding to Device Revision 2.

Reference Manual

00809-0100-4026, Rev FA

July 2009

5-22

Page 77

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Table 5-4. HART Fast Key Sequences

Function HART Fast Key

Alarm Mode 2, 1, 5, 3

Antenna Type 2, 3, 4

Device Information 2, 2, 1

LCD Language 2, 2, 3

LCD Variables 2, 2, 3

Length Unit 2, 1, 1, 5

Lower Range Value (LRV) (4 mA) 2, 1, 5, 2

Pipe Diameter 2, 1, 2, 4

Primary Variable 2, 1, 1, 1

Product Dielectric Constant 2, 1, 3, 2

Range Values (LRV/URV) 2, 1, 5, 2

Ta g 2, 2, 1

Tank Bottom Type 2, 1, 2, 2

Tank Height 2, 1, 2, 3

Tank Type 2, 1, 2, 1

Temperature Unit 2, 1, 1, 5

Hold Off Distance/Upper Null Zone 2, 3, 4

Upper Range Value (URV) (20 mA) 2, 1, 5, 2

Volume Configuration 2, 1, 4, 1

Volume Unit 2, 1, 1, 5

5-23

Page 78

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

BASIC CONFIGURATION USING AMS SUITE

The Rosemount 5400 Series transmitter can be configured using the AMS Suite software:

1. Start the AMS Device Manager making sure

the transmitter is connected. The transmitter

is displayed in the Device Connection View

window (pictures correspond to AMS version 9.0).

2. In the Device Connection View, right click the

transmitter icon.

3. Choose the Configure/Setup option.

Configure/Setup

5-24

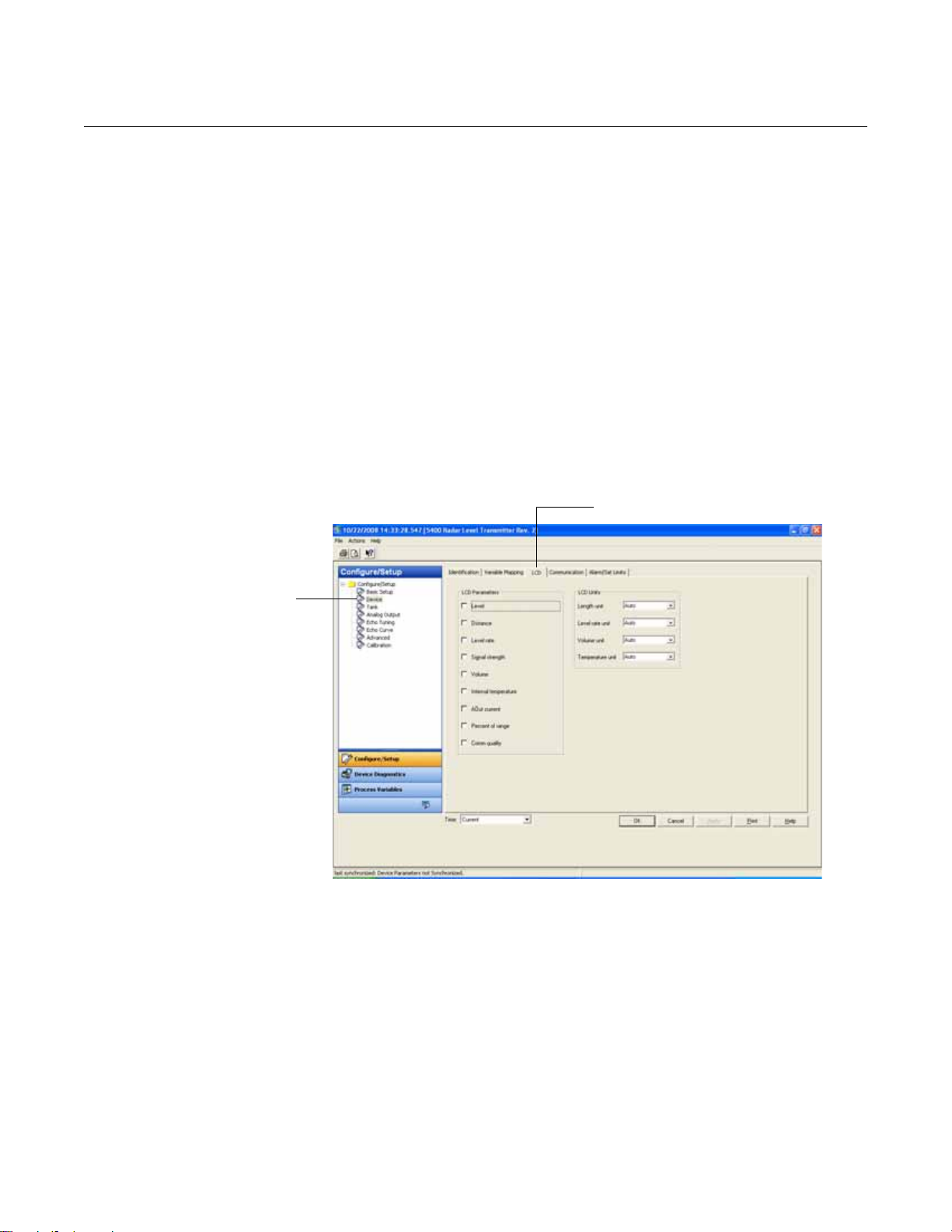

4. Choose the Basic Setup option.

5. Configure the transmitter by selecting the appropriate tab. For information on the various configuration parameters, see “Basic Configuration Parameters” on page 5-3 .

Page 79

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

HART MULTIDROP CONFIGURATION

Figure 5-12. Multidrop connection

The 5400 transmitter can be run in multidrop mode where each transmitter has a unique HART address.

The poll address can be changed using a 375 Field Communicator or using the Rosemount Radar Master software.

To change the poll address using a 375 Field Communicator, choose HART command [2, 2, 4, 1].

To change the poll address using the Rosemount Radar Master (RRM) software:

1. Choose the Setup > General option.

2. Select the Communication tab.

3. Set the desired address (between 1 and 15 for multidrop operation).

4. Click the Store button to save the new address.

5-25

Page 80

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

5-26

Page 81

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 6 Operation

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-1

Viewing Measurement Data . . . . . . . . . . . . . . . . . . . . . . . .page 6-2

LCD Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6-8

LED Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6-9

SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to

Failure to follow these installation guidelines could result in death or serious injury.

• Make sure only qualified personnel perform the installation.

• Use the equipment only as specified in this manual. Failure to do so may impair the protection provided by the equipment.

Explosions could result in death or serious injury.

• Verify that the operating environment of the transmitter is consistent with the appropriate hazardous locations certifications.

• Before connecting a HART make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

Electrical shock could cause death or serious injury.

• Use extreme caution when making contact with the leads and terminals.

-based communicator in an explosive atmosphere,

www.rosemount.com

Any substitution of non-recognized parts may jeopardize safety. Repair, e.g. substitution of components etc., may also jeopardize safety and is under no circumstances allowed.

Page 82

Reference Manual

Toggling between measurement parameter and measurement unit

Measurement value

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

VIEWING MEASUREMENT DATA

Using the Display Panel The Rosemount 5400 transmitter uses an optional Display Panel to present

measurement data. When the transmitter is switched on, the Display Panel presents information such as transmitter model, measurement frequency, software version, communication type (HART, FF), serial number, HART identification tag, setting of write protection switch, and Analog Output settings.

When the transmitter is operating, the Display Panel presents Level, Signal Amplitude, Volume and other measurement data, depending on the Display Panel configuration (see “Specifying Display Panel Variables” on page 6-3).

The display has two rows, with the upper row showing the measured value and the bottom row showing the parameter name and measurement unit. The display toggles between the different variables every 2 seconds. Variables can be selected to be presented by using a 275/375 Handheld Communicator, the AMS Suite, or the Rosemount Radar Master (RRM) software.

Figure 6-1. The 5400 Display Panel.

Error messages are listed in sections “LCD Error Messages” on page 6-8 and “LED Error Messages” on page 6-9.

NOTE!

A malfunctioning display panel may only be replaced by service personnel at Emerson Process Management Service Department and must not be replaced while the transmitter is in operation.

6-2

Page 83

Reference Manual

Device Config

General

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Specifying Display Panel Variables

It is possible to specify the variables to be presented on the Display Panel (LCD).

Using a Field Communicator

For a 275/375 Handheld Communicator, the LCD settings are available with HART command [2, 2, 3].

Using Rosemount Radar Master (RRM)

The LCD tab in the General window allows variables to be specified for view

on the Display Panel screen:

1. Choose the General option from the Setup menu, or click the General icon in the Device Configuration window.

Figure 6-2. RRM lets you specify variables for the 5400 Display Panel.

2. Select the LCD tab.

3. Select the variables to appear on the Display Panel. The LCD will alternate between the selected items.

4. Click the Store button to save the LCD settings in the transmitter

database.

6-3

Page 84

Rosemount 5400 Series

LCD tab

Device

Using AMS

The LCD tab in the Configure/Setup window specifies which variables will be

shown on the Display Panel screen:

1. Select the transmitter icon in the AMS Suite Device Connection View

window.

2. Click the right mouse button and choose the Configure/Setup/Device

option.

3. Select the LCD tab and choose the desired LCD parameters and LCD

measurement units. The available LCD parameters are listed in Table 6-1 on page 6-5.

4. Click the OK button to save the configuration.

5. Close the window.

Figure 6-3. Configure parameters to be presented on the Display Panel.

Reference Manual

00809-0100-4026, Rev FA

July 2009

6-4

Page 85

Reference Manual

00809-0100-4026, Rev FA July 2009

Table 6-1. LCD parameters and presentation on display.

Parameter Presentation on display Description

Level LVL Product level.

Distance DST Distance from the upper reference point to the product surface.

Level Rate LR The speed of level movement up or down.

Signal Strength AMP The signal amplitude of the surface echo.

Volume Only measurement unit is shown. Total product volume.

Internal Temperature ITEMP Temperature inside the transmitter housing.

AOut Current ANOUT Analog Output 4 -20 mA current.

Percent of Range % RNG Level value in percent of total measurement range.

Comm Quality COM Q

Rosemount 5400 Series

LCD Parameters

6-5

Page 86

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

Viewing Measurement Data in RRM

Figure 6-4. Presentation of measurement data in RRM.

To view measurements such as Level, Signal Strength, etc. in Rosemount

Radar Master, choose the Tools > Device Display option and select the Level

tab:

Figure 6-5. Presentation of Analog Output value in RRM.

To view Analog Output signal, choose the Tools > Device Display option and select the Analog Out tab:

6-6

Page 87

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Viewing Measurement Data in AMS Suite

Figure 6-6. Presentation of measurement data in AMS Suite.

To view measurements such as Level, Signal Strength, etc. in the AMS Suite:

1. Select the transmitter icon in the AMS Suite Device Connection View

window.

2. Click the right mouse button and choose the Process Variables option.

6-7

Page 88

Rosemount 5400 Series

Error Message

LCD ERROR MESSAGES

Figure 6-7. The 5400 Display Panel displaying an error message.

Reference Manual

00809-0100-4026, Rev FA

July 2009

Table 6-2. Error messages displayed on the 5400 Display Panel.

Error Message Description

An error in the gauge data memory (RAM) has been

RAM FAIL

FPROM FAIL

HREG FAIL

OMEM FAIL

MWM FAIL An error in the microwave module.

DPLY FAIL An error in the LCD.

MODEM FAIL Modem hardware failure.

AOUT FAIL An error in the Analog Out Module.

OHW FAIL An unspecified hardware error has been detected.

ITEMP FAIL An error in the internal temperature measurement.

MEAS FAIL A serious measurement error has been detected.

CONFIG FAIL

SW FAIL An error has been detected in the transmitter software.

detected during the startup tests. Note: this resets the gauge automatically.

An error in the gauge program memory (FPROM) has been detected during the startup tests. Note: this resets the gauge automatically.

An error in the transmitter configuration memory (EEPROM) has been detected. The error is either a checksum error that can be solved by loading the default database or a hardware error. NOTE: the default values are used until the problem is solved.

At least one configuration parameter is outside the allowed range. NOTE: the default values are used until the problem is solved.

6-8

For more information on errors, see “Errors” on page 7-22.

Page 89

Reference Manual

Flashing LED

Seconds

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

LED ERROR MESSAGES For Rosemount 5400 transmitters without a display, a flashing Light Emitting

Diode (LED) is used to present error messages.

Figure 6-8. Rosemount 5400 transmitters without display use a LED for presentation of error messages.

In normal operation, the LED flashes orange once every other second. When an error occurs, the LED flashes a sequence that corresponds to the Code number followed by a five second pause, and this sequence is continuously repeated.

Table 6-3. LED error codes.

The following errors can be displayed:

Code Error

0 Ram Failure

1 FPROM

2 HREG

4 Microwave Module

5 Display

6 Modem

7 Analog Out

8 Internal Temperature

11 Hardware

12 Measurement

14 Configuration

15 Software

Example

Modem error (code 6) is displayed as the following flash sequence:

6-9

Page 90

Rosemount 5400 Series

Reference Manual

00809-0100-4026, Rev FA

July 2009

6-10

Page 91

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Section 7 Service and Troubleshooting

Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-1

Troubleshoot ing Overview . . . . . . . . . . . . . . . . . . . . . . . . .page 7-3

Service Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-4

Analyzing the Measurement Signal . . . . . . . . . . . . . . . . . page 7-4

Surface Pulse Not Found . . . . . . . . . . . . . . . . . . . . . . . . . .page 7-5

Using the Echo Curve Analyzer . . . . . . . . . . . . . . . . . . . . page 7-9

Analog Output Calibration . . . . . . . . . . . . . . . . . . . . . . . . . page 7-14

Logging Measurement Data . . . . . . . . . . . . . . . . . . . . . . . . page 7-14

Backing Up the Transmitter Configuration . . . . . . . . . . . page 7-15

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-17

Configuration Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-18

Viewing Input and Holding Registers . . . . . . . . . . . . . . . .page 7-18

Reset to Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . page 7-19

Surface Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-20

Using the Simulation Mode . . . . . . . . . . . . . . . . . . . . . . . . page 7-20

Write Protecting a Transmitter . . . . . . . . . . . . . . . . . . . . . page 7-20

Diagnostic Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7-21

SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to

NOTE!

The antenna seal assembly, under no circumstances, should be disassembled.

www.rosemount.com

Page 92

Rosemount 5400 Series

Failure to follow these installation guidelines could result in death or serious injury.

• Make sure only qualified personnel perform the installation.

• Use the equipment only as specified in this manual. Failure to do so may

Explosions could result in death or serious injury.

• Verify that the operating environment of the transmitter is consistent with the

• Before connecting a HART

• Any substitution of non-recognized parts may jeopardize safety. Repair, e.g.

• Substitution of components may impair Intrinsic Safety.

Electrical shock could cause death or serious injury.

• Use extreme caution when making contact with the leads and terminals.

• To prevent ignition of flammable or combustible atmospheres, disconnect

High voltage that may be present on leads could cause electrical shock:

• Avoid contact with leads and terminals.

• Make sure the main power to the 5400 transmitter is off and the lines to any

Reference Manual

00809-0100-4026, Rev FA

July 2009

impair the protection provided by the equipment.

appropriate hazardous locations certifications.

make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

substitution of components etc., may also jeopardize safety and is under no circumstances allowed.

power before servicing.

other external power source are disconnected or not powered while wiring the gauge.

-based communicator in an explosive atmosphere,

7-2

Page 93

Reference Manual

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

TR OUBLESHOOTING OVERVIEW

Table 7-1. Troubleshooting chart

Symptom Possible cause Action

No level reading

No HART communication

Analog Out is set in Alarm

Incorrect level reading

Integral display does not work

Temperature Measurement Failure

Level Measurement Failure

Volume Measurement Failure

No surface echo

(1) A malfunctioning display panel may only be replaced by service personnel at Eme rson Proce ss Management Service Department. (2) If the 5400 transmitter has been exposed to temperatures outside the specified limits, the device may stop its normal operation.

Table 7-1 below gives information on the possible causes of system malfunctions. It also lists the symptoms and necessary actions to be taken.

• Power disconnected

• Data communication cables disconnected

• COM Port configuration does not match the connected COM Port

• Cables may be disconnected

• Wrong HART address is used

• Hardware failure

• HART resistor

• Measurement Failure or Transmitter Failure

• Configuration error

• Disturbing objects in the tank

• See “Application Errors” on page 7-27

• Check the power supply

• Check the cables for serial data communication

• Check LED/Display

• Check that correct COM Port is selected in the HART server (see “Specifying the COM Port” on page 5-14)

• Check the COM port buffer, “Specifying the COM Port” on page 5-14

• Check wiring diagram

• Verify that the 250 Ohm resistor is in the loop, see Figure 4-10 on page 4-10

• Check cables

• Make sure that correct HART short address is used. Try address=0

• Check the COM Port Buffer setting, see page 5-14

• Check Analog Output current value to verify that transmitter hardware works

• Open the Diagnostics window in RRM to check active errors and alarms, see “Diagnostics” on page 7-17

• See also “Analyzing the Measurement Signal” on page 7-4 and “Analog Output Status” on page 7-26

• Check the Tank Height parameter; RRM>Setup>Tank

• Check status information and diagnostics information, see “Diagnostics” on page 7-17

• Check that the transmitter has not locked on an interfering object

• See “Analyzing the Measurement Signal” on page 7-4

• Check the display configuration in Rosemount Radar Master (open menu Setup>General)

• Diagnostics

• Contact Emerson Process Management Service Department

• Check ambient temperature

• Restart gauge

• Contact Emerson Process Management Service Department

• Check Power Supply

• Check the gauge configuration

• Check that the mechanical installation is correct

• Restart gauge

• Check gauge configuration using PC Based configuration tool

• Check signal strength

• Restart transmitter

• See “Analyzing the Measurement Signal” on page 7-4

(1)

(2)

7-3

Page 94

Reference Manual

Reference

Product Surface

Unknown

Hold Off distance

Tank Bottom

False Echo

Surface Threshold / ATC

00809-0100-4026, Rev FA

Rosemount 5400 Series

July 2009

SERVICE OVERVIEW The functions mentioned in this section are available in the Rosemount Radar

Master (RRM) configuration program.

ANALYZING THE MEASUREMENT SIGNAL

Figure 7-1. The Echo Curve presents all visible echoes.

Rosemount Radar Master (RRM), and other tools using enhanced Electronic Device Description Language (EDDL), has powerful functions for advanced troubleshooting. By using the Echo Curve plot function, an instant view of the tank signal is displayed. Measurement problems can be resolved by studying the position and amplitude of the different pulses.

In a typical measurement situation, the following pulses appear in the diagram:

Reference. This pulse is caused by the transition between transmitter head

and antenna and it is used by the transmitter as a reference at level measurements.

A missing reference pulse might be a symptom of a malfunctioning transmitter. Contact your local Emerson Process Management representative for assistance.

Product surface. This pulse is caused by a reflection on the product surface.

Different amplitude thresholds are used to filter out unwanted signals and pick up different pulses. The transmitter uses certain criteria to decide which type of pulse that is detected.

Echoes found above the Surface Threshold might be considered the product surface.

Surface Threshold. The amplitude threshold used for detecting the Product

level peak. The amplitude threshold is designed as a number of individually adjustable amplitude threshold points, the Amplitude Threshold Curve (ATC). See “Amplitude Threshold Curve” on page 5-11.

The ATC is set during the Measure and Learn function and can be adjusted

manually. The ATC is used for filtering out disturbances with an amplitude smaller than the product surface echo.

7-4

Page 95

Reference Manual

Amplitude, mV

The Surface Threshold is above the Surface peak

Surface Threshold= Amplitude Threshold Curve (ATC)

Distance, m

Reference

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

The surface thresholds should be set to approximately 20% of the measured signal amplitude of the product surface.

False Echo Area. False Echo Areas are set during the M e as ur e an d Learn

function (see “Guided Setup” on page 5-15), when the disturbing object is larger than the surface echo. The False Echo Area can be adjusted manually.

Hold Off Distance - Upper Null Zone. Measurements are not performed

within the Hold Off Distance. By setting the Hold Off Distance to zero, measurements can be performed close to the flange. Consider near zone accuracy. See “Near Zone Accuracy” on page A-1.

Tank Bottom. Measurements are not performed after the Tank Bottom limit.

SURFACE PULSE NOT FOUND

Figure 7-2. Example 1: surface threshold is too high.

The amplitude thresholds are adjusted manually or during the Measure and Learn function to appropriate values to filter out noise and other non-valid

measurements from the measurement signal.

The amplitude of the measurement signal, i.e. the amplitude of the signal reflected by the product surface, is related to the actual dielectric constant of the product.

Rosemount Radar Master (RRM) has a plot function that allows viewing of the reflections in the tank.

If the amplitude threshold is too high, the product level will not be detected, as illustrated in Figure 7-2. In a situation like this, the amplitude threshold is lowered so that the Surface peak is not filtered out.

If there are disturbing objects in the tank, the threshold must be set carefully to avoid locking on the wrong amplitude peak. In Figure 7-3, the transmitter has locked on a peak above the actual product surface, i.e. a disturbance was interpreted as the product surface.

7-5

Page 96

Rosemount 5400 Series

Amplitude, mV

Actual surface

Surface Threshold= Amplitude Threshold Curve (ATC)

Distance, m

P1 - Disturbing echo misinterpreted as product surface

Reference

Amplitude, mV

Distance, m

After Surface Threshold is adjusted, the product surface is correctly detected

Surface Threshold= Amplitude Threshold Curve (ATC)

Reference

Figure 7-3. Example 2: surface threshold is too low.

By adjusting the surface threshold, the product surface is properly detected, as illustrated in Figure 7-4:

Figure 7-4. Echo Curve after surface threshold was adjusted

Reference Manual

00809-0100-4026, Rev FA

July 2009

7-6

To adjust the amplitude thresholds, see “Using the Echo Curve Analyzer” on page 7-9.

In the Echo Curve Analyzer in RRM, the amplitude threshold points can easily

be dragged to the desired values.

Page 97

Reference Manual

False echo

Surface echo

Disturbing objects

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

Registration of False Echoes

Figure 7-5. The Rosemount 5400 can handle disturbing radar echoes.

The False Echo function improves the performance of the gauge when the surface is close to a horizontal surface of a static object in the tank. The object causes an echo when it is above the surface. When the echoes from the surface and the object are close to each other, they may interfere and cause a decrease in performance.

The False Echo function allows registration of disturbing echoes caused by objects in the tank. When the surface is passing a disturbing object, the transmitter measures with higher reliability if the position of the object is registered. This makes it possible to detect a product surface close to a disturbance echo even if the surface echo is weaker than the disturbing echo. Follow these recommendations before registering new interfering echoes:

• Make sure a correct amplitude threshold curve is set before registering any disturbance echoes (see “Amplitude Threshold Curve” on page 5-11)

• Compare the list of interfering echoes with the tank drawing or visual inspection of the tank. Note any objects like beams, heating coils, agitators, etc. which correspond to the found echoes. Only register echoes above the Amplitude Threshold Curve which can be clearly identified as objects in the tank, keeping the number of registered echoes to a minimum

• Make sure the level is stable before registering a disturbance echo. A fluctuating level may indicate a temporary disturbance that is not from an interfering object

• Do not register False Echoes located below the product surface. It is recommended that registration be done when the tank is empty

7-7

Page 98

Rosemount 5400 Series

Registered False Echo

Amplitude, mV

Distance, m

Figure 7-6. Disturbing echoes can be filtered out by registration as False Echoes.

Reference Manual

00809-0100-4026, Rev FA

July 2009

The False Echo Registration function is available in the Rosemount Radar Master (RRM) program, in the AMS Suite, as well as for the 275/375 Handheld Communicator.

7-8

Page 99

Reference Manual

Device ConfigDevice Config

Tools

00809-0100-4026, Rev FA July 2009

Rosemount 5400 Series

USING THE ECHO CURVE ANALYZER

Figure 7-7. The Echo Curve function is a useful tool for signal analysis.

The Echo Curve in Rosemount Radar Master (RRM) shows the measurement

signal amplitude in the tank and includes the Echo Tuning functionality (see

“Echo Tuning” on page 5-10 for more information on false echo handling).

To plot the measurement signal:

1. Start the Rosemount Radar Master program.

2. Open Device Config/Tools (or Device Config/Setup).

3. Click the Echo Curve icon (see Figure 7-7).

4. The Echo Curve Analyzer window appears with the View/Record Mode

tab (or the Configuration Mode tab) selected.

7-9

Page 100

Rosemount 5400 Series

Set Threshold

Measure and Learn

Reference Manual

00809-0100-4026, Rev FA

July 2009

The Configuration Mode Tab

Figure 7-8. Echo Curve Analyzer plot in Configuration mode.

The Configuration Mode tab allows for adjustment of the different amplitude

thresholds. When clicking the Echo Curve icon under Device Config/Setup, the Echo Curve Analyzer window appears with the Configuration Mode tab

selected:

7-10

The Measure and Learn function in Rosemount Radar Master automatically creates an Amplitude Threshold Curve (ATC) used by the 5400 transmitter to find the surface pulse. The ATC is adapted to the shape of the measurement

signal as described in “Echo Tuning” on page 5-10. To create an Amplitude Threshold Curve (ATC), click the Learn button in the

Echo Curve Analyzer/Configuration Mode window. By clicking the Learn button, the Measure and Learn function is activated and creates an ATC that

filters out all disturbing echoes. The ATC can also be edited manually if further fine tuning is needed.

The Configuration Mode window also allows the changing of the amplitude

thresholds manually, simply by dragging the corresponding anchoring points in the plot to the desired positions.

Note that by changing the amplitude thresholds in the Echo Curve plot manually, the Automatic mode is disabled for the corresponding threshold.

The Set Thresholds button sets the ATC to a fixed value based on the

configured Dielectric Constant of the product.

To register a false echo, right-click and select Register as false echo.

Rosemount 5402, 5401 Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Section 1 Introduction

SAFETY MESSAGES Procedures and instructions in this manual may require special precautions to

MANUAL OVERVIEW This manual provides installation, configuration and maintenance information

SERVICE SUPPORT To expedite the return process outside of the United States, contact the

PRODUCT RECYCLING/DISPOSAL

Section 2 Transmitter Overview

THEORY OF OPERATION The Rosemount 5400 Series Radar Transmitter is a smart, two-wire

APPLICATION EXAMPLES

COMPONENTS OF THE TRANSMITTER

SYSTEM ARCHITECTURE

PROCESS CHARACTERISTICS

Dielectric constant

Foam Rosemount 5400 Series Radar Transmitter measurement in foamy

Turbulence A calm surface gives better reflection than a turbulent surface. For turbulent

Temperature/Pressure/ Density and Vapor

Condensation For applications where heavy condensation and vapors may occur, the low

Tank Characteristics The conditions inside the tank have a significant impact on measurement

ANTENNA SELECTION GUIDE/MEASURING RANGE

Section 3 Mechanical Installation

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

INSTALLATION PROCEDURE

MOUNTING CONSIDERATIONS

Mounting Location For optimal performance, the transmitter should be installed in locations with

Nozzle Considerations Special considerations may have to be taken because of the nozzle,

Nozzle Recommendations and Requirements

Service Space For easy access to the transmitter, mount it with sufficient service space.

Beamwidth

Vessel Characteristics Heating coils, agitators and other objects in the tank may lead to disturbing

Disturbing Objects The Rosemount 5400 Series transmitter should be mounted so that objects

Valves The 5400 Series transmitter can be isolated from the process by using a

MOUNTING Mount the transmitter on a nozzle on top of the tank making sure only

Cone Antenna Flange Connection

Process Seal antenna

Rod Antenna Threaded Connection

Rod Antenna Flanged Connection

Bracket Mounting on Wall

Bracket Mounting on Pipe

Mounting in Pipes Still-pipe mounting is recommended for tanks with extremely turbulent surface

Section 4 Electrical Installation

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

CABLE/CONDUIT ENTRIES

Conduit Electrical Connector Wiring (using Minifast®)

GROUNDING The housing should always be grounded according to national and local

CABLE SELECTION Use shielded twisted pair wiring for the Rosemount 5400 Series. The cables

HAZARDOUS AREAS When the Rosemount 5400 Series transmitter is installed in a hazardous

EXTERNAL CIRCUIT BREAKER

POWER REQUIREMENTS

CONNECTING THE TRANSMITTER

NON-INTRINSICALLY SAFE POWER SUPPLY

INTRINSICALLY SAFE POWER SUPPLY

751 Field Signal Indicator

Section 5 Basic Configuration/Start-Up

SAFETY MESSAGES Procedures and instructions in this section may require special precautions to

OVERVIEW Configuration of a Rosemount 5400 transmitter is normally a simple and

Basic Configuration Parameters

Configuration Tools There are several tools available for basic configuration of a 5400 transmitter:

BASIC CONFIGURATION PARAMETERS

Measurement Units Measurement units can be specified for presentation of Level, Level Rate,

Tank Geometry Tank Height

Process Conditions Describe the conditions of the tank according to the Tank Environment

Volume Configuration For volume calculations, choose one of the standard tank shapes or the

Analog Output For the analog output. the Output Source (Primary Value), Range Values, and

Echo Tuning When Basic Configuration is performed, the transmitter may need to be tuned

Amplitude Threshold Curve

BASIC CONFIGURATION USING ROSEMOUNT RADAR MASTER

System Requirements Hardware

Help in RRM Help is accessed by selecting the Contents option from the Help menu. Help

Installing the RRM software for HART communication

Specifying the COM Port If communication is not established, open the Communication Preferences

To set the COM port buffers

Specifying Measurement Units

Guided Setup The following description tells how to use the RRM Guided Setup. The

Using the Setup Functions

CONFIGURATION USING A 375 FIELD COMMUNICATOR

BASIC CONFIGURATION USING AMS SUITE
